  1. Local Area Networks

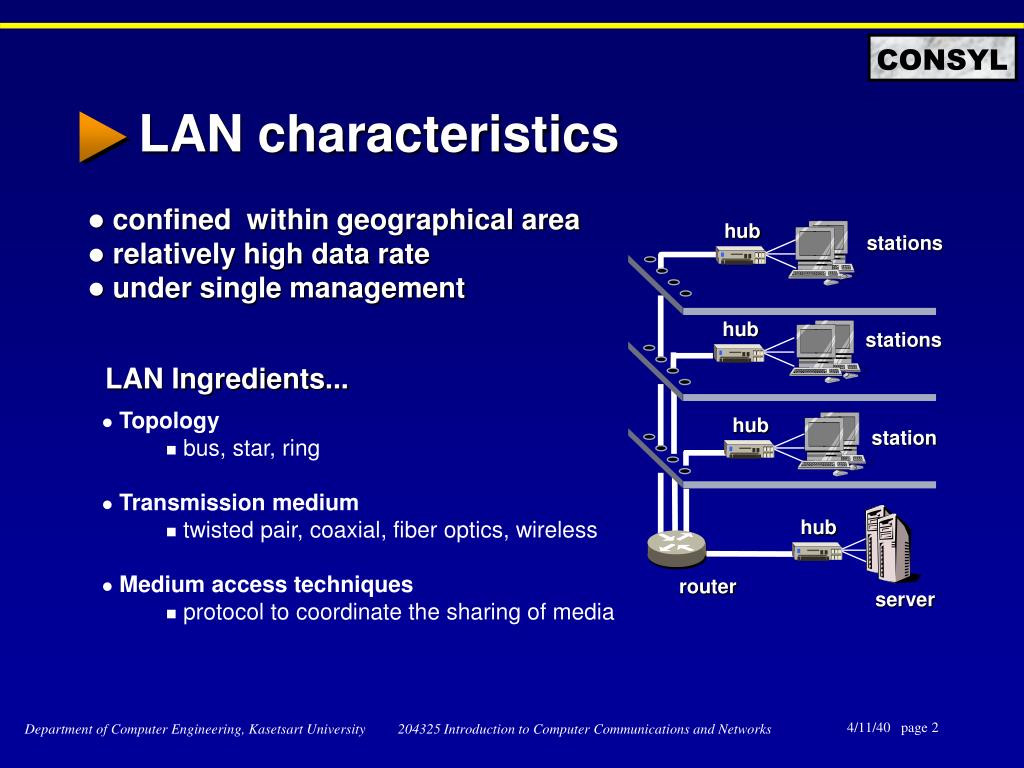

  2. hub hub hub hub LAN characteristics • confined within geographical area • relatively high data rate • under single management stations stations LAN Ingredients... • Topology • bus, star, ring • Transmission medium • twisted pair, coaxial, fiber optics, wireless • Medium access techniques • protocol to coordinate the sharing of media station router server

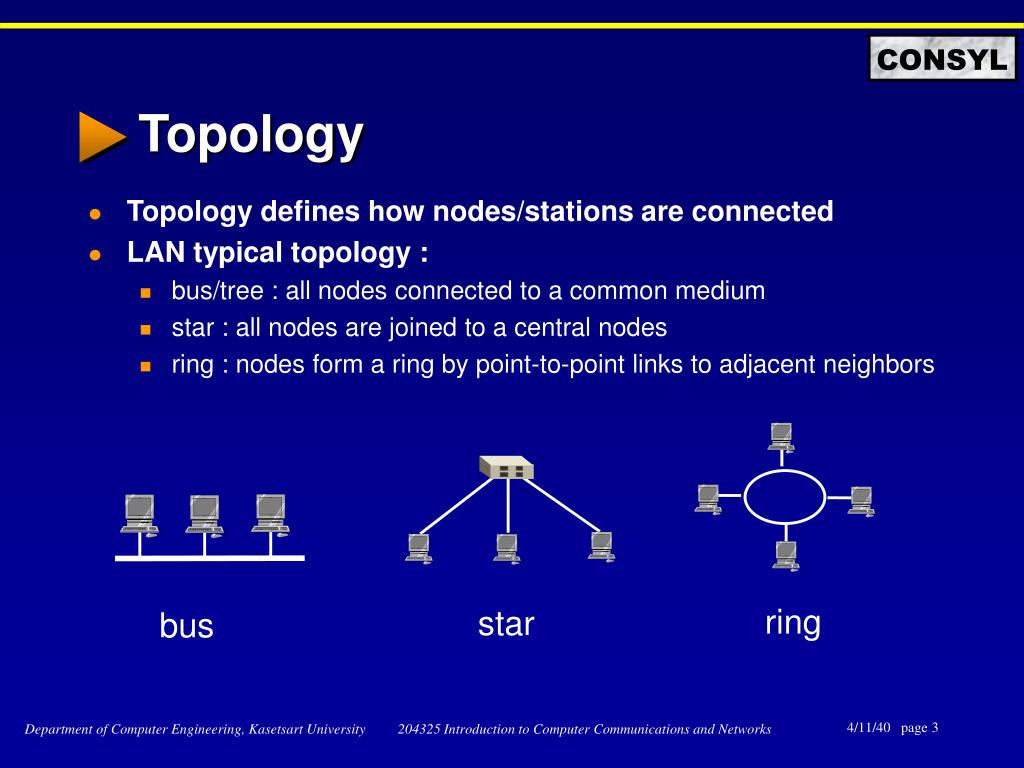

  3. Topology • Topology defines how nodes/stations are connected • LAN typical topology : • bus/tree : all nodes connected to a common medium • star : all nodes are joined to a central nodes • ring : nodes form a ring by point-to-point links to adjacent neighbors ring star bus

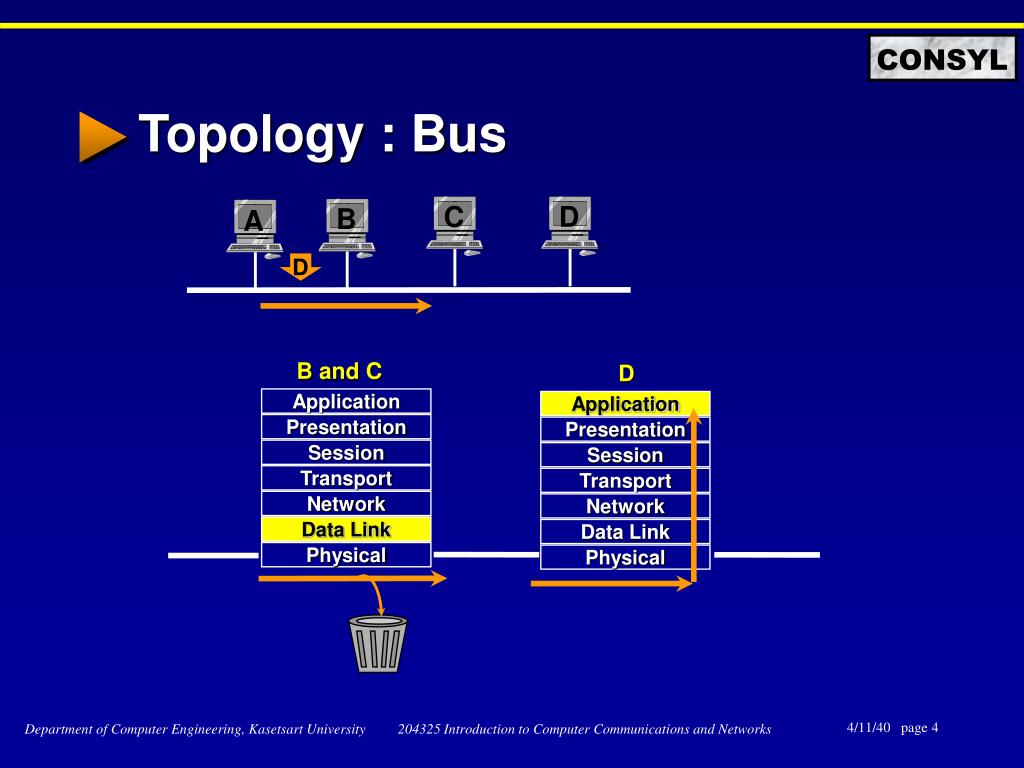

  4. Topology : Bus C D B A D B and C D Application Application Presentation Presentation Session Session Transport Transport Network Network Data Link Data Link Physical Physical

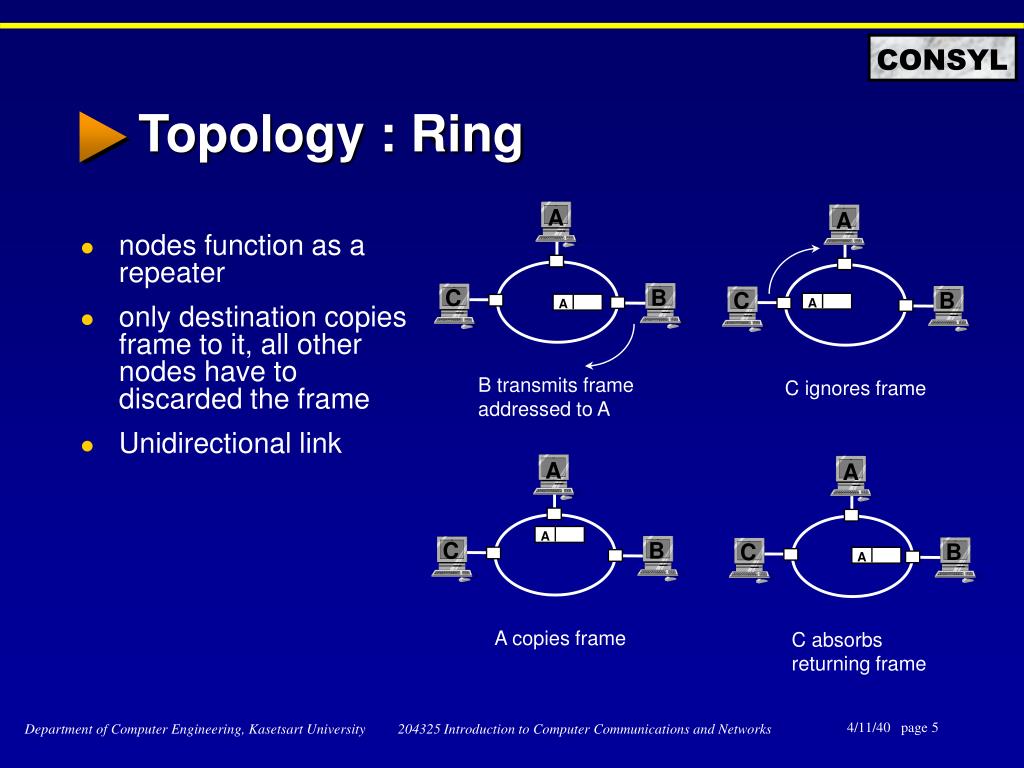

  5. A A A A Topology : Ring A A • nodes function as a repeater • only destination copies frame to it, all other nodes have to discarded the frame • Unidirectional link C B C B B transmits frame addressed to A C ignores frame A A C B C B A copies frame C absorbs returning frame

  6. A A A A Topology : Star • Each station attaches to the central node • Two point-to-point links for tranmitting and receiving • Two alternatives operation • broadcasting • switching shared hub broadcast packet to every ports but only destination copies frame A C B A B C switch hub retransmitts packet to the destination only C transmitts frame addressed to A A B C

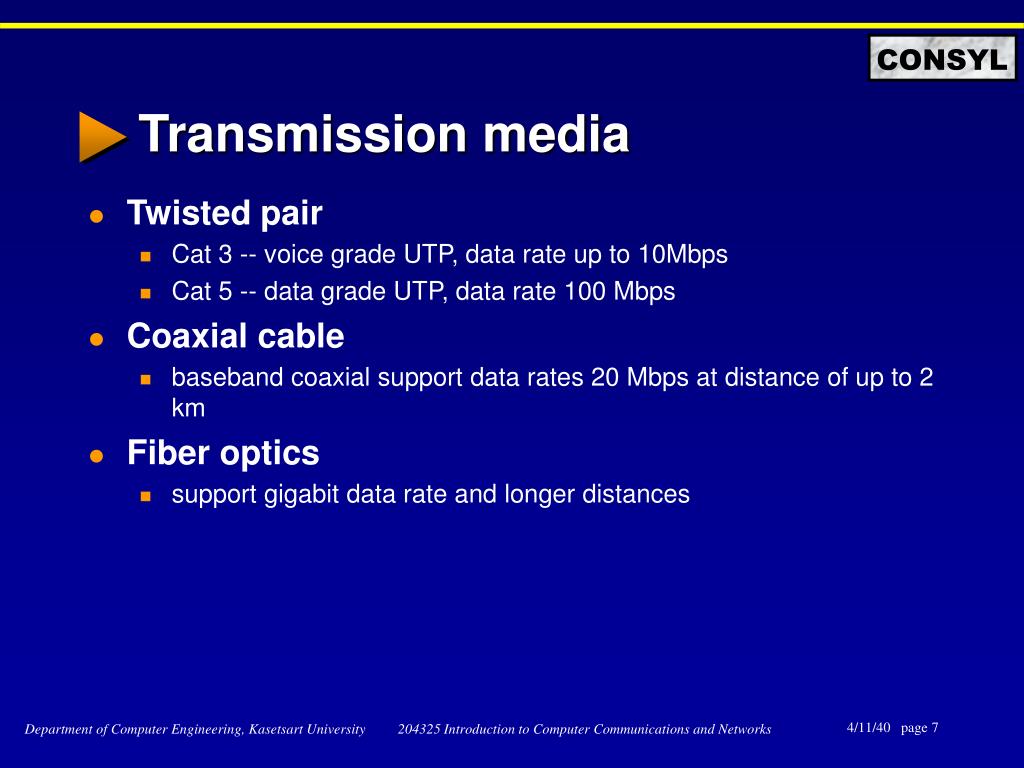

  7. Transmission media • Twisted pair • Cat 3 -- voice grade UTP, data rate up to 10Mbps • Cat 5 -- data grade UTP, data rate 100 Mbps • Coaxial cable • baseband coaxial support data rates 20 Mbps at distance of up to 2 km • Fiber optics • support gigabit data rate and longer distances

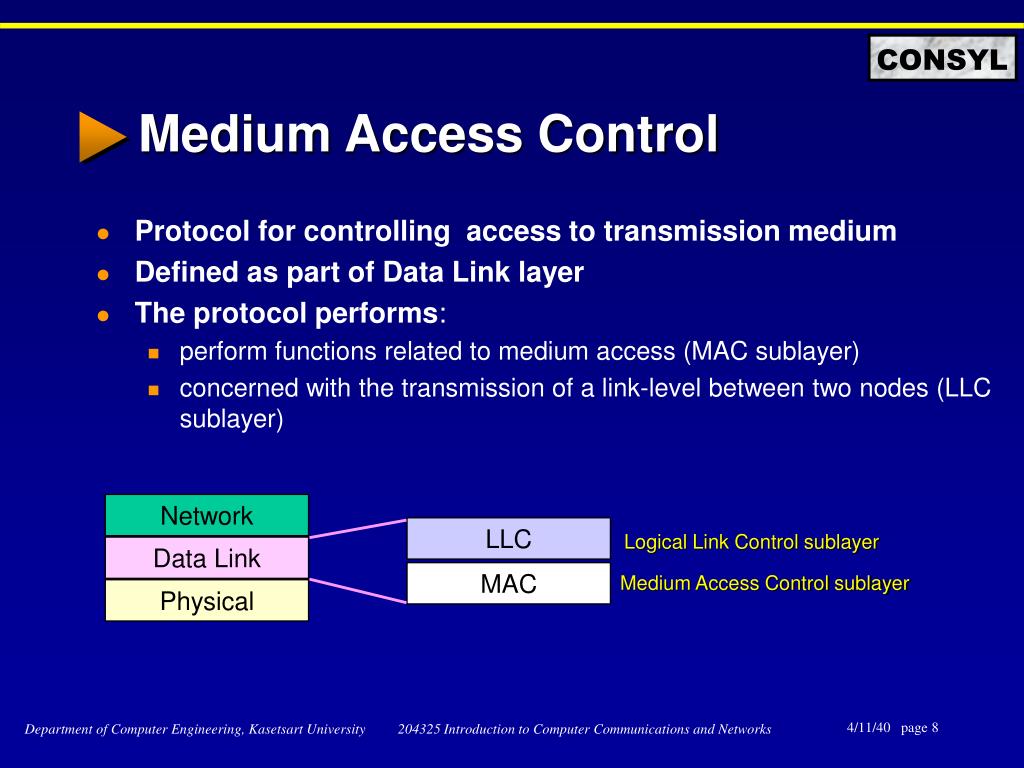

  8. Medium Access Control • Protocol for controlling access to transmission medium • Defined as part of Data Link layer • The protocol performs: • perform functions related to medium access (MAC sublayer) • concerned with the transmission of a link-level between two nodes (LLC sublayer) Network LLC Logical Link Control sublayer Data Link MAC Medium Access Control sublayer Physical

  9. LLC Sublayer Functions • Provides a compatibility interface, irrespective of the MAC layer used. • Service Access Points (SAPs) interface sublayers to upper-layer functions • Optional connection, flow control, and sequencing services

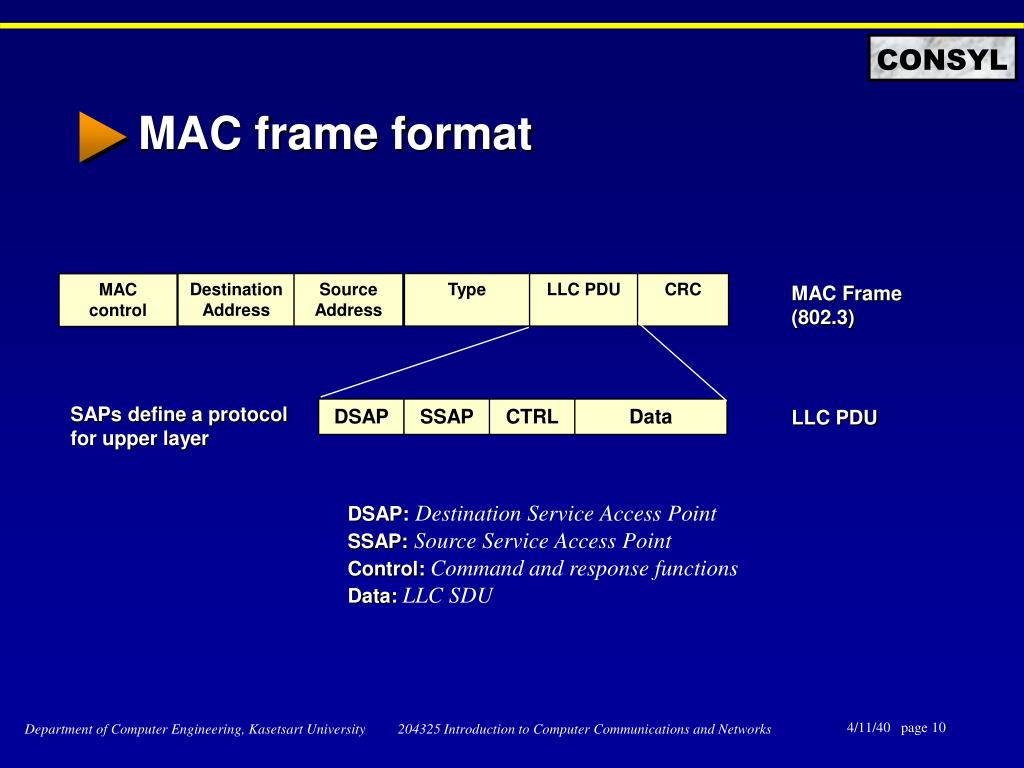

  10. Destination Address Source Address Type LLC PDU CRC MAC control DSAP SSAP CTRL Data MAC frame format MAC Frame (802.3) SAPs define a protocol for upper layer LLC PDU DSAP: Destination Service Access Point SSAP: Source Service Access Point Control: Command and response functions Data: LLC SDU

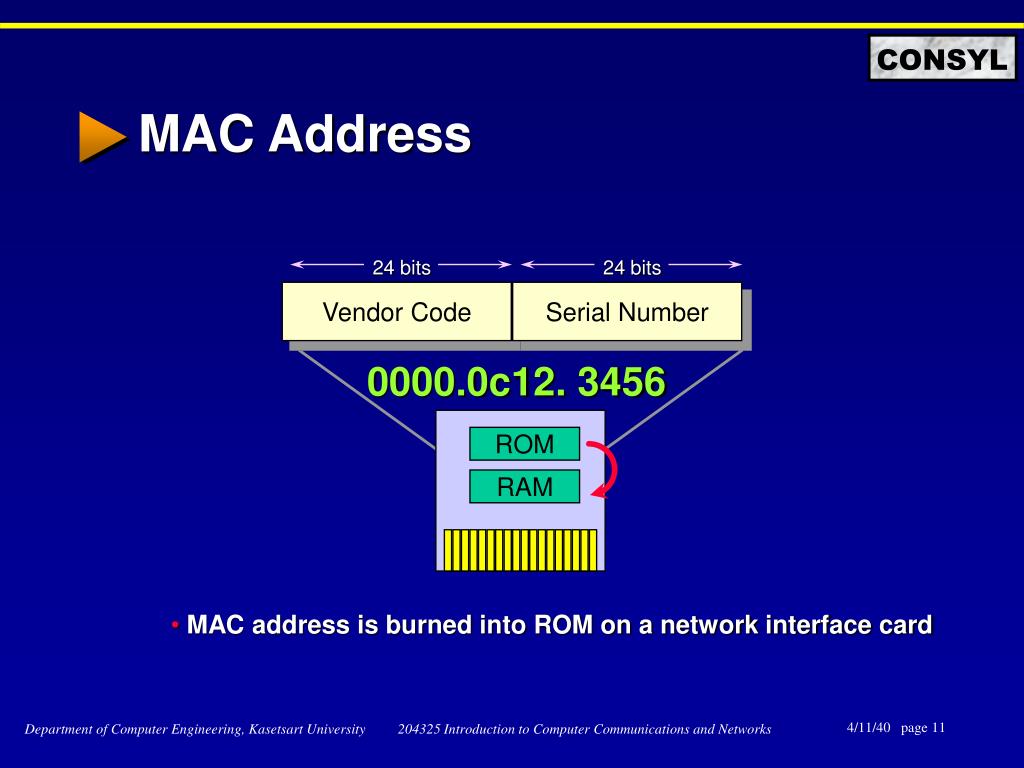

  11. 24 bits 24 bits Vendor Code Serial Number MAC Address 0000.0c12. 3456 ROM RAM • MAC address is burned into ROM on a network interface card

  12. MAC Strategies • Where? • centralized : a designated station has an authurity to grant access to the network • distributed : stations can dynamically determined transmission order • How? • Sychronous : dedicated specific capacity to a conection • Asynchronous : dynamic allocate capacity (3 categories available) • Round-robin • Reservation • Contention

  13. MAC techniques • Contention • Medium is free for all • A node senses the free medium and occupies it • Example: Ethernet, IEEE 802.3 • Round robin • Give every body a turn • Inefficient for lightly loaded network • Example: Token Ring/IEEE 802.5, Token Bus/IEEE 802.4, FDDI • Reservation • schedule a time slot like TDM • Example: DQDB

  14. 802.2 LLC FDDI 802.3 CSMA/CD 802.4 Token Bus 802.5 Token Ring 802.6 DQDB Overview of LAN Standard • 802.1 Overview • 802.2 Logical Link Control • 802.3 CSMA/CD (Ethernet) • 802.4 Token Bus • 802.5 Token Ring • 802.6 Distributed Queue Dual BUS --MAN standard • FDDI Fiber Distributed Data Interface

  15. A A A Ethenet/802.3 Operation • Every node can receive a transmission by all other nodes • need addressing scheme to identify a destination • only destination copies frame to it, all other nodes have to discarded the frame C B A C B A terminator C finds the bus is free C transmits frame addressed to A C C B B A A A copies frame B ignores frame signal is absorbed by the terminators

  16. Token Ring/802.5 Operation T T = 0 T = 0 A A T T = 1 A T Data • Token Ring LANs continuously pass a token or a Token Ring frame

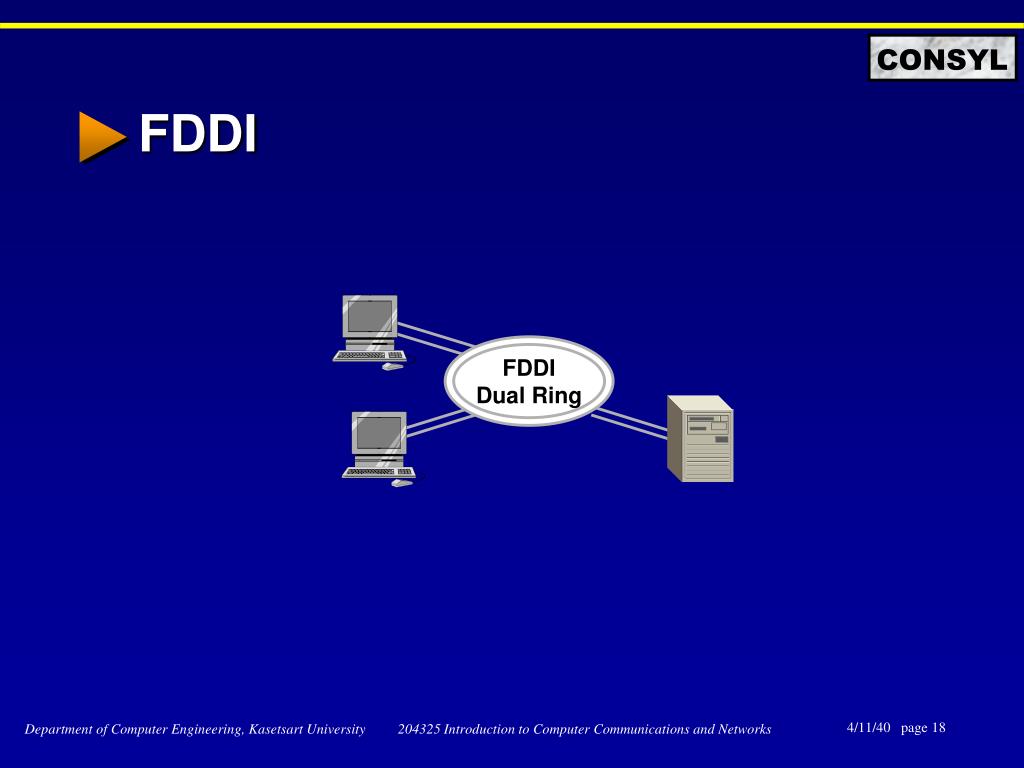

  17. FDDI FDDI Dual Ring

  18. DSAP 1 SSAP 1 CTRL 1 Data >=0 Preamble 16 SD 2 FC 2 DA 12 SA 12 802.2 LLC FCS 8 ED 1 or 2 FS 1 SD 1 AC 1 FC 1 DA 6 SA 6 802.2 LLC FCS 4 ED 1 FS 1 Preamble 8 DA 6 SA 6 Length 2 802.2 LLC FCS 4 Preamble 8 DA 6 SA 6 Type 2 Data FCS 4 LAN Frame Format Summary 802.2 LLC FDDI FDDI uses 4-bits symbols 802.5 802.3 Ethernet
