Software Verification 1 Deductive Verification

1. Software Verification 1Deductive Verification Prof. Dr. Holger Schlingloff Institut für Informatik der Humboldt Universität und Fraunhofer Institut für Rechnerarchitektur und Softwaretechnik

2. Propositional Logic • A formal specification method consists of three parts • syntax, i.e., what are well-formed specifications • semantics, i.e., what is the meaning of a specification • calculus, i.e., what are transformations or deductions of a specification • Propositional logic: probably the first and most widely used specification method • dates back to Aristotle, Chrysippus, Boole, Frege, … • base of most modern logics • fundamental for computer science

3. Syntax of Propositional Logic • Let Ρbe a finite set {p1,…,pn} of propositions and assume that ,  and (, ) are not inΡ • Syntax PL ::= Ρ |  | (PL  PL) • every p is a wff •  is a wff („falsum“) • if  and  are wffs, then () is a wff • nothing else is a wff

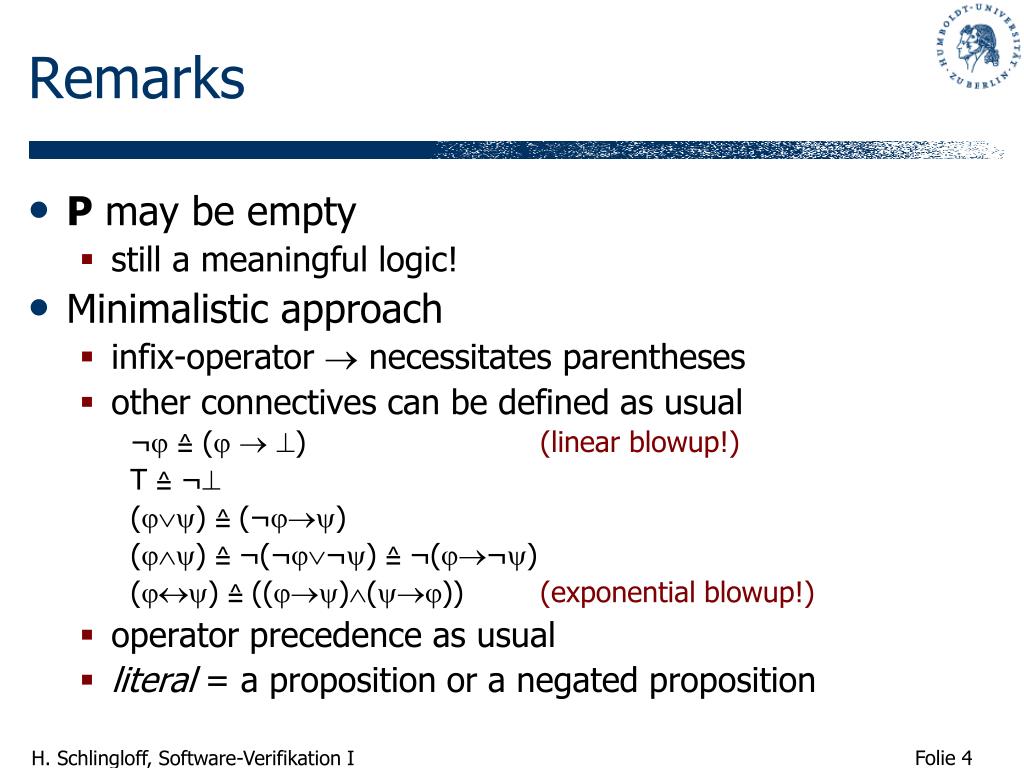

4. Remarks • Ρ may be empty • still a meaningful logic! • Minimalistic approach • infix-operator  necessitates parentheses • other connectives can be defined as usual ¬ ≙ (  ) (linear blowup!) Τ≙ ¬ () ≙(¬) () ≙¬(¬¬) ≙¬(¬) () ≙(()()) (exponential blowup!) • operator precedence as usual • literal = a proposition or a negated proposition

5. Exercise • Abbreviations ¬ ≙ (  ) also ~ Τ≙ ¬ () ≙(¬) also (+), (|), (v) () ≙¬(¬¬) ≙¬(¬) also (*), (&), (^) () ≙(()()) also ( <-> ), (<=>) • Write ((pq)  ¬p) unabbreviated

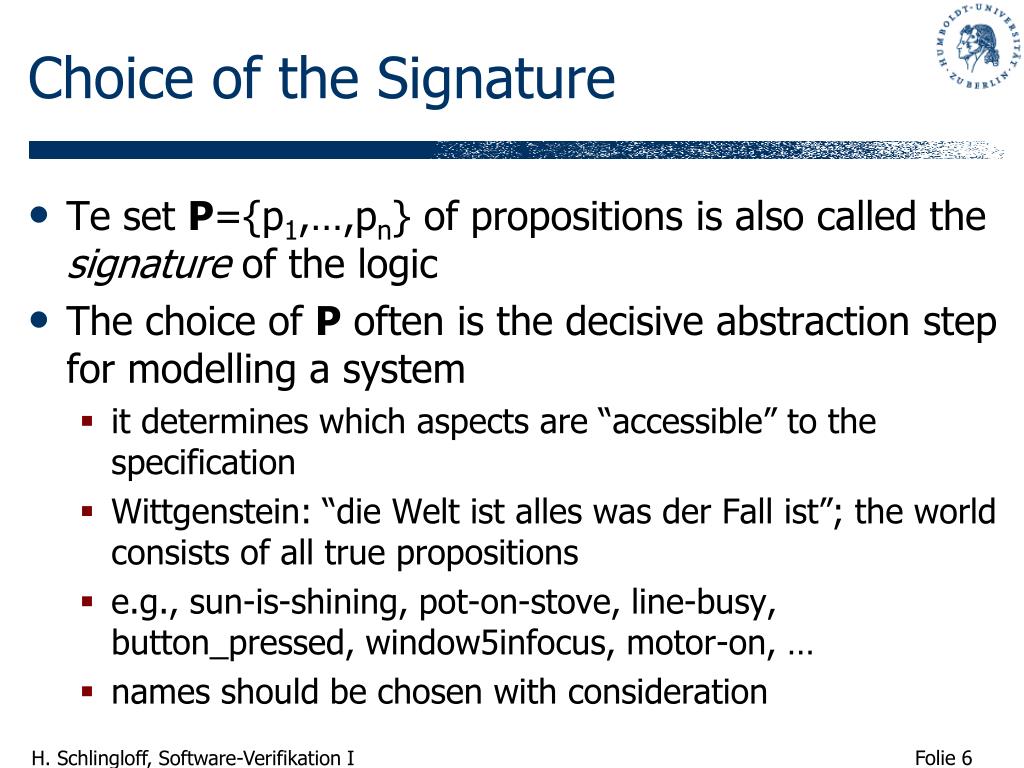

6. Choice of the Signature • Te set Ρ={p1,…,pn} of propositions is also called the signature of the logic • The choice of Ρ often is the decisive abstraction step for modelling a system • it determines which aspects are “accessible” to the specification • Wittgenstein: “die Welt ist alles was der Fall ist”; the world consists of all true propositions • e.g., sun-is-shining, pot-on-stove, line-busy, button_pressed, window5infocus, motor-on, … • names should be chosen with consideration

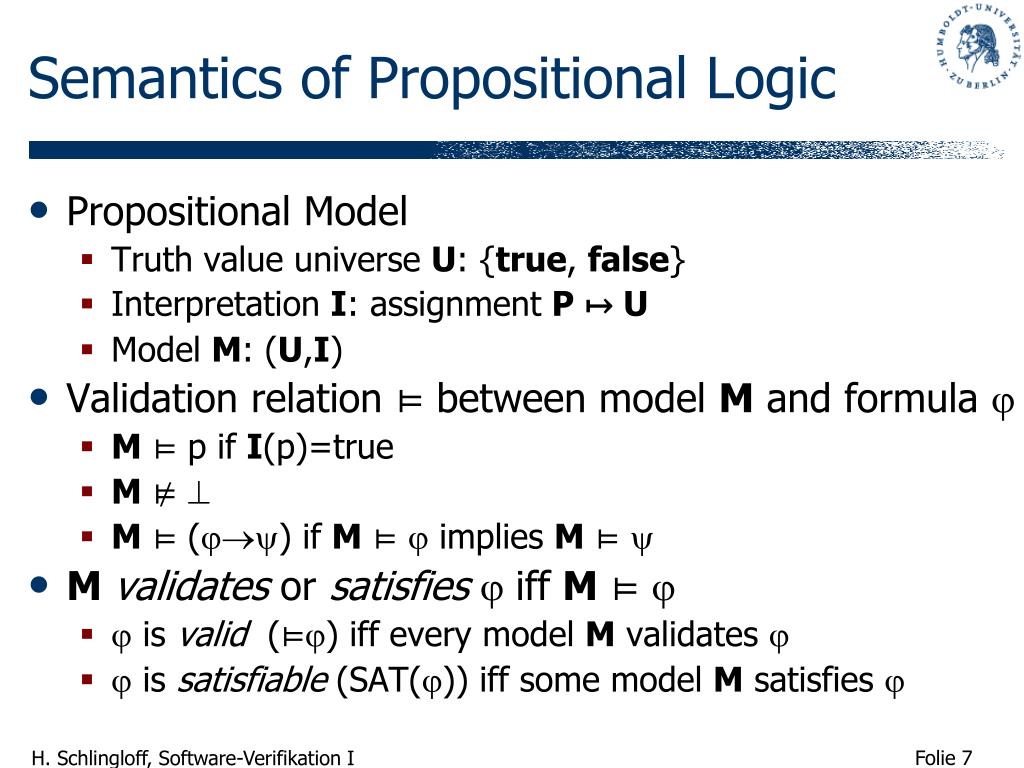

7. Semantics of Propositional Logic • Propositional Model • Truth value universe U: {true, false} • Interpretation I: assignment Ρ↦ U • Model M: (U,I) • Validation relation ⊨ between model M and formula  • M ⊨ p if I(p)=true • M ⊭  • M ⊨ () if M ⊨  implies M ⊨  • M validates or satisfiesiff M ⊨  •  is valid (⊨) iff every model M validates  •  is satisfiable (SAT()) iff some model M satisfies 

8. Propositional Calculus • Various calculi have been proposed • boolean satisfiability (SAT) algorithms • tableau systems, natural deduction, • enumeration of valid formulæ • Hilbert-style axiom system ⊢ (()) (weakening) ⊢ ((()) (()())) (distribution) ⊢ (¬¬) (excluded middle) , () ⊢  (modus ponens) • Derivability • All substitution instances of axioms are derivable • If all antecedents of a rule are derivable, so is the consequent

9. An Example Derivation Show ⊢ (pp) • ⊢(p((pp)p))((p(pp))(pp)) (dis) • ⊢(p((pp)p)) (wea) • ⊢((p(pp))(pp)) (1,2,mp) • ⊢(p(pp)) (wea) • ⊢(pp) (3,4,mp)

10. Correctness and Completeness • Correctness: ⊢  ⊨ Only valid formulæ can be derived • Induction on the length of the derivation • Show that all axiom instances are valid, and thatthe consequent of (mp) is valid if both antecedents are • Completeness: ⊨  ⊢ All valid formulæ can be derived • Show that consistent formulæ are satisfiable~⊢¬  ~⊨¬

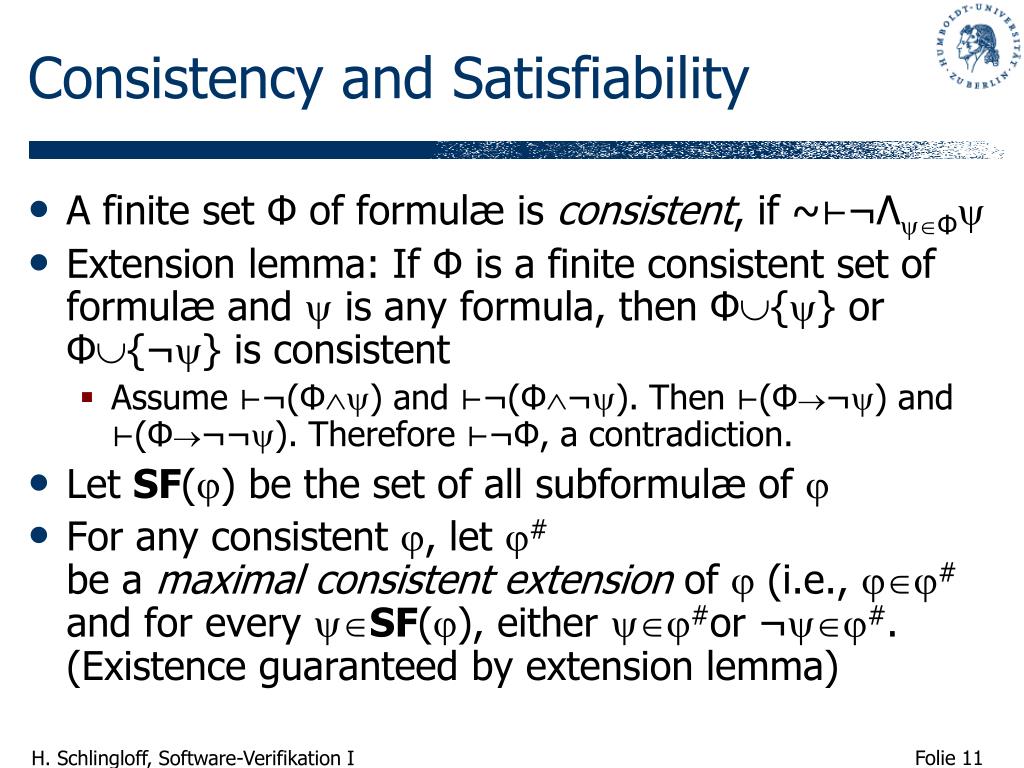

11. Consistency and Satisfiability • A finite set Φ of formulæ is consistent, if ~⊢¬ΛΦ • Extension lemma: If Φ is a finite consistent set of formulæ and  is any formula, then Φ{} or Φ{¬} is consistent • Assume ⊢¬(Φ) and ⊢¬(Φ¬). Then ⊢(Φ¬) and ⊢(Φ¬¬). Therefore ⊢¬Φ, a contradiction. • Let SF() be the set of all subformulæ of  • For any consistent , let # be a maximal consistent extension of  (i.e., # and for every SF(), either #or ¬#. (Existence guaranteed by extension lemma)

12. Canonical models • For a maximal consistent set #, the canonical modelCM(#) is defined by I(p)=true iff p#. • Truth lemma: For any SF(), I()=true iff # • Case =p: by construction • Case =: Φ{} cannot be consistent • Case =(12): by induction hypothesis and derivation • Therefore, if  is consistent, then for any maximal consistent set #, CM(#)⊨ • any consistent formula is satisfiable • any unsatisfiable formula is inconsistent • any valid formula is derivable

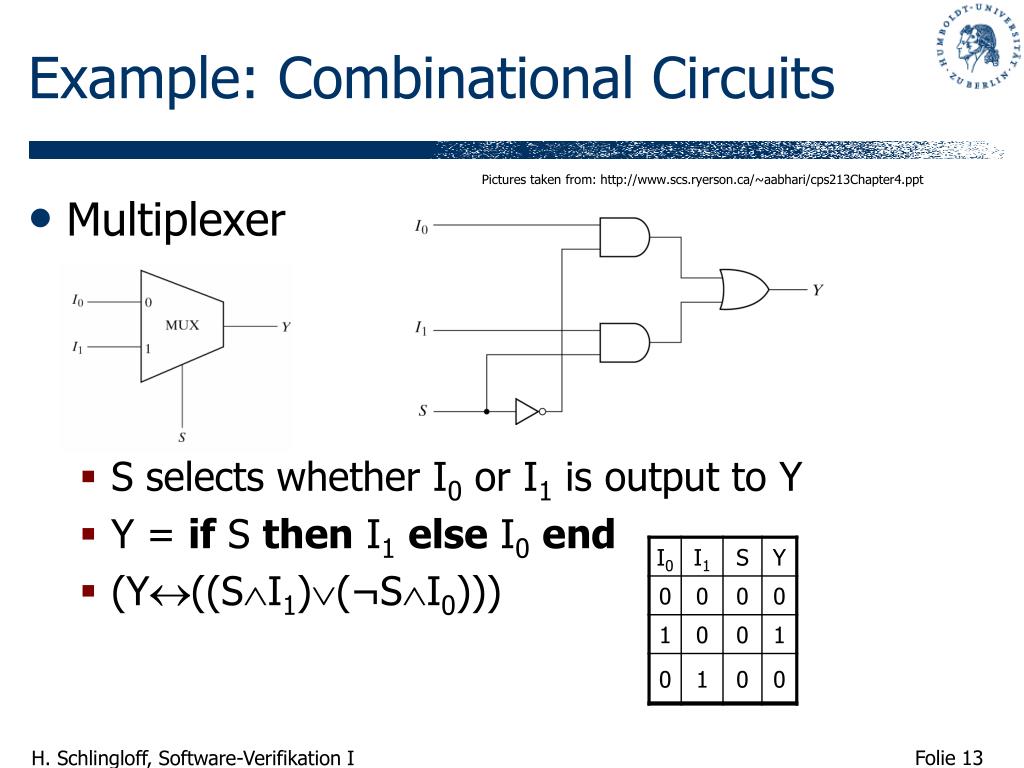

13. Example: Combinational Circuits Pictures taken from: http://www.scs.ryerson.ca/~aabhari/cps213Chapter4.ppt • Multiplexer • S selects whether I0 or I1 is output to Y • Y = if S then I1else I0end • (Y((SI1)(¬SI0)))

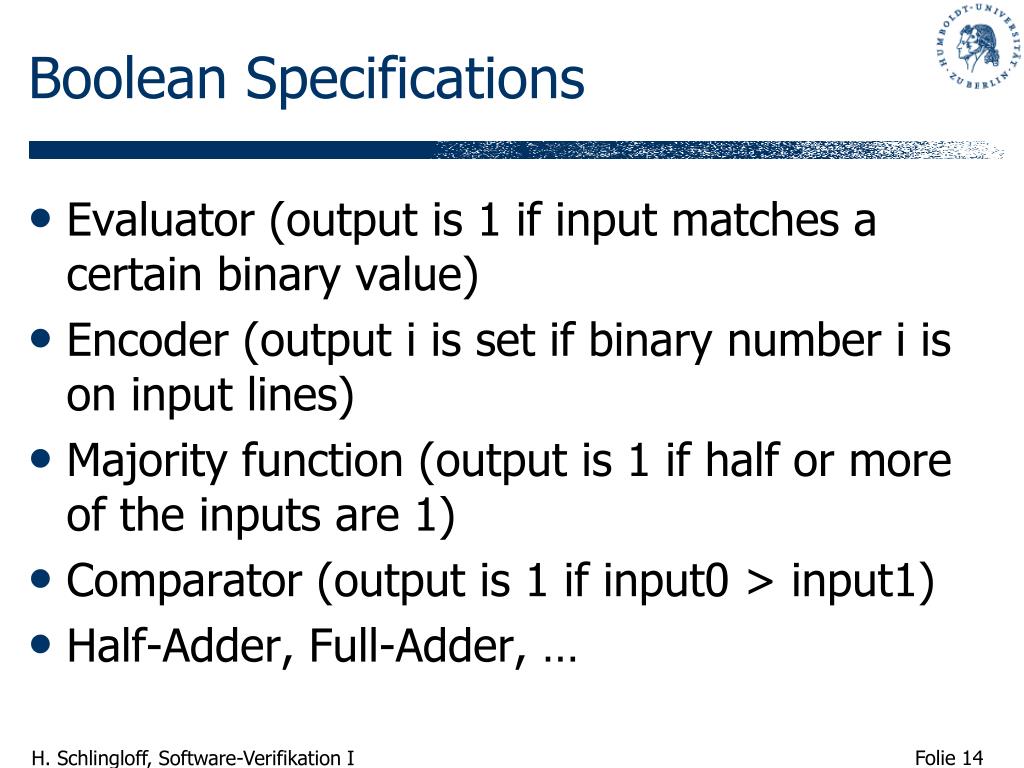

14. Boolean Specifications • Evaluator (output is 1 if input matches a certain binary value) • Encoder (output i is set if binary number i is on input lines) • Majority function (output is 1 if half or more of the inputs are 1) • Comparator (output is 1 if input0 > input1) • Half-Adder, Full-Adder, …

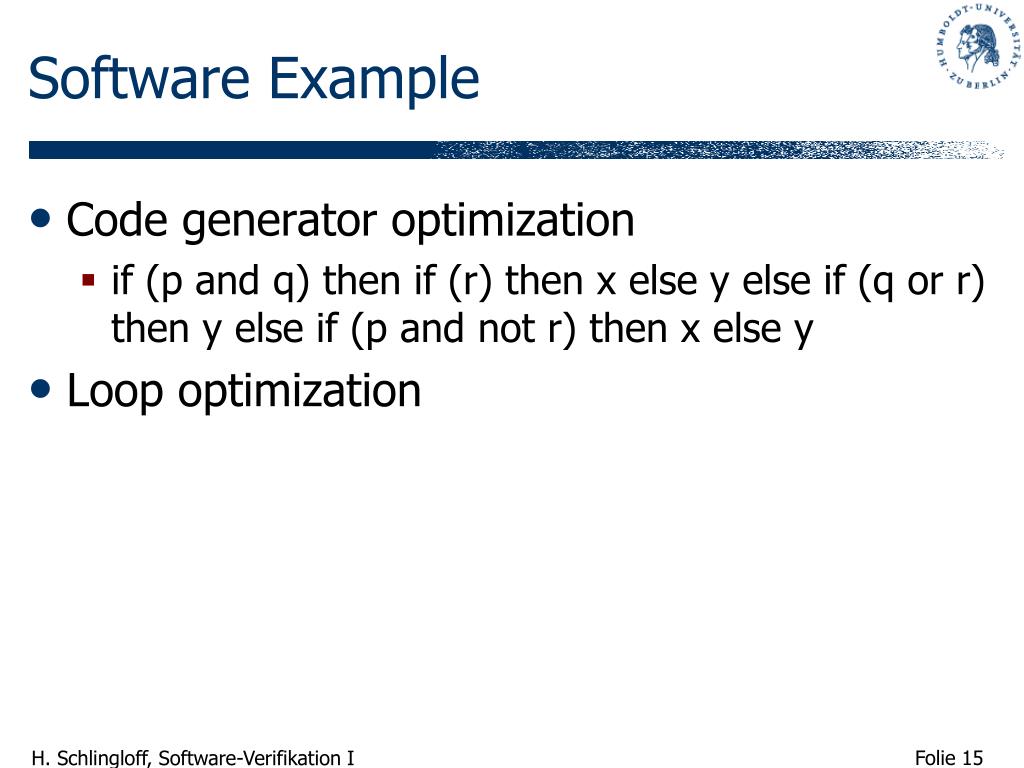

15. Software Example • Code generator optimization • if (p and q) then if (r) then x else y else if (q or r) then y else if (p and not r) then x else y • Loop optimization

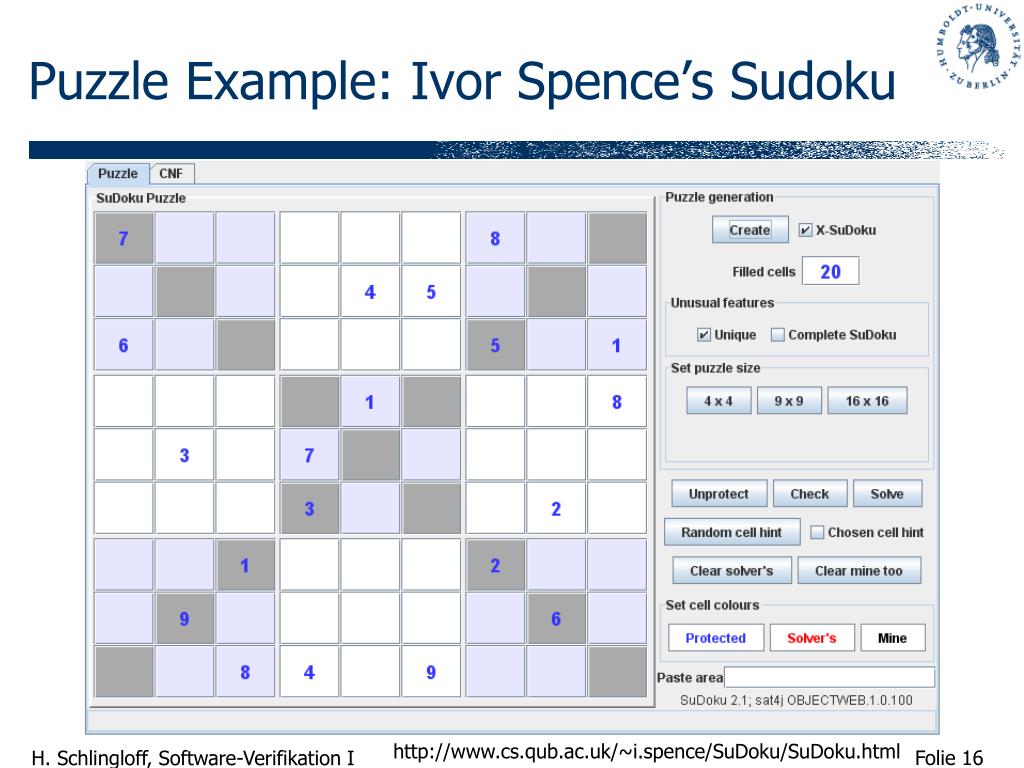

16. Puzzle Example: Ivor Spence’s Sudoku http://www.cs.qub.ac.uk/~i.spence/SuDoku/SuDoku.html

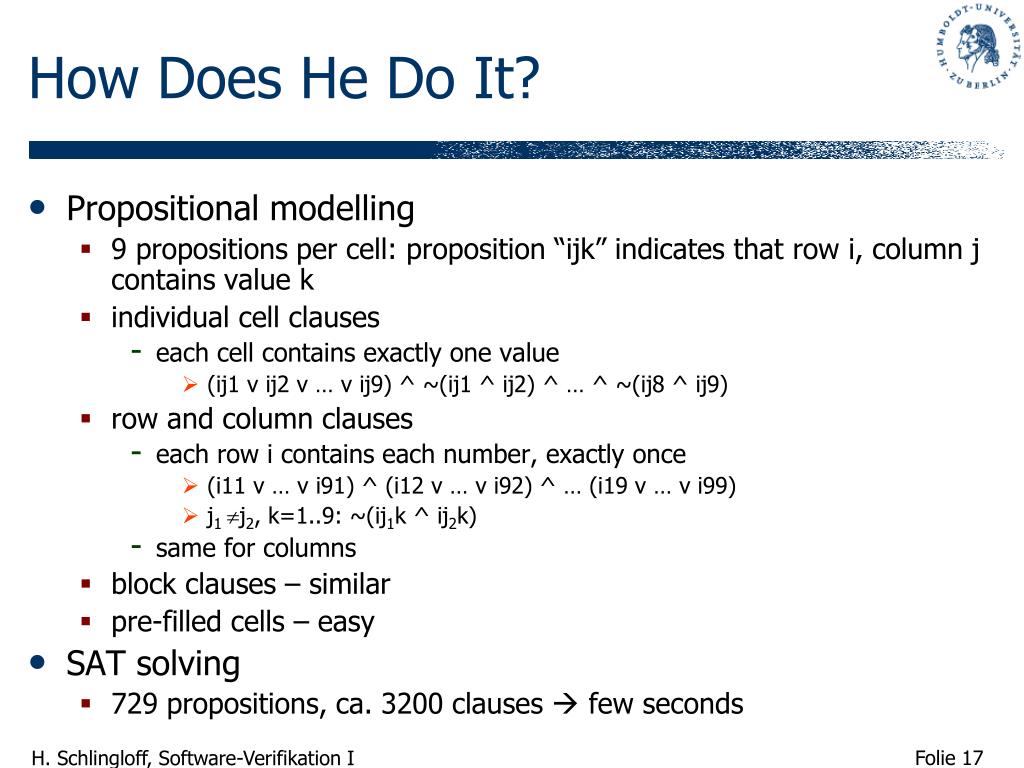

17. How Does He Do It? • Propositional modelling • 9 propositions per cell: proposition “ijk” indicates that row i, column j contains value k • individual cell clauses • each cell contains exactly one value • (ij1 v ij2 v … v ij9) ^ ~(ij1 ^ ij2) ^ … ^ ~(ij8 ^ ij9) • row and column clauses • each row i contains each number, exactly once • (i11 v … v i91) ^ (i12 v … v i92) ^ … (i19 v … v i99) • j1 j2, k=1..9: ~(ij1k ^ ij2k) • same for columns • block clauses – similar • pre-filled cells – easy • SAT solving • 729 propositions, ca. 3200 clauses  few seconds

18. Verification of Boolean Functions • Latch-Up: can a certain line go up? • does (¬L0) hold? • is (L0) satisfiable? • Given , ; does () hold? • usually reduced to SAT: is ((¬)(¬)) satisfiable? • efficient SAT-solver exist (annual competition) • partitioning techniques • any output depends only on some inputs • find which ones • generate test patterns (BIST: built-in-self-test)

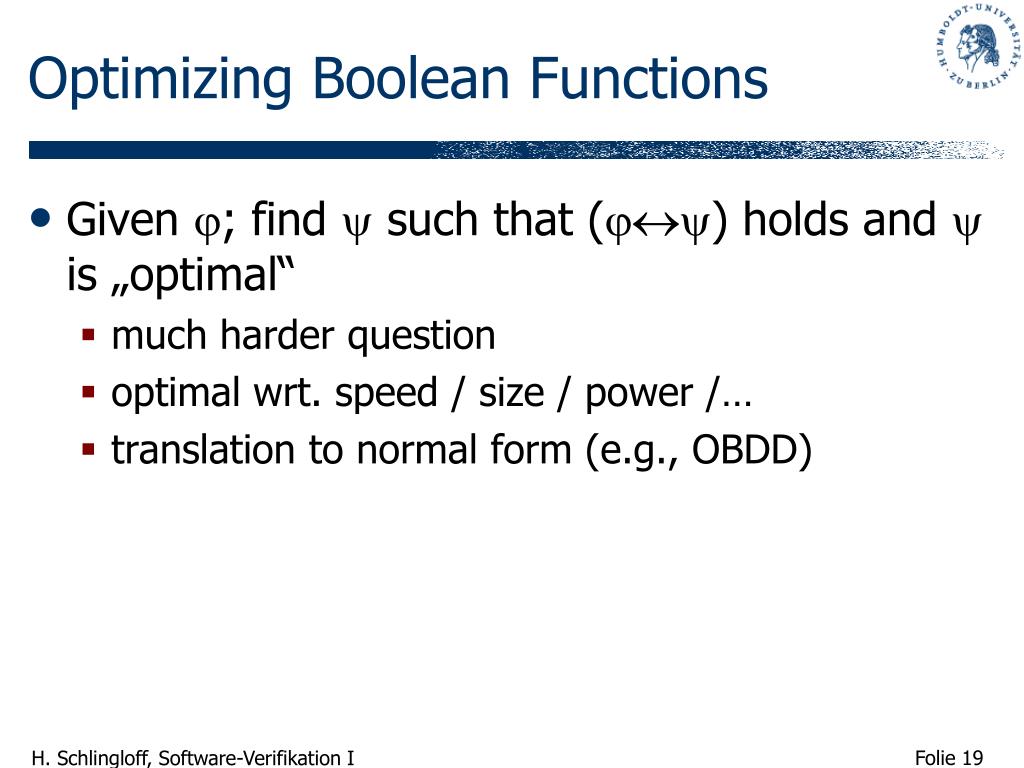

19. Optimizing Boolean Functions • Given ; find  such that () holds and  is „optimal“ • much harder question • optimal wrt. speed / size / power /… • translation to normal form (e.g., OBDD)
