  1. Specification Phase Chapter Ten UHD-CMS-CH10

  2. SPECIFICATION DOCUMENT The specification document must be • Informal enough for client • Formal enough for developers • Free of omissions, contradictions, ambiguities UHD-CMS-CH10

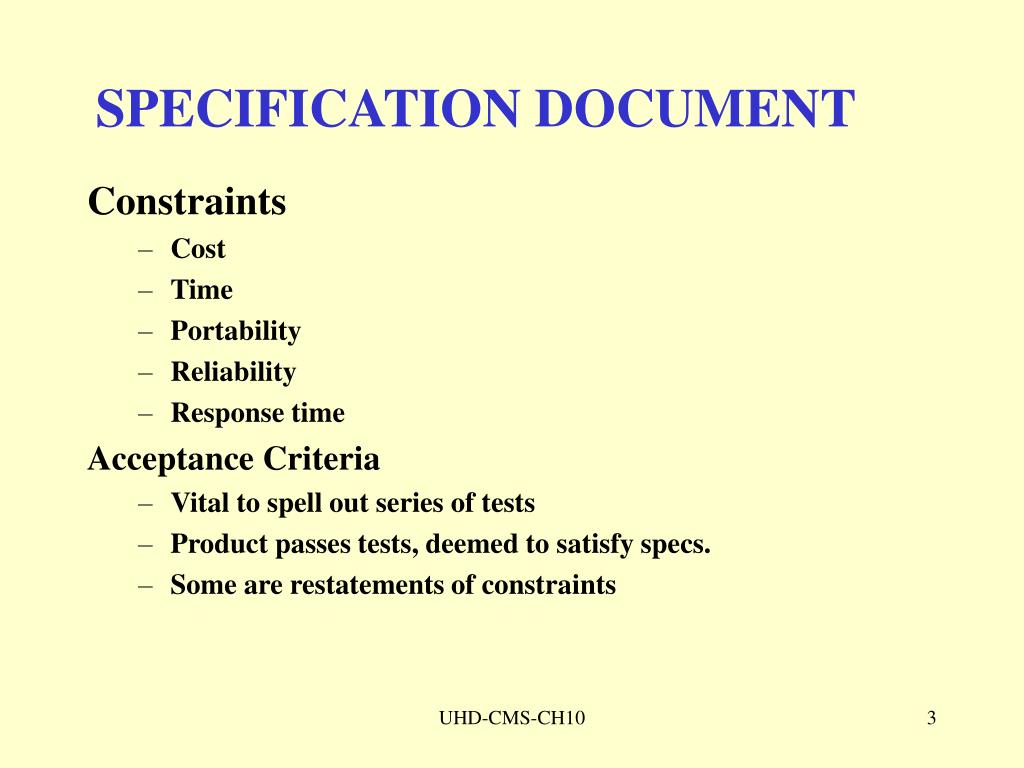

  3. SPECIFICATION DOCUMENT Constraints • Cost • Time • Portability • Reliability • Response time Acceptance Criteria • Vital to spell out series of tests • Product passes tests, deemed to satisfy specs. • Some are restatements of constraints UHD-CMS-CH10

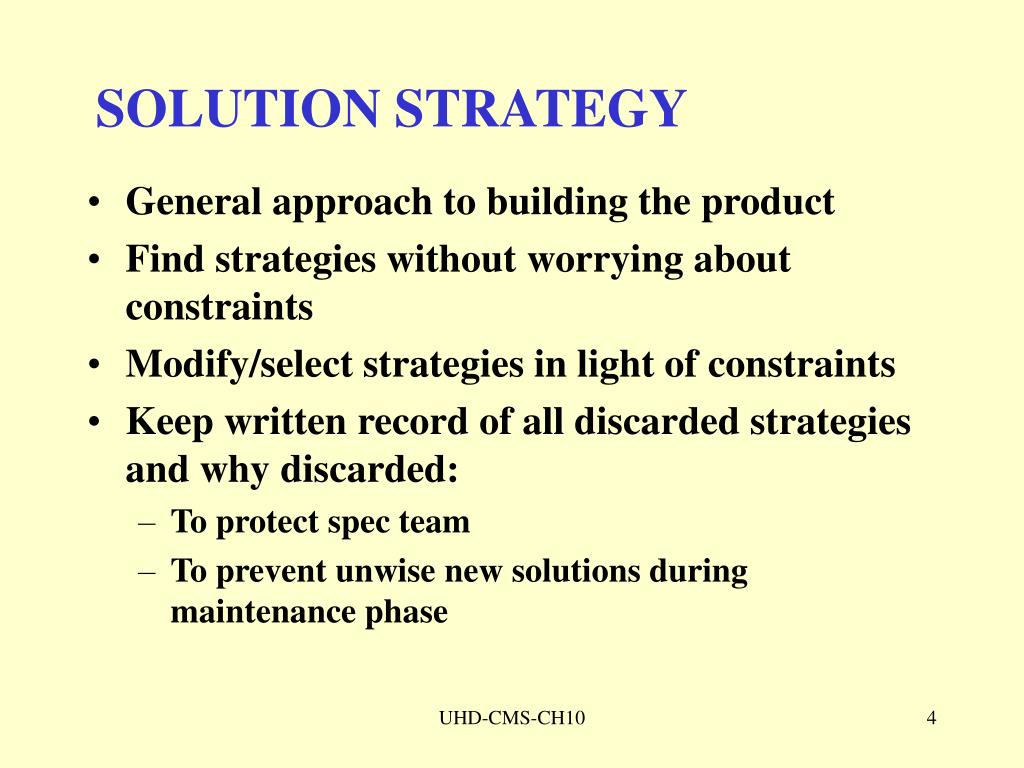

  4. SOLUTION STRATEGY • General approach to building the product • Find strategies without worrying about constraints • Modify/select strategies in light of constraints • Keep written record of all discarded strategies and why discarded: • To protect spec team • To prevent unwise new solutions during maintenance phase UHD-CMS-CH10

  5. SPECIFICATION METHODS • Informal • Semi-formal • formal UHD-CMS-CH10

  6. INFORMAL SPECIFICATIONS Example: “if sales of current month are below target sales, then report is to be printed, unless difference between target sales and actual sales is less than half of difference between target sales and actual sales in previous month, or if difference between target sales and actual sales for the current month is under 5%” UHD-CMS-CH10

  7. INFORMAL SPECIFICATIONS • Based on Natural Languages • Can be ambiguous Claim: • ambiguity can not arise when specs done by professionals Refutation: • Text Processing case (see textbook) UHD-CMS-CH10

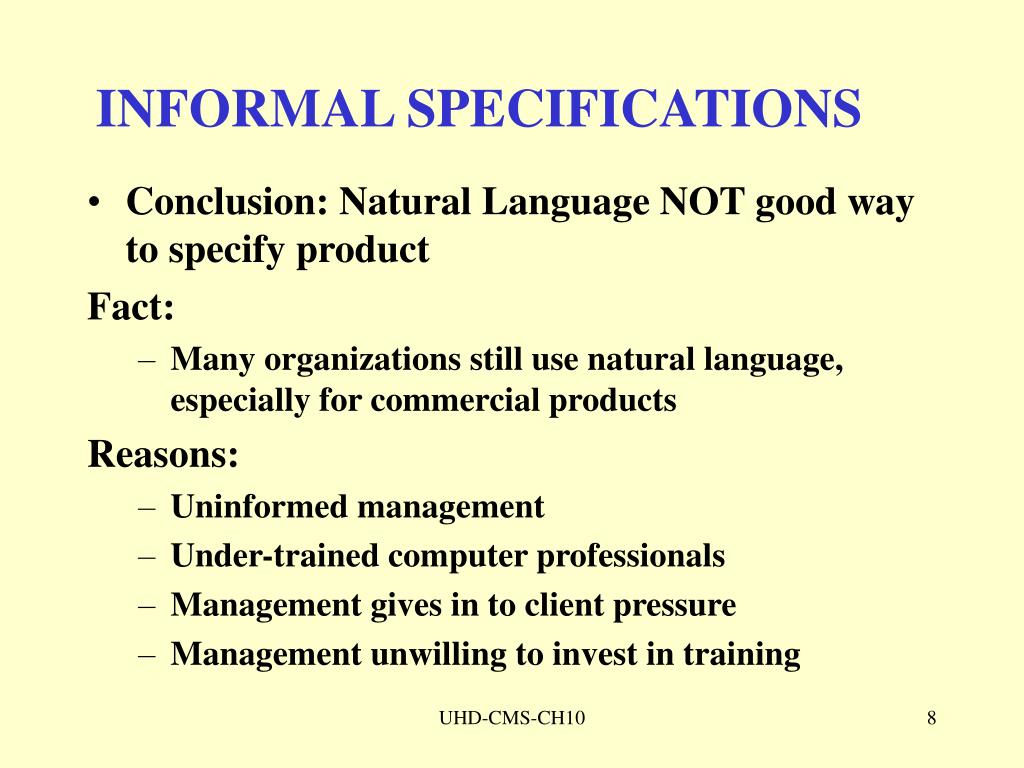

  8. INFORMAL SPECIFICATIONS • Conclusion: Natural Language NOT good way to specify product Fact: • Many organizations still use natural language, especially for commercial products Reasons: • Uninformed management • Under-trained computer professionals • Management gives in to client pressure • Management unwilling to invest in training UHD-CMS-CH10

  9. STRUCTURED SYSTEMS ANALYSIS Three popular graphical specification methods • DeMarco • Gane and Sarsen • Yourdon • Equivalent • Equally good • Many US corporations use them for commercial products • Gane and Sarsen used for Object-Oriented design UHD-CMS-CH10

  10. SSA: CASE STUDY • Sally’s Software Store buys software from various suppliers and sells it to the public. Popular software packages are kept in stock, but the rest must be ordered as required. Institution and corporations are given credit facilities, as are some individuals. Sally’s store is doing well, but despite her business success Sally has been advised to computerize. Should she? • Better question: what part? UHD-CMS-CH10

  11. CASE STUDY Fundamental issue • What is Sally’s objective in computerizing her business? Assume • Objective is “to make more money” • Cost/benefit analysis for each section of business. UHD-CMS-CH10

  12. CASE STUDY Gane and Sarsen Technique: • A nine step method • Stepwise refinement in many steps UHD-CMS-CH10

  13. CASE STUDY • Data flow diagram (DFD) shows logical data flow (what happens, not how it happens) UHD-CMS-CH10

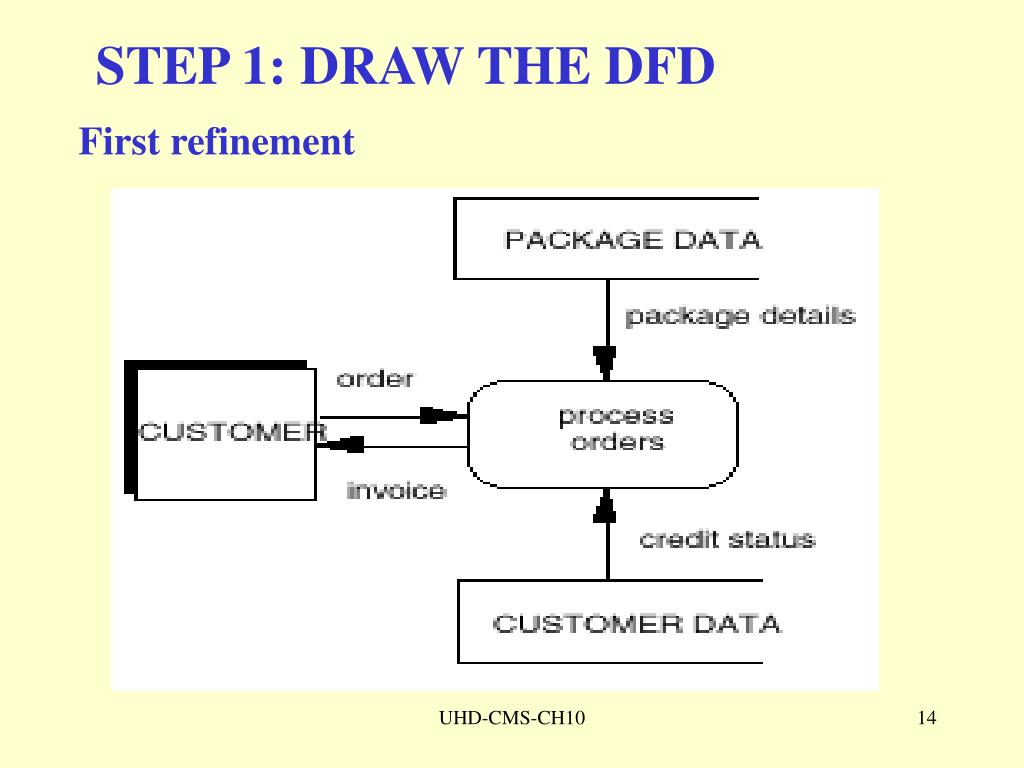

  14. STEP 1: DRAW THE DFD First refinement UHD-CMS-CH10

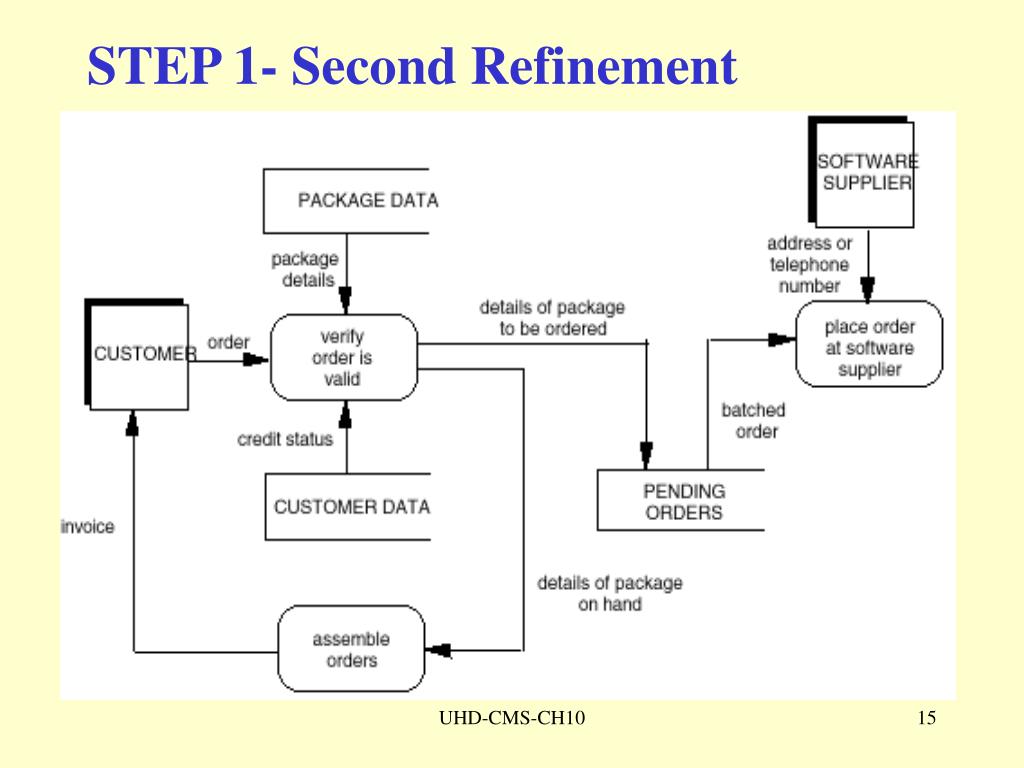

  15. STEP 1- Second Refinement UHD-CMS-CH10

  16. STEP 1- Portion of third refinement UHD-CMS-CH10

  17. STEP 1 contd Final DFD • Larger, BUT easily understood by client Larger DFDs • Hierarchy of DFDs • Each box becomes DFD at a lower level UHD-CMS-CH10

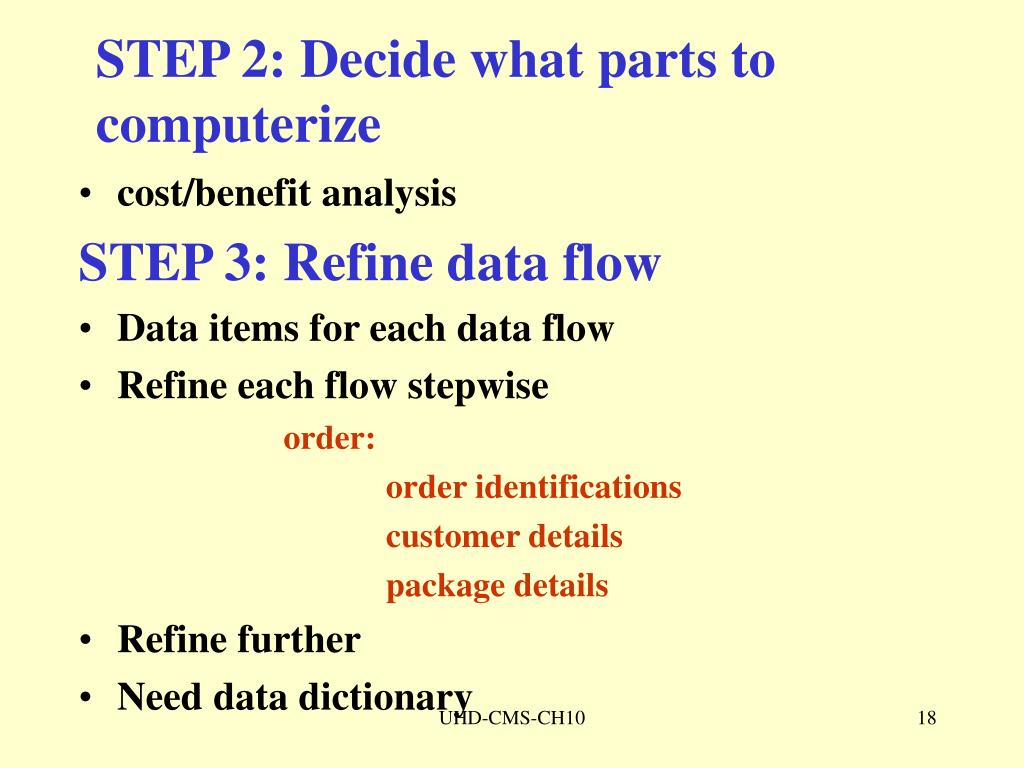

  18. STEP 2: Decide what parts to computerize • cost/benefit analysis STEP 3: Refine data flow • Data items for each data flow • Refine each flow stepwise order: order identifications customer details package details • Refine further • Need data dictionary UHD-CMS-CH10

  19. STEP4: Refine Logic of Processes Example: • Process: Give educational discount • Sally must explain discount for educational institutions • 10% on up to 4 packages, 15% on 5 or more • Translate into decision tree UHD-CMS-CH10

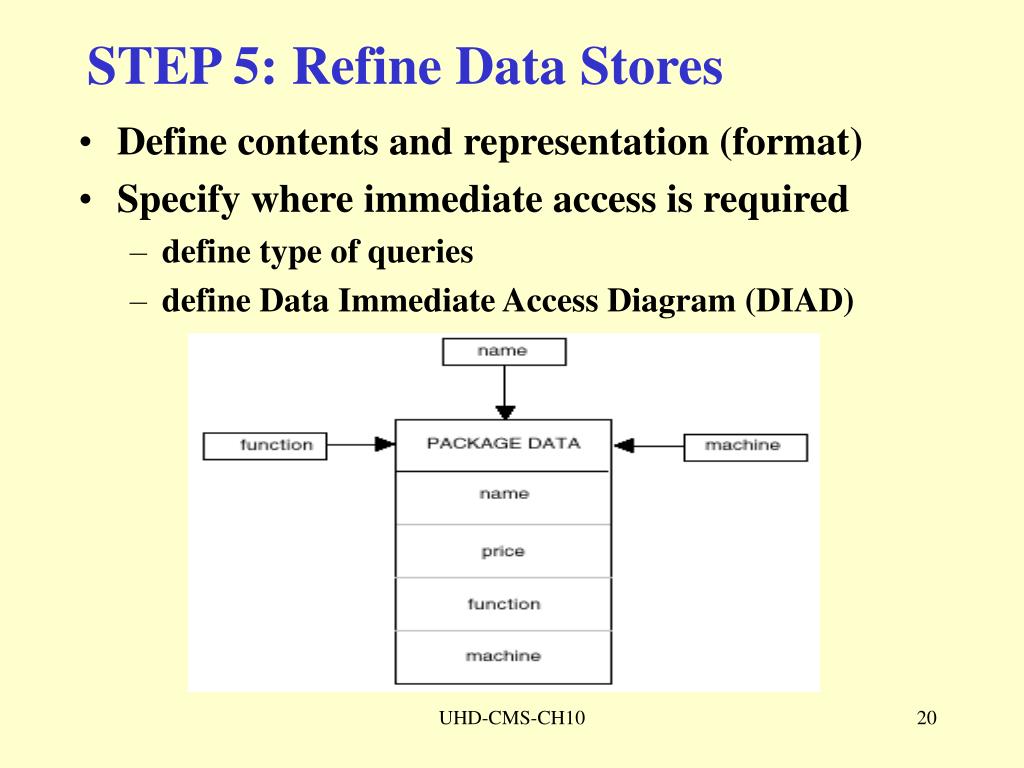

  20. STEP 5: Refine Data Stores • Define contents and representation (format) • Specify where immediate access is required • define type of queries • define Data Immediate Access Diagram (DIAD) UHD-CMS-CH10

  21. STEP 6: Define Physical Resources For each file, specify • File name • Organization • Storage medium • Records (to field level) DBMS: • define each table STEP 7: Determine I/O Specs • Specify input forms, input screens, printed output UHD-CMS-CH10

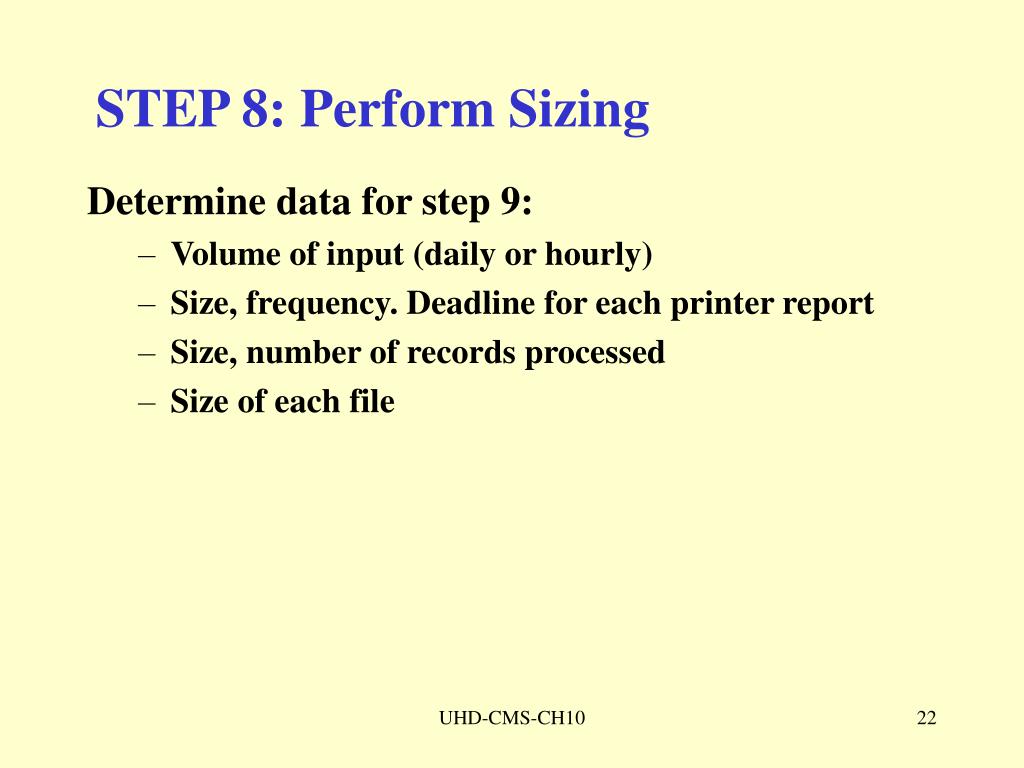

  22. STEP 8: Perform Sizing Determine data for step 9: • Volume of input (daily or hourly) • Size, frequency. Deadline for each printer report • Size, number of records processed • Size of each file UHD-CMS-CH10

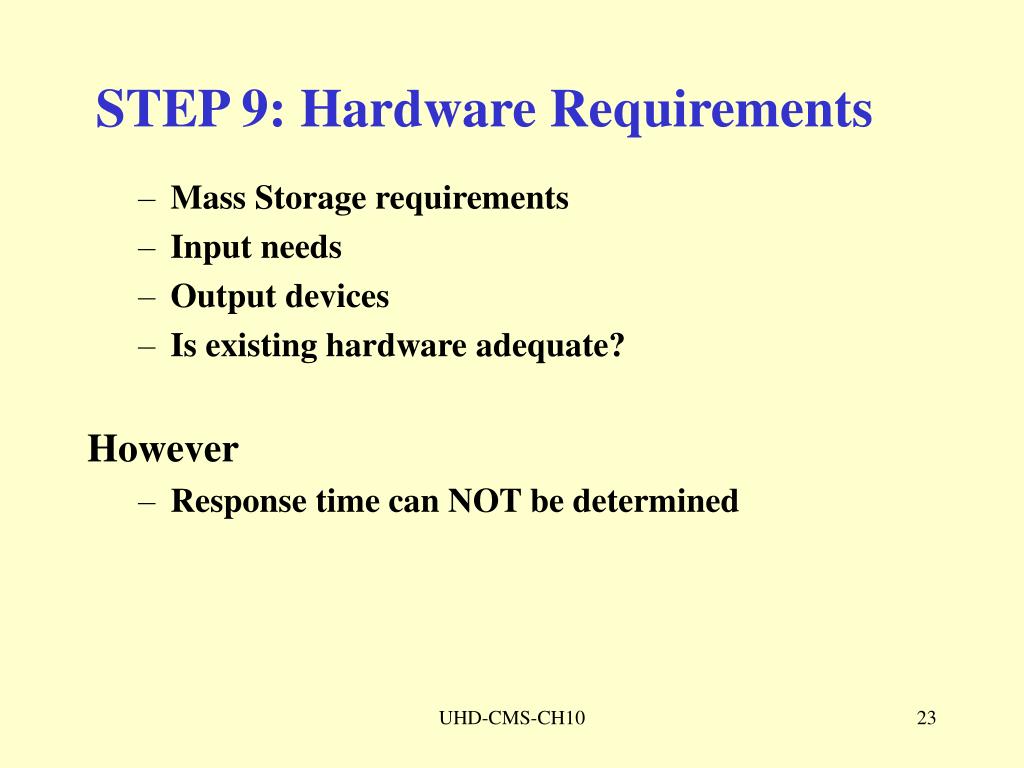

  23. STEP 9: Hardware Requirements • Mass Storage requirements • Input needs • Output devices • Is existing hardware adequate? However • Response time can NOT be determined UHD-CMS-CH10

  24. ENTITY-RELATIONSHIP DIAGRAMS • Semi-Formal technique • Data-Oriented • Widely used in specifying databases • used for Object-Oriented Analysis • Example: Author, Biography, Reader UHD-CMS-CH10

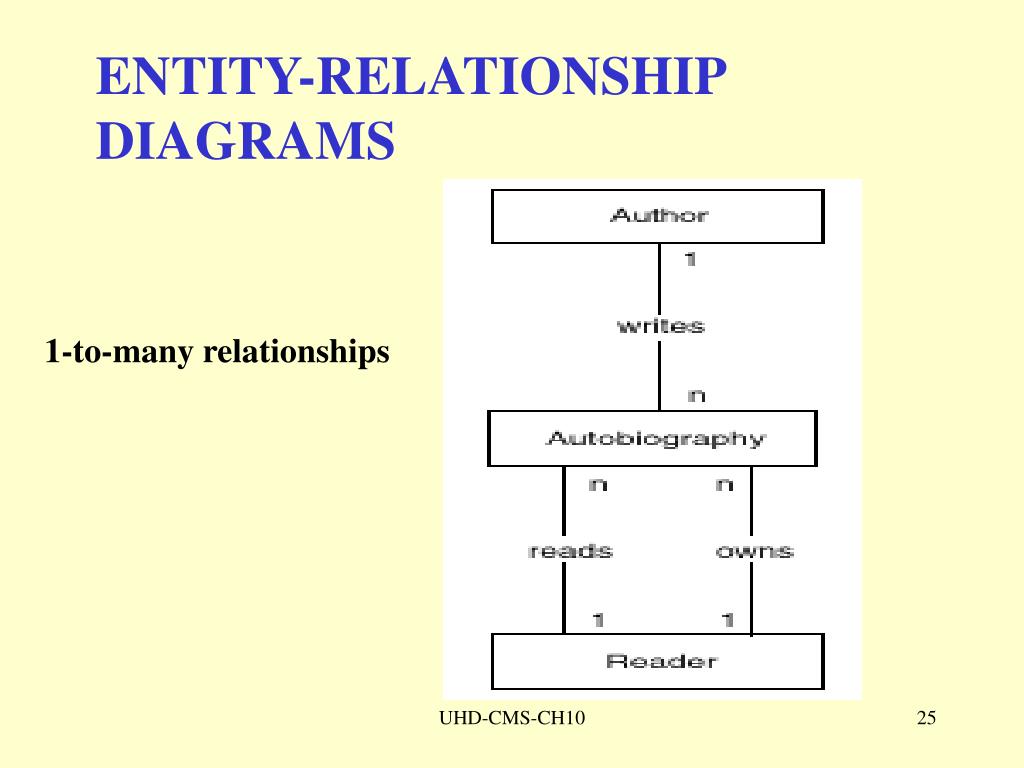

  25. ENTITY-RELATIONSHIP DIAGRAMS 1-to-many relationships UHD-CMS-CH10

  26. ENTITY-RELATIONSHIP DIAGRAMS Many-to-many relationships UHD-CMS-CH10

  27. FORMAL TECHNIQUES • Finite State Machines • Petri Nets • Z UHD-CMS-CH10

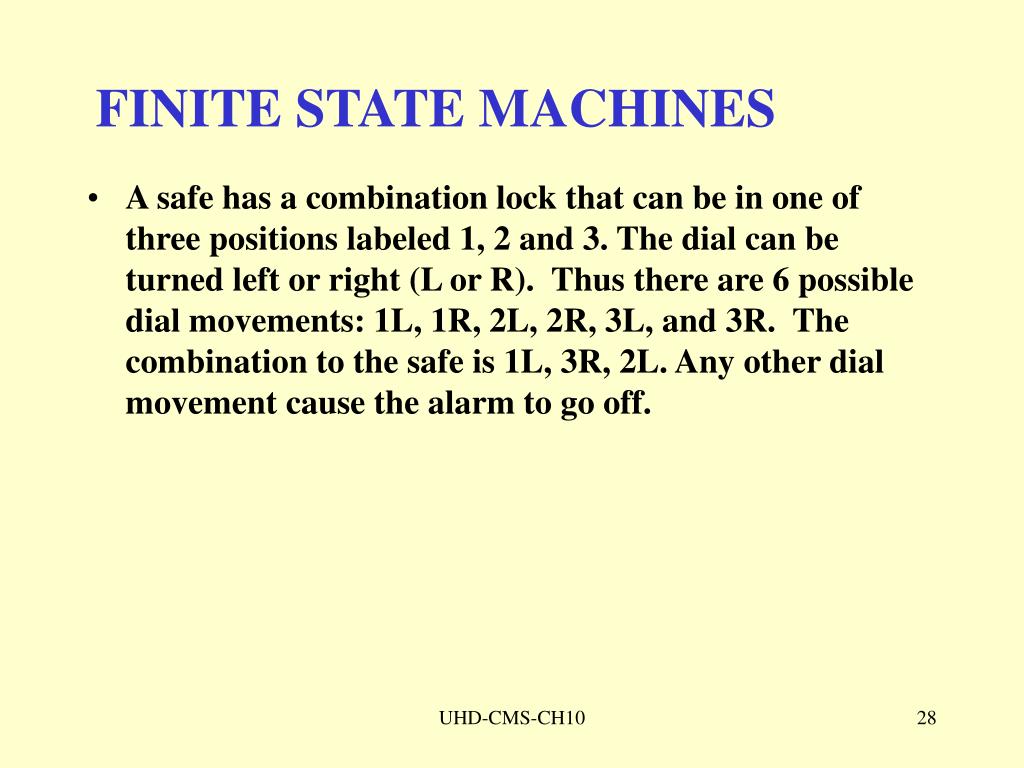

  28. FINITE STATE MACHINES • A safe has a combination lock that can be in one of three positions labeled 1, 2 and 3. The dial can be turned left or right (L or R). Thus there are 6 possible dial movements: 1L, 1R, 2L, 2R, 3L, and 3R. The combination to the safe is 1L, 3R, 2L. Any other dial movement cause the alarm to go off. UHD-CMS-CH10

  29. FINITE STATE MACHINES • Set of states: (SafeLocked, A, B, SafeUnlocked, SoundAlarm) • Set of inputs:( 1L, 1R, 2L, 2R, 3L, 3R) • Transition function: • Initial State: SafeLocked • Set if final states: (SafeUnlocked, SoundAlarm) UHD-CMS-CH10

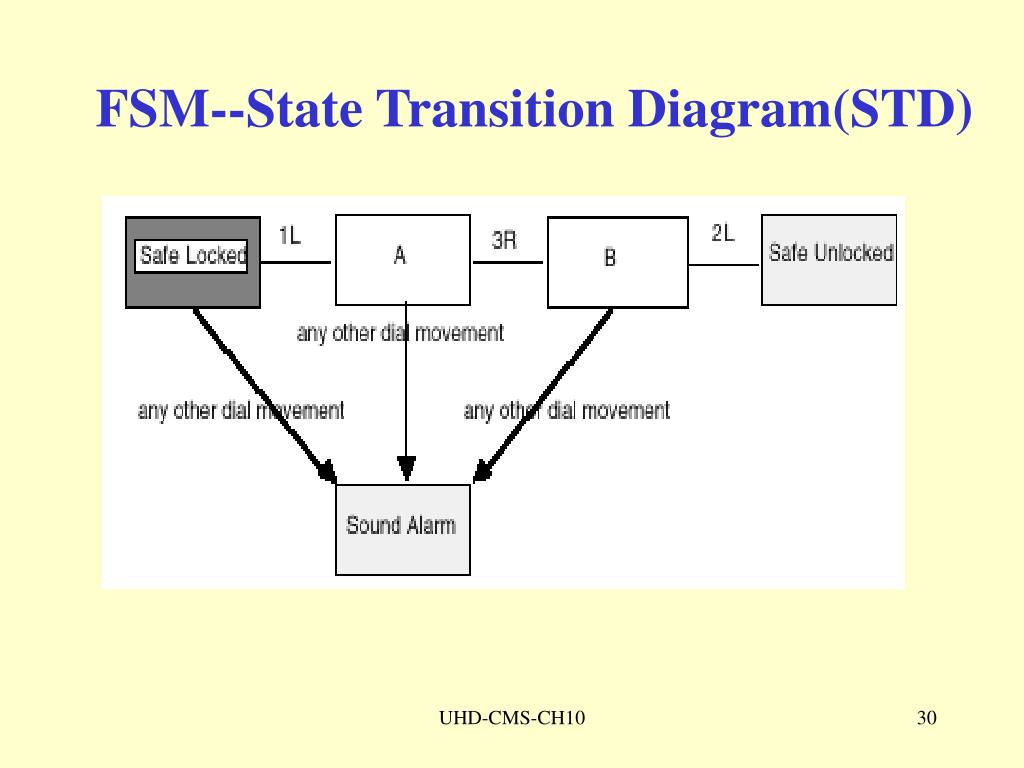

  30. FSM--State Transition Diagram(STD) UHD-CMS-CH10

  31. FSM--State Transition Table UHD-CMS-CH10

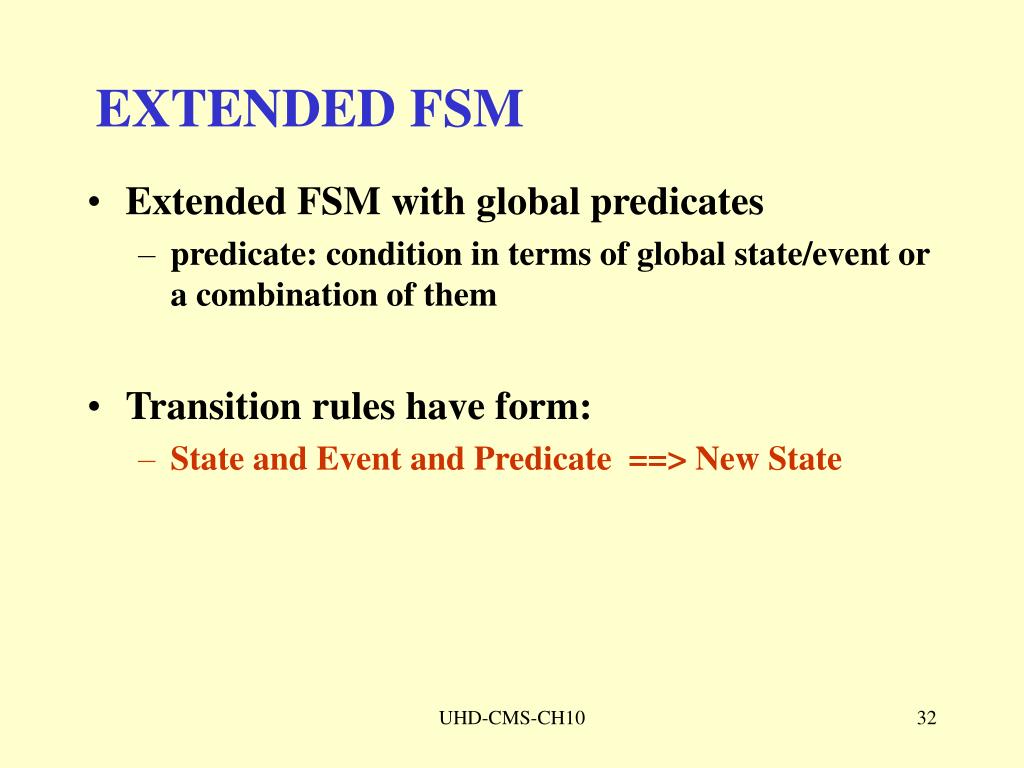

  32. EXTENDED FSM • Extended FSM with global predicates • predicate: condition in terms of global state/event or a combination of them • Transition rules have form: • State and Event and Predicate ==> New State UHD-CMS-CH10

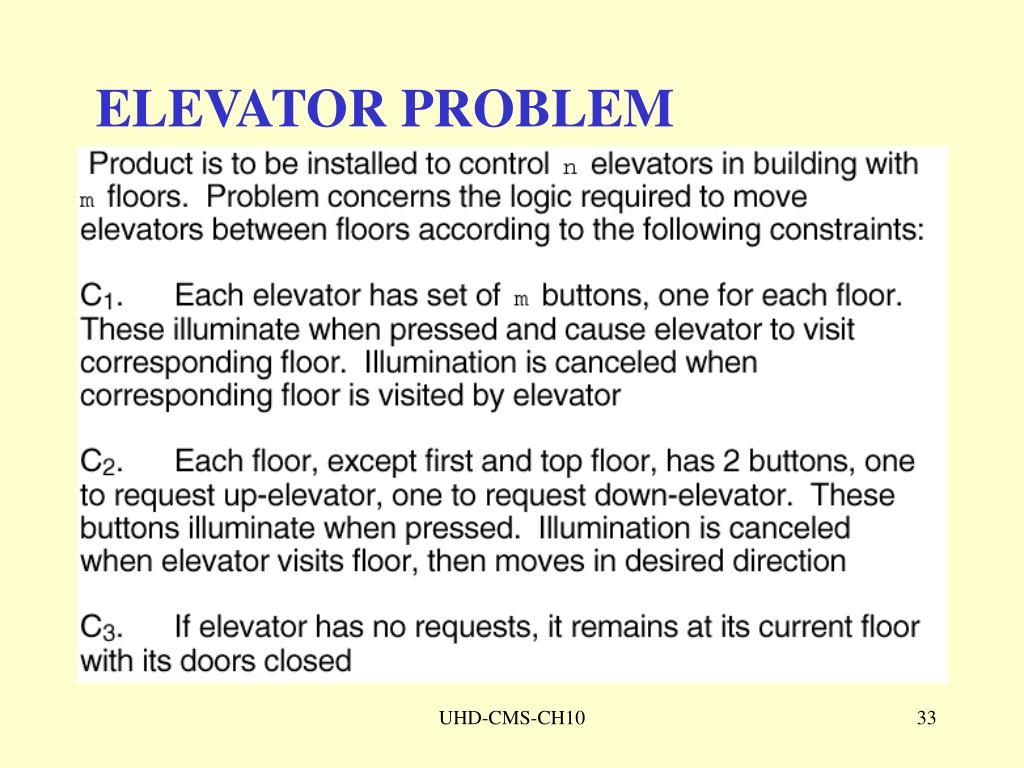

  33. ELEVATOR PROBLEM UHD-CMS-CH10

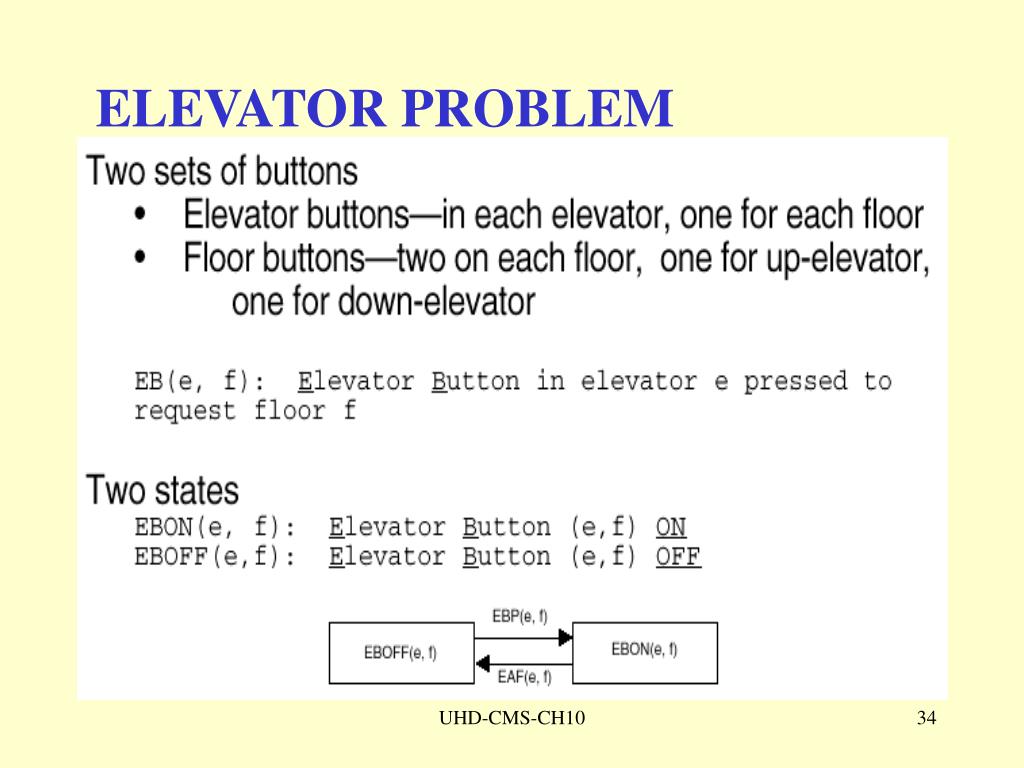

  34. ELEVATOR PROBLEM UHD-CMS-CH10

  35. ELEVATOR PROBLEM UHD-CMS-CH10

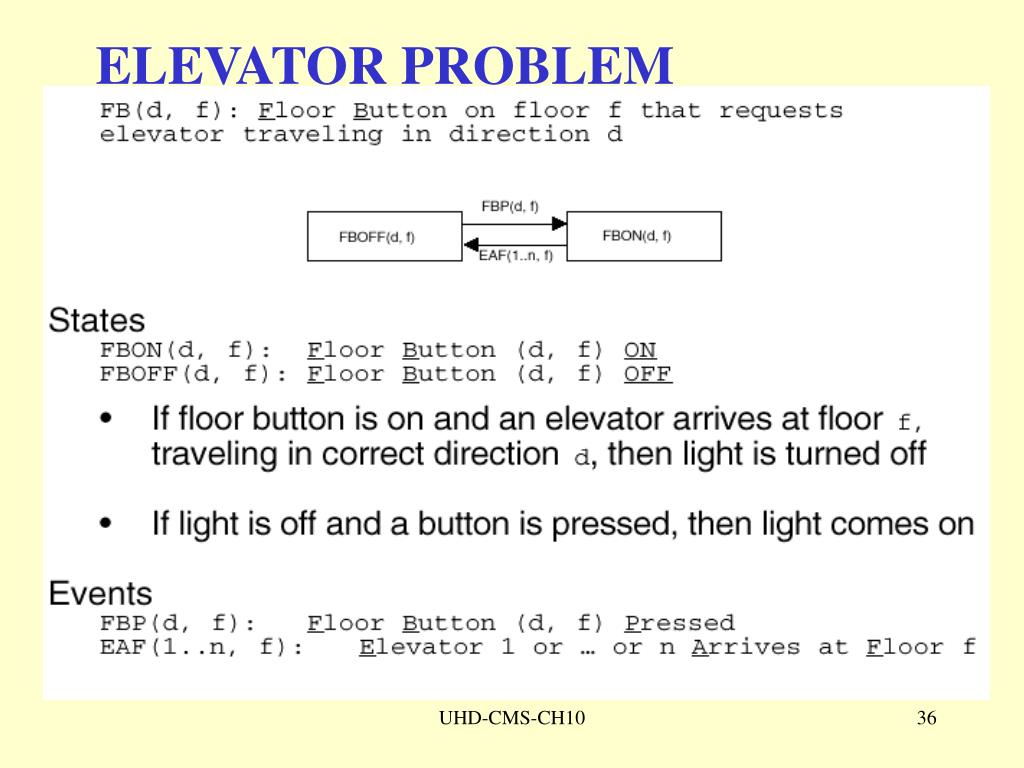

  36. ELEVATOR PROBLEM UHD-CMS-CH10

  37. ELEVATOR PROBLEM UHD-CMS-CH10

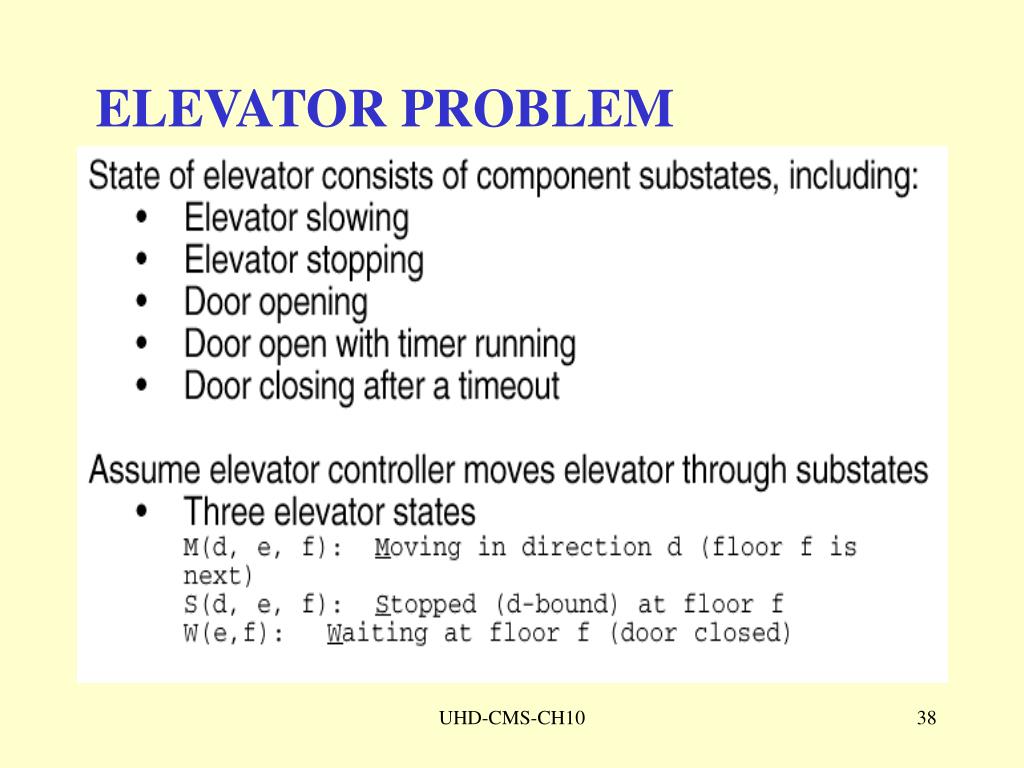

  38. ELEVATOR PROBLEM UHD-CMS-CH10

  39. ELEVATOR PROBLEM UHD-CMS-CH10

  40. UHD-CMS-CH10

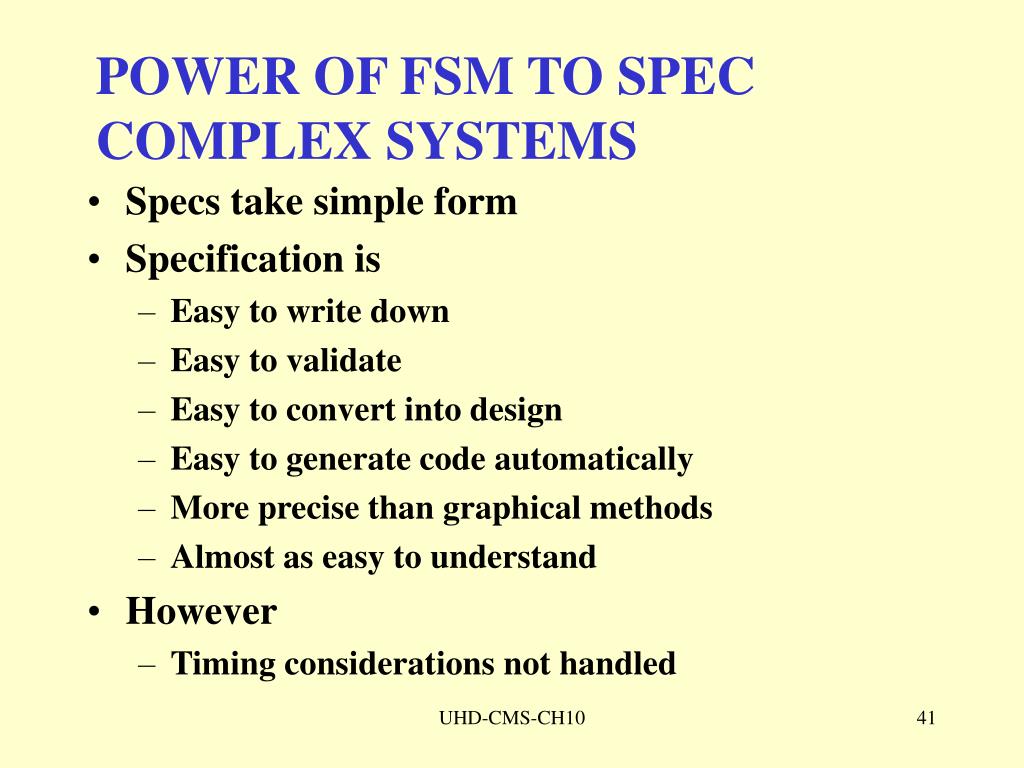

  41. POWER OF FSM TO SPEC COMPLEX SYSTEMS • Specs take simple form • Specification is • Easy to write down • Easy to validate • Easy to convert into design • Easy to generate code automatically • More precise than graphical methods • Almost as easy to understand • However • Timing considerations not handled UHD-CMS-CH10

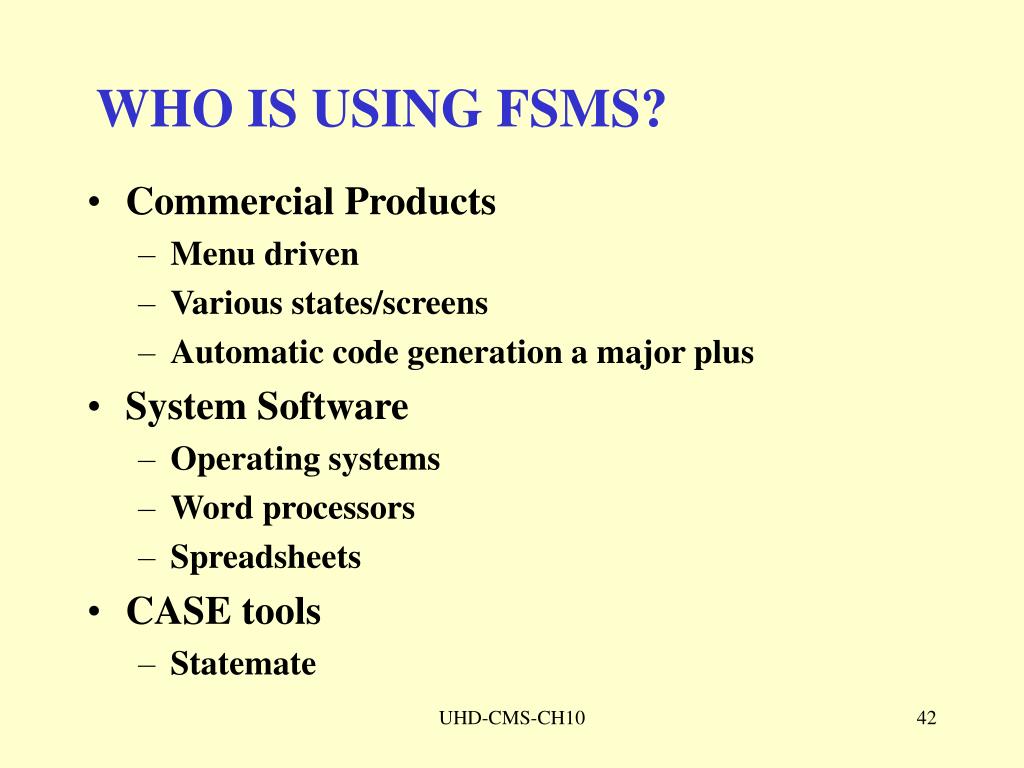

  42. WHO IS USING FSMS? • Commercial Products • Menu driven • Various states/screens • Automatic code generation a major plus • System Software • Operating systems • Word processors • Spreadsheets • CASE tools • Statemate UHD-CMS-CH10

  43. PETRI NETS • Powerful technique for specifying systems with potential timing problems • Concurrency and synchronization • Race conditions • Deadlock • originally used by automata theorists • now used in performance evaluation, O/S, and SE fields UHD-CMS-CH10

  44. Formal Specifications - Cont. • Z • a formal specification language • uses set theory, functions, and discrete math. • Initially difficult to learn • the most widely language UHD-CMS-CH10

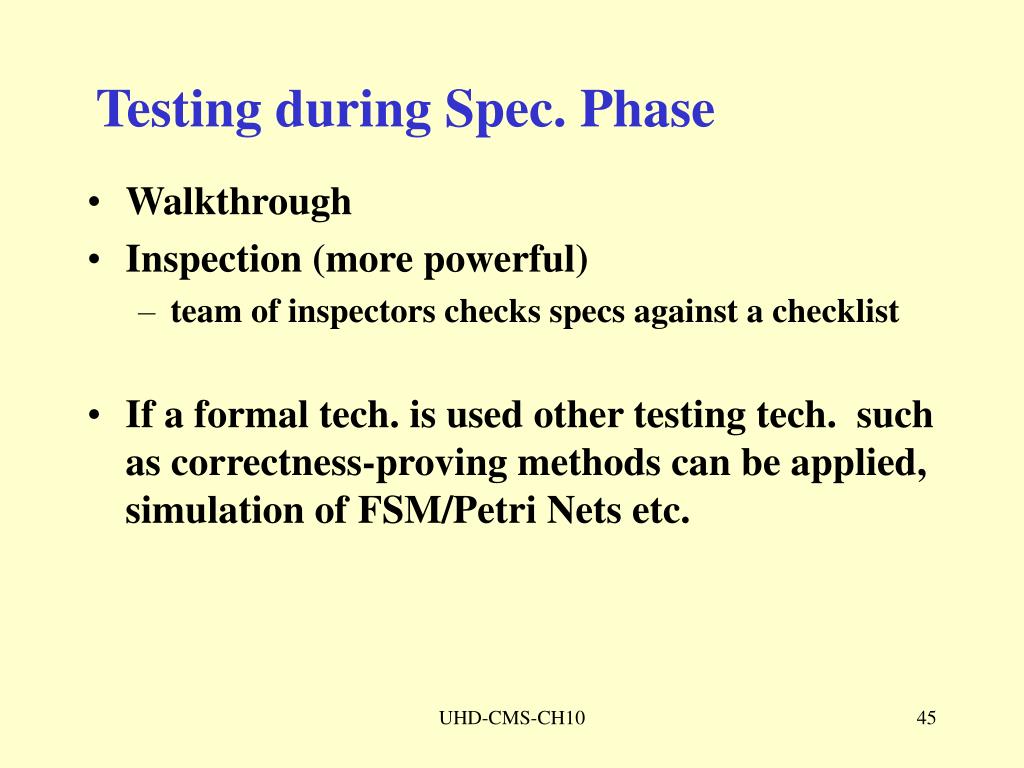

  45. Testing during Spec. Phase • Walkthrough • Inspection (more powerful) • team of inspectors checks specs against a checklist • If a formal tech. is used other testing tech. such as correctness-proving methods can be applied, simulation of FSM/Petri Nets etc. UHD-CMS-CH10

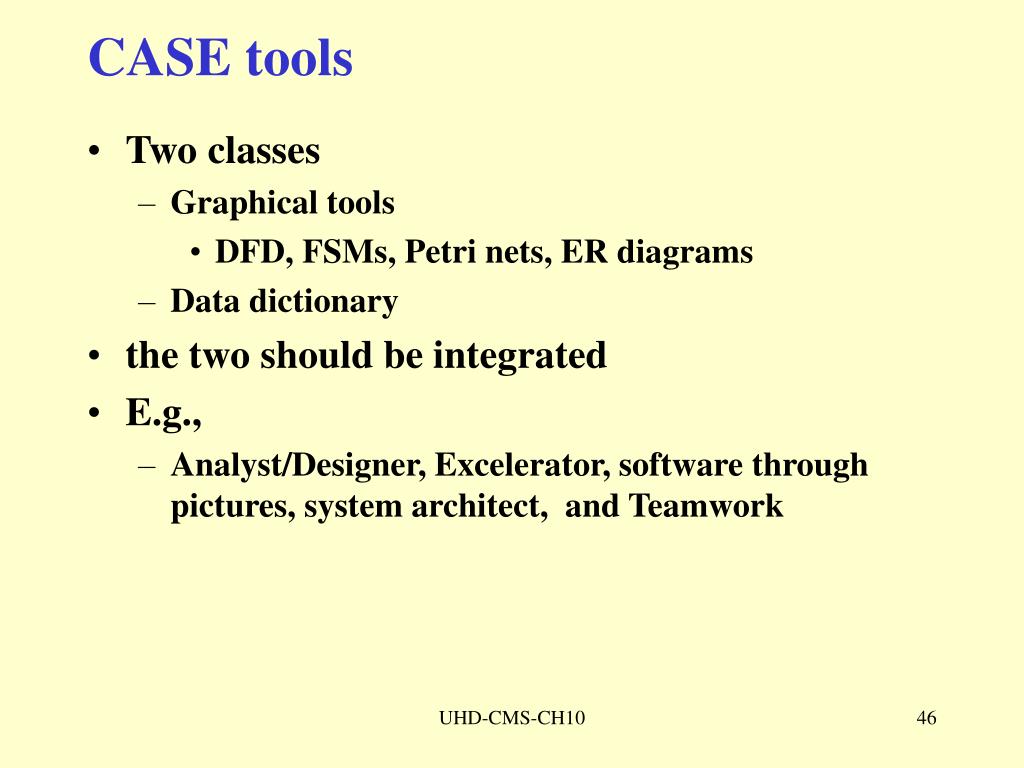

  46. CASE tools • Two classes • Graphical tools • DFD, FSMs, Petri nets, ER diagrams • Data dictionary • the two should be integrated • E.g., • Analyst/Designer, Excelerator, software through pictures, system architect, and Teamwork UHD-CMS-CH10

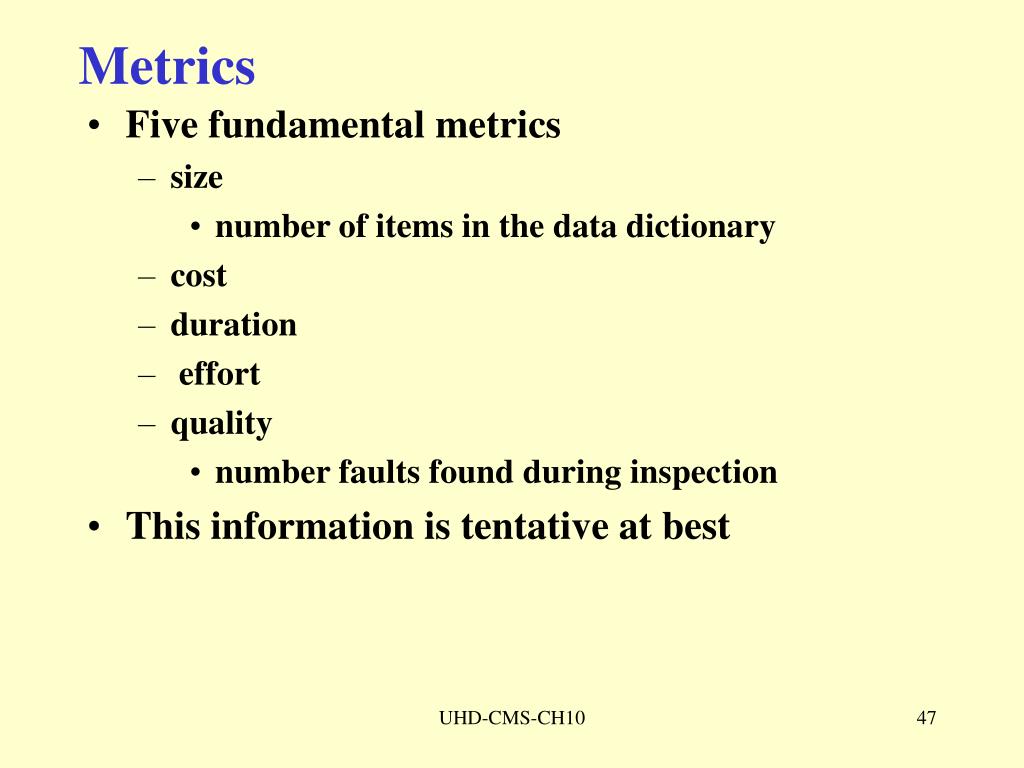

  47. Metrics • Five fundamental metrics • size • number of items in the data dictionary • cost • duration • effort • quality • number faults found during inspection • This information is tentative at best UHD-CMS-CH10
