  1. 3G CAR android

  2. Picture 添加LOGO 01 Front side 03 02 Backside Side

  3. 指示图标说明 添加LOGO

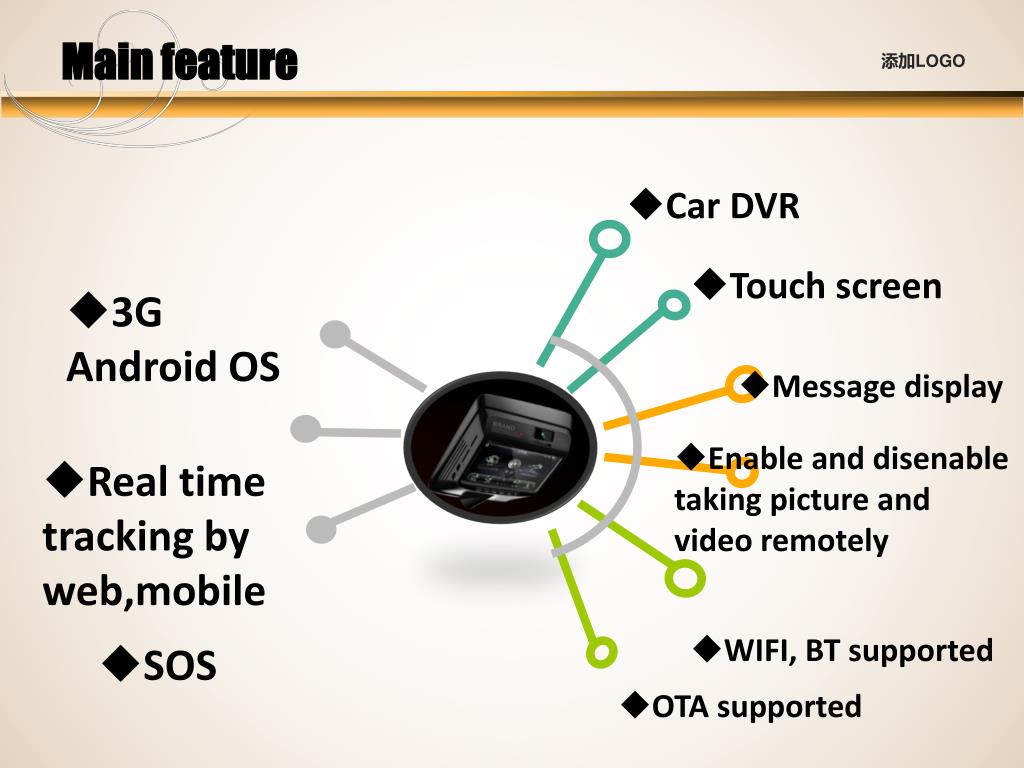

  4. Main feature 添加LOGO • Car DVR • Touch screen • 3G Android OS • Message display • Enable and disenable taking picture and video remotely • Real time tracking by web,mobile • WIFI, BT supported • SOS • OTA supported

  5. 一、voice guide 添加LOGO Description : Press key1：to enter two way conversation mode Press key2：requiry for the current location by sms Press key3：ask for the current car front photo by SMS Press key4：enable to record the car front video Press key 5：ask for the currrent car inside photo by SMS Voice guide Press key6:enable to record the car inside video Press key7:modify password Press key8: cutoff oil or engine 按9键：recovery oil or engine User can call to the device ,and follow up the voice guide as above description

  6. ZE0003C13813145168# Set SOS number ZE0023VIN# Record car inside video ZE0015SAT# Set anti-theft mode ZE0004Q# Check SOS authorized number ZE0022VOUT# To enable the front car video ZE0013QM07# check the current car image 一、monitor by SMS 添加LOGO SMS command Description: user can send the SMS to the device to remotely control the device · ZE0005WZ# Check the current location by SMS · ZE0017BOE# Cut off oil or engine · ZE0018ROE# Recover oil or engine

  7. 一、monitor by tracking platform 添加LOGO tracking Taking picture and video Web monitor History playtrack Vehicle dispatch Vehicle control

  8. 二、real time tracking 添加LOGO displaying current location and voice broadcast the location

  9. stop:record 三、VIDEO RECORDING 添加LOGO Recording car front video Stop:record Recording car inside video

  10. 四、SOS 添加LOGO after SOS is triggered , the device will make urgent call to the authorized phone

  11. 六、camera 添加LOGO Taking photo: press camera button in the screen and take photo and save it . Remotely taking photo by calling voice guide or mobile APK or web platform ！

  12. 七、message 添加LOGO User can send and receive SMS and edit SMS and MMS Through Mobile APK or web platform , the user can dispatch message to device .

  13. dial the phone number 八、video call management 添加LOGO Front camera :5m pixel , back camera : 2m pixel User could dial the number to built up video call communication as following Note : the SIM card need support 3G video communication function .

  14. 车速：0.0000 地址：山东省潍坊市坊子区凤凰路 九、CAR DVR enable recording car video remotely by web platform or mobile APK or SMS or by screen Manue。It support maximum 32G sd card .

  15. 十、mobile APK Log in page

  16. 十一、mobile APK instruction City Date,time weather advertise 客户端功能操作 客户端功能操作

  17. 十二、mobile APK Click “vehicle management”to open the vehicle group

  18. 十二、mobile APK instruction Click vehicle to enter into vehciel management page

  19. 十二、Mobile APK instruction Click real time tracking to view the location in the map

  20. THANKS
