  1. Using 3-Valued Models in Abstraction-based Model Checking Seminar in Formal Verification Spring 2006 Presented by Alik Zamansky

  2. References • On the Expressiveness of 3-Valued Models • Patrice Godefroid and Radha Jagadeesan, 2003 • Abstraction-based Model Checking using Modal Transition Systems • Patrice Godefroid, Michael Huth, and Radha Jagadeesan, 2001

  3. Abstraction-based Model Checking (reminder) • Extract an abstract model A out of a program C • Automatically, by a static analysis of the code • Analyze the model using model-checking techniques • Check whether A satisfies some property φ • Transfer the result to the original program C • Can be complete, but is generally unsound • Reports spurious errors

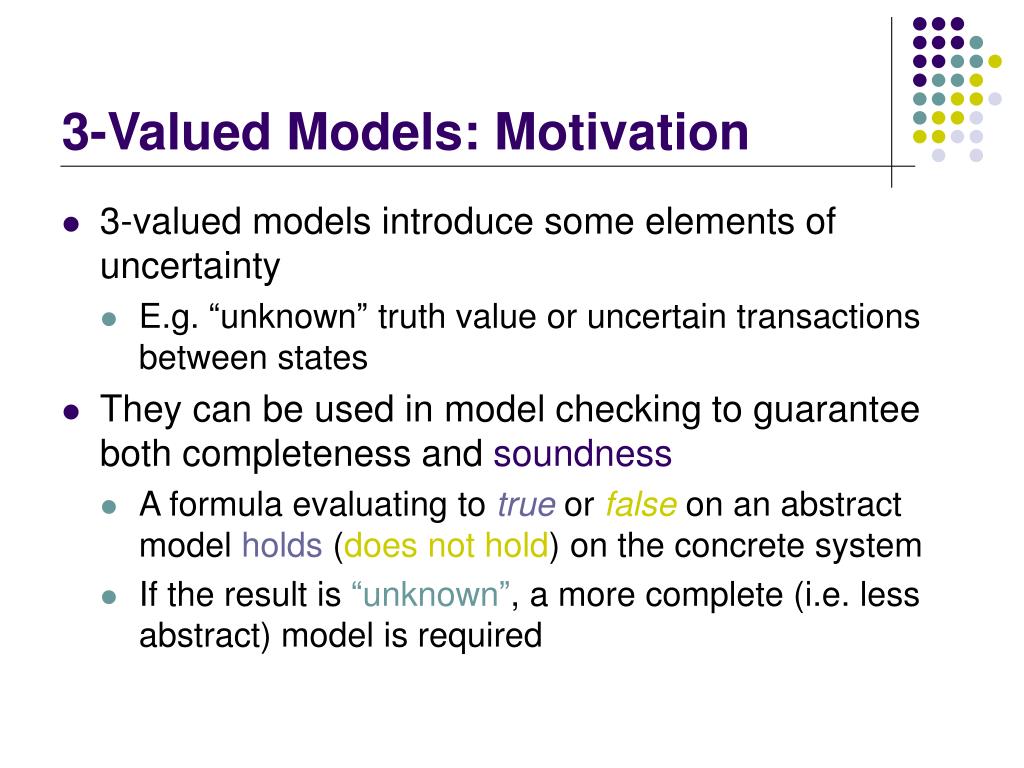

  4. 3-Valued Models: Motivation • 3-valued models introduce some elements of uncertainty • E.g. “unknown” truth value or uncertain transactions between states • They can be used in model checking to guarantee both completeness and soundness • A formula evaluating to true or false on an abstract model holds (does not hold) on the concrete system • If the result is “unknown”, a more complete (i.e. less abstract) model is required

  5. Outline • 3-valued modeling formalisms • PKS, MTS and KMTS • Equal expressiveness • Translation from PKS to MTS • Translation from MTS to KMTS • Summary and conclusions of paper 1 • Relational abstraction and implementations • Predicate abstraction • Predicate-Cartesian abstraction • Summary and conclusions of paper 2

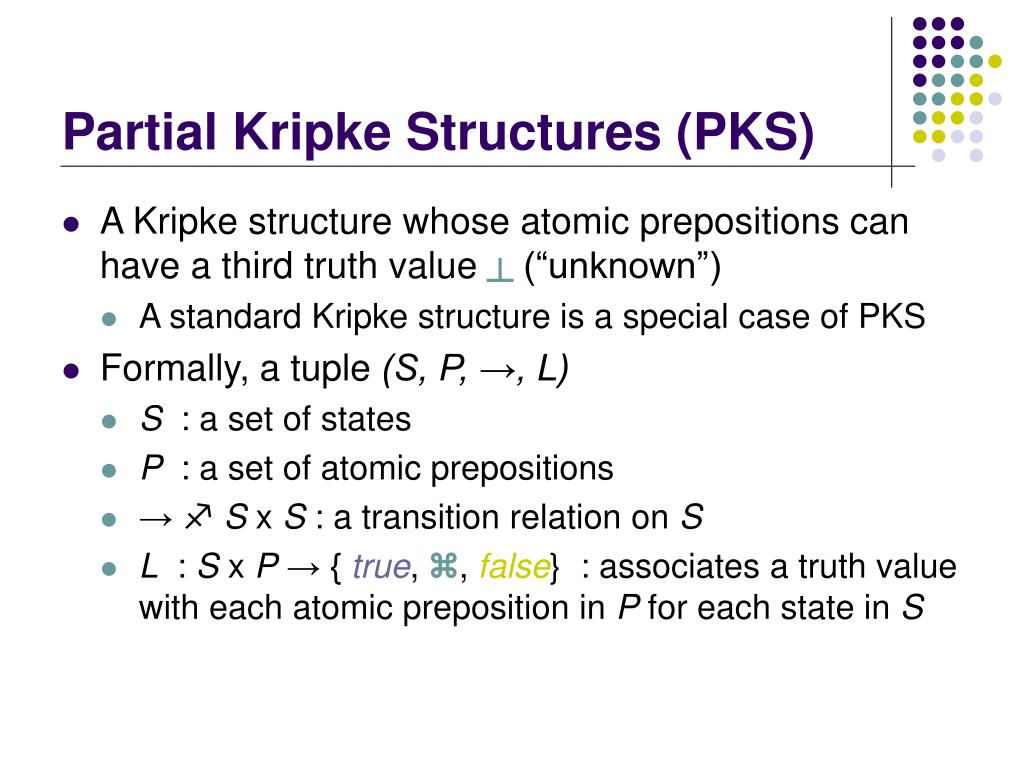

  6. Partial Kripke Structures (PKS) • A Kripke structure whose atomic prepositions can have a third truth value┴(“unknown”) • A standard Kripke structure is a special case of PKS • Formally, a tuple (S, P, →, L) • S : a set of states • P : a set of atomic prepositions • → S x S : a transition relation on S • L : Sx P → { true, , false} : associates a truth value with each atomic preposition in P for each state in S

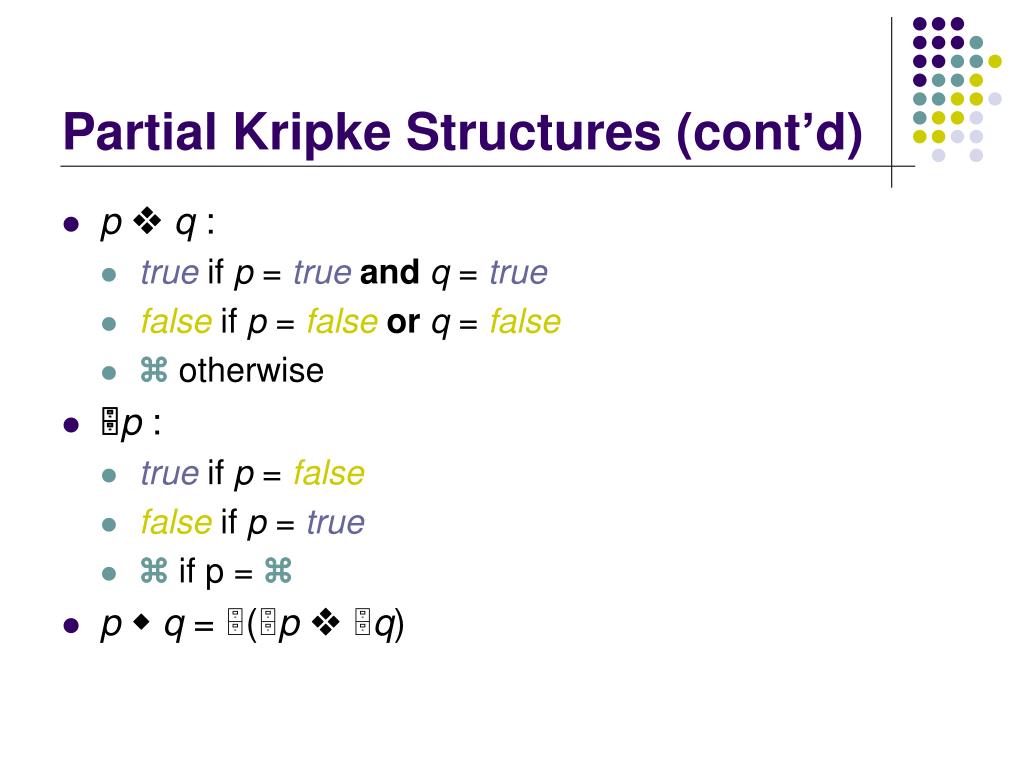

  7. Partial Kripke Structures (cont’d) • pq : • true if p = trueandq = true • false if p = falseorq = false • otherwise • p : • true if p = false • false if p = true •  if p =  • pq = (pq)

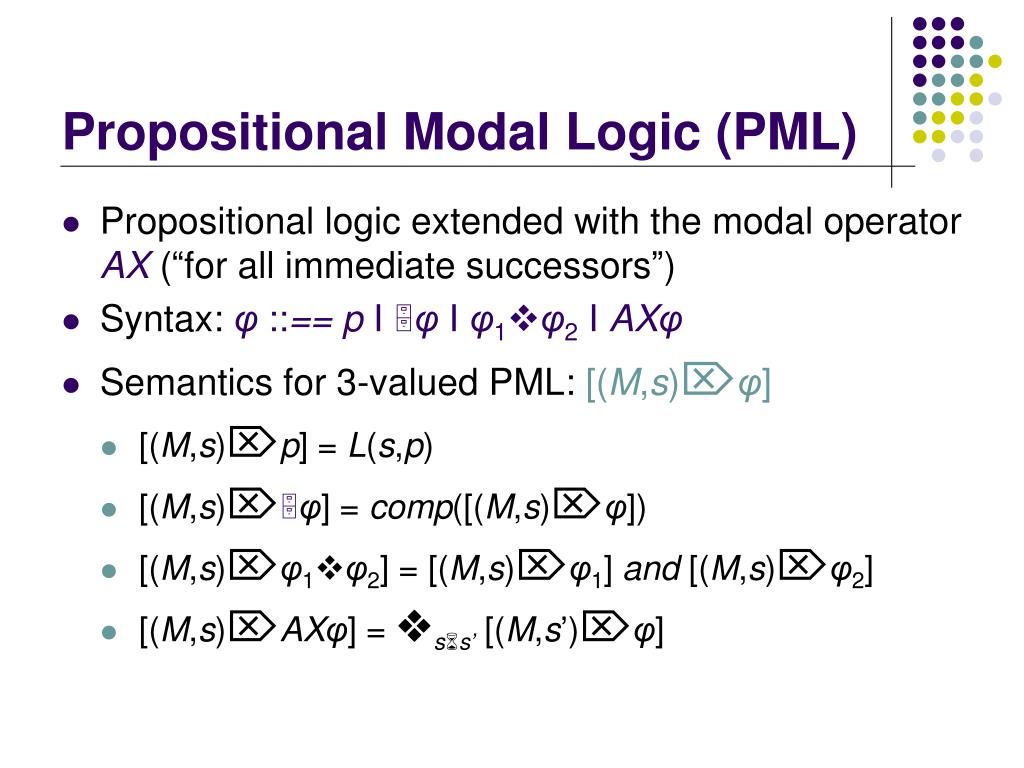

  8. Propositional Modal Logic (PML) • Propositional logic extended with the modal operator AX (“for all immediate successors”) • Syntax: φ::== p IφIφ1φ2I AXφ • Semantics for 3-valued PML: [(M,s)φ] • [(M,s)p] = L(s,p) • [(M,s)φ] = comp([(M,s)φ]) • [(M,s)φ1φ2] = [(M,s)φ1] and[(M,s)φ2] • [(M,s)AXφ] = ss’[(M,s’)φ]

  9. Modal Transition Systems (MTS) • MTS is a tuple (S, Σ, →must , →may) • S : a set of states • Σ : a set of action symbols • →must,→may  S x Σ x S : transition relations • →must →may (must-transitions are also may-transitions) • MTS therefore: • Is a Labeled Transition System (LTS) with two types of transitions instead of one • Reasoning about the existence of transitions can be viewed as reasoning with a 3-valued logic

  10. inactive winAnotherCoin may reset must loseCoin may acceptCoin must winning winCoin must active MTS – Example • A specification of a slot machine • must-transitions: fixed behavior • may-transitions: uncertain behavior

  11. PMLAct (3-valued PML for MTS) • Syntax: φ ::== ttIφIφ1φ2I (α)φ(for some αΣ) • Semantics: [(M,s)φ] • [(M,s)tt] = true • [(M,s)φ] = comp([(M,s)φ]) • [(M,s)φ1φ2] = [(M,s)φ1] and[(M,s)φ2] • [(M,s)(α)φ] = • true if (s, α, s’)  →may: [(M,s’)φ] = true • falseif (s, α, s’)  →must: [(M,s’)φ] = false •  otherwise

  12. Kripke Modal Transition Systems • KMTS combines features of both PKS and MTS • Is a tuple: (S, P, →must , →may , L) • S : a set of states • P : a set of atomic prepositions • →must,→may  S x S : transition relations (→must →may) • L : Sx P → { true, , false} : associates a truth value with each atomic preposition in P for each state in S • KMTS generalizes PKS • PKS is a KMTS where →must=→may

  13. 3-valued PML for KMTS • Syntax: same as for the 3-valued PML • Semantics: [(M,s)φ] • [(M,s)p] = L(s,p) • [(M,s)φ] = comp([(M,s)φ]) • [(M,s)φ1φ2] = [(M,s)φ1] and[(M,s)φ2] • [(M,s)AXφ] = • true if s’: (s, s’)  →may[(M,s’)φ] = true • falseif s’: (s, s’)  →must[(M,s’)φ] = false •  otherwise

  14. Translation from PKS to MTS • For a PKS M = (S, P, →, L) we define an equivalent MTS M’ = (S’, Σ, →must , →may): • S’ = S U{snew } • Σ= P U {x} • →must= {(s, p, snew ) I L(s,p) = true} U {(s, x, s’) | ss’ } • →may= {(s, p, snew ) I L(s,p){true,}} U {(s, x, s’) | ss’ } • Translation complexity: • Input PKS is of the size O(I→I + ISI·IPI) • Output MTS: O(I→mustI + I→mayI) = O(I→I + ISI·IPI) • I.e., linear in the size of the input

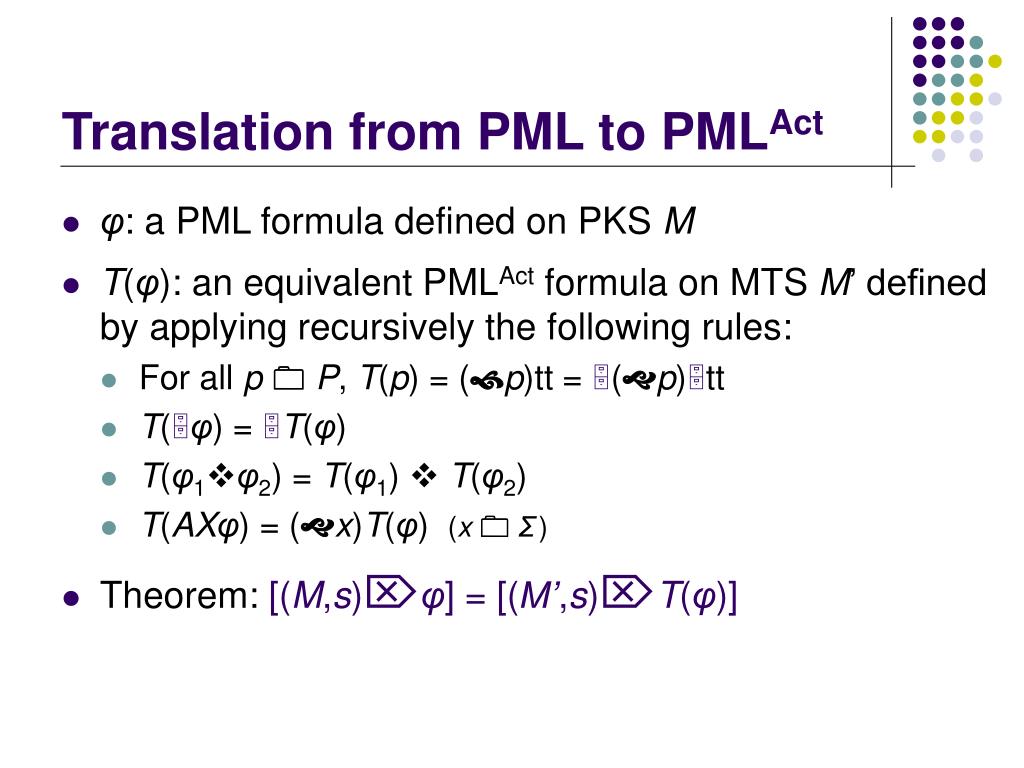

  15. Translation from PML to PMLAct • φ: a PML formula defined on PKS M • T(φ): an equivalent PMLAct formula on MTS M’ defined by applying recursively the following rules: • For all pP, T(p) = (p)tt = (p)tt • T(φ) = T(φ) • T(φ1φ2) = T(φ1)  T(φ2) • T(AXφ) = (x)T(φ) (x Σ) • Theorem: [(M,s)φ] = [(M’,s)T(φ)]

  16. x must M M’ p = true q =  p must q may p = falseq = true s1 s2 s0 s1 s2 s0 q must x must snew p = trueq = true q must p must x must x must PKS to MTS – Example • [(M,s0) AXq] = [(M’,s0) (x)(q)tt] = • [(M,s0) AXAXq] = [(M’,s0) (x)(x)(q)tt] = true

  17. Translation from MTS to KMTS • For a MTS M = (S, Σ, →must , →may) we define an equivalent KMTS M’ = (S’, P, →must’, →may’, L): • S’ = S Σ • P = Σ • →must’= {((s,α),(s’,α’)) I (s, α’, s’)  →must} • →may’= {((s,α),(s’,α’)) I (s, α’, s’)  →may} • (s,α)  S’: p  P: • L((s,α),p) = true if p = α • L((s,α),p) = false otherwise • Translation complexity is linear • The number of statesis ISI·IΣI – linear for fixed Σ

  18. Translation from PMLAct to PML • φ: a PMLAct formula defined on MTS M • T(φ): an equivalent PML formula on KMTS M’ defined by applying recursively the following rules: • T(tt) = true • T(φ) = T(φ) • T(φ1φ2) = T(φ1)  T(φ2) • T((α)φ) = AX((α)  T(φ)) (i.e. AX(αT(φ))) • Theorem: [(M,s)φ] = [(M’,(s,α))T(φ)]for any αΣ

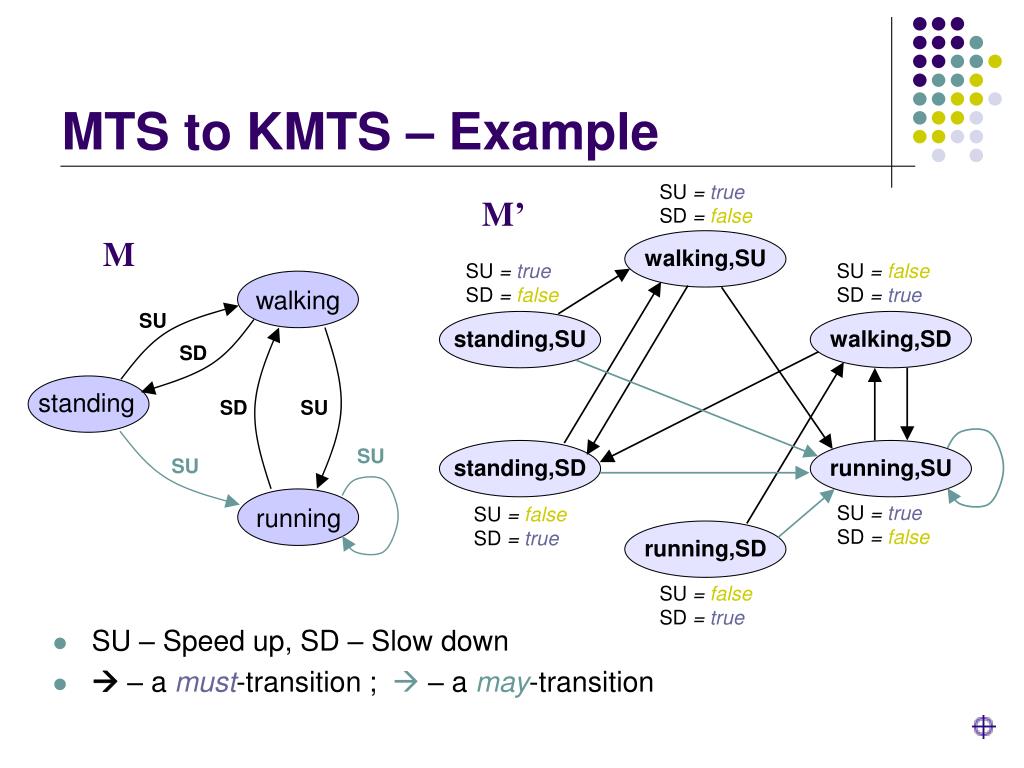

  19. SU = true SD = false M’ M standing SU = true SD = false SU = false SD = true standing,SD walking,SD running,SD running,SU walking,SU standing,SU walking SU running SD SD SU SU SU SU = true SD = false SU = false SD = true SU = false SD = true MTS to KMTS – Example • SU – Speed up, SD – Slow down •  – a must-transition ;  – a may-transition

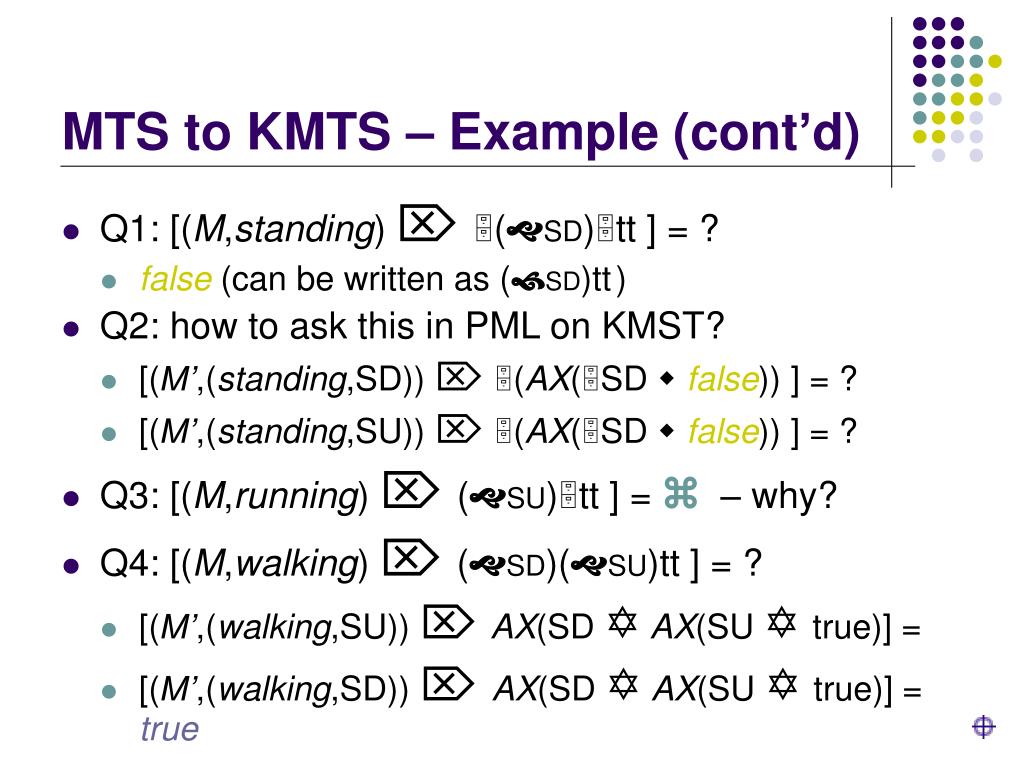

  20. MTS to KMTS – Example (cont’d) • Q1: [(M,standing) (SD)tt ] = ? • false (can be written as (SD)tt) • Q2: how to ask this in PML on KMST? • [(M’,(standing,SD))  (AX(SD  false)) ] = ? • [(M’,(standing,SU))  (AX(SD  false)) ] = ? • Q3: [(M,running) (SU)tt ] = – why? • Q4: [(M,walking) (SD)(SU)tt ] = ? • [(M’,(walking,SU)) AX(SD AX(SU  true)] = • [(M’,(walking,SD))  AX(SD AX(SU  true)] = true

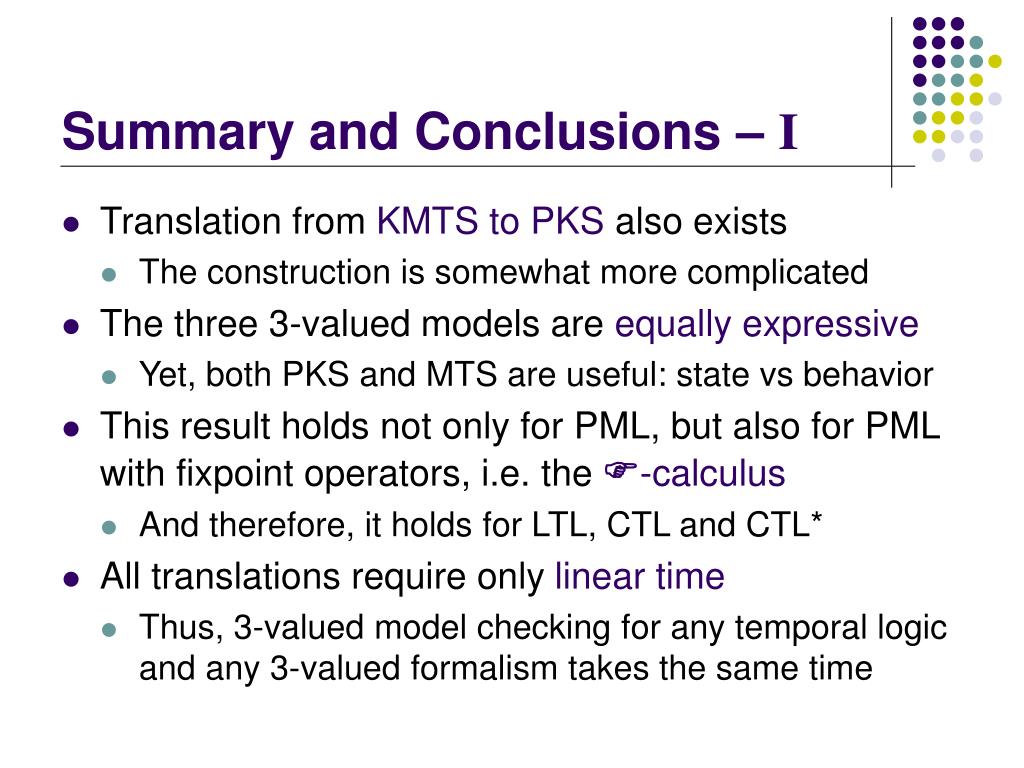

  21. Summary and Conclusions – I • Translation from KMTS to PKS also exists • The construction is somewhat more complicated • The three 3-valued models are equally expressive • Yet, both PKS and MTS are useful: state vs behavior • This result holds not only for PML, but also for PML with fixpoint operators, i.e. the -calculus • And therefore, it holds for LTL, CTL and CTL* • All translations require only linear time • Thus, 3-valued model checking for any temporal logic and any 3-valued formalism takes the same time

  22. Simulation – reminder • Consider a program C represented by LTS • LTS is a tuple K = (ΣK,Act,→); ΣK is a set of states, Act is a set of action symbols and → is a transition relation • Suppose that A is an abstract LTS generated from C • A is usually constructed so that the initial states of A and C are related by a simulation • Simulation (definition): • A relation ρΣCΣAis a simulation iff for any cρa and c→αc’ there is some a’ΣA such that a→αa’ and c’ρa’. • cρa means (c,a)  ρ, and c→αc’ stands for (c,α,c’)  →

  23. standing SU walking SU SU SD running SU SD standing’ moving SD SD Simulation – example • Note: C and A are LTSs, not MTSs as in the similar example shown earlier, there are no may-transition here! C: A: • ρ = {(standing, standing’), (walking, moving), (running, moving) }

  24. Refinement • MTS can be defined as a pair K = (Kmust, Kmay): • Kmust = (ΣK,Act,→must) and Kmay = (ΣK,Act,→may) are two LTSs such that →must →may • Refinement: An MTS A1 is a refinement of an MTS A2 if there exists a relation ρΣA1ΣA2such that: • ρ is a simulation from A1may to A2may • ρ is a simulation from A2must to A1must • We write A1A2 that means: • A1 is a refinement of A2 • A2 is anabstraction of A1

  25. Relational Abstraction • A tool to specify an abstract MTS, given: • An MTS A1 = (A1must, A1may) • A set of abstract states ΣA2 • A total relation ρΣA1ΣA2 • We define A2 = (ΣA2, Act, →must, →may): • a2→αmusta’2 iff for alla1ΣA1 with a1ρa2 there exists a’1ΣA1such that a’1ρa’2 and a1→αmusta’1 • a2→αmaya’2 iff there existsa1ΣA1 and a’1ΣA1 such that a1ρa2 , a’1ρa’2 , and a1→αmaya’1 • Lemma: A2 is an MTS and an abstraction of A1

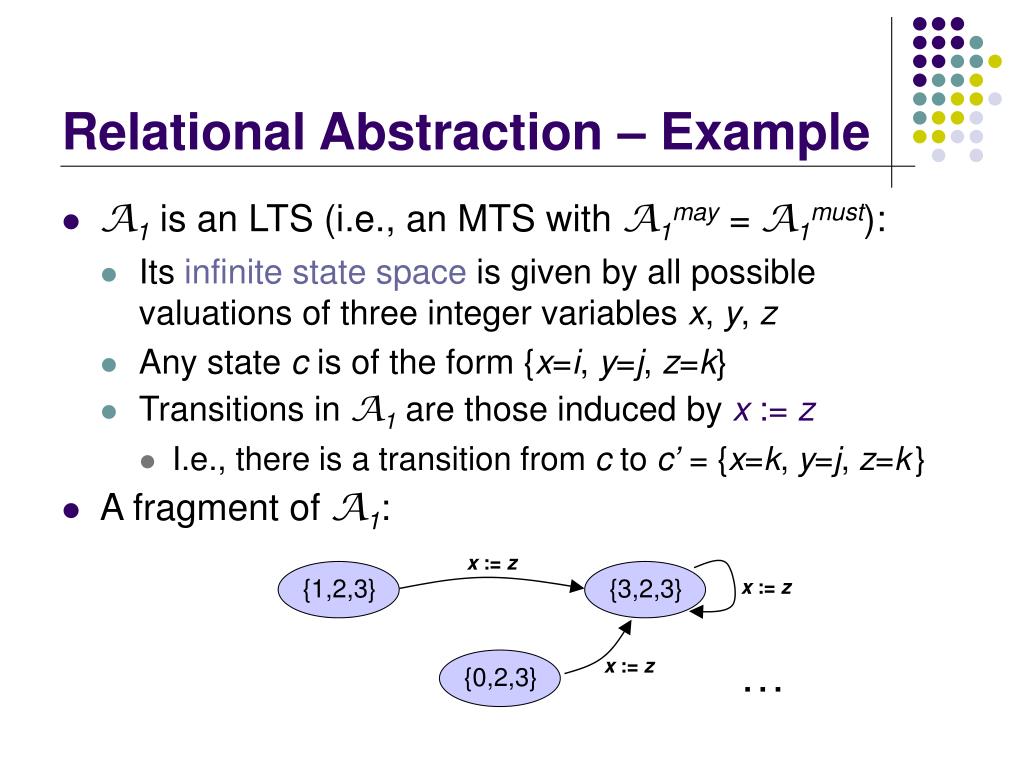

  26. x := z {1,2,3} {3,2,3} x := z … x := z {0,2,3} Relational Abstraction – Example • A1 is an LTS (i.e., an MTS with A1may = A1must): • Its infinite state space is given by all possible valuations of three integer variables x, y, z • Any state c is of the form {x=i, y=j, z=k} • Transitions in A1 are those induced by x := z • I.e., there is a transition from c to c’ = {x=k, y=j, z=k} • A fragment of A1:

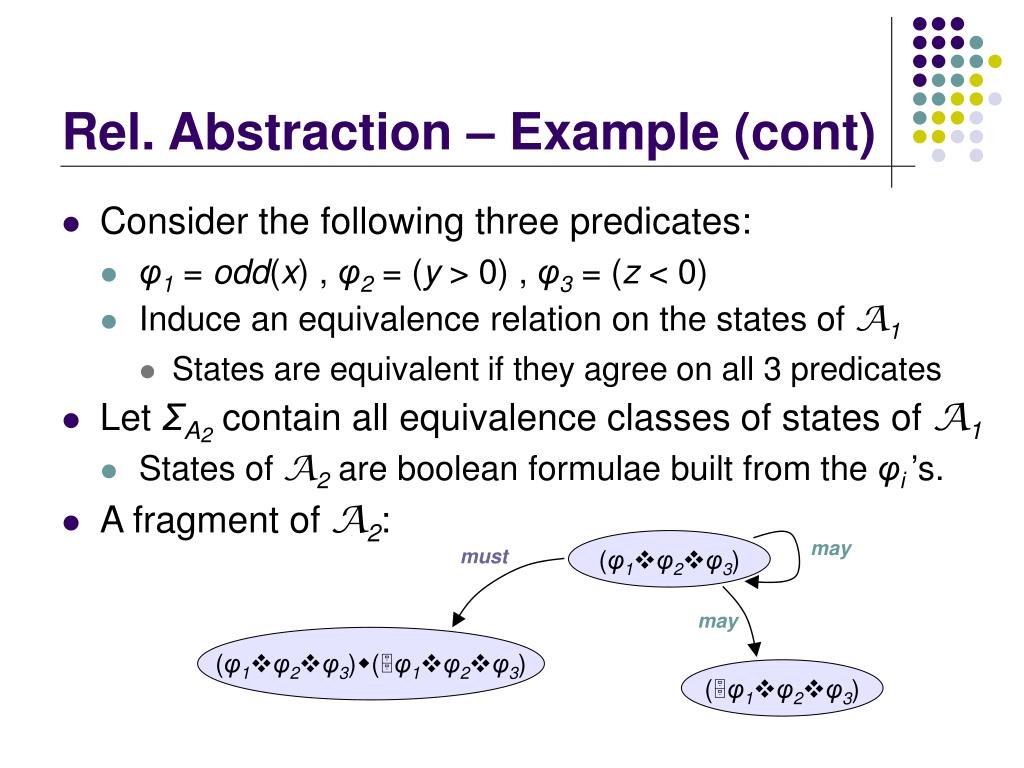

  27. may must may (φ1φ2φ3) (φ1φ2φ3)(φ1φ2φ3) (φ1φ2φ3) Rel. Abstraction – Example (cont) • Consider the following three predicates: • φ1 = odd(x) , φ2 = (y > 0) , φ3 = (z < 0) • Induce an equivalence relation on the states of A1 • States are equivalent if they agree on all 3 predicates • Let ΣA2 contain all equivalence classes of states of A1 • States of A2 are boolean formulae built from the φi ’s. • A fragment of A2:

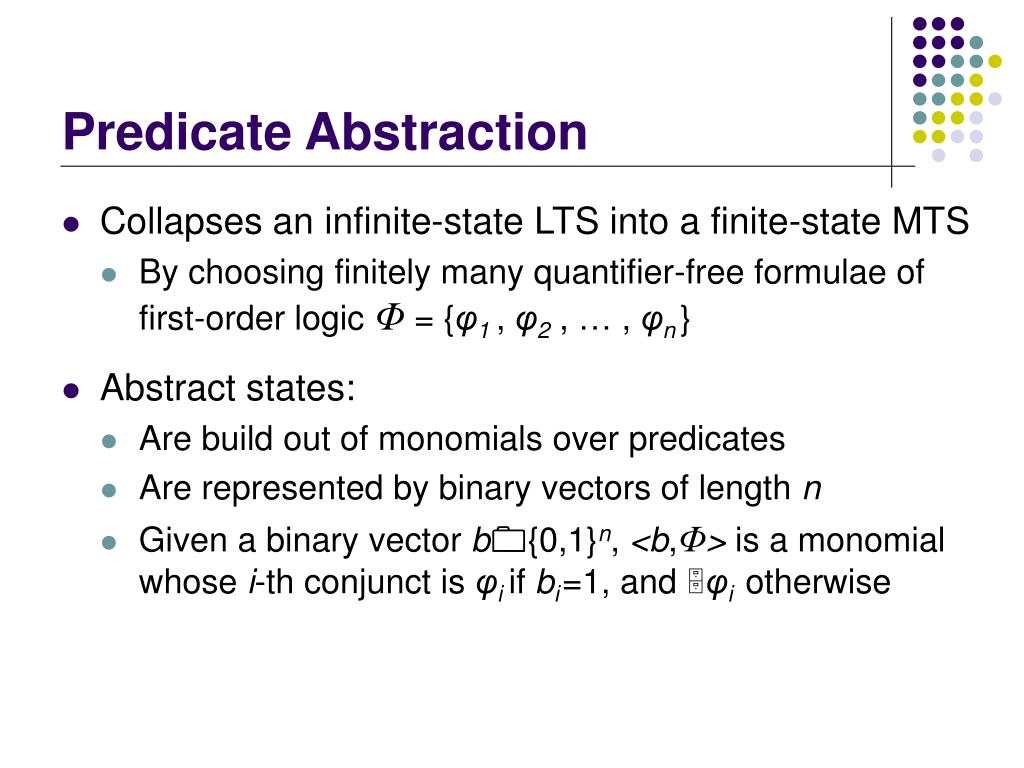

  28. Predicate Abstraction • Collapses an infinite-state LTS into a finite-state MTS • By choosing finitely many quantifier-free formulae of first-order logic Φ = {φ1 , φ2 , … , φn} • Abstract states: • Are build out of monomials over predicates • Are represented by binary vectors of length n • Given a binary vector b{0,1}n, <b,Φ> is a monomial whose i-th conjunct is φi if bi=1, and φi otherwise

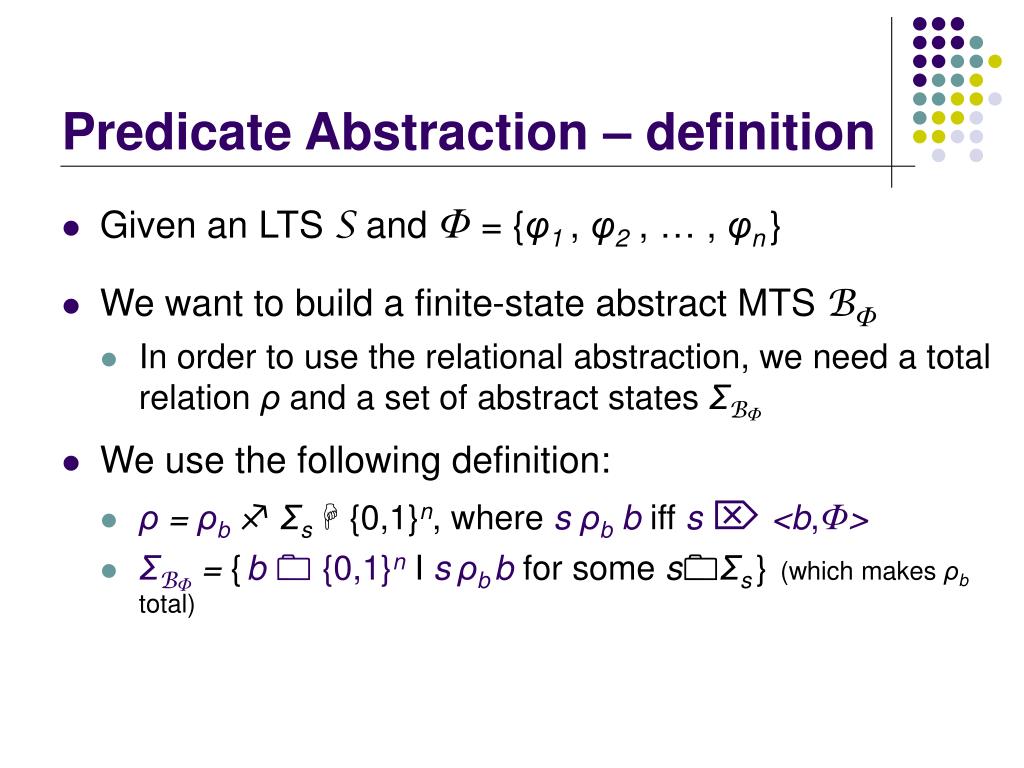

  29. Predicate Abstraction – definition • Given an LTS S and Φ = {φ1 , φ2 , … , φn} • We want to build a finite-state abstract MTS BΦ • In order to use the relational abstraction, we need a total relation ρand a set of abstract states ΣBΦ • We use the following definition: • ρ=ρbΣs {0,1}n, where sρb biffs <b,Φ> • ΣBΦ = {b  {0,1}n I sρbbfor some sΣs} (which makes ρb total)

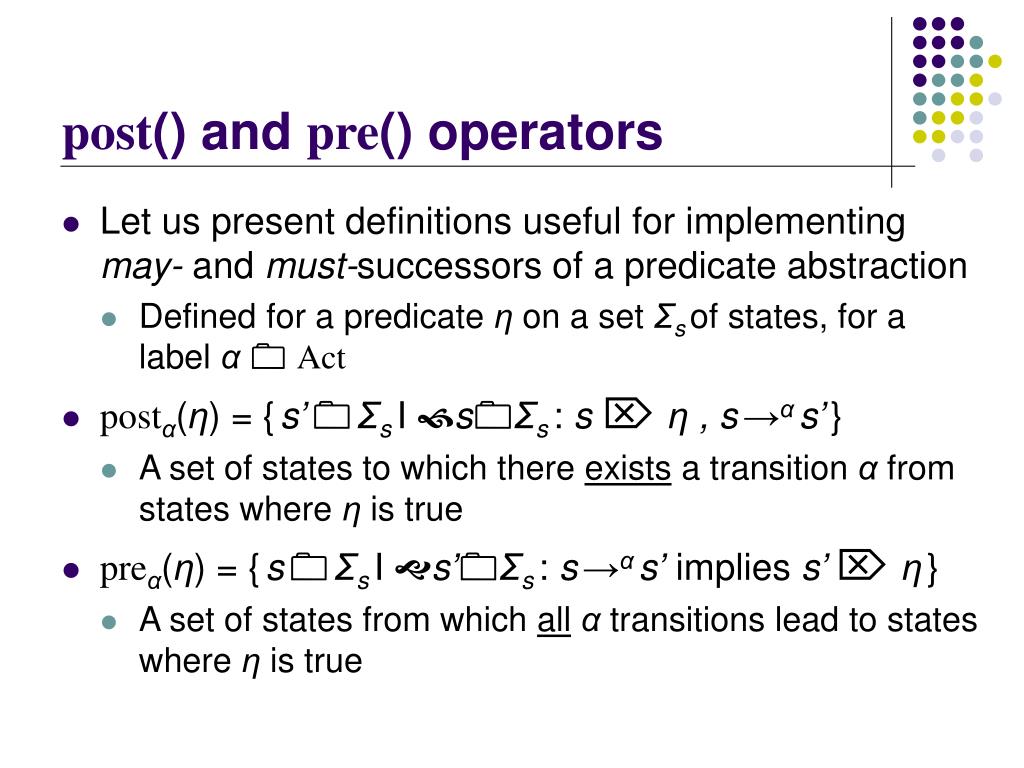

  30. post() and pre() operators • Let us present definitions useful for implementing may- and must-successors of a predicate abstraction • Defined for a predicate η on a set Σsof states, for a label αAct • postα(η) = {s’ΣsI sΣs: s  η , s→αs’} • A set of states to which there exists a transition α from states where η is true • preα(η) = {sΣsI s’Σs: s→αs’implies s’  η} • A set of states from which allα transitions lead to states where η is true

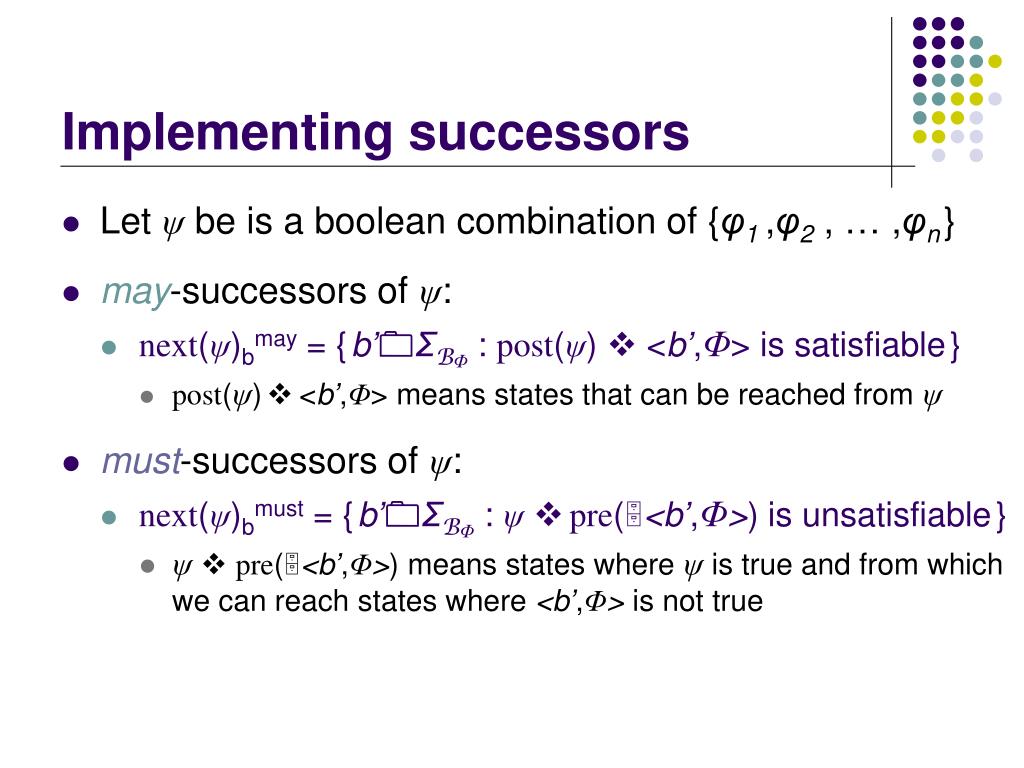

  31. Implementing successors • Let ψ be is a boolean combination of {φ1 ,φ2 , … ,φn} • may-successors of ψ: • next(ψ)bmay = {b’ΣBΦ: post(ψ)  <b’,Φ>is satisfiable} • post(ψ)<b’,Φ> means states that can be reached from ψ • must-successors of ψ: • next(ψ)bmust = {b’ΣBΦ: ψpre(<b’,Φ>)is unsatisfiable} • ψ pre(<b’,Φ>)means states where ψ is true and from which we can reach states where <b’,Φ> is not true

  32. a’1 may a2 a’2 a’1 must a’2 a2 Soundness and Completeness • Theorem: • b→mayb’in BΦ iff b’ next(<b,Φ>)bmay • b→mustb’in BΦ iff b’ next(<b,Φ>)bmust • Reminder: • a2→αmaya’2 iff there existsa1ΣA1 and a’1ΣA1 such that a1ρ a2 , a’1ρ a’2 and a1→αmaya’1 • a2→αmusta’2 iff for alla1ΣA1 with a1ρ a2 there exists a’1ΣA1such that a’1ρ a’2 and a1→αmusta’1 • Completeness is relative to the theorem prover

  33. Computational Cost • In the paper it is shown that both next(ψ)bmay and next(ψ)bmust can be computed using BDDs • Since there are 2n boolean vectors b’, we should make 2n calls to the theorem prover for a single ψ • We have n predicates and, therefore, 2n boolean combinations ψ of {φ1 ,φ2 , …,φn} • Thus, computing all may transitions (i.e. next(ψ)bmay for all ψ’s) takes 22n calls to the theorem prover • Same is for all must transitions in BΦ

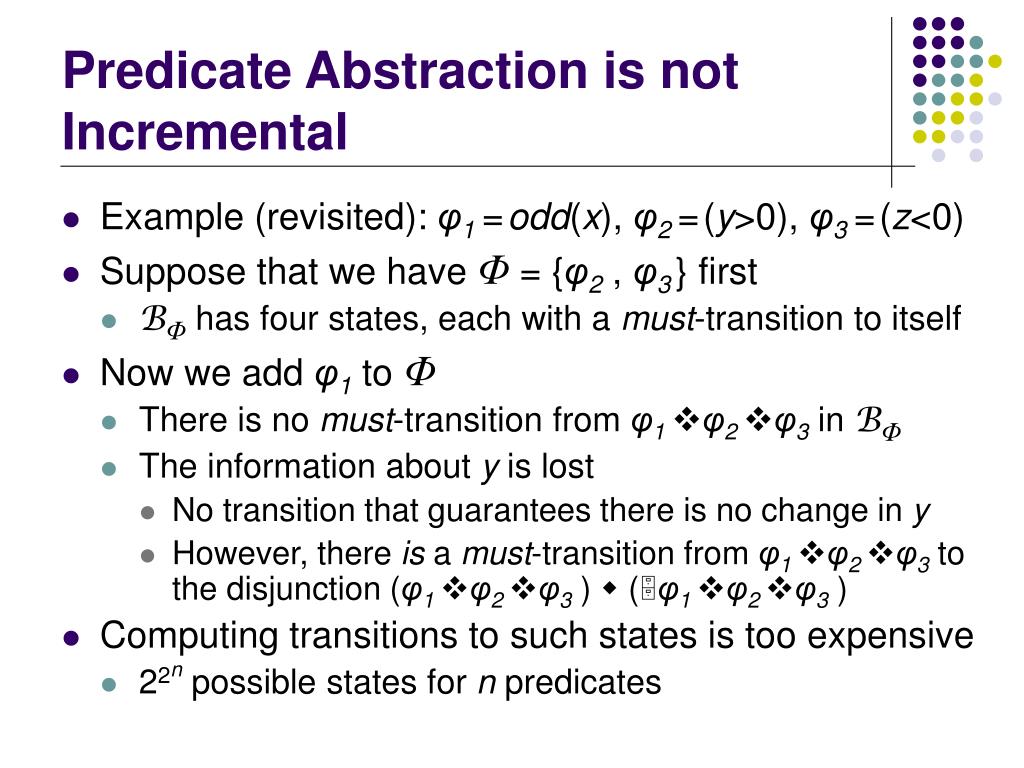

  34. Predicate Abstraction is not Incremental • Example (revisited): φ1 =odd(x), φ2 =(y>0), φ3 =(z<0) • Suppose that we have Φ = {φ2 , φ3} first • BΦ has four states, each with a must-transition to itself • Now we add φ1 to Φ • There is no must-transition from φ1 φ2 φ3in BΦ • The information about y is lost • No transition that guarantees there is no change in y • However, there is a must-transition from φ1 φ2 φ3to the disjunction (φ1 φ2 φ3)  (φ1 φ2 φ3) • Computing transitions to such states is too expensive • 22n possible states for n predicates

  35. Predicate-Cartesian Abstraction (1) • Motivation: • Predicate abstraction is not incremental • Adding a new predicate may not yield a refinement • The idea: • Replace sets of tuples by a tuple of sets • E.g., replace {<0,1>,<1,1>} by {<,1>} ( – a wildcard) • Formally: • Given Φ = {φ1 ,φ2 ,…,φn} and a “tri-vector” c {0,1,}n • <c,Φ> is a monomial whose i-th conjunct is φi if ci=1, φiif ci=0, and trueotherwise

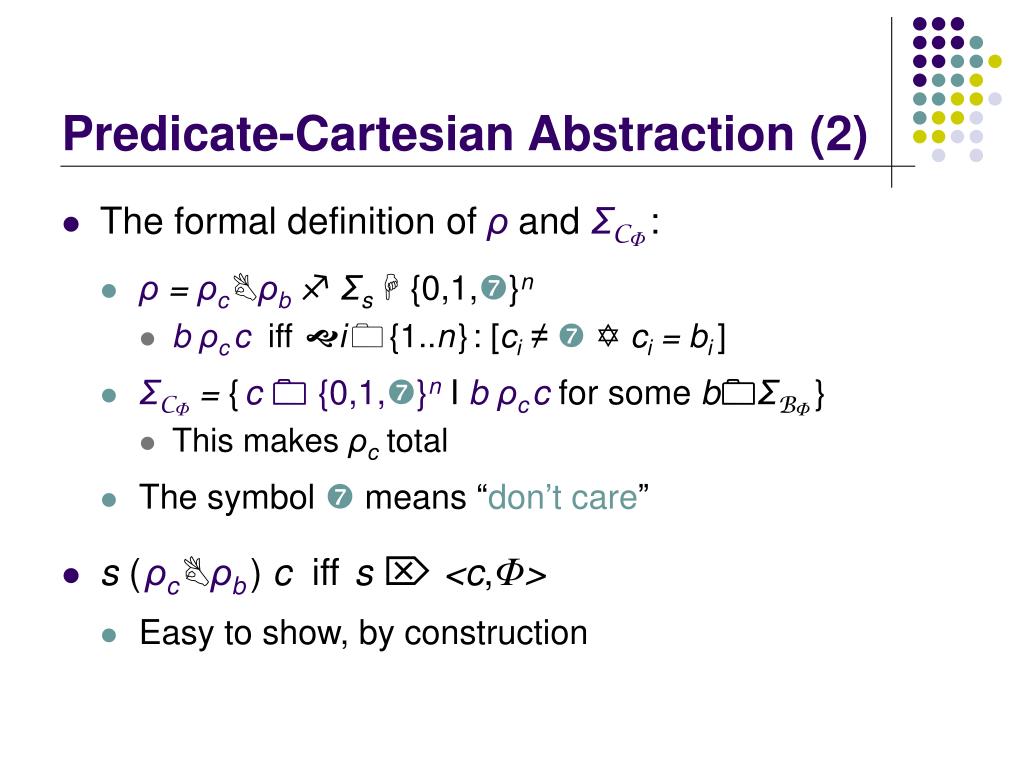

  36. Predicate-Cartesian Abstraction (2) • The formal definition of ρ and ΣCΦ: • ρ= ρcρbΣs {0,1,}n • bρcc iffi{1..n}: [ci ≠  ci = bi ] • ΣCΦ = {c  {0,1,}n I bρccfor some bΣBΦ} • This makes ρc total • The symbol  means “don’t care” • s (ρcρb) c iffs<c,Φ> • Easy to show, by construction

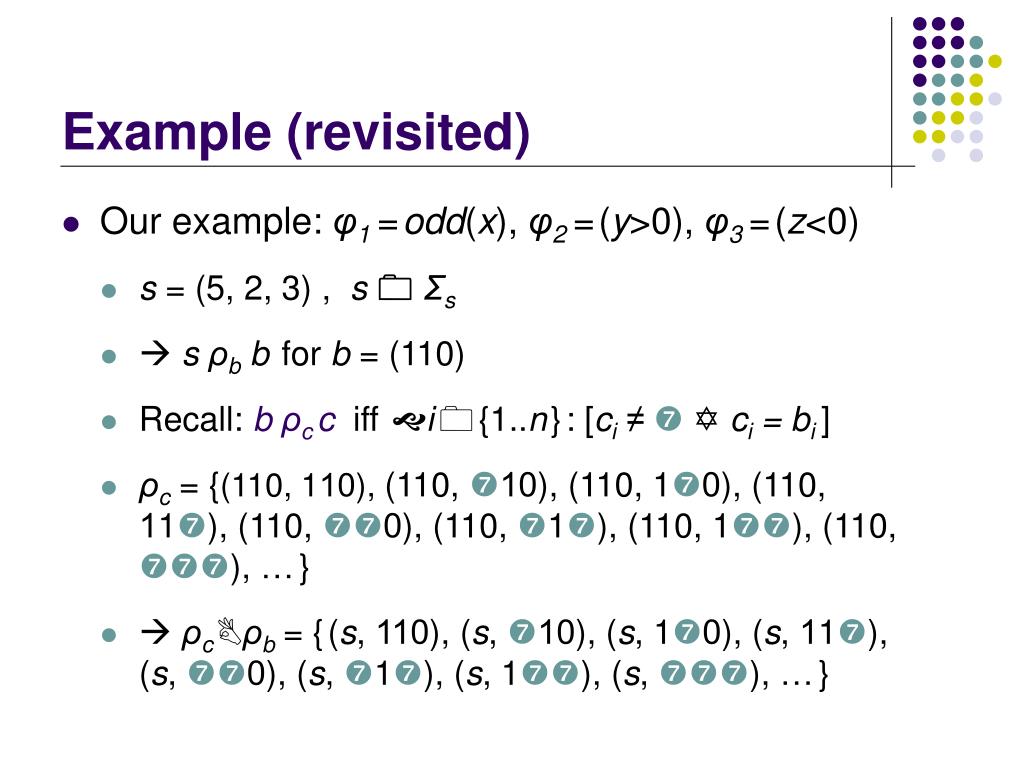

  37. Example (revisited) • Our example: φ1 =odd(x), φ2 =(y>0), φ3 =(z<0) • s = (5, 2, 3) , s Σs •  s ρbbfor b = (110) • Recall:bρcc iffi{1..n}: [ci ≠  ci = bi ] • ρc= {(110, 110), (110, 10), (110, 10), (110, 11), (110, 0), (110, 1), (110, 1), (110, ), …} •  ρcρb= {(s, 110), (s, 10), (s, 10), (s, 11), (s, 0), (s, 1), (s, 1), (s, ), …}

  38. 10 010 110 110 010 may may may must may may must may may must may may may Example (cont’d) BΦ(a fragment) CΦ(a fragment)

  39. Example (cont’d) • Why s (ρcρb) c iffs<c,Φ> ? • For example: (s,10) ρcρb iff sφ1 trueφ3 • (s,10) ρcρbsρbb for b = 100 or 110  either sφ1 φ2 φ3 or sφ1 φ2 φ3 sφ1 true φ3

  40. Incremental Refinement • Theorem: • If Φ = {φ1 ,φ2 ,…, φn} and Ψ = Φ{φn+1 , φn+2 ,…, φn+m } • Then the MTS CΨis a refinement of the MTS CΦ • The refinement relation ρ is given by: • ρ ΣCΨ ΣCΦ= {(c’,c) | c is a prefix of c’} • Intuitively, newly-added predicates replace “don’t care”s. • This is not the case for predicate abstraction

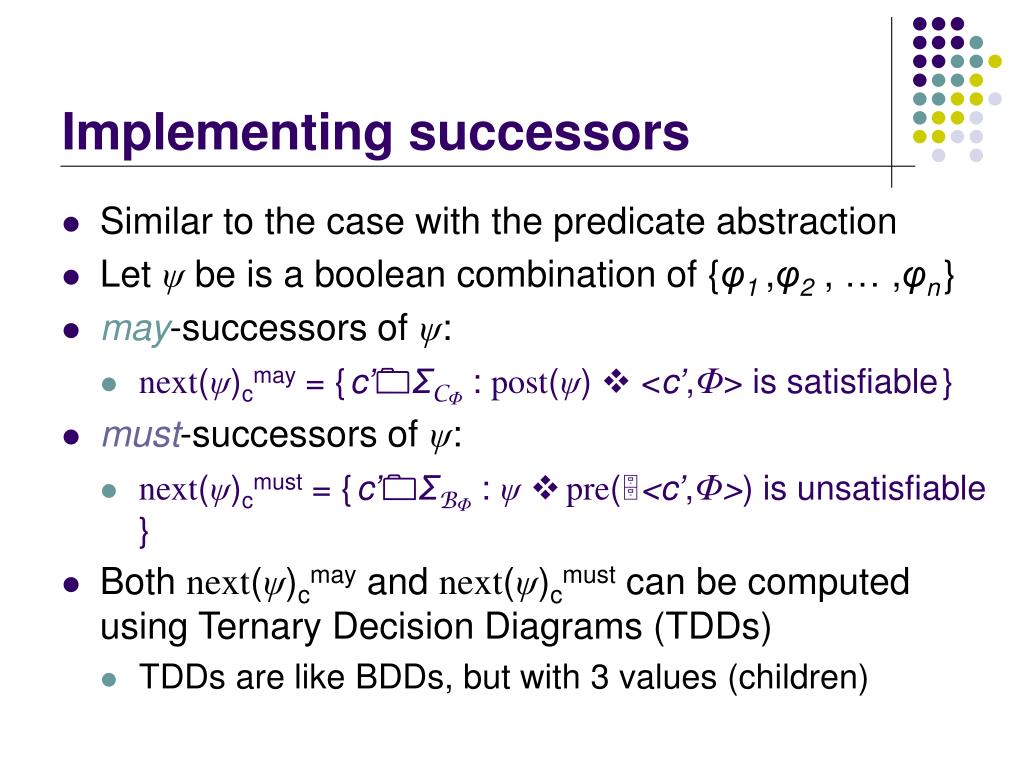

  41. Implementing successors • Similar to the case with the predicate abstraction • Let ψ be is a boolean combination of {φ1 ,φ2 , … ,φn} • may-successors of ψ: • next(ψ)cmay = {c’ΣCΦ: post(ψ)  <c’,Φ>is satisfiable} • must-successors of ψ: • next(ψ)cmust = {c’ΣBΦ: ψpre(<c’,Φ>)is unsatisfiable} • Both next(ψ)cmay and next(ψ)cmust can be computed using Ternary Decision Diagrams (TDDs) • TDDs are like BDDs, but with 3 values (children)

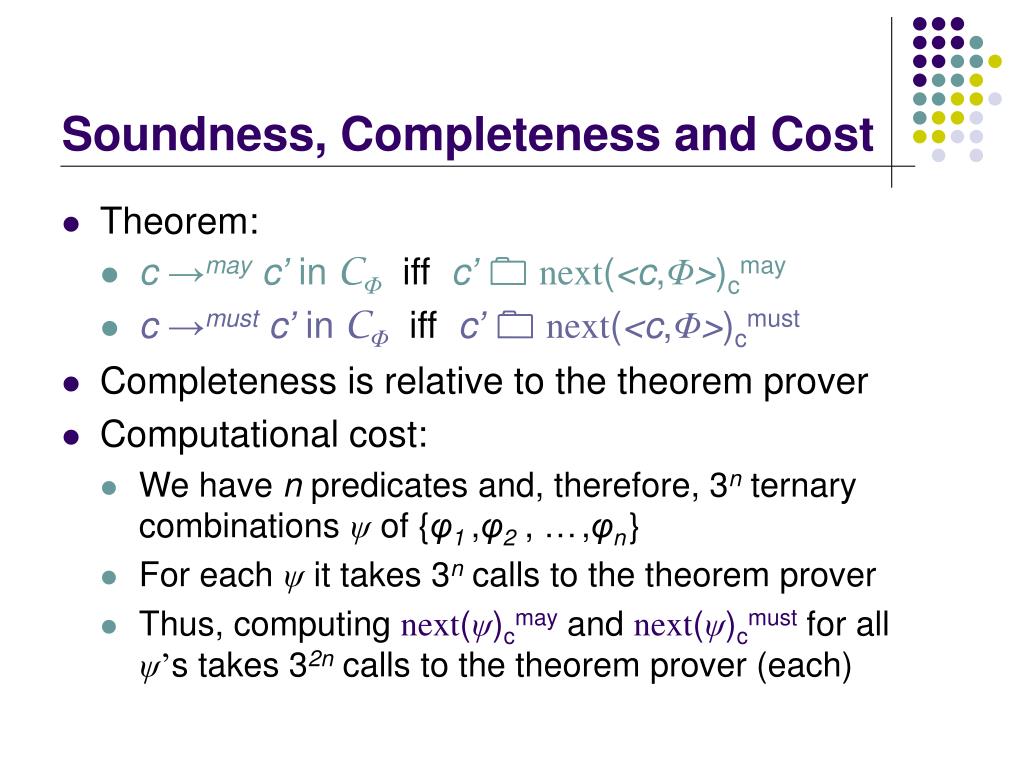

  42. Soundness, Completeness and Cost • Theorem: • c→mayc’in CΦ iff c’ next(<c,Φ>)cmay • c→mustc’in CΦ iff c’ next(<c,Φ>)cmust • Completeness is relative to the theorem prover • Computational cost: • We have n predicates and, therefore, 3n ternary combinations ψ of {φ1 ,φ2 , …,φn} • For each ψ it takes 3n calls to the theorem prover • Thus, computing next(ψ)cmay and next(ψ)cmust for all ψ’s takes 32n calls to the theorem prover (each)

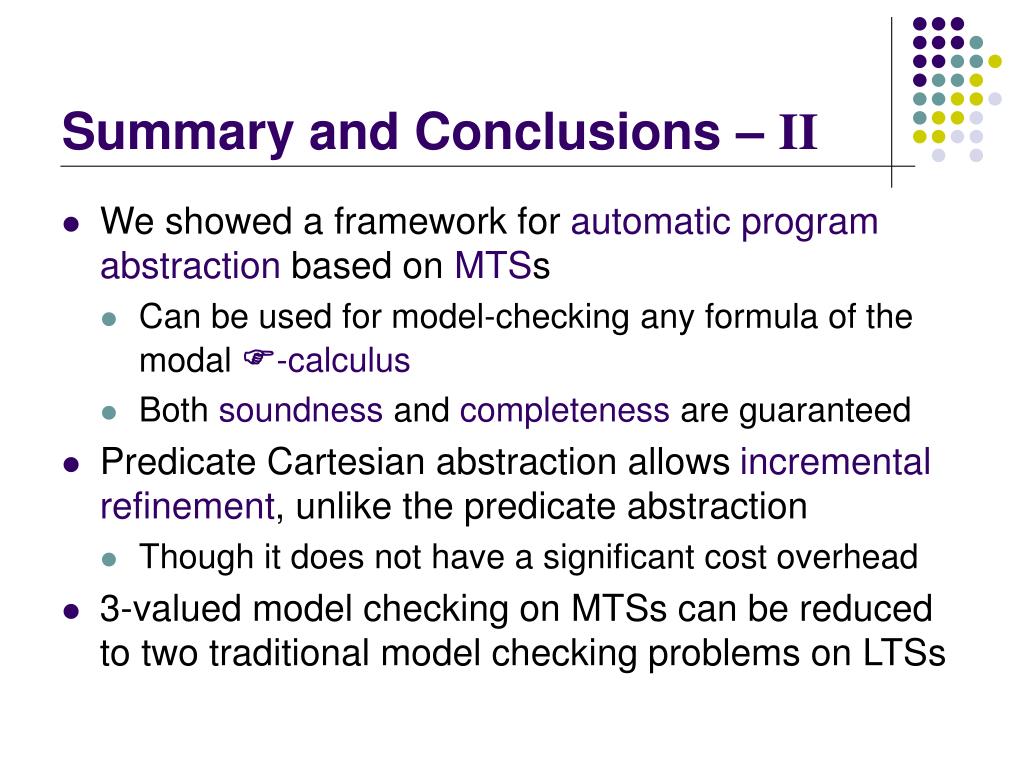

  43. Summary and Conclusions – II • We showed a framework for automatic program abstraction based on MTSs • Can be used for model-checking any formula of the modal -calculus • Both soundness and completeness are guaranteed • Predicate Cartesian abstraction allows incremental refinement, unlike the predicate abstraction • Though it does not have a significant cost overhead • 3-valued model checking on MTSs can be reduced to two traditional model checking problems on LTSs

  44. Thank you!
