  1. A Multi Gigabit FPGA-based5-tuple classification system Author: Antonis Nikitakis, Ioannis Papaefstathiou; Publisher: Communications, 2008. ICC '08. IEEE International Conference on Presenter: Yu-Ping Chiang Date: 2008/10/15

  2. Outline • 2sBFCE Architecture • Overview • Single Field Operations • Permutation Engine • Bloom Filter (2nd stage) • Rule Table • Simulation Result

  3. Outline • 2sBFCE Architecture • Overview • Single Field Operations • Permutation Engine • Bloom Filter (2nd stage) • Rule Table • Simulation Result

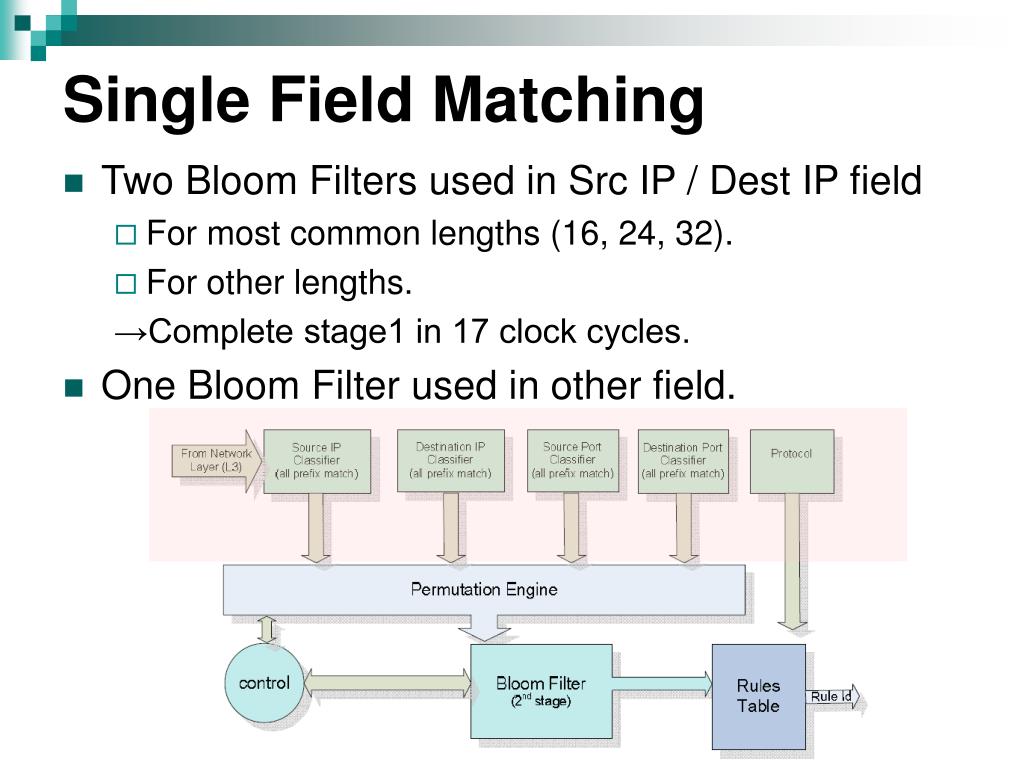

  4. Single Field Matching • Two Bloom Filters used in Src IP / Dest IP field • For most common lengths (16, 24, 32). • For other lengths. →Complete stage1 in 17 clock cycles. • One Bloom Filter used in other field.

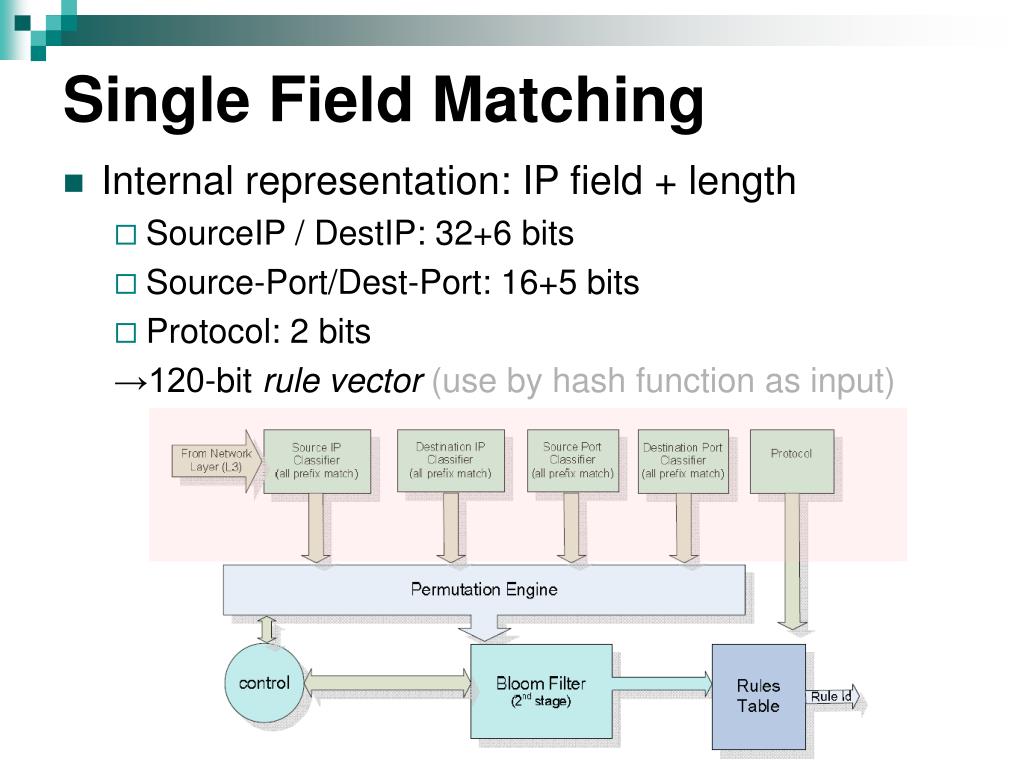

  5. Single Field Matching • Internal representation: IP field + length • SourceIP / DestIP: 32+6 bits • Source-Port/Dest-Port: 16+5 bits • Protocol: 2 bits →120-bit rule vector (use by hash function as input)

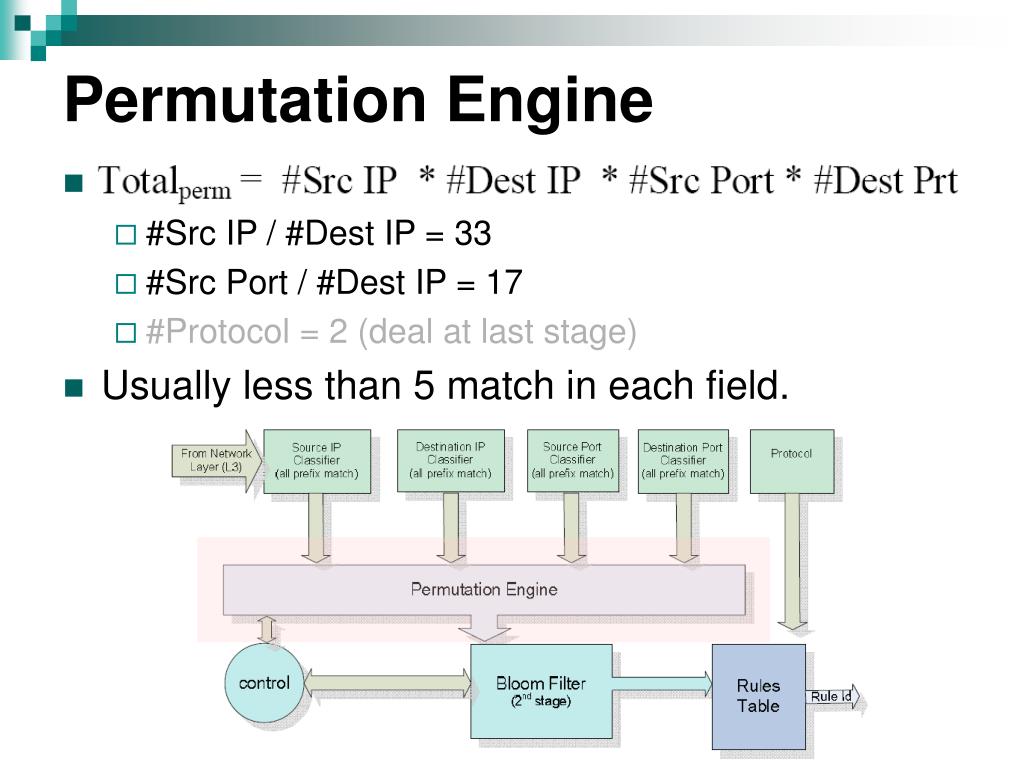

  6. Permutation Engine • . • #Src IP / #Dest IP = 33 • #Src Port / #Dest IP = 17 • #Protocol = 2 (deal at last stage) • Usually less than 5 match in each field.

  7. Bloom Filter • Two hashing function • 2 bits access, 2 memory access. →dual port memory module • Hash function • . q(i) = derives from randomized vector x(i) = rule vector

  8. Bloom Filter • False positive • Don’t support incremental updates. • One memory access each permutation. • Avg.10-15 clock cycles

  9. Rules Table • Keep whole information of rule and FlowID • If match, output FlowID.. • 12-bit FlowID (4K rules) • Set priority for finding best one.

  10. Rules Table • Hash indexing • Variable size blocks holding colliding FlowIDs. → search sequentially. • Deal protocol field

  11. Outline • 2sBFCE Architecture • Overview • First Stage • Single Field Operations • Permutation Engine • Second Stage • Bloom Filter • Rule Table • Simulation Result

  12. Results • Memory requierment: • Single field & second stage: 178 KB • Query time: • Primary design: avg. 42 clock cycles/query • 42 * 6.56ns = 275.5 ns/packet • 3.63 Mpps (MegaPacketsPerSecond) • Improved design: avg. 26 clock cycles/query • 26 * 6.56ns = 170.56 ns/packet • 5.86 Mpps

  13. Results
