  1. Chapter 2 Conversion

  2. Any base to decimal ( Sk-1 … S2S1S0.S-1S-2…S-L ) b Sk-1 x bk-1+ … + S2 X b2+ S1X b1+ S0X b0 S-1 x b-1+ S-2 X b-2+ … + S-LX b-L n = +

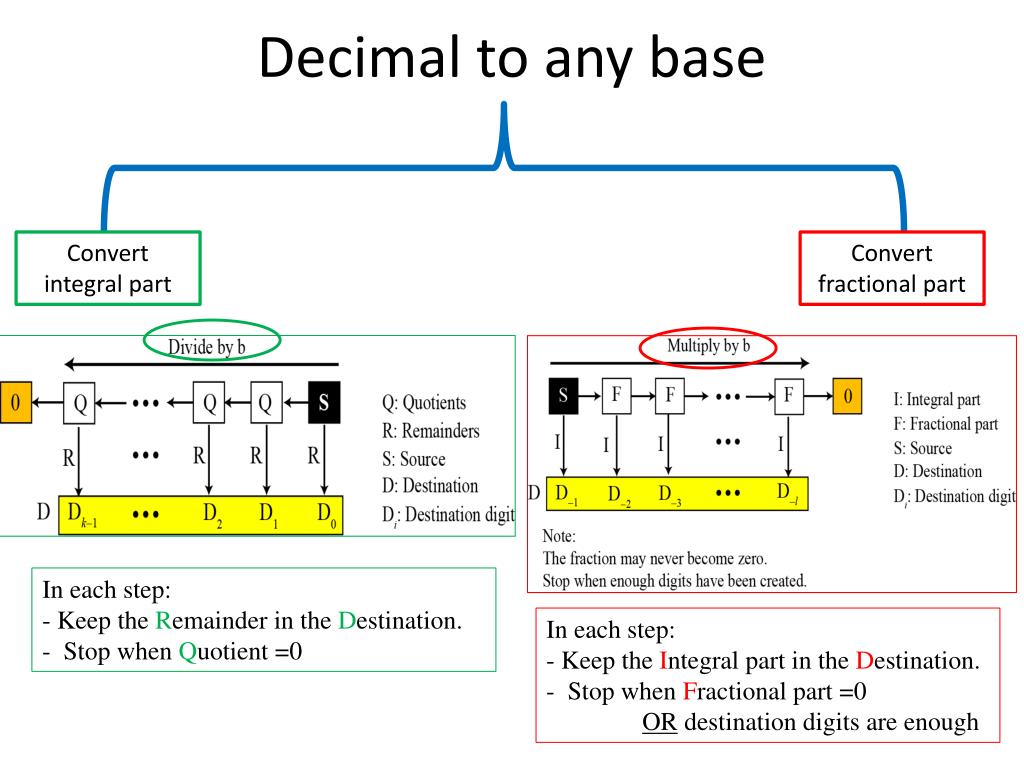

  3. Decimal to any base Convert integral part Convert fractional part In each step: - Keep the Remainder in the Destination. - Stop when Quotient =0 In each step: - Keep the Integral part in the Destination. - Stop when Fractional part =0OR destination digits are enough

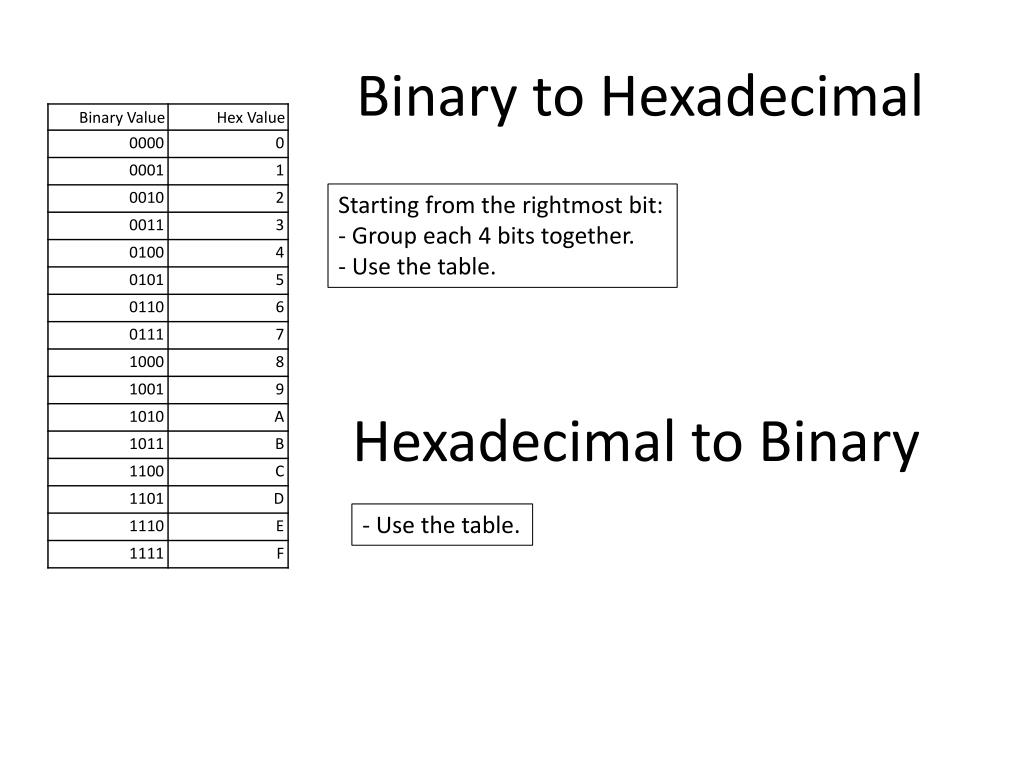

  4. Binary to Hexadecimal • Starting from the rightmost bit: • Group each 4 bits together. • Use the table. • Hexadecimal to Binary - Use the table.

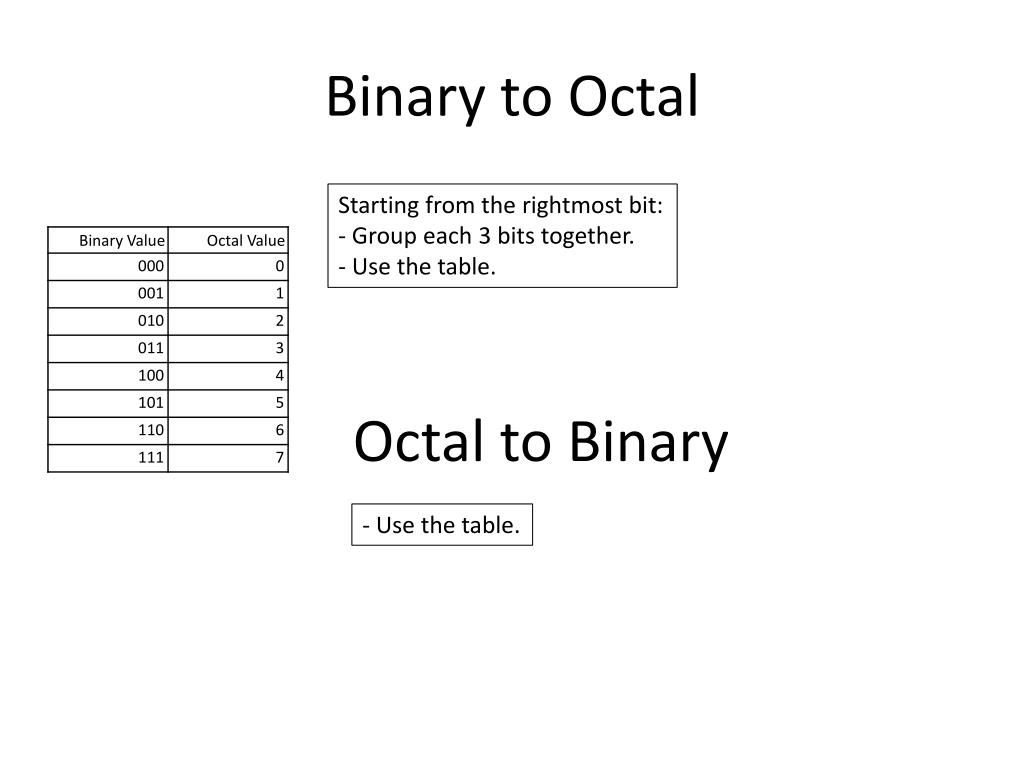

  5. Binary to Octal • Starting from the rightmost bit: • Group each 3 bits together. • Use the table. • Octal to Binary - Use the table.

  6. Octal to Hexadecimal or vise versa Use the binary system as the intermediate system.
