  1. j-Interop Open Source Java COM Bridge

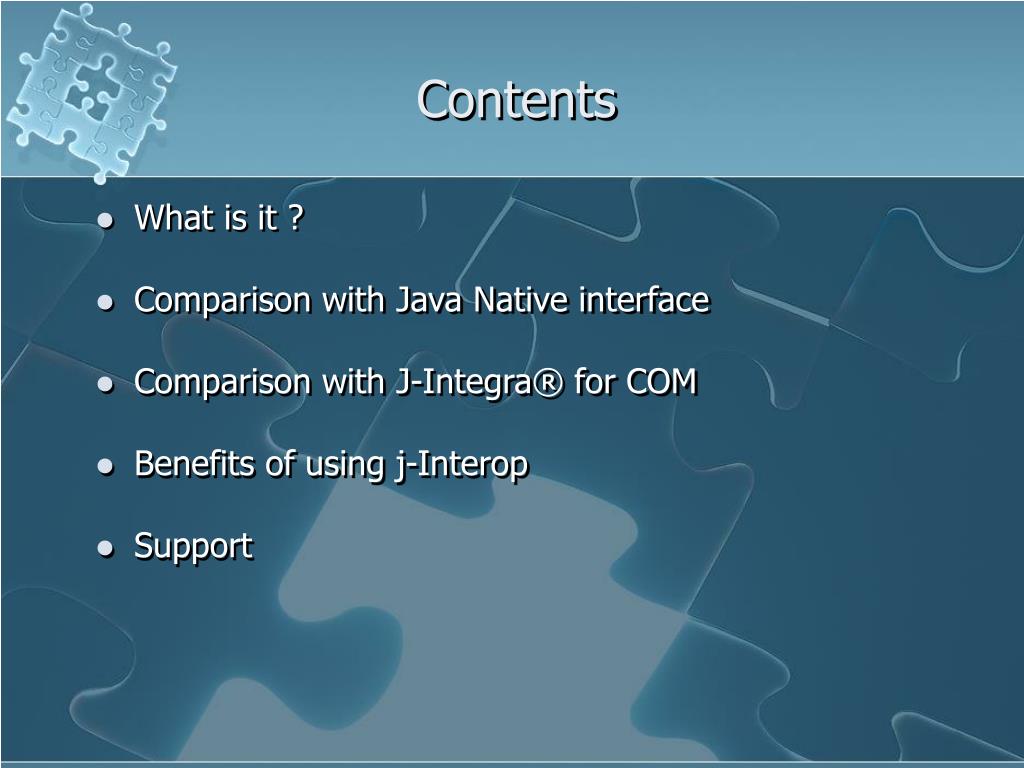

  2. Contents • What is it ? • Comparison with Java Native interface • Comparison with J-Integra® for COM • Benefits of using j-Interop • Support

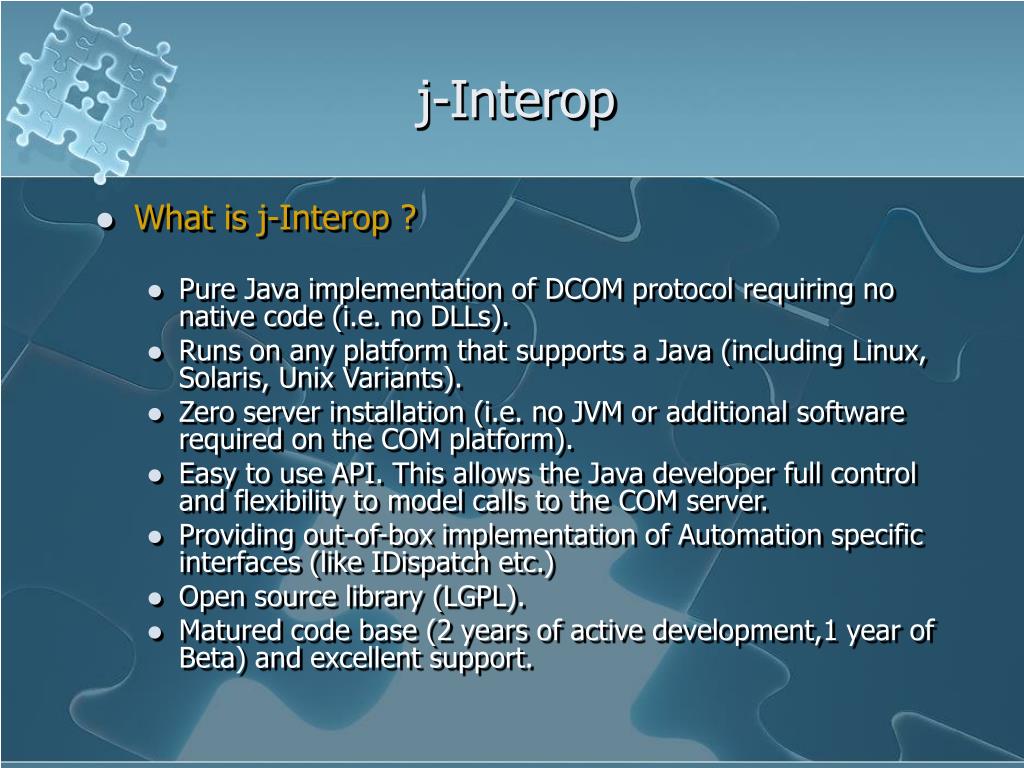

  3. j-Interop • What is j-Interop ? • Pure Java implementation of DCOM protocol requiring no native code (i.e. no DLLs). • Runs on any platform that supports a Java (including Linux, Solaris, Unix Variants). • Zero server installation (i.e. no JVM or additional software required on the COM platform). • Easy to use API. This allows the Java developer full control and flexibility to model calls to the COM server. • Providing out-of-box implementation of Automation specific interfaces (like IDispatch etc.) • Open source library (LGPL). • Matured code base (2 years of active development,1 year of Beta) and excellent support.

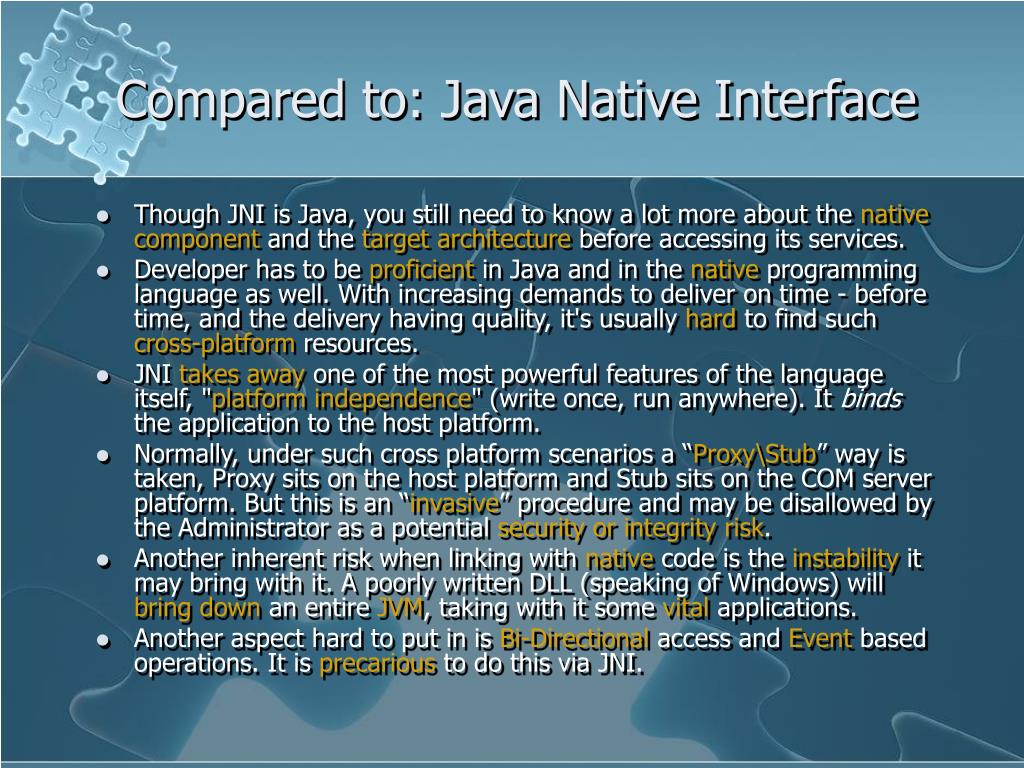

  4. Compared to: Java Native Interface • Though JNI is Java, you still need to know a lot more about the native component and the target architecture before accessing its services. • Developer has to be proficient in Java and in the native programming language as well. With increasing demands to deliver on time - before time, and the delivery having quality, it's usually hard to find such cross-platform resources. • JNI takes away one of the most powerful features of the language itself, "platform independence" (write once, run anywhere). It binds the application to the host platform. • Normally, under such cross platform scenarios a “Proxy\Stub” way is taken, Proxy sits on the host platform and Stub sits on the COM server platform. But this is an “invasive” procedure and may be disallowed by the Administrator as a potential security or integrity risk. • Another inherent risk when linking with native code is the instability it may bring with it. A poorly written DLL (speaking of Windows) will bring down an entire JVM, taking with it some vital applications. • Another aspect hard to put in is Bi-Directional access and Event based operations. It is precarious to do this via JNI.

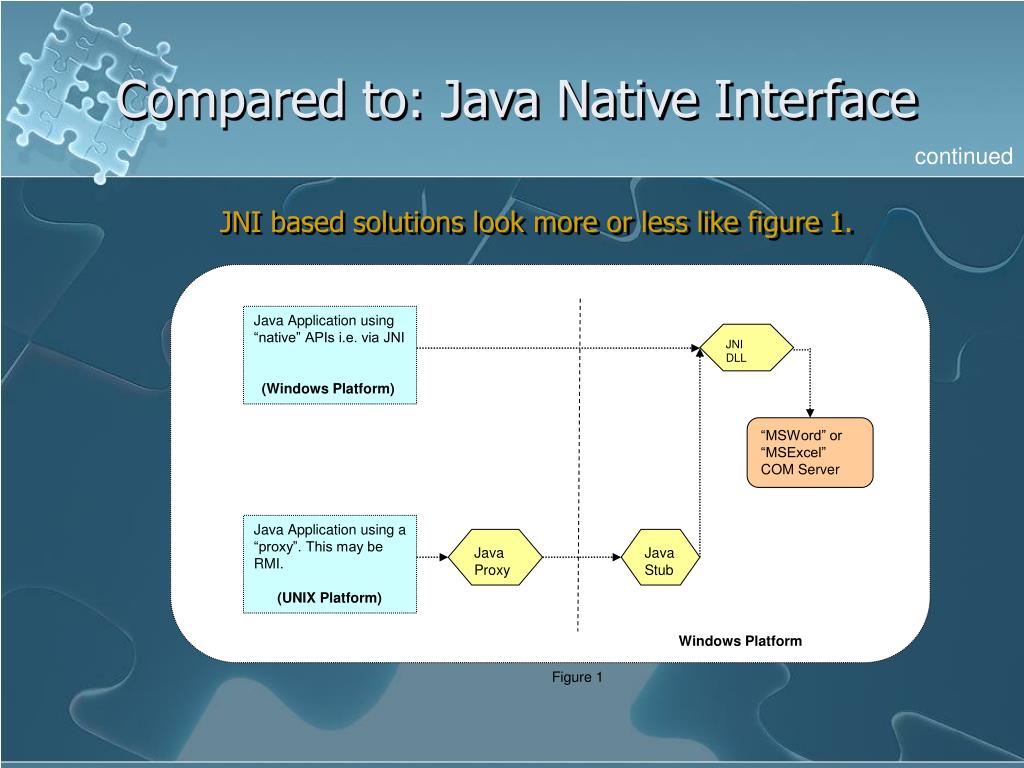

  5. Java Application using “native” APIs i.e. via JNI (Windows Platform) JNI DLL “MSWord” or “MSExcel” COM Server Java Application using a “proxy”. This may be RMI. (UNIX Platform) Java Proxy Java Stub Windows Platform • Figure 1 Compared to: Java Native Interface continued JNI based solutions look more or less like figure 1.

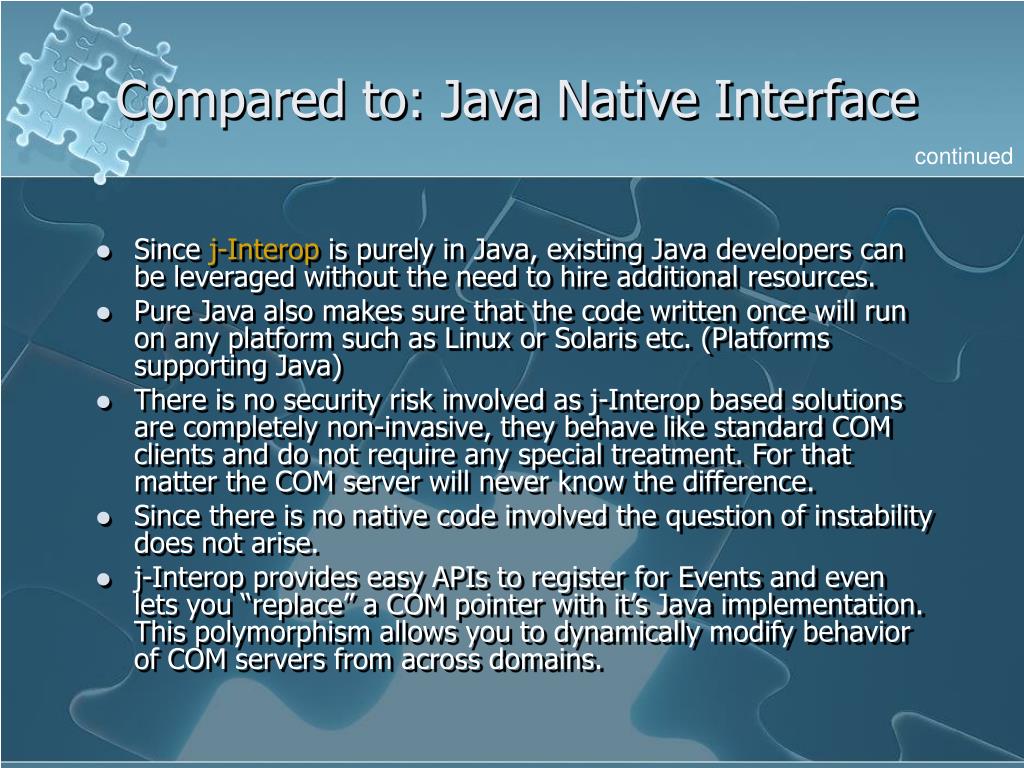

  6. Compared to: Java Native Interface continued • Since j-Interop is purely in Java, existing Java developers can be leveraged without the need to hire additional resources. • Pure Java also makes sure that the code written once will run on any platform such as Linux or Solaris etc. (Platforms supporting Java) • There is no security risk involved as j-Interop based solutions are completely non-invasive, they behave like standard COM clients and do not require any special treatment. For that matter the COM server will never know the difference. • Since there is no native code involved the question of instability does not arise. • j-Interop provides easy APIs to register for Events and even lets you “replace” a COM pointer with it’s Java implementation. This polymorphism allows you to dynamically modify behavior of COM servers from across domains.

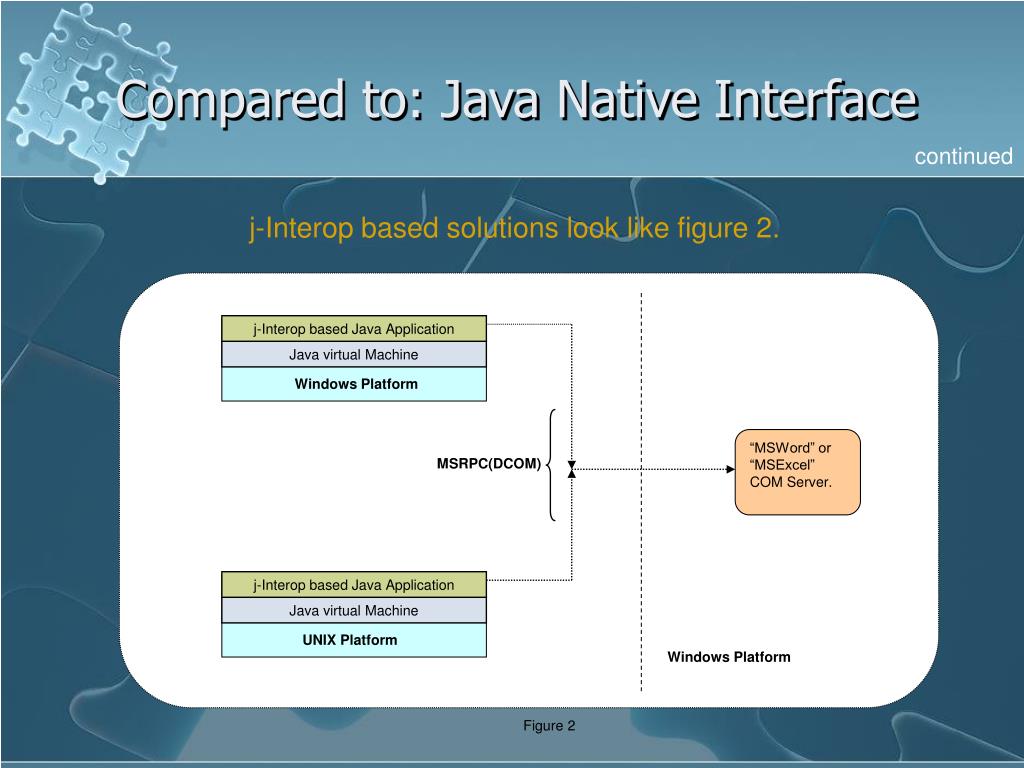

  7. j-Interop based Java Application Windows Platform Java virtual Machine “MSWord” or “MSExcel” COM Server. j-Interop based Java Application UNIX Platform Java virtual Machine Windows Platform • Figure 2 Compared to: Java Native Interface continued j-Interop based solutions look like figure 2. MSRPC(DCOM) MSRPC(DCOM)

  8. Compared to: J-Integra® for COM • J-Integra® for COM is also a pure Java implementation of DCOM protocol. • Almost all features provided by this commercial library are provided by j-Interop as well including callbacks and support for all COM data types. • Under lab conditions (I have no other source or setup) j-Interop has performed comparably with a Windows COM client and better than J-Integra (in the DCOM mode). • The areas where J-Integra scores over j-Interop are:- • Commercial Compiler to generate wrapper classes. • This feature will be shortly available in j-Interop. • Claims Full Bi-Directional access. • J-Interop is partial (only an existing COM reference can be replaced by a Java implementation, but a Java Server cannot be morphed as a COM server. • This feature is under review for lack of use cases and demand. • If someone sees a need, please ping me.

  9. j-Interop - Component stack

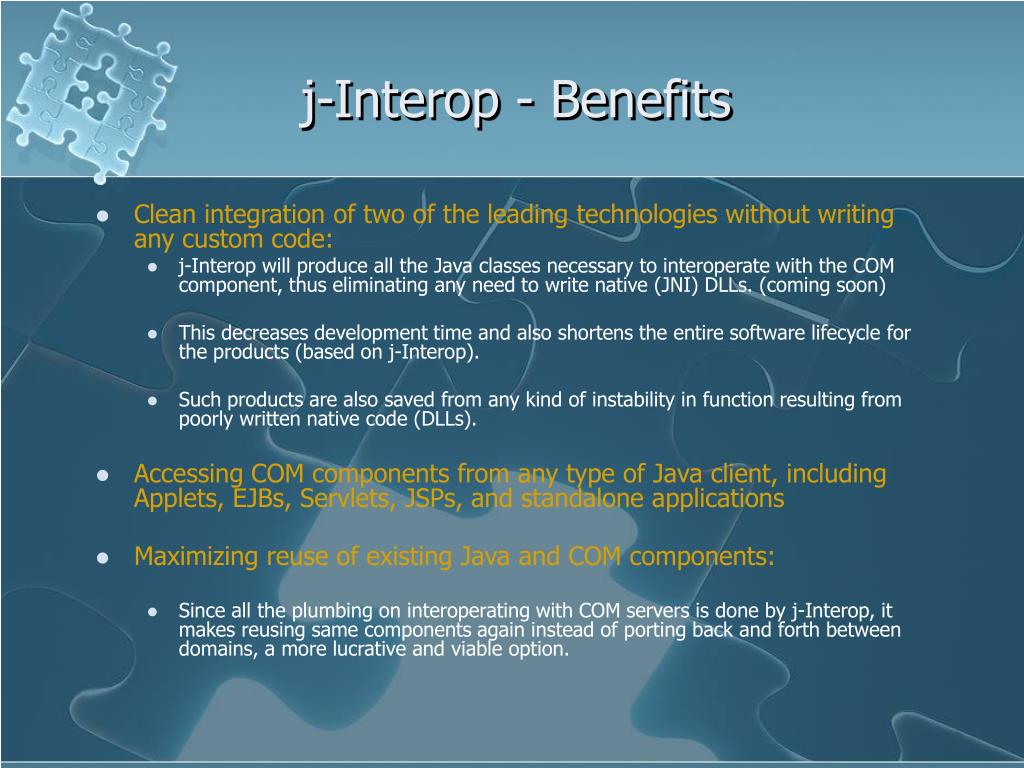

  10. j-Interop - Benefits • Clean integration of two of the leading technologies without writing any custom code: • j-Interop will produce all the Java classes necessary to interoperate with the COM component, thus eliminating any need to write native (JNI) DLLs. (coming soon) • This decreases development time and also shortens the entire software lifecycle for the products (based on j-Interop). • Such products are also saved from any kind of instability in function resulting from poorly written native code (DLLs). • Accessing COM components from any type of Java client, including Applets, EJBs, Servlets, JSPs, and standalone applications • Maximizing reuse of existing Java and COM components: • Since all the plumbing on interoperating with COM servers is done by j-Interop, it makes reusing same components again instead of porting back and forth between domains, a more lucrative and viable option.

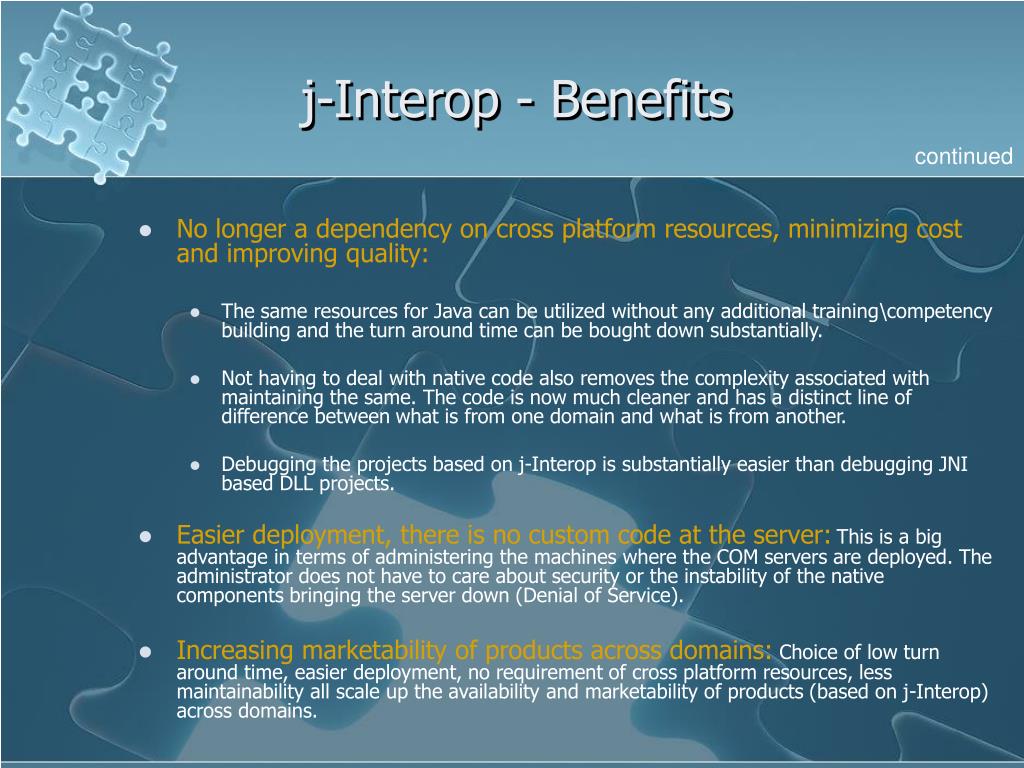

  11. j-Interop - Benefits continued • No longer a dependency on cross platform resources, minimizing cost and improving quality: • The same resources for Java can be utilized without any additional training\competency building and the turn around time can be bought down substantially. • Not having to deal with native code also removes the complexity associated with maintaining the same. The code is now much cleaner and has a distinct line of difference between what is from one domain and what is from another. • Debugging the projects based on j-Interop is substantially easier than debugging JNI based DLL projects. • Easier deployment, there is no custom code at the server:This is a big advantage in terms of administering the machines where the COM servers are deployed. The administrator does not have to care about security or the instability of the native components bringing the server down (Denial of Service). • Increasing marketability of products across domains: Choice of low turn around time, easier deployment, no requirement of cross platform resources, less maintainability all scale up the availability and marketability of products (based on j-Interop) across domains.

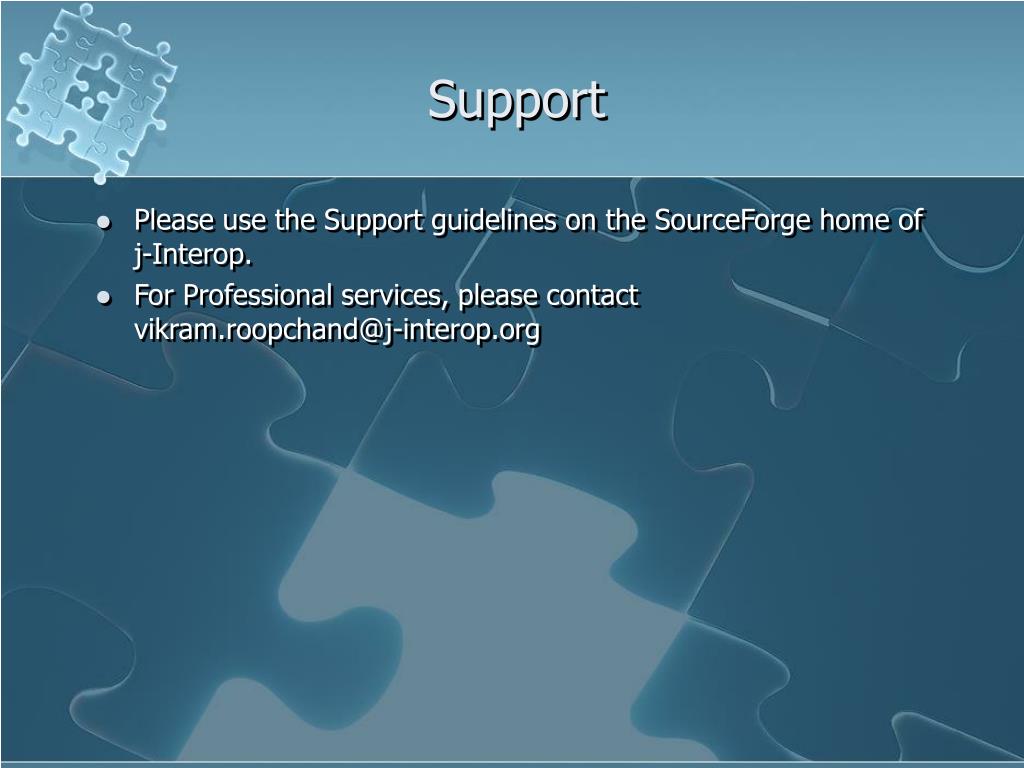

  12. Support • Please use the Support guidelines on the SourceForge home of j-Interop. • For Professional services, please contact vikram.roopchand@j-interop.org

  13. That’s it… Thank you for your time and patience.
