Simulation of Anti-Nucleus – Nucleus Elastic scattering

Simulation of Anti-Nucleus – Nucleus Elastic scattering. A. Galoyan and V. Uzhinsky, 27 April 2011. ● Glauber theory for anti-nucleus - nucleus interactions ● Glauber amplitudes and black disk model with diffuse boundary approximation

dore
Télécharger la présentation

Simulation of Anti-Nucleus – Nucleus Elastic scattering

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

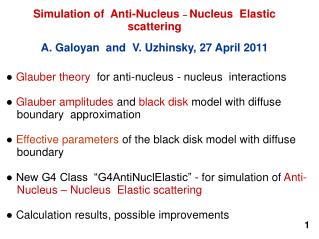

  1. Simulation of Anti-Nucleus –Nucleus Elastic scattering A. Galoyan and V. Uzhinsky, 27 April 2011 ●Glauber theory for anti-nucleus - nucleus interactions ● Glauber amplitudesand black disk model with diffuse boundary approximation ● Effective parameters of the black disk model with diffuse boundary ● New G4 Class “G4AntiNuclElastic” - for simulation of Anti-Nucleus – Nucleus Elastic scattering ● Calculation results, possible improvements 1

  2. Glauber theory for anti-nucleus - nucleus interactions Amplitude of hadron-nucleus elastic scattering in Glauber theory Amplitude of nucleus-nucleus elastic scattering in Glauber theory Differential elastic scattering cross section Accordingto Black Diskmodel with Diffuse boundary 2-dimensional Fourier transform of P(b) must be: (1) * 2

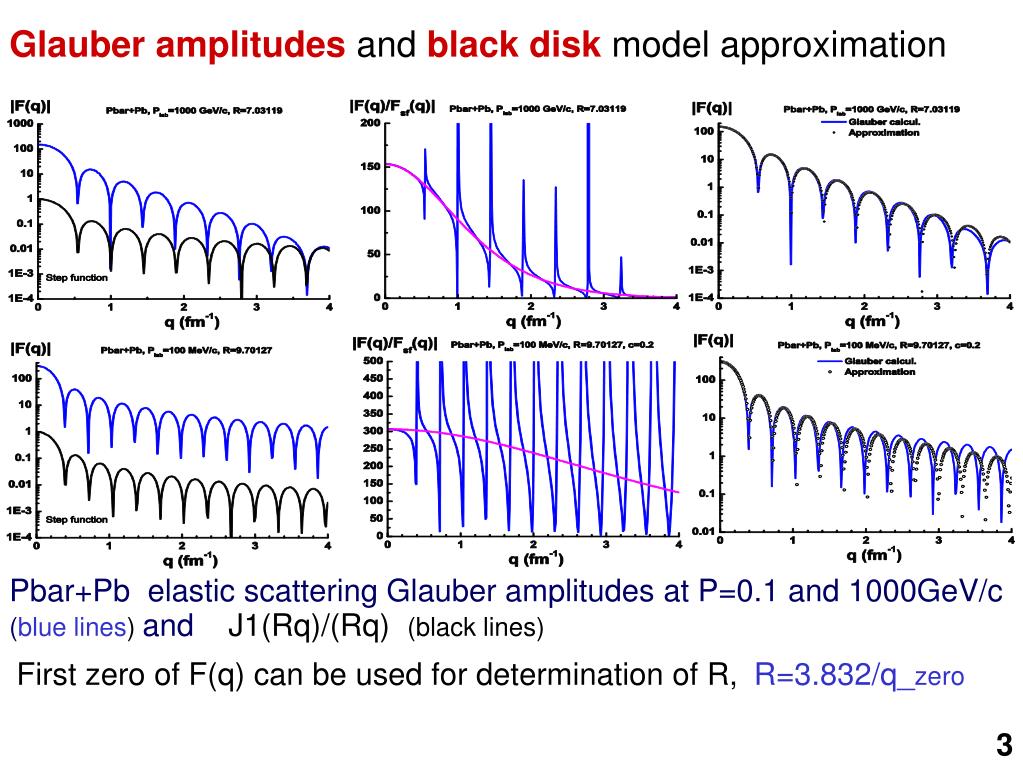

  3. Glauber amplitudes and black disk model approximation Pbar+Pb elastic scattering Glauber amplitudes at P=0.1 and 1000GeV/c (blue lines)and J1(Rq)/(Rq)(black lines) First zero of F(q) can be used for determination of R, R=3.832/q_zero 3

  4. Effective parametersof black disk model (slide2) 4

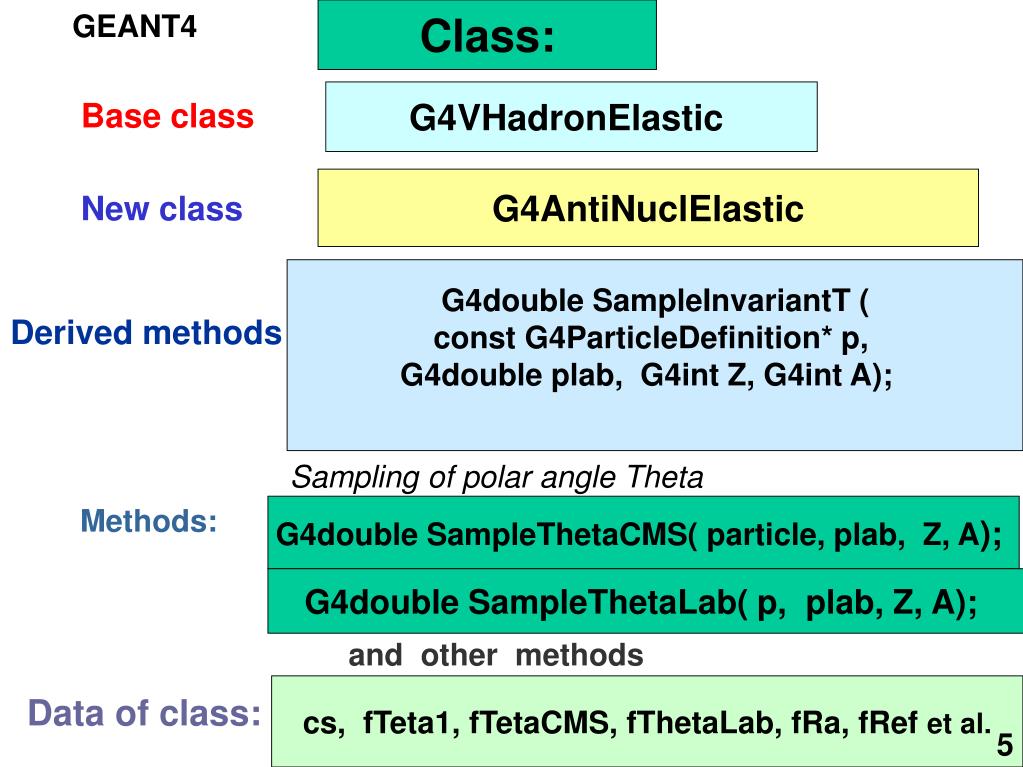

  5. Class: GEANT4 G4VHadronElastic Base class G4AntiNuclElastic New class G4double SampleInvariantT ( const G4ParticleDefinition* p, G4double plab, G4int Z, G4int A); Derived methods Sampling of polar angle Theta G4double SampleThetaCMS( particle, plab, Z, A); Methods: G4double SampleThetaLab( p, plab, Z, A); and other methods cs, fTeta1, fTetaCMS, fThetaLab, fRa, fRef et al. Data of class: 5

  6. G4AntiNuclElastic:: SampleInvariantT (p, plab, Z, A); Coulomb – Wentzel scattering ( V.M. Grishine/ CPC 181 (2010) 921 ) Hadronic part ─ Magorant function 6

  7. Differential Cross sections of Elastic Pbar Nucleus interactions 7

  8. Differential Cross sections of Elastic Pbar Nucleus interactions 8

  9. Differential Cross sections of Elastic Pbar/Dbar + Pb interactions 9

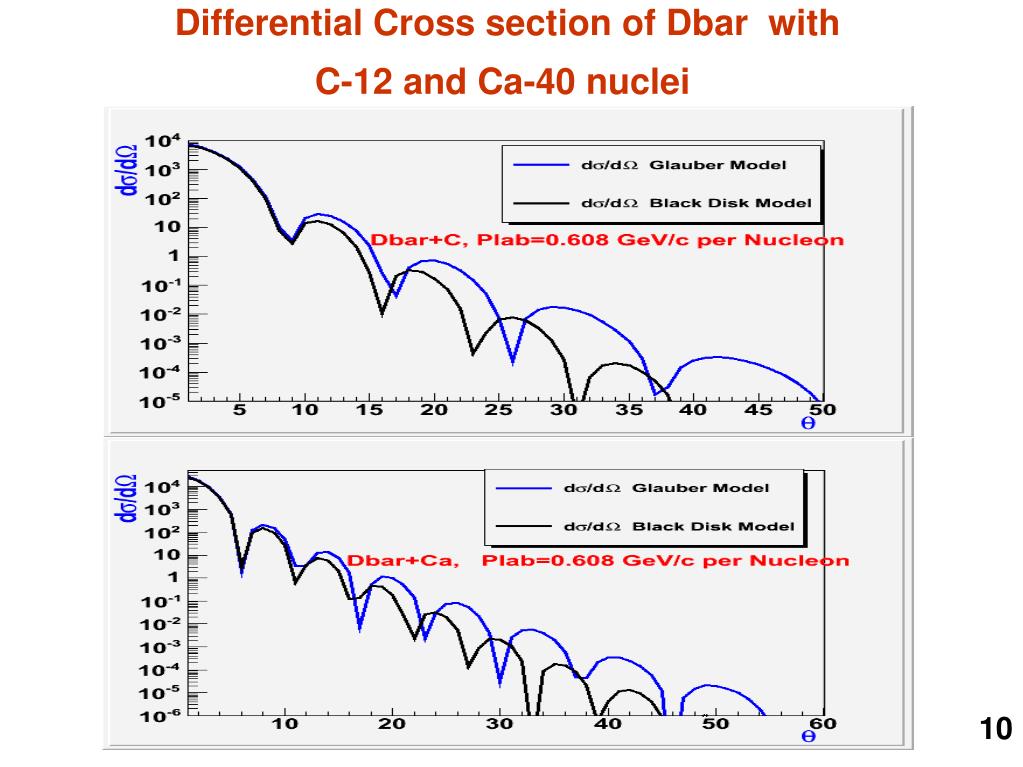

  10. Differential Cross section of Dbar with C-12 and Ca-40 nuclei 10

  11. Conclusion 1. Glauber theory and Black Diskmodel with diffuse boundary were used for calculations of anti-nucleon and anti-nucleus nucleus elastic scatterings. 2. Effective parameters “R” and “c” of Black Disk model depend on energy of projectile and nucleus mass number. These dependences were parameterised by us. 3. G4 Class G4AntiNuclElasticfor simulation of anti-nucleon and anti- nucleus nucleus elastic scattering has been created. The class is based on Black Disk Model with Diffuse Boundary and Coulomb- Wentzel model. Differential cross sections of elastic scattering of antiprotons with nuclei were calculated using the class G4AntiNuclElastic. Good description of known exp. data were obtained. Differential cross sections of elastic scattering of anti-deutrons with nuclei were calculated. 11

  12. Possible improvements More accurate parameterization on NNbar elastic scattering amplitude in order to satisfy the unitarity requirement. 2. Taking into account the real part of NNbar amplitude. 3. More accurate treating of the Coulomb scattering in the Glauber approach. Accounting anti-hyperons and anti-hyper-nuclei elastic interactions with nuclei. Fine tuning of parameters for anti-nuclei interactions with light nuclei. 12
