  1. Chapter 9 Virtual Memory Bernard Chen 2007 Spring

  2. Virtual Memory • Only part of the program needs to be in memory for execution • Logical address space can therefore be much larger than physical address space • Allows for more efficient process creation Virtual memory can be implemented via: • Demand paging • Demand segmentation

  3. Advantages • A program no longer be constrained by the amount of physical memory that is available • Since each user program could take less physical memory, more programs could run at the same time • Less I/O would be needed to load or swap each user program into memory, so it will be faster

  4. Virtual Memory

  5. Demand Paging • In stead of loading whole program into memory, demand paging is an alternative strategy to initially load pages only as they are needed • Lazy Swapper: Pages are only loaded when they are demanded during program execution • Swapper that deals with pages is a pager

  6. Transfer of a page memory to continuous disk space

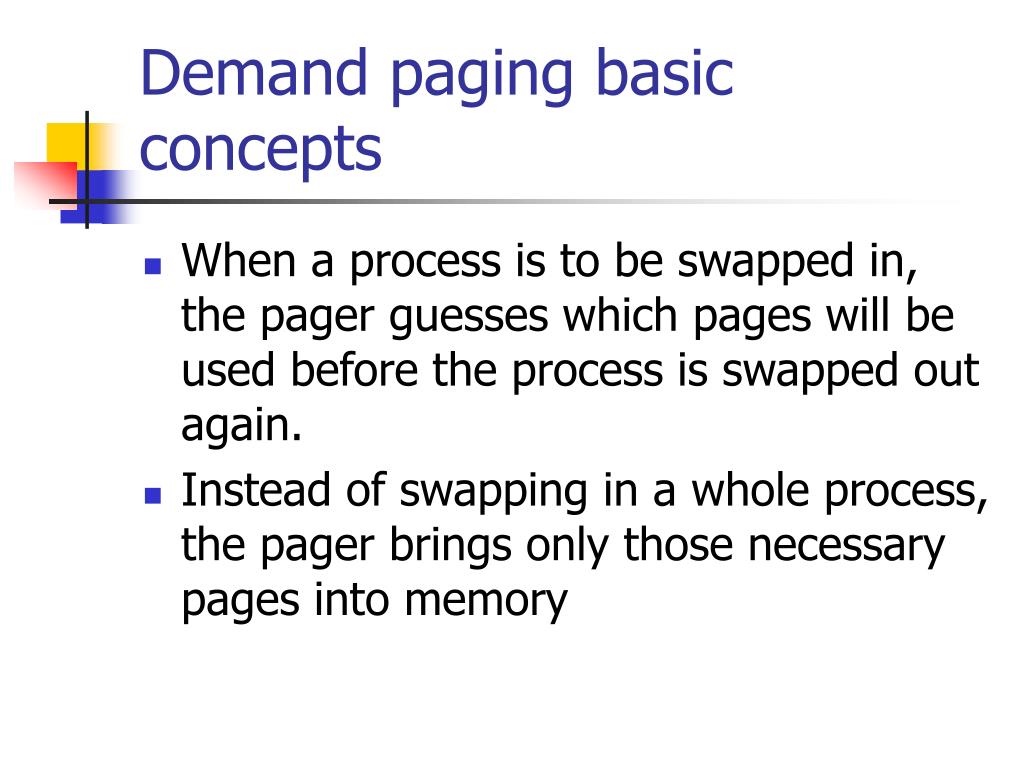

  7. Demand paging basic concepts • When a process is to be swapped in, the pager guesses which pages will be used before the process is swapped out again. • Instead of swapping in a whole process, the pager brings only those necessary pages into memory

  8. Valid Valid-Invalid Bit • With each page table entry a valid–invalid bit is associated (v=> in-memory , i =>not-in-memory) • Initially valid–invalid bit is set to i on all entries • During address translation, if valid–invalid bit in page table entry is i => page fault

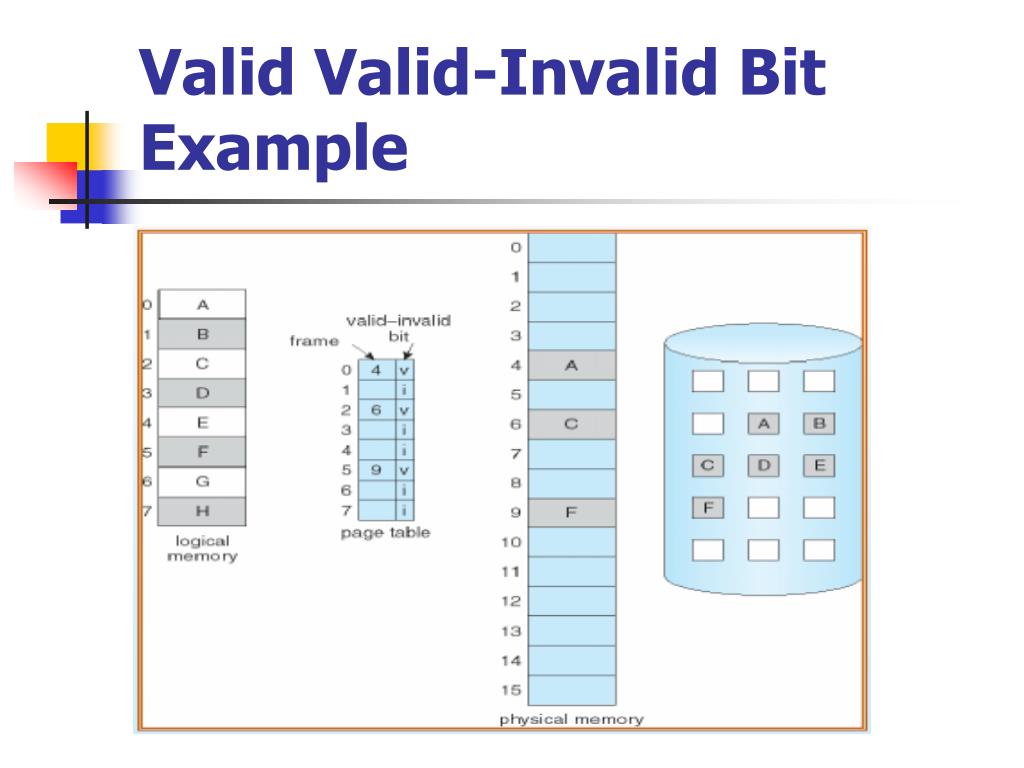

  9. Valid Valid-Invalid Bit Example

  10. Valid Valid-Invalid Bit Example

  11. Page Fault

  12. Page Fault

  13. Performance of Demand Paging Page Fault Rate 0 ≤p≤1.0 • if p= 0 no page faults • if p= 1, every reference is a fault • Effective Access Time (EAT)= (1-p)*ma + p*page fault time

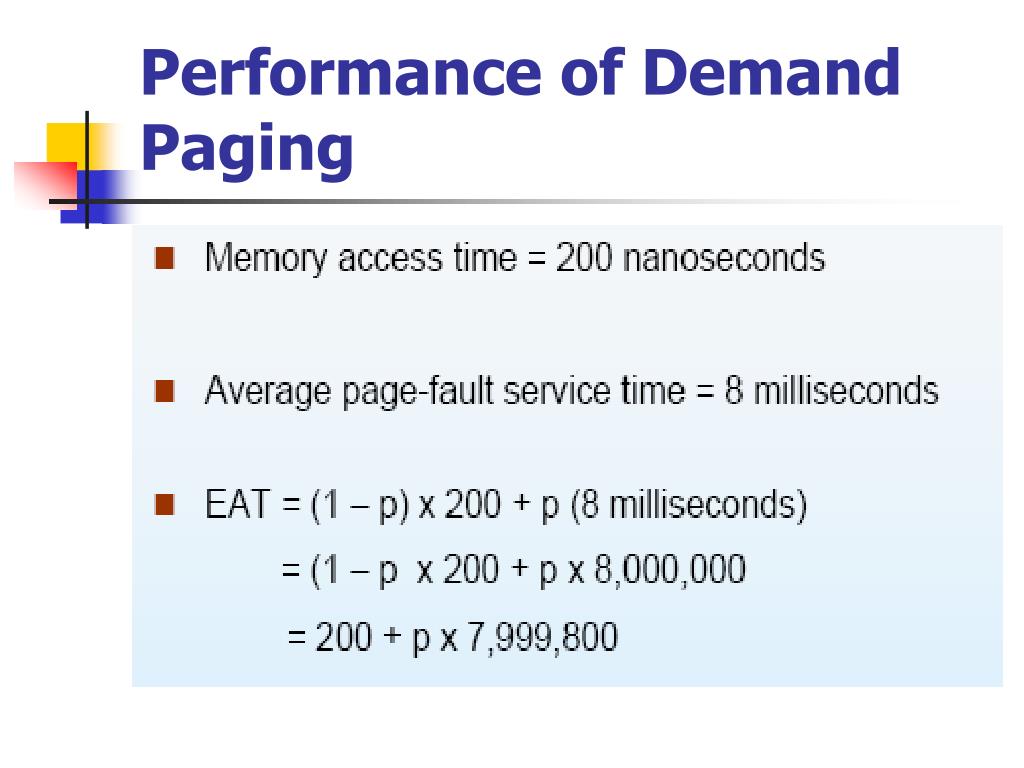

  14. Performance of Demand Paging

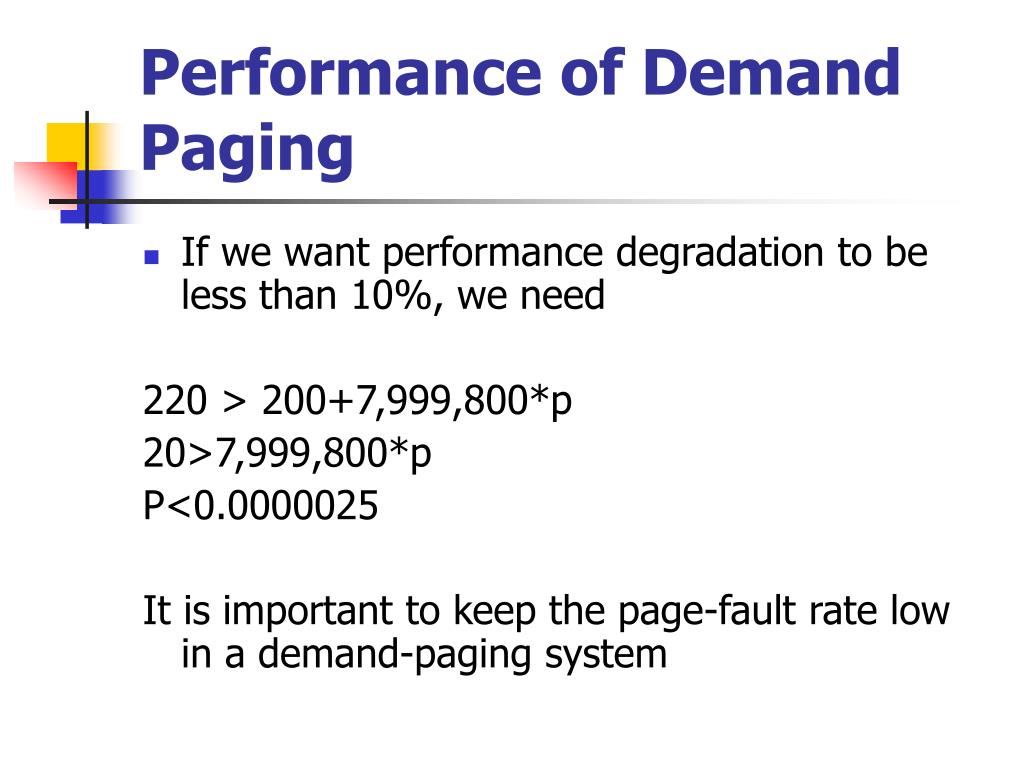

  15. Performance of Demand Paging • If we want performance degradation to be less than 10%, we need 220 > 200+7,999,800*p 20>7,999,800*p P<0.0000025 It is important to keep the page-fault rate low in a demand-paging system

  16. 9.4 Page Replacement • What if there is no free frame? • Page replacement –find some page in memory, but not really in use, swap it out • In this case, same page may be brought into memory several times

  17. Basic Page Replacement

  18. Page Replacement

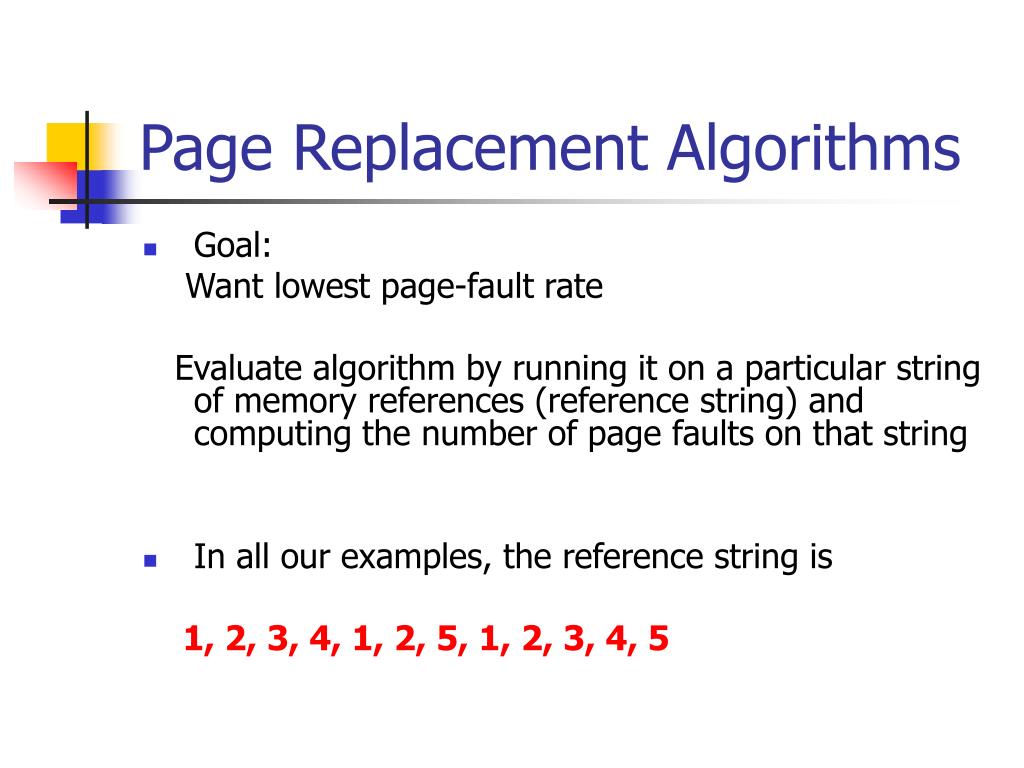

  19. Page Replacement Algorithms • Goal: Want lowest page-fault rate Evaluate algorithm by running it on a particular string of memory references (reference string) and computing the number of page faults on that string • In all our examples, the reference string is 1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5

  20. FIFO • When a page must be replaced, the oldest page is chosen • In all our examples, the reference string is 1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5 • 3 frame • 4 frame

  21. FIFO Algorithm
