Work With Depth Data

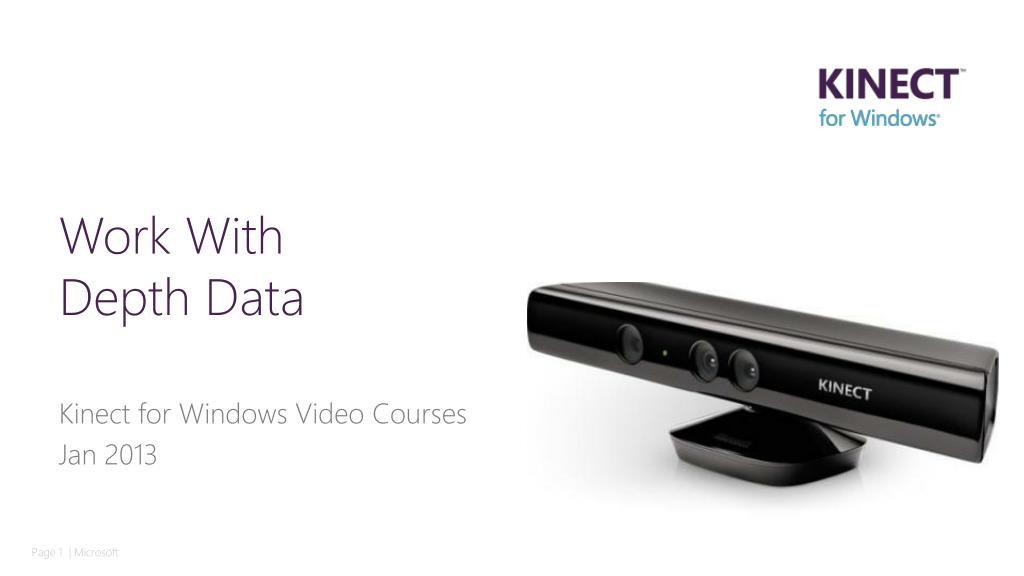

1. Work WithDepth Data Kinect for Windows Video Courses Jan 2013

2. Demo: How to get depth data

3. Kinect For Windows SDK & Toolkit Download SDK & Toolkit: http://www.microsoft.com/en-us/kinectforwindows/ Install SDK & Toolkit. Install examples provided in toolkit (DepthBasics-WPF)

4. 4 Steps to Get Depth Data Find an available Kinect sensor. Enable depth data stream. Register stream ready event handler function. Start capturing data.

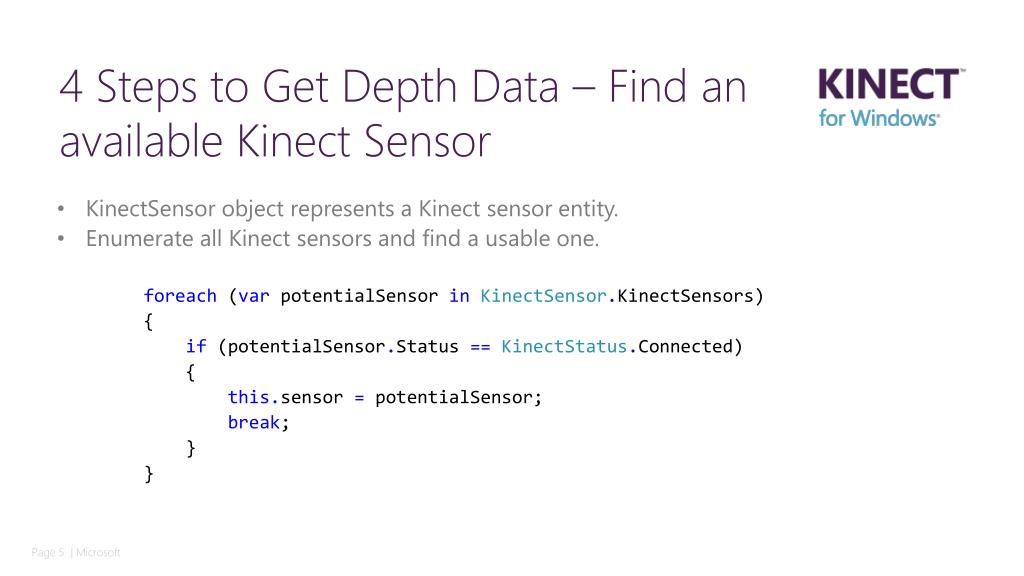

5. 4 Steps to Get Depth Data – Find an available Kinect Sensor KinectSensor object represents a Kinect sensor entity. Enumerate all Kinect sensors and find a usable one. foreach (varpotentialSensorinKinectSensor.KinectSensors) { if (potentialSensor.Status==KinectStatus.Connected) { this.sensor=potentialSensor; break; } }

6. 4 Steps to Get Depth Data – Find an available Kinect Sensor Status of Kinect sensor: • Disconnected – Sensor has been plugged off USB port. • Connected – Sensor is ready to use. • Initializing – Sensor is being initialized. • Not powered – Sensor is connected to USB port but power line is disconnected.

7. 4 Steps to Get Depth Data – Enable depth data stream KinectSensor.DepthStream implements API functions related to depth data retrieving and processing. Initialize to enable depth data stream: this.sensor.DepthStream.Enable(DepthImageFormat.Resolution640x480Fps30);

8. 4 Steps to Get Depth Data – Register Stream Ready Event Handler Function Register the stream event handler function to Kinect sensor so that when a new depth frame comes in, the handler function is called to retrieve and process the data. this.sensor.DepthFrameReady+=this.SensorDepthFrameReady;

9. 4 Steps to Get Depth Data – Start Kinect sensor Call KienctSensor.Start() to let Kinect sensor begin capturing the data. try { this.sensor.Start(); } catch(IOException) { this.sensor=null; }

10. Retrieve depth data When new incoming data frame is ready, stream data ready event is triggered. Open image frame in stream data ready event handler function. privatevoidSensorDepthFrameReady(objectsender, DepthImageFrameReadyEventArgse) { using (DepthImageFramedepthFrame=e.OpenDepthImageFrame()) { if (depthFrame!=null) { // Copy the pixel data from the image to a temporary array dpethFrame.CopyDepthImagePixelDataTo(this.depthPixels); // Do whatever you need to do with the depth data } } }
