  1. Database Replication in Tashkent CSEP 545 Transaction Processing Sameh Elnikety

  2. Replication for Performance Expensive Limited scalability

  3. DB Replication is Challenging • Single database system • Large, persistent state • Transactions • Complex software • Replication challenges • Maintain consistency • Middleware replication

  4. Background Standalone DBMS Replica 1

  5. Background Replica 1 Load Balancer Replica 2 Replica 3

  6. Read Tx Read tx does not change DB state Replica 1 Load Balancer Replica 2 T Replica 3

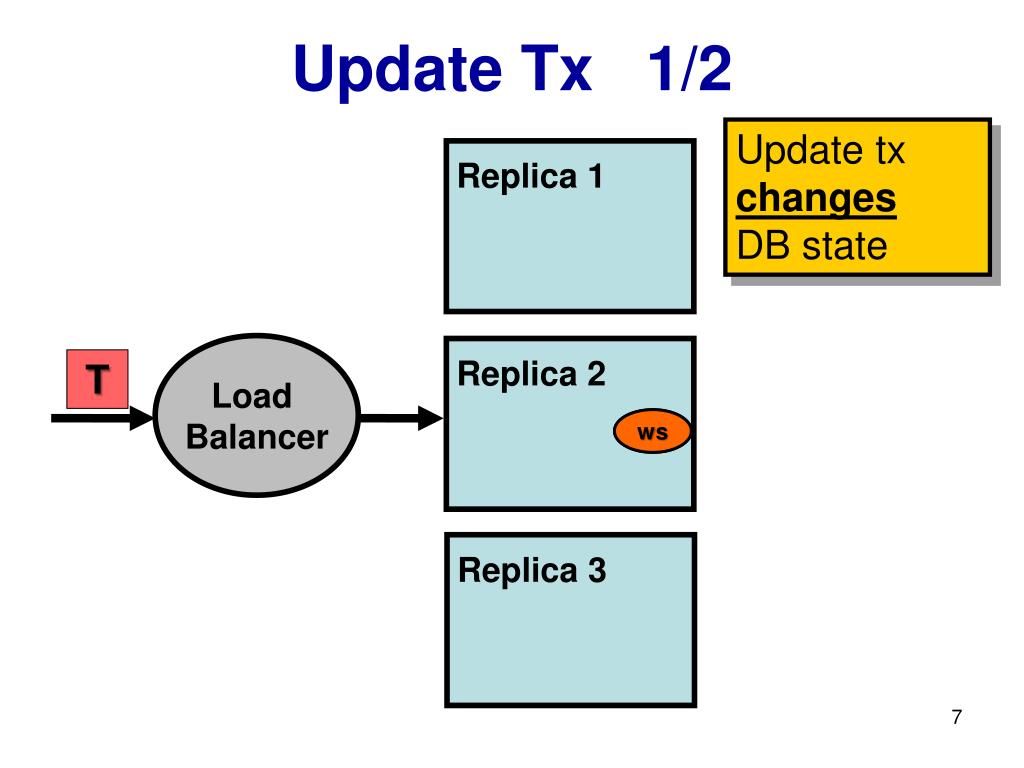

  7. Update Tx 1/2 Update txchanges DB state Replica 1 Load Balancer Replica 2 T ws ws Replica 3

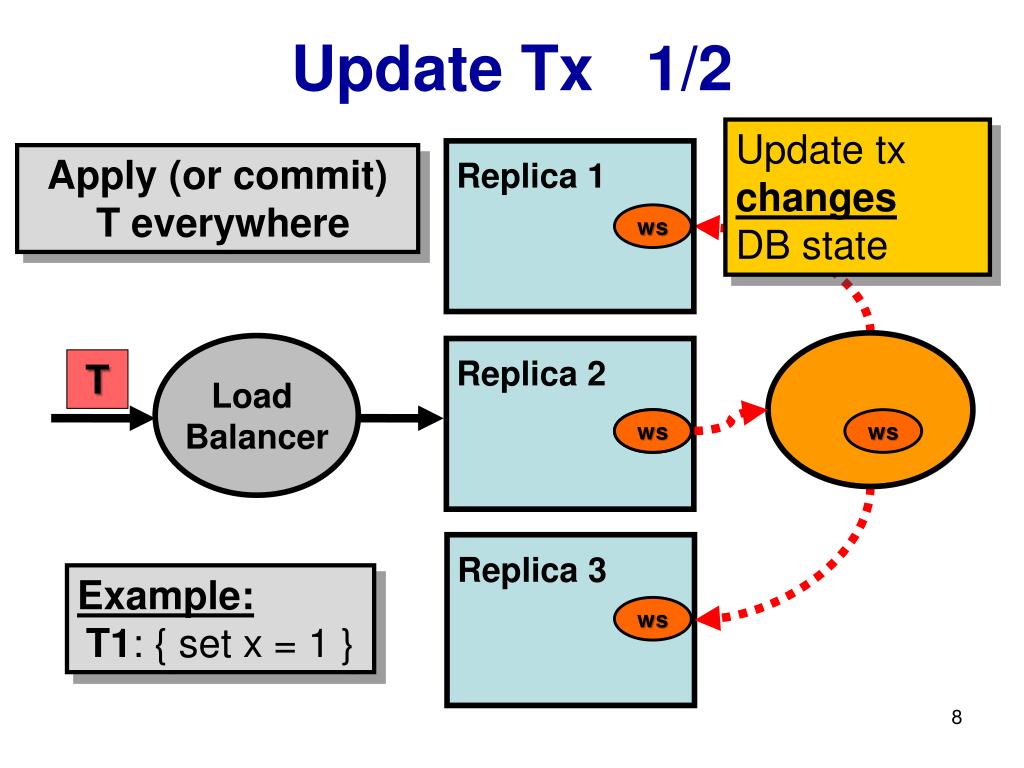

  8. Update Tx 1/2 Update txchanges DB state Apply (or commit) T everywhere Replica 1 ws Load Balancer Replica 2 T ws ws ws Replica 3 Example: T1: { set x = 1 } ws

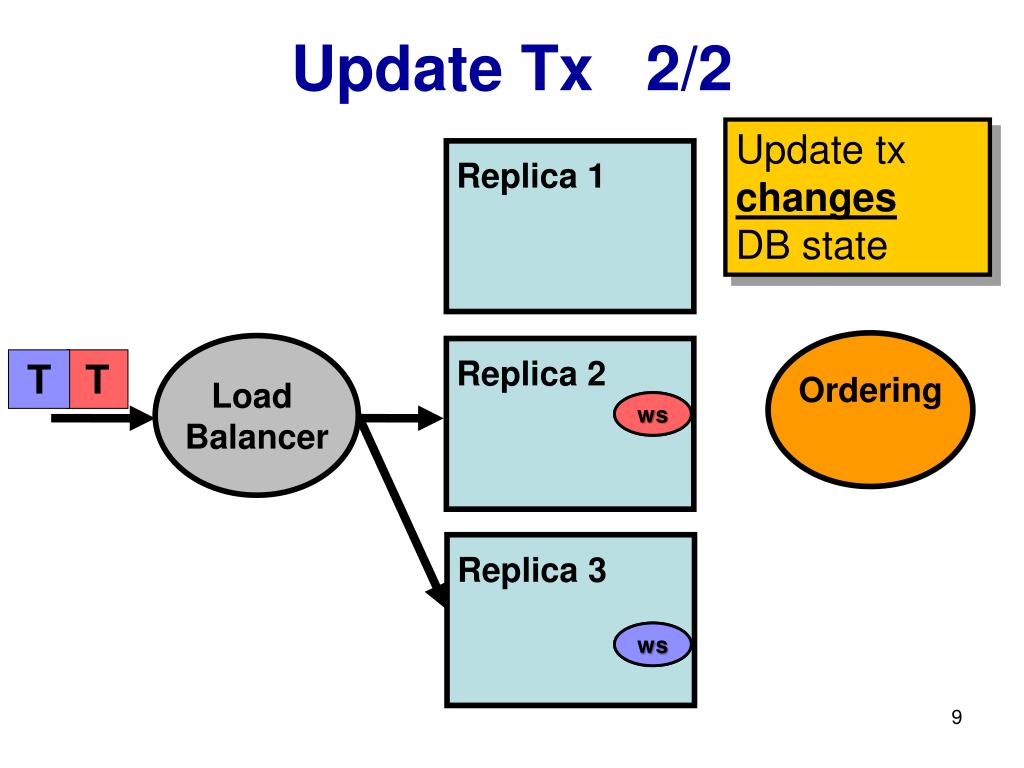

  9. Update Tx 2/2 Update txchanges DB state Replica 1 Ordering Load Balancer Replica 2 T T ws ws Replica 3 ws ws

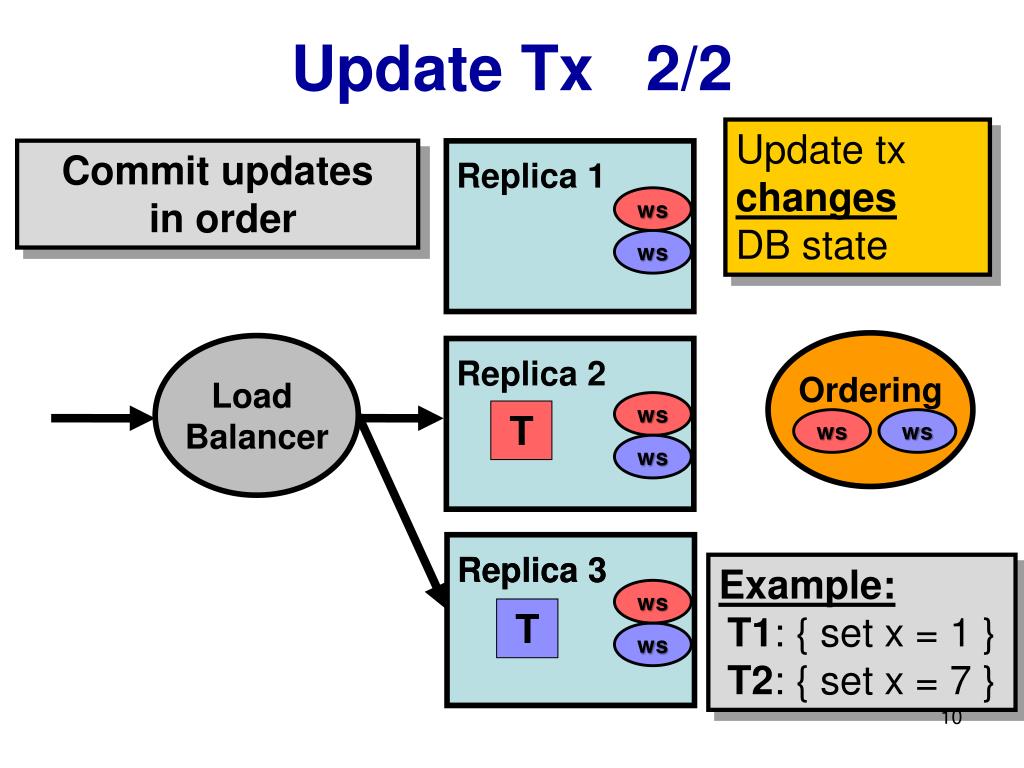

  10. Update Tx 2/2 Update txchanges DB state Commit updates in order Replica 1 ws ws Ordering Load Balancer Replica 2 ws T ws ws ws Replica 3 Replica 3 Example: T1: { set x = 1 }T2: { set x = 7 } ws T ws

  11. Sub-linear Scalability Wall Replica 1 ws ws Ordering Load Balancer Replica 2 ws T ws ws ws Replica 3 Replica 3 Replica 4 ws T ws

  12. This Talk • General scaling techniques • Address fundamental bottlenecks • Synergistic, implemented in middleware • Evaluated experimentally

  13. Super-linear Scalability 37 X 25 X TPS 12 X 7 X 1 X

  14. Big Picture: Let’s Oversimplify Standalone DBMS reading R update U logging

  15. Big Picture: Let’s Oversimplify Standalone DBMS reading R update U logging R Replica 1/N (traditional) reading N.R U update (N-1).ws N.U logging

  16. Big Picture: Let’s Oversimplify Standalone DBMS reading R update U logging R Replica 1/N (traditional) reading N.R U update (N-1).ws N.U logging R* Replica 1/N (optimized) reading N.R U* update (N-1).ws* N.U logging

  17. Big Picture: Let’s Oversimplify Standalone DBMS reading R update U logging R Replica 1/N (traditional) reading N.R U update (N-1).ws N.U logging R* Replica 1/N (optimized) reading MALB Update Filtering Uniting O & D N.R U* update (N-1).ws* N.U logging

  18. Key Points • Commit updates in order • Perform serial synchronous disk writes • Unite ordering and durability • Load balancing • Optimize for equal load: memory contention • MALB: optimize for in-memory execution • Update propagation • Propagate updates everywhere • Update filtering: propagate to where needed

  19. Roadmap 2, 3 1 Tx A Replica 1 Ordering Load Balancer Replica 2 Replica 3 Commit updates in order Load balancing Update propagation

  20. Key Idea • Traditionally: • Commit ordering and durability are separated • Key idea: • Unite commit ordering and durability

  21. All Replicas Must Agree Replica 1 Tx A • All replicas agree on • which update tx commit • their commit order • Total order • Determined by middleware • Followed by each replica durability Replica 2 Tx B durability Replica 3 durability

  22. Order Outside DBMS Replica 1 Tx A Tx A durability Tx B Ordering Replica 2 Tx B durability Replica 3 durability

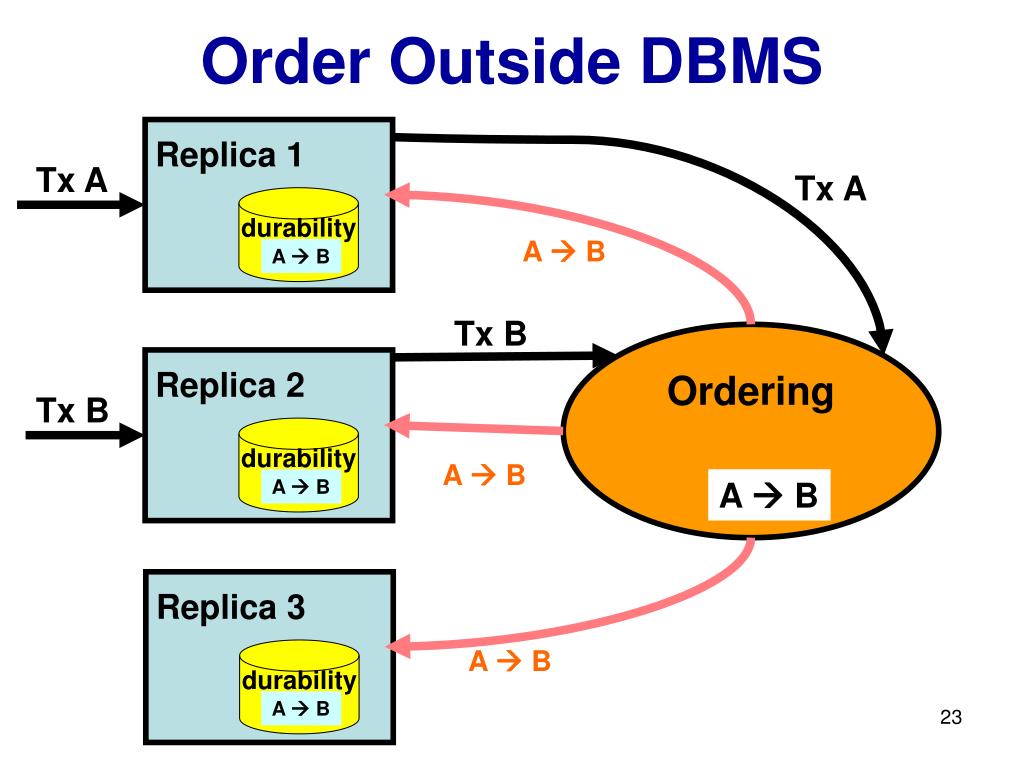

  23. Order Outside DBMS Replica 1 Tx A Tx A durability A  B A  B Tx B Ordering Replica 2 Tx B durability A  B A  B A  B Replica 3 A  B durability A  B

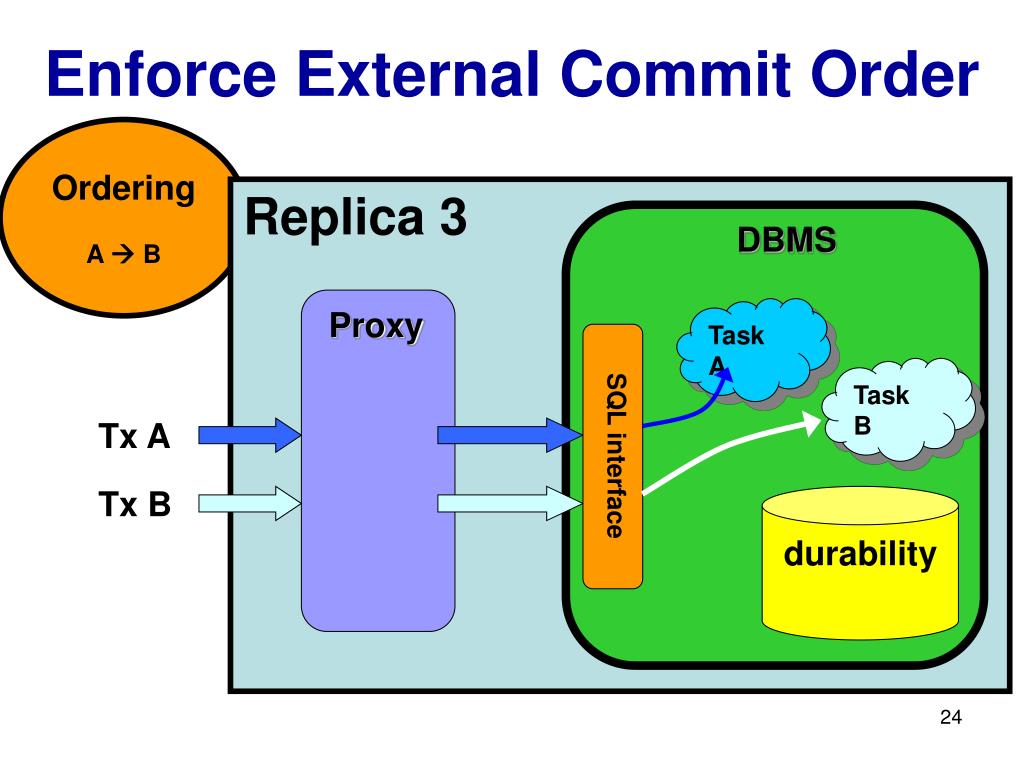

  24. DBMS Proxy Task A SQL interface Task B Tx A Tx B Enforce External Commit Order Ordering A  B Replica 3 durability

  25. DBMS Proxy Task A SQL interface Task B Tx A Tx B  A Enforce External Commit Order Ordering A  B Replica 3 durability B

  26. DBMS Proxy Task A SQL interface Task B Tx A Tx B  A Enforce External Commit Order Ordering A  B Replica 3 durability B Cannot commit A & B concurrently!

  27. Proxy Task A SQL interface Task B Tx A Tx B Enforce Order = Serial Commit Ordering A  B Replica 3 DBMS durability A

  28. Proxy Task A SQL interface Task B Tx A Tx B  B Enforce Order = Serial Commit Ordering A  B Replica 3 DBMS durability A

  29. Commit Serialization is Slow Ordering A B C Commit orderA B C Proxy Ack B Ack A Ack C DBMS Commit A Commit B Commit C CPU DurabilityA CPU DurabilityA  B CPU DurabilityA B  C durability

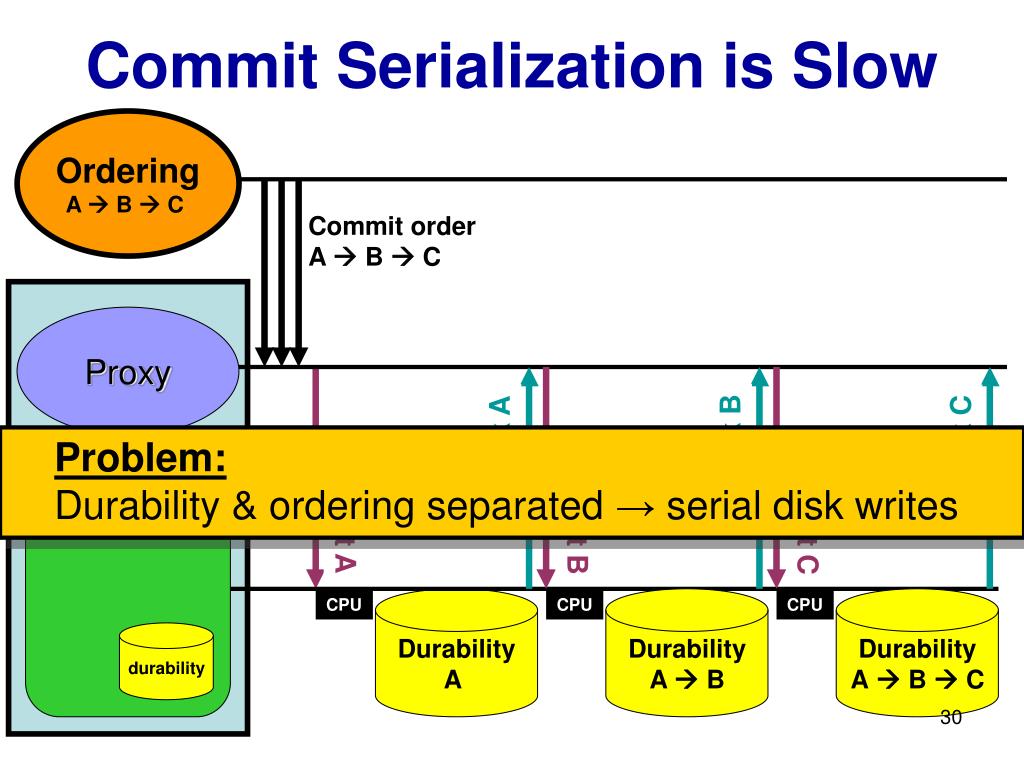

  30. Commit Serialization is Slow Ordering A B C Commit orderA B C Proxy Ack B Ack A Ack C Problem: Durability & ordering separated →serial disk writes DBMS Commit A Commit B Commit C CPU DurabilityA CPU DurabilityA  B CPU DurabilityA B  C durability

  31. Unite D. & O. in Middleware Ordering A B C DurabilityA B  C Commit orderA B C durability Proxy Ack B Ack A Ack C DBMS Commit A Commit B Commit C CPU CPU CPU durability OFF

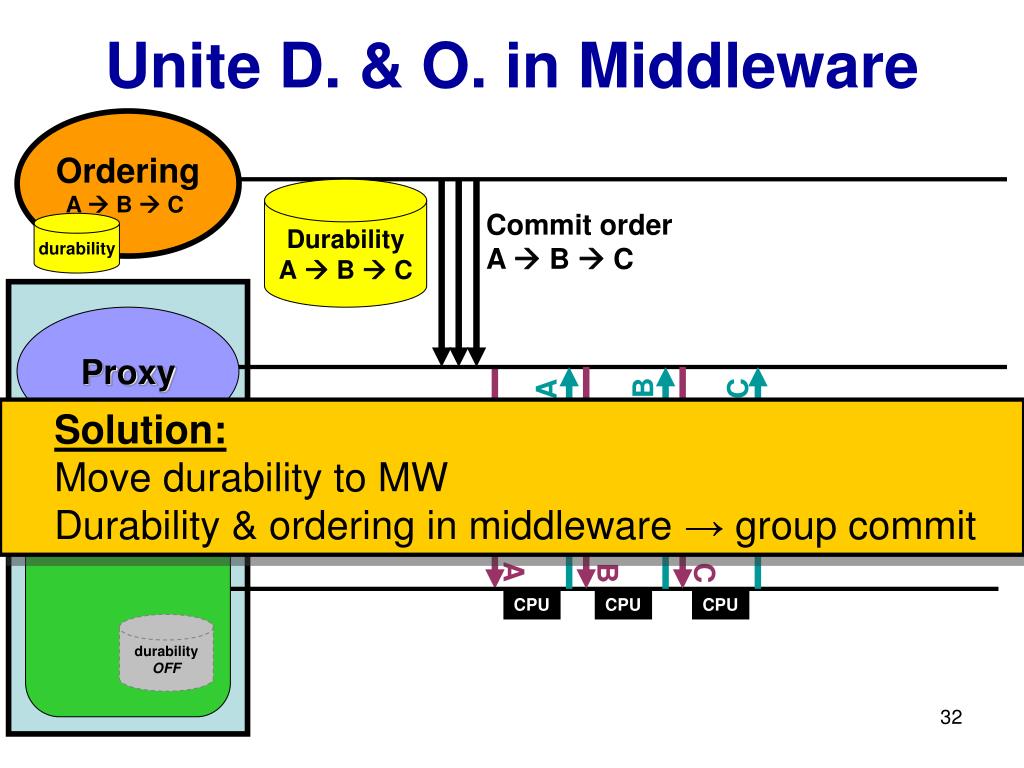

  32. Unite D. & O. in Middleware Ordering A B C DurabilityA B  C Commit orderA B C durability Proxy Ack B Ack A Ack C Solution: Move durability to MW Durability & ordering in middleware →group commit DBMS Commit A Commit B Commit C CPU CPU CPU durability OFF

  33. Implementation: Uniting D & O in MW • Middleware logs tx effects • Durability of update tx • Guaranteed in middleware • Turn durability off at database • Middleware performs durability & ordering • United → group commit → fast • Database commits update tx serially • Commit = quick main memory operation

  34. Uniting Improves Throughput • Metric • Throughput • Workload • TPC-W Ordering • (50% updates) • System • Linux cluster • PostgreSQL • 16 replicas • Serializable exec. 12 X 7 X TPS 1 X TPC-W

  35. Roadmap 2, 3 1 Tx A Replica 1 Ordering Load Balancer Replica 2 Replica 3 Commit updates in order Load balancing Update propagation

  36. Key Idea Replica 1 Equal load on replicas Mem Disk Load Balancer Replica 2 Mem Disk

  37. Key Idea Replica 1 Equal load on replicas Mem Disk Load Balancer Replica 2 Mem MALB: (Memory-Aware Load Balancing)Optimize for in-memory execution Disk

  38. How Does MALB Work? 1 2 3 Database 1 2 Workload A → B → 2 3 Mem Memory

  39. Read Data From Disk Replica 1 A → B → 1 2 A, B, A, B Mem 2 3 Disk A, B, A, B Least Loaded 1 1 2 3 3 Replica 2 Mem Disk A, B, A, B 1 2 3

  40. Read Data From Disk Replica 1 A → B → 1 2 A, B, A, B Mem 2 3 1 1 2 3 3 Slow Disk A, B, A, B Least Loaded 1 1 2 3 3 Replica 2 Mem Slow 1 1 2 3 3 Disk A, B, A, B 1 2 3

  41. Data Fits in Memory Replica 1 A → B → 1 2 A, A, A, A Mem 2 3 Disk A, B, A, B MALB 1 2 3 Replica 2 Mem Disk B, B, B, B 1 2 3

  42. Data Fits in Memory Replica 1 A → B → 1 2 A, A, A, A Mem 2 3 1 2 Fast Disk A, B, A, B MALB 1 2 3 Replica 2 Mem Fast 2 3 Memory info? Many tx and replicas? Disk B, B, B, B 1 2 3

  43. Estimate Tx Memory Needs • Exploit tx execution plan • Which tables & indices are accessed • Their access pattern • Linear scan, direct access • Metadata from database • Sizes of tables and indices

  44. Grouping Transactions • Objective • Construct tx groups that fit together in memory • Bin packing • Item:tx memory needs • Bin: memory of replica • Heuristic: Best Fit Decreasing • Allocate replicas to tx groups • Adjust for group loads

  45. MALB in Action A B CD E F MALB

  46. MALB in Action Memory needs for A, B, C, D, E, F A B CD E F MALB

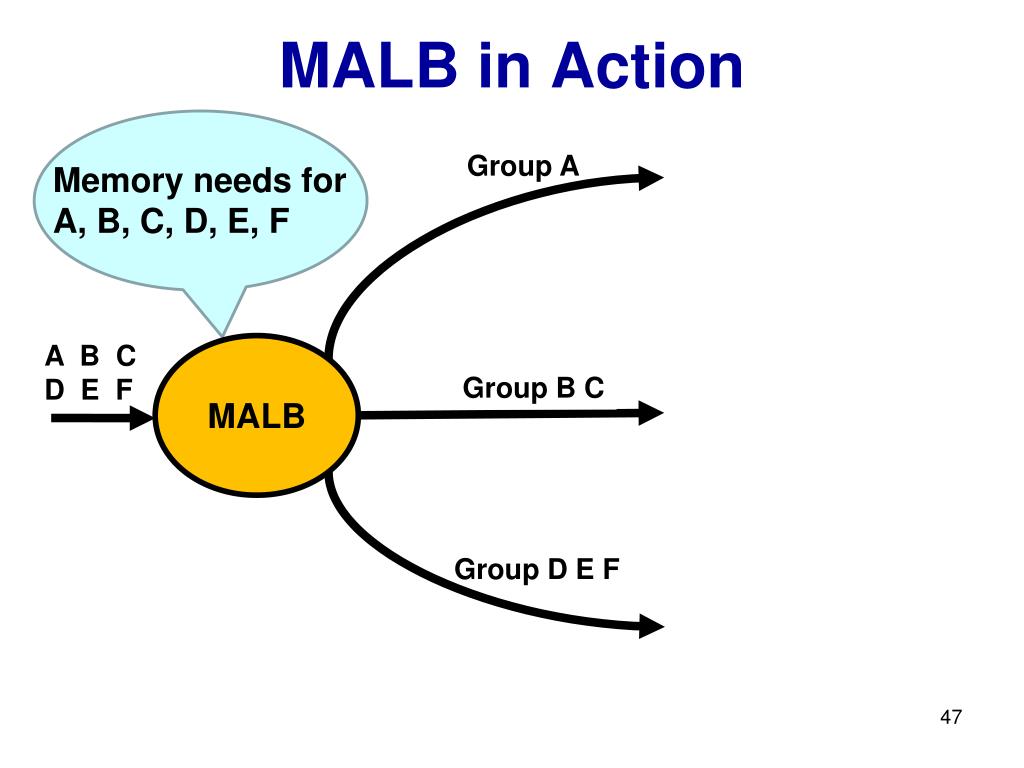

  47. MALB in Action Group A Memory needs for A, B, C, D, E, F A B CD E F MALB Group B C Group D E F

  48. MALB in Action Replica Group A Memory needs for A, B, C, D, E, F A Disk A B CD E F MALB Replica Group B C B C Disk Group D E F Replica D E F Disk

  49. MALB Summary • Objective • Optimize for in-memory execution • Method • Estimate tx memory needs • Construct tx groups • Allocate replicas to tx groups

  50. Experimental Evaluation • Implementation • No change in consistency • Still middleware • Compare • United: efficient baseline system • MALB: exploits working set information • Same environment • Linux cluster running PostgreSQL • Workload: TPC-W Ordering (50% update txs)
