1. Flexible Dialog Management for In-vehicle Dialog Systems Jeongwoo Ko jko@cs.cmu.edu

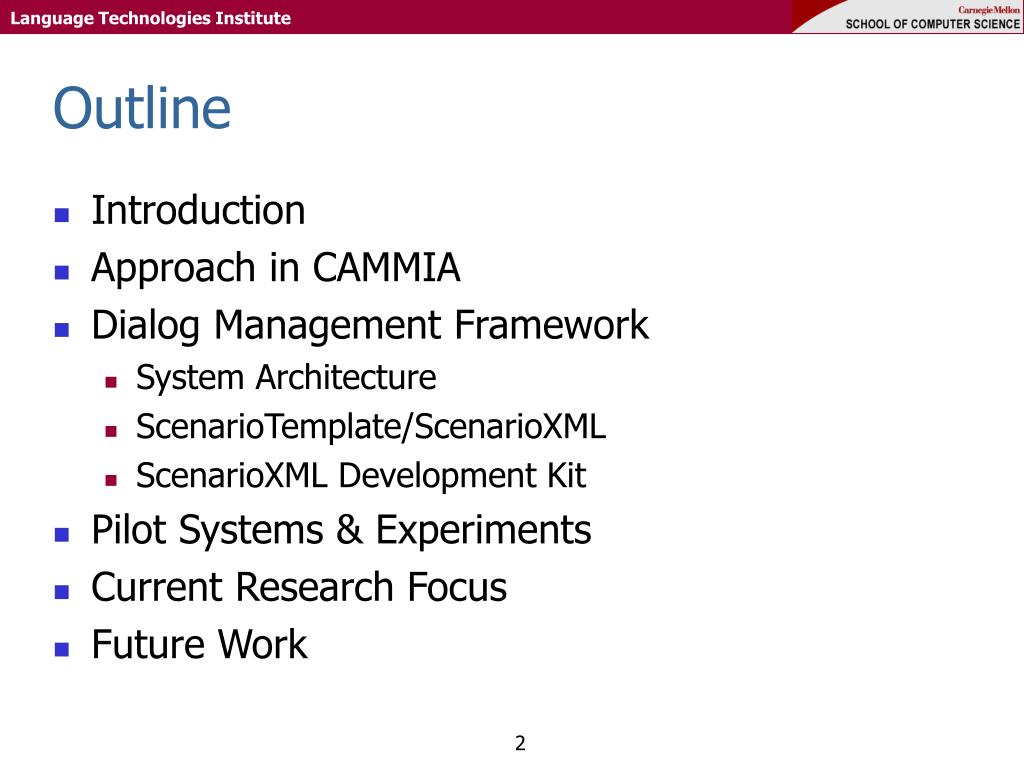

2. Outline • Introduction • Approach in CAMMIA • Dialog Management Framework • System Architecture • ScenarioTemplate/ScenarioXML • ScenarioXML Development Kit • Pilot Systems & Experiments • Current Research Focus • Future Work 2

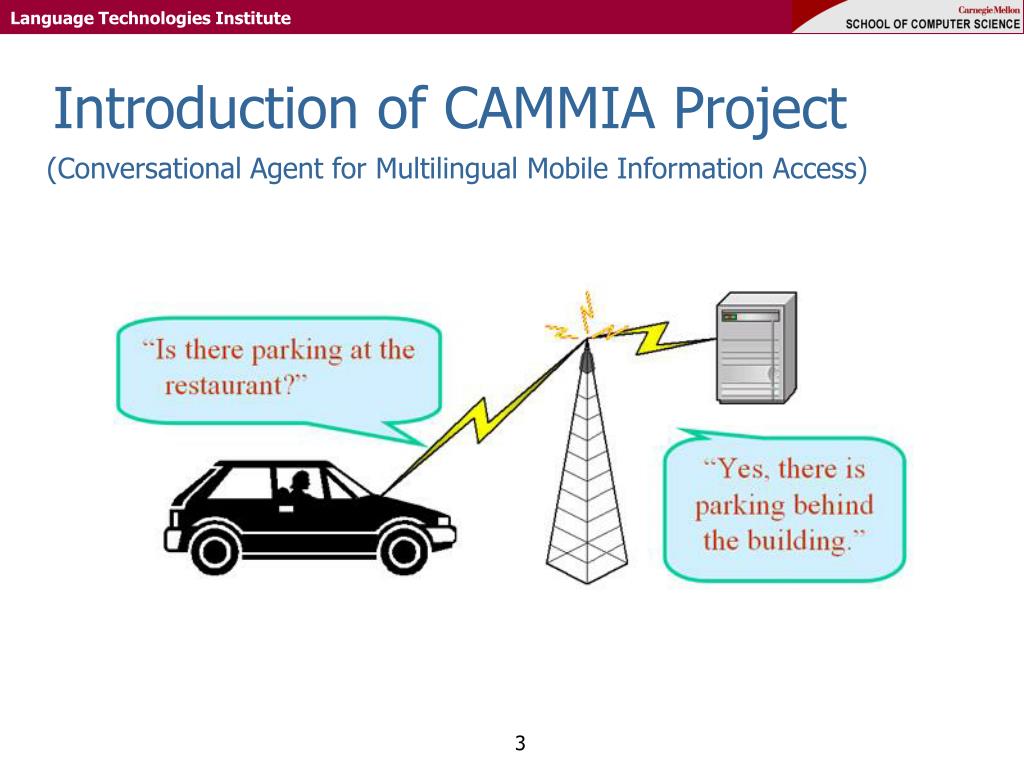

3. Introduction of CAMMIA Project (Conversational Agent for Multilingual Mobile Information Access) 3

4. Sample Dialog S1: How may I help you? U1: I want to go to Carnegie Mellon University. S2: Do you want to go to Carnegie Mellon University? U2: Yes. S3: The distance to the destination is 100 miles. It takes about 2 hours. U3: I would like to know weather. S4: Please tell me the area and the date. U4: Pittsburgh (Navigation System sends the next direction to the dialog manager) S5: To go to Carnegie Mellon University, please make a left turn here. Please tell me the date for Pittsburgh. U5: Tomorrow S6: The weather for Pittsburgh tomorrow will be fine. 4

5. Some Related Research (Speech Interface) • Pellom et al, HLT 2001 (CU-Move) • Route planning and navigation • Noise suppression front-end and back-end navigation information retrieval • Download driving instructions from the Internet after route planning • User can ask route information during travel (ex. What’s my next turn?) • Coletti et al, IEEE 2003 • Hotel retrieval/reservation, POI retrieval, Simple Route Query • Car Wide Web module: XML-based DB interface • Local database for tour and geographic data 5

6. Some Related Research (Multimodal Interface) • Minker et al, ICSLP 2002 (SmartKom Mobile) • Provide framework for modality control • Prototype on Compac iPAG H3630 handheld computer • Apply to pedestrian and driver environment • Display maps for route information • Slide shows for sight information 6

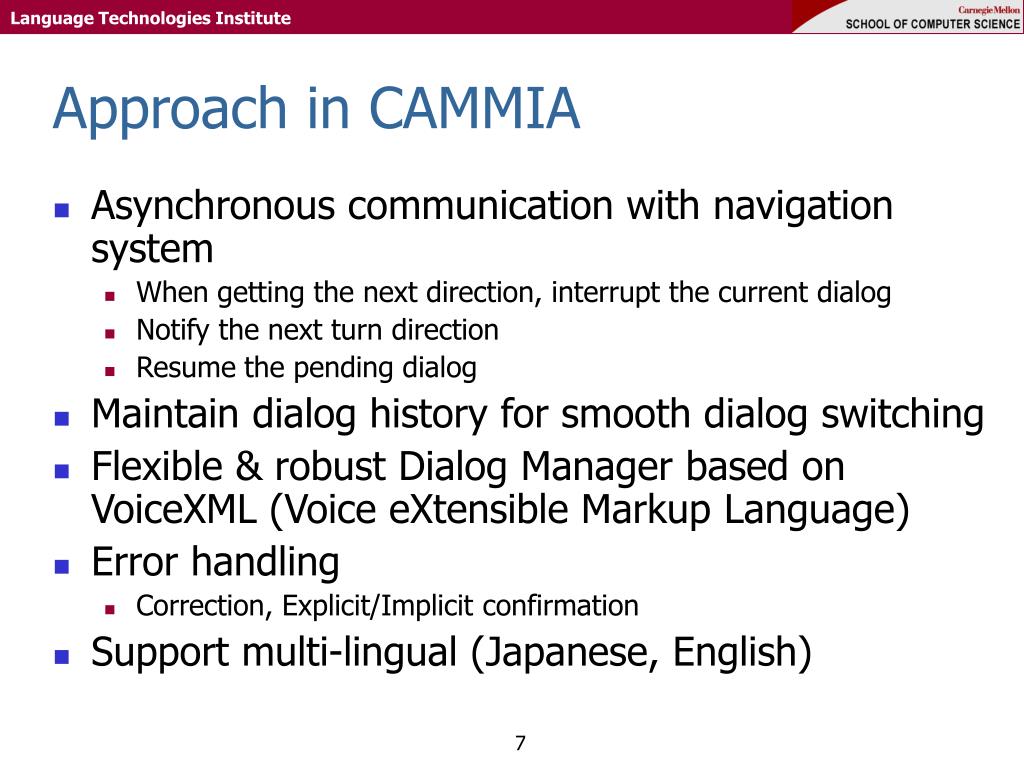

7. Approach in CAMMIA • Asynchronous communication with navigation system • When getting the next direction, interrupt the current dialog • Notify the next turn direction • Resume the pending dialog • Maintain dialog history for smooth dialog switching • Flexible & robust Dialog Manager based on VoiceXML (Voice eXtensible Markup Language) • Error handling • Correction, Explicit/Implicit confirmation • Support multi-lingual (Japanese, English) 7

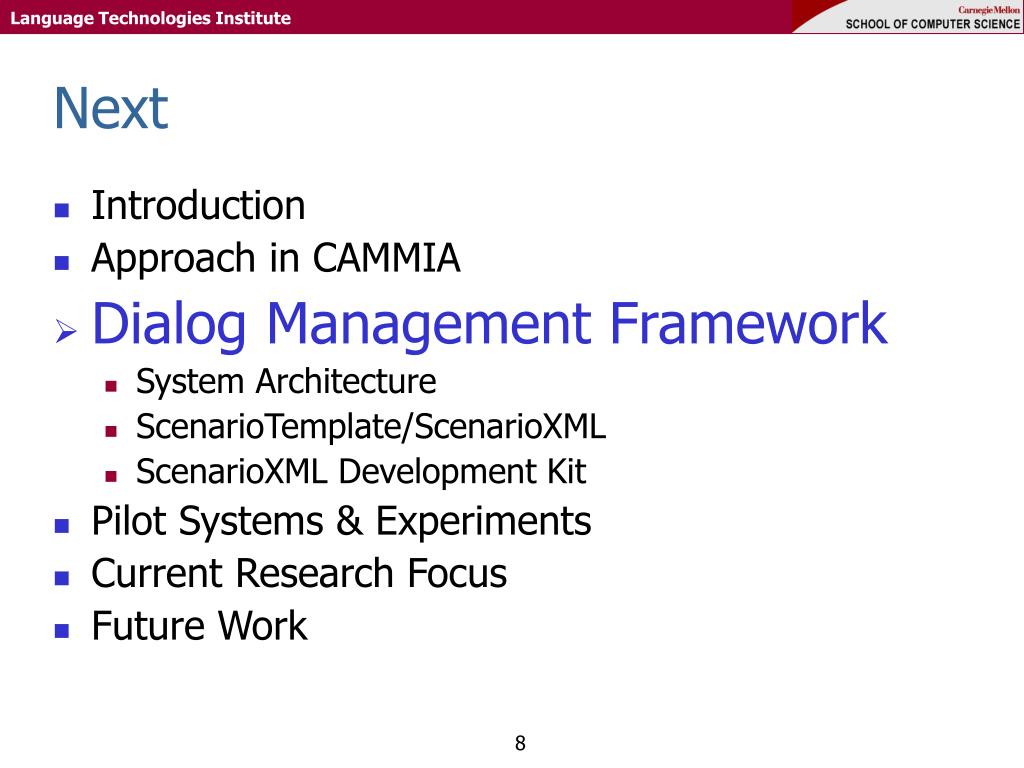

8. Next • Introduction • Approach in CAMMIA • Dialog Management Framework • System Architecture • ScenarioTemplate/ScenarioXML • ScenarioXML Development Kit • Pilot Systems & Experiments • Current Research Focus • Future Work 8

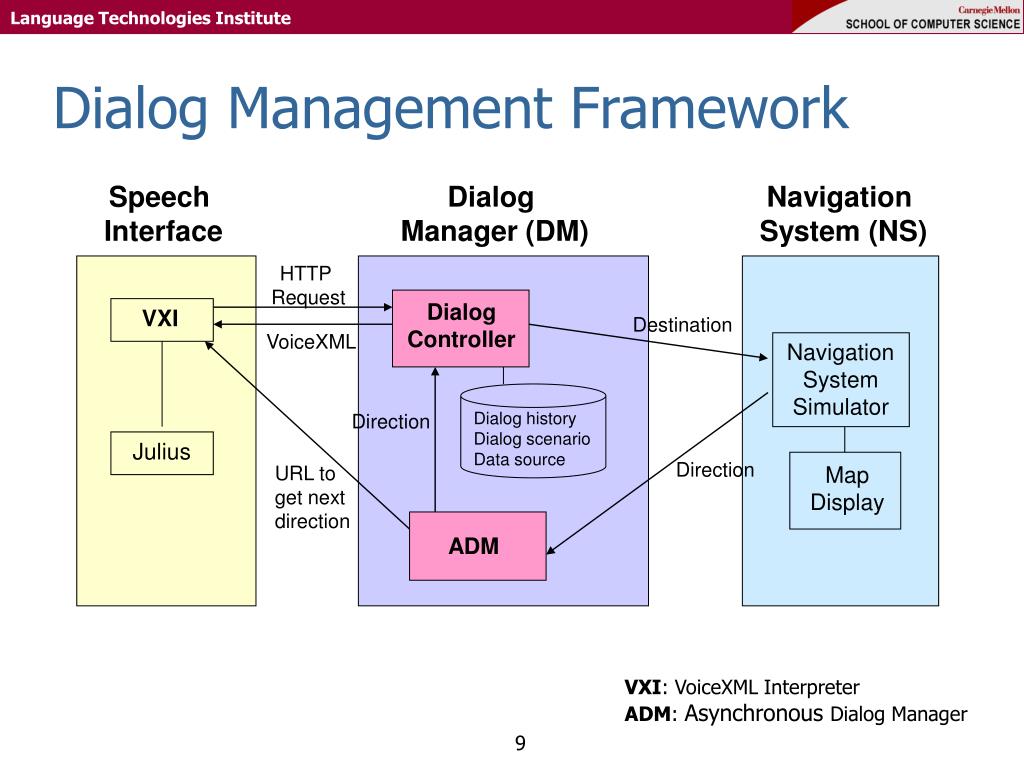

9. HTTP Request Destination VoiceXML Direction Direction URL to get next direction Dialog Management Framework Speech Interface Dialog Manager (DM) Navigation System (NS) Dialog Controller VXI Navigation System Simulator Dialog history Dialog scenario Data source Julius Map Display ADM VXI: VoiceXML Interpreter ADM: Asynchronous Dialog Manager 9

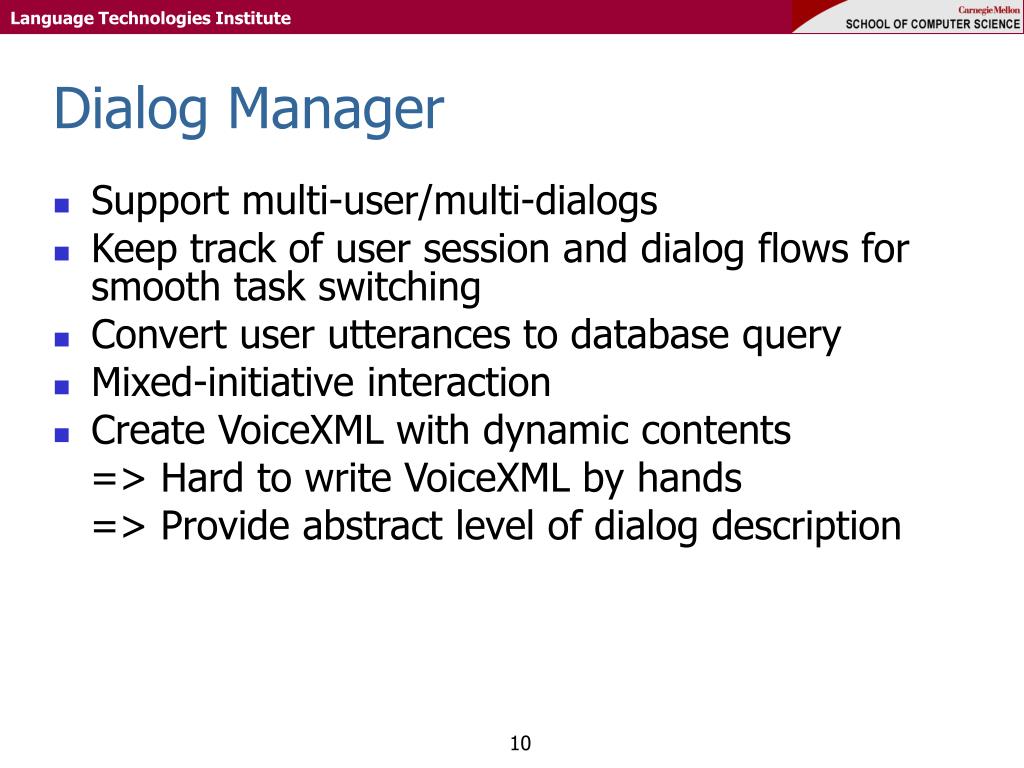

10. Dialog Manager • Support multi-user/multi-dialogs • Keep track of user session and dialog flows for smooth task switching • Convert user utterances to database query • Mixed-initiative interaction • Create VoiceXML with dynamic contents => Hard to write VoiceXML by hands => Provide abstract level of dialog description 10

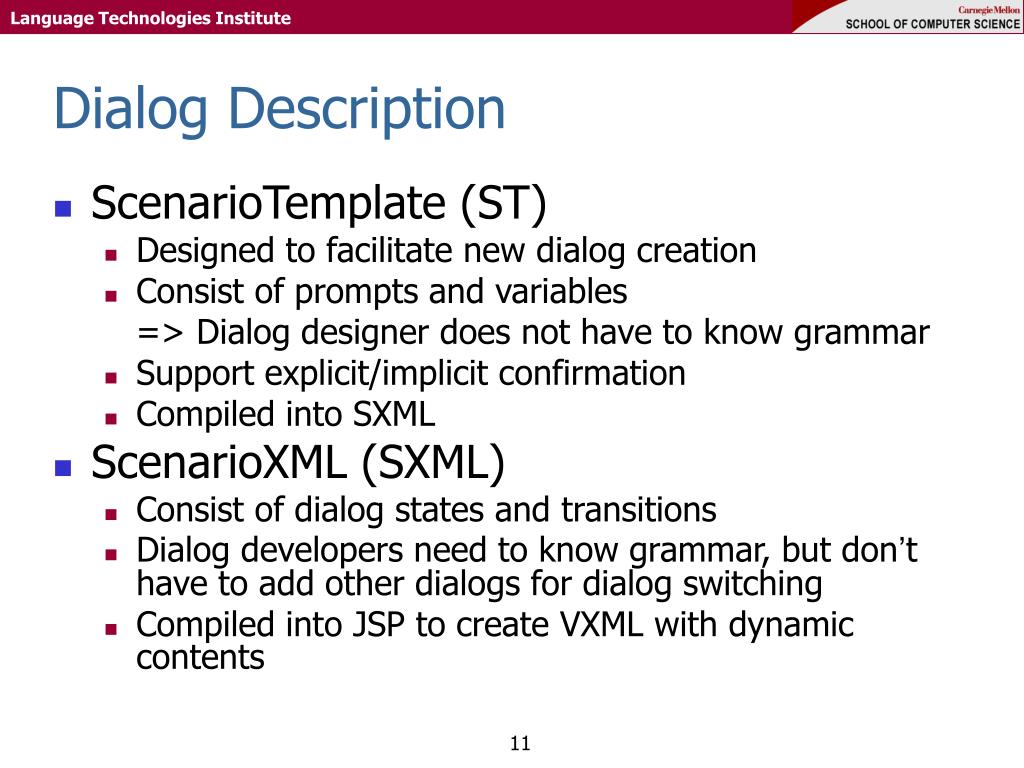

11. Dialog Description • ScenarioTemplate (ST) • Designed to facilitate new dialog creation • Consist of prompts and variables => Dialog designer does not have to know grammar • Support explicit/implicit confirmation • Compiled into SXML • ScenarioXML (SXML) • Consist of dialog states and transitions • Dialog developers need to know grammar, but don’t have to add other dialogs for dialog switching • Compiled into JSP to create VXML with dynamic contents 11

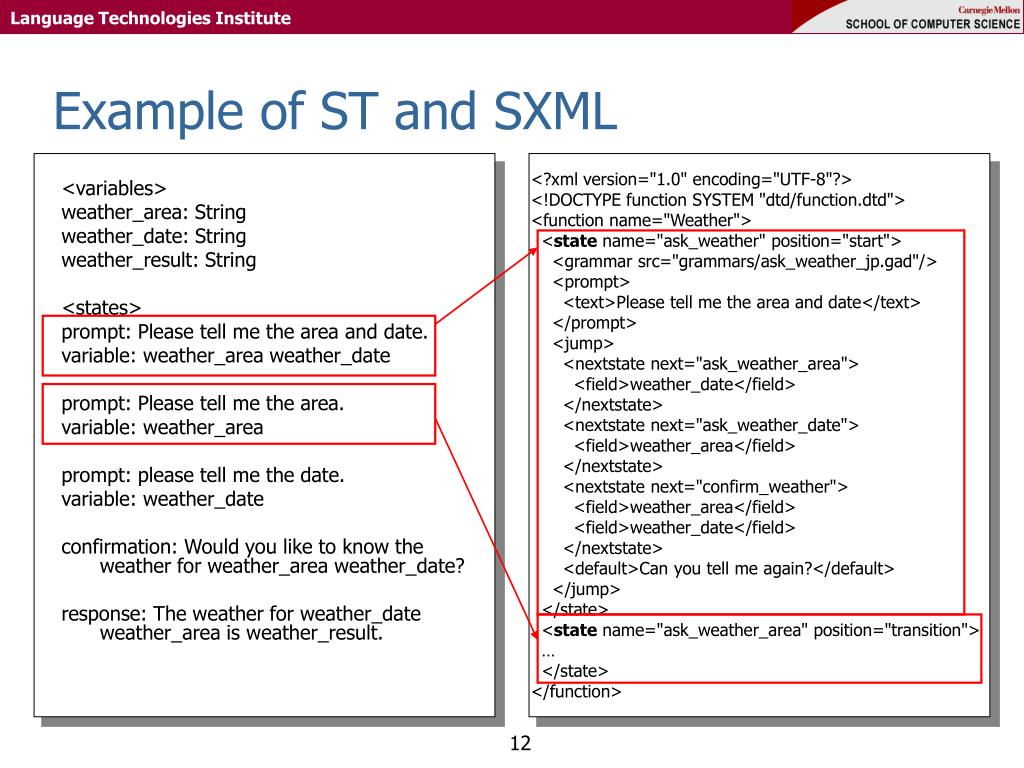

12. Example of ST and SXML <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE function SYSTEM "dtd/function.dtd"> <function name="Weather"> <state name="ask_weather" position="start"> <grammar src="grammars/ask_weather_jp.gad"/> <prompt> <text>Please tell me the area and date</text> </prompt> <jump> <nextstate next="ask_weather_area"> <field>weather_date</field> </nextstate> <nextstate next="ask_weather_date"> <field>weather_area</field> </nextstate> <nextstate next="confirm_weather"> <field>weather_area</field> <field>weather_date</field> </nextstate> <default>Can you tell me again?</default> </jump> </state> <state name="ask_weather_area" position="transition"> … </state> </function> <variables> weather_area: String weather_date: String weather_result: String <states> prompt: Please tell me the area and date. variable: weather_area weather_date prompt: Please tell me the area. variable: weather_area prompt: please tell me the date. variable: weather_date confirmation: Would you like to know the weather for weather_area weather_date? response: The weather for weather_date weather_area is weather_result. 12

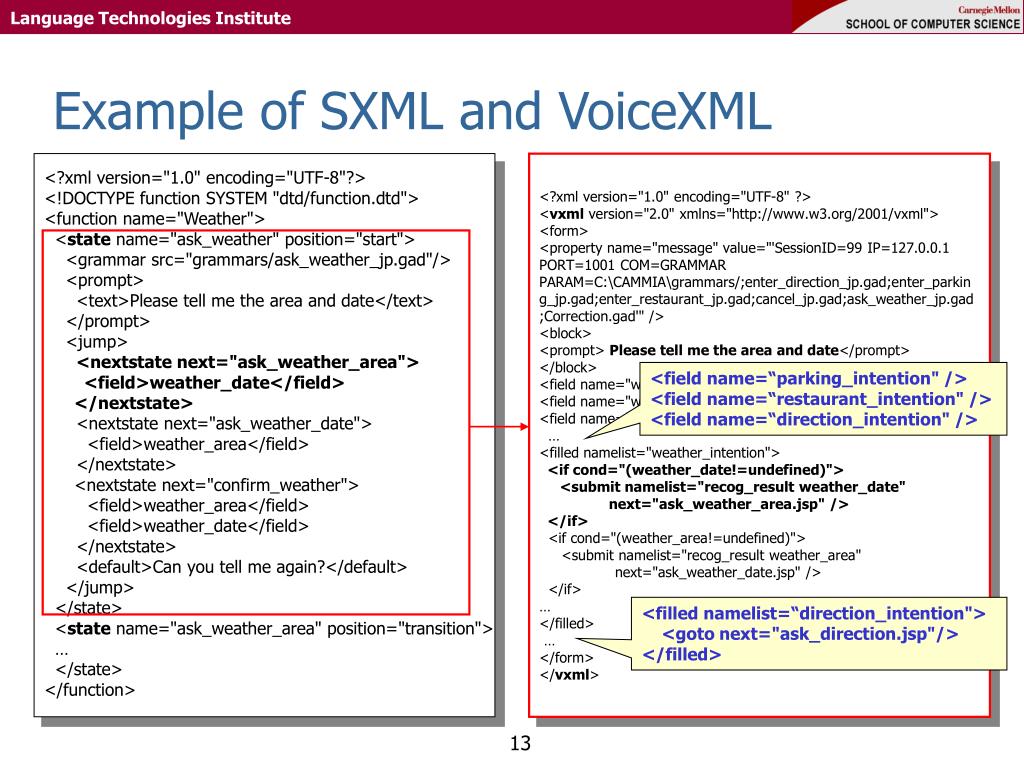

13. Example of SXML and VoiceXML <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE function SYSTEM "dtd/function.dtd"> <function name="Weather"> <state name="ask_weather" position="start"> <grammar src="grammars/ask_weather_jp.gad"/> <prompt> <text>Please tell me the area and date</text> </prompt> <jump> <nextstate next="ask_weather_area"> <field>weather_date</field> </nextstate> <nextstate next="ask_weather_date"> <field>weather_area</field> </nextstate> <nextstate next="confirm_weather"> <field>weather_area</field> <field>weather_date</field> </nextstate> <default>Can you tell me again?</default> </jump> </state> <state name="ask_weather_area" position="transition"> … </state> </function> <?xml version="1.0" encoding="UTF-8" ?> <vxml version="2.0" xmlns="http://www.w3.org/2001/vxml"> <form> <property name="message" value="'SessionID=99 IP=127.0.0.1 PORT=1001 COM=GRAMMAR PARAM=C:\CAMMIA\grammars/;enter_direction_jp.gad;enter_parking_jp.gad;enter_restaurant_jp.gad;cancel_jp.gad;ask_weather_jp.gad;Correction.gad'" /> <block> <prompt> Please tell me the area and date</prompt> </block> <field name="weather_intention" /> <field name="weather_area" /> <field name="weather_date" /> … <filled namelist="weather_intention"> <if cond="(weather_date!=undefined)">   <submit namelist="recog_result weather_date" next="ask_weather_area.jsp" />   </if> <if cond="(weather_area!=undefined)">   <submit namelist="recog_result weather_area" next="ask_weather_date.jsp" />   </if> … </filled> … </form> </vxml> <field name=“parking_intention" /> <field name=“restaurant_intention" /> <field name=“direction_intention" /> <filled namelist=“direction_intention"> <goto next="ask_direction.jsp"/> </filled> 13

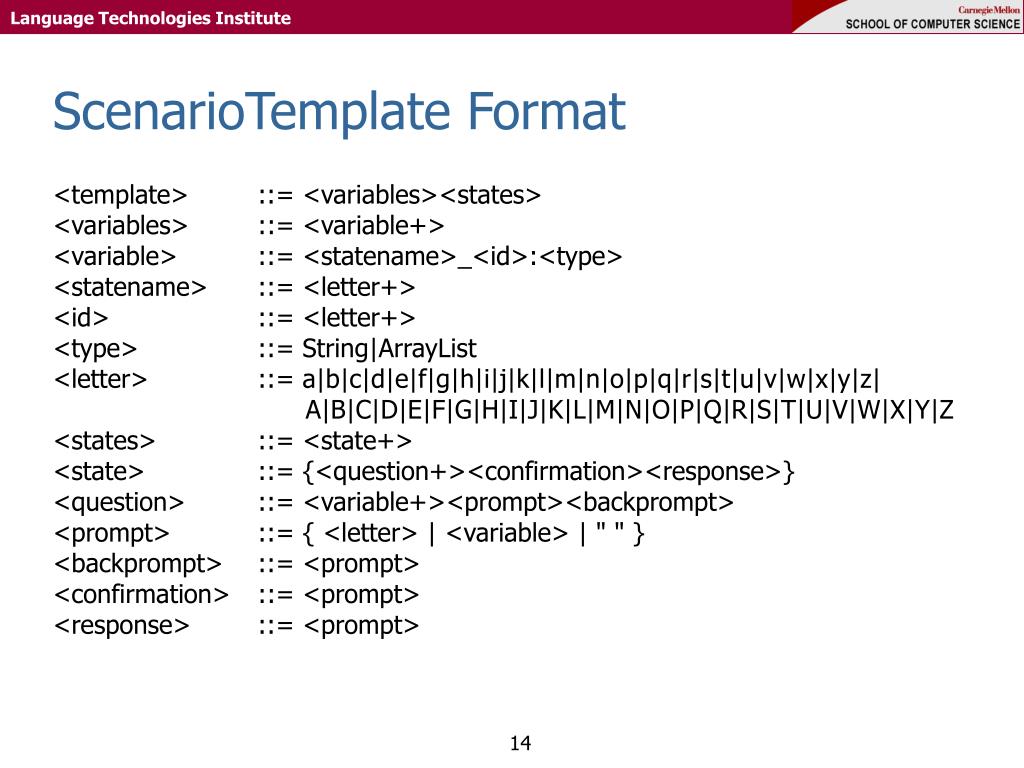

14. ScenarioTemplate Format <template> ::= <variables><states> <variables> ::= <variable+> <variable> ::= <statename>_<id>:<type> <statename> ::= <letter+> <id> ::= <letter+> <type> ::= String|ArrayList <letter> ::= a|b|c|d|e|f|g|h|i|j|k|l|m|n|o|p|q|r|s|t|u|v|w|x|y|z| A|B|C|D|E|F|G|H|I|J|K|L|M|N|O|P|Q|R|S|T|U|V|W|X|Y|Z <states> ::= <state+> <state> ::= {<question+><confirmation><response>} <question> ::= <variable+><prompt><backprompt> <prompt> ::= { <letter> | <variable> | " " } <backprompt> ::= <prompt> <confirmation> ::= <prompt> <response> ::= <prompt> 14

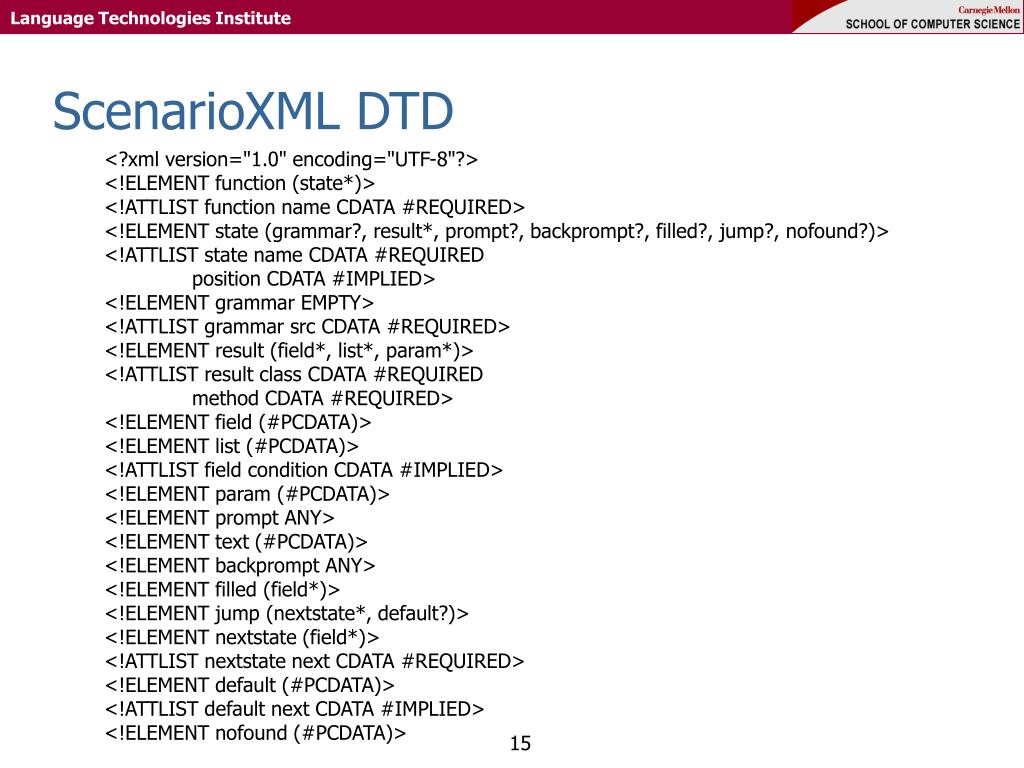

15. ScenarioXML DTD <?xml version="1.0" encoding="UTF-8"?> <!ELEMENT function (state*)> <!ATTLIST function name CDATA #REQUIRED> <!ELEMENT state (grammar?, result*, prompt?, backprompt?, filled?, jump?, nofound?)> <!ATTLIST state name CDATA #REQUIRED position CDATA #IMPLIED> <!ELEMENT grammar EMPTY> <!ATTLIST grammar src CDATA #REQUIRED> <!ELEMENT result (field*, list*, param*)> <!ATTLIST result class CDATA #REQUIRED method CDATA #REQUIRED> <!ELEMENT field (#PCDATA)> <!ELEMENT list (#PCDATA)> <!ATTLIST field condition CDATA #IMPLIED> <!ELEMENT param (#PCDATA)> <!ELEMENT prompt ANY> <!ELEMENT text (#PCDATA)> <!ELEMENT backprompt ANY> <!ELEMENT filled (field*)> <!ELEMENT jump (nextstate*, default?)> <!ELEMENT nextstate (field*)> <!ATTLIST nextstate next CDATA #REQUIRED> <!ELEMENT default (#PCDATA)> <!ATTLIST default next CDATA #IMPLIED> <!ELEMENT nofound (#PCDATA)> 15

16. ST Compiler Grammars Dialog Names ScenarioXML SXML Development Kit (SXMLDK) • Two-step compilation by SXMLDK ScenarioXML Development Kit Scenario Template Voice XML JSP files SXML Compiler 16

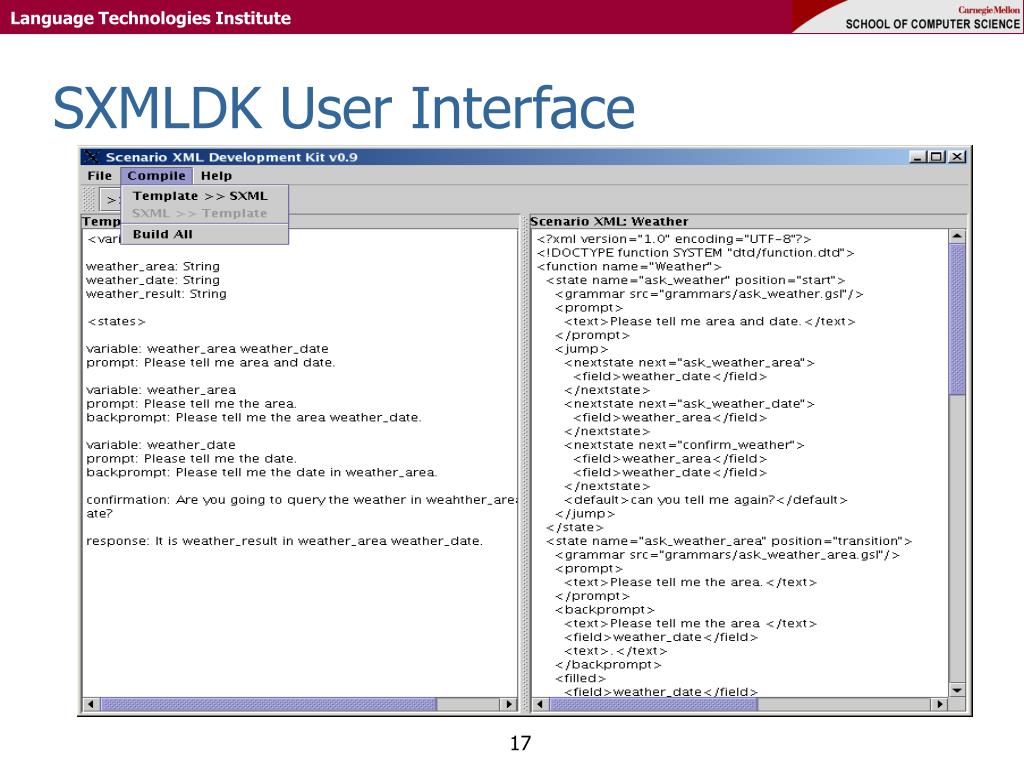

17. SXMLDK User Interface 17

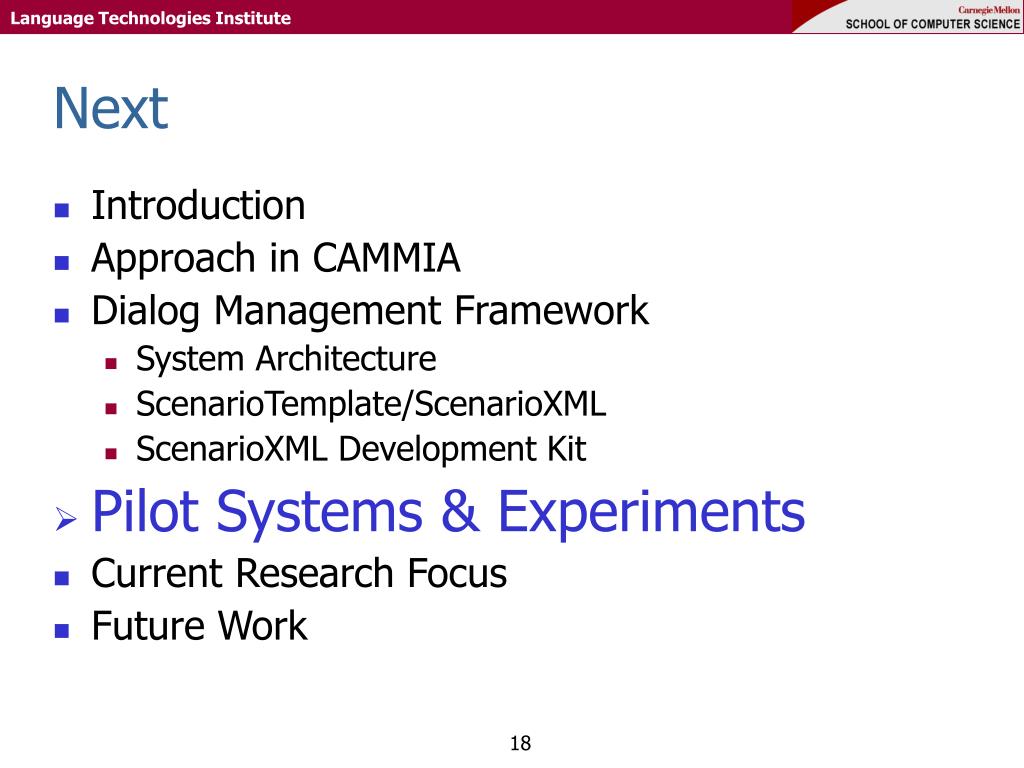

18. Next • Introduction • Approach in CAMMIA • Dialog Management Framework • System Architecture • ScenarioTemplate/ScenarioXML • ScenarioXML Development Kit • Pilot Systems & Experiments • Current Research Focus • Future Work 18

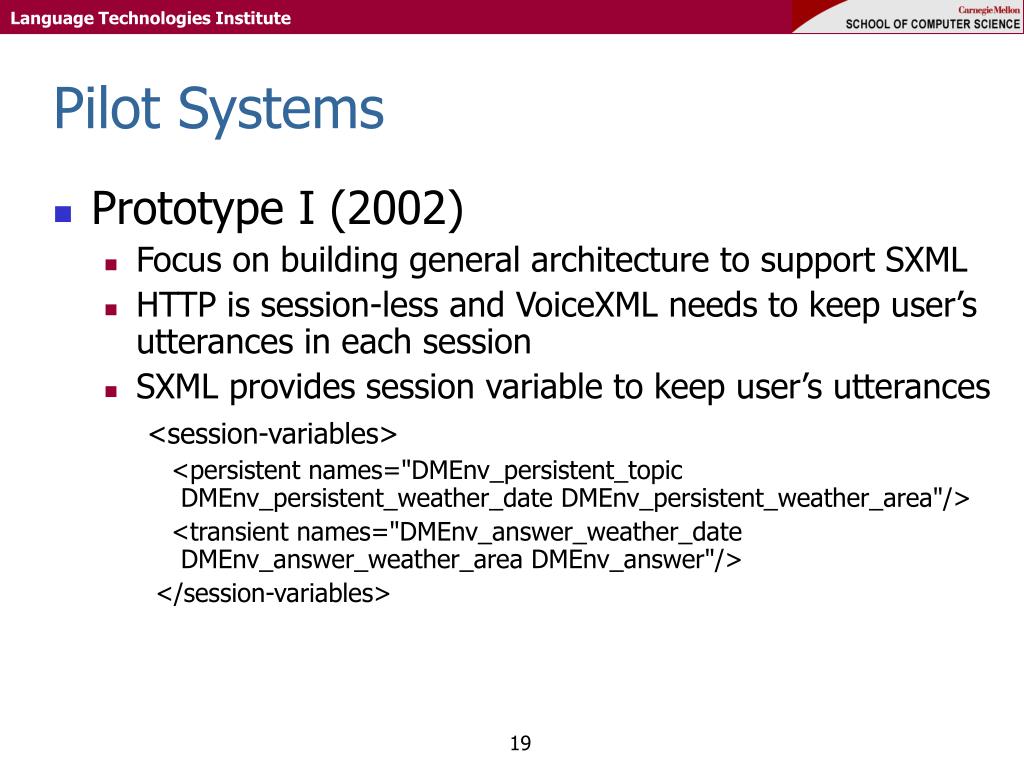

19. Pilot Systems • Prototype I (2002) • Focus on building general architecture to support SXML • HTTP is session-less and VoiceXML needs to keep user’s utterances in each session • SXML provides session variable to keep user’s utterances <session-variables> <persistent names="DMEnv_persistent_topic DMEnv_persistent_weather_date DMEnv_persistent_weather_area"/> <transient names="DMEnv_answer_weather_date DMEnv_answer_weather_area DMEnv_answer"/> </session-variables> 19

20. Pilot Systems • Prototype II (2003) • Improve Prototype I • Develop ScenarioTemplate & SXMLDK • Filled values and dialog states are stored in back-end dialog controller • Only the current values are stored in VoiceXML 20

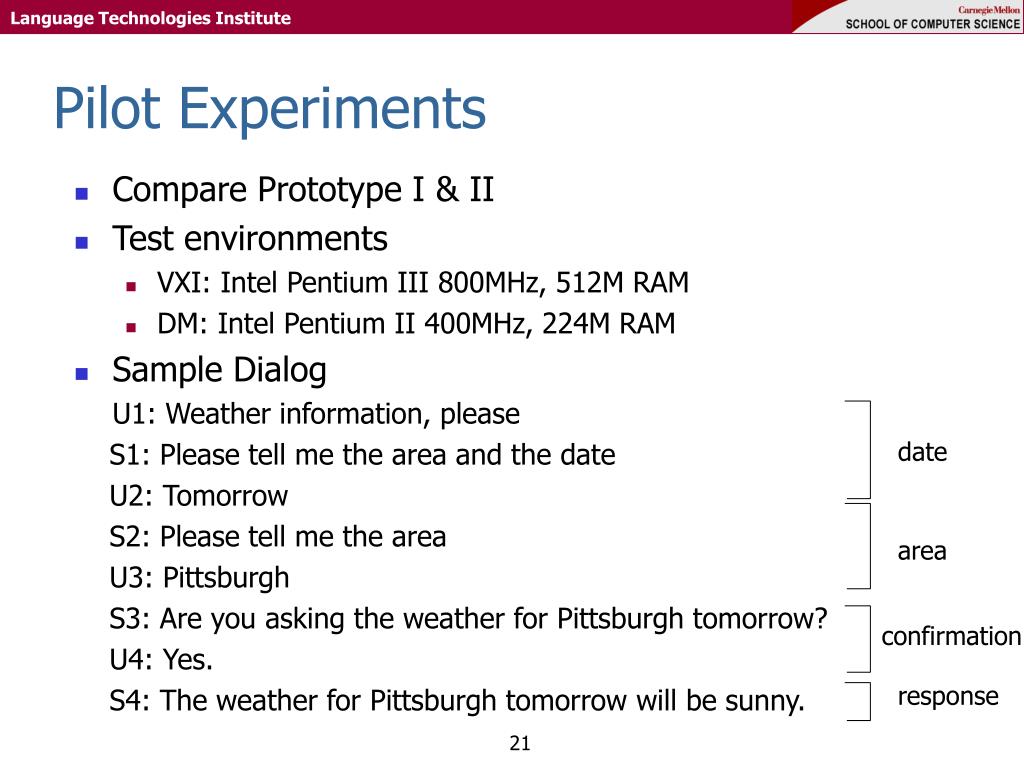

21. Pilot Experiments • Compare Prototype I & II • Test environments • VXI: Intel Pentium III 800MHz, 512M RAM • DM: Intel Pentium II 400MHz, 224M RAM • Sample Dialog U1: Weather information, please S1: Please tell me the area and the date U2: Tomorrow S2: Please tell me the area U3: Pittsburgh S3: Are you asking the weather for Pittsburgh tomorrow? U4: Yes. S4: The weather for Pittsburgh tomorrow will be sunny. date area confirmation response 21

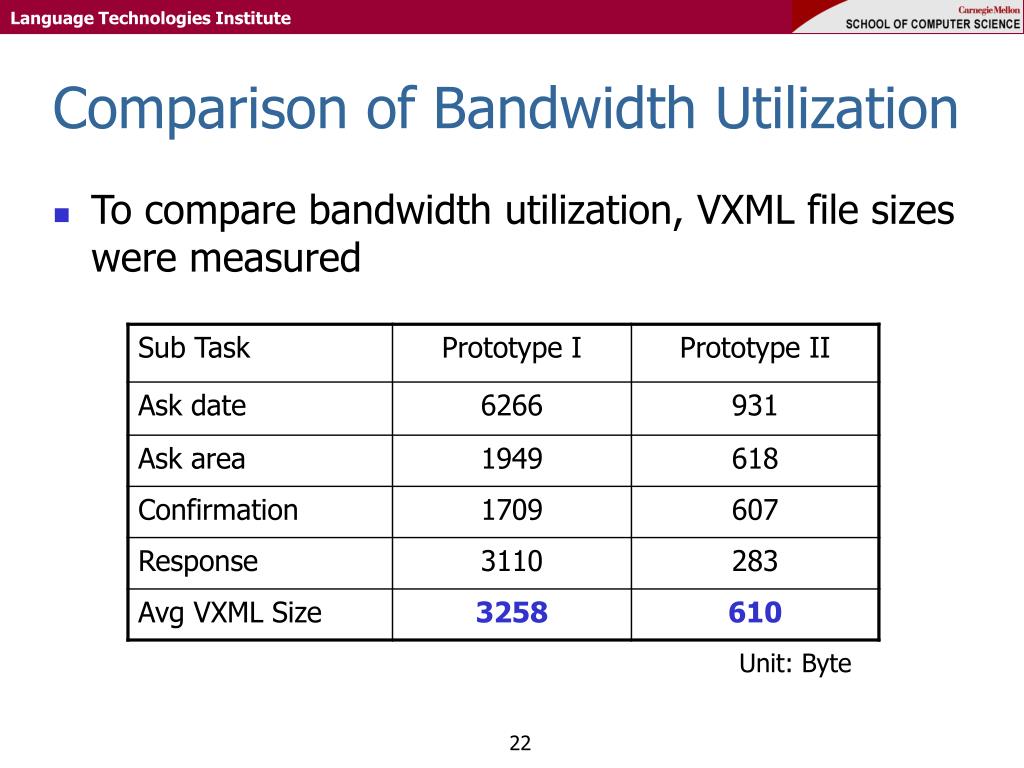

22. Comparison of Bandwidth Utilization • To compare bandwidth utilization, VXML file sizes were measured Unit: Byte 22

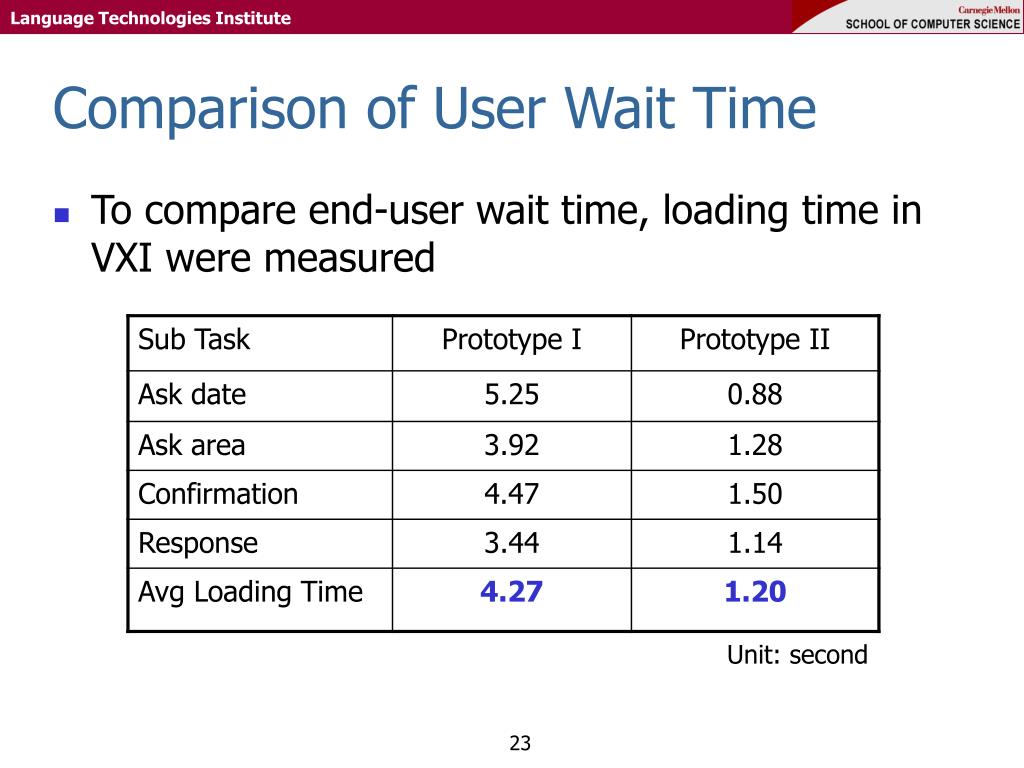

23. Comparison of User Wait Time • To compare end-user wait time, loading time in VXI were measured Unit: second 23

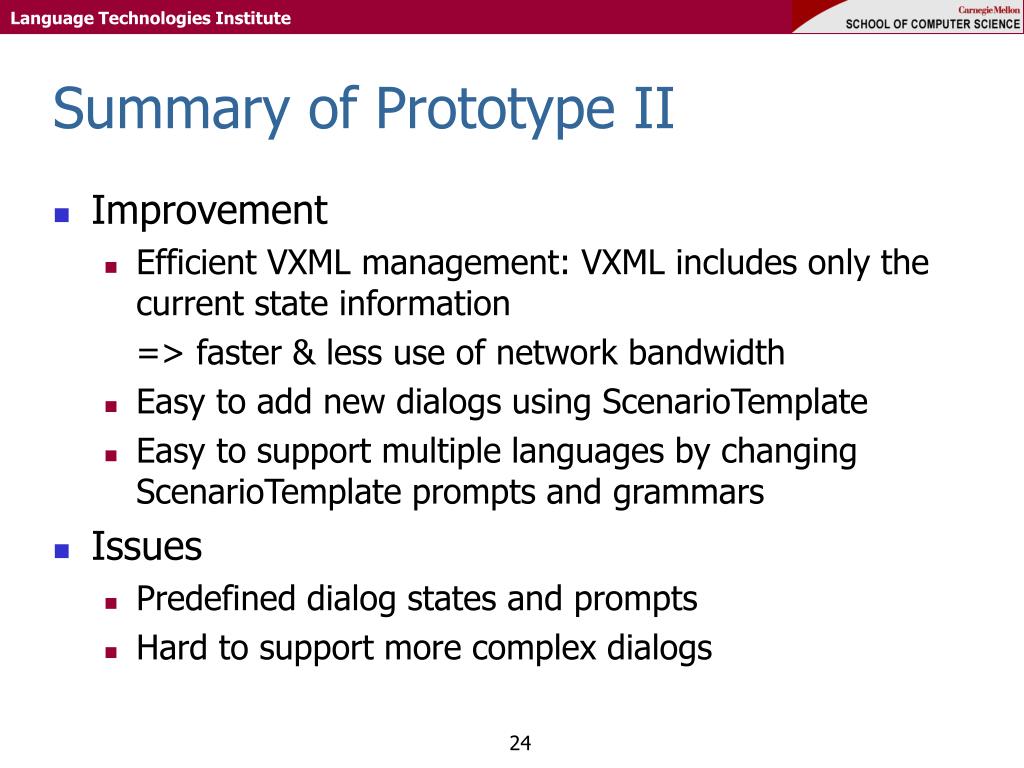

24. Summary of Prototype II • Improvement • Efficient VXML management: VXML includes only the current state information => faster & less use of network bandwidth • Easy to add new dialogs using ScenarioTemplate • Easy to support multiple languages by changing ScenarioTemplate prompts and grammars • Issues • Predefined dialog states and prompts • Hard to support more complex dialogs 24

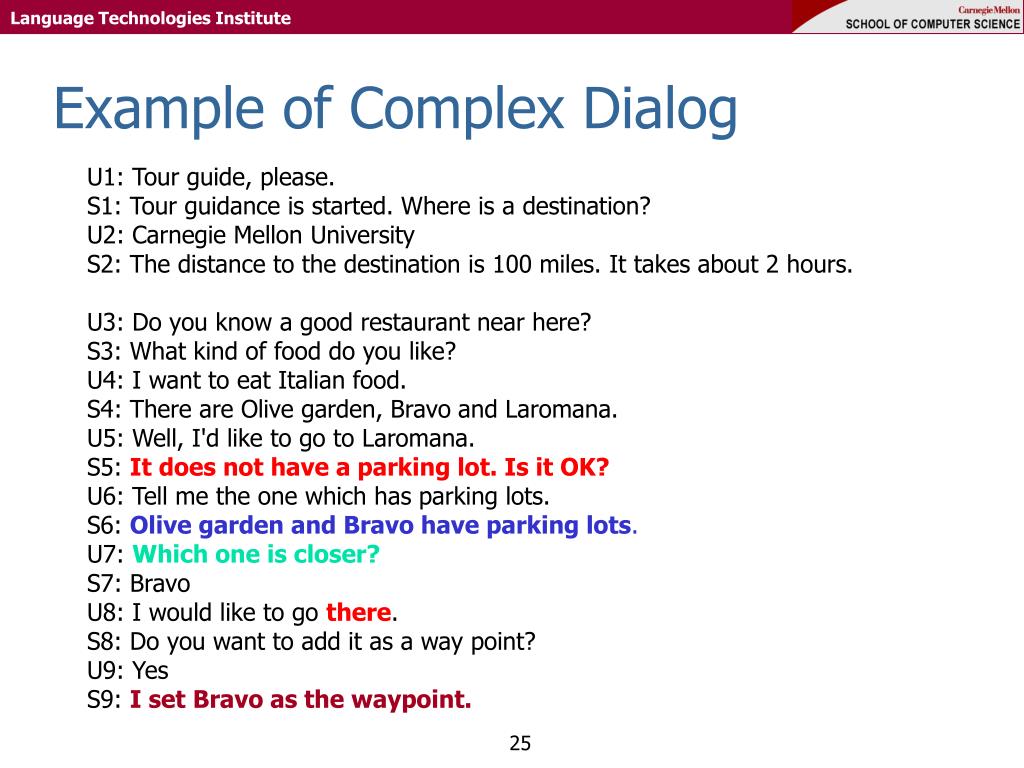

25. Example of Complex Dialog U1: Tour guide, please. S1: Tour guidance is started. Where is a destination? U2: Carnegie Mellon University S2: The distance to the destination is 100 miles. It takes about 2 hours. U3: Do you know a good restaurant near here? S3: What kind of food do you like? U4: I want to eat Italian food. S4: There are Olive garden, Bravo and Laromana. U5: Well, I'd like to go to Laromana. S5: It does not have a parking lot. Is it OK? U6: Tell me the one which has parking lots. S6: Olive garden and Bravo have parking lots. U7: Which one is closer? S7: Bravo U8: I would like to go there. S8: Do you want to add it as a way point? U9: Yes S9: I set Bravo as the waypoint. 25

26. Next • Introduction • Approach in CAMMIA • Dialog Management Framework • System Architecture • ScenarioTemplate/ScenarioXML • ScenarioXML Development Kit • Pilot Systems & Experiments • Current Research Focus • Future Work 26

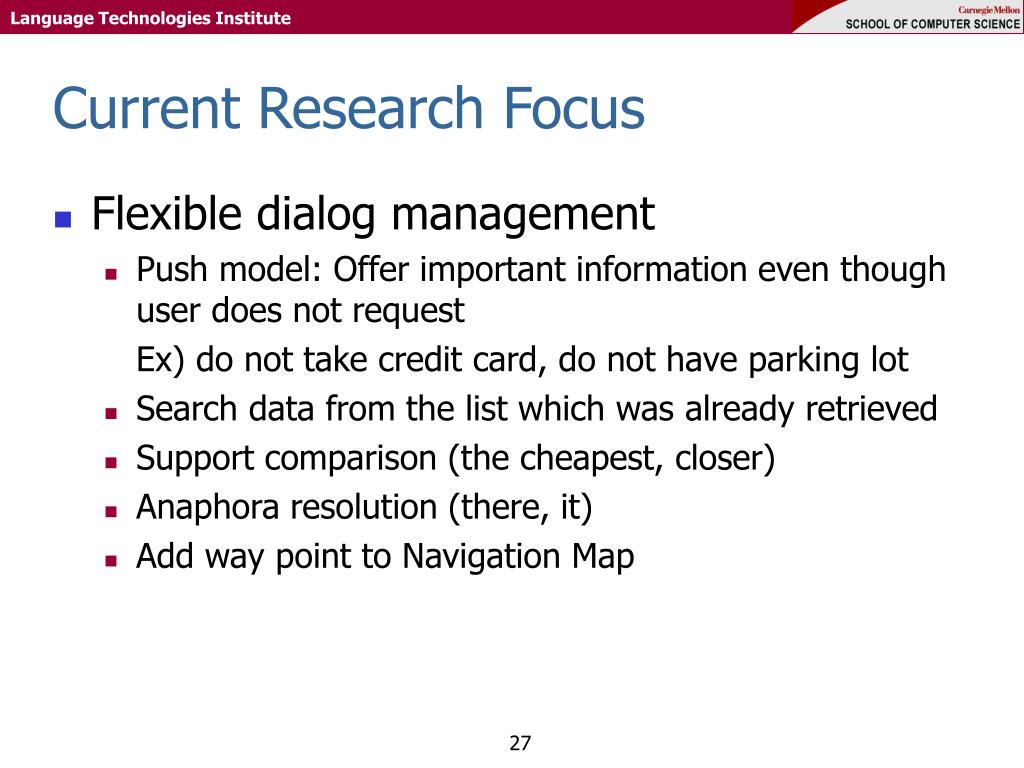

27. Current Research Focus • Flexible dialog management • Push model: Offer important information even though user does not request Ex) do not take credit card, do not have parking lot • Search data from the list which was already retrieved • Support comparison (the cheapest, closer) • Anaphora resolution (there, it) • Add way point to Navigation Map 27

28. Current Research Focus • Robust dialog management for signal loss • Task Manager - Retrieval task management for signal loss • Dialog Manager - Located in vehicle • Info Manager - Retrieve data from the remote database servers - Maintain local cache with timestamps 28

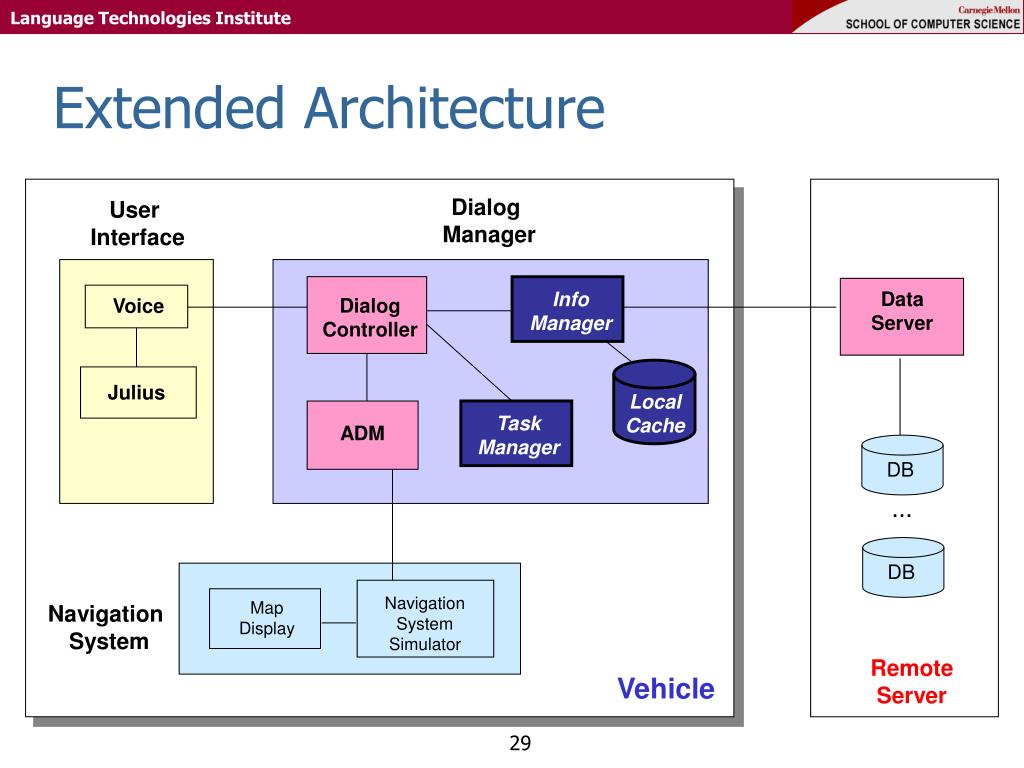

29. Extended Architecture Dialog Manager User Interface Data Server Info Manager Dialog Controller Voice Julius Local Cache Task Manager ADM DB … DB Navigation System Simulator Map Display Navigation System Remote Server Vehicle 29

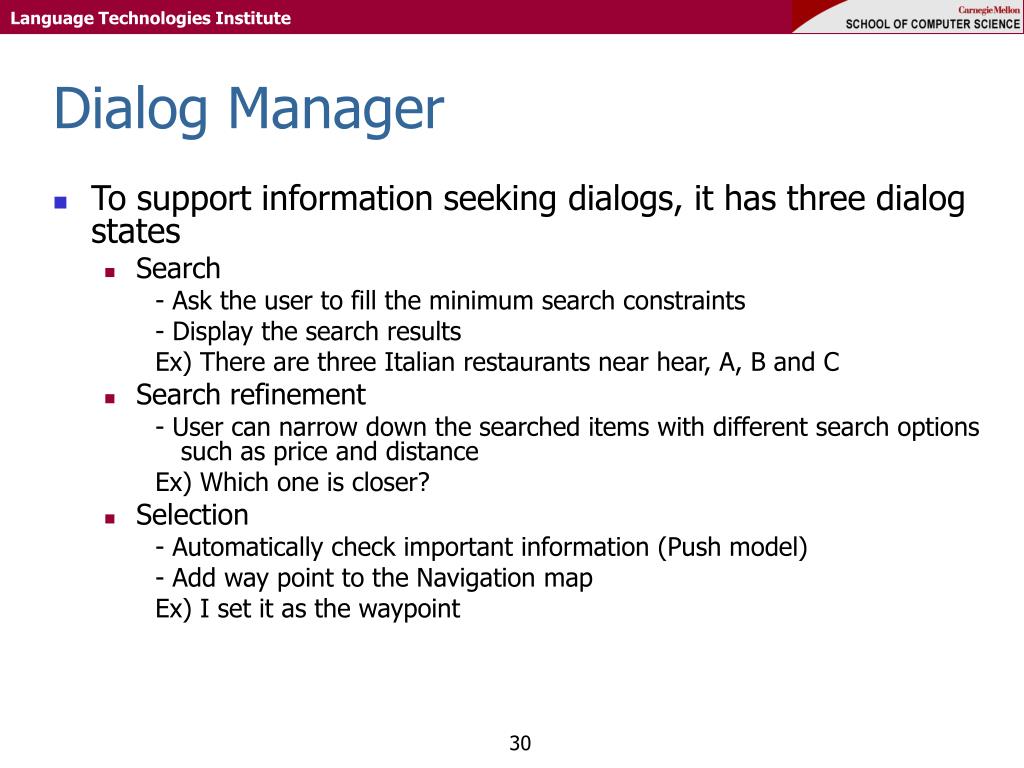

30. Dialog Manager • To support information seeking dialogs, it has three dialog states • Search - Ask the user to fill the minimum search constraints - Display the search results Ex) There are three Italian restaurants near hear, A, B and C • Search refinement - User can narrow down the searched items with different search options such as price and distance Ex) Which one is closer? • Selection - Automatically check important information (Push model) - Add way point to the Navigation map Ex) I set it as the waypoint 30

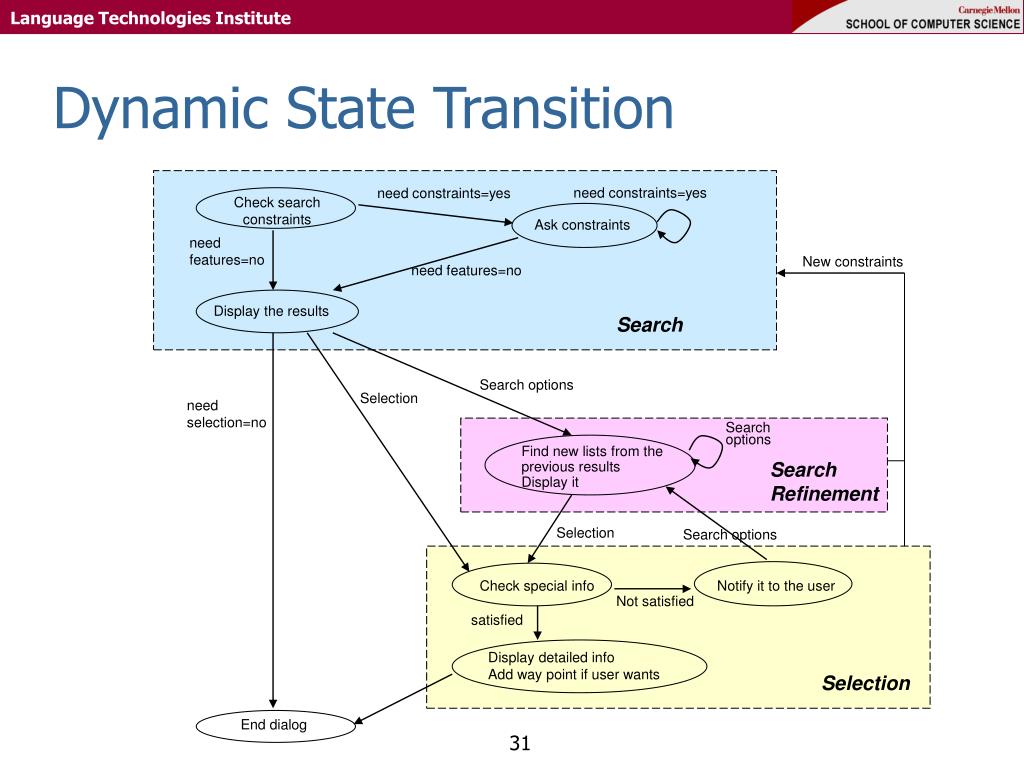

31. Dynamic State Transition need constraints=yes need constraints=yes Check search constraints Ask constraints need features=no New constraints need features=no Display the results Search Search options Selection need selection=no Search options Find new lists from the previous results Display it Search Refinement Selection Search options Check special info Notify it to the user Not satisfied satisfied Display detailed info Add way point if user wants Selection 31 End dialog

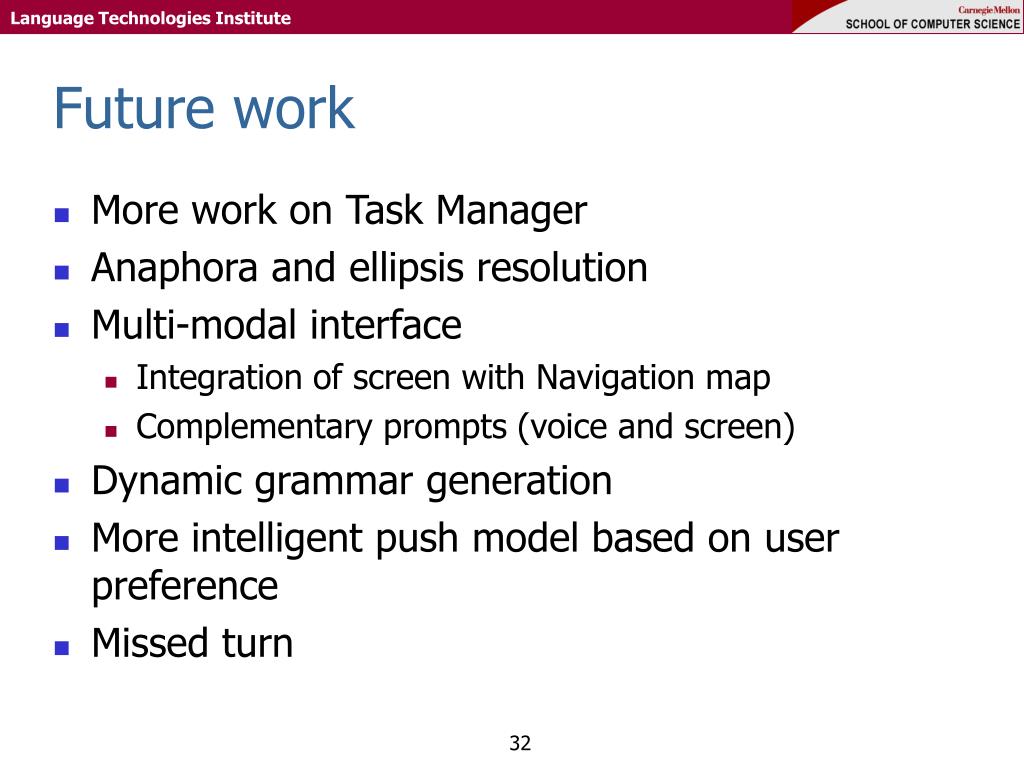

32. Future work • More work on Task Manager • Anaphora and ellipsis resolution • Multi-modal interface • Integration of screen with Navigation map • Complementary prompts (voice and screen) • Dynamic grammar generation • More intelligent push model based on user preference • Missed turn 32
