New Directions in the Use of Network Analysis in R&D Evaluation

1. New Directions in the Use of Network Analysis in R&D Evaluation Evaluation 2006 Annual Meeting of the American Evaluation Assocation November 1-4, Portland, OR Jonathon E. Mote, University of Maryland Gretchen Jordan, Sandia National Laboratories Jerald Hage, University of Maryland Work presented here was completed for the U.S. DOE Office of Science by Sandia National Laboratories, Albuquerque, New Mexico, USA under Contract DE-AC04-94AL8500 and under contract with the National Oceanic and Atmospheric Agency (NOAA). Sandia is operated by Sandia Corporation, a subsidiary of Lockheed Martin Corporation. Opinions expressed are solely those of the authors. 1

2. New Directions in Network Analysis • Research conducted by conducted Jerald Hage and Jonathon Mote at the Center for Innovation, University of Maryland, in collaboration with Gretchen Jordan at Sandia National Laboratories. • Part of a long-standing U. S. Department of Energy (DOE) Office of Basic Energy Sciences interest in understanding and developing tools to assess key factors in the research environment that foster excellence in order to improve performance. • Began exploring the use of network analysis three years ago. • Interested in moving network analysis into new areas – knowledge networks and interactions with the research environment 2

3. Networks: How R&D Really Gets Done • Create or Access • Resources • People • Knowledge • Equipment • Funds Produce Desired Outcomes -Knowledge advance and product / process innovation -Problems solved -With what speed -Affecting whom Accomplish/Disseminate Work/R&D -Focus, plan, communicate -Integrate ideas, functions -Make R&D progress -Disseminate/absorb R&D outputs 3

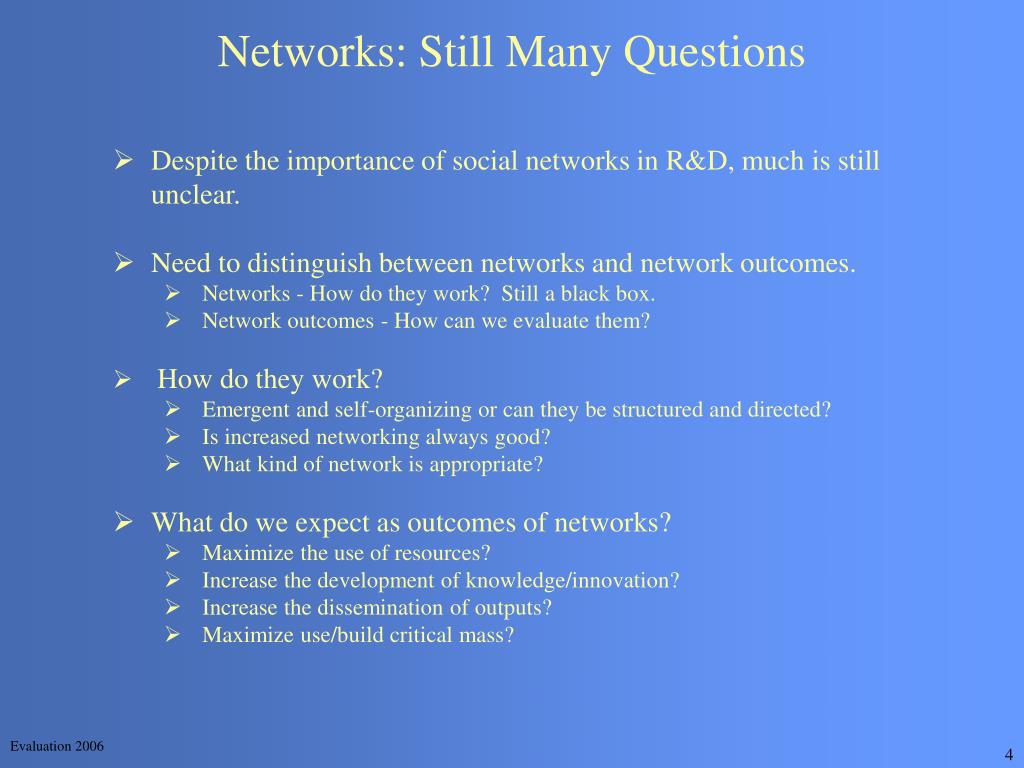

4. Networks: Still Many Questions • Despite the importance of social networks in R&D, much is still unclear. • Need to distinguish between networks and network outcomes. • Networks - How do they work? Still a black box. • Network outcomes - How can we evaluate them? • How do they work? • Emergent and self-organizing or can they be structured and directed? • Is increased networking always good? • What kind of network is appropriate? • What do we expect as outcomes of networks? • Maximize the use of resources? • Increase the development of knowledge/innovation? • Increase the dissemination of outputs? • Maximize use/build critical mass? 4

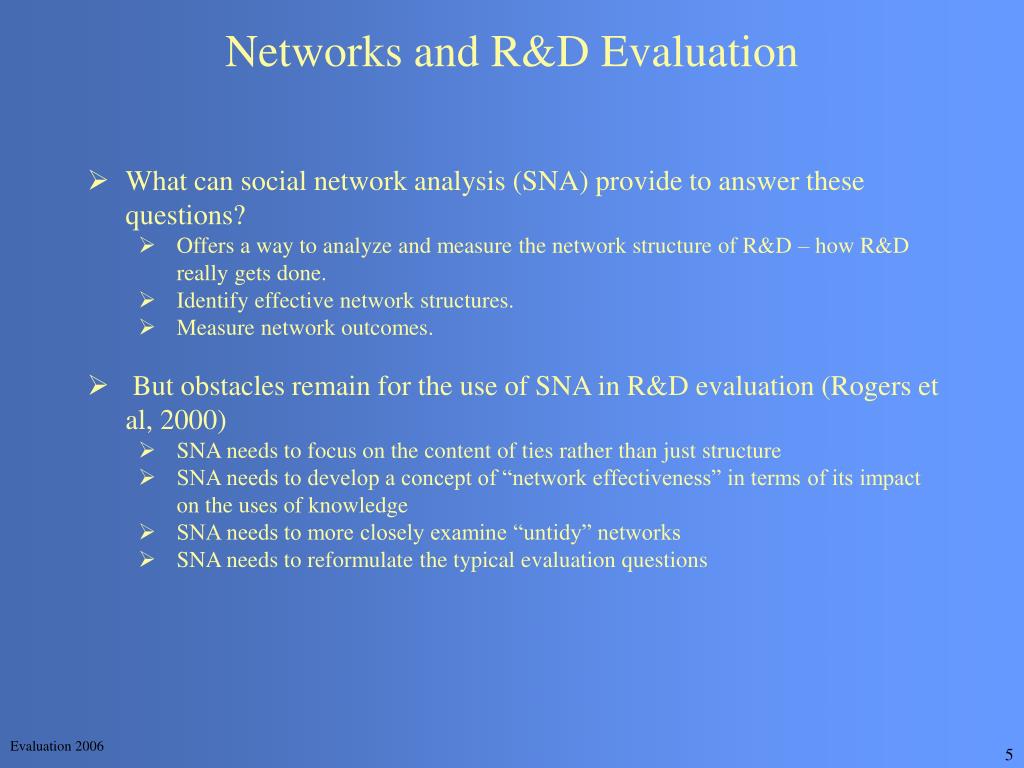

5. Networks and R&D Evaluation • What can social network analysis (SNA) provide to answer these questions? • Offers a way to analyze and measure the network structure of R&D – how R&D really gets done. • Identify effective network structures. • Measure network outcomes. • But obstacles remain for the use of SNA in R&D evaluation (Rogers et al, 2000) • SNA needs to focus on the content of ties rather than just structure • SNA needs to develop a concept of “network effectiveness” in terms of its impact on the uses of knowledge • SNA needs to more closely examine “untidy” networks • SNA needs to reformulate the typical evaluation questions 5

6. Challenges of SNA in R&D Evaluation • How to address the challenges of SNA in R&D evaluation? • Focus on the content of ties rather than just structure • SNA is structural analysis, hard to get away from • Need to identify the appropriate network (and ties) for knowledge production • If a matrix organization, project affiliation network (project ecology) provides good proxy for knowledge network • But other networks (multiplexity) are also important – collaboration (bibliometric), for example • Developing a concept of “network effectiveness” • Effectiveness in terms of the network or network outcomes? • What are the best network measures? • Centrality? But which centrality measure? • What is the best network structure? • Clumpy, dense, sparse (Borgatti, 2005)? • It depends on the specific research setting and goals…one size does not fit all. • Need to study “untidy” networks • All networks are untidy • But boundaries are a necessary evil for delimiting the study 6

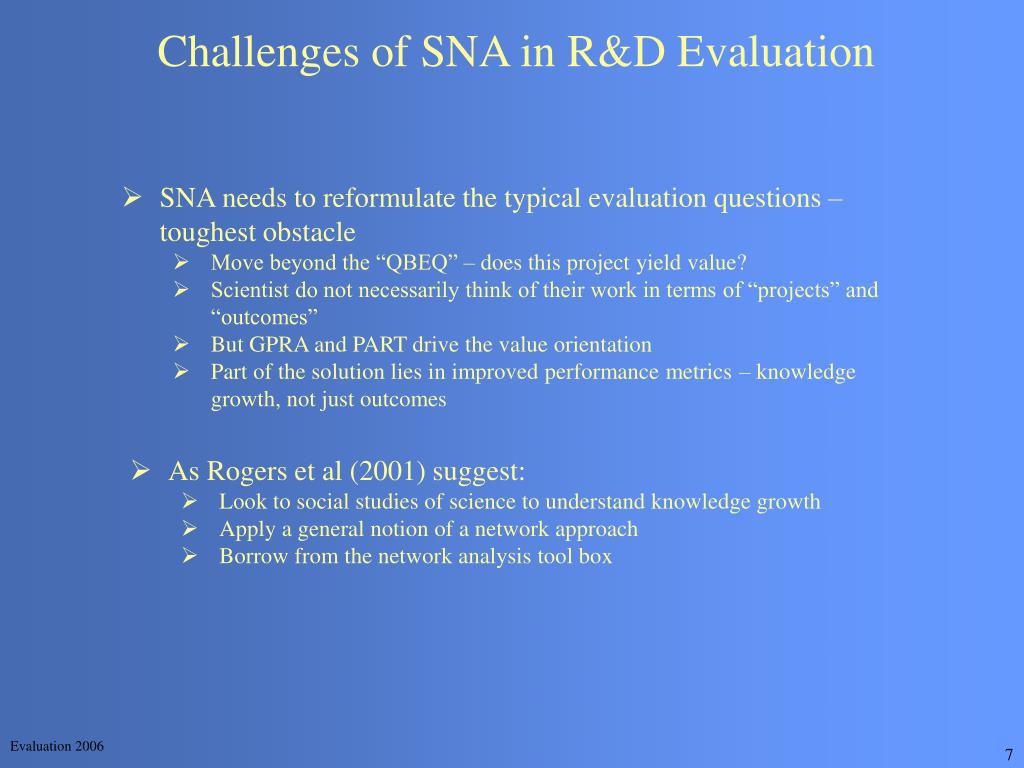

7. Challenges of SNA in R&D Evaluation • SNA needs to reformulate the typical evaluation questions – toughest obstacle • Move beyond the “QBEQ” – does this project yield value? • Scientist do not necessarily think of their work in terms of “projects” and “outcomes” • But GPRA and PART drive the value orientation • Part of the solution lies in improved performance metrics – knowledge growth, not just outcomes • As Rogers et al (2001) suggest: • Look to social studies of science to understand knowledge growth • Apply a general notion of a network approach • Borrow from the network analysis tool box 7

8. Moving Forward with SNA in R&D Evaluation • We would also suggest the following: • Need to move away from “traditional” use of SNA • Most SNA focuses on properties of individual performance • Most SNA is better oriented for managers • Focuses on the identification of particular individuals in networks and taking corrective action • Not necessarily appropriate for evaluation of projects/programs • What is the appropriate network to study for R&D? • R&D consists of knowledge networks • How is knowledge produced and communicated, particularly tacit knowledge. • Project networks highlight the network of knowledges and skills within the organization • How does the research environment interact with networks? • Does the environment inhibit or facilitate networks? • What network characteristics are most effective in a given profile of R&D? 8

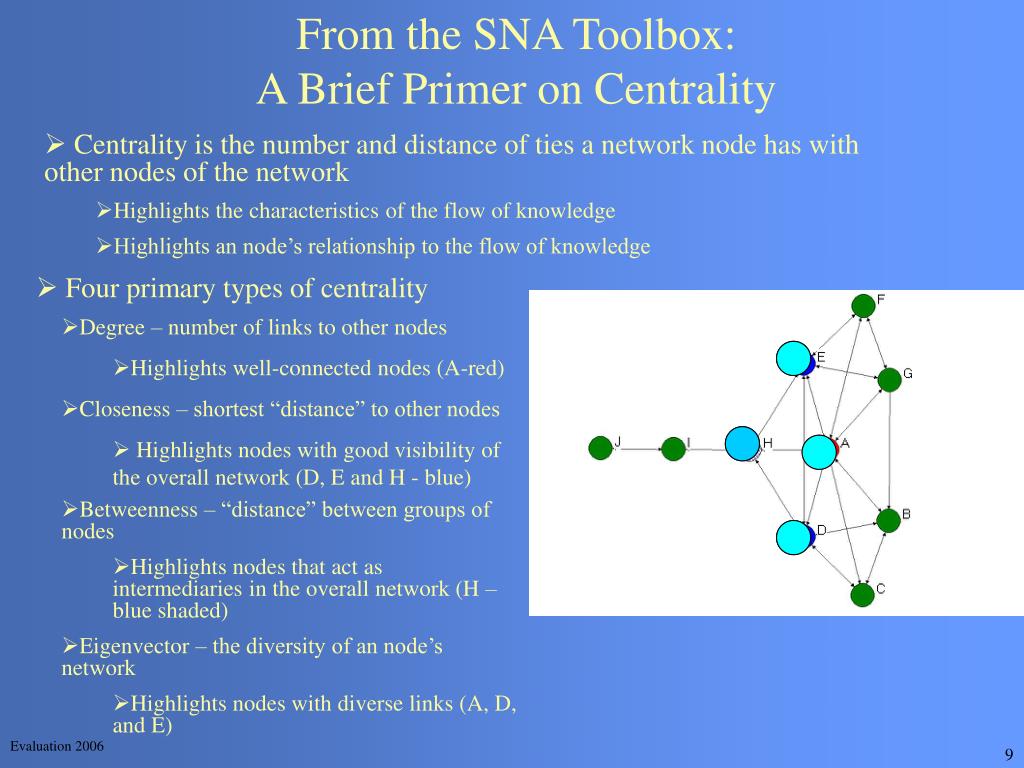

9. From the SNA Toolbox: A Brief Primer on Centrality • Centrality is the number and distance of ties a network node has with other nodes of the network • Highlights the characteristics of the flow of knowledge • Highlights an node’s relationship to the flow of knowledge • Four primary types of centrality • Degree – number of links to other nodes • Highlights well-connected nodes (A-red) • Closeness – shortest “distance” to other nodes • Highlights nodes with good visibility of the overall network (D, E and H - blue) • Betweenness – “distance” between groups of nodes • Highlights nodes that act as intermediaries in the overall network (H – blue shaded) • Eigenvector – the diversity of an node’s network • Highlights nodes with diverse links (A, D, and E) 9

10. Looking at Knowledge Networks in R&D • Large Multi-Disciplinary National Laboratory • 2-mode Network - Projects and Research Department • Conceptualizes network as a knowledge network, not individuals • 20 Research Projects – 216 Researchers • Blue nodes=Research Departments • Red nodes=Projects • Some projects/departments are more central to the network • Some projects/departments appear to the play the role of intermediaries • But what is important in terms of outcomes? 10

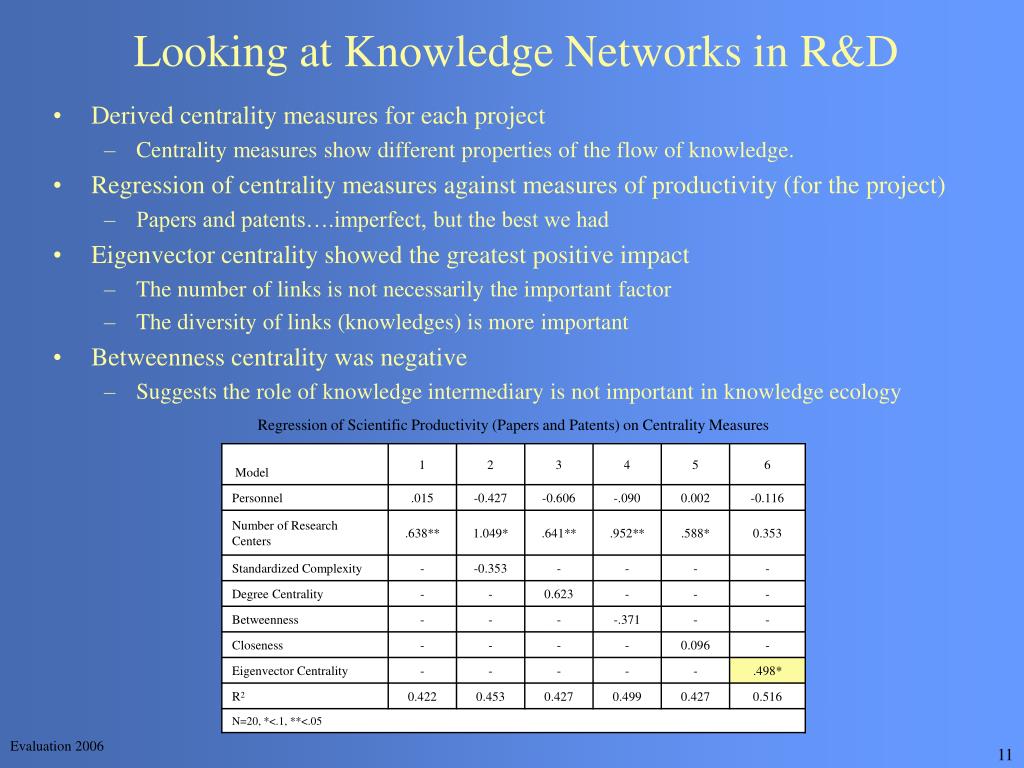

11. Looking at Knowledge Networks in R&D • Derived centrality measures for each project • Centrality measures show different properties of the flow of knowledge. • Regression of centrality measures against measures of productivity (for the project) • Papers and patents….imperfect, but the best we had • Eigenvector centrality showed the greatest positive impact • The number of links is not necessarily the important factor • The diversity of links (knowledges) is more important • Betweenness centrality was negative • Suggests the role of knowledge intermediary is not important in knowledge ecology Regression of Scientific Productivity (Papers and Patents) on Centrality Measures 11

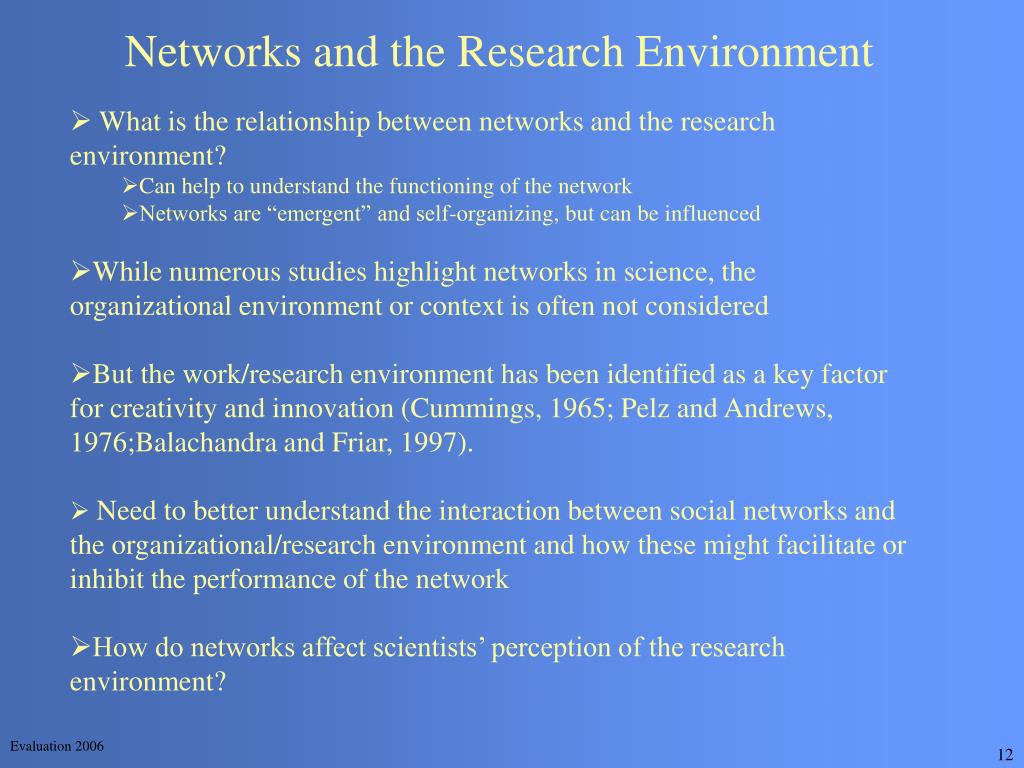

12. Networks and the Research Environment • What is the relationship between networks and the research environment? • Can help to understand the functioning of the network • Networks are “emergent” and self-organizing, but can be influenced • While numerous studies highlight networks in science, the organizational environment or context is often not considered • But the work/research environment has been identified as a key factor for creativity and innovation (Cummings, 1965; Pelz and Andrews, 1976;Balachandra and Friar, 1997). • Need to better understand the interaction between social networks and the organizational/research environment and how these might facilitate or inhibit the performance of the network • How do networks affect scientists’ perception of the research environment? 12

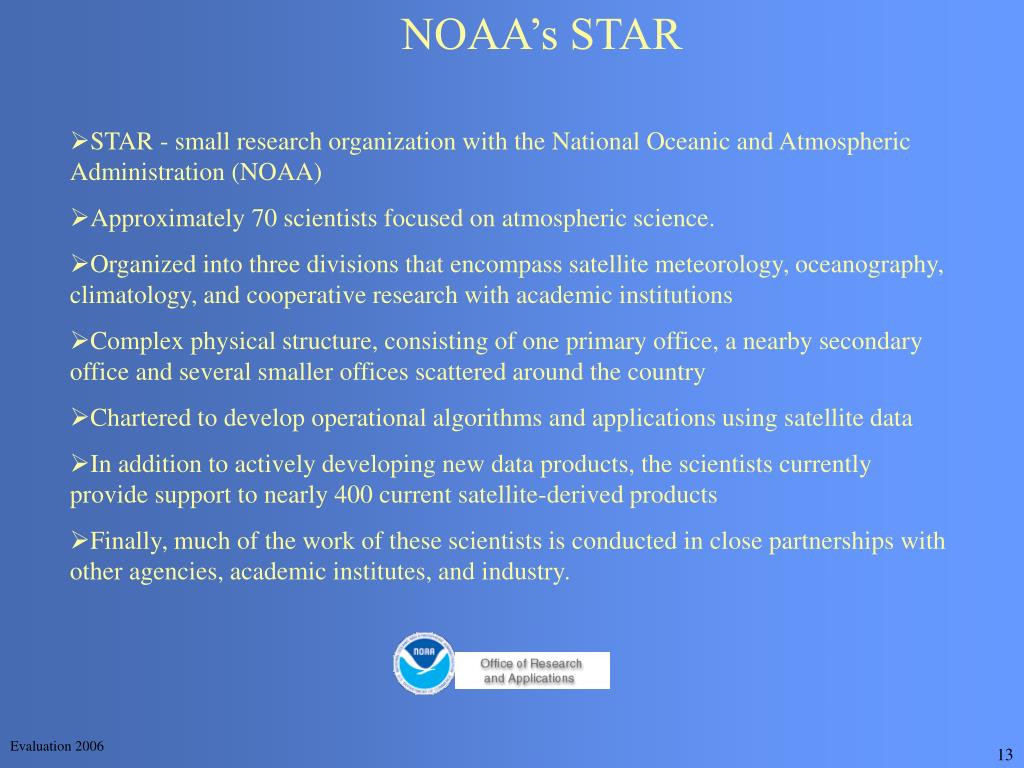

13. NOAA’s STAR • STAR - small research organization with the National Oceanic and Atmospheric Administration (NOAA) • Approximately 70 scientists focused on atmospheric science. • Organized into three divisions that encompass satellite meteorology, oceanography, climatology, and cooperative research with academic institutions • Complex physical structure, consisting of one primary office, a nearby secondary office and several smaller offices scattered around the country • Chartered to develop operational algorithms and applications using satellite data • In addition to actively developing new data products, the scientists currently provide support to nearly 400 current satellite-derived products • Finally, much of the work of these scientists is conducted in close partnerships with other agencies, academic institutes, and industry. 13

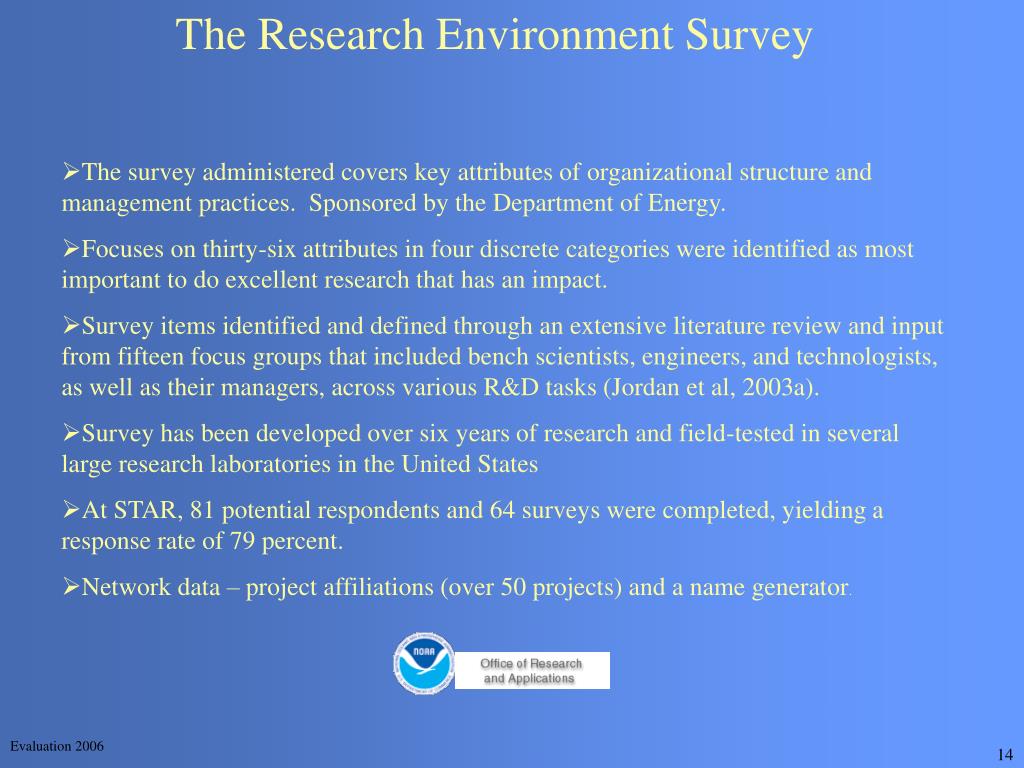

14. The Research Environment Survey • The survey administered covers key attributes of organizational structure and management practices. Sponsored by the Department of Energy. • Focuses on thirty-six attributes in four discrete categories were identified as most important to do excellent research that has an impact. • Survey items identified and defined through an extensive literature review and input from fifteen focus groups that included bench scientists, engineers, and technologists, as well as their managers, across various R&D tasks (Jordan et al, 2003a). • Survey has been developed over six years of research and field-tested in several large research laboratories in the United States • At STAR, 81 potential respondents and 64 surveys were completed, yielding a response rate of 79 percent. • Network data – project affiliations (over 50 projects) and a name generator. 14

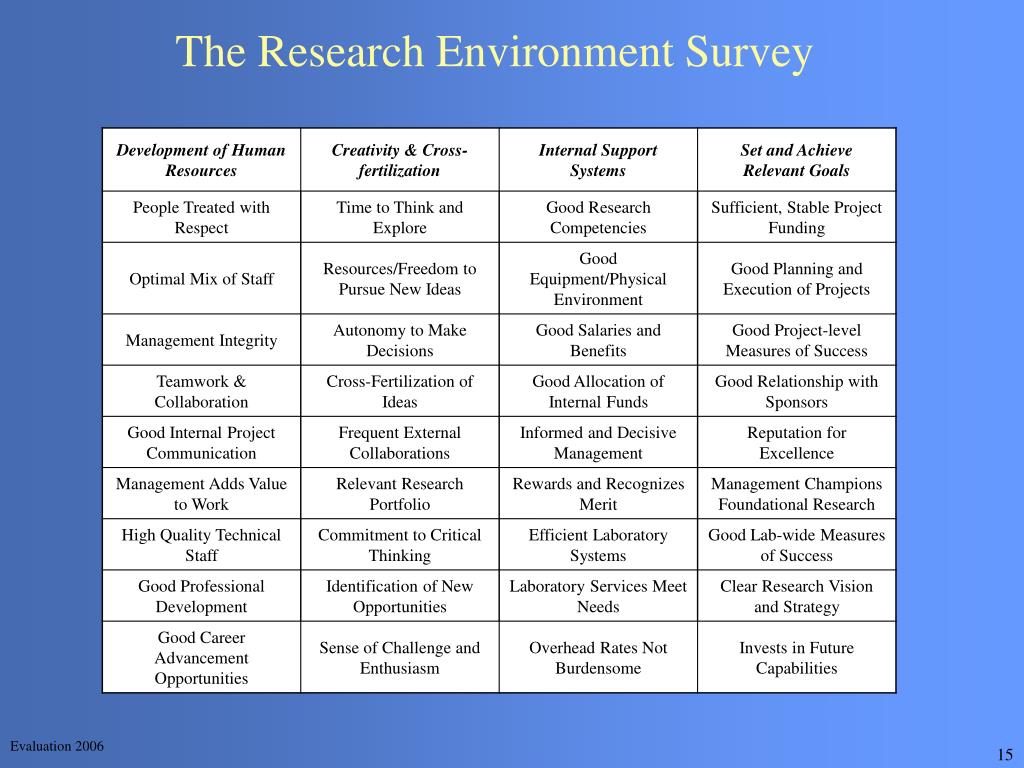

15. The Research Environment Survey 15

16. STAR Network Data • The name generator yielded 39 respondents and the project affiliation question yielded 63 respondents. • Due to the lack of detail in the name generator responses, the data was simply quantified in terms of the number of internal and external contacts. • The project affiliation data was gathered in 2-mode format which was then transformed into 1-mode. • This facilitated the derivation of network measures, principally those of centrality. 16

17. STAR Project Networks • Of all the centrality measures, closeness had the greatest impact • Divided actors by mean closeness • Those with high closeness reported more time true on a number of environmental attributes • Higher ratings of the research environment, but more “productive”? 17

18. STAR Project Networks • Developed closeness composition for each project • Categorized projects by product orientation – current product or new products • Projects with a majority of members with high closeness are clustered around new product development • Network theory suggests that closeness is a key factor for new product development 18

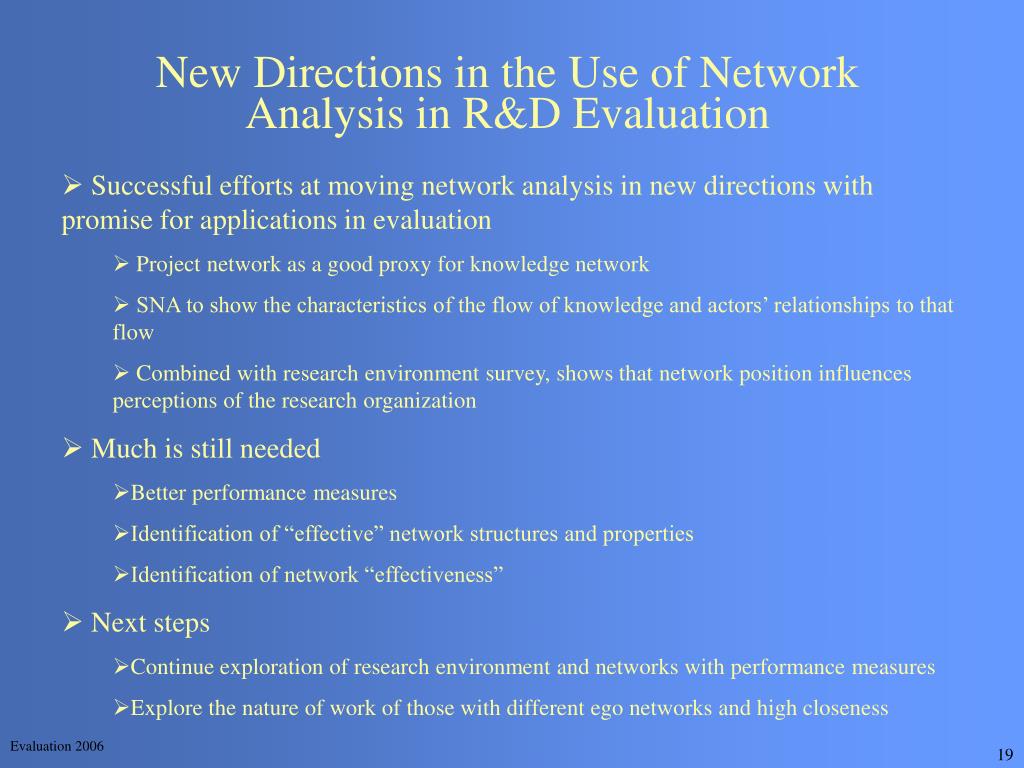

19. New Directions in the Use of Network Analysis in R&D Evaluation • Successful efforts at moving network analysis in new directions with promise for applications in evaluation • Project network as a good proxy for knowledge network • SNA to show the characteristics of the flow of knowledge and actors’ relationships to that flow • Combined with research environment survey, shows that network position influences perceptions of the research organization • Much is still needed • Better performance measures • Identification of “effective” network structures and properties • Identification of network “effectiveness” • Next steps • Continue exploration of research environment and networks with performance measures • Explore the nature of work of those with different ego networks and high closeness 19
