Sybil Attacks and Reputation Tracking

1. Sybil Attacks and Reputation Tracking Ken Birman Cornell University. CS5410 Fall 2008.

2. Background for today • Consider a system like Astrolabe. Node p announces: • I’ve computed the aggregates for the set of leaf nodes to which I belong • It turns out that under the rules, I’m one regional contact to use, and my friend node q is the second contact • Nobody in our region has seen any signs of intrusion attempts. • Should we trust any of this? • Similar issues arise in many kinds of P2P and gossip-based systems

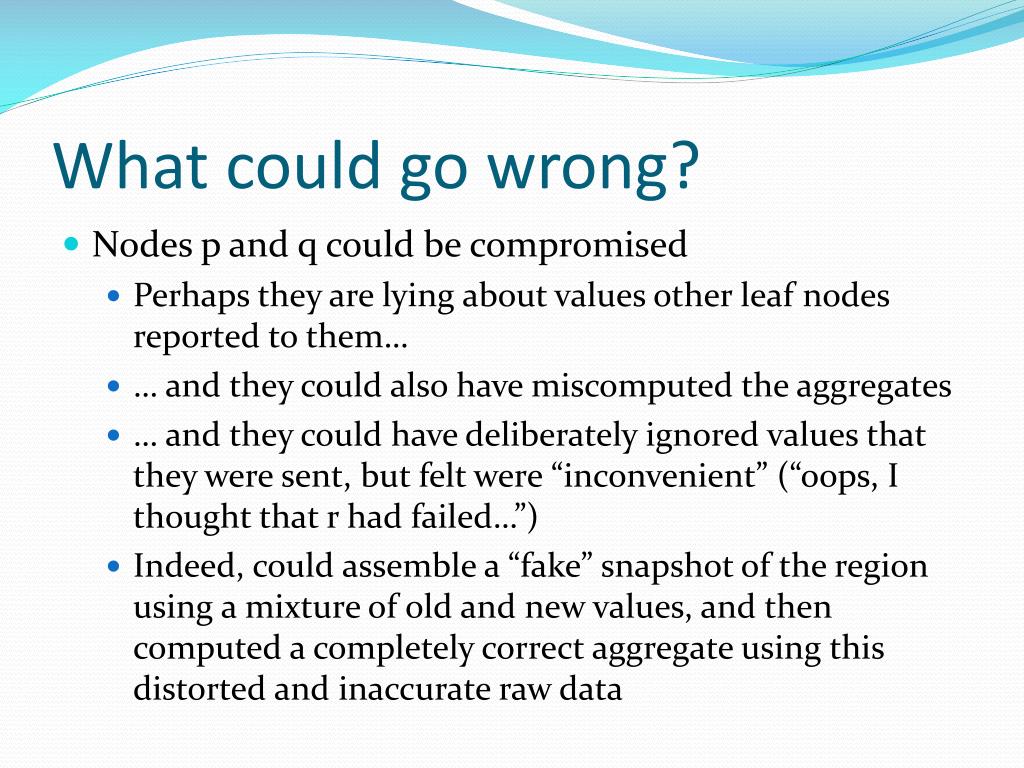

3. What could go wrong? • Nodes p and q could be compromised • Perhaps they are lying about values other leaf nodes reported to them… • … and they could also have miscomputed the aggregates • … and they could have deliberately ignored values that they were sent, but felt were “inconvenient” (“oops, I thought that r had failed…”) • Indeed, could assemble a “fake” snapshot of the region using a mixture of old and new values, and then computed a completely correct aggregate using this distorted and inaccurate raw data

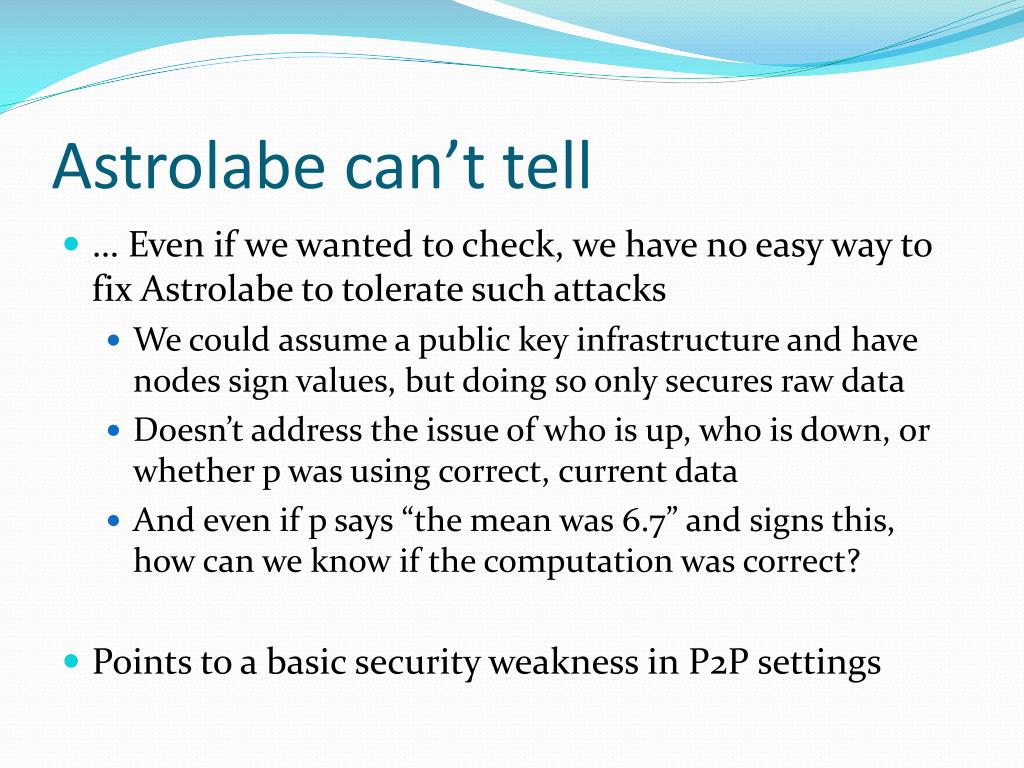

4. Astrolabe can’t tell • … Even if we wanted to check, we have no easy way to fix Astrolabe to tolerate such attacks • We could assume a public key infrastructure and have nodes sign values, but doing so only secures raw data • Doesn’t address the issue of who is up, who is down, or whether p was using correct, current data • And even if p says “the mean was 6.7” and signs this, how can we know if the computation was correct? • Points to a basic security weakness in P2P settings

5. Today’s topic • We are given a system that uses a P2P or gossip protocol and does something important. Ask: Is there a way to strengthen it so that it will tolerate attackers (and tolerate faults, too)? • Ideally, we want our solution to also be a symmetric, P2P or gossip solution • We certainly don’t want it to cost a fortune • For example, in Astrolabe, one could imagine sending raw data instead of aggregates: yes, this would work… but it would be far too costly and in fact would “break the gossip model” • And it needs to scale well

6. … leading to • Concept of a Sybil attack • Broadly: • Attacker has finite resources • Uses a technical trick to amplify them into a huge (virtual) army of zombies • These join the P2P system and then subvert it

7. Who was Sybil? • Actual woman with a psychiatric problem • Termed “multiple personality disorder” • Unclear how real this is • Sybil Attack: using small number of machines to mimic much larger set

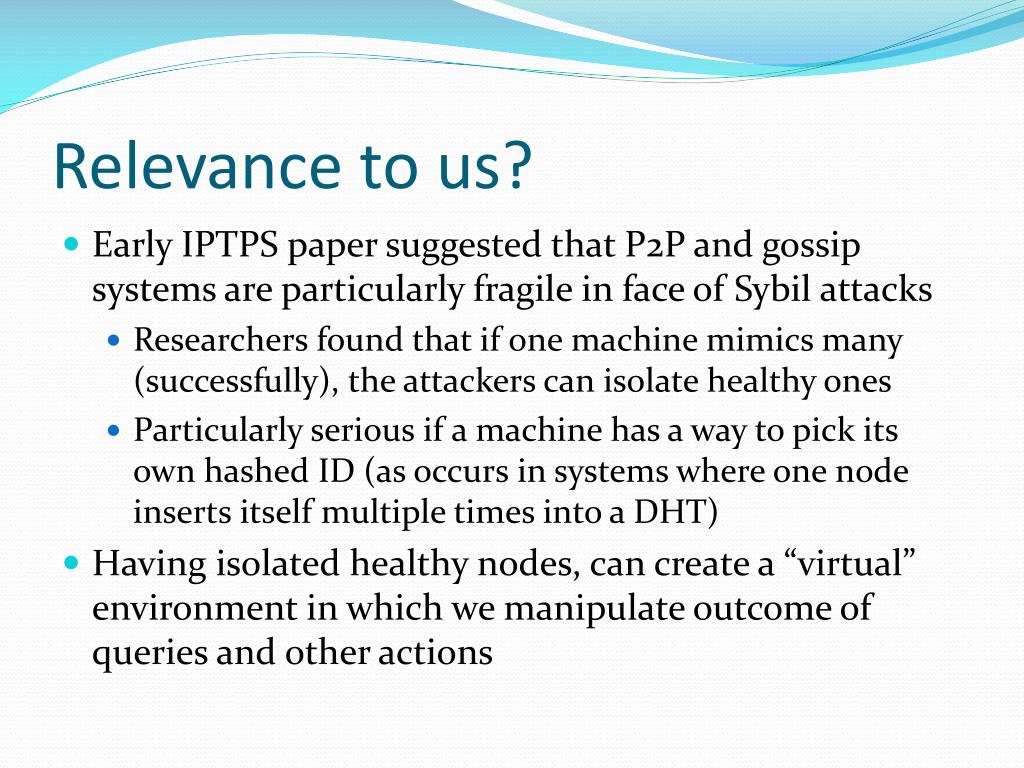

8. Relevance to us? • Early IPTPS paper suggested that P2P and gossip systems are particularly fragile in face of Sybil attacks • Researchers found that if one machine mimics many (successfully), the attackers can isolate healthy ones • Particularly serious if a machine has a way to pick its own hashed ID (as occurs in systems where one node inserts itself multiple times into a DHT) • Having isolated healthy nodes, can create a “virtual” environment in which we manipulate outcome of queries and other actions

9. Real world scenarios • Recording Industry of America (RIA) rumored to have used Sybil attacks to disrupt illegal file sharing • So-called “Internet Honeypots” lure virus, worms, other malware (like insects to a pot of honey) • Organizations like the NSA might use Sybil approach to evade onion-routing and other information hiding methods

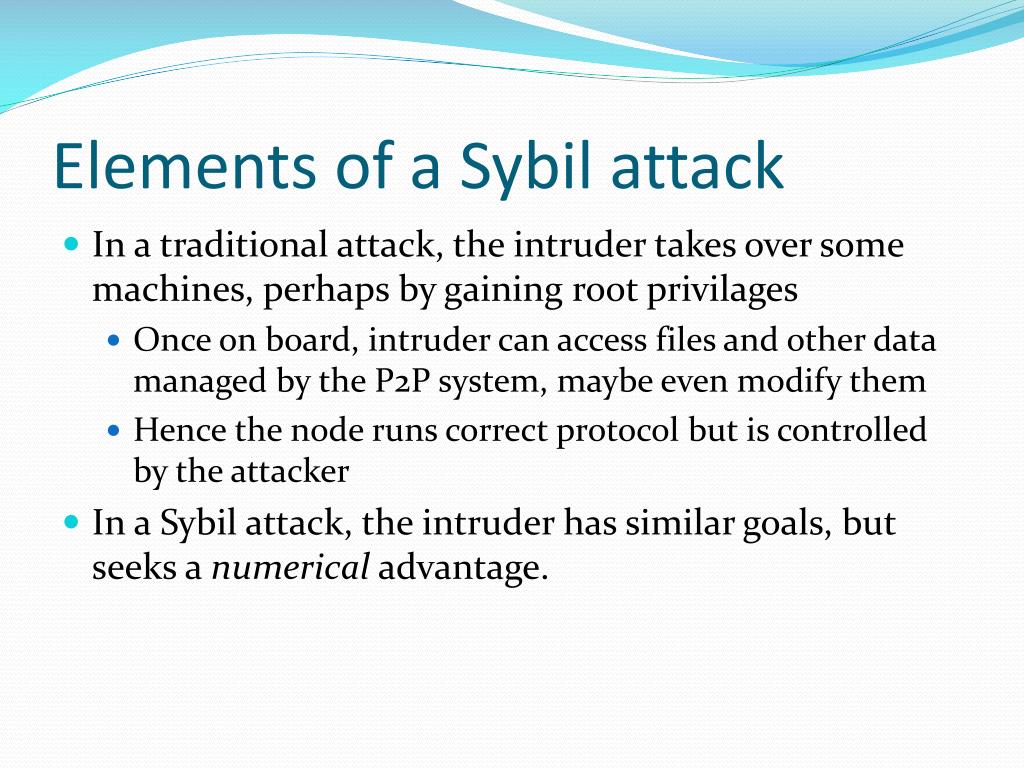

10. Elements of a Sybil attack • In a traditional attack, the intruder takes over some machines, perhaps by gaining root privilages • Once on board, intruder can access files and other data managed by the P2P system, maybe even modify them • Hence the node runs correct protocol but is controlled by the attacker • In a Sybil attack, the intruder has similar goals, but seeks a numerical advantage.

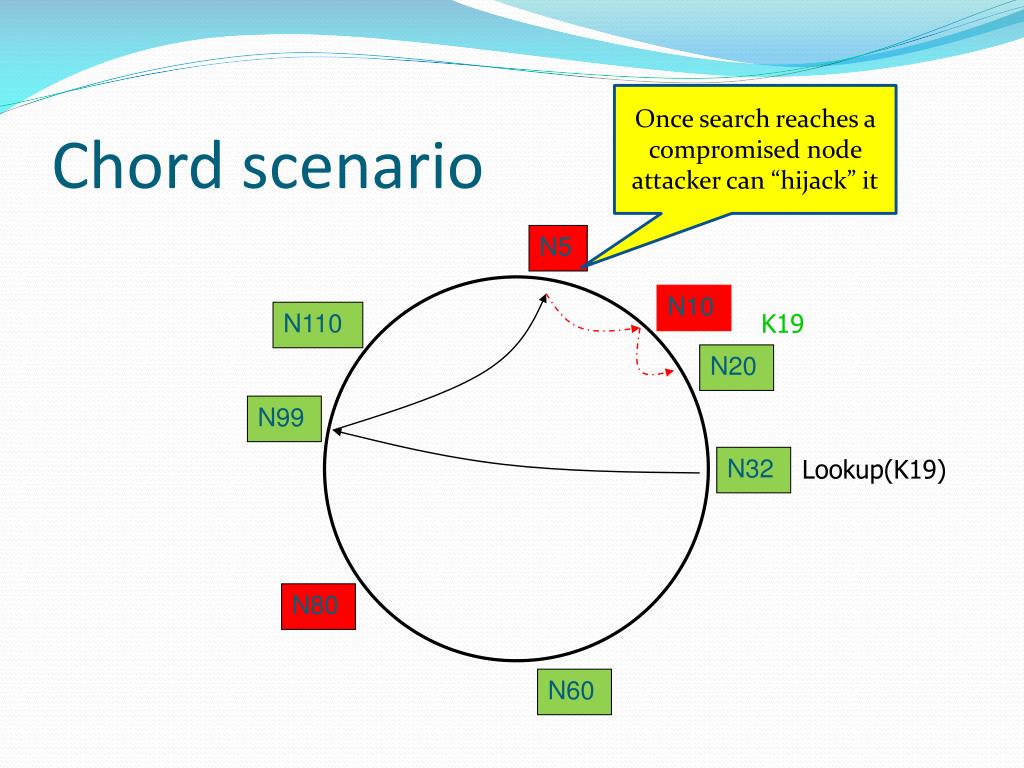

11. Chord scenario Once search reaches a compromised node attacker can “hijack” it N5 N10 N110 K19 N20 N99 N32 Lookup(K19) N80 N60

12. Challenge is numerical… • In most P2P settings, there are LOTS of healthy clients • Attack won’t work unless the attacker has a huge number of machines at his disposal • Even a rich attacker is unlikely to have so much money • Solution? • Attacker amplies his finite number of attack nodes by clever use of a kind of VMM

13. VMM technology • Virtual machine technology dates to IBM in 1970’s • Idea then was to host a clone of an outmoded machine or operating system on a more modern one • Very popular… reduced costs of migration • Died back but then resurfaced during the OS wars between Unix-variants (Linux, FreeBSD, Mac-OS…) and the Windows platforms • Goal was to make Linux the obvious choice • Want Windows? Just run it in a VMM partition

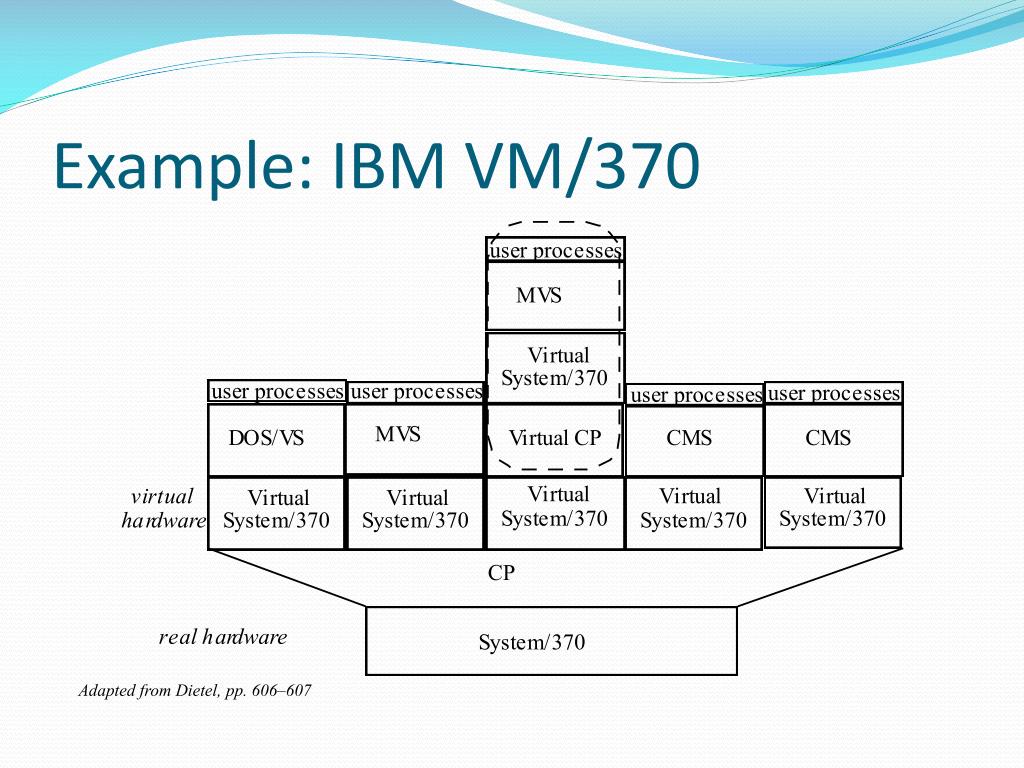

14. Example: IBM VM/370 Adapted from Dietel, pp. 606–607

15. VMM technology took off • Today VMWare is a huge company • Ironically, the actual VMM in widest use is Xen, from XenSource in Cambridge • Uses paravirtualization • Main application areas? • Some “Windows on Linux” • But migration of VMM images has been very popular • Leads big corporations to think of thin clients that talk to VMs hosted on cloud computing platforms • Term is “consolidation”

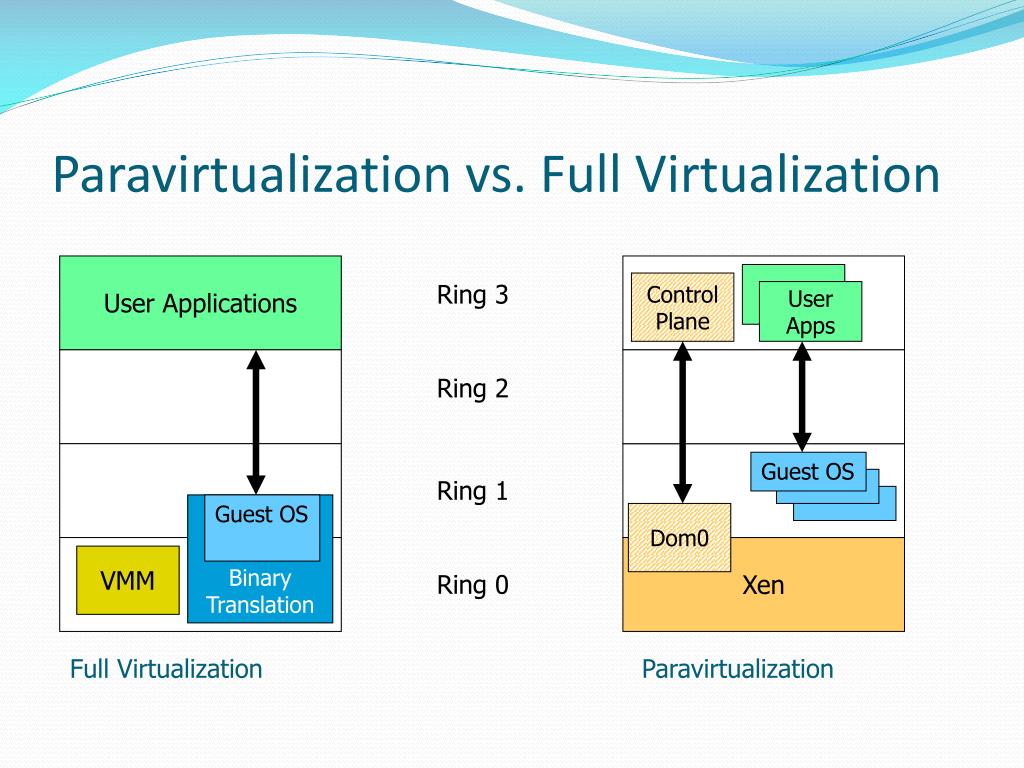

16. Control Plane User Apps Guest OS Dom0 Xen Paravirtualization Paravirtualization vs. Full Virtualization User Applications Ring 3 Ring 2 Ring 1 Binary Translation Guest OS VMM Ring 0 Full Virtualization

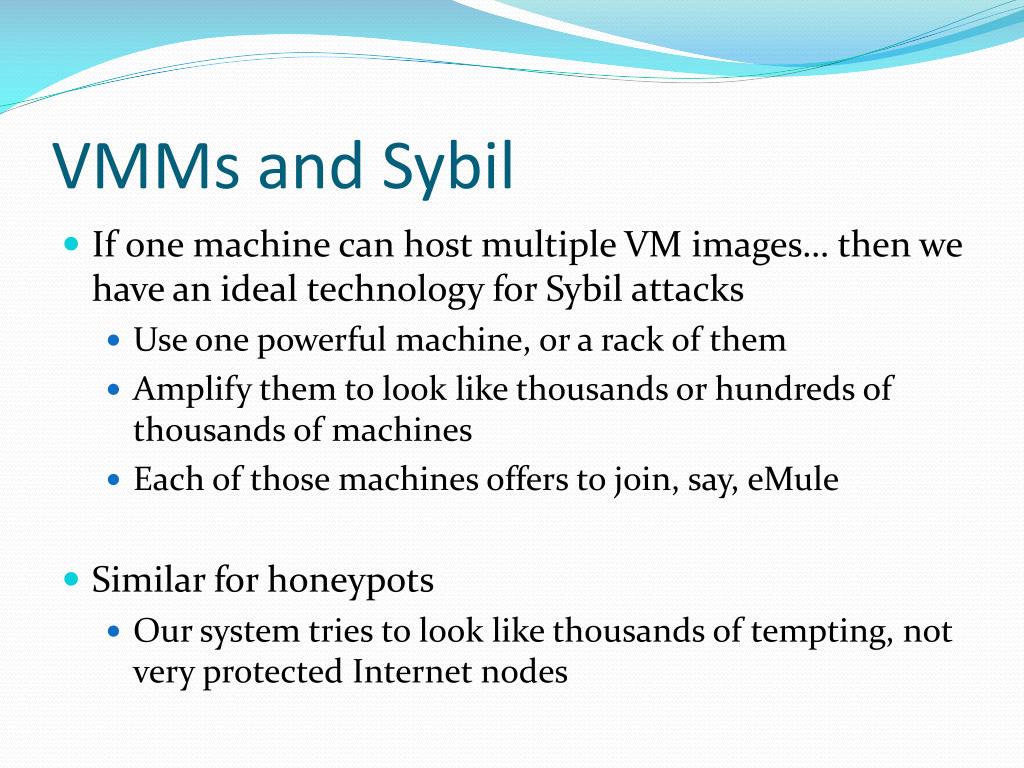

17. VMMs and Sybil • If one machine can host multiple VM images… then we have an ideal technology for Sybil attacks • Use one powerful machine, or a rack of them • Amplify them to look like thousands or hundreds of thousands of machines • Each of those machines offers to join, say, eMule • Similar for honeypots • Our system tries to look like thousands of tempting, not very protected Internet nodes

18. Research issues • If we plan to run huge numbers of instances of some OS on our VM, there will be a great deal of replication of pages • All are running identical code, configurations (or nearly identical) • Hence want VMM to have a smart memory manager that has just one copy of any given page • Research on this has yielded some reasonable solutions • Copy-on-write quite successful as a quick hack and by itself gives a dramatic level of scalability

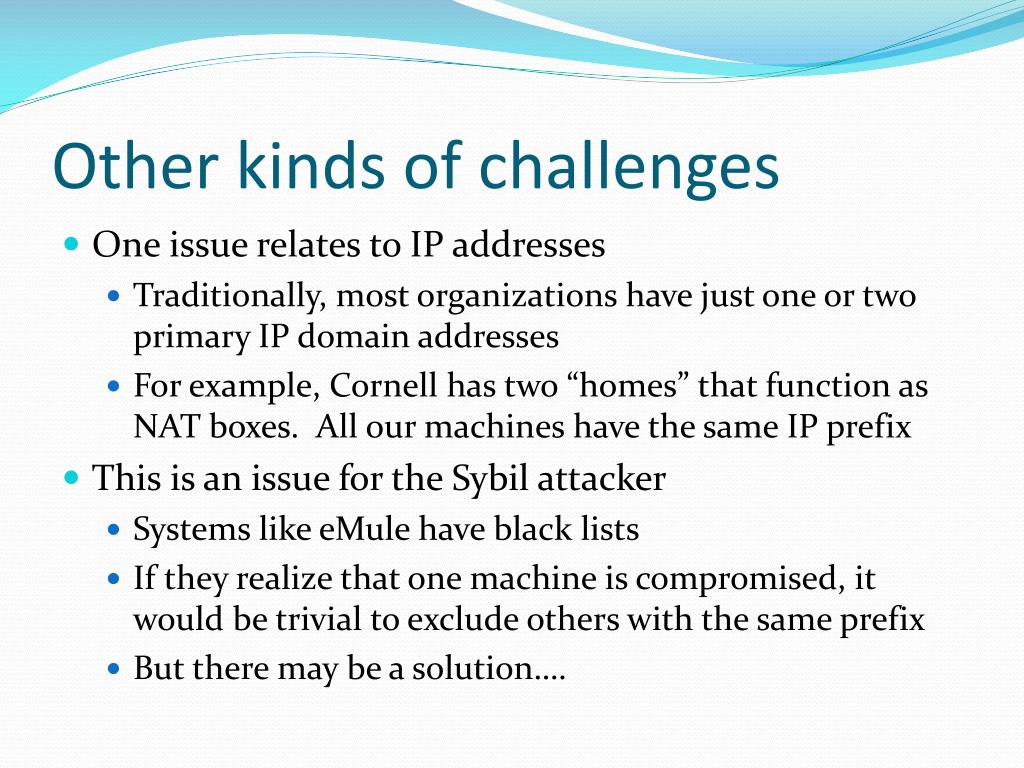

19. Other kinds of challenges • One issue relates to IP addresses • Traditionally, most organizations have just one or two primary IP domain addresses • For example, Cornell has two “homes” that function as NAT boxes. All our machines have the same IP prefix • This is an issue for the Sybil attacker • Systems like eMule have black lists • If they realize that one machine is compromised, it would be trivial to exclude others with the same prefix • But there may be a solution….

20. Attacker is the “good guy” • In our examples, the attacker is doing something legal • And has a lot of money • Hence helping him is a legitimate line of business for ISPs • So ISPs might offer the attacker a way to purchase lots and lots of seemingly random IP addresses • They just tunnel the traffic to the attack site

21. A very multi-homed Sybil attacker

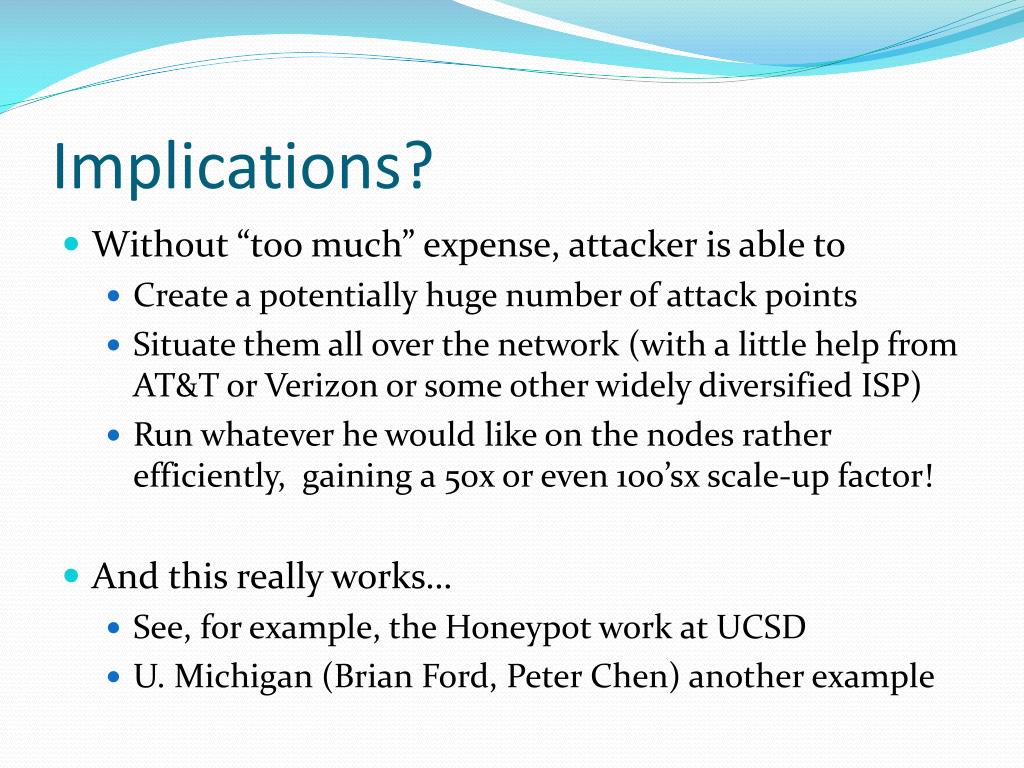

22. Implications? • Without “too much” expense, attacker is able to • Create a potentially huge number of attack points • Situate them all over the network (with a little help from AT&T or Verizon or some other widely diversified ISP) • Run whatever he would like on the nodes rather efficiently, gaining a 50x or even 100’sx scale-up factor! • And this really works… • See, for example, the Honeypot work at UCSD • U. Michigan (Brian Ford, Peter Chen) another example

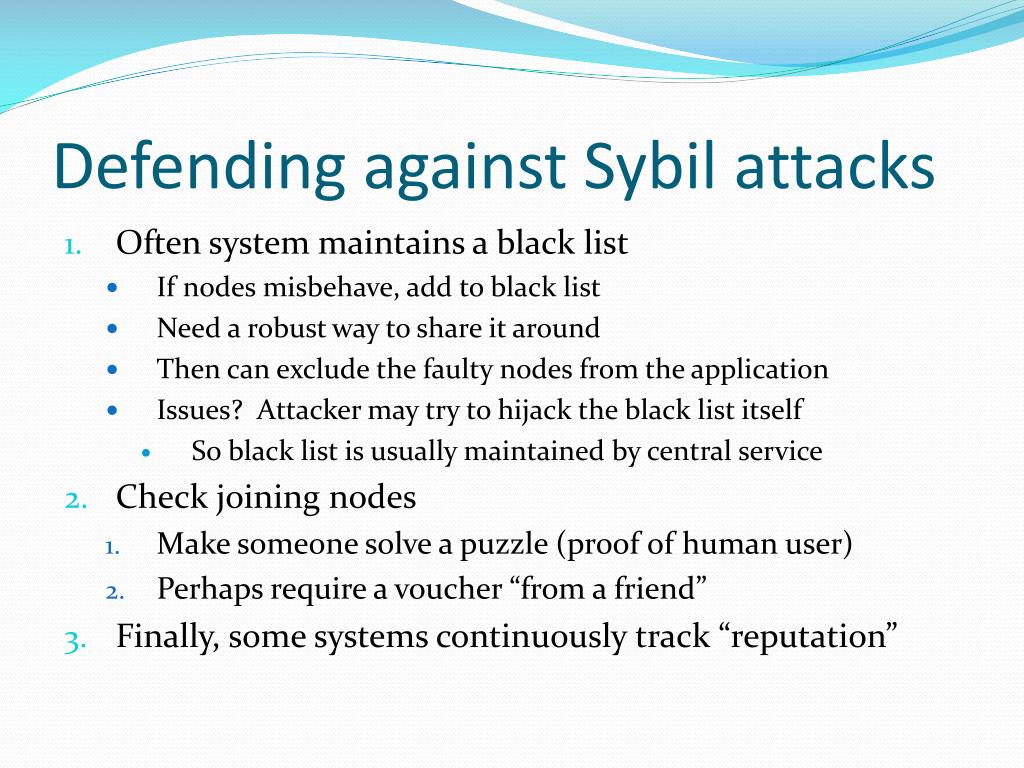

23. Defending against Sybil attacks • Often system maintains a black list • If nodes misbehave, add to black list • Need a robust way to share it around • Then can exclude the faulty nodes from the application • Issues? Attacker may try to hijack the black list itself • So black list is usually maintained by central service • Check joining nodes • Make someone solve a puzzle (proof of human user) • Perhaps require a voucher “from a friend” • Finally, some systems continuously track “reputation”

24. Reputation • Basic idea: • Nodes track behavior of other nodes • Goal is to • Detect misbehavior • Be in a position to prove that it happened • Two versions of reputation tracking • Some systems assume that the healthy nodes outnumber the misbehaving ones (by a large margin) • In these, a majority can agree to shun a minority • Other systems want proof of misbehavior

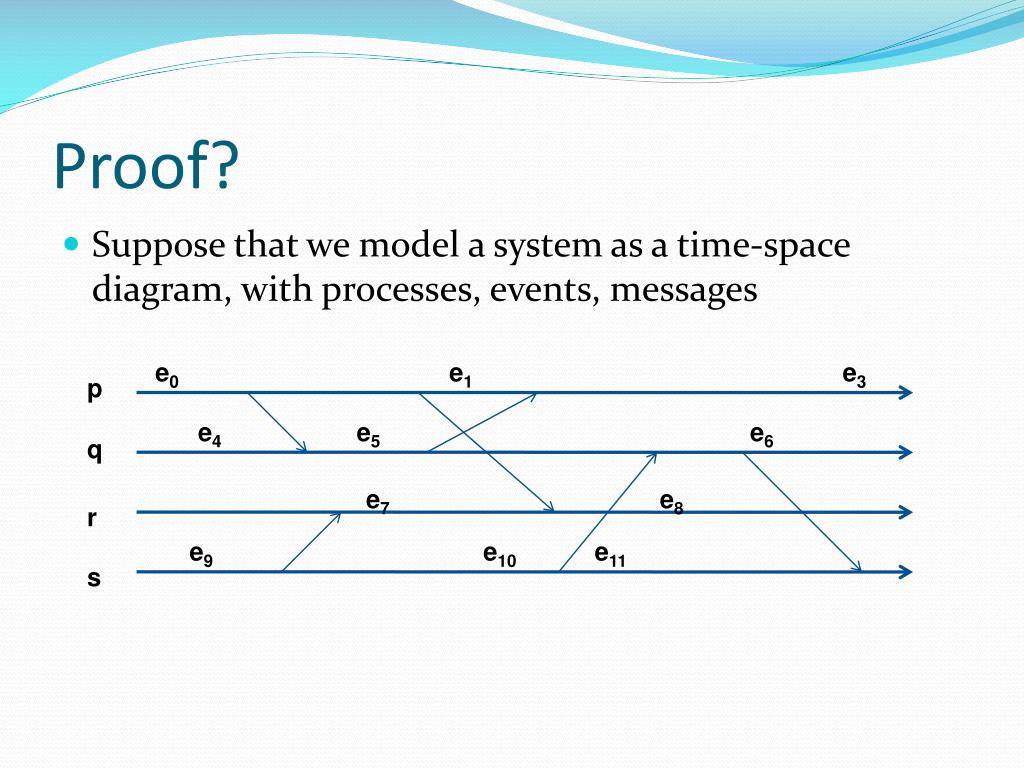

25. Proof? • Suppose that we model a system as a time-space diagram, with processes, events, messages e0 e1 e3 p e4 e5 e6 q e7 e8 r e9 e10 e11 s

26. Options • Node A to all: • Node B said “X” and I can prove it • Node B said “X” in state S and I can prove it • Node B said “X” when it was in state S after I reached state S’ and before I reached state S’’ • First two are definitely achievable. Last one is trickier and comes down to cost we will pay • Collusion attacks are also tricky

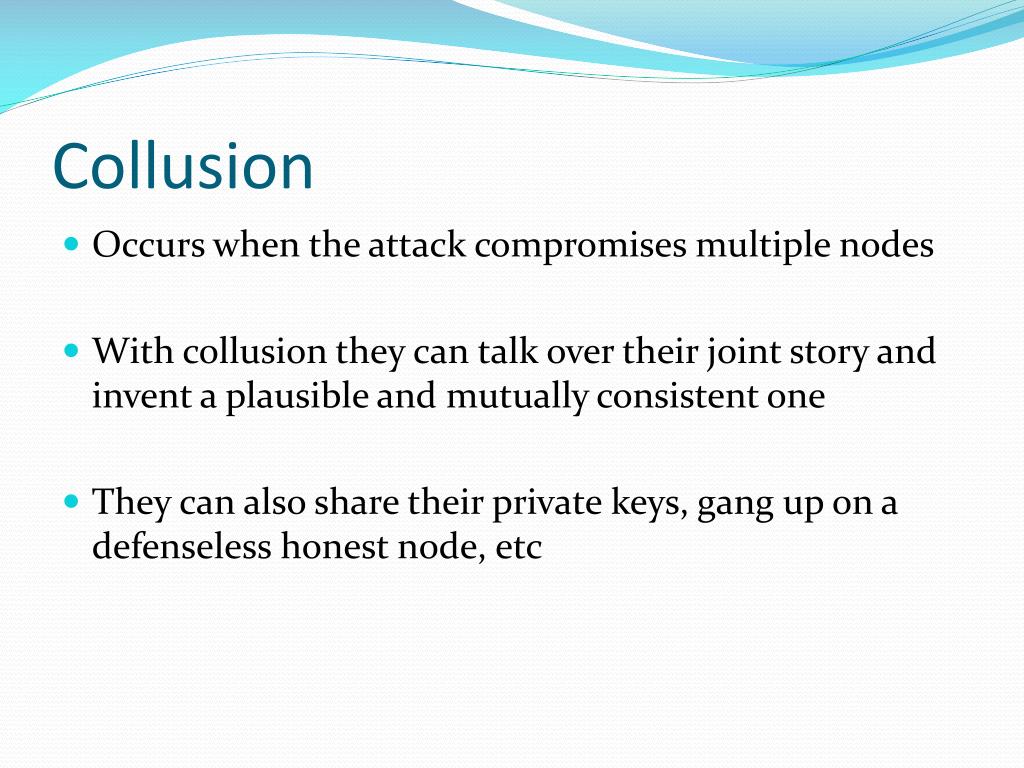

27. Collusion • Occurs when the attack compromises multiple nodes • With collusion they can talk over their joint story and invent a plausible and mutually consistent one • They can also share their private keys, gang up on a defenseless honest node, etc

28. An irrefutable log • Look at an event sequence: e0 e1 e2 • Suppose that we keep a log of these events • If I’m shown a log, should I trust it? • Are the events legitimate? • We can assume public-key cryptography (“PKI”) • Have the process that performedeach event sign for it e0 [e0 ]p

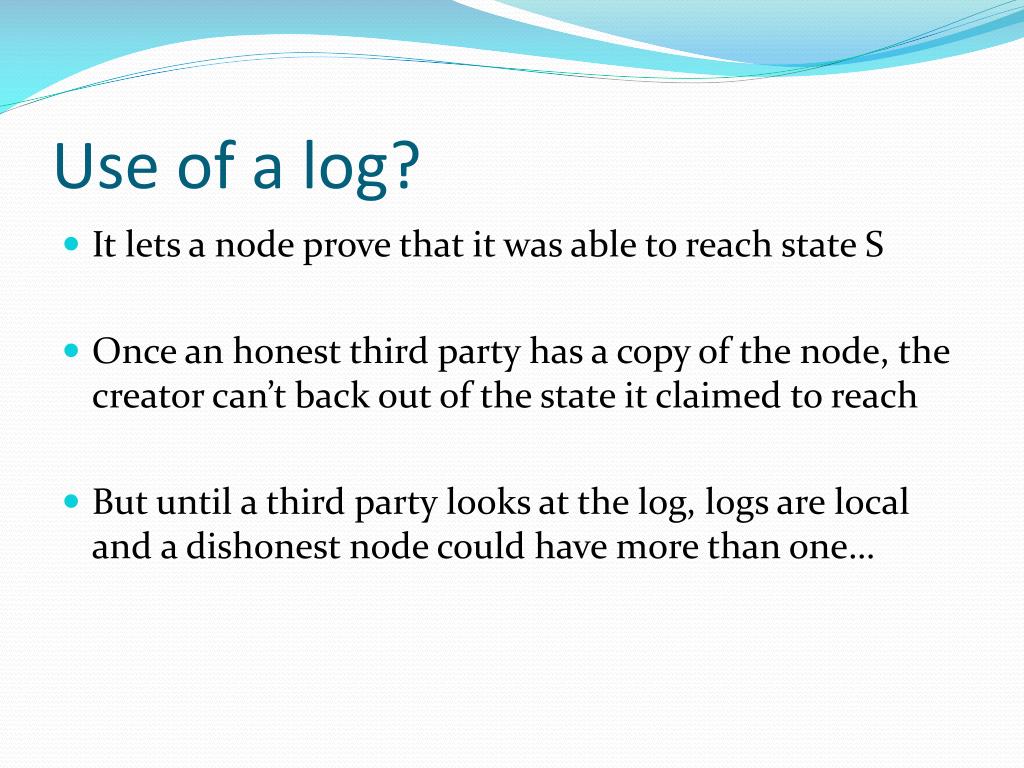

29. Use of a log? • It lets a node prove that it was able to reach state S • Once an honest third party has a copy of the node, the creator can’t back out of the state it claimed to reach • But until a third party looks at the log, logs are local and a dishonest node could have more than one…

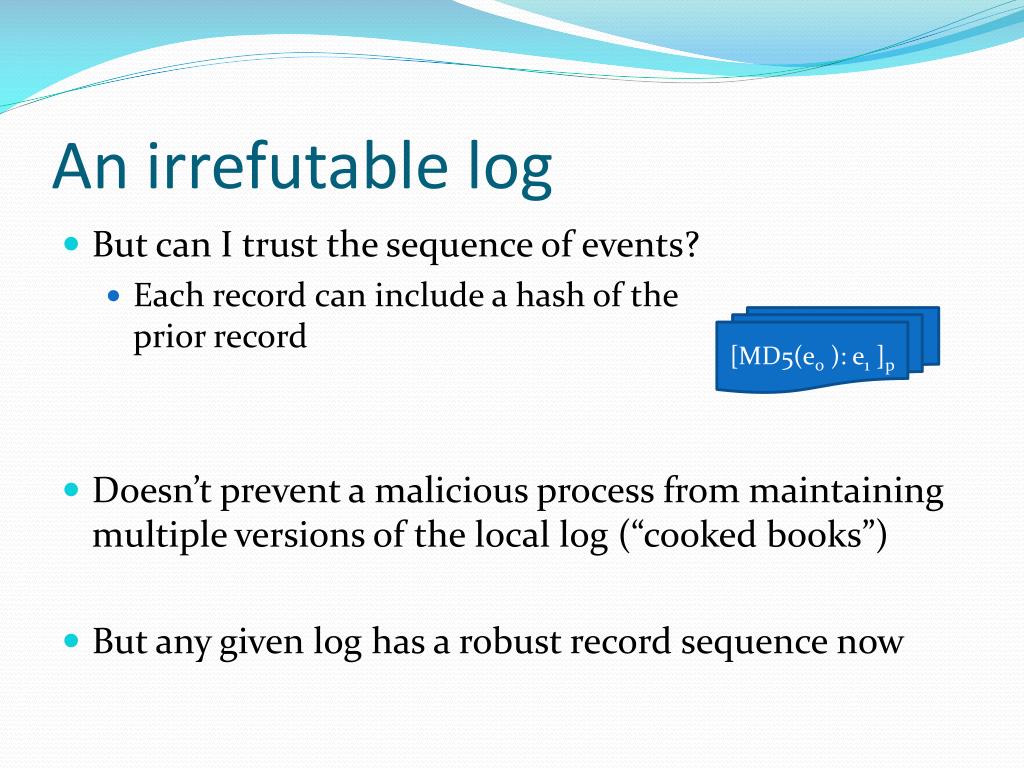

30. An irrefutable log • But can I trust the sequence of events? • Each record can include a hash of theprior record • Doesn’t prevent a malicious process from maintaining multiple versions of the local log (“cooked books”) • But any given log has a robust record sequence now [MD5(e0 ): e1 ]p

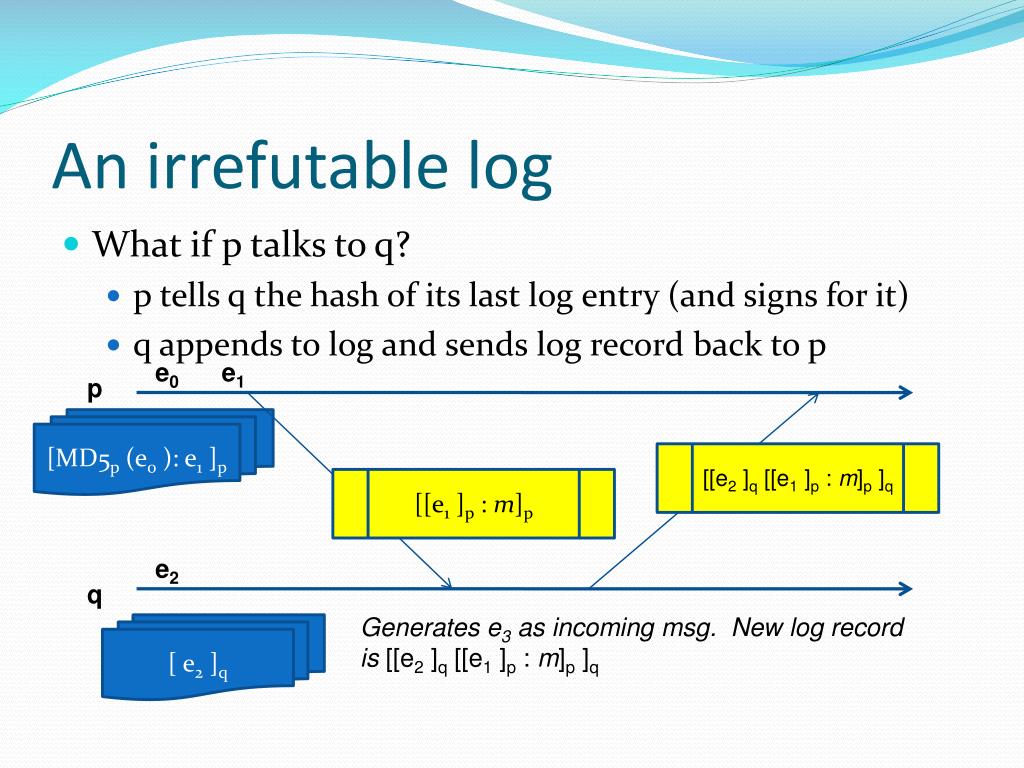

31. An irrefutable log • What if p talks to q? • p tells q the hash of its last log entry (and signs for it) • q appends to log and sends log record back to p e0 e1 p [MD5p (e0 ): e1 ]p [[e2 ]q [[e1 ]p : m]p ]q [[e1 ]p : m]p e2 q Generates e3 as incoming msg. New log record is [[e2 ]q [[e1 ]p : m]p ]q [ e2 ]q

32. What does this let us prove? • Node p can prove now that • When it was in state S • It sent message M to q • And node q received M in state S’ • Obviously, until p has that receipt in hand, though, it can’t know (much less prove) that M was received

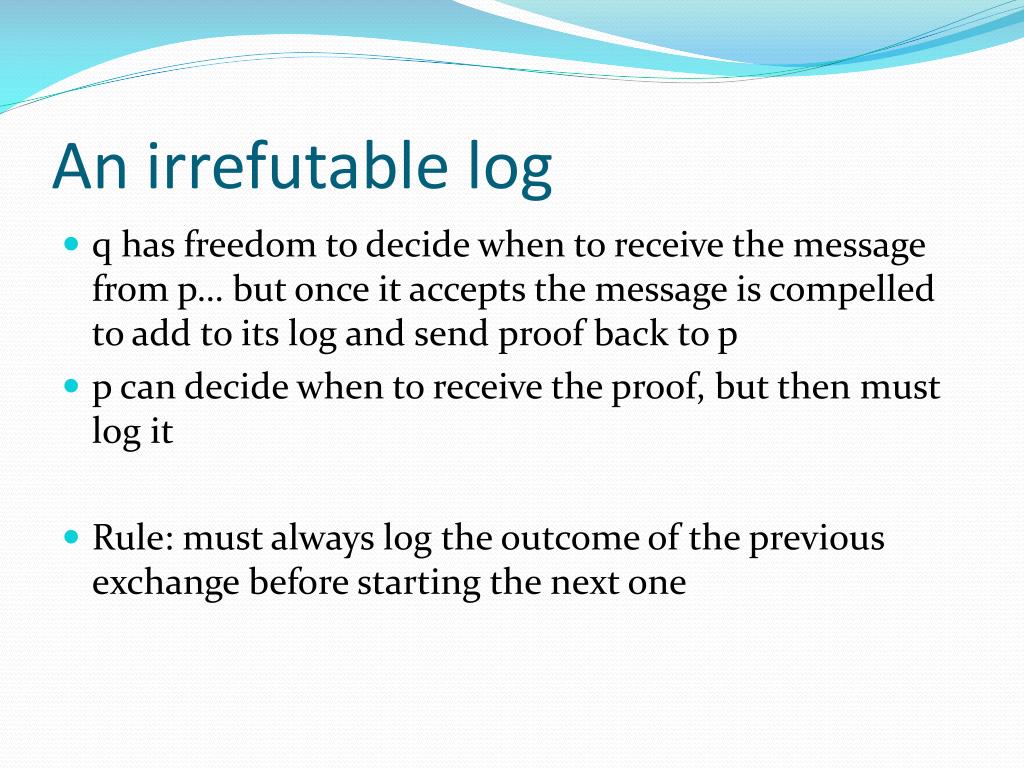

33. An irrefutable log • q has freedom to decide when to receive the message from p… but once it accepts the message is compelled to add to its log and send proof back to p • p can decide when to receive the proof, but then must log it • Rule: must always log the outcome of the previous exchange before starting the next one

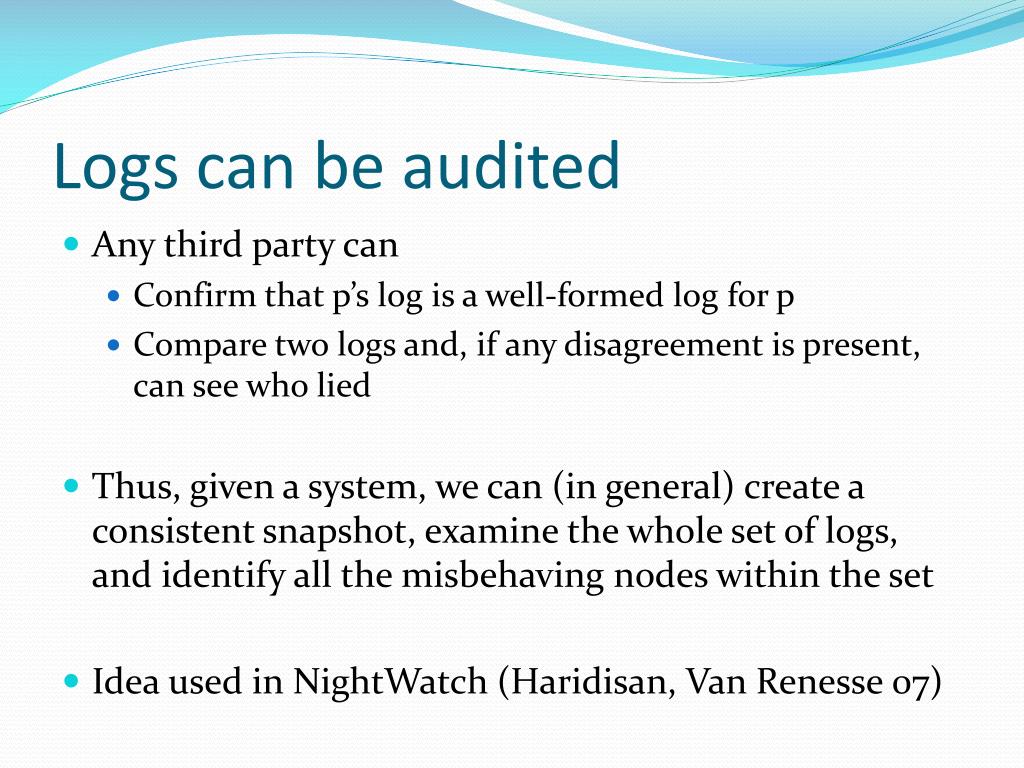

34. Logs can be audited • Any third party can • Confirm that p’s log is a well-formed log for p • Compare two logs and, if any disagreement is present, can see who lied • Thus, given a system, we can (in general) create a consistent snapshot, examine the whole set of logs, and identify all the misbehaving nodes within the set • Idea used in NightWatch (Haridisan, Van Renesse 07)

35. Costs? • Runtime overhead is tolerable • Basically, must send extra signed hashes • These objects are probably 128 bits long • Computing them is slow, however • Not extreme, but encrypting an MD5 hash isn’t cheap • Auditing a set of logs could be very costly • Study them to see if they embody a contradiction • Could even check that computation was done correctly

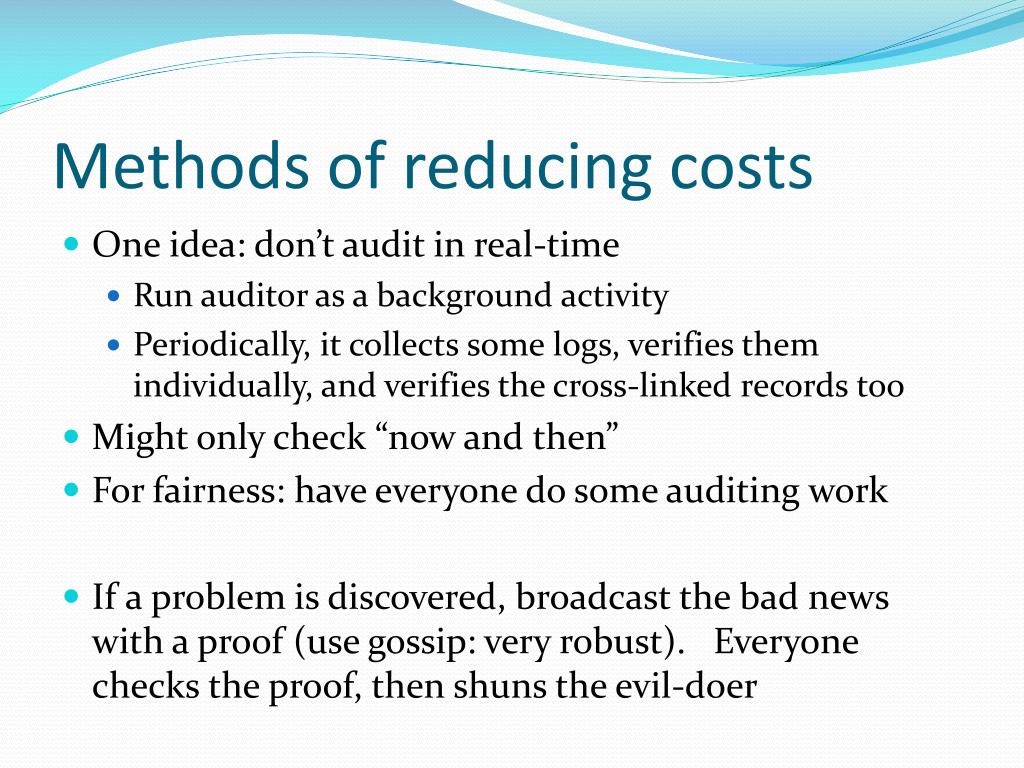

36. Methods of reducing costs • One idea: don’t audit in real-time • Run auditor as a background activity • Periodically, it collects some logs, verifies them individually, and verifies the cross-linked records too • Might only check “now and then” • For fairness: have everyone do some auditing work • If a problem is discovered, broadcast the bad news with a proof (use gossip: very robust). Everyone checks the proof, then shuns the evil-doer

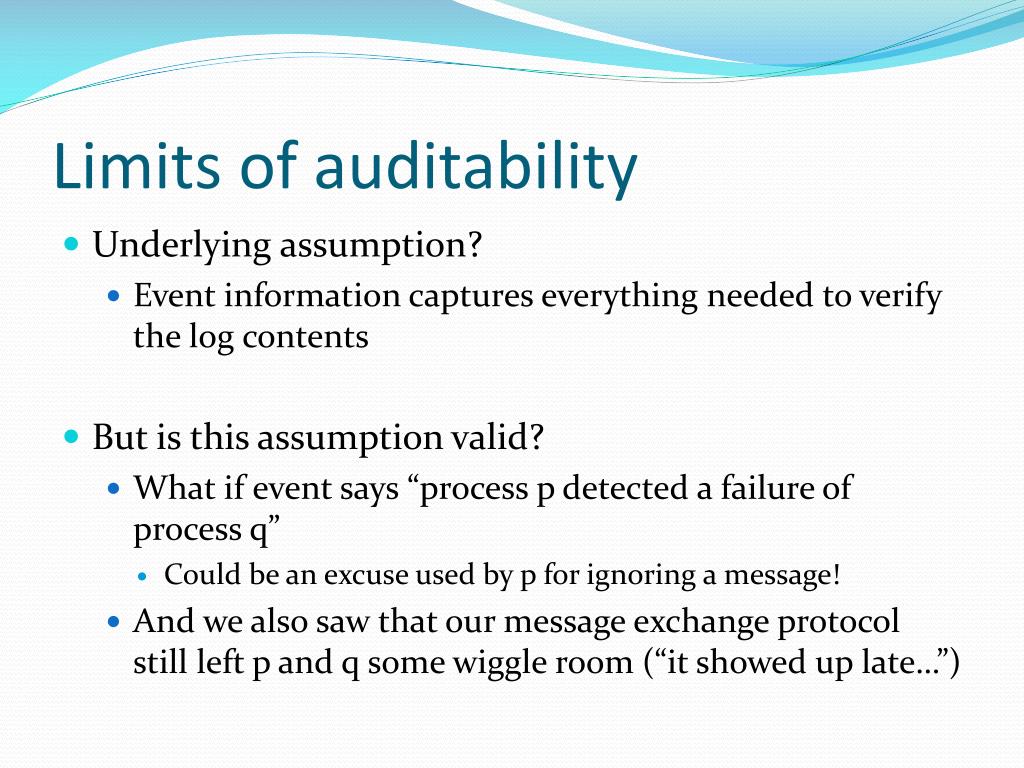

37. Limits of auditability • Underlying assumption? • Event information captures everything needed to verify the log contents • But is this assumption valid? • What if event says “process p detected a failure of process q” • Could be an excuse used by p for ignoring a message! • And we also saw that our message exchange protocol still left p and q some wiggle room (“it showed up late…”)

38. Apparent need? • Synchronous network • Accurate failure detection • In effect: auditing is as hard as solving consensus • But if so, FLP tells us that we can never guarantee that auditing will successfully reveal truth

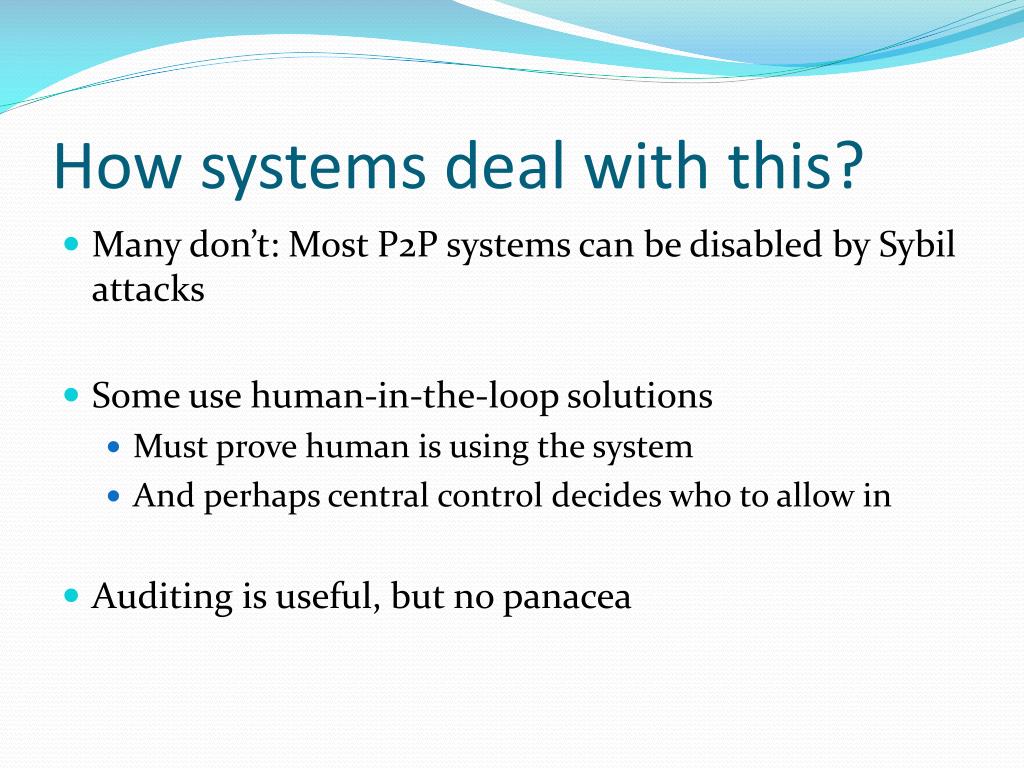

39. How systems deal with this? • Many don’t: Most P2P systems can be disabled by Sybil attacks • Some use human-in-the-loop solutions • Must prove human is using the system • And perhaps central control decides who to allow in • Auditing is useful, but no panacea

40. Other similar scenarios • Think of Astrolabe • If “bad data” is relayed, can contaminate the whole system (Amazon had such an issue in August 08) • Seems like we could address this for leaf data with signature scheme… but what about aggregates • If node A tells B that “In region R, least loaded machine at time 10:21.376 was node C with load 5.1” • Was A using valid inputs? And was this correct at that specific time? • An evil-doer could delay data or detect failures to manipulate the values of aggregates!

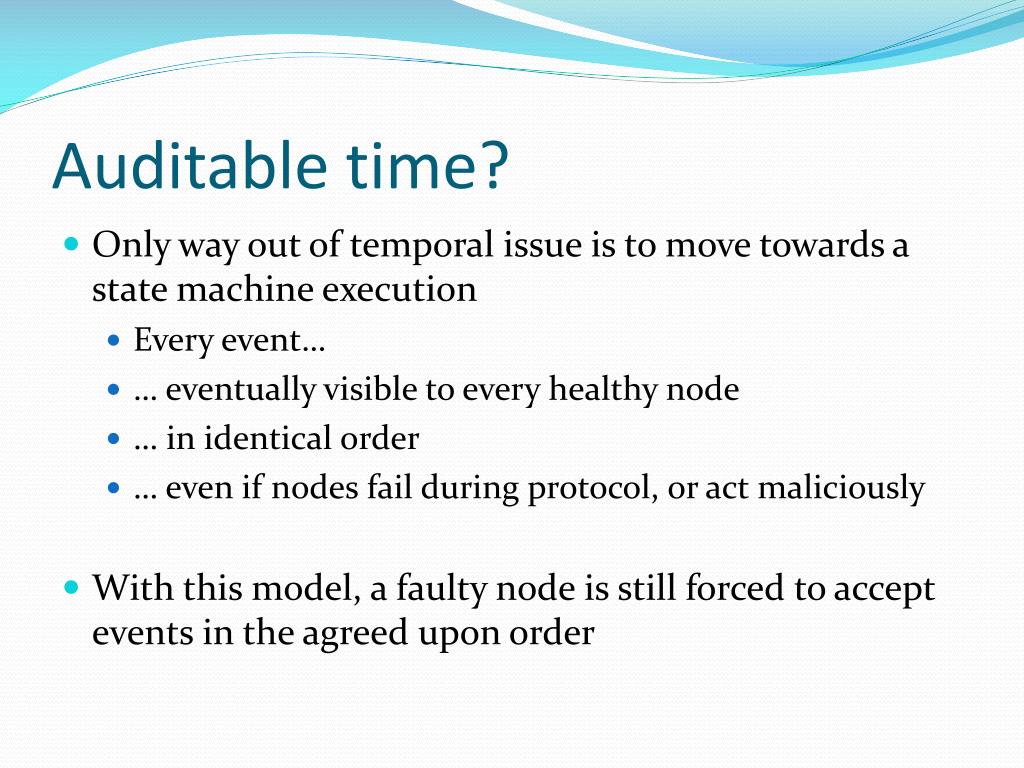

41. Auditable time? • Only way out of temporal issue is to move towards a state machine execution • Every event… • … eventually visible to every healthy node • … in identical order • … even if nodes fail during protocol, or act maliciously • With this model, a faulty node is still forced to accept events in the agreed upon order

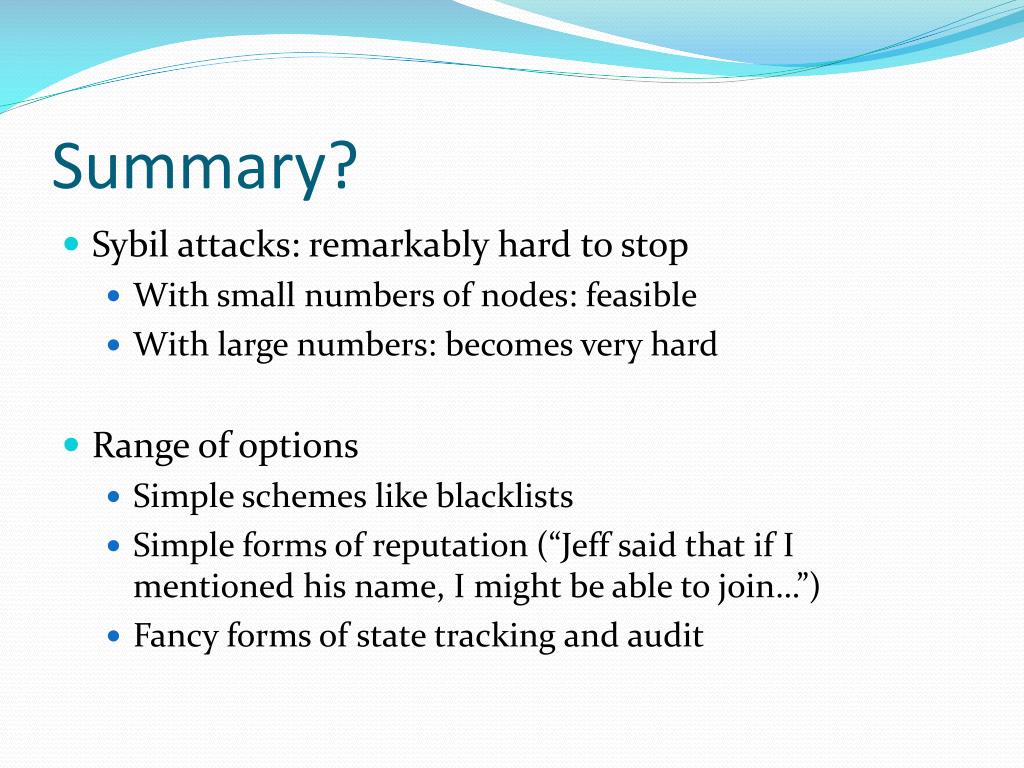

42. Summary? • Sybil attacks: remarkably hard to stop • With small numbers of nodes: feasible • With large numbers: becomes very hard • Range of options • Simple schemes like blacklists • Simple forms of reputation (“Jeff said that if I mentioned his name, I might be able to join…”) • Fancy forms of state tracking and audit
