  1. Query Optimization Presented by Mary Radnor

  2. Overview of Query Optimization • Purpose • Steps to Optimizing Your Own Queries • General Techniques • MS Access • ORACLE • Example • Summary

  3. Purpose of Query Optimization • To optimize the performance of the database • Because… • Queries having the same final output will vary in the amount of time it takes to execute them • No single optimization technique is best for every query

  4. Steps to Optimizing Your Own Queries • Develop multiple ways to run it • Test and measure performance • Choose the one that is the fastest • Over-Optimization: Where more resources are used to determine the best plan than is required to execute the plan

  5. General Query Optimization Techniques • Use short table and field names instead of long names • Use numeric primary keys instead of text • Use primary keys or unique indexes when possible • And many, many more…. • Query Performance is Also Affected by • Tables and/or queries that underlie it • Complexity of the query

  6. Methods the MS Access Query Optimizer Uses • Display the minimum number of fields in a query • Use non blank unique fields • Careful use of Between and Equal to, rather than > or < • Use numeric rather than text primary keys • Use primary keys or unique indexes whenever possible • Many more!

  7. The ORACLE Query Optimizer • Is more complex than the MS Access Query Optimizer • Uses many different techniques to optimize queries since no single technique is best for everything • Ex. Full-Table Scan, B-Tree, Reverse-Key Index, etc

  8. Example Query Products table contains 77 rows SQL: SELECT ProductID, ProductName, UnitPrice FROM Products WHERE (UnitPrice > 12.5) AND (UnitPrice < 14) Performs a full table scan

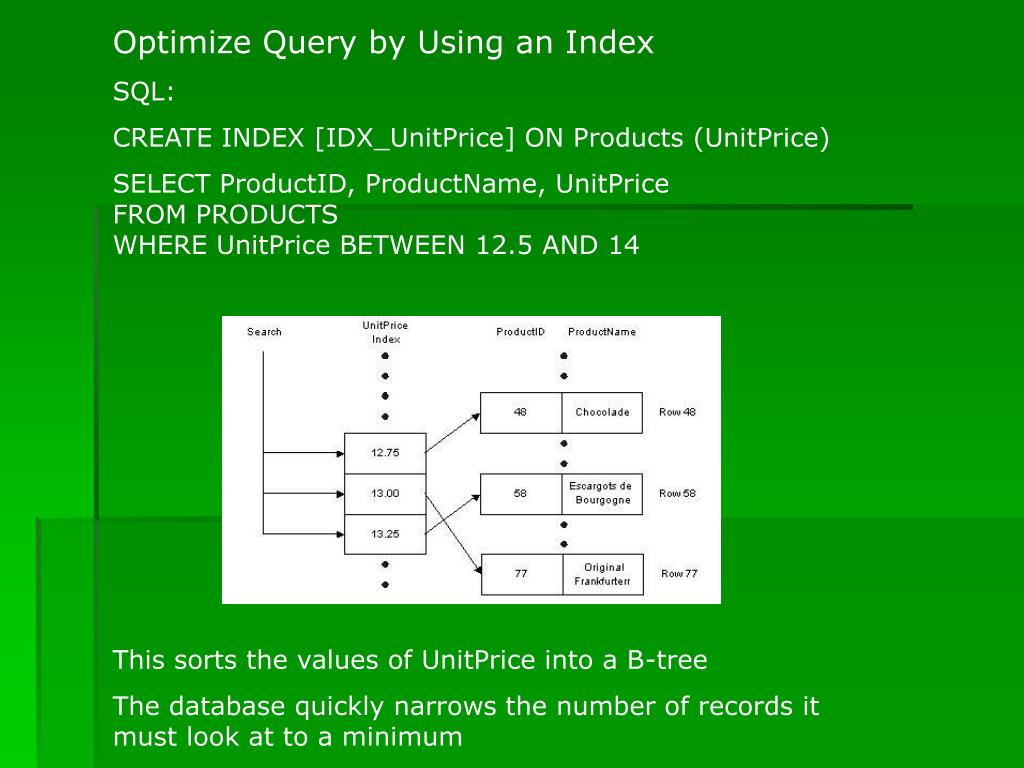

  9. Optimize Query by Using an Index SQL: CREATE INDEX [IDX_UnitPrice] ON Products (UnitPrice) SELECT ProductID, ProductName, UnitPrice FROM PRODUCTS WHERE UnitPrice BETWEEN 12.5 AND 14 This sorts the values of UnitPrice into a B-tree The database quickly narrows the number of records it must look at to a minimum

  10. Summary • The goal is to optimize the performance of the database • There are many ways to execute a query • Even the best of query optimizers may not always find the ideal way to execute any given query • This presentation is a small overview of the query optimization field

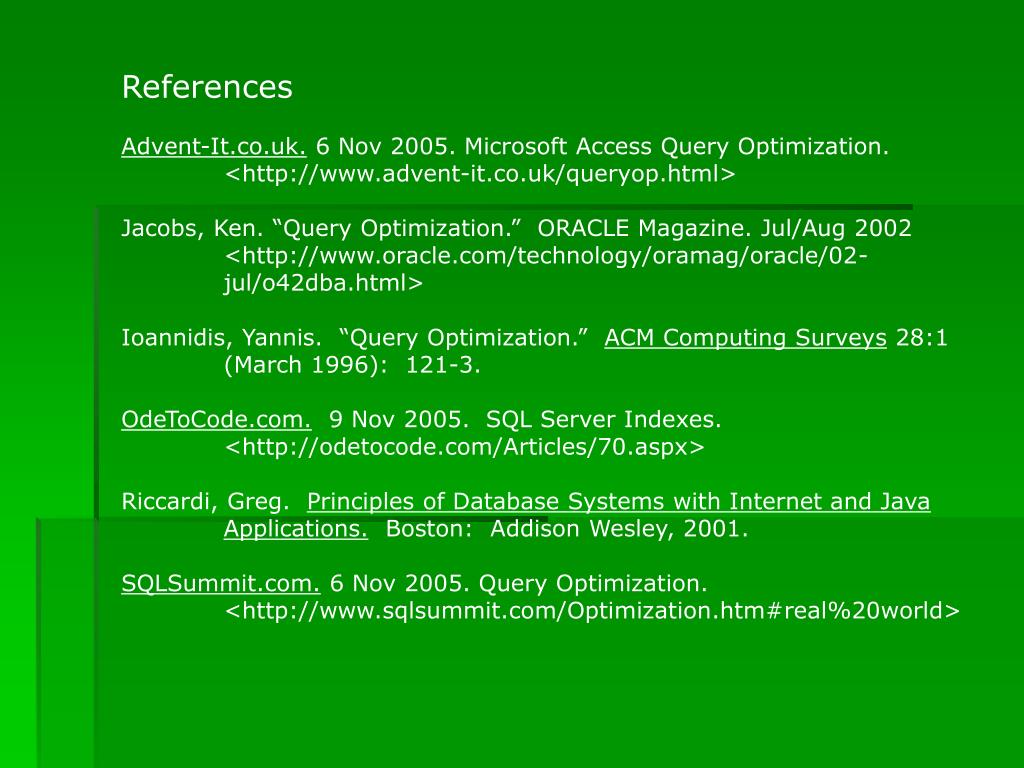

  11. References Advent-It.co.uk. 6 Nov 2005. Microsoft Access Query Optimization. <http://www.advent-it.co.uk/queryop.html> Jacobs, Ken. “Query Optimization.” ORACLE Magazine. Jul/Aug 2002 <http://www.oracle.com/technology/oramag/oracle/02- jul/o42dba.html> Ioannidis, Yannis. “Query Optimization.” ACM Computing Surveys 28:1 (March 1996): 121-3. OdeToCode.com. 9 Nov 2005. SQL Server Indexes. <http://odetocode.com/Articles/70.aspx> Riccardi, Greg. Principles of Database Systems with Internet and Java Applications. Boston: Addison Wesley, 2001. SQLSummit.com. 6 Nov 2005. Query Optimization. <http://www.sqlsummit.com/Optimization.htm#real%20world>
