  1. Staffing Service SystemsviaSimulation Julius Atlason, Marina Epelman University of Michigan Shane Henderson Cornell University

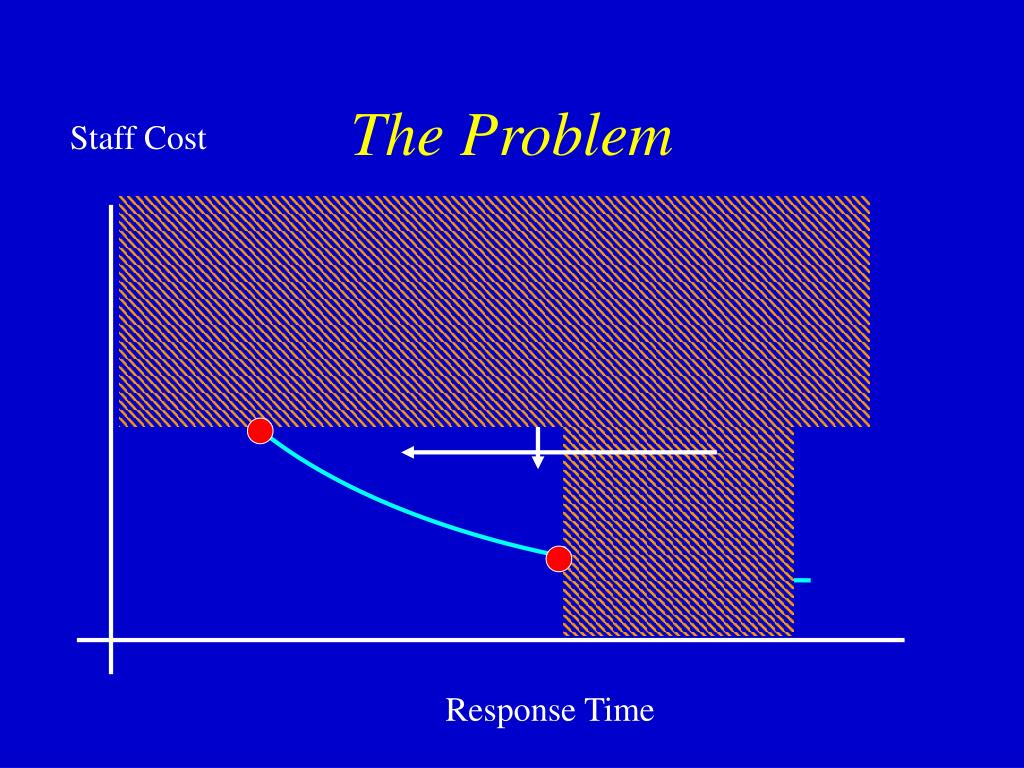

  2. The Problem Staff Cost Response Time

  3. Outline • The staffing process • Service level constraints • Sample average approximation • Concavity of service levels • The algorithm • Gradient Estimation

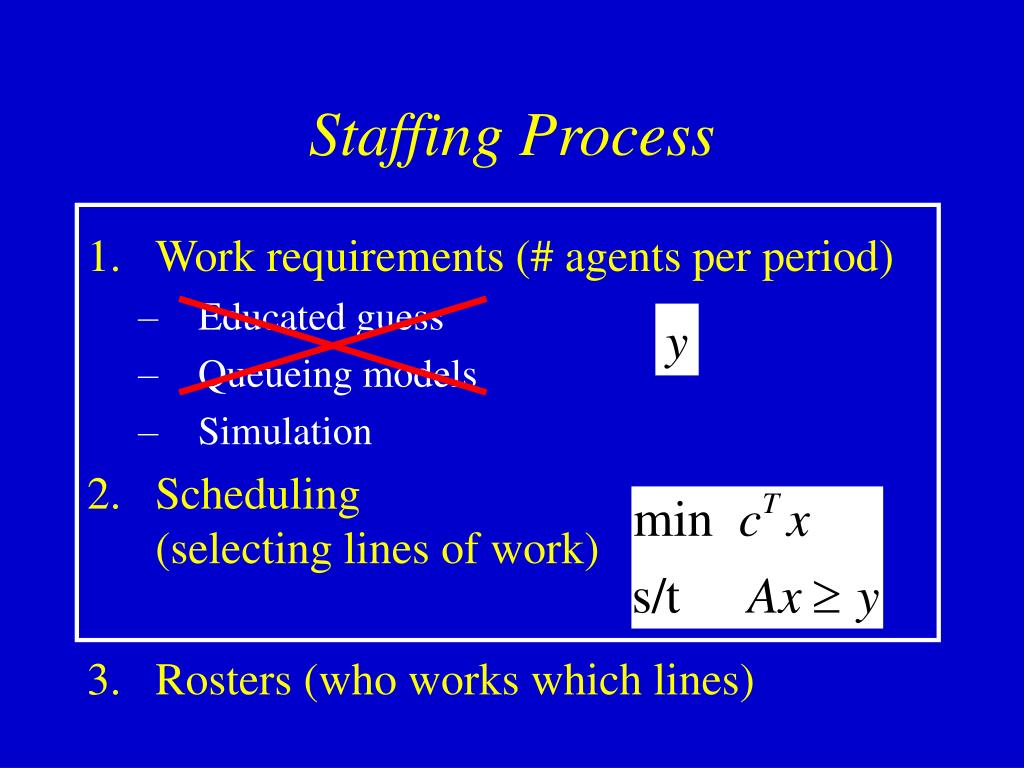

  4. Staffing Process • Work requirements (# agents per period) • Educated guess • Queueing models • Simulation • Scheduling(selecting lines of work) • Rosters (who works which lines) y

  5. Why Aggregate? • Over-coverage

  6. Why Simulate? • Complexity • Several agent classes • Several call classes • Call routing • Complexity of arrival processes • Absenteeism • Linkage between periods • If service times are moderate to large • Lag-max method doesn’t handle all cases well

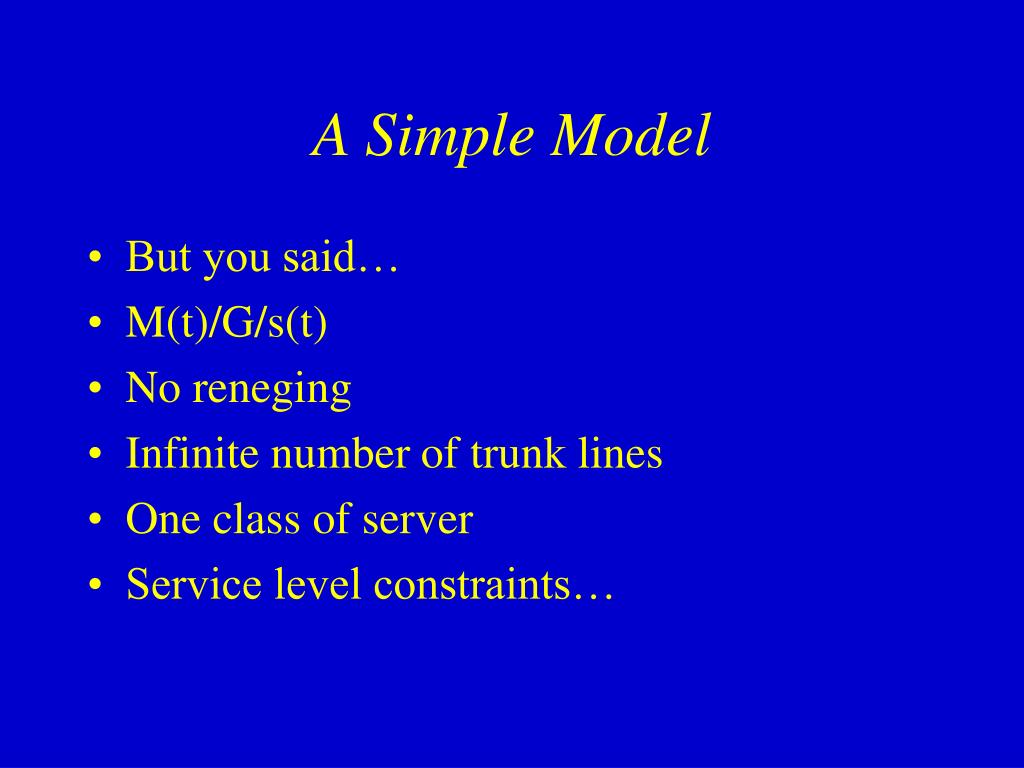

  7. A Simple Model • But you said… • M(t)/G/s(t) • No reneging • Infinite number of trunk lines • One class of server • Service level constraints…

  8. Service Level Constraints • y = vector of staffing levels in each period • W = random “stuff” for one day’s operation • Sj(y, W) = # customers arriving in period j that reach agent in less than 10 seconds • Nj(W) = number of calls in period j

  9. g(y, j) Service Level Constraints • Over n days • We want

  10. Sample Average Approximation • Can’t compute ESj(y, W1) • Replace it with a sample average • FixW1, W2, …, Wn • Solve

  11. Sample Average Approximation • n simulated days • Solution to sampled problem xn* • Set of optimal solutions to true problem S* • Under very mild conditions • xn* S* for n > N (N is random) • P(xn* S* ) to 1 exponentially fast in n • But how do we solve the sampled problem?

  12. Concavity of the Service Levels • Want g(y)  0 • g is nondecreasing • g is concave in each component? • g is jointly concave? • Checked numerically in our algorithm • But does it hold?

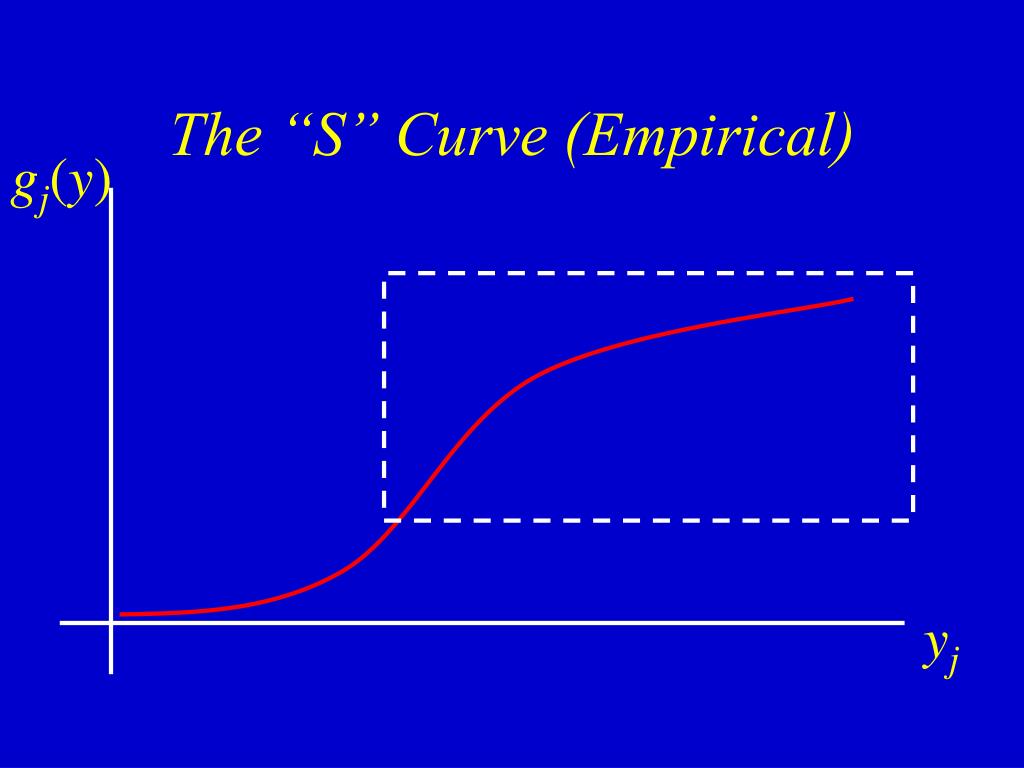

  13. The “S” Curve (Empirical) gj(y) yj

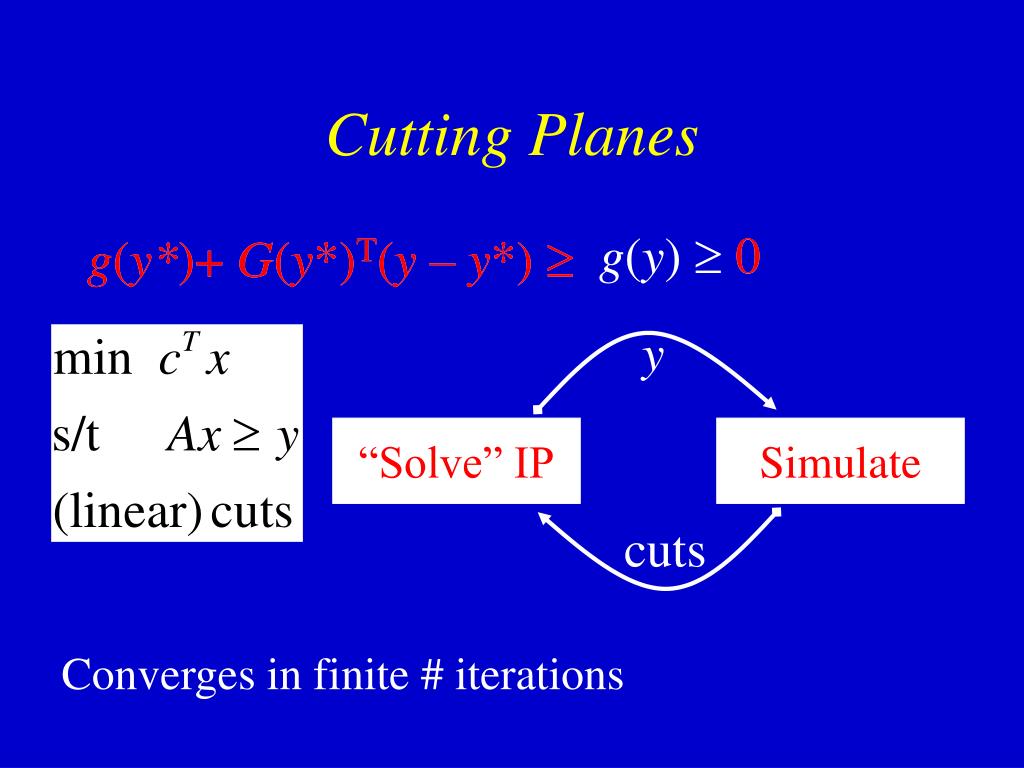

  14. 0 g(y*)+ G(y*)T(y – y*)  y “Solve” IP Simulate cuts Cutting Planes g(y)  0 g(y*)+ G(y*)T(y – y*)  Converges in finite # iterations

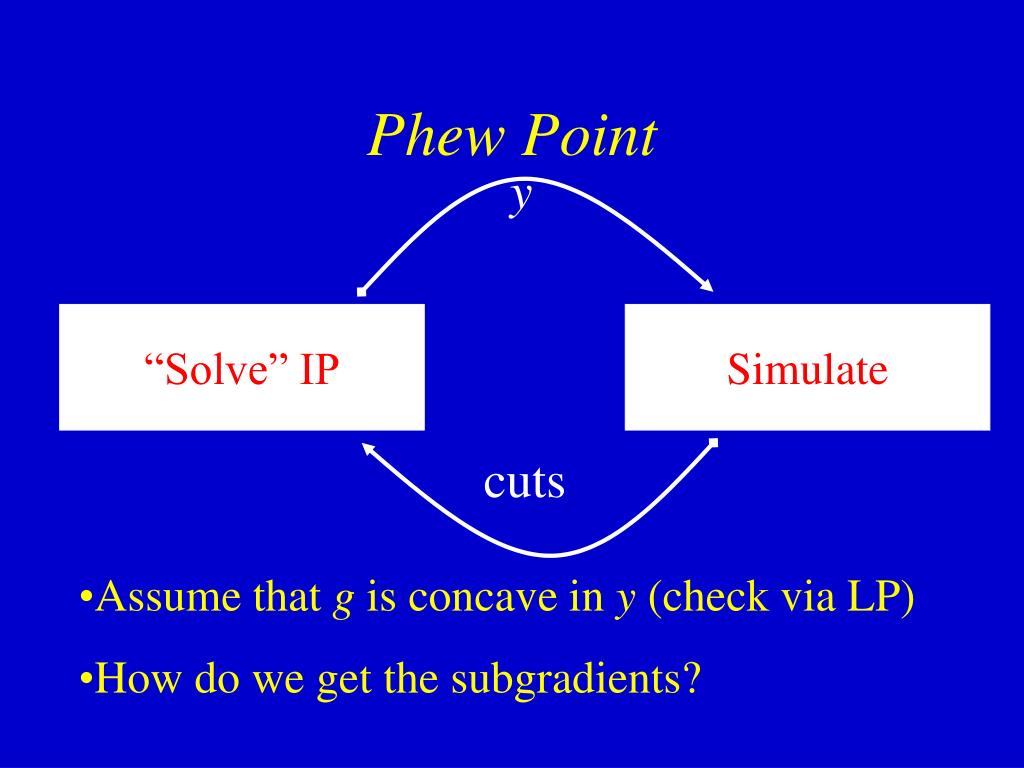

  15. y “Solve” IP Simulate cuts Phew Point • Assume that g is concave in y (check via LP) • How do we get the subgradients?

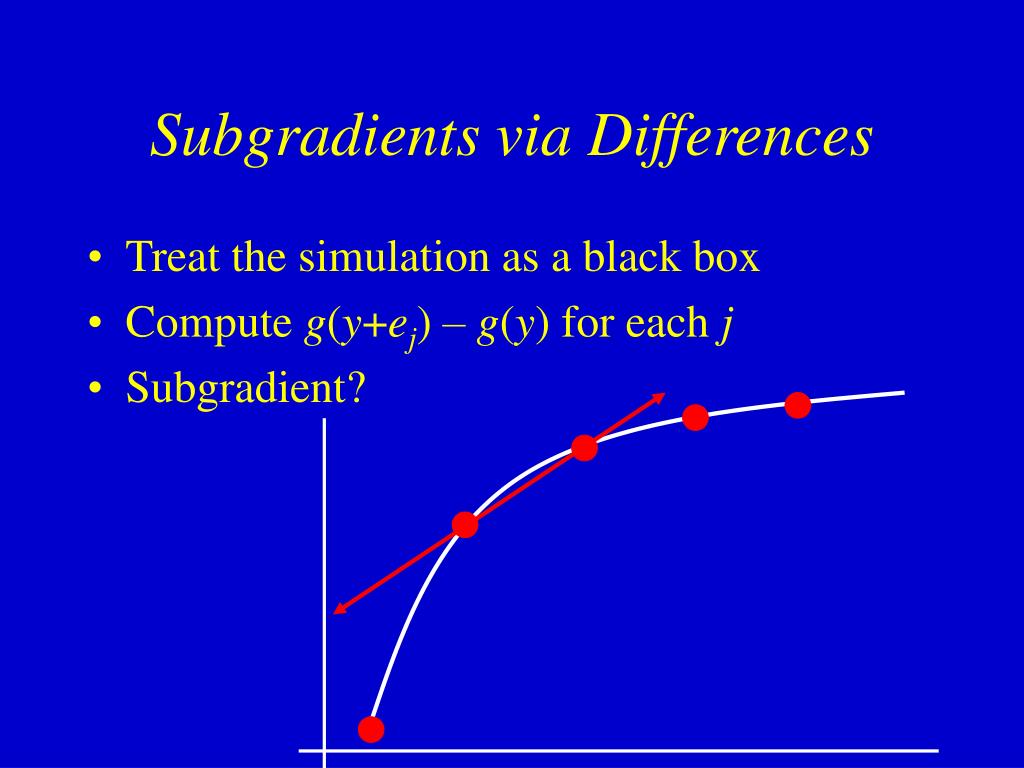

  16. Subgradients via Differences • Treat the simulation as a black box • Compute g(y+ej) – g(y) for each j • Subgradient?

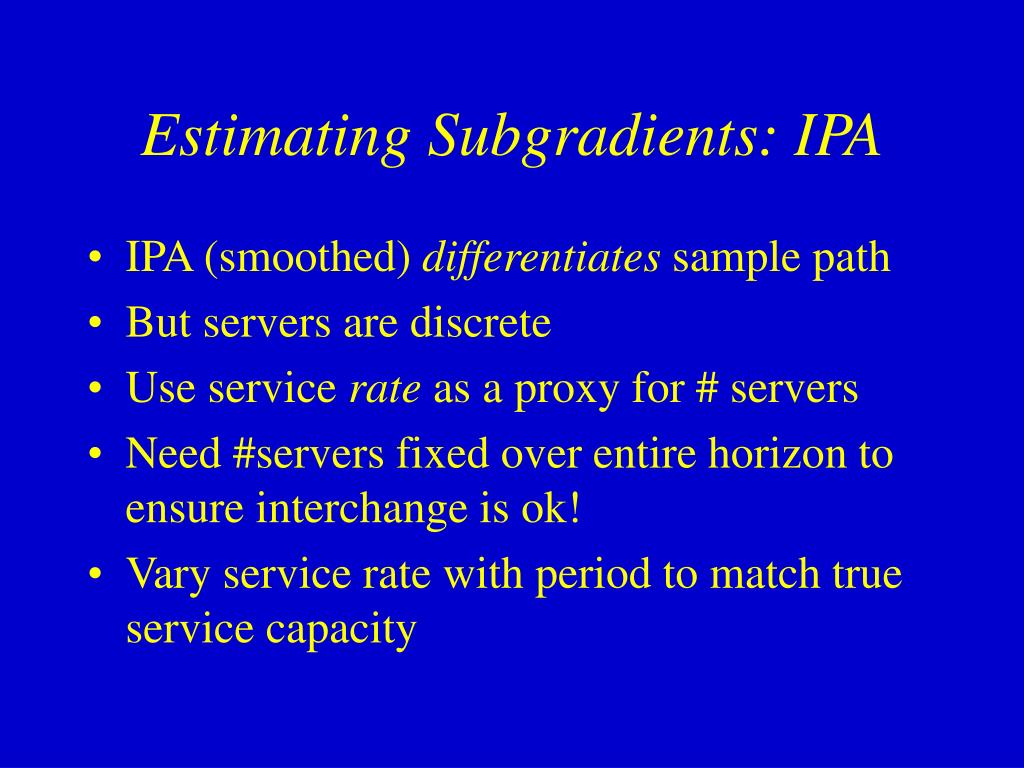

  17. Estimating Subgradients: IPA • IPA (smoothed) differentiates sample path • But servers are discrete • Use service rate as a proxy for # servers • Need #servers fixed over entire horizon to ensure interchange is ok! • Vary service rate with period to match true service capacity

  18. Estimating Subgradients: LR • Lots of heuristics with smoothed IPA • Likelihood ratio (score function) method? • Seems to apply more easily, but still some less-than-ideal modeling assumptions • Overall: subgradient estimation unresolved

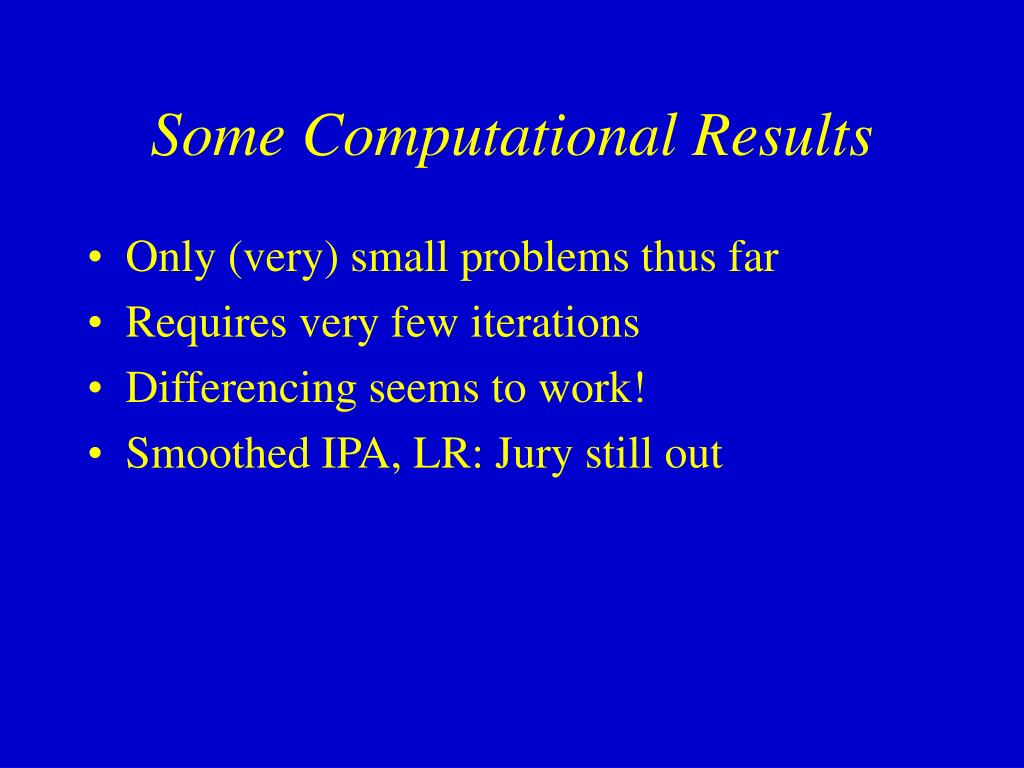

  19. Some Computational Results • Only (very) small problems thus far • Requires very few iterations • Differencing seems to work! • Smoothed IPA, LR: Jury still out

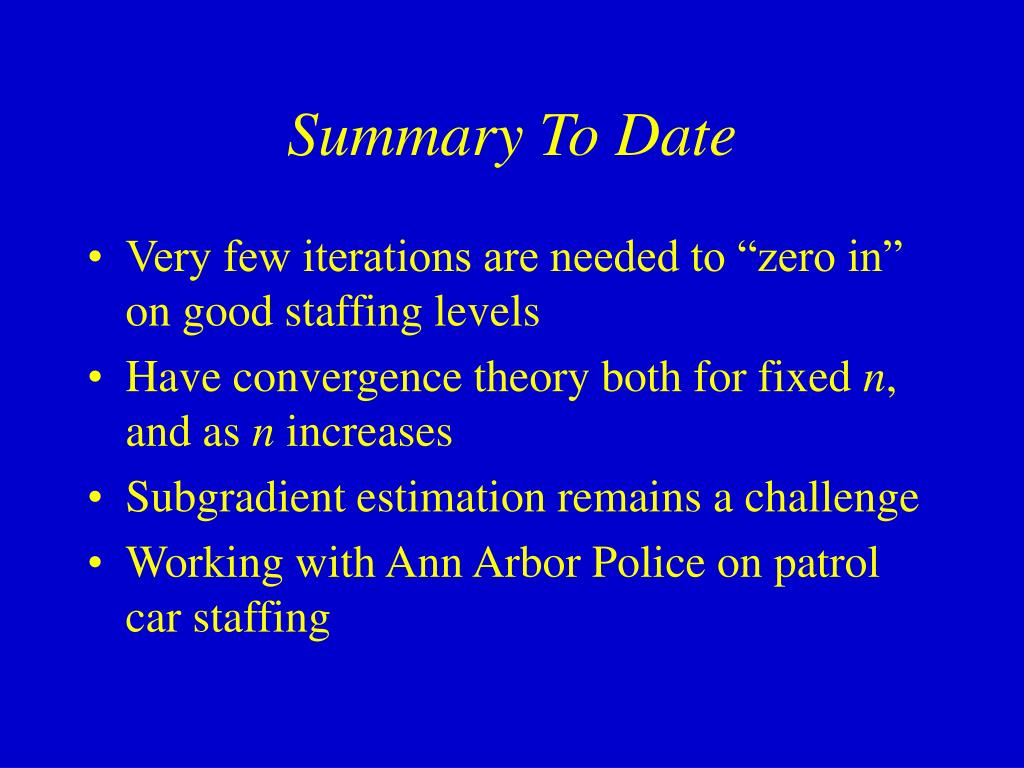

  20. Summary To Date • Very few iterations are needed to “zero in” on good staffing levels • Have convergence theory both for fixed n, and as n increases • Subgradient estimation remains a challenge • Working with Ann Arbor Police on patrol car staffing

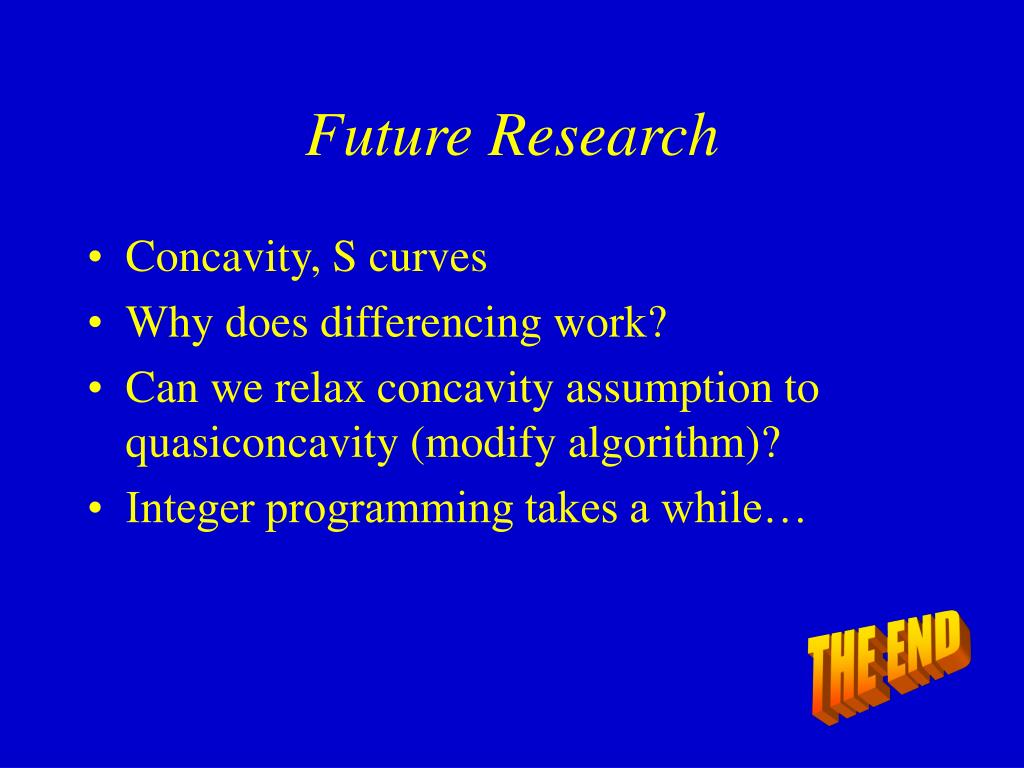

  21. Future Research • Concavity, S curves • Why does differencing work? • Can we relax concavity assumption to quasiconcavity (modify algorithm)? • Integer programming takes a while… THE END
