  1. ESP SERIES

  2. Coagulation/Flocculationwith ESP Technology • Bentonite clay based floc • Encapsulate contaminants • Non-leachable filter cake • PLC controlled – Fully automated

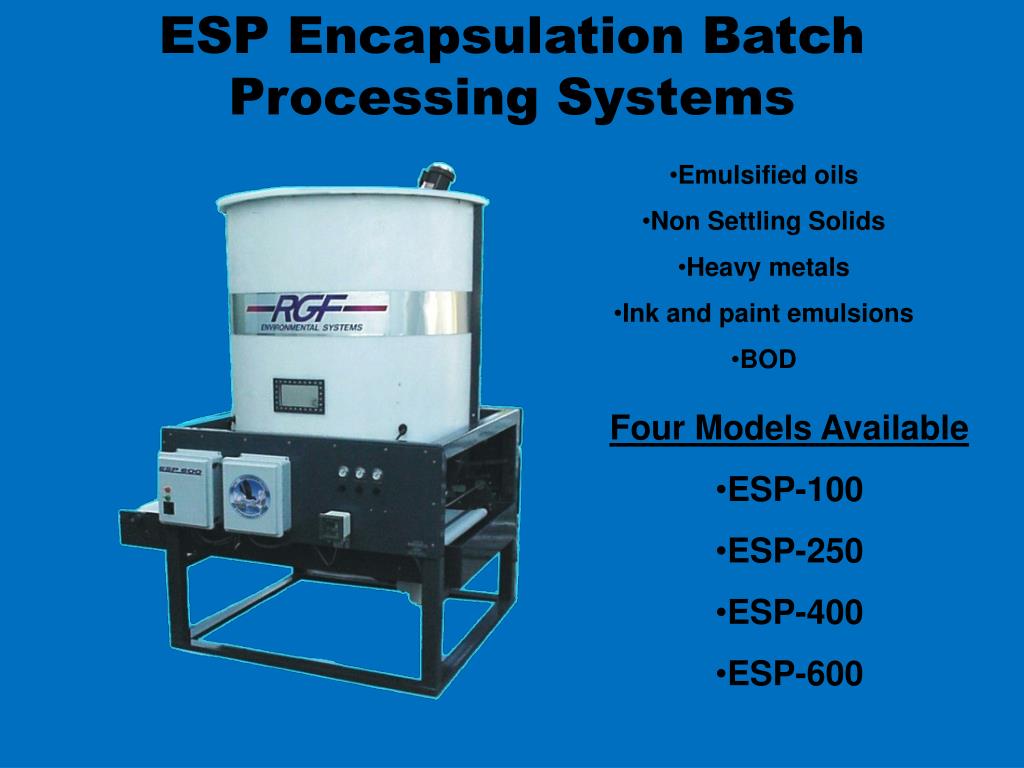

  3. ESP Encapsulation Batch Processing Systems • Emulsified oils • Non Settling Solids • Heavy metals • Ink and paint emulsions • BOD • Four Models Available • ESP-100 • ESP-250 • ESP-400 • ESP-600

  4. Lab Analysis Emulsified Oil Metals Paint

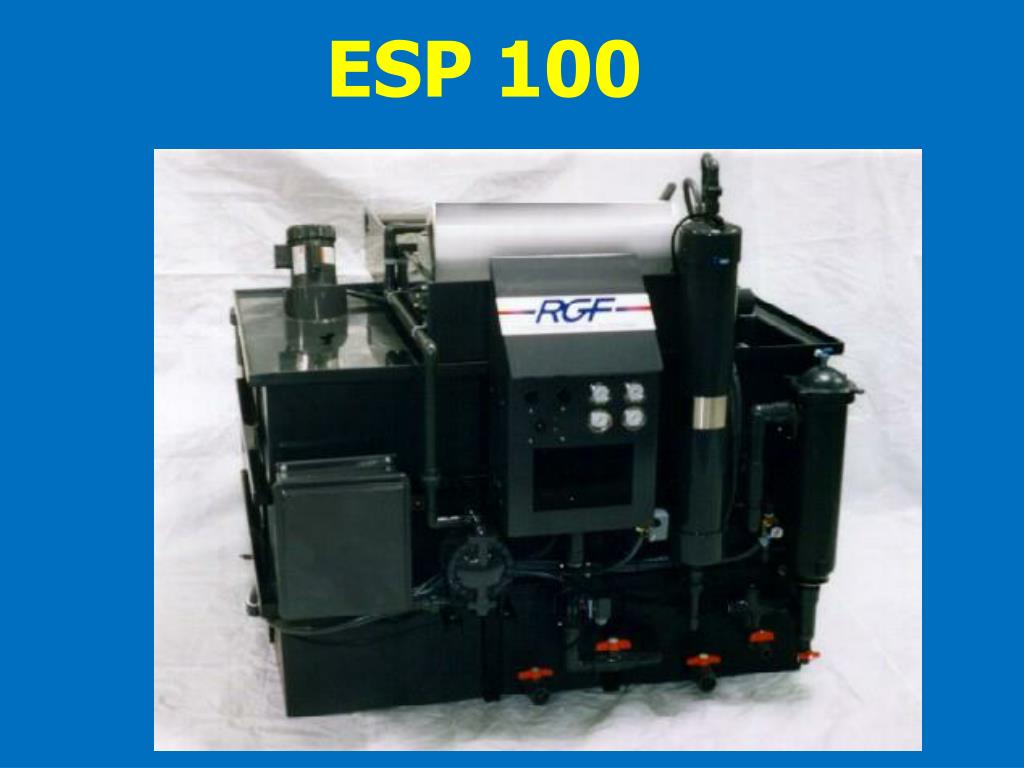

  5. ESP 100

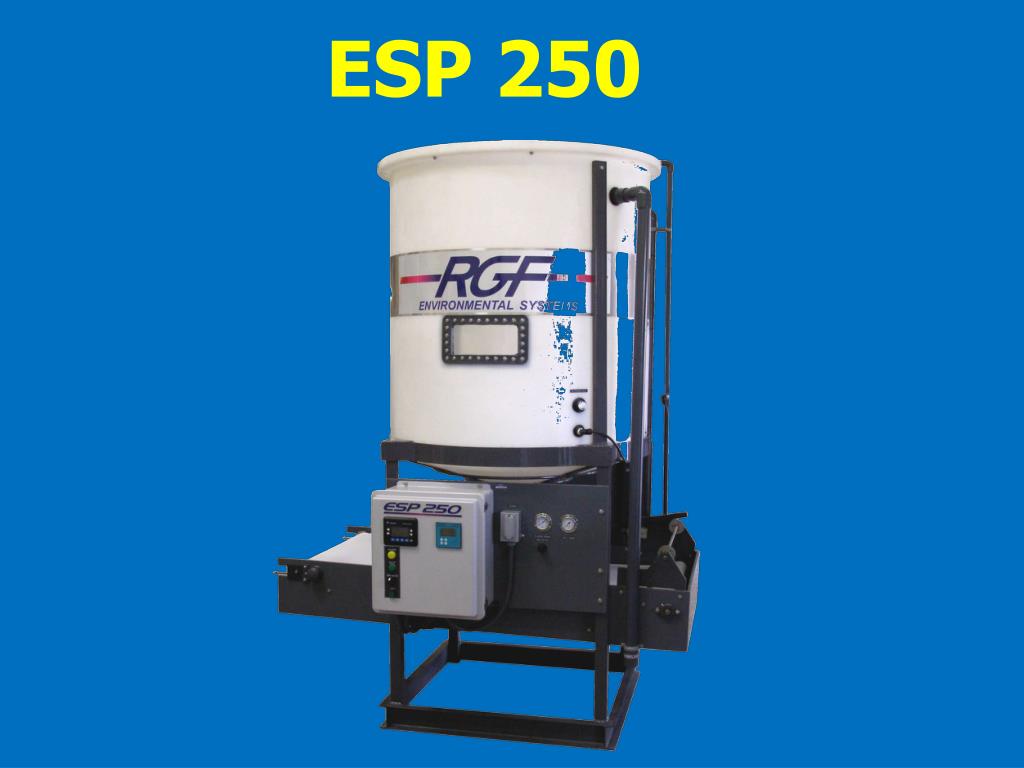

  6. ESP 250

  7. ESP 400 & 600

  8. Pre-treatment • Oil/Water separator • CCC • Screened hopper • Bag filter • Ph

  9. Supplies • Granular Clays • Filter paper

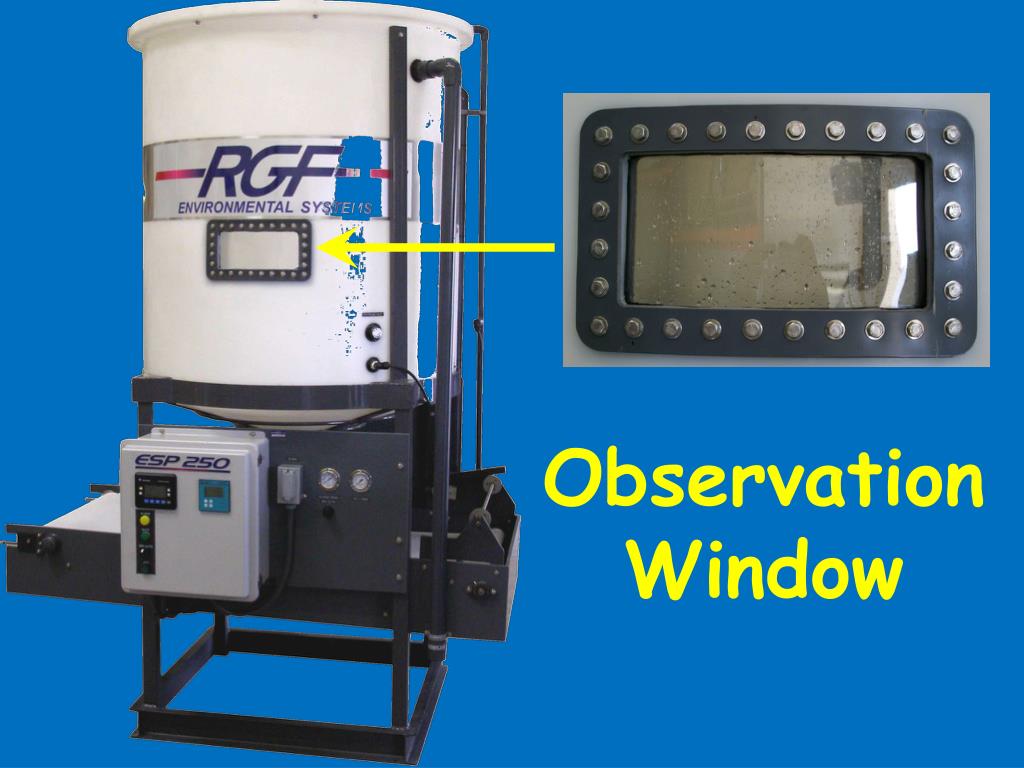

  10. Observation Window

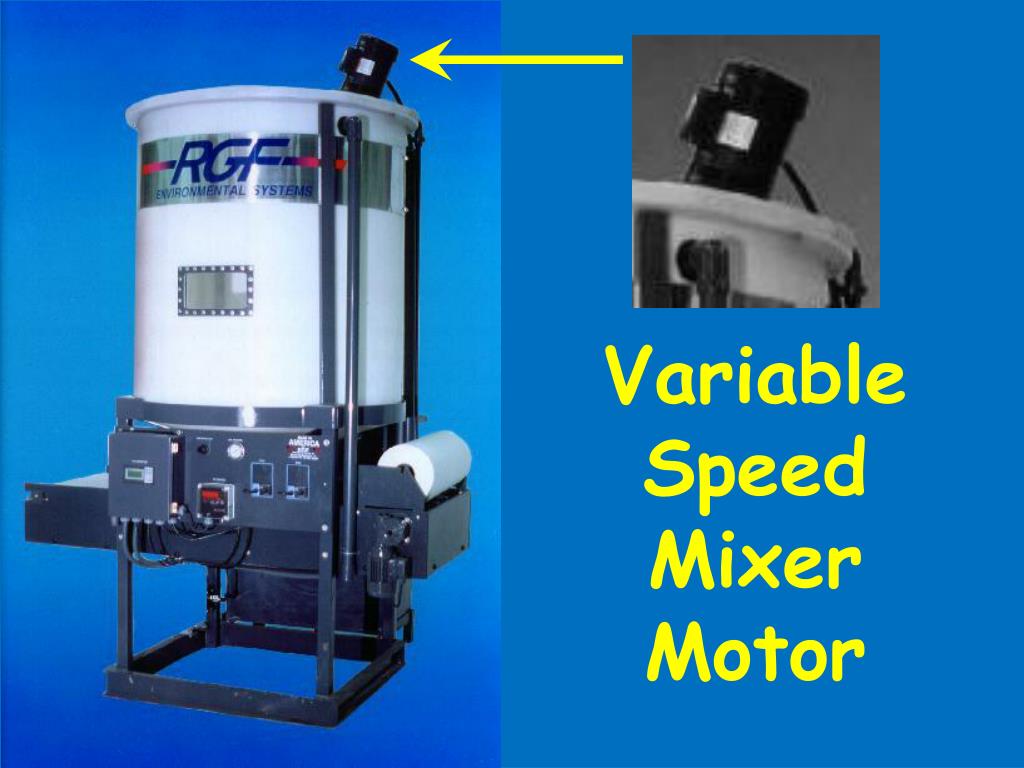

  11. Variable Speed Mixer Motor

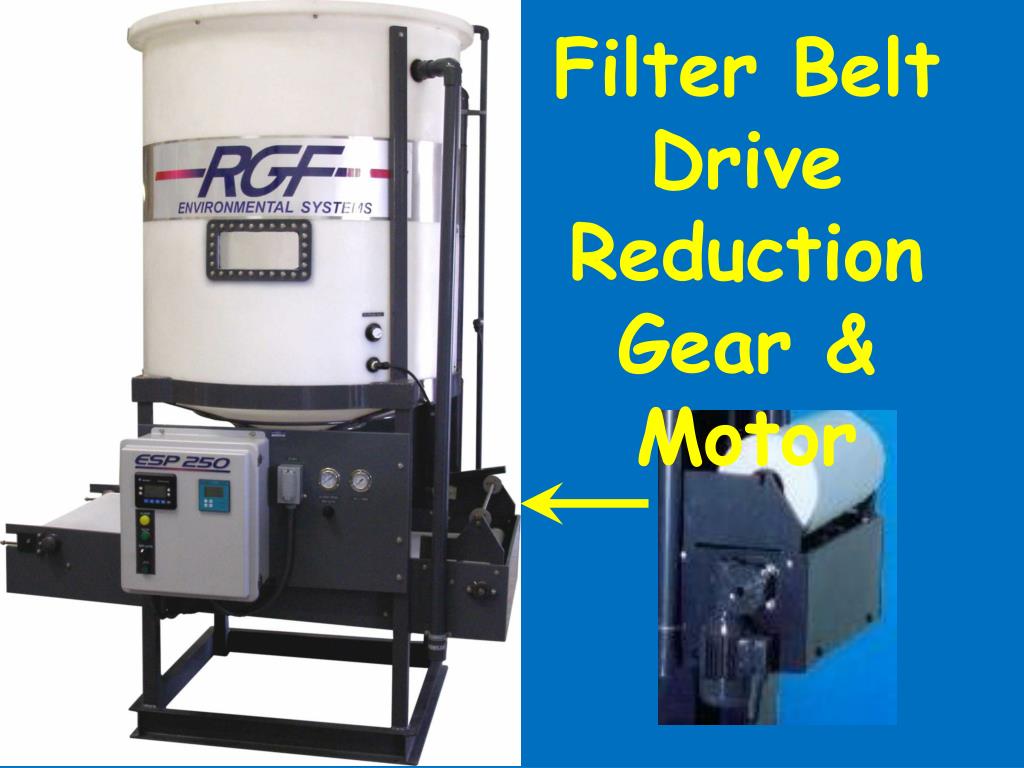

  12. Filter Belt Drive Reduction Gear & Motor

  13. Filter Belt Dewatering System

  14. VACU-DOSE System , Vibrator and Floc Sensor

  15. PANEL VIEW CONTROLS

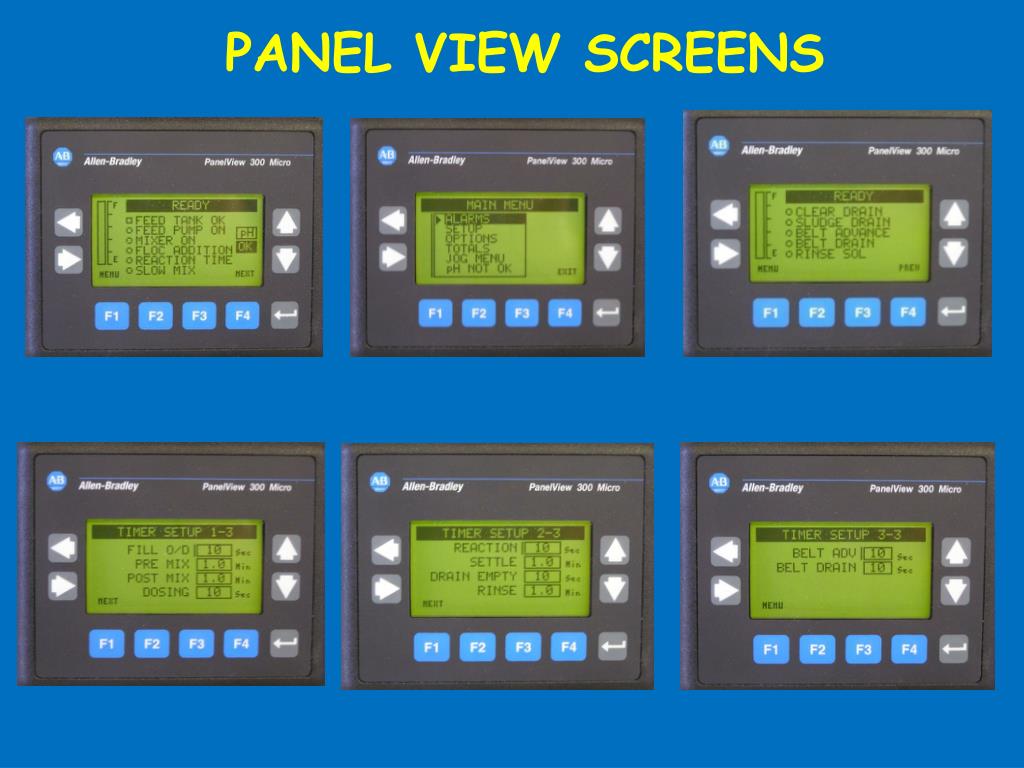

  16. PANEL VIEW SCREENS

  17. ESP 400 & 600 ESP 100 & 250

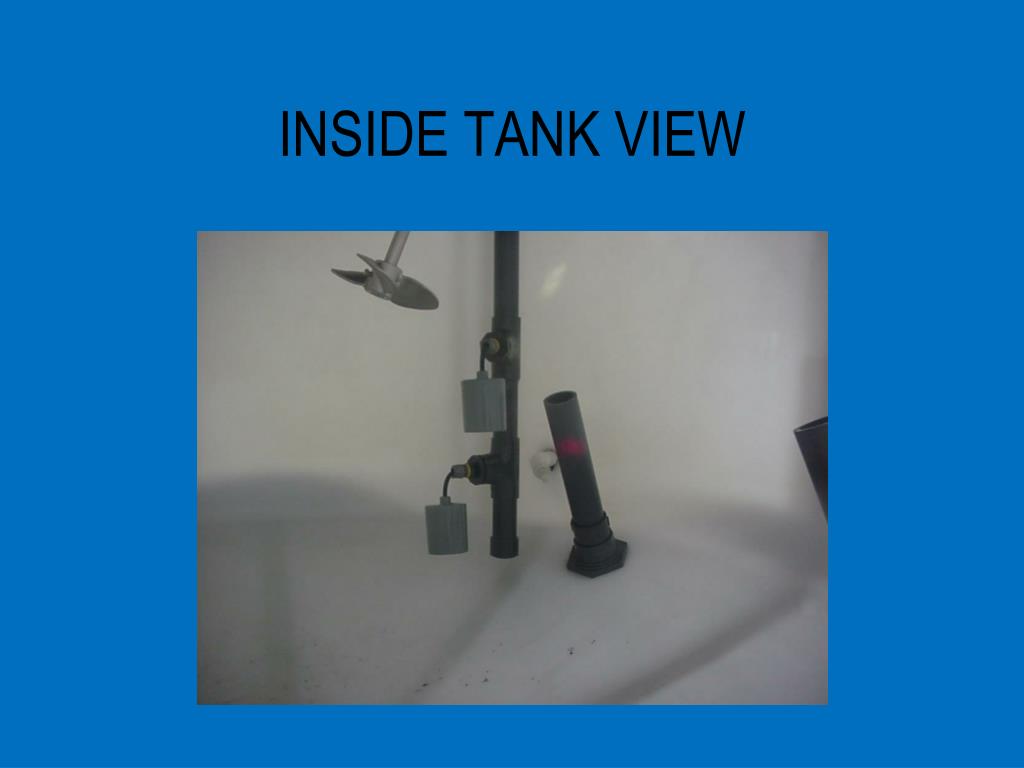

  18. INSIDE TANK VIEW

  19. ESP TOP VIEW

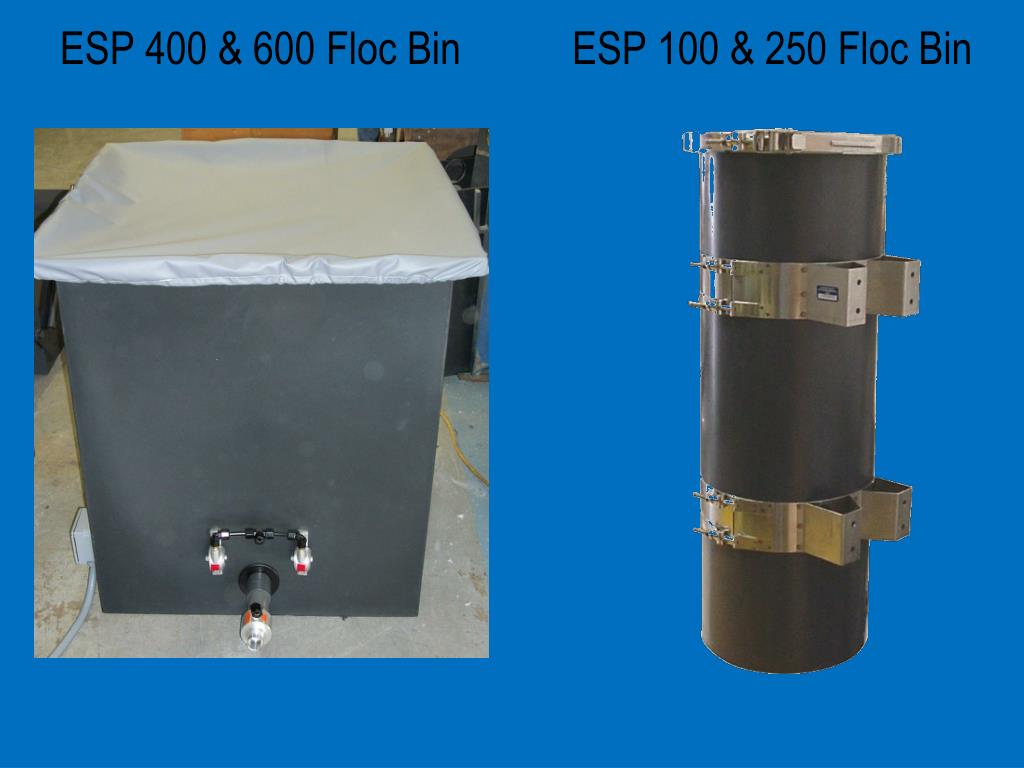

  20. ESP 100 & 250 Floc Bin ESP 400 & 600 Floc Bin

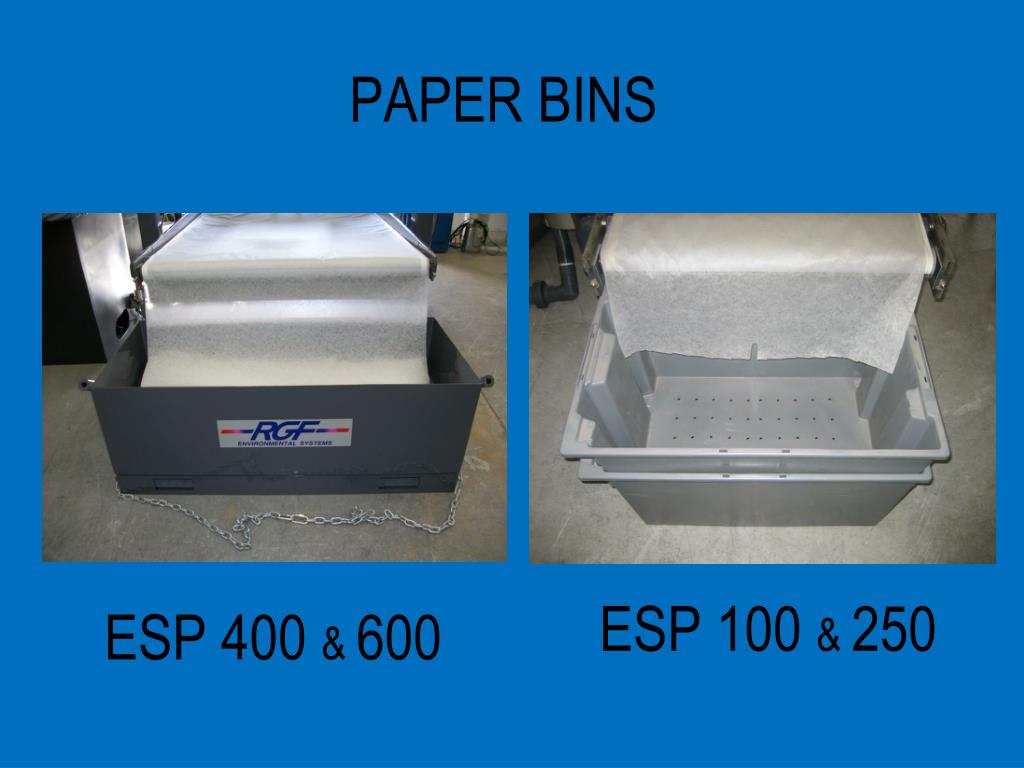

  21. PAPER BINS ESP 100 & 250 ESP 400 & 600

  22. CUSTOM APPLICATIONS

  23. Hex Chrome Destruct System Destruction of Hexavalent Chromium Reduce Hex Chrome to Tri Chrome Adjust pH to 3, monitor for 5 minutes. Add Sodium Meta-Bisulphate to generate 270 ORP, monitor for 5 minutes. Performed in additional vessel to reduce time for treatment

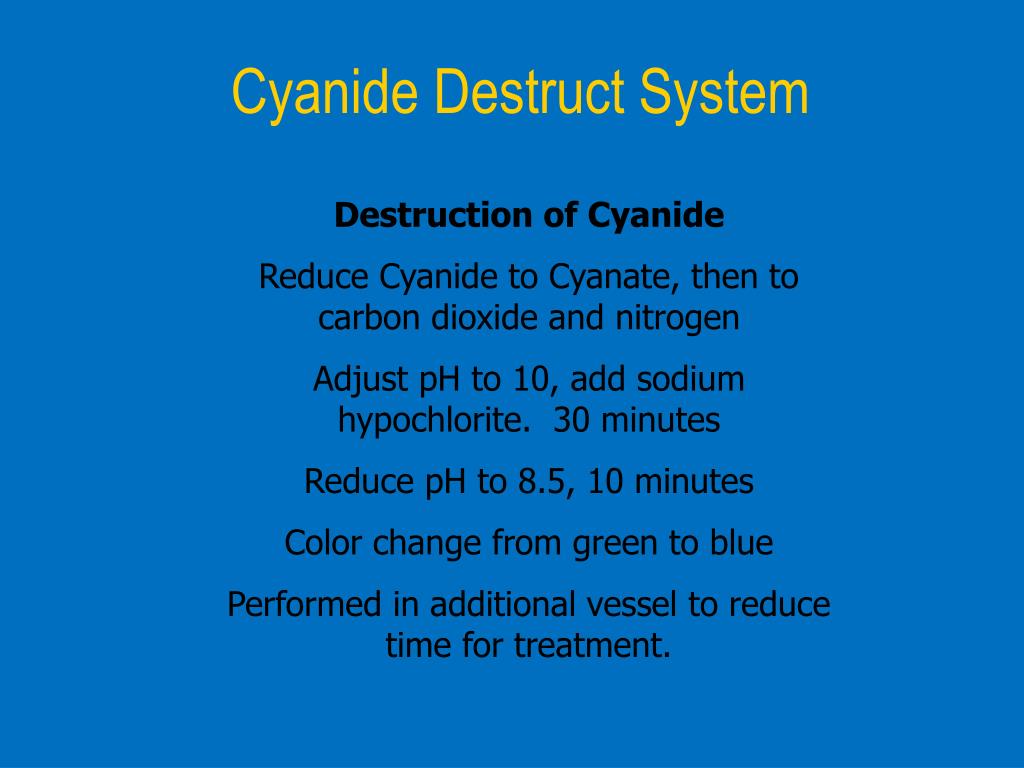

  24. Cyanide Destruct System Destruction of Cyanide Reduce Cyanide to Cyanate, then to carbon dioxide and nitrogen Adjust pH to 10, add sodium hypochlorite. 30 minutes Reduce pH to 8.5, 10 minutes Color change from green to blue Performed in additional vessel to reduce time for treatment.

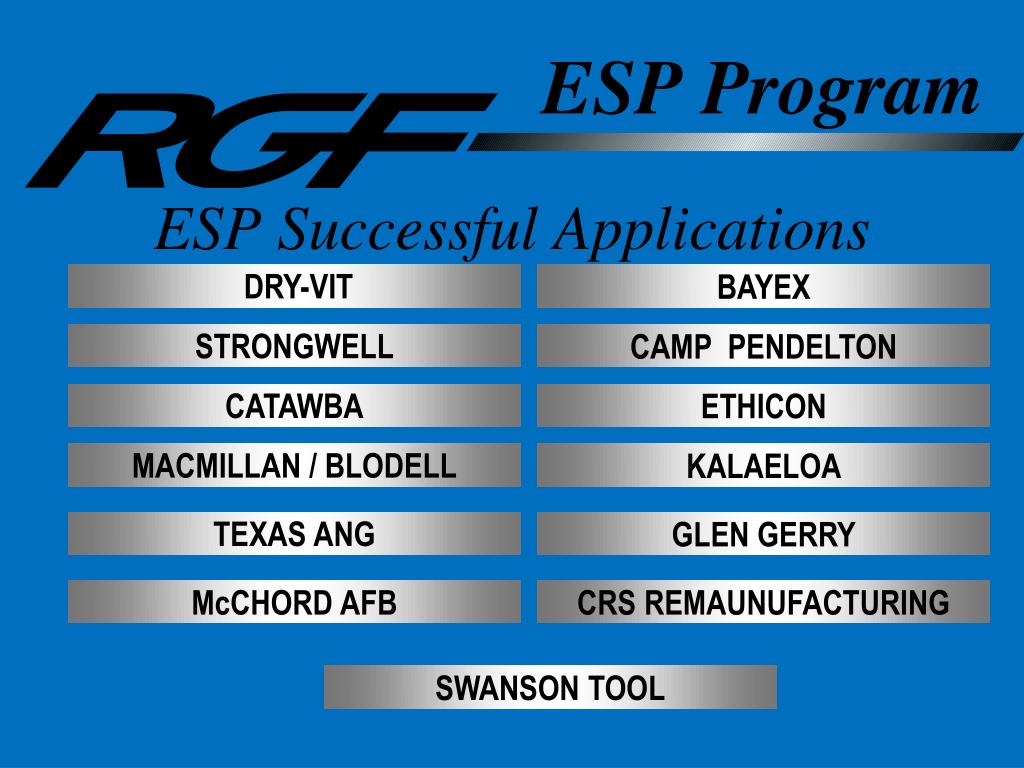

  25. ESP Successful Applications DRY-VIT BAYEX STRONGWELL CAMP PENDELTON CATAWBA ETHICON ESP Program MACMILLAN / BLODELL KALAELOA TEXAS ANG GLEN GERRY McCHORD AFB CRS REMAUNUFACTURING SWANSON TOOL

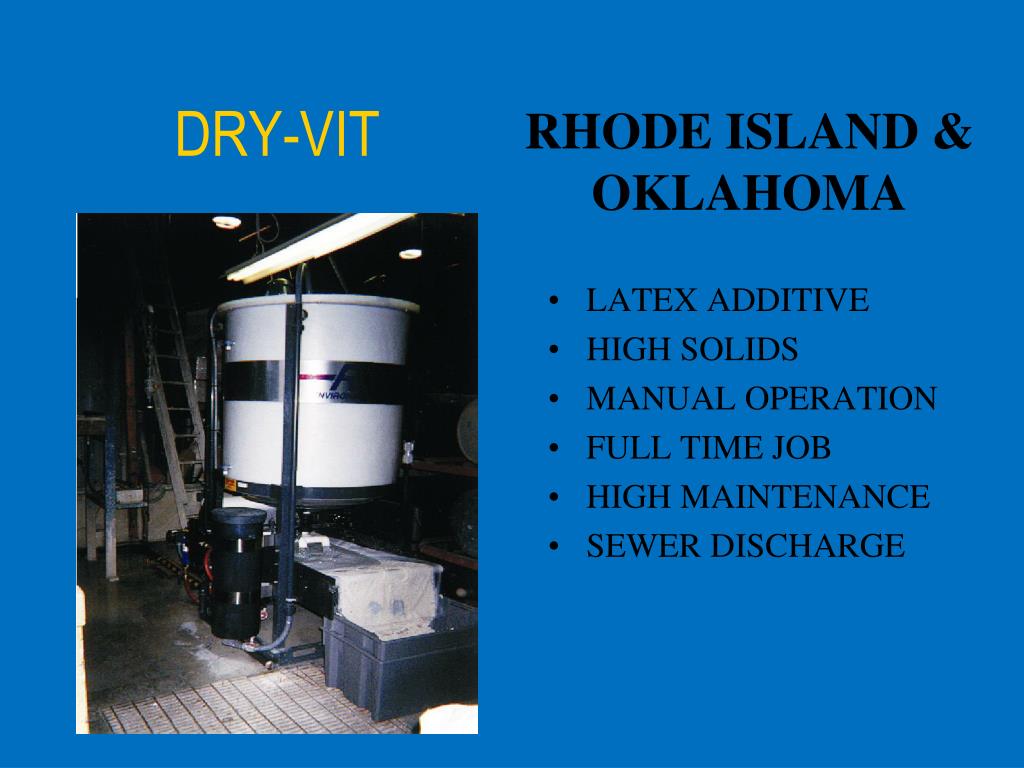

  26. DRY-VIT RHODE ISLAND & OKLAHOMA • LATEX ADDITIVE • HIGH SOLIDS • MANUAL OPERATION • FULL TIME JOB • HIGH MAINTENANCE • SEWER DISCHARGE

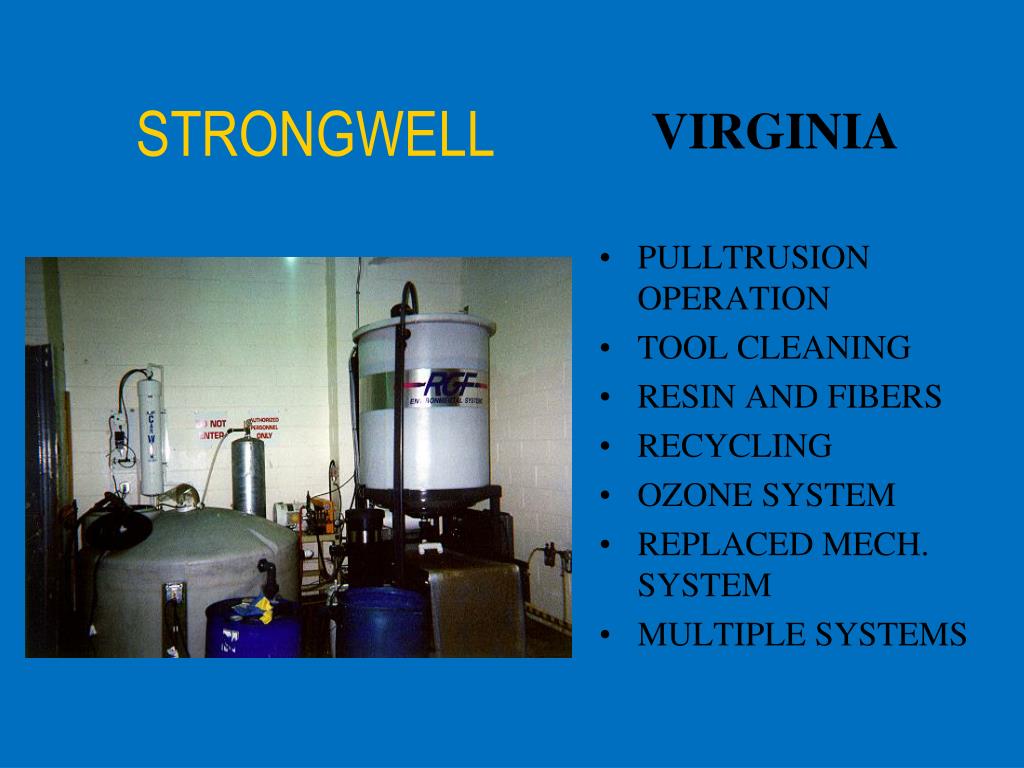

  27. STRONGWELL VIRGINIA • PULLTRUSION OPERATION • TOOL CLEANING • RESIN AND FIBERS • RECYCLING • OZONE SYSTEM • REPLACED MECH. SYSTEM • MULTIPLE SYSTEMS

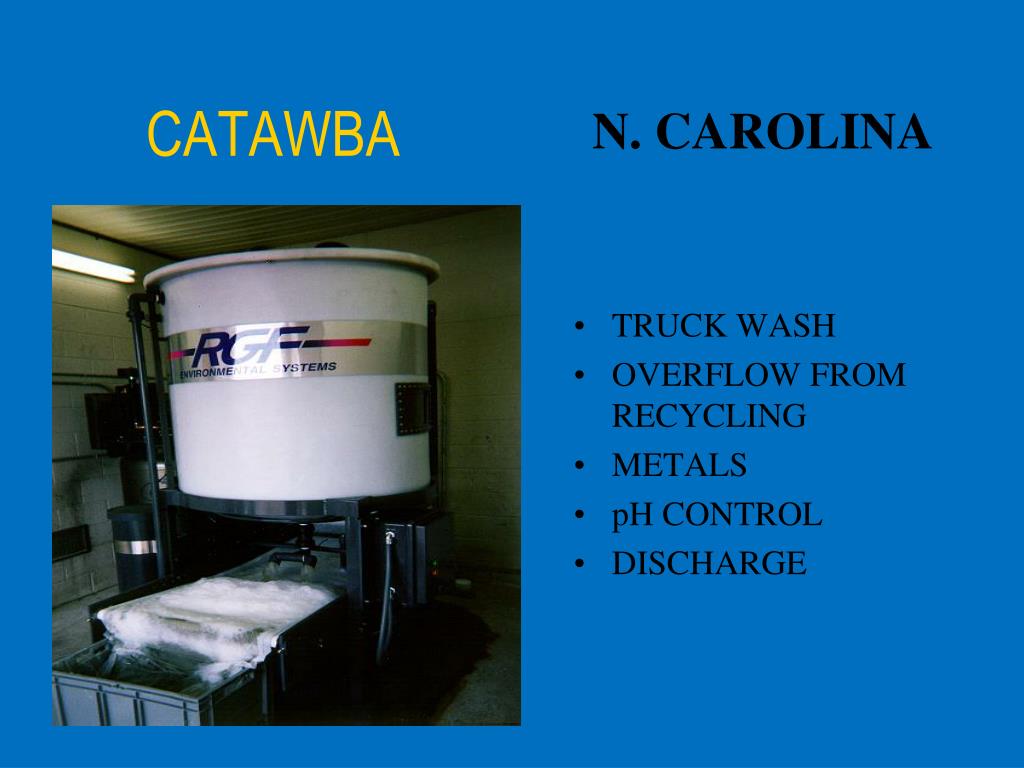

  28. CATAWBA N. CAROLINA • TRUCK WASH • OVERFLOW FROM RECYCLING • METALS • pH CONTROL • DISCHARGE

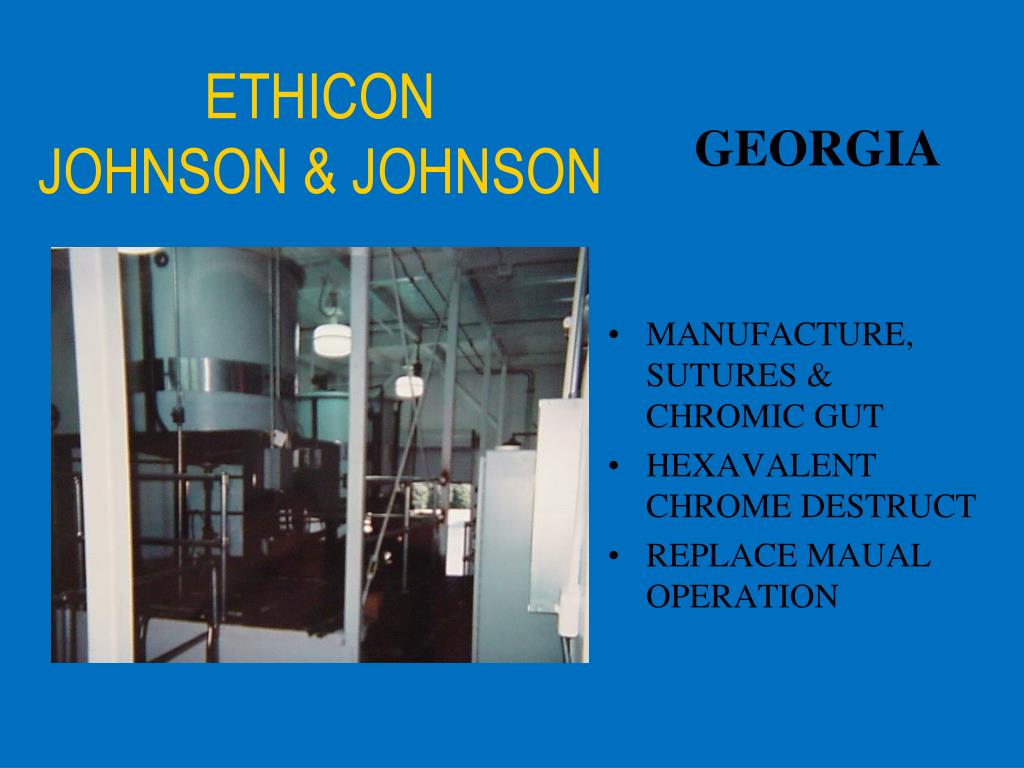

  29. ETHICONJOHNSON & JOHNSON GEORGIA • MANUFACTURE, SUTURES & CHROMIC GUT • HEXAVALENT CHROME DESTRUCT • REPLACE MAUAL OPERATION

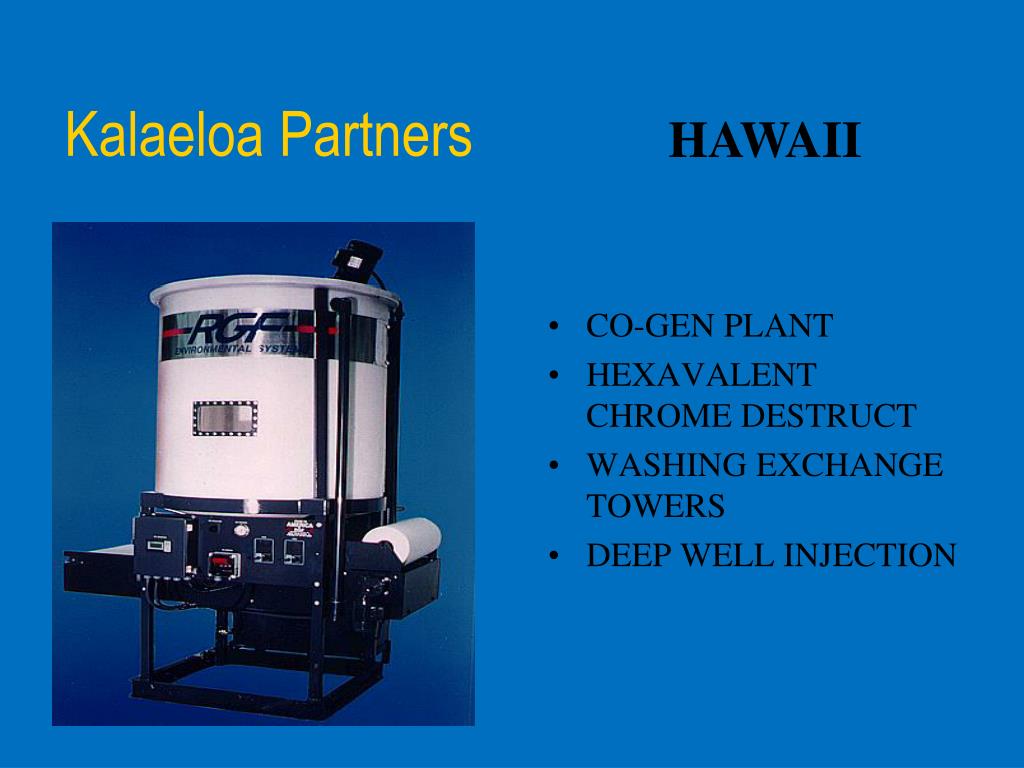

  30. Kalaeloa Partners HAWAII • CO-GEN PLANT • HEXAVALENT CHROME DESTRUCT • WASHING EXCHANGE TOWERS • DEEP WELL INJECTION

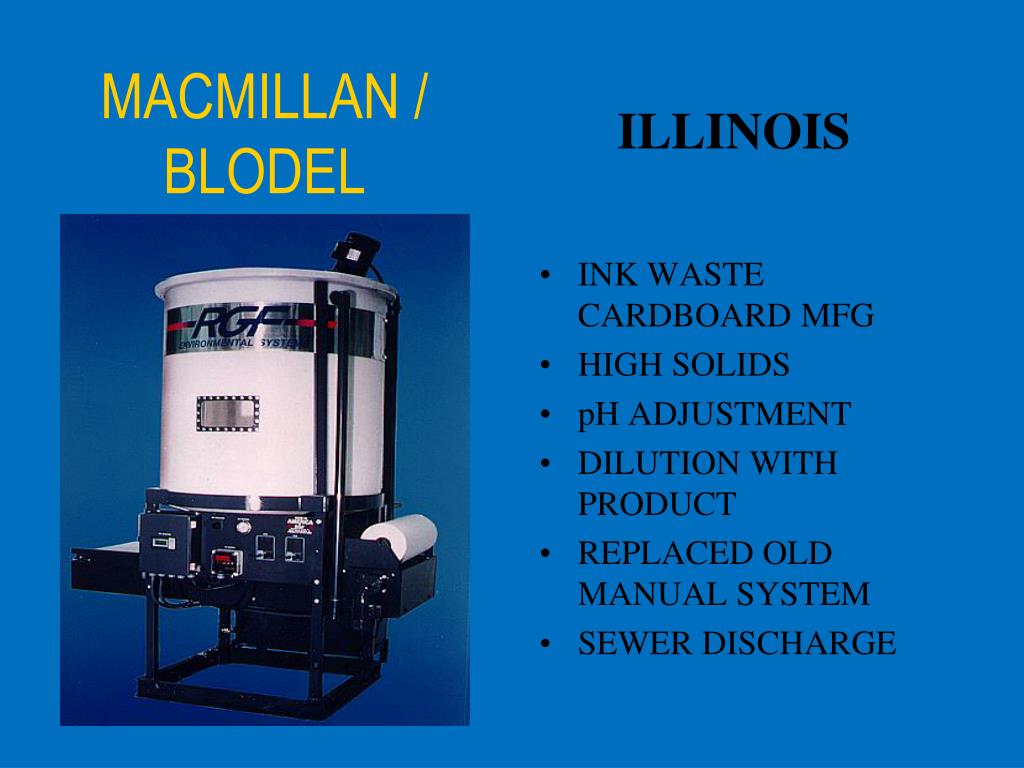

  31. MACMILLAN / BLODEL ILLINOIS • INK WASTE CARDBOARD MFG • HIGH SOLIDS • pH ADJUSTMENT • DILUTION WITH PRODUCT • REPLACED OLD MANUAL SYSTEM • SEWER DISCHARGE

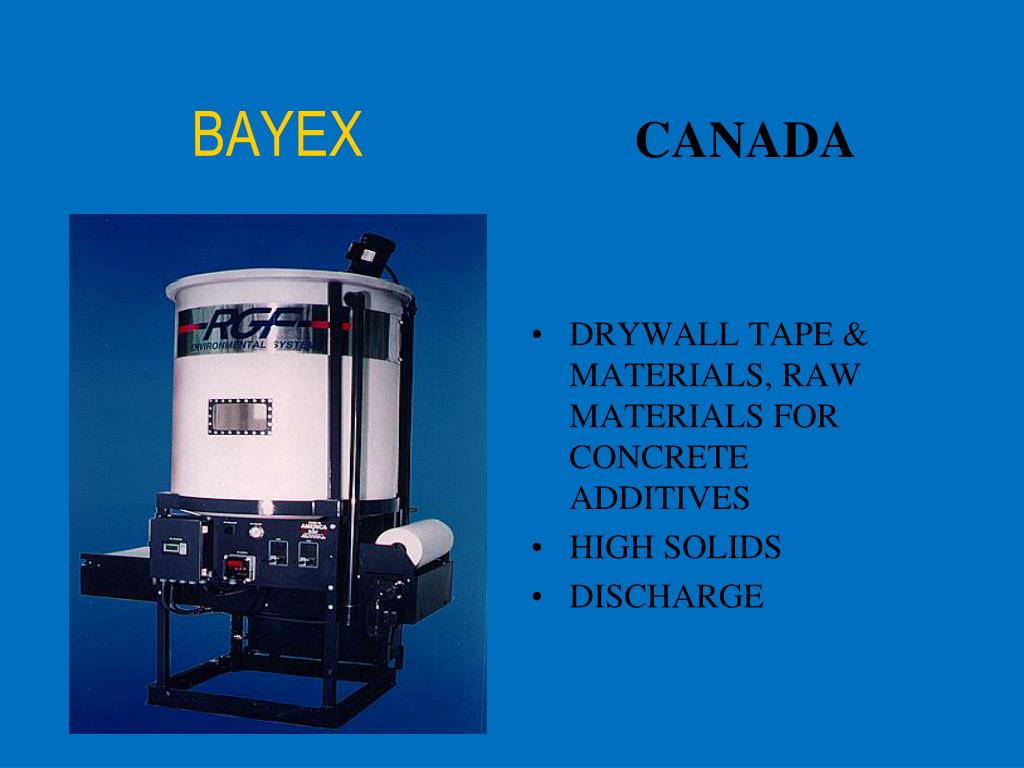

  32. BAYEX CANADA • DRYWALL TAPE & MATERIALS, RAW MATERIALS FOR CONCRETE ADDITIVES • HIGH SOLIDS • DISCHARGE

  33. TEXAS AIRNATIONAL GUARD TEXAS • ESP-100 CADMIUM PACKAGE • TWO SYSTEMS • CADM IUM REMOVAL • WASHING ENGINES • ONE MOBILE SYSTEM

  34. McCHORD AFB WASHINGTON • THREE ESP 250’S • PLANE WASHING • CADMIUM • SOLIDS / METALS • SEWER DISCHARGE • PRE-FILTER WITH OWS-50 & PRE-TANK

  35. CAMP PENDELTON CALIFORNIA • MOP WATER • EMULSIFIED OILS, SOLIDS • RECYCLE • PRE-TANK AND STORAGE TANK • OZONE POST TREAT

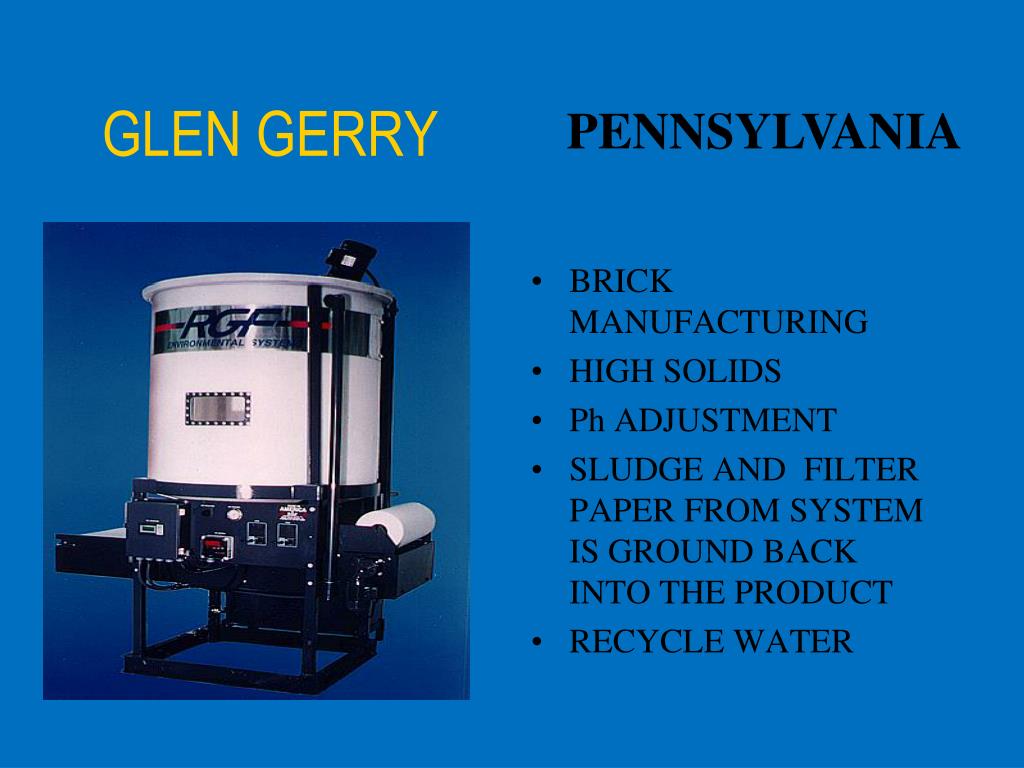

  36. GLEN GERRY PENNSYLVANIA • BRICK MANUFACTURING • HIGH SOLIDS • Ph ADJUSTMENT • SLUDGE AND FILTER PAPER FROM SYSTEM IS GROUND BACK INTO THE PRODUCT • RECYCLE WATER

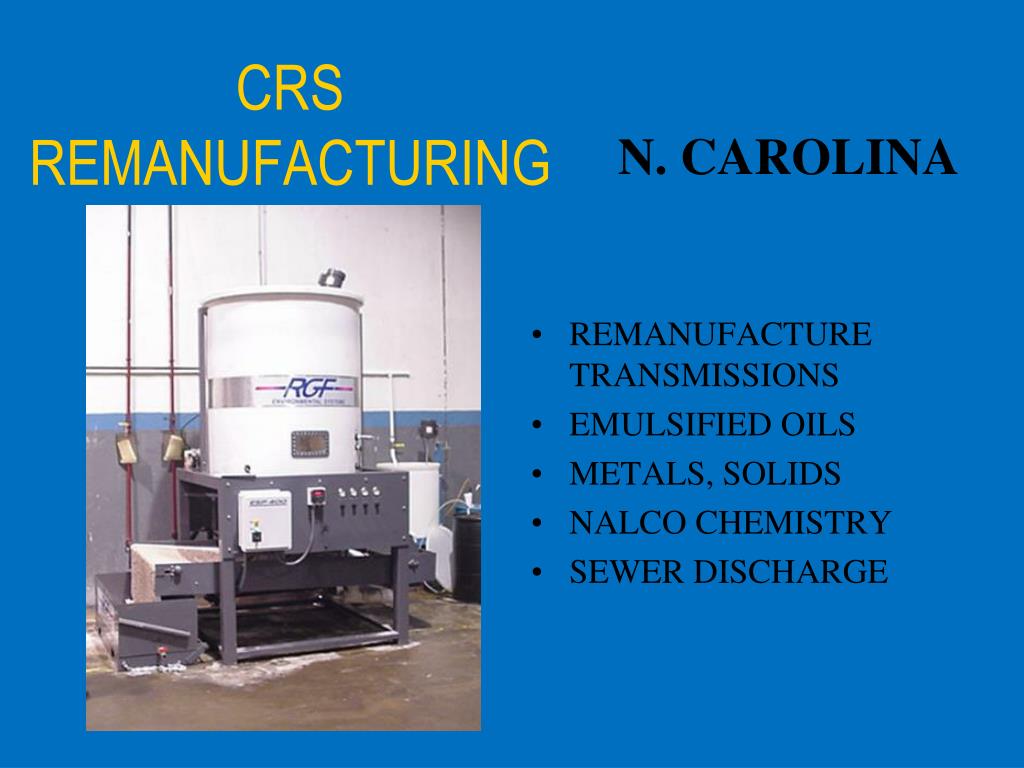

  37. CRSREMANUFACTURING N. CAROLINA • REMANUFACTURE TRANSMISSIONS • EMULSIFIED OILS • METALS, SOLIDS • NALCO CHEMISTRY • SEWER DISCHARGE

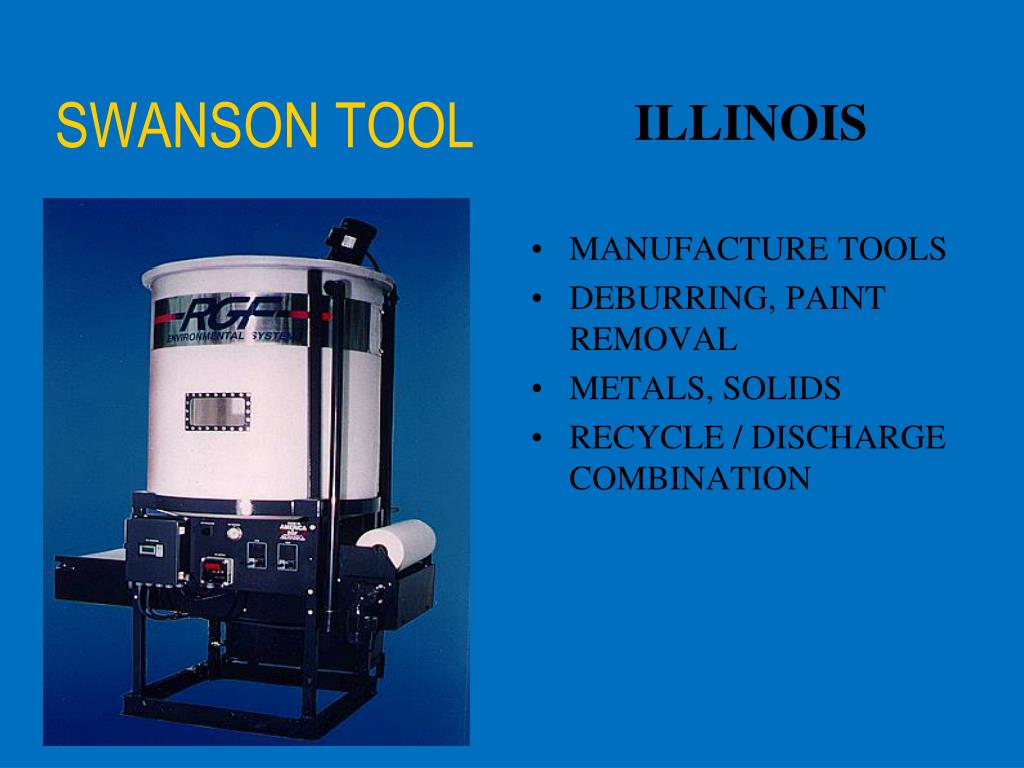

  38. SWANSON TOOL ILLINOIS • MANUFACTURE TOOLS • DEBURRING, PAINT REMOVAL • METALS, SOLIDS • RECYCLE / DISCHARGE COMBINATION

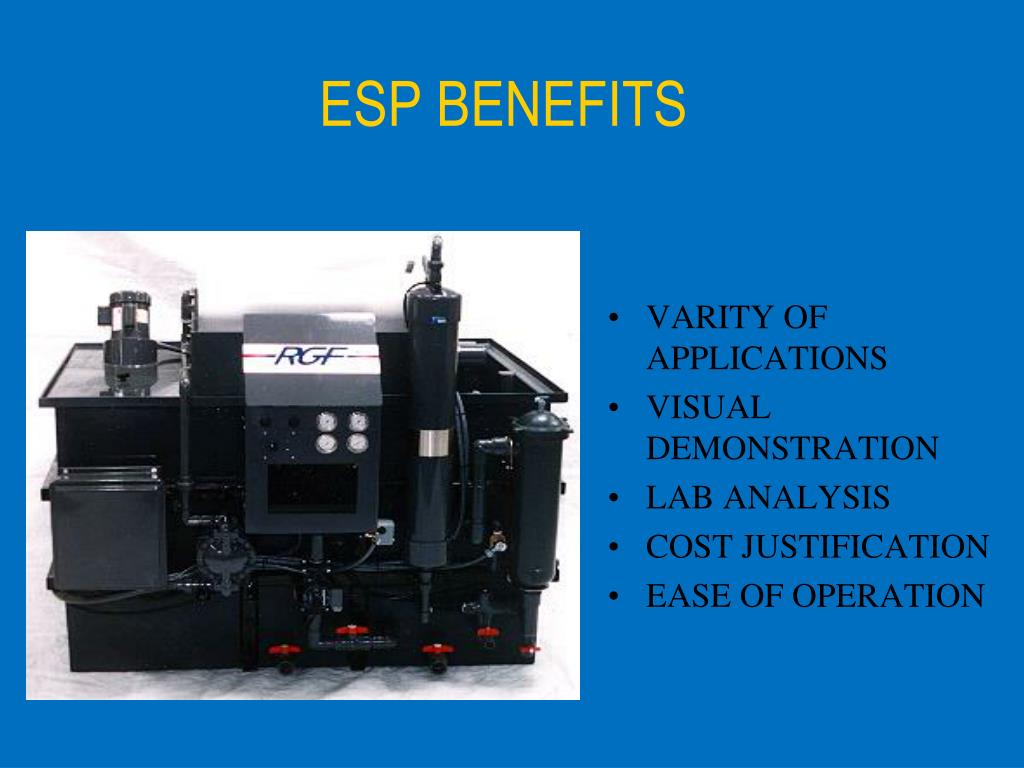

  39. ESP BENEFITS • VARITY OF APPLICATIONS • VISUAL DEMONSTRATION • LAB ANALYSIS • COST JUSTIFICATION • EASE OF OPERATION

  40. QUESTIONS?
