  1. The Metals Game By: Sam Hafner and Kyle Taylor

  2. Arc Welding Lathe Sheet Metal Gas Welding Mig Welding Mill 100 100 100 100 100 100 200 200200 200 200 200 200 300 300 300 300 300 300 400 400 400 400 400 400 500 500 500 500 500 500

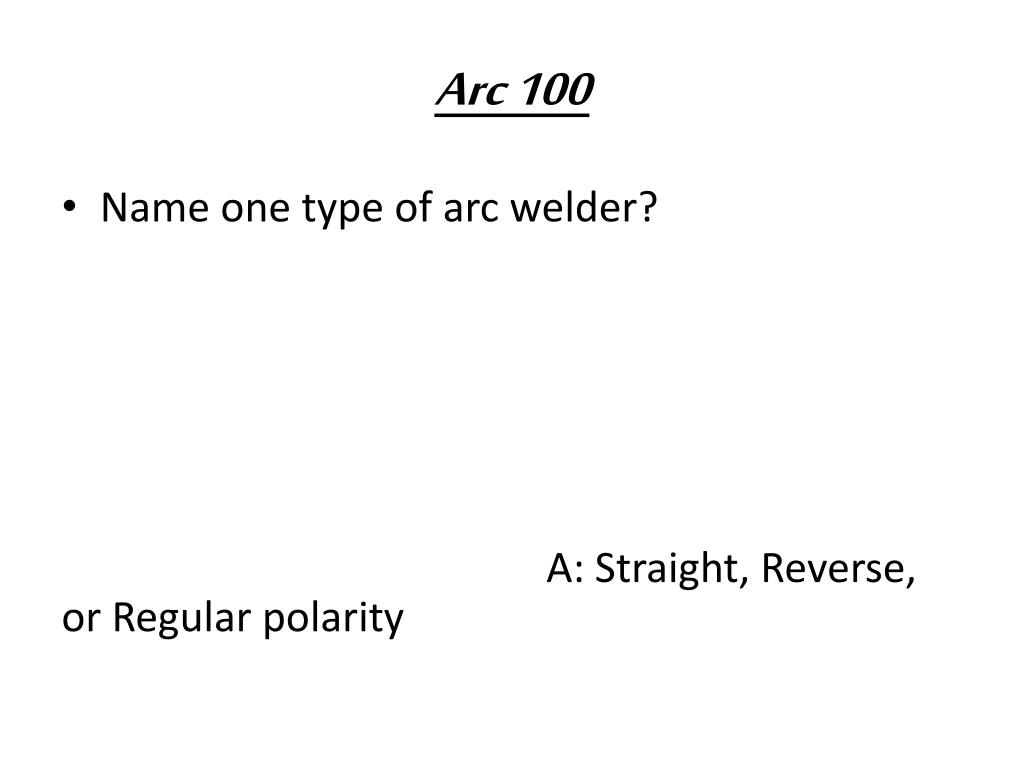

  3. Arc 100 • Name one type of arc welder? A: Straight, Reverse, or Regular polarity

  4. Arc 200 • What is tack welding? A: Small little quick weld to hold your piece together

  5. Arc 300 • Name 2 different types of DC current? A: DC positive and DC negative

  6. Arc 400 • What is the chipping hammer used for? A: To chip the slag off of your weld

  7. Arc 500 • What is the lens shade if the current is 60-160? A: 10

  8. Lathe 100 • What is Facing? A: Squaring the end of your piece

  9. Lathe 200 • What is Knurling? A: putting grip on your piece

  10. Lathe 300 • Explain 3 safety rules for the lathe? A: NO tie, NO loose clothing, ALWAYS pay attention

  11. Lathe 400 • What grit sandpaper makes your piece shinny and smooth? A: 240 grit

  12. Lathe 500 • What's center drilling? A: Drilling a hole in the center

  13. Sheet Metal 100 • What is sheet metal? A: flexible light metal

  14. Sheet Metal 200 • What is a scratch awl? A: A pointy piece used for scratching lines in the sheet metal

  15. Sheet Metal 300 • What is a hand seamer? A: used for bending the edges of sheet metal

  16. Sheet Metal 400 • What’s a sheet metal stake? A: used to bend sheet metal

  17. Sheet Metal 500 • What is the brake used for? A: Used for bending the corners of sheet metal

  18. Gas Welding 100 • What one important safety item when gas welding? A: Goggles

  19. Gas Welding 200 • What are the tip cleaners used for? A: Clean the inside of the torch

  20. Gas Welding 300 • What are the 3 different types of flames? A: Nuetral, oxidizing, Carburizing

  21. Gas Welding 400 • What's a flashback? A: When the flame is burning inside of the torch

  22. Mill 100 • What is the mill best used for? A: Taking off little layers of metal at a time

  23. Gas Welding 500 • What occurs when the torch gets to close to the metal? A: Popping

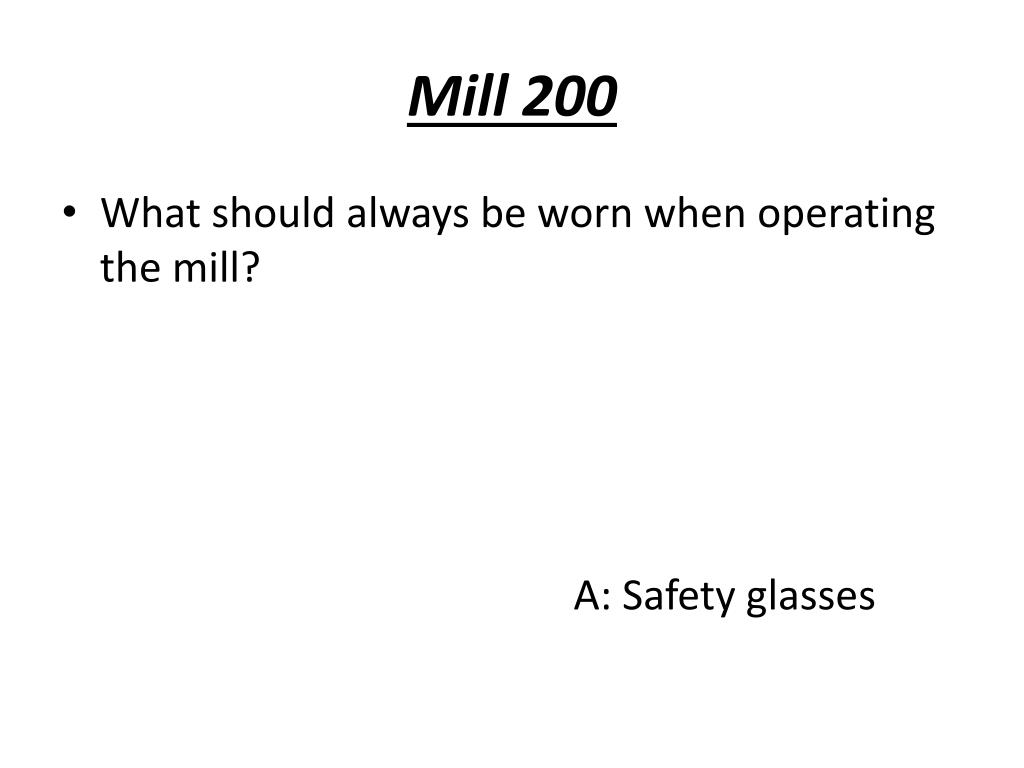

  24. Mill 200 • What should always be worn when operating the mill? A: Safety glasses

  25. Mill 300 • How do u take the mill bit out? A: chuck keys or Allen rench

  26. Mill 400 • What turns the mill on? A: the red button in the operator box

  27. Mill 500 • Name one project that can be made on the mill? A: Carpenter square, dice, hammer head, etc.

  28. Mig Welding 100 • Does the mig welder have the same qualities as the arc welder? A: no

  29. Mig Welding 200 • What is different between a arc weld and a mig weld? A: Arc welds have a stronger look to them and are made for more heavier welding
