Atomic Structure

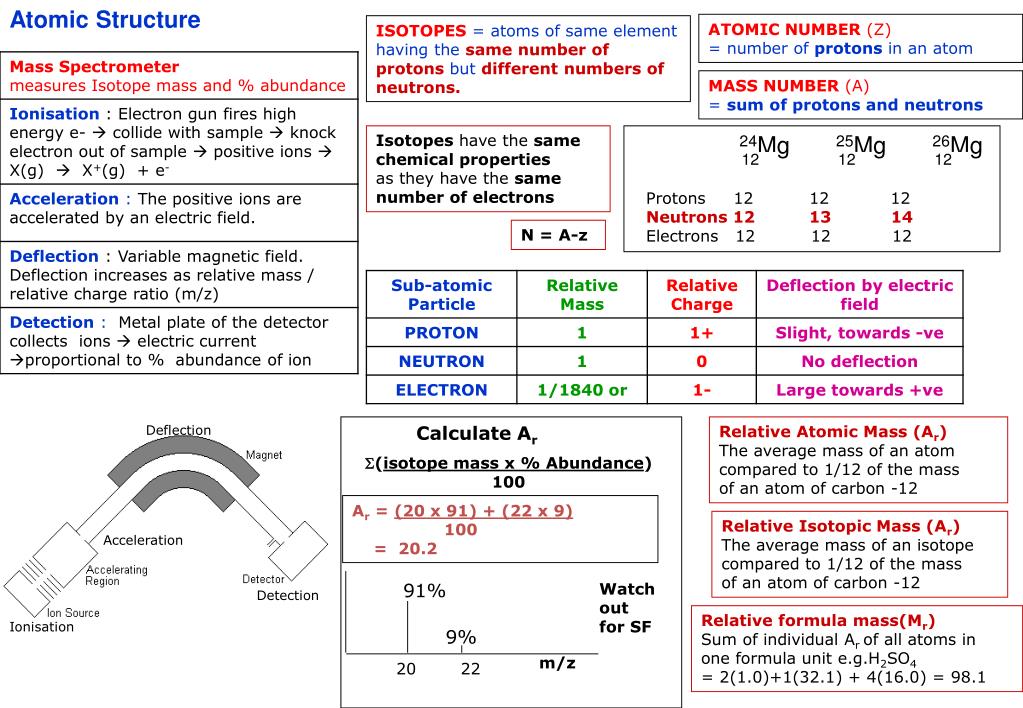

Atomic Structure. 26 Mg. 25 Mg. 24 Mg. 12. 12. 12. Protons 12 12 12 Neutrons 12 13 14 Electrons 12 12 12. ATOMIC NUMBER (Z) = number of protons in an atom .
