  1. PowerWave 33 Unmatched Power Performance, Ed. 10.11.2011 Newave SA

  2. PowerWave 33 Contents • The range • The performances • Options • Additional info Newave SA

  3. PowerWave 33 PowerWave 33 Unmatched Power Performances Newave SA

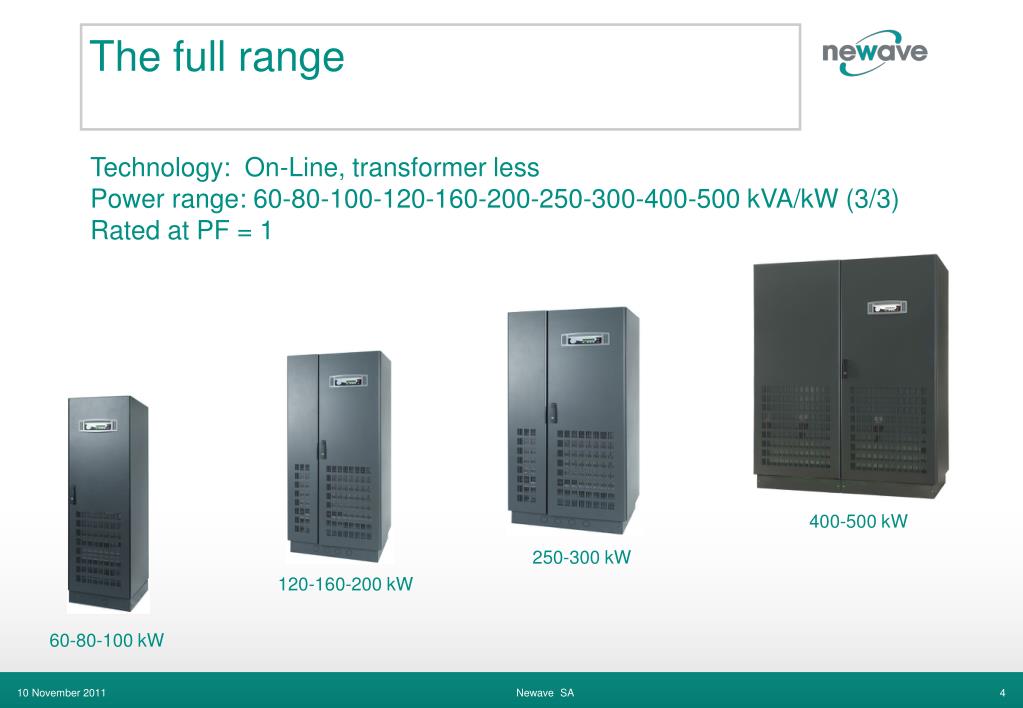

  4. 120-160-200 kW 250-300 kW 400-500 kW 60-80-100 kW The full range Technology: On-Line, transformer less Power range: 60-80-100-120-160-200-250-300-400-500 kVA/kW (3/3) Rated at PF = 1 Newave SA

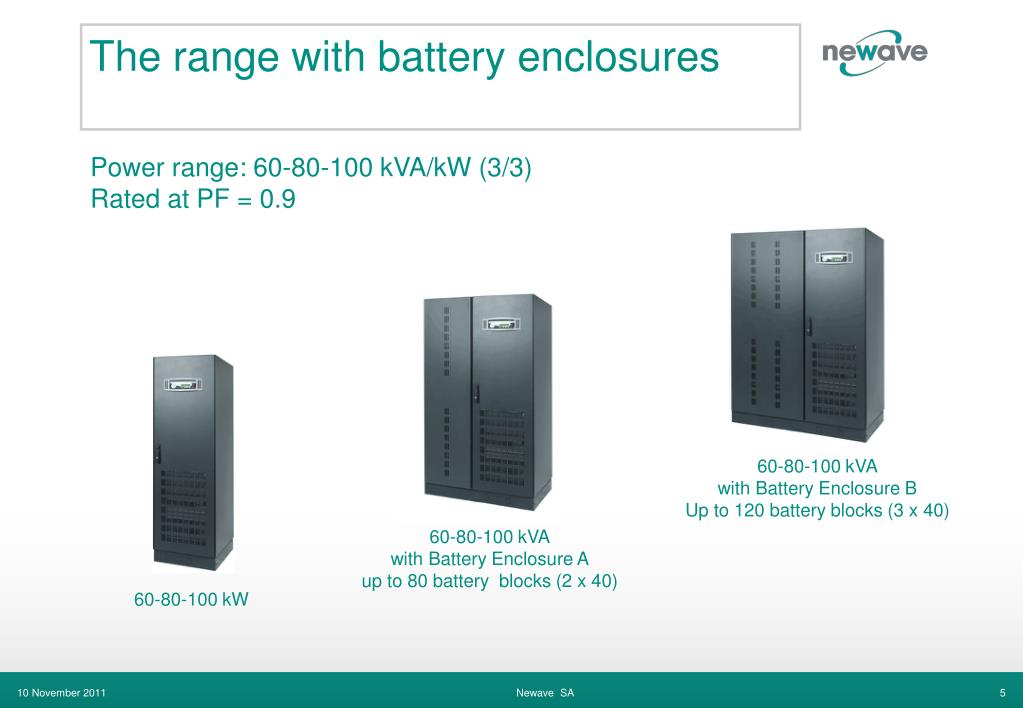

  5. 60-80-100 kVA with Battery Enclosure B Up to 120 battery blocks (3 x 40) 60-80-100 kVA with Battery Enclosure A up to 80 battery blocks (2 x 40) 60-80-100 kW The range with battery enclosures Power range: 60-80-100 kVA/kW (3/3) Rated at PF = 0.9 Newave SA

  6. PowerWave 33 • Design • Compactness • Type of ventilation • Battery’s enclosures and enhancement • Input electrical performances • Unmatched power performances • Efficiency • Full output active power kVA=kW Newave SA

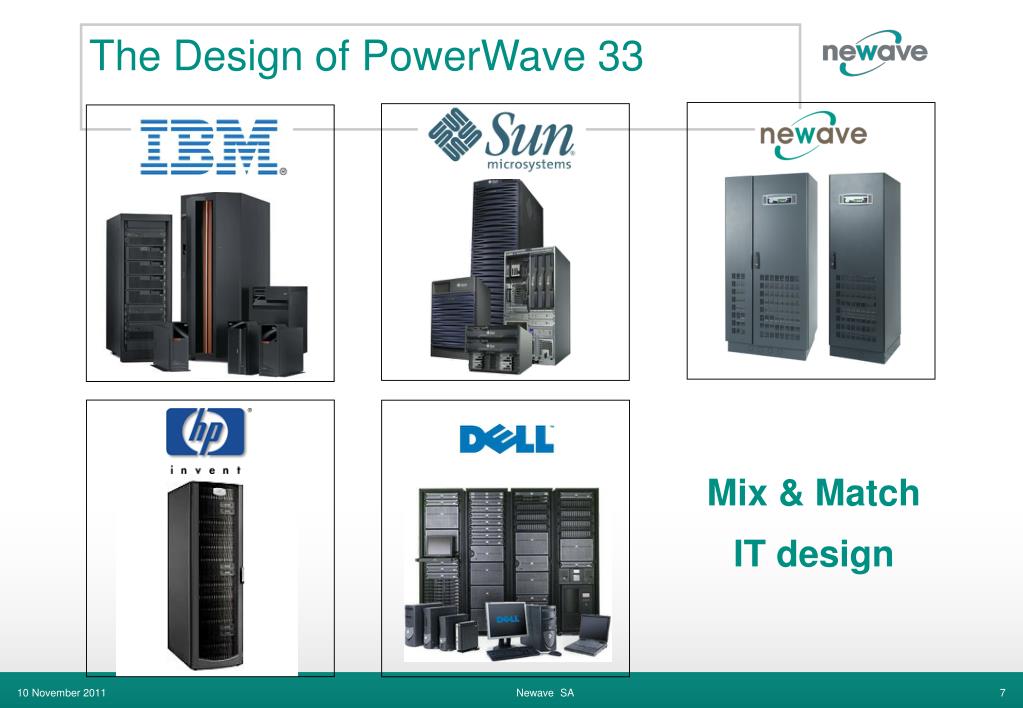

  7. The Design of PowerWave 33 Mix & Match IT design Newave SA

  8. The Design of PowerWave 33 Mix & Match Data Centre & technical room environment Newave SA

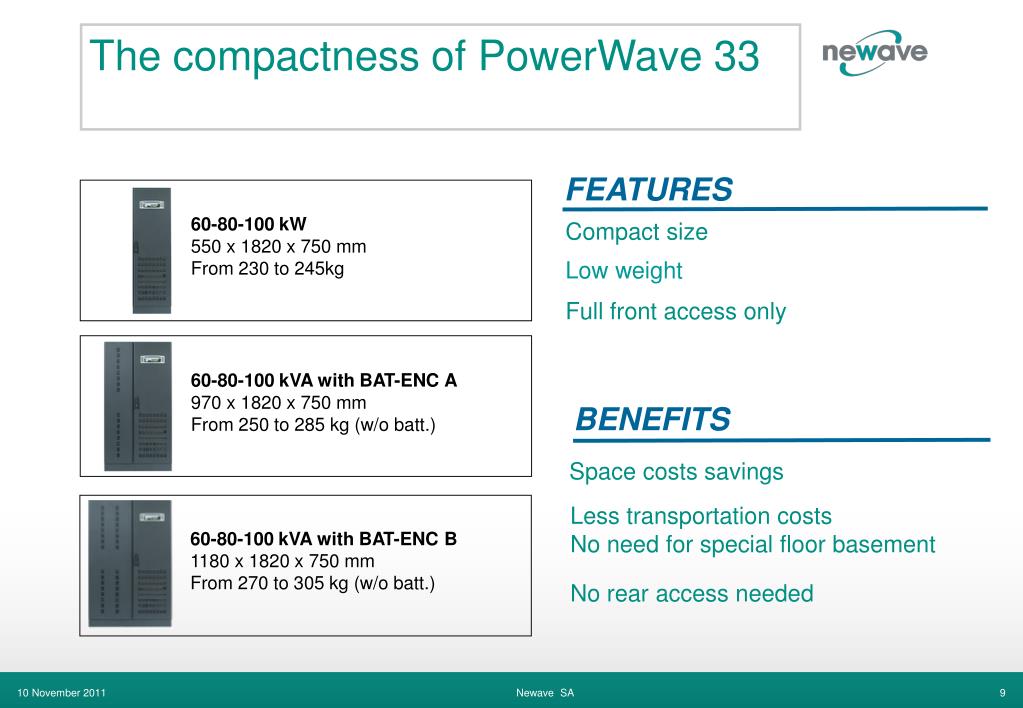

  9. The compactness of PowerWave 33 FEATURES Compact size 60-80-100 kW 550 x 1820 x 750 mm From 230 to 245kg Low weight Full front access only 60-80-100 kVA with BAT-ENC A 970 x 1820 x 750 mm From 250 to 285 kg (w/o batt.) BENEFITS Space costs savings Less transportation costs No need for special floor basement 60-80-100 kVA with BAT-ENC B 1180 x 1820 x 750 mm From 270 to 305 kg (w/o batt.) No rear access needed Newave SA

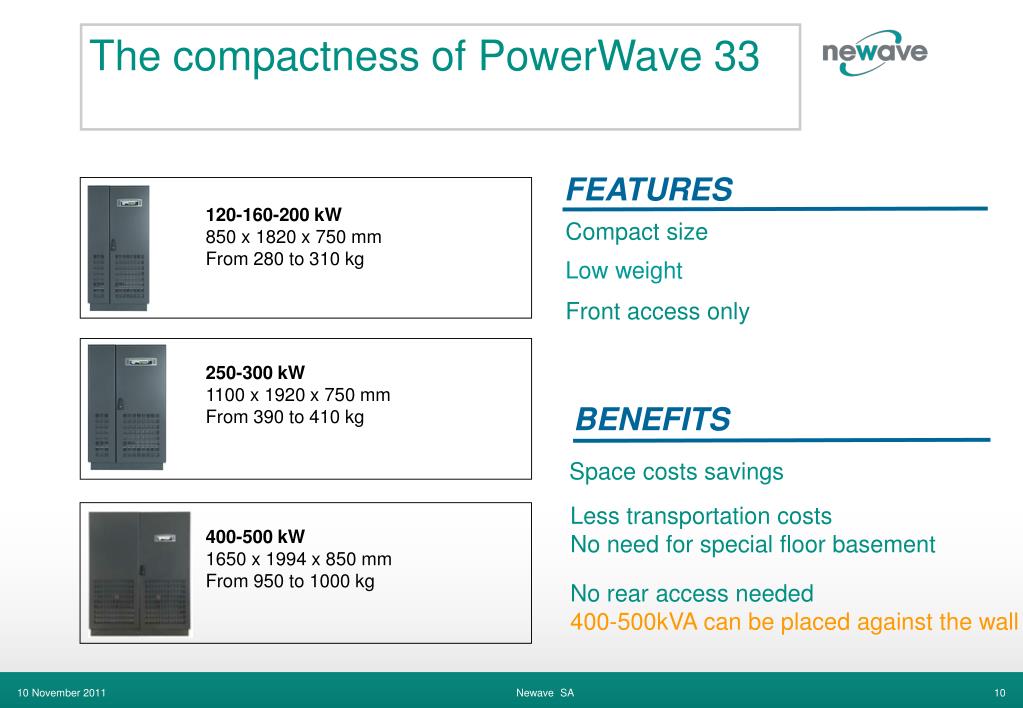

  10. The compactness of PowerWave 33 FEATURES 120-160-200 kW 850 x 1820 x 750 mm From 280 to 310 kg Compact size Low weight Front access only 250-300 kW 1100 x 1920 x 750 mm From 390 to 410 kg BENEFITS Space costs savings Less transportation costs No need for special floor basement 400-500 kW 1650 x 1994 x 850 mm From 950 to 1000 kg No rear access needed400-500kVA can be placed against the wall Newave SA

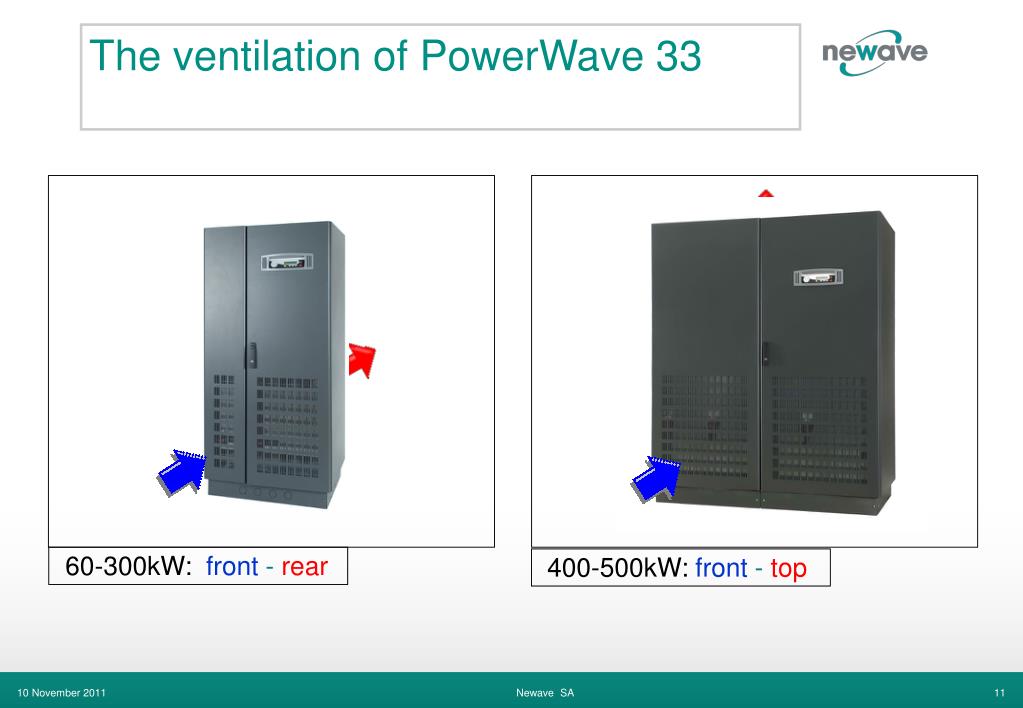

  11. The ventilation of PowerWave 33 60-300kW: front - rear 400-500kW: front - top Newave SA

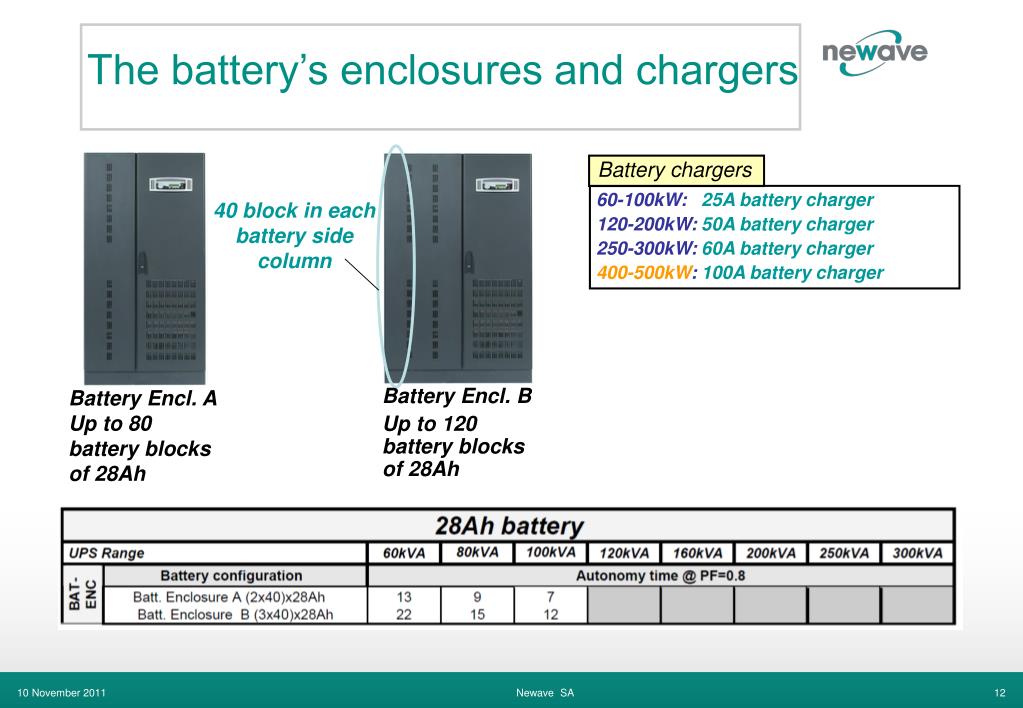

  12. The battery’s enclosures and chargers Battery chargers 60-100kW: 25A battery charger 120-200kW: 50A battery charger 250-300kW: 60A battery charger 400-500kW: 100A battery charger 40 block in each battery side column Battery Encl. AUp to 80 battery blocks of 28Ah Battery Encl. B Up to 120 battery blocks of 28Ah Newave SA

  13. Allowable battery blocks at full power 60-160kW: from 44 to 50 battery blocks 200kW: 50 battery Blocks 250-300kW: from 44 to 50 battery blocks 400-500kW:from 44 to 50 battery blocks Battery’s enhancement FEATURES Battery Ripple free through battery charger No battery operation during load jumpBattery temp. compensation (option) BENEFITS Flexibility for autonomy rating Increase of battery life expectancy Newave SA

  14. Input electrical performances FEATURES Wide input voltage range: 300-460V @ 100 % load (-25%/+15%) 280-460V @ 80% load (-30%/+15%) 240-460V @ <60 % load (-40%/+15%) Input Wide input frequency range: 35–70 Hz BENEFITS Less need for battery operationIncrease of battery expectance life Newave SA

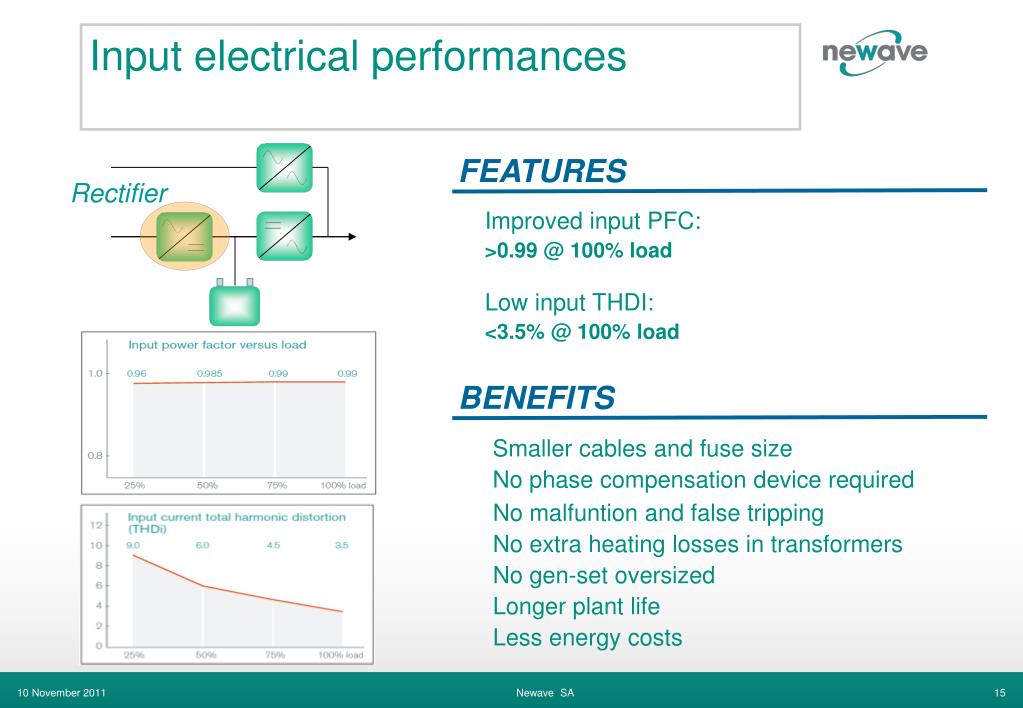

  15. Input electrical performances FEATURES Rectifier Improved input PFC:>0.99 @ 100% load Low input THDI:<3.5% @ 100% load BENEFITS Smaller cables and fuse sizeNo phase compensation device required No malfuntion and false trippingNo extra heating losses in transformersNo gen-set oversized Longer plant life Less energy costs Newave SA

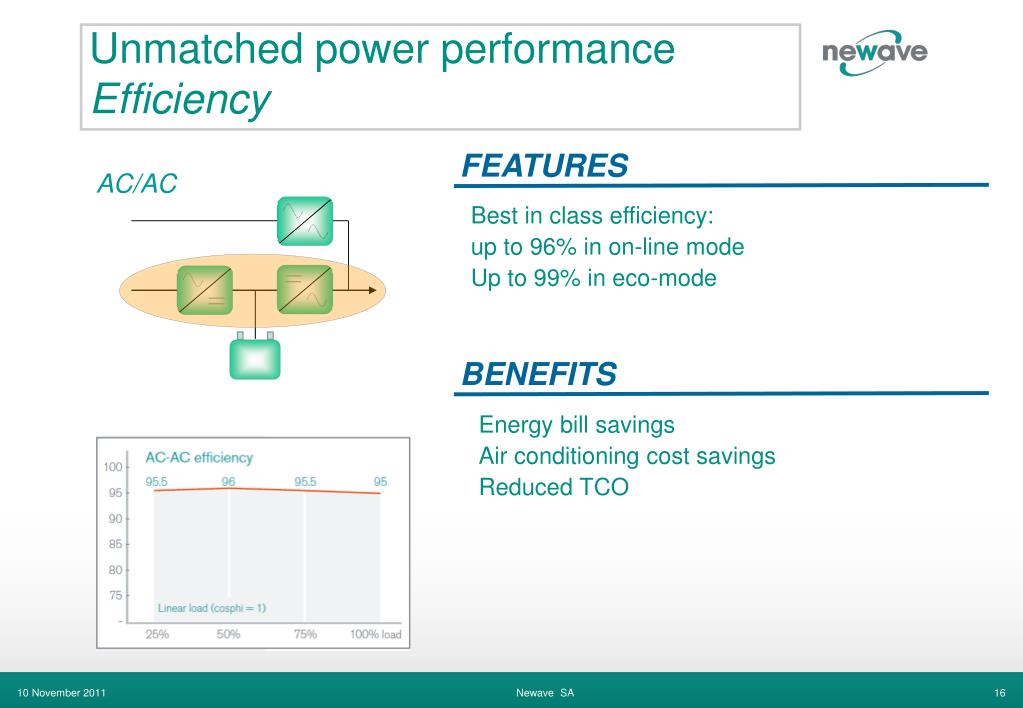

  16. Unmatched power performanceEfficiency FEATURES AC/AC Best in class efficiency:up to 96% in on-line mode Up to 99% in eco-mode BENEFITS Energy bill savingsAir conditioning cost savings Reduced TCO Newave SA

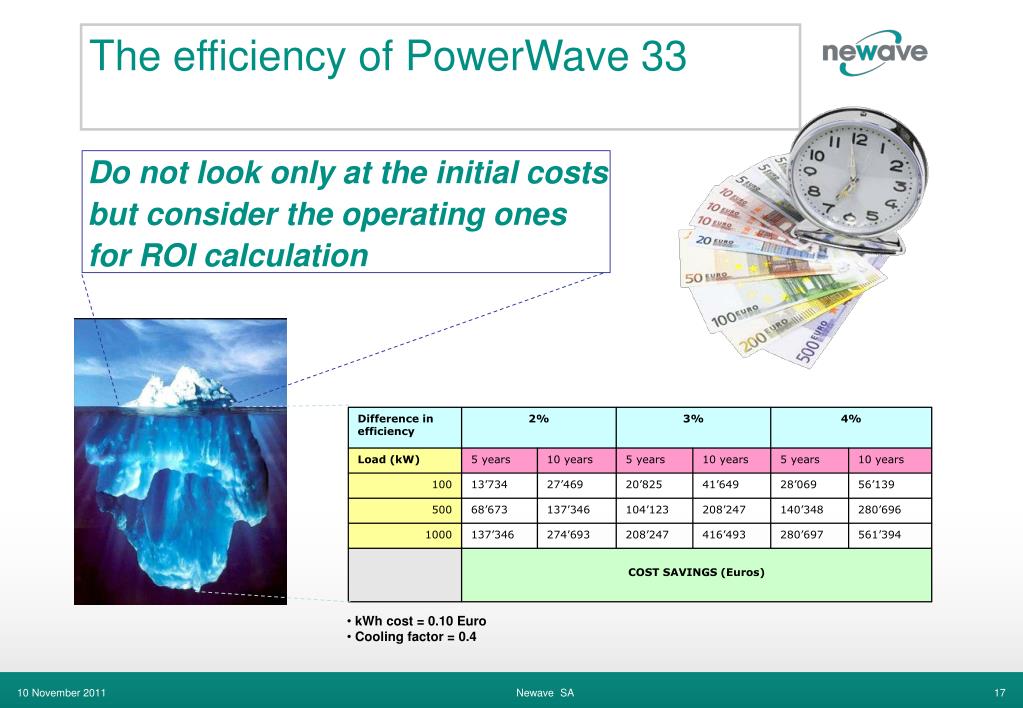

  17. Difference in efficiency 2% 3% 4% Load (kW) 5 years 10 years 5 years 10 years 5 years 10 years 100 13’734 27’469 20’825 41’649 28’069 56’139 500 68’673 137’346 104’123 208’247 140’348 280’696 1000 137’346 274’693 208’247 416’493 280’697 561’394 COST SAVINGS (Euros) • kWh cost = 0.10 Euro • Cooling factor = 0.4 The efficiency of PowerWave 33 Do not look only at the initial costs but consider the operating ones for ROI calculation Newave SA

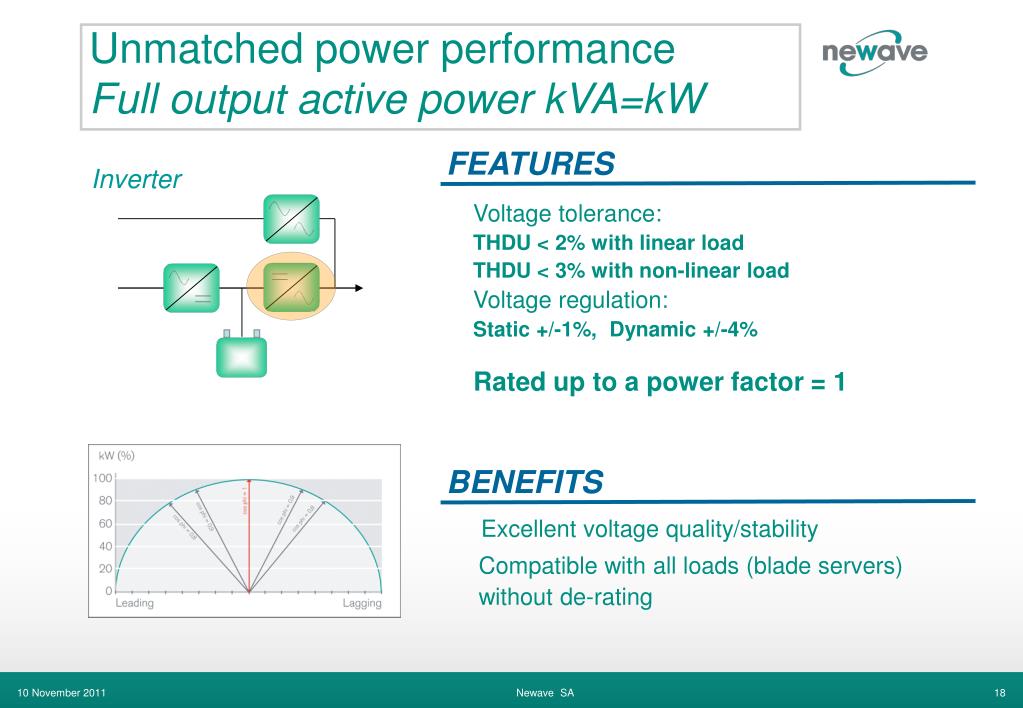

  18. Inverter Unmatched power performanceFull output active power kVA=kW FEATURES Voltage tolerance:THDU < 2% with linear loadTHDU < 3% with non-linear loadVoltage regulation:Static +/-1%, Dynamic +/-4% Rated up to a power factor = 1 BENEFITS Excellent voltage quality/stability Compatible with all loads (blade servers)without de-rating Newave SA

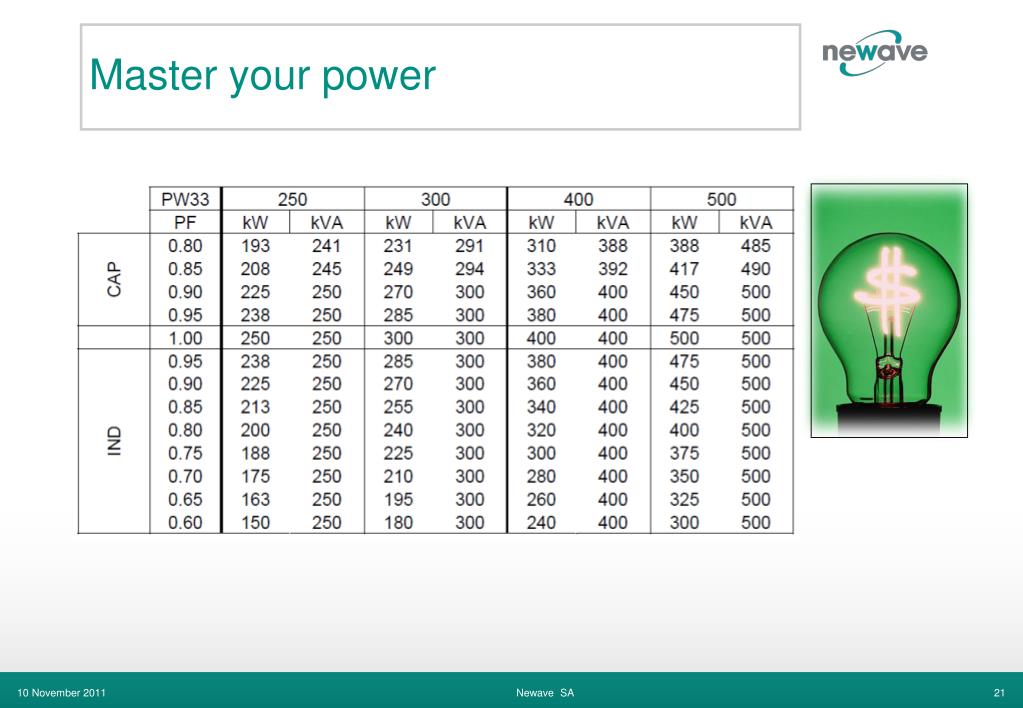

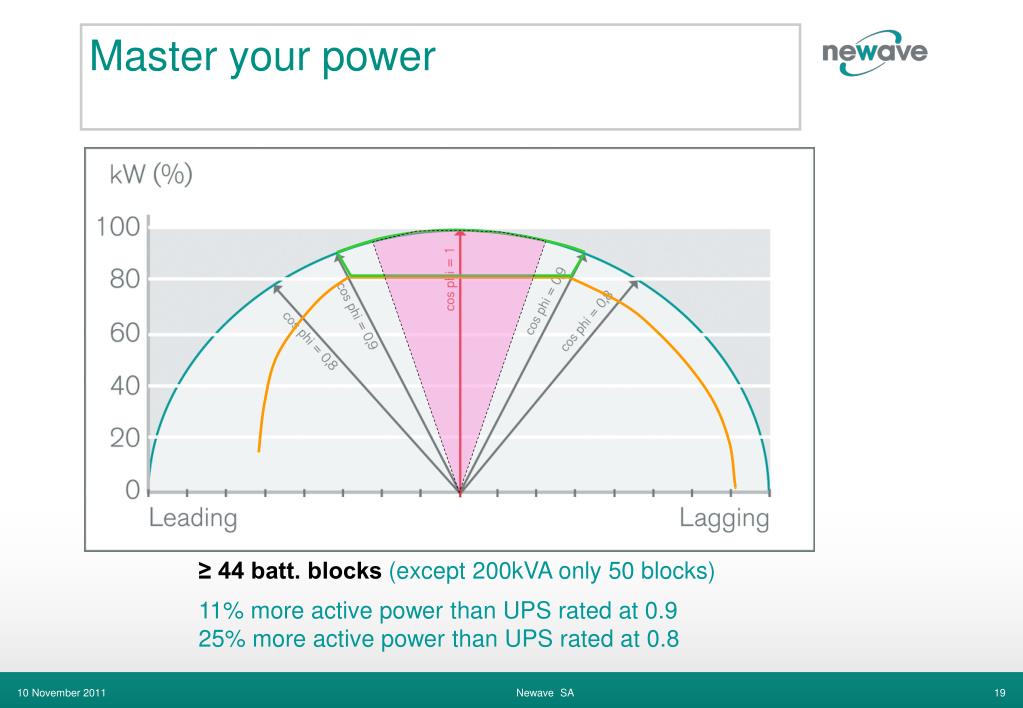

  19. Master your power ≥ 44 batt. blocks (except 200kVA only 50 blocks)11% more active power than UPS rated at 0.9 25% more active power than UPS rated at 0.8 Newave SA

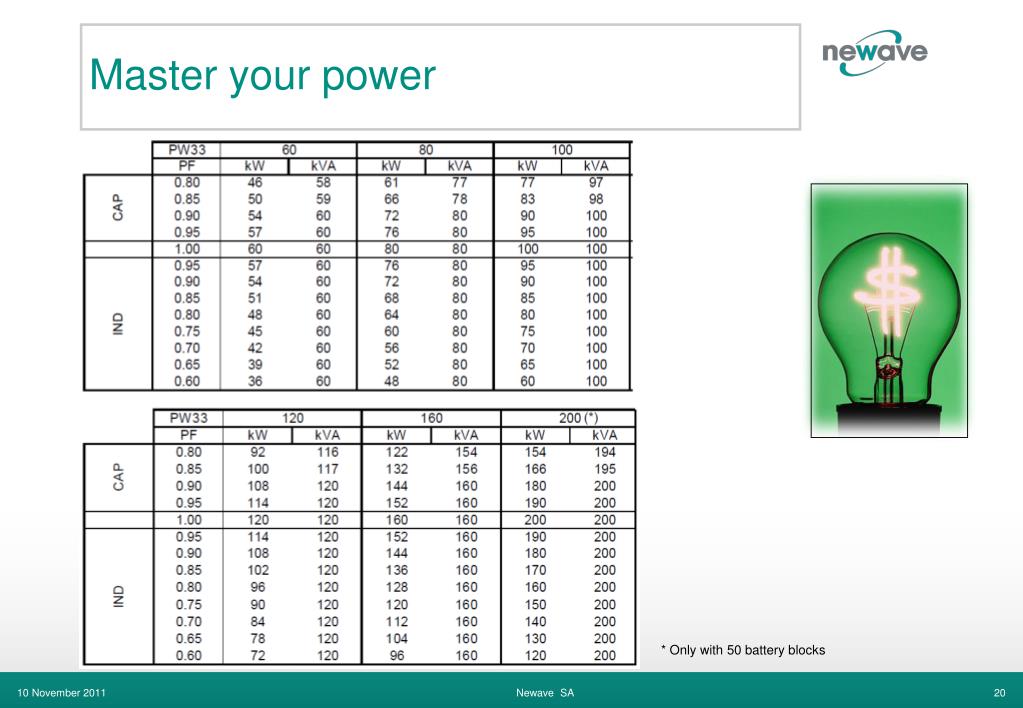

  20. Master your power * Only with 50 battery blocks Newave SA

  21. Master your power Newave SA

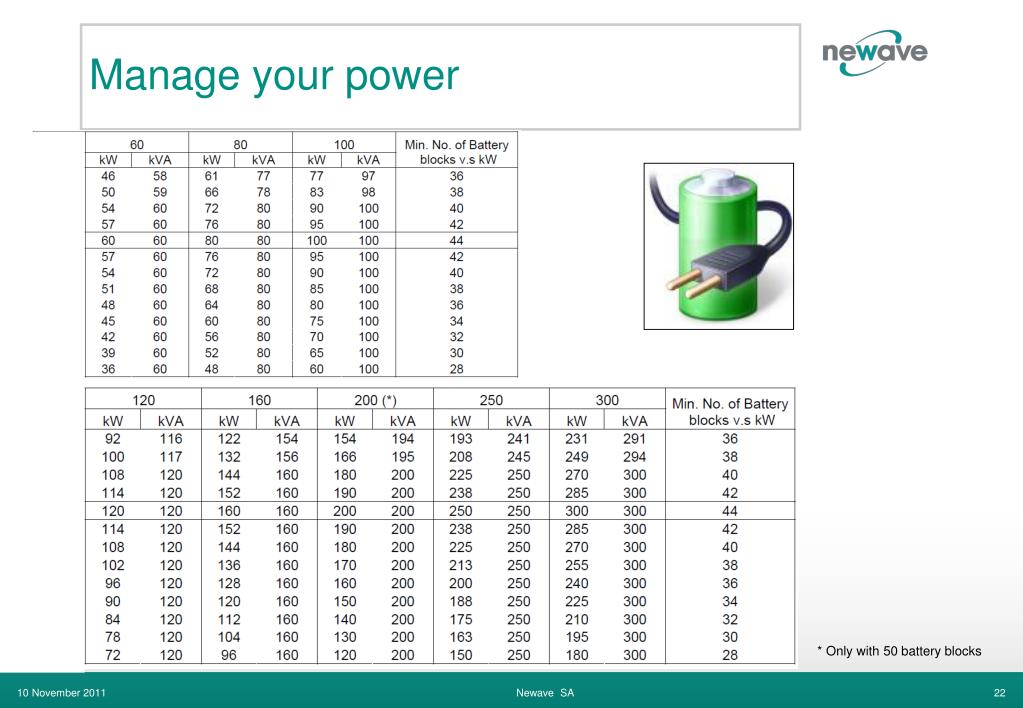

  22. Manage your power * Only with 50 battery blocks Newave SA

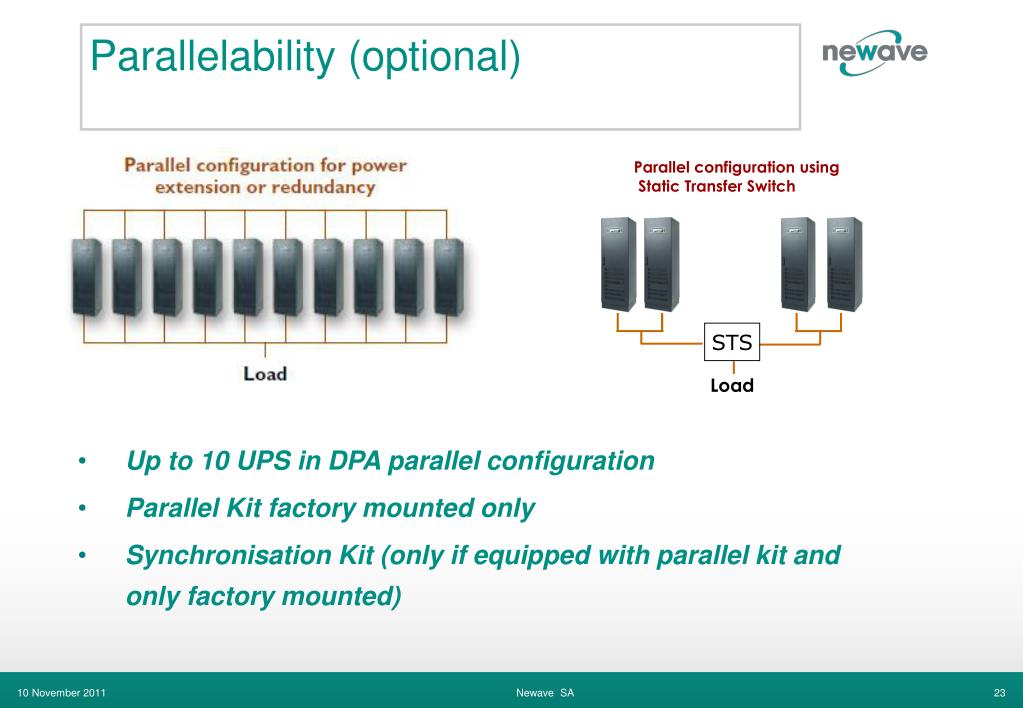

  23. Parallelability (optional) Parallel configuration using Static Transfer Switch STS Load • Up to 10 UPS in DPA parallel configuration • Parallel Kit factory mounted only • Synchronisation Kit (only if equipped with parallel kit and only factory mounted) Newave SA

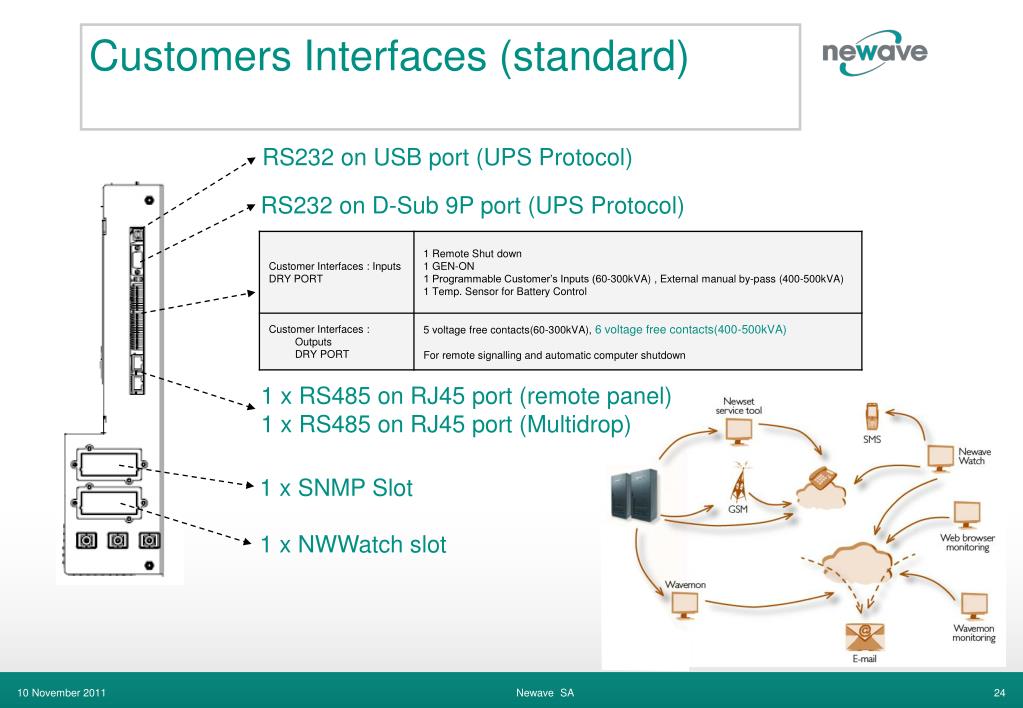

  24. Customers Interfaces (standard) RS232 on USB port (UPS Protocol) RS232 on D-Sub 9P port (UPS Protocol) 1 x RS485 on RJ45 port (remote panel)1 x RS485 on RJ45 port (Multidrop) 1 x SNMP Slot 1 x NWWatch slot Newave SA

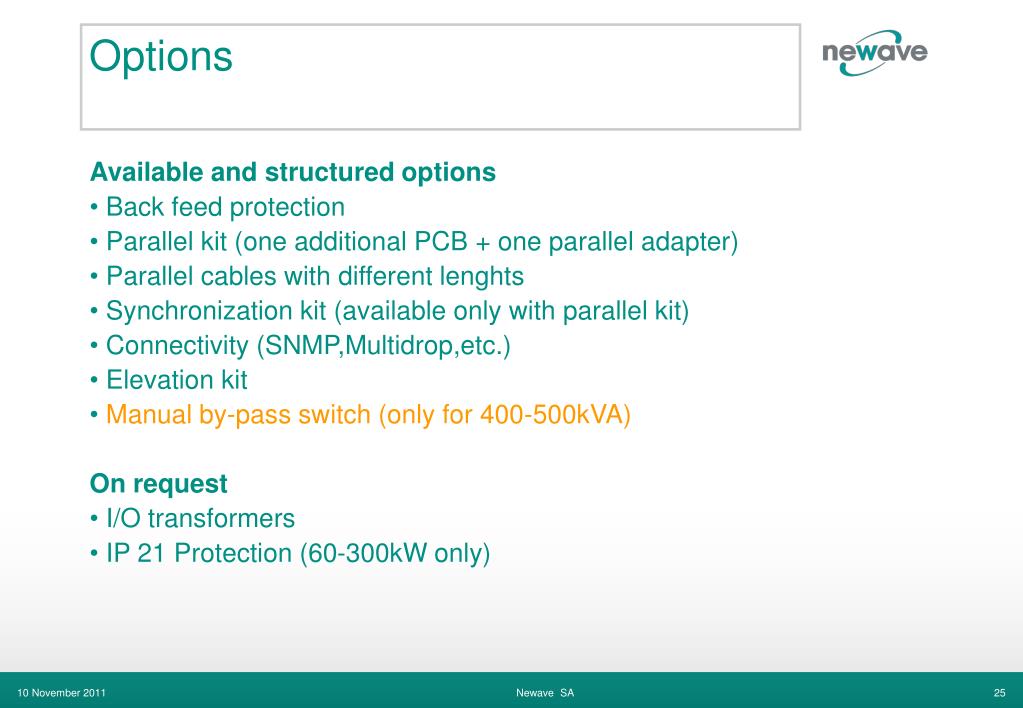

  25. Options • Available and structured options • Back feed protection • Parallel kit (one additional PCB + one parallel adapter) • Parallel cables with different lenghts • Synchronization kit (available only with parallel kit) • Connectivity (SNMP,Multidrop,etc.) • Elevation kit • Manual by-pass switch (only for 400-500kVA) • On request • I/O transformers • IP 21 Protection (60-300kW only) Newave SA

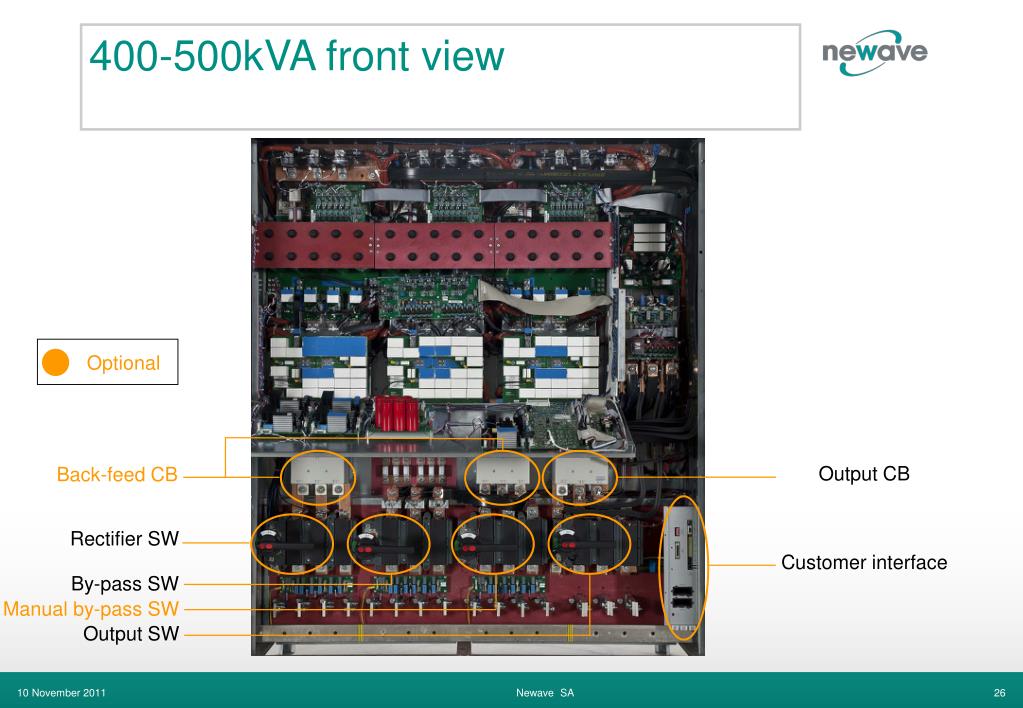

  26. 400-500kVA front view Optional Output CB Back-feed CB Rectifier SW Customer interface By-pass SW Manual by-pass SW Output SW Newave SA

  27. Certificate • Electrosuisse certificate Newave will get a performance certificate from ElectroSuisse for a 100–200–300-500kVA (independent institute comparable to TŰV) Newave SA

  28. Thank you for the attention Newave SA
