2013 OEC Refresher Station 2 – Self Guided Review

1. 2013 OEC RefresherStation 2 – Self Guided Review

2. Two Part Review • Section One: START Triage System • Section Two: Triage Tag Completion

3. START Triage System Simple Triage And Rapid Treatment Prepared By Ken Young ; Office of Education and Certification - MIEMSS - 1999

4. START • Rapid approach to triaging large numbers of causalities • Initial patient assessment and treatment should take less than 30 seconds for each patient • Easy to remember • START right where you are. At the first patient you come to, not the worst patient you may see.

5. START • First - clear the walking wounded using verbal instructions. • Direct them to the treatment areas for detailed assessment and treatment • Tag These as MINOR • Now check your RPMs

6. START RPM • Respiration's • None - Open the Airway • Still None? - DECEASED • Restored?-IMMEDIATE • Present? • Above 30 - IMMEDIATE • Below 30 - CHECK PERFUSION

7. START RPM • Perfusion • Radial Pulse Absent or Capillary Refill > 2 secs IMMEDIATE • Radial Pulse Present or Capillary Refill <2 secsCHECK MENTAL STATUS

8. START RPM • Mental Status • Can Not Follow Simple Commands (Unconscious or Altered LOC)IMMEDIATE • Can Follow Simple CommandsDELAYED

9. START Exceptions: * Co- Workers * Emotional Disorder (uncontrollable) Both above get automatically labeled as IMMEDIATE

10. START If patient is immediate - priority 1 upon initial assessment, attempt to correct airway blockage or uncontrolled bleeding only before moving on to next patient.

11. START The START process permits a very few rescuers to rapidly triage a large number of patients without specialized training. ONLY After patients are moved to treatment areas where more detailed assessment and treatment are conducted.

12. START • When things get hectic with multiple patients rev up your RPM’s. • R - Respiration - 30 • P - Perfusion - 2 • M - Mental status - CAN do “30 – 2 – CAN do”

13. Section Two:Triage Tags • Rip off numbered Triage Status • Body Diagram • Vitals / AVPU • Patient Name • Notes/ Treatment • Transport Record • On back : Injury / Chief Complaint

14. Triage Status Section • Perforated Tabs to rib off to correct Pt. status. • Remove the upper tabs that are not appropriate for this Pt. Thus, the top off the existing tag shows the color status for this Pt. condition. • If Pt. status deteriorates can rip off to next status. • Note: Each tag is sequentially number to track all Patients

15. Diagram - Chief Complaint Section • Major obvious injuries or illness should be checked off on body part of Human Figure for quick reference on front of Tag. • More detail description to be written in on back of tag. • Multiple injuries - mark figure with “A” “B” and “C” to cross reference description details on back.

16. Vitals - APVU • Initial Triage to include Time, Pulse, Resp. and AVPU. • Balance of items can be filled at time of treatment or second triage.

17. Patient Information Section • Again, during MCIs this information is not always obtainable. • Some information is not a priority, can be added throughout triage, treatment, transportation, and hospital reception phases. Jim-Bob Rumplestillskin

18. Notes / Treatment • Pertinent items such as SAMPLE and other history. • Any treatment done on this patient with time. Please write legible and small as notes will invariably added by others at a later date. • Additional sets of vital can also be recorded here.

19. Transportation Record Section (front) • Detachable by tear-off bottom of ticket • Used to document patients removed from the scene to a hospital or other facility • Make certain unit, Injury, priority, depart time and destination is marked. Use the column with the appropriate priority color to write in the information. HOSP NOTIFIED

20. Transportation Record Section (back) • On the back of the tag that you detached has additional comments section. Fill in pertinent information and treatment to date. • Transportation record to be given to Transportation officer so he/she can track and log every tag number (Patient). HOSP NOTIFIED

21. Injuries – Chief Complaint • Notes of injuries to Patient. • Fill in the under the appropriate Triage (color) you have assigned. • Written notes here should match what you have checked of on the human diagram on the front.

22. PROGRAM SUMMARY • Triage tag allows for continuous: • Triage assessments of patient • Patient information recording • Patient accountability & tracking

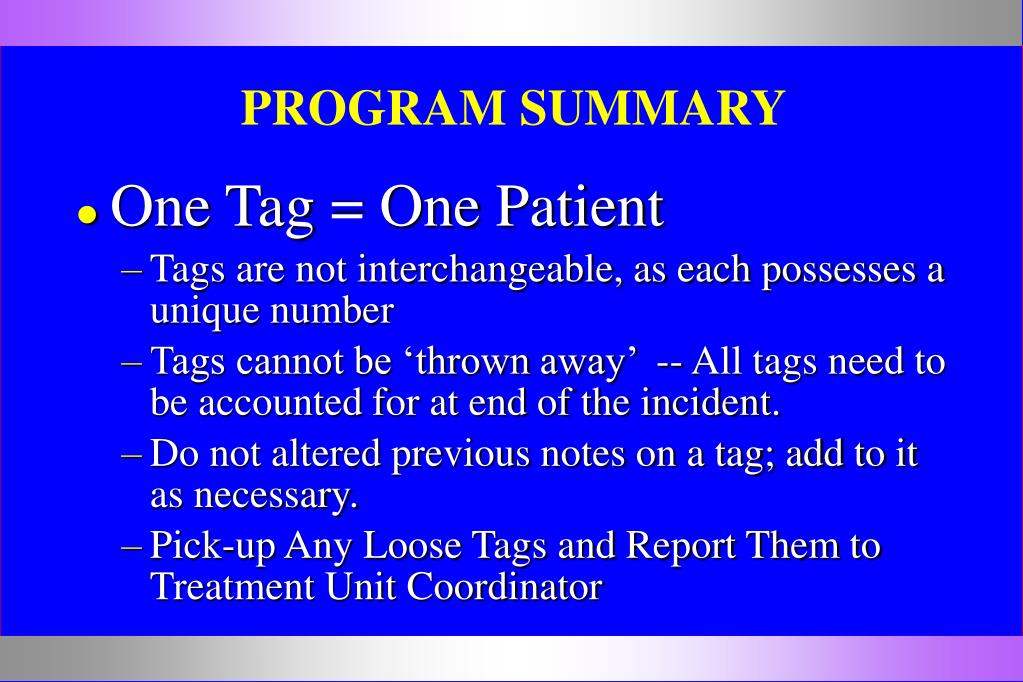

23. PROGRAM SUMMARY • One Tag = One Patient • Tags are not interchangeable, as each possesses a unique number • Tags cannot be ‘thrown away’ -- All tags need to be accounted for at end of the incident. • Do not altered previous notes on a tag; add to it as necessary. • Pick-up Any Loose Tags and Report Them to Treatment Unit Coordinator

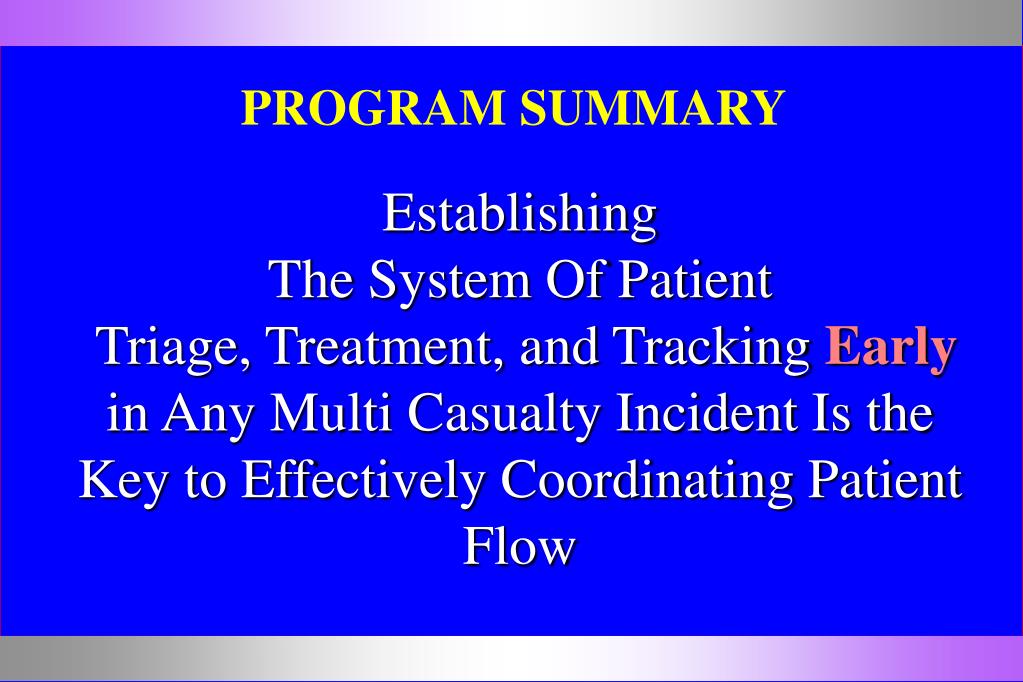

24. PROGRAM SUMMARY Establishing The System Of Patient Triage, Treatment, and TrackingEarly in Any Multi Casualty Incident Is the Key to Effectively Coordinating Patient Flow

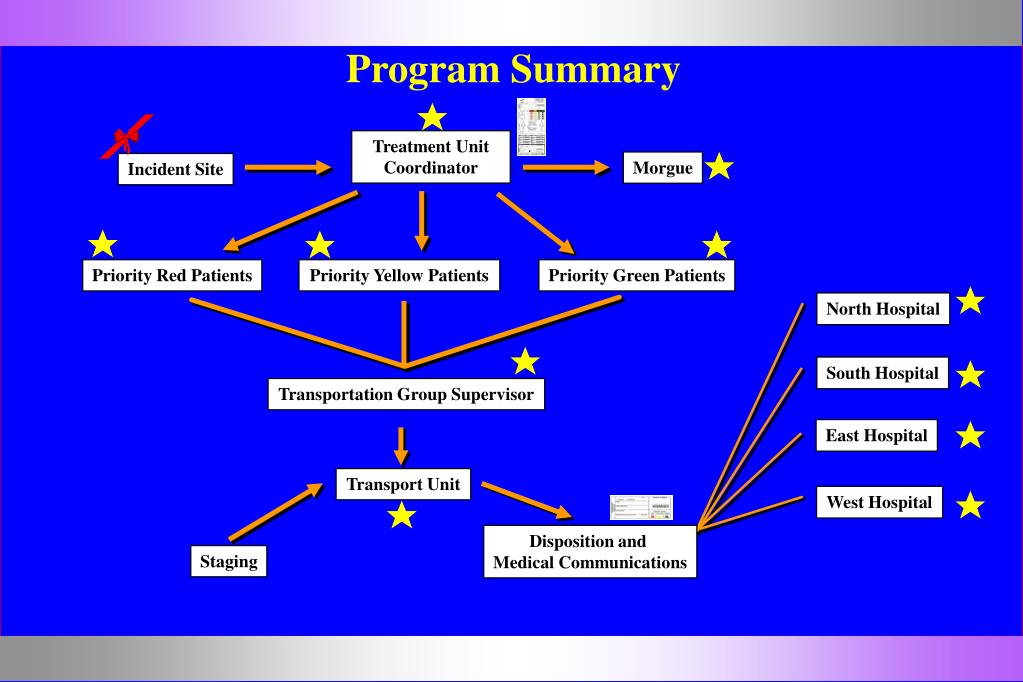

25. Treatment Unit Coordinator Morgue Incident Site Priority Red Patients Priority Yellow Patients Priority Green Patients North Hospital South Hospital Transportation Group Supervisor East Hospital Transport Unit West Hospital Disposition and Medical Communications Staging Program Summary

26. Perfect Practice Makes Perfect Practice the Use of These Procedures in Mock Situations, Before You Really Need It
