  1. ASP.NET Architecture

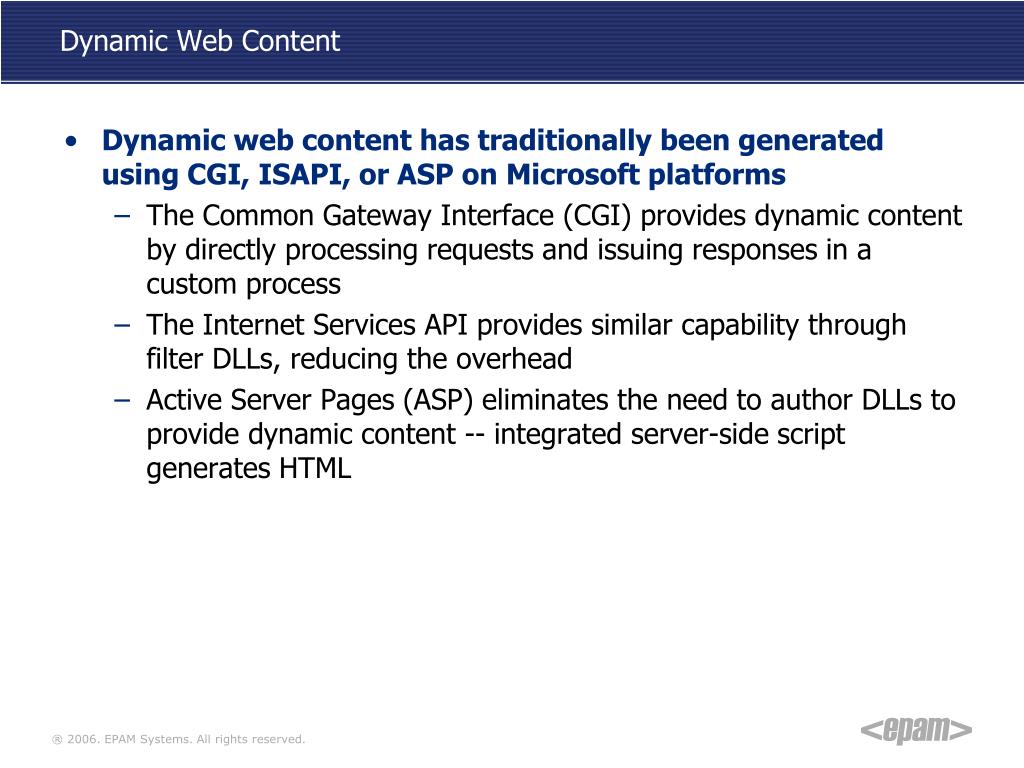

  2. Dynamic Web Content • Dynamic web content has traditionally been generated using CGI, ISAPI, or ASP on Microsoft platforms • The Common Gateway Interface (CGI) provides dynamic content by directly processing requests and issuing responses in a custom process • The Internet Services API provides similar capability through filter DLLs, reducing the overhead • Active Server Pages (ASP) eliminates the need to author DLLs to provide dynamic content -- integrated server-side script generates HTML

  3. ASP • Active Server Pages (ASP) simplify common tasks ISAPI DLLs were being used for • ASP was introduced because web developers were building ISAPI extension DLLs to perform things like database queries and posting back HTML • Each different type of request required a new ISAPI extension DLL to be written • ASP.DLL is a generic ISAPI DLL that reads .ASP files, parses and executes server side script blocks, and serves up result

  4. ASP.NET == ASP.NExTversion • ASP.NET is an evolution of the ASP and is just the next version of ASP • Same intrinsic objects available • Script and html can be mixed • Some ASP code can be ported with no changes • Server-side Javascript is still supported

  5. Sample ASP file test.asp server-side directive <%@ language=javascript %> <scriptlanguage='JScript'runat='server'> function Add(x, y) { return x+y; } </script> <html><body> <h1>Test ASP Page</h1> <h2>2+2=<%=Add(2,2)%></h2> <tableborder='2'> <% for (var i=0; i<10; i++) { %> <tr><td>Row<%=i%> Col0</td><td>Row<%=i%> Col1</td></tr> <% } %> </table> <% Response.Write("<h2>Written directly to Response</h2>"); %> </body></html> <%@ language=javascript %> server-side function server-side evaluation syntax <% %> <% %> <% %> <% %> <% %> interspersed server-side script <% %>

  6. Fundamental change • ASP.NET is more than just the next version of ASP • Pages are compiled into assemblies improving performance and diagnostics • Code-behind encourages better separation of code from HTML • Extensible, server-side control architecture • Server-side data binding model • Form validation architecture • Web services allow assemblies to expose themselves as SOAP servers

  7. Sample ASP.NET file test.aspx server-side directive <%@ Page Language='C#' %> <scriptrunat="server"> int Add(int x, int y) { return x+y; } </script> <html><body> <h1>Test ASP.NET Page</h1> <h2>2+2=<%=Add(2,2)%></h2> <tableborder="2"> <% for (int i=0; i<10; i++) { %> <tr><td>Row<%=i%> Col0</td><td>Row<%=i%> Col1</td></tr> <% } %> </table> <% Response.Write("<h2>Written directly to Response</h2>"); %> </body></html> <%@ Page Language='C#' %> server-side function server-side evaluation syntax <% %> <% %> <% %> <% %> <% %> interspersed server-side script <% %>

  8. What is ASP.NET? • At a high level, ASP.NET is a collection of .NET classes that collaborate to process an HTTP request and generate an HTTP response • Some classes are loaded from system assemblies • Some classes are loaded from GAC assemblies • Some classes are loaded from local assemblies • To work with ASP.NET, you must build your own classes that integrate into its existing class structure • Some of your classes will be in pre-built assemblies • Some of your classes will be in assemblies generated implicitly from ASP.NET files (aspx, ashx, asmx, ...)

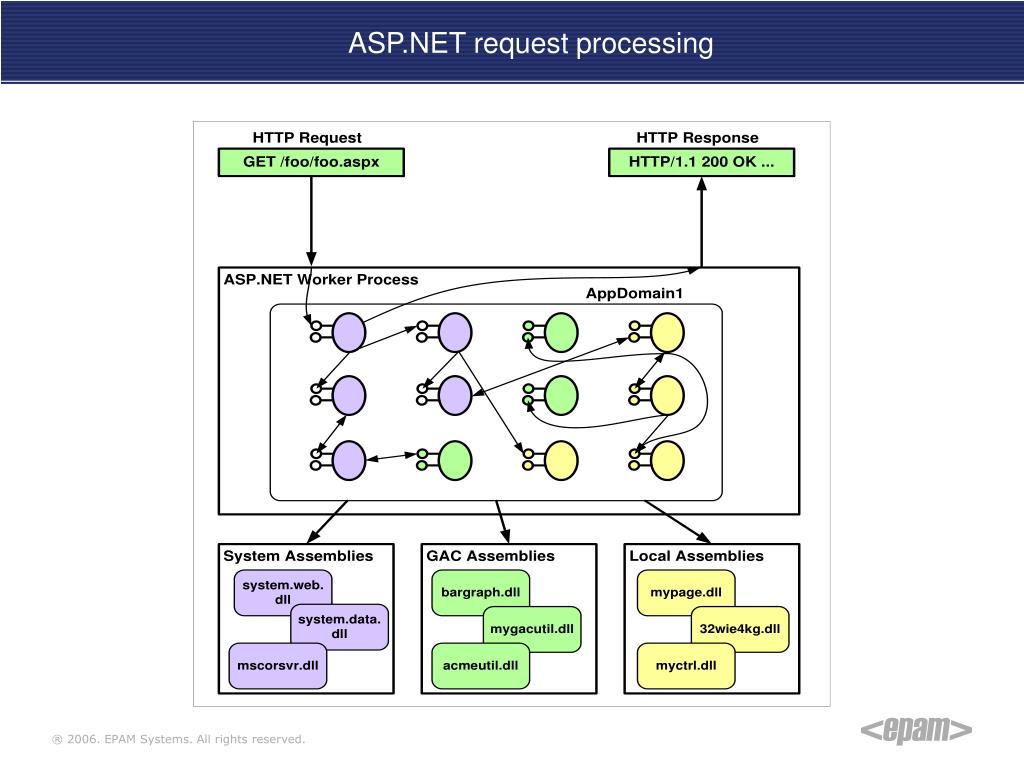

  9. ASP.NET request processing

  10. Pipeline architecture • ASP.NET uses the CLR to replace IIS's ISAPI/ASP architecture • User-defined handler objects used to dispatch HTTP requests • Requests dispatched through ASP.NET-provided ISAPI extension (aspnet_isapi.dll) • Handlers run in an ASP.NET-provided worker process (aspnet_wp.exe in IIS 5, w3wp.exe in IIS 6) • Many IIS features bypassed in favor of ASP.NET-provided features (WAM-based process isolation, ASP object model, and session management)

  11. HttpPipeline architecture (IIS 5.0) GET /foo/foo.aspx HTTP/1.1 200 OK ... Web Server (Win2000, XP) named pipe connection aspnet_wp.exe (ASP.NET Worker Process) IHttpHandler handler aspnet_isapi.dll (ISAPI Extension) INETINFO.EXE (IIS 5.0)

  12. HttpPipeline architecture (IIS 6.0) Web Server (Win Server 2003) Application Pool #1 Application Pool #2 w3wp.exe (ASP.NET Worker Process) w3wp.exe (ASP.NET Worker Process) IHttpHandler IHttpHandler handler handler aspnet_isapi.dll (ISAPI Extension) aspnet_isapi.dll (ISAPI Extension) kernel http.sys GET /foo/foo.aspx HTTP/1.1 200 OK ...

  13. Compilation vs. Interpretation • When ASP.NET pages are first accessed, they are compiled into assemblies • Subsequent access loads the page directly from the assembly • Eliminates inefficiencies of the scripting model of ASP • No performance difference between compiled components and embedded server-side code • Debugging tools shared with all .NET development • Whenever you author a new .aspx file, you are authoring a new class

  14. Page compilation • Every ASP.NET page is compiled into an assembly on first access • The generated assembly contains a single class that derives from System.Web.UI.Page • The generated Page-derived class is the file name of the page, replacing the "." with a "_" (like foo_aspx) • The generated assembly is stored in the 'Temporary ASP.NET Files' directory on the server machine

  15. ASP.NET Page Compilation

  16. ASP.NET basics • Each ASP.NET page is parsed and compiled into a class that extends System.Web.UI.Page • Page class implements IHttpHandler • A lot of the Page class is dedicated to forms/control processing • Exposes HttpContext properties as own properties

  17. .aspx type information

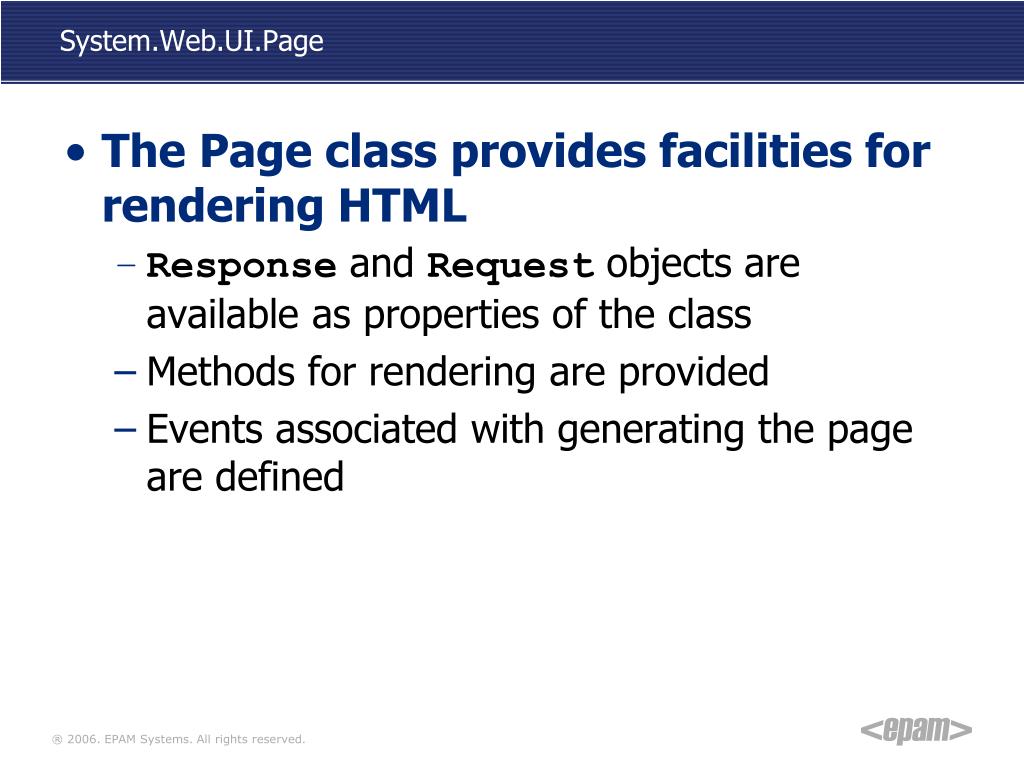

  18. System.Web.UI.Page • The Page class provides facilities for rendering HTML • Response and Request objects are available as properties of the class • Methods for rendering are provided • Events associated with generating the page are defined

  19. System.Web.UI.Page - 1 class Page : TemplateControl, IHttpHandler { // State management publicHttpApplicationState Application {get;} publicHttpSessionState Session {virtualget;} public Cache Cache {get;} // Intrinsics publicHttpRequest Request {get;} publicHttpResponse Response {get;} publicHttpServerUtility Server {get;} publicstringMapPath(stringvirtualPath); // Client information publicstringClientTarget {get; set;} publicIPrincipal User {get;} //... }

  20. System.Web.UI.Page - 2 class Page : TemplateControl, IHttpHandler { // Core publicUserControlLoadControl(stringvirtualPath); publicvirtualControlCollection Controls {get;} publicoverridestring ID { get; set;} publicboolIsPostBack {get;} protectedvirtualvoid RenderControl(HtmlTextWriter writer); // Events publiceventEventHandler Init; publiceventEventHandler Load; publiceventEventHandlerPreRender; publiceventEventHandler Unload; //... }

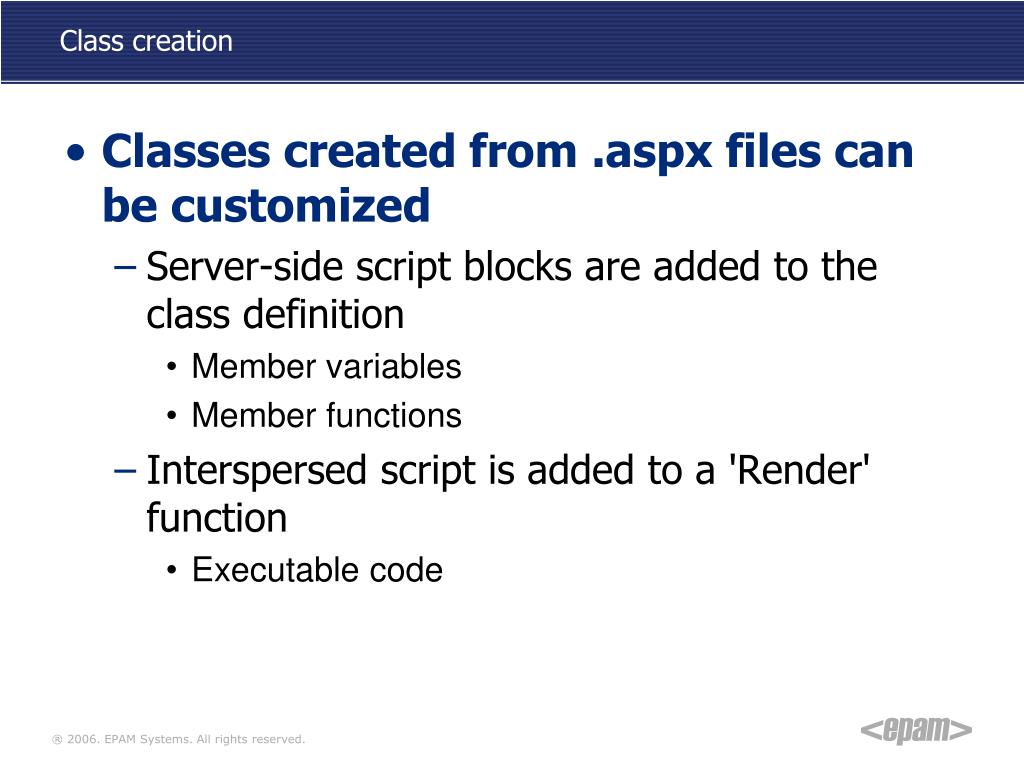

  21. Class creation • Classes created from .aspx files can be customized • Server-side script blocks are added to the class definition • Member variables • Member functions • Interspersed script is added to a 'Render' function • Executable code

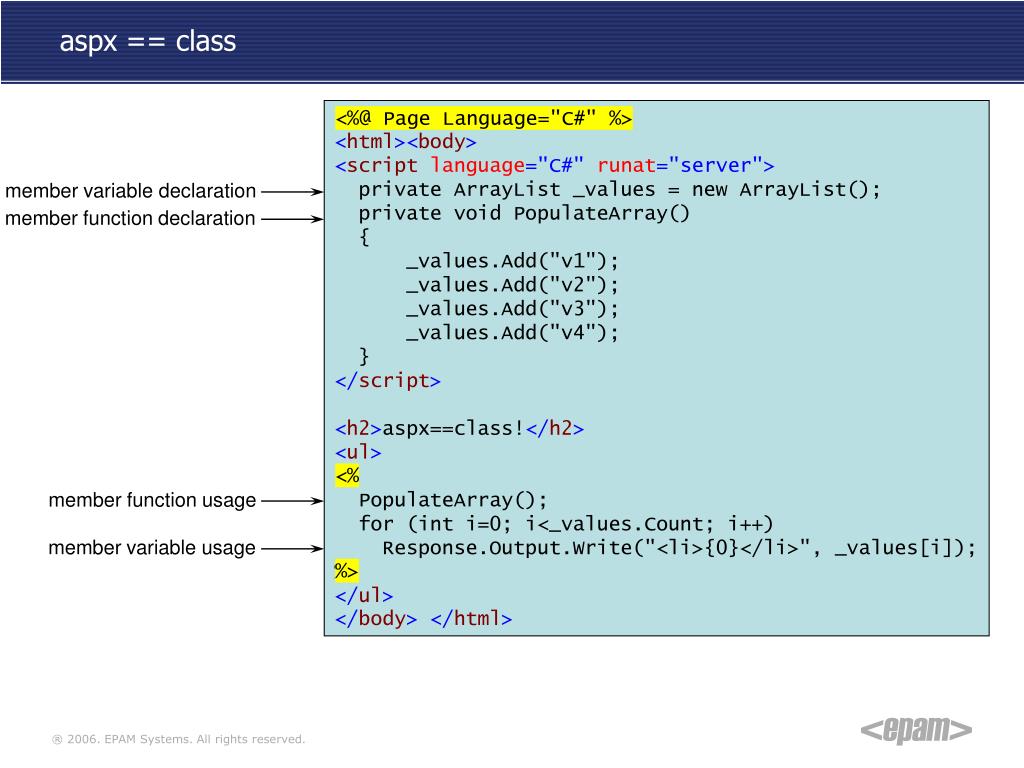

  22. aspx == class <%@ Page Language="C#" %> <html><body> <scriptlanguage="C#"runat="server"> private ArrayList _values = new ArrayList(); private void PopulateArray() { _values.Add("v1"); _values.Add("v2"); _values.Add("v3"); _values.Add("v4"); } </script> <h2>aspx==class!</h2> <ul> <% PopulateArray(); for (int i=0; i<_values.Count; i++) Response.Output.Write("<li>{0}</li>", _values[i]); %> </ul> </body></html> <%@ Page Language="C#" %> member variable declaration member function declaration <% member function usage member variable usage %>

  23. Server-side code placement in page compilation

  24. Code behind • In addition to customizing the generated Page class using embedded code, ASP.NET supports page inheritance • Technique of Page inheritance is called code-behind • Supported through the Inherits attribute of the Page directive • Promotes separation of code and presentation • Code-behind files can be pre-compiled and placed in a directory named /bin at the top level of the application • Code-behind files can be compiled on demand using the src attribute of the Page directive

  25. Sample aspx file with code behind <%@ Page Language="C#" Inherits="EssentialAspDotNet.Architecture.SamplePage"%> <html><body> <h2>aspx==class!</h2> <ul> <% WriteArray(); %> </ul> </body></html> <%@ Page Language="C#" Inherits="EssentialAspDotNet.Architecture.SamplePage"%> <% %>

  26. Sample code-behind file - SamplePage.cs namespace EssentialAspDotNet.Architecture { publicclass SamplePage : Page { private ArrayList _values = new ArrayList(); public SamplePage() { _values.Add("v1"); _values.Add("v2"); _values.Add("v3"); _values.Add("v4"); } protectedvoid WriteArray() { for (int i=0; i<_values.Count; i++) Response.Output.Write("<li>{0}</li>", _values[i]); } } }

  27. Class hierarchy created using code behind

  28. Using src attribute to automatically compile code behind file <%@ Page Language="C#" src="SampleCodeBehind.cs" Inherits="EssentialAspDotNet.Architecture.SamplePage"%> <html><body> <h2>aspx==class!</h2> <ul> <% WriteArray(); %> </ul> </body></html> <%@ Page Language="C#" src="SampleCodeBehind.cs" Inherits="EssentialAspDotNet.Architecture.SamplePage"%> <% %>

  29. Shadow Copying • All assemblies in the /bin directory are shadow copied • Placing assemblies in /bin makes them available to all pages in that application • These assemblies are not referenced directly by ASP.NET • Instead they are copied to an obscure location prior to loading • If the original file ever changes, the file is re-copied • Enables xcopy deployment

  30. Shadow copy mechanism used by ASP.NET

  31. ASP->ASP.NET Migration • Several options for migrating 'classic' ASP applications • Run ASP side-by-side with ASP.NET, developing new pages/apps in ASP.NET • Quickest path, but session and application state is not shared • Convert existing ASP pages to ASP.NET (but keep using old libraries - ADO and msxml) • Access to COM libraries incurs interop boundary crossing • Convert existing ASP pages to ASP.NET with new libraries (ADO.NET and System.XML)

  32. Converting ASP pages to ASP.NET • Some pages can be converted by simply renaming to .aspx • Most pages will need some 'touch up' • Many directives have been changed (or removed) • VBScript is not directly supported (must be VB.NET) • COM object interaction may require ASPCOMPAT mode • Code block placement different in ASP.NET

  33. Updating directives from ASP->ASP.NET • Several directives in ASP are no longer supported • <% option explicit %> • <%@ language="vbscript" %> • Instead, use equivalent ASP.NET directives/attributes • <%@ Page Language="VB" Explicit="true" %>

  34. Not VBScript = VB.NET • Many language changes mean VBScript code needs to be updated • VB.NET doesn't support default properties objRS("au_fname") => objRS.Fields("au_fname") • IsNull won't work when testing DB results IsNull(dbField) => IsDBNull(dbField) • Let and Set are no longer supported Set obj = CreateObject("xx") => obj = CreateObject("xx") • Date() is no longer an expression (it is a type) Date() => DateTime.Now • Parameters must be passed within parentheses Response.Write "hi" => Response.Write("hi")

  35. Interacting with COM • By default, ASP.NET applications will run in an MTA thread when accessing COM objects through interop • Many classic ASP components are STA-threaded which means that all calls incur a thread-switch • Avoid this by using the AspCompat attribute <%@ Page AspCompat="true" %>

  36. Summary • ASP.NET is an evolution of dynamic web page generation techniques • All pages in ASP.NET are compiled assemblies • Code-behind is a useful technique for separating code logic from presentation • Shadow copying enables 'xcopy' deployment • Migrating ASP applications typically requires some explicit conversion on your part
