  1. Data-Intensive Computing: From Clouds to GPUs Gagan Agrawal

  2. Motivation • Growing need for analysis of large scale data • Scientific • Commercial • Data-intensive Supercomputing (DISC) • Map-Reduce has received a lot of attention • Database and Datamining communities • High performance computing community

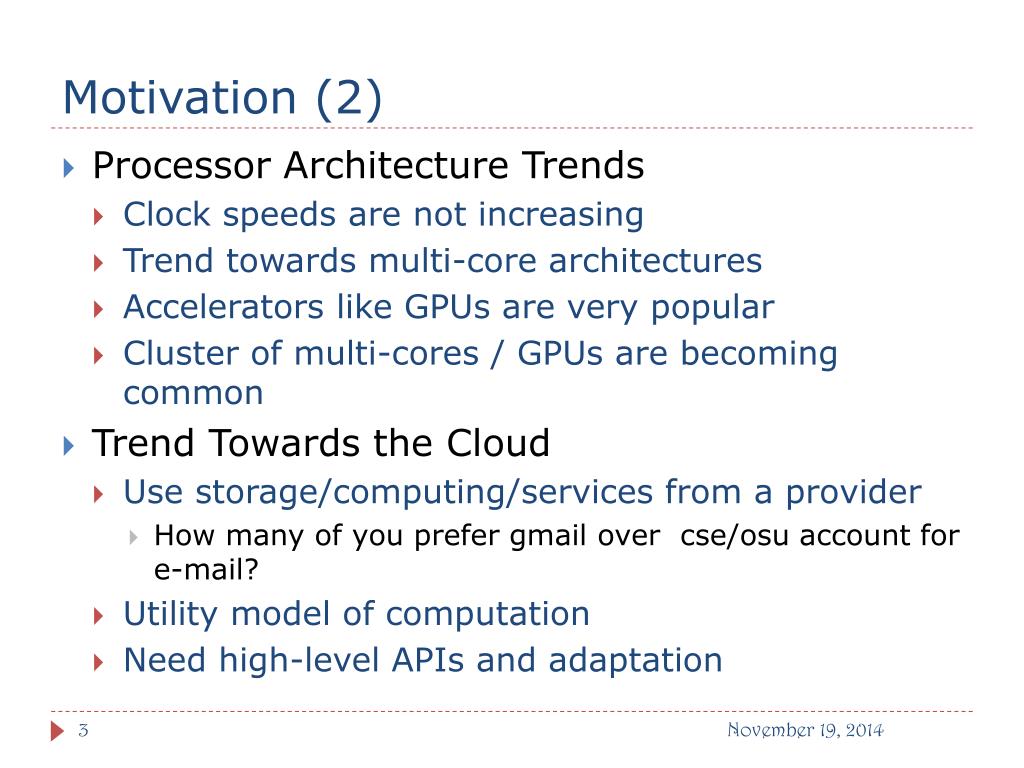

  3. Motivation (2) • Processor Architecture Trends • Clock speeds are not increasing • Trend towards multi-core architectures • Accelerators like GPUs are very popular • Cluster of multi-cores / GPUs are becoming common • Trend Towards the Cloud • Use storage/computing/services from a provider • How many of you prefer gmail over cse/osu account for e-mail? • Utility model of computation • Need high-level APIs and adaptation

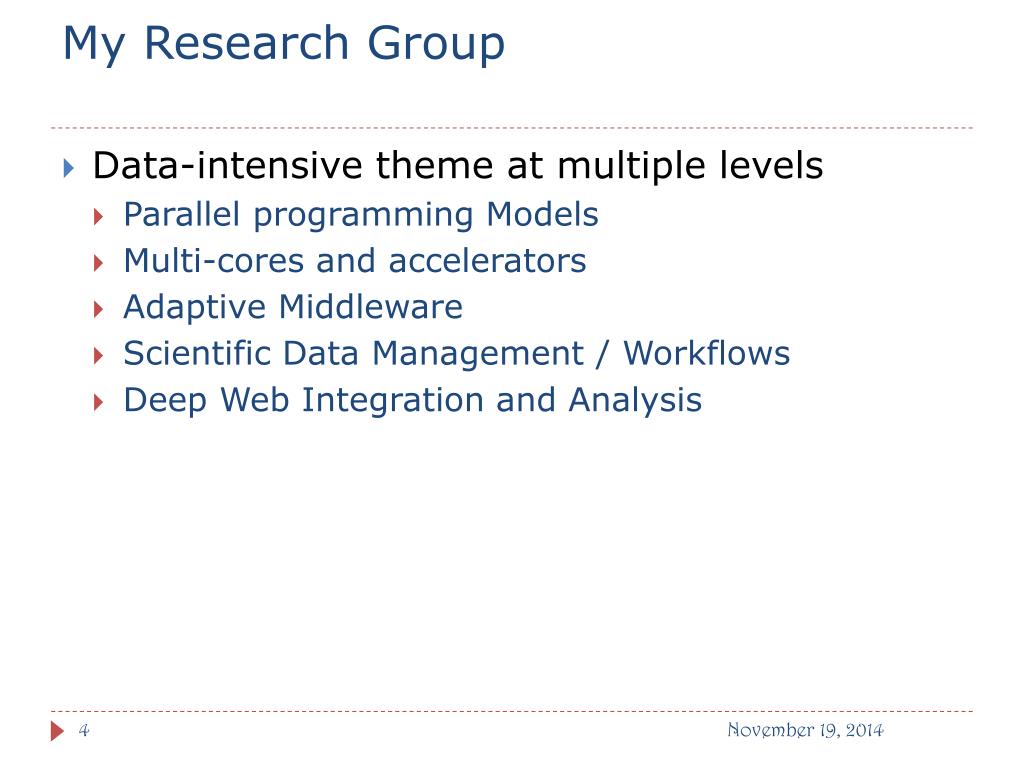

  4. My Research Group • Data-intensive theme at multiple levels • Parallel programming Models • Multi-cores and accelerators • Adaptive Middleware • Scientific Data Management / Workflows • Deep Web Integration and Analysis

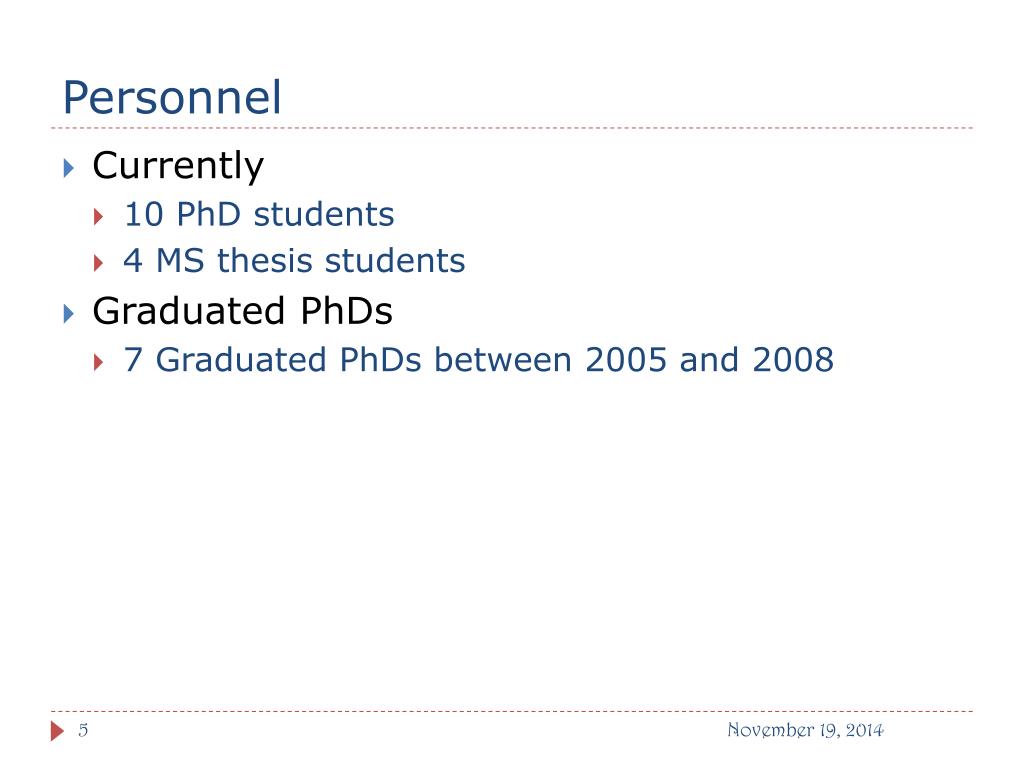

  5. Personnel • Currently • 10 PhD students • 4 MS thesis students • Graduated PhDs • 7 Graduated PhDs between 2005 and 2008

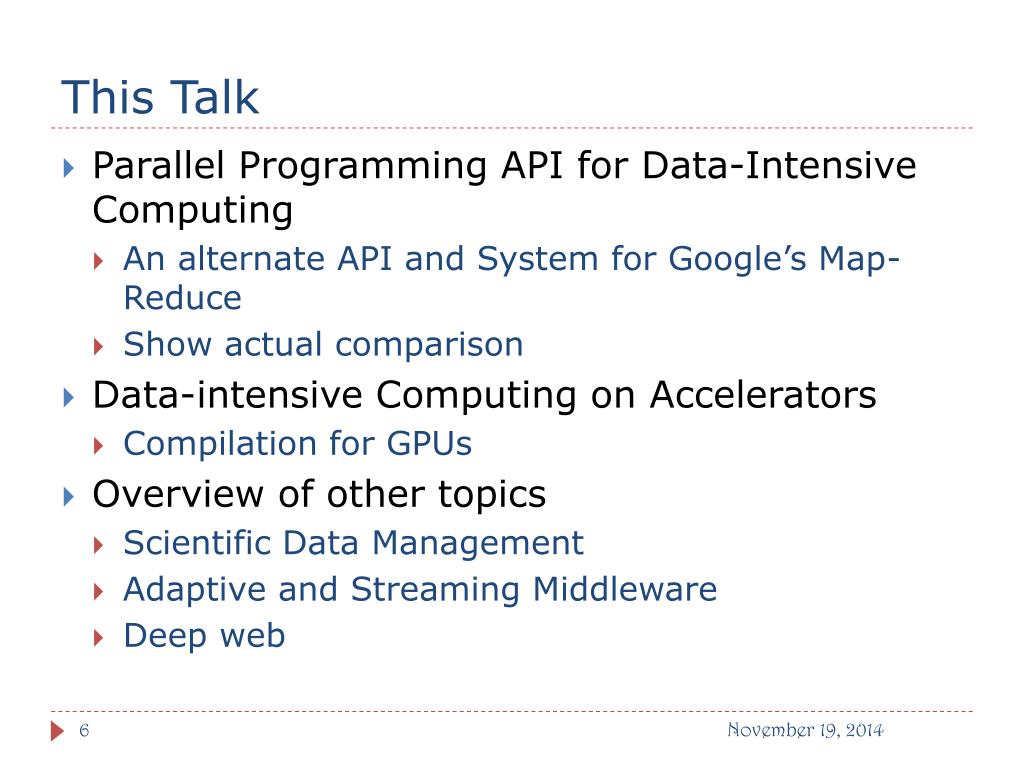

  6. This Talk • Parallel Programming API for Data-Intensive Computing • An alternate API and System for Google’s Map-Reduce • Show actual comparison • Data-intensive Computing on Accelerators • Compilation for GPUs • Overview of other topics • Scientific Data Management • Adaptive and Streaming Middleware • Deep web

  7. Map-Reduce • Simple API for (data-intensive) parallel programming • Computation is: • Apply map on each input data element • Produce (key,value) pair(s) • Sort them using the key • Apply reduce on the set with a distinct key values

  8. Map-Reduce Execution

  9. Map-Reduce: Positives and Questions • Positives: • Simple API • Functional language based • Very easy to learn • Support for fault-tolerance • Important for very large-scale clusters • Questions • Performance? • Comparison with other approaches • Suitability for different class of applications?

  10. Class of Data-Intensive Applications • Many different types of applications • Data-center kind of applications • Data scans, sorting, indexing • More ``compute-intensive’’ data-intensive applications • Machine learning, data mining, NLP • Map-reduce / Hadoop being widely used for this class • Standard Database Operations • Sigmod 2009 paper compares Hadoop with Databases and OLAP systems • What is Map-reduce suitable for? • What are the alternatives? • MPI/OpenMP/Pthreads – too low level?

  11. Hadoop Implementation • HDFS • Almost GFS, but no file update • Cannot be directly mounted by an existing operating system • Fault tolerance • Name node • Job Tracker • Task Tracker

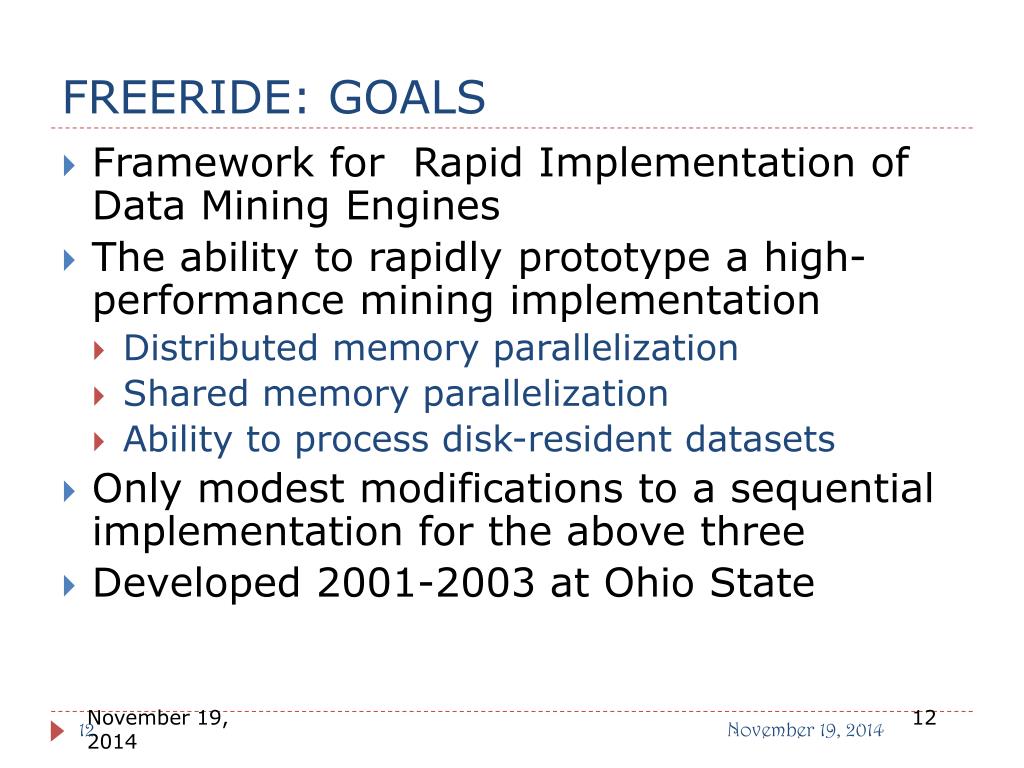

  12. FREERIDE: GOALS • Framework for Rapid Implementation of Data Mining Engines • The ability to rapidly prototype a high-performance mining implementation • Distributed memory parallelization • Shared memory parallelization • Ability to process disk-resident datasets • Only modest modifications to a sequential implementation for the above three • Developed 2001-2003 at Ohio State November 19, 2014 12

  13. FREERIDE – Technical Basis • Popular data mining algorithms have a common canonical loop • Generalized Reduction • Can be used as the basis for supporting a common API • Demonstrated for Popular Data Mining and Scientific Data Processing Applications While( ) { forall (data instances d) { I = process(d) R(I) = R(I) op f(d) } ……. }

  14. Comparing Processing Structure • Similar, but with subtle differences

  15. Observations on Processing Structure • Map-Reduce is based on functional idea • Do not maintain state • This can lead to sorting overheads • FREERIDE API is based on a programmer managed reduction object • Not as ‘clean’ • But, avoids sorting • Can also help shared memory parallelization • Helps better fault-recovery

  16. Experiment Design • Tuning parameters in Hadoop • Input Split size • Max number of concurrent map tasks per node • Number of reduce tasks • For comparison, we used four applications • Data Mining: KMeans, KNN, Apriori • Simple data scan application: Wordcount • Experiments on a multi-core cluster • 8 cores per node (8 map tasks)

  17. Results – Data Mining • KMeans: varying # of nodes Dataset: 6.4G K : 1000 Dim: 3 Avg. Time Per Iteration (sec) # of nodes

  18. Results – Data Mining (II) • Apriori: varying # of nodes Dataset: 900M Support level: 3% Confidence level: 9% Avg. Time Per Iteration (sec) # of nodes November 19, 2014 18

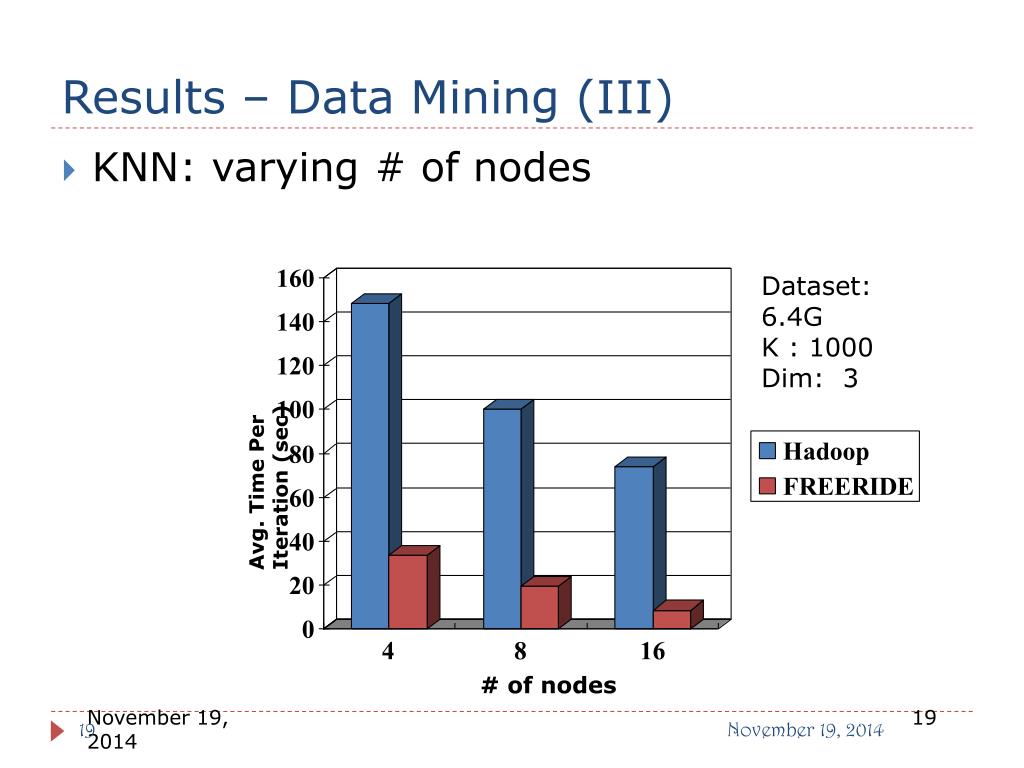

  19. Results – Data Mining (III) • KNN: varying # of nodes Dataset: 6.4G K : 1000 Dim: 3 Avg. Time Per Iteration (sec) # of nodes November 19, 2014 19

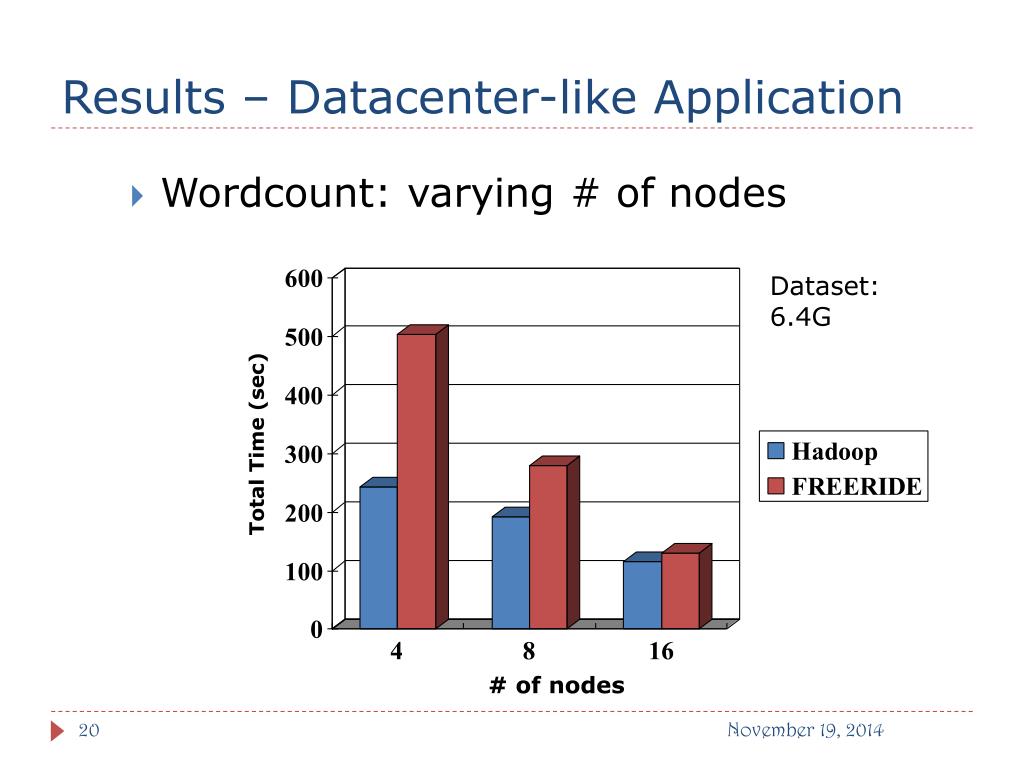

  20. Results – Datacenter-like Application • Wordcount: varying # of nodes Dataset: 6.4G Total Time (sec) # of nodes

  21. Scalability Comparison • KMeans: varying dataset size K : 100 Dim: 3 On 8 nodes Avg. Time Per Iteration (sec) Dataset Size

  22. Scalability – Word Count • Wordcount: varying dataset size On 8 nodes Total Time (sec) Dataset Size

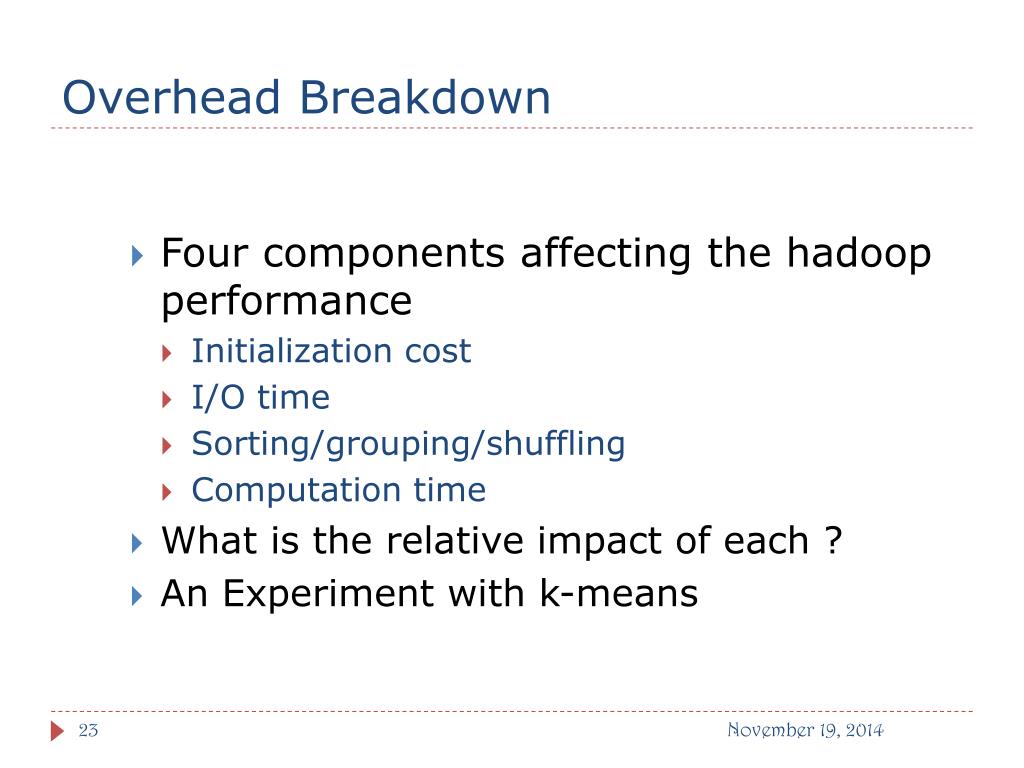

  23. Overhead Breakdown • Four components affecting the hadoop performance • Initialization cost • I/O time • Sorting/grouping/shuffling • Computation time • What is the relative impact of each ? • An Experiment with k-means

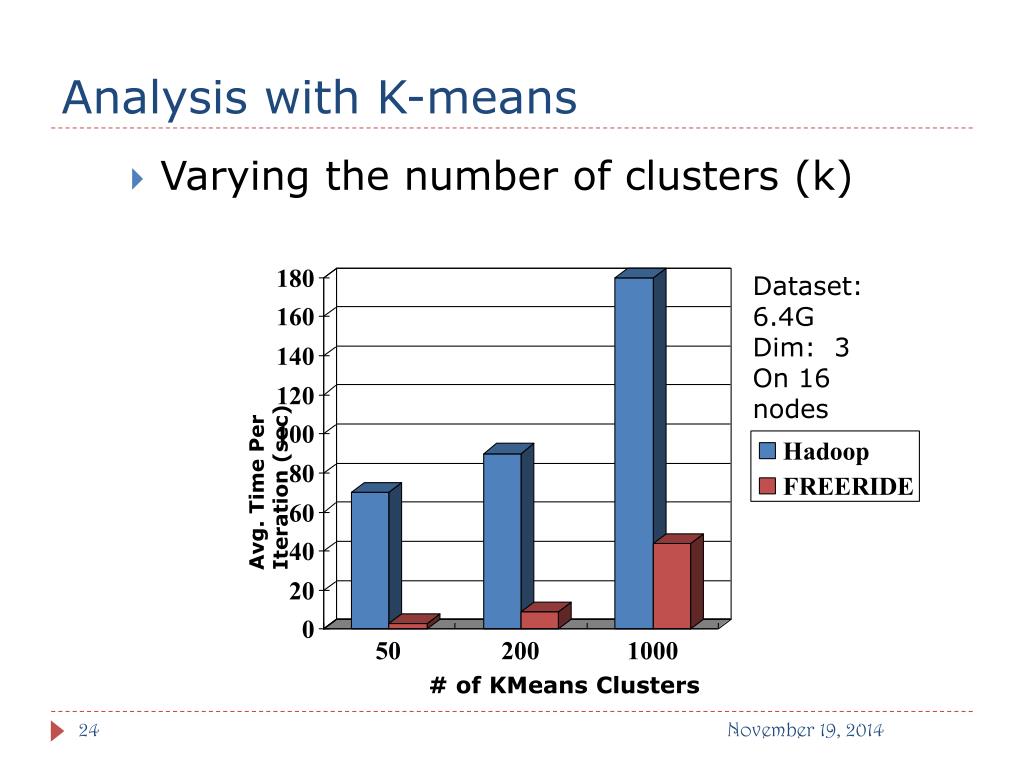

  24. Analysis with K-means • Varying the number of clusters (k) Dataset: 6.4G Dim: 3 On 16 nodes Avg. Time Per Iteration (sec) # of KMeans Clusters

  25. Analysis with K-means (II) • Varying the number of dimensions Dataset: 6.4G K : 1000 On 16 nodes Avg. Time Per Iteration (sec) # of Dimensions

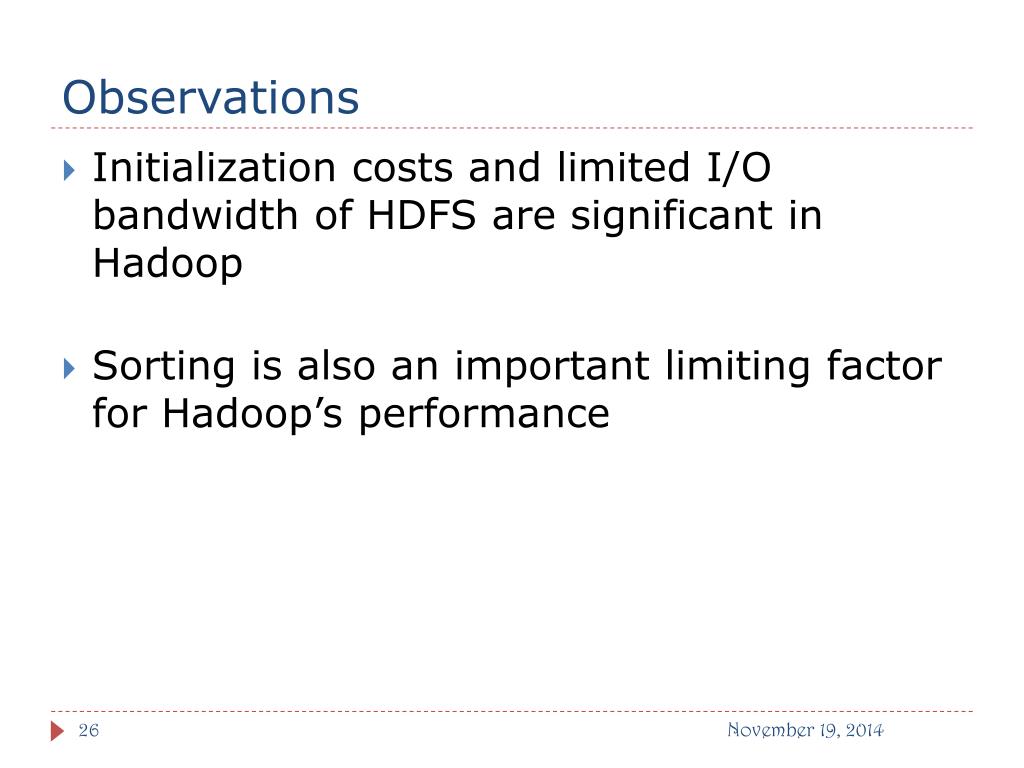

  26. Observations • Initialization costs and limited I/O bandwidth of HDFS are significant in Hadoop • Sorting is also an important limiting factor for Hadoop’s performance

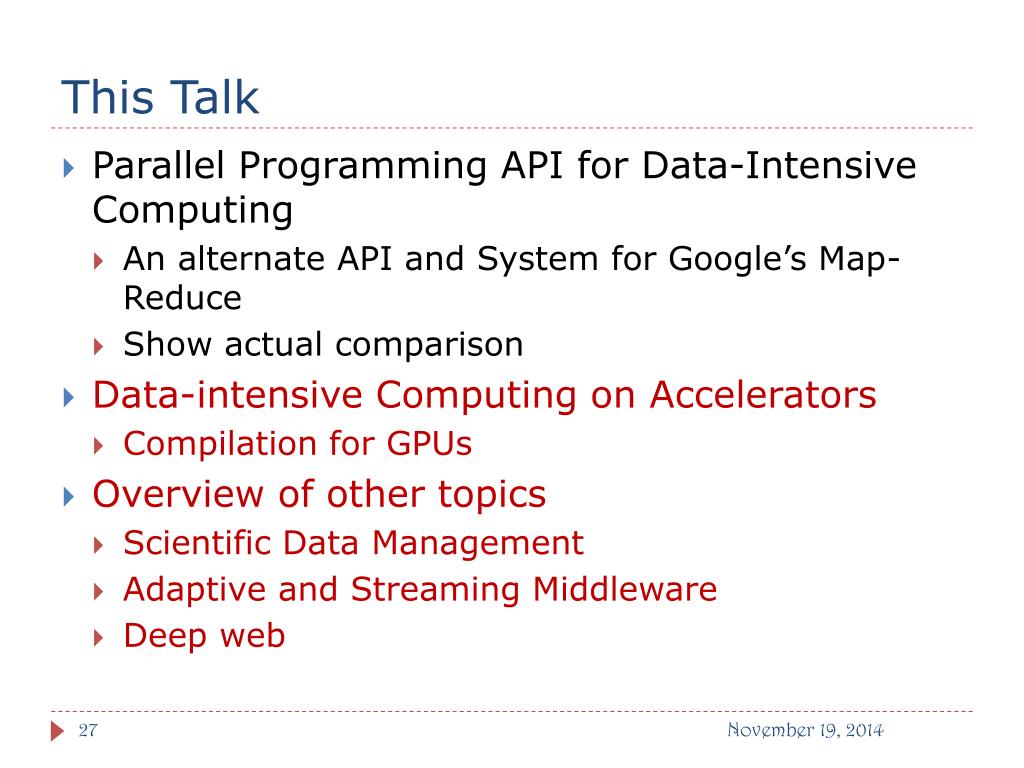

  27. This Talk • Parallel Programming API for Data-Intensive Computing • An alternate API and System for Google’s Map-Reduce • Show actual comparison • Data-intensive Computing on Accelerators • Compilation for GPUs • Overview of other topics • Scientific Data Management • Adaptive and Streaming Middleware • Deep web

  28. Background - GPU Computing • Many-core architectures/Accelerators are becoming more popular • GPUs are inexpensive and fast • CUDA is a high-level language for GPU programming

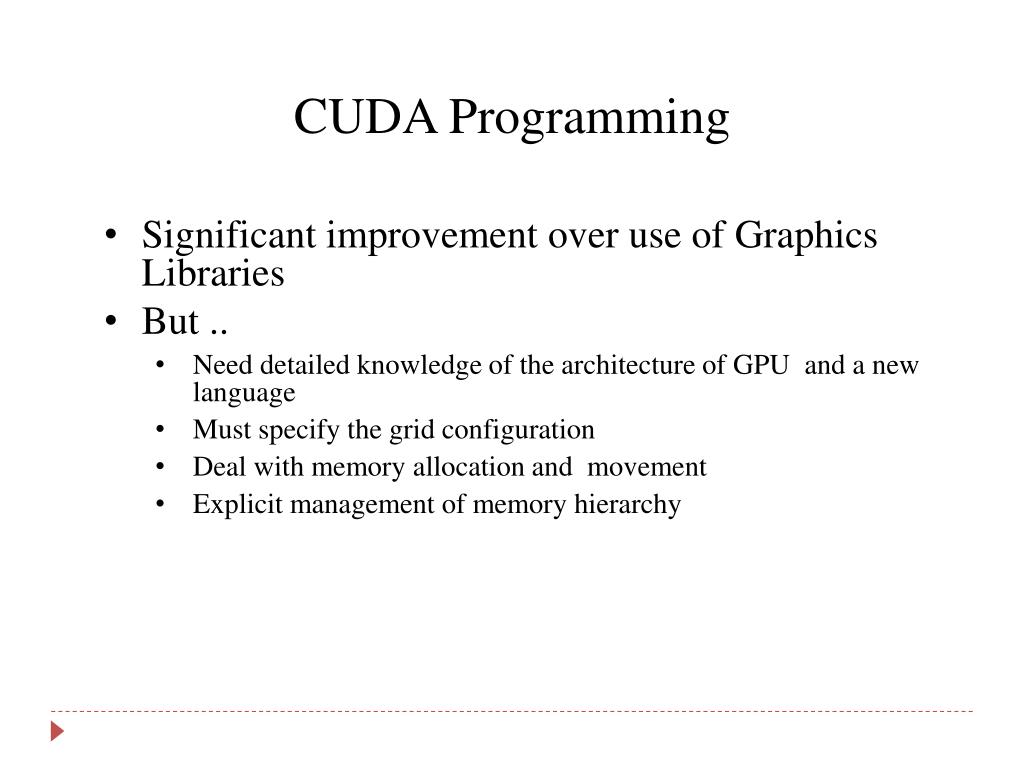

  29. CUDA Programming • Significant improvement over use of Graphics Libraries • But .. • Need detailed knowledge of the architecture of GPU and a new language • Must specify the grid configuration • Deal with memory allocation and movement • Explicit management of memory hierarchy

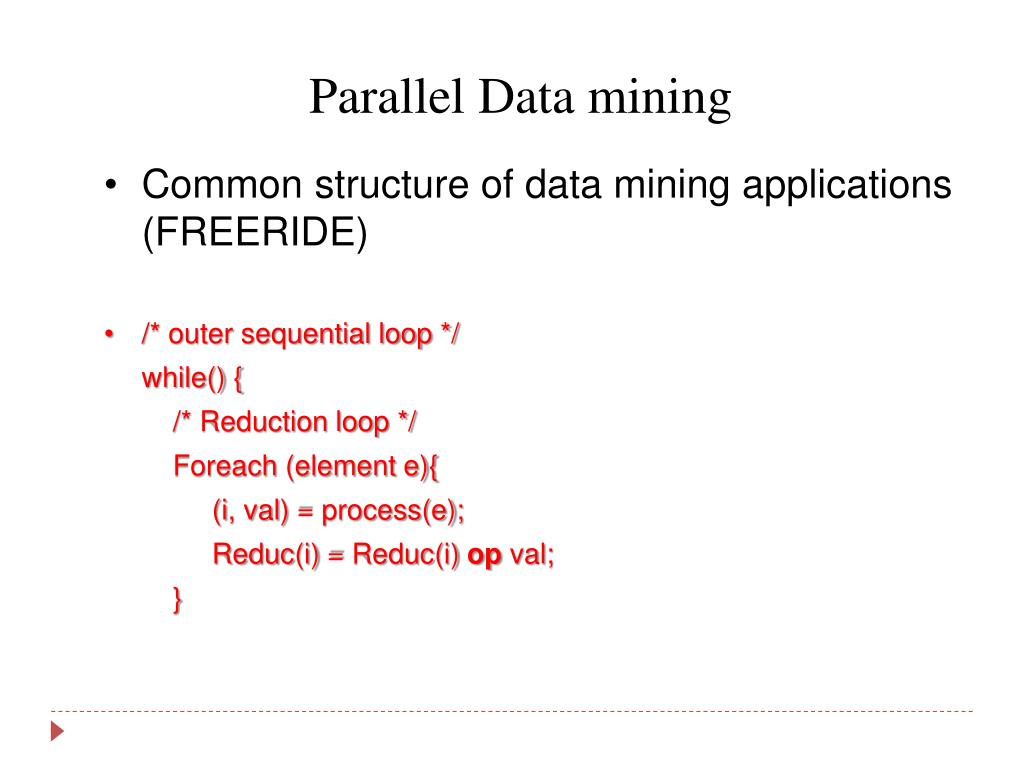

  30. Parallel Data mining • Common structure of data mining applications (FREERIDE)‏ • /* outer sequential loop */ • while() { • /* Reduction loop */ • Foreach (element e){ • (i, val) = process(e); • Reduc(i) = Reduc(i) opval; • }

  31. Porting on GPUs • High-level Parallelization is straight-forward • Details of Data Movement • Impact of Thread Count on Reduction time • Use of shared memory

  32. Architecture of the System Variable Analyzer Host Program User Input Variable information Variable Access Pattern and Combination Operations Kernel functions Reduction functions Code Generator Grid configuration and kernel invocation Optional functions Code Analyzer( In LLVM)‏ Executable

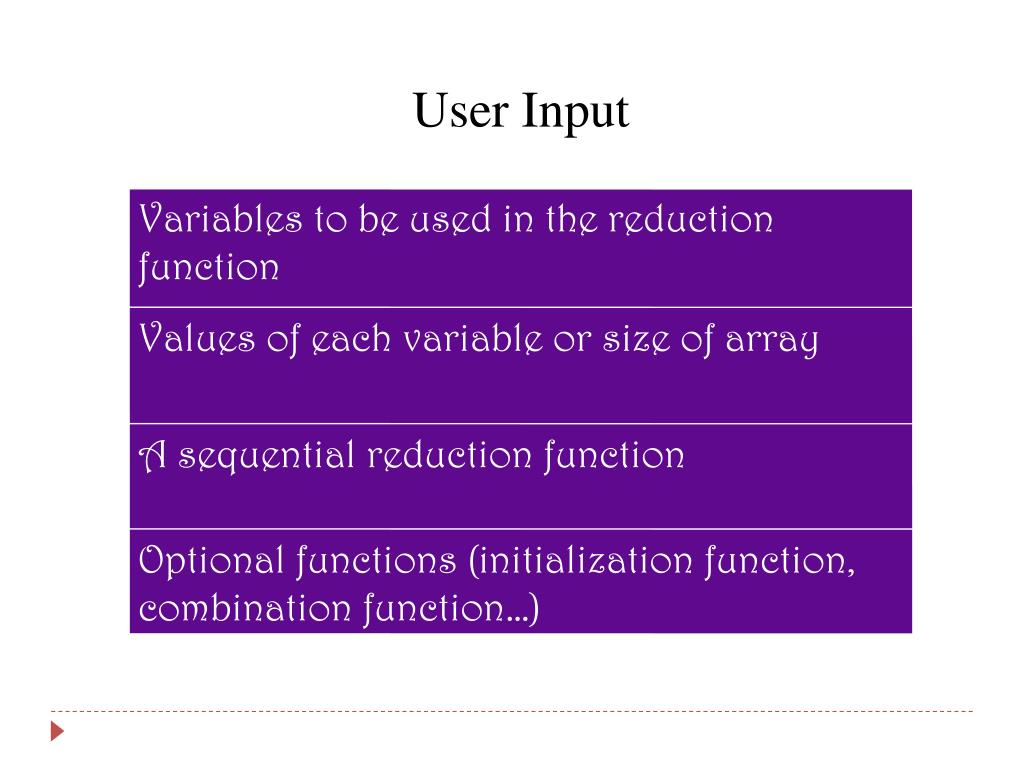

  33. Variables to be used in the reduction function Values of each variable or size of array A sequential reduction function Optional functions (initialization function, combination function…)‏ User Input

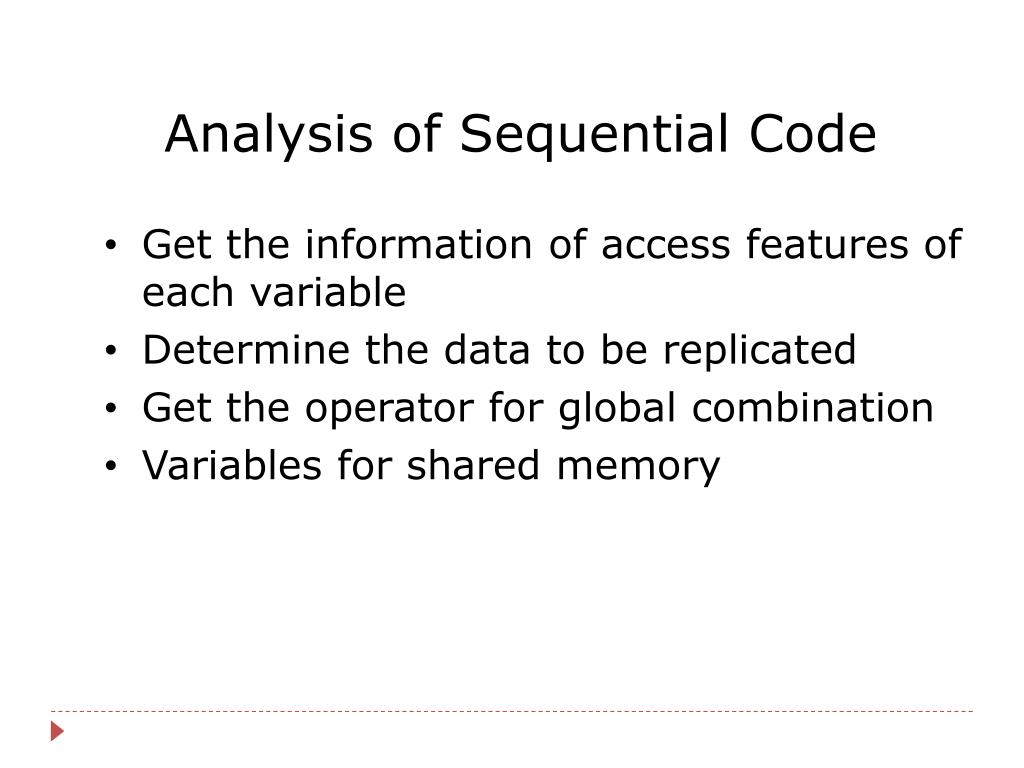

  34. Analysis of Sequential Code • Get the information of access features of each variable • Determine the data to be replicated • Get the operator for global combination • Variables for shared memory

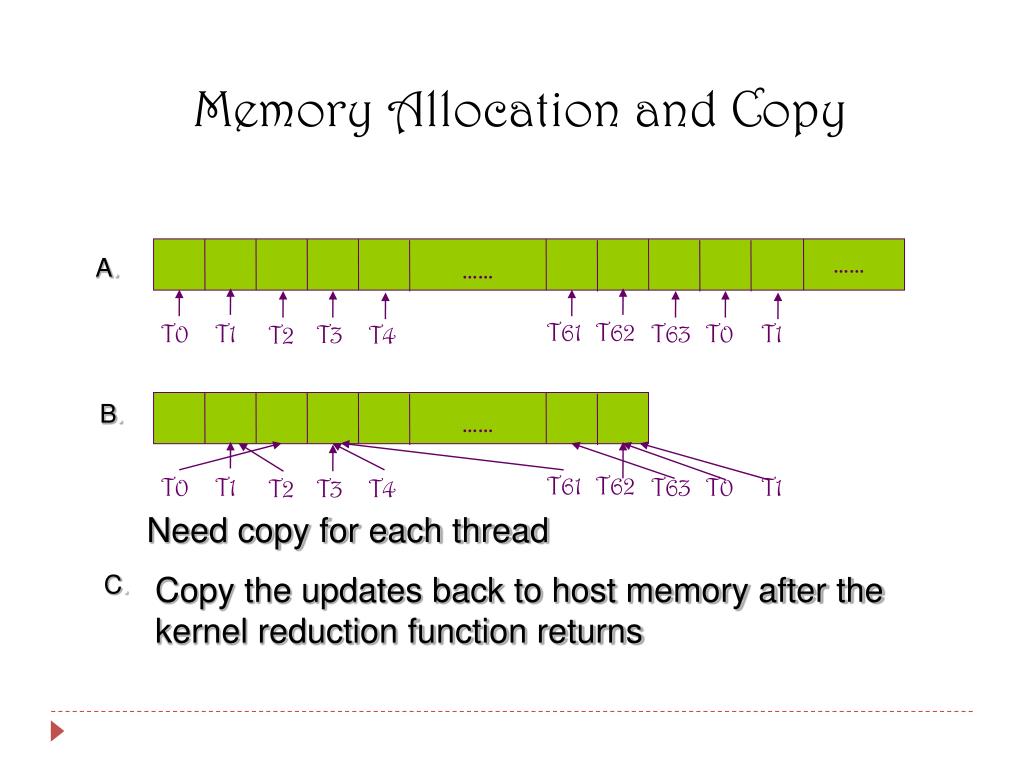

  35. Memory Allocation and Copy …… A. …… T61 T62 T0 T1 T63 T0 T1 T2 T3 T4 B. …… T61 T62 T0 T1 T63 T0 T1 T2 T3 T4 Need copy for each thread C. Copy the updates back to host memory after the kernel reduction function returns

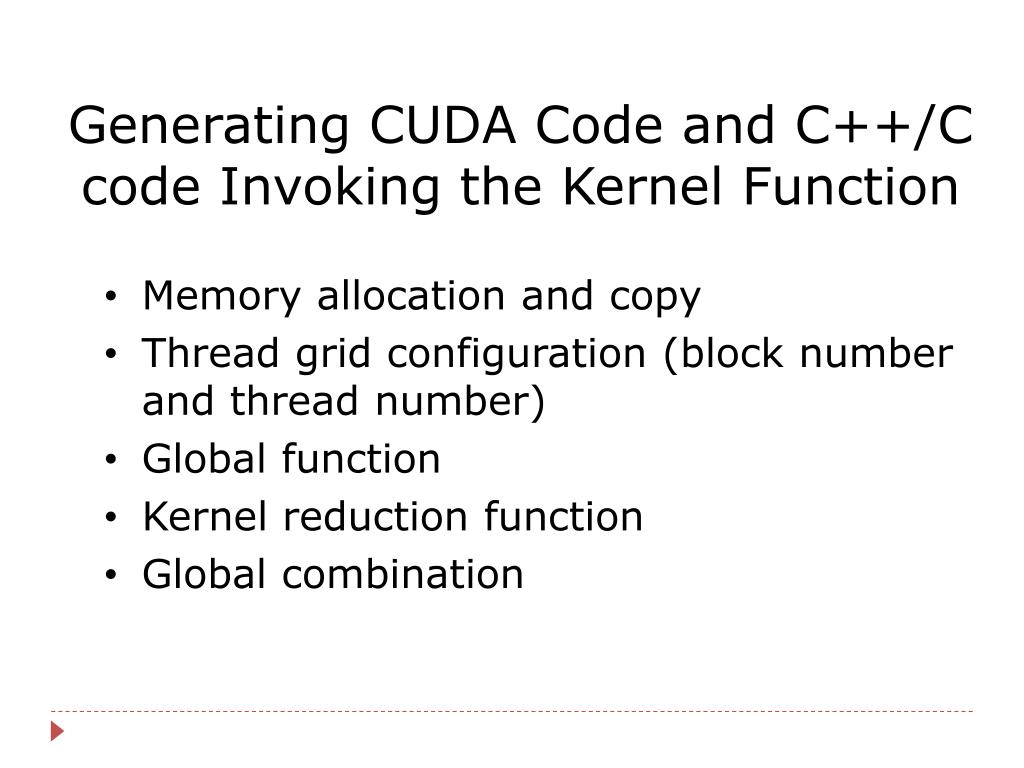

  36. Generating CUDA Code and C++/C code Invoking the Kernel Function • Memory allocation and copy • Thread grid configuration (block number and thread number)‏ • Global function • Kernel reduction function • Global combination

  37. Optimizations • Using shared memory • Providing user-specified initialization functions and combination functions • Specifying variables that are allocated once

  38. Applications • K-means clustering • EM clustering • PCA

  39. ExperimentalResults Speedup of k-means

  40. Speedup of EM

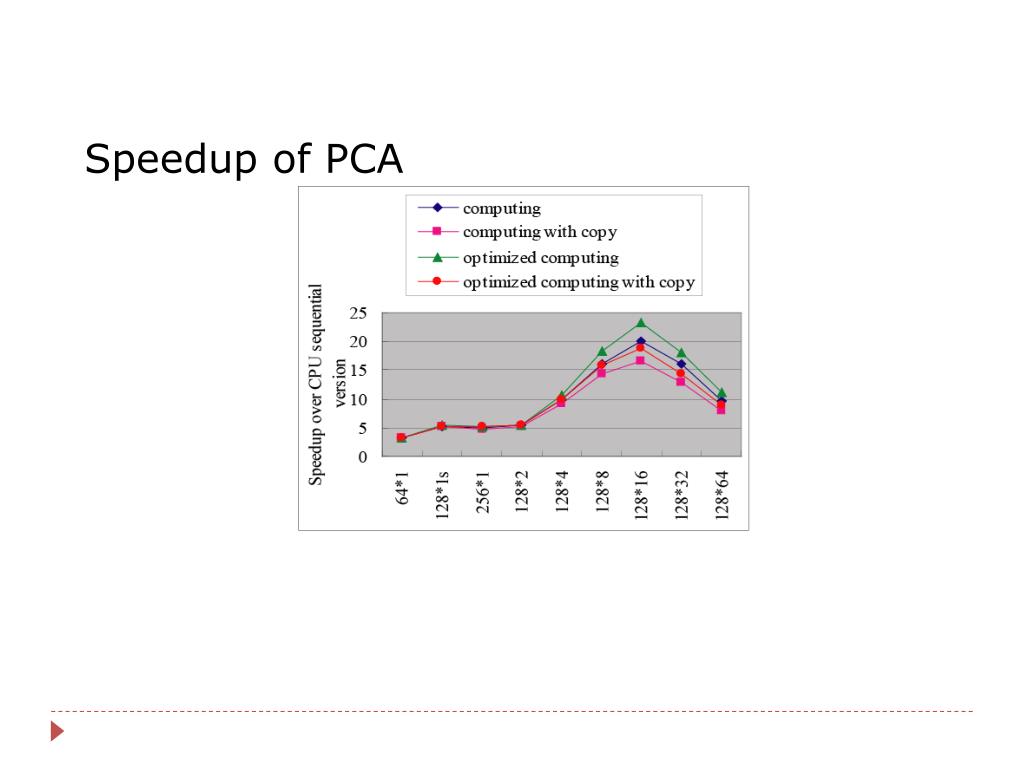

  41. Speedup of PCA

  42. Deep Web Data Integration • The emerge of deep web • Deep web is huge • Different from surface web • Challenges for integration • Not accessible through search engines • Inter-dependences among deep web sources wangfa@cse.ohio-state.edu

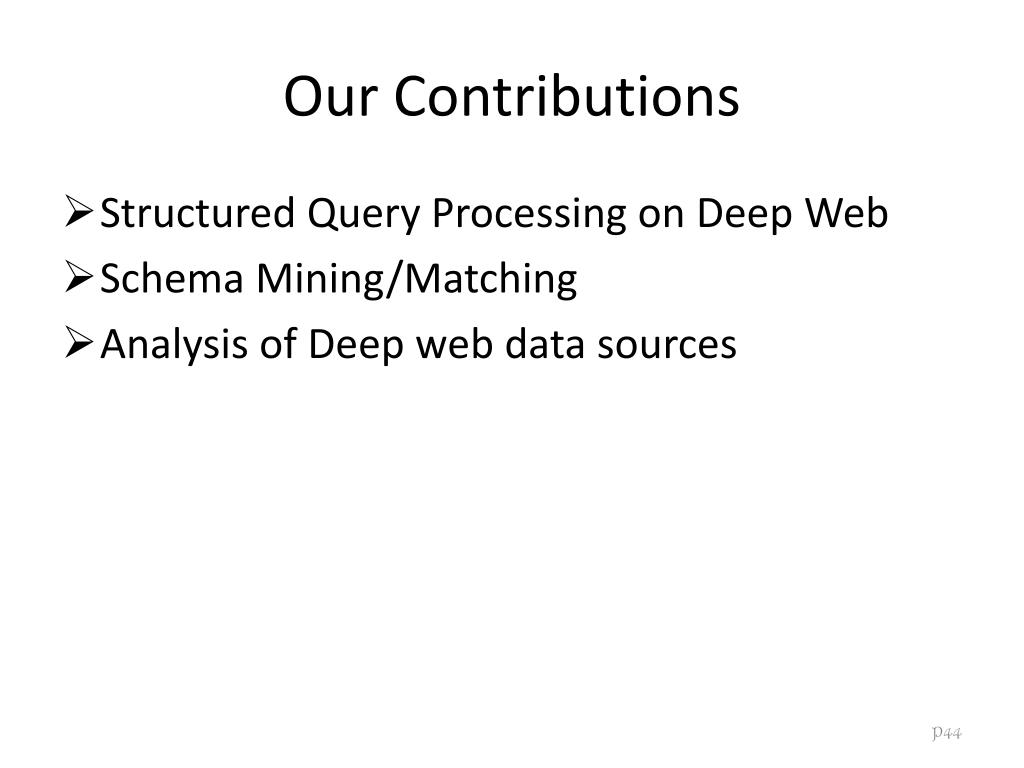

  43. Our Contributions • Structured Query Processing on Deep Web • Schema Mining/Matching • Analysis of Deep web data sources

  44. Adaptive Middleware • To Enable the Time-critical Event Handling to Achieve the Maximum Benefit, While Satisfying the Time/Budget Constraint • To be Compatible with Grid and Web Services • To Enable Easy Deployment and Management with Minimum Human Intervention • To be Used in a Heterogeneous Distributed Environment ICAC 2008

  45. HASTE Middleware Design ICAC 2008

  46. Workflow Composition System

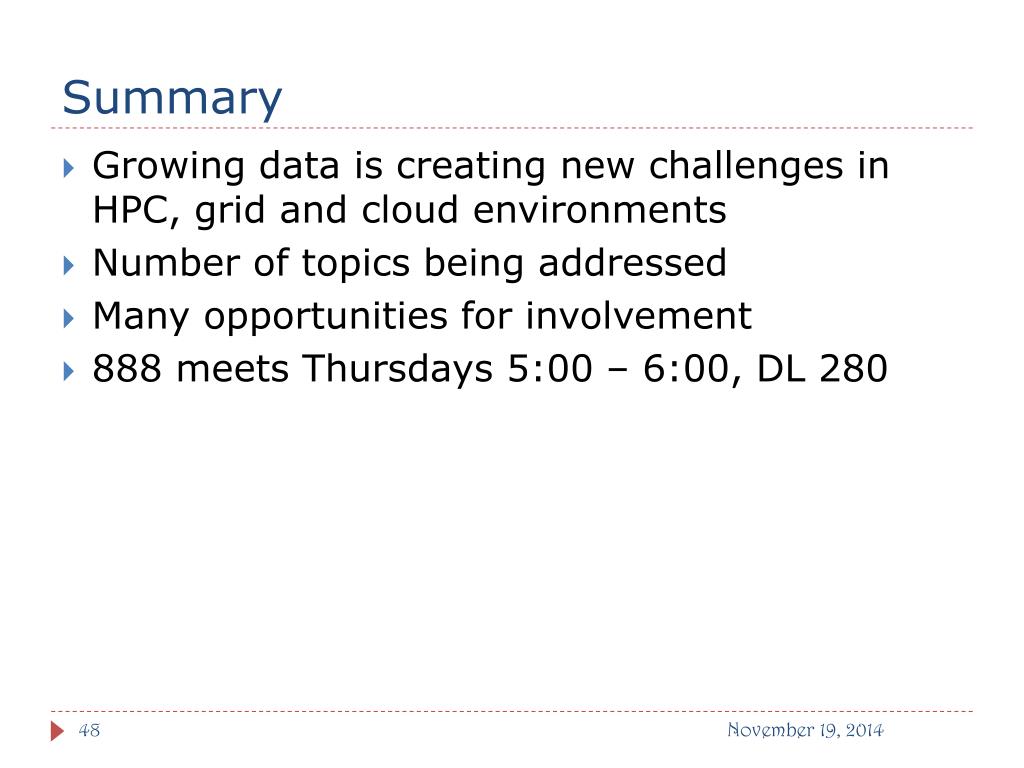

  47. Summary • Growing data is creating new challenges in HPC, grid and cloud environments • Number of topics being addressed • Many opportunities for involvement • 888 meets Thursdays 5:00 – 6:00, DL 280
