  1. Static Analyses • Assumptions • Negligible out of plane loads • Entire user load is on the hand grip • The underarm pad is being held by a screw. P ΣFy=ma=0 Σfy=-P+Nf=0 P=Nf Nf

  2. Static Analyses • Assumptions • Force on Dy can be neglected • Force Dx has a direct relation with Cx being Dx=Cx/2 ΣFy=ma=0 ΣFy=Nf-Cy=0 Nf=Cy=P Dx Cx Cy Dy Nf

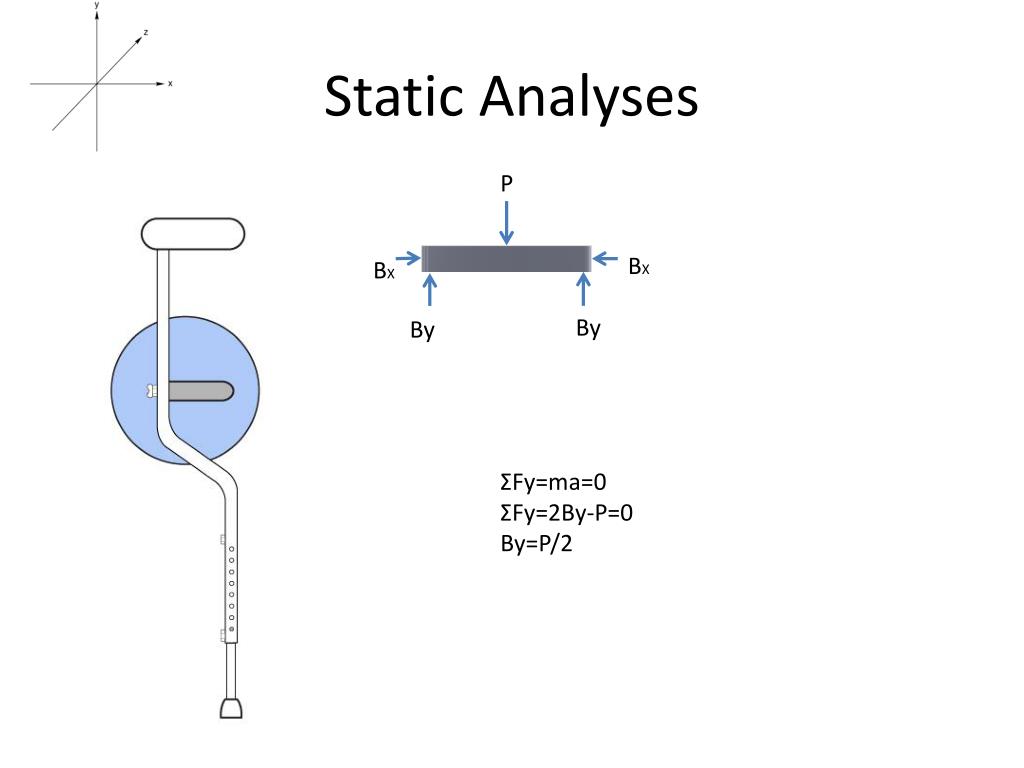

  3. Static Analyses P BX BX By By ΣFy=ma=0 ΣFy=2By-P=0 By=P/2

  4. Statics Analyses Ax Ax

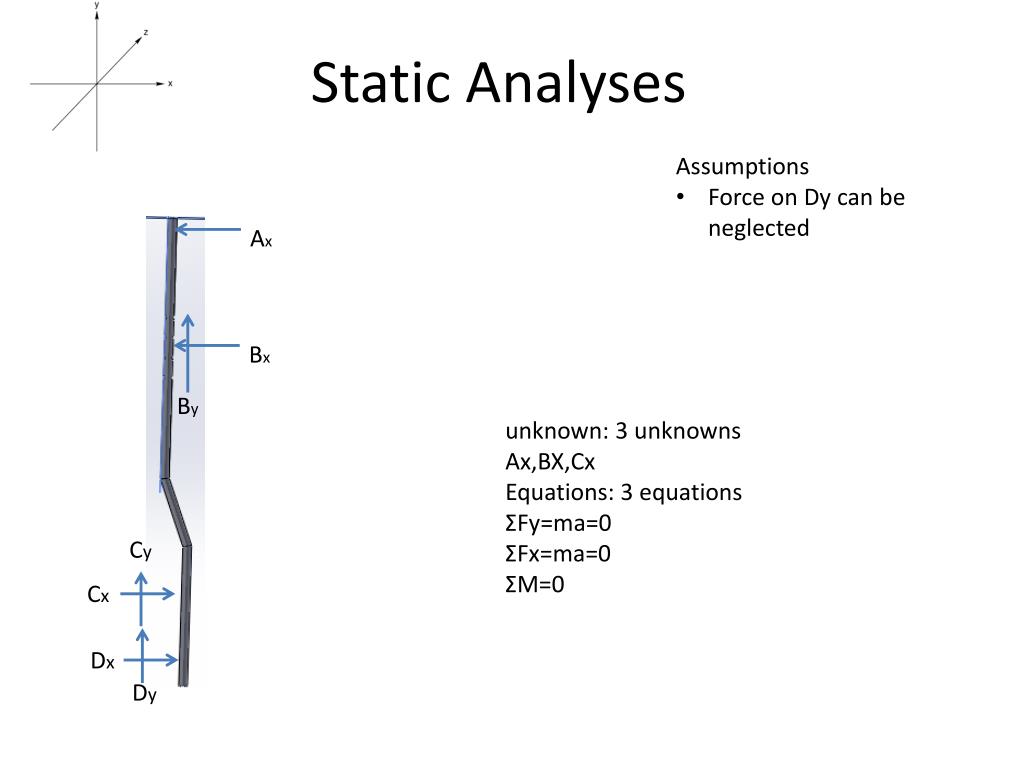

  5. Static Analyses • Assumptions • Force on Dy can be neglected Ax Bx By unknown: 3 unknowns Ax,BX,Cx Equations: 3 equations ΣFy=ma=0 ΣFx=ma=0 ΣM=0 Dy Cx Cy Dx
