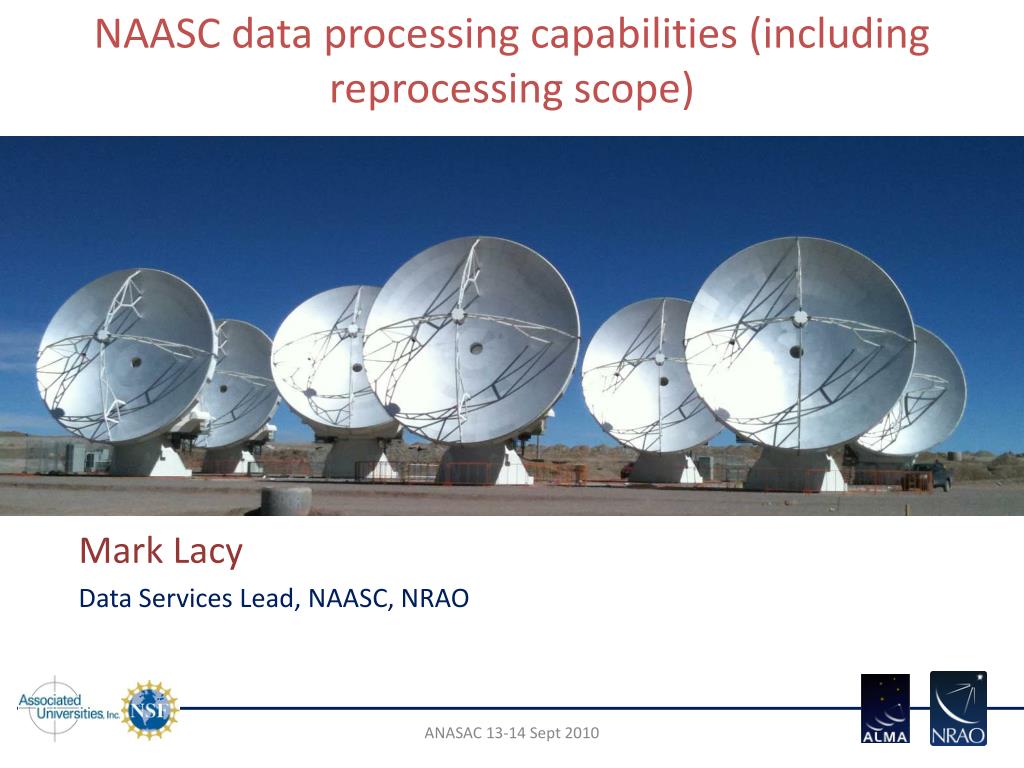

  1. NAASC data processing capabilities (including reprocessing scope) Mark Lacy Data Services Lead, NAASC, NRAO ANASAC 13-14 Sept 2010

  2. NAASC Data Services • Data services group formed within the NAASC (other groups are User Support Services [Brogan] and JAO support [Hibbard]). • Goal: to provide processed ALMA data and the tools to analyze it to NA users. • Responsibilities: • NA ALMA archive and user portal, including VO and interaction with VAO LLC • Splatalogue • Simdata • Pipeline (implementation) • “Advanced tools” (e.g. data cube visualization and marginalization). ANASAC 13-14 Sept 2010

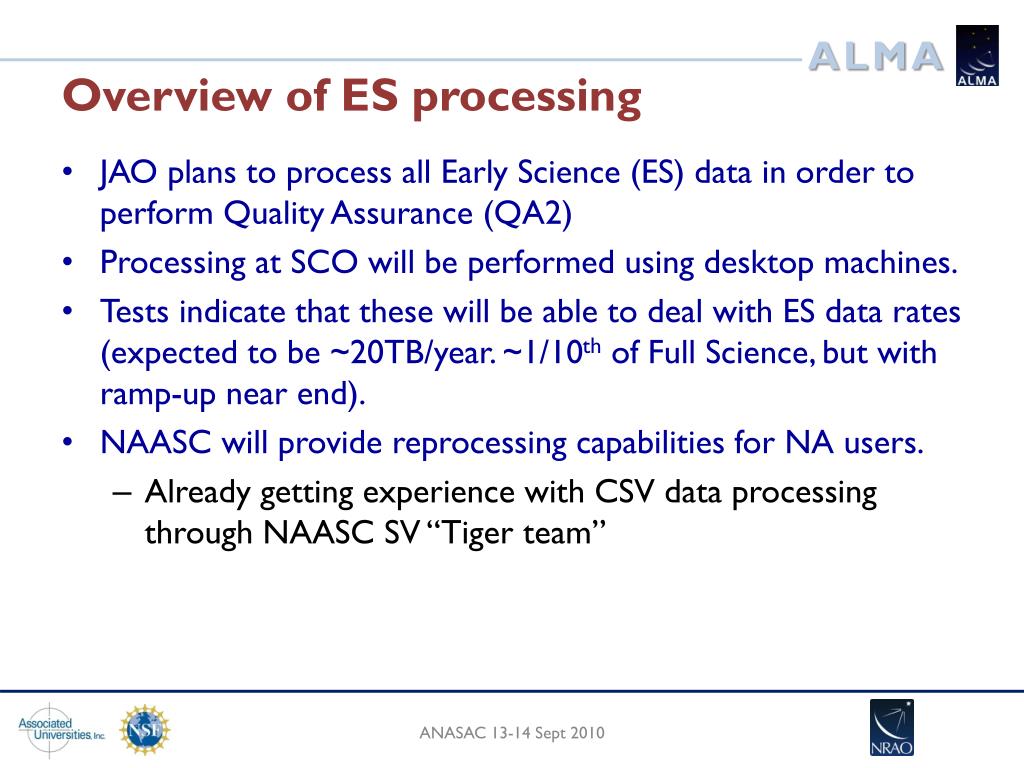

  3. Overview of ES processing • JAO plans to process all Early Science (ES) data in order to perform Quality Assurance (QA2) • Processing at SCO will be performed using desktop machines. • Tests indicate that these will be able to deal with ES data rates (expected to be ~20TB/year. ~1/10th of Full Science, but with ramp-up near end). • NAASC will provide reprocessing capabilities for NA users. • Already getting experience with CSV data processing through NAASC SV “Tiger team” ANASAC 13-14 Sept 2010

  4. Details of NAASC processing plans in ES • We have recently written a computing plan for the NAASC covering ES through operations. • A small cluster (~4-12 nodes), forerunner of NAASC pipeline machine will be built up slowly, based on EVLA experience. • In addition, we will purchase desktop machines for visitor use and evaluation, with the aim of producing recommendations to users for offline processing. • We will thus have the ability to perform reprocessing of all NA data. ANASAC 13-14 Sept 2010

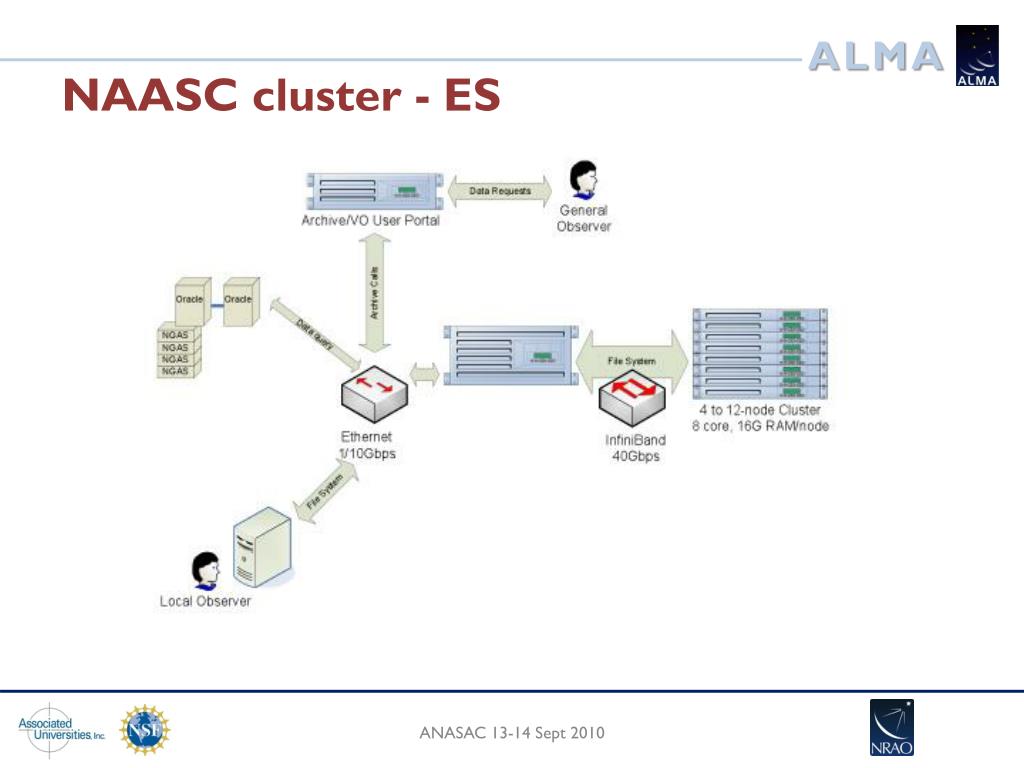

  5. NAASC cluster - ES ANASAC 13-14 Sept 2010

  6. NAASC cluster - operations ANASAC 13-14 Sept 2010

  7. How users will reprocess • Option 1:Come to the NAASC and use the cluster through a login on an NRAO desktop machine (or the desktop directly for small datasets). • Option 2: Use VNC from their home institution to login to the cluster. • Option 3: Submit a pipeline job remotely to the NAASC via a webpage. Which we do will depend on the level of support and interaction with the data that is required. Likely to begin with option 1 and move to option 3 as algorithms for e.g. automatic flagging improve, with option 2 as a backup. (Also likely to have ASDM to MS conversion implemented for users getting their data from the archive.) ANASAC 13-14 Sept 2010

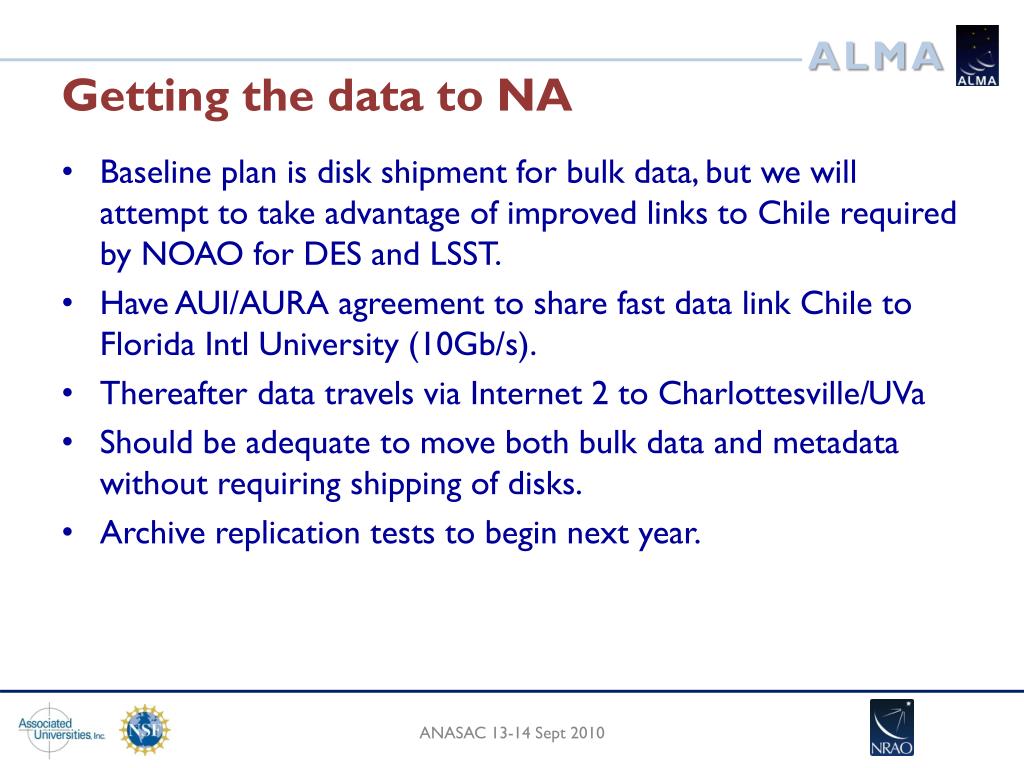

  8. Getting the data to NA • Baseline plan is disk shipment for bulk data, but we will attempt to take advantage of improved links to Chile required by NOAO for DES and LSST. • Have AUI/AURA agreement to share fast data link Chile to Florida Intl University (10Gb/s). • Thereafter data travels via Internet 2 to Charlottesville/UVa • Should be adequate to move both bulk data and metadata without requiring shipping of disks. • Archive replication tests to begin next year. ANASAC 13-14 Sept 2010

  9. NAASC and related software systems • Splatalogue • Currently concentrating on documentation and database enhancement. • Future plans include improvements to usability (new front end). • Plan to make Splatalogue an “official” ALMA software project, working on a Splatalogue memo to ALMA describing the database and the plan for management and maintenance. • Simdata (task in CASA) • Simdata now largely complete, including single dish capability (in collaboration with NAOJ). • CASA code freeze Sept 17th prior to October release. • Working on new ES examples. simdata will allow us to demonstrate the limitations of the ES array both in terms of sensitivity and dynamic range/uv-coverage ANASAC 13-14 Sept 2010

  10. Example: ALMA Band 6 deep pointing 9x8hr 234GHz ALMA track in continuum. Simulated using Oxford S-cubed simulations (Obreschkow & Rawlings 2009) for the model and simdata2 in CASA for the “observation” Model Early Science (16 ants) Full Science (50 ants)

  11. CASA/pipeline performance • CASA currently has similar speed to other packages for ~ 10 GB datasets except for a few high nails being aggressively pursued (flagging, plotting) • CASA’s architecture has been written with parallelization in mind • Channelization of radio data makes the problem “embarrassingly parallelizable” • However, particularly for imaging, the problem is I/O and not CPU limited making the problem trickier (~60:40 I/O:CPU). • Pursuing mitigation through hardware solutions (fast file systems e.g. Lustre with Infiniband interconnect), and software solutions (improving i/o efficiency in code). • Nevertheless, parallelization efforts of highest current risk and priority • Release of multi-core CASA functionality will be staged so that functionality becomes available for pipeline testing and the community as soon as possible • Simple imaging (single field or simple mosaic cube) well progressed, expected for October 2010 release • Multi-core flagging and more imaging cases (multi-frequency synthesis continuum) expected June 2011

  12. CASA development Priorities • Support of ALMA and EVLA commissioning needs • Parallelization and cluster fine-tuning for imaging and flagging • Working on combining Torque resource manager with Python scripting in CASA • Improvements needed for polarization calibration of linear feeds • Improvements to calibration table plotting (incorporate into plotms) • Planet models for use as resolved calibrators • Splatalogue search capabilities (including offline database) and overplotting • Viewer improvements (especially for spectral line plotting and analysis) • Improvements to image analysis tasks • Improvements to “TV” based flagging in the Viewer (on-the-fly spectral and time averaging) • A CARMA miriad filler (through partnership with Peter Teuben at U. Maryland) • Expanded and more modularized simulation capabilities.

  13. NAASC advanced tools • The NAASC staff will push some of the ALMA-related software development items as Splatalogue & Simdata reach completion. We will also be hiring an additional developer. • For example, image cube visualization and analysis are areas which will likely require work. • Can’t do this all ourselves, so will aim to be responsive to community suggestions and contributions,incorporating some into CASA and posting others as “contributed software”. ANASAC 13-14 Sept 2010

  14. Summary • Within 1 year expect significant data from ALMA, comparable data rate to that from e.g. HST, Spitzer. • Within 3 years, data rate will exceed by more than an order of magnitude that from any other PI-driven telescope apart from the EVLA. • Must continue to be focused on the challenges and opportunities this presents. ANASAC 13-14 Sept 2010

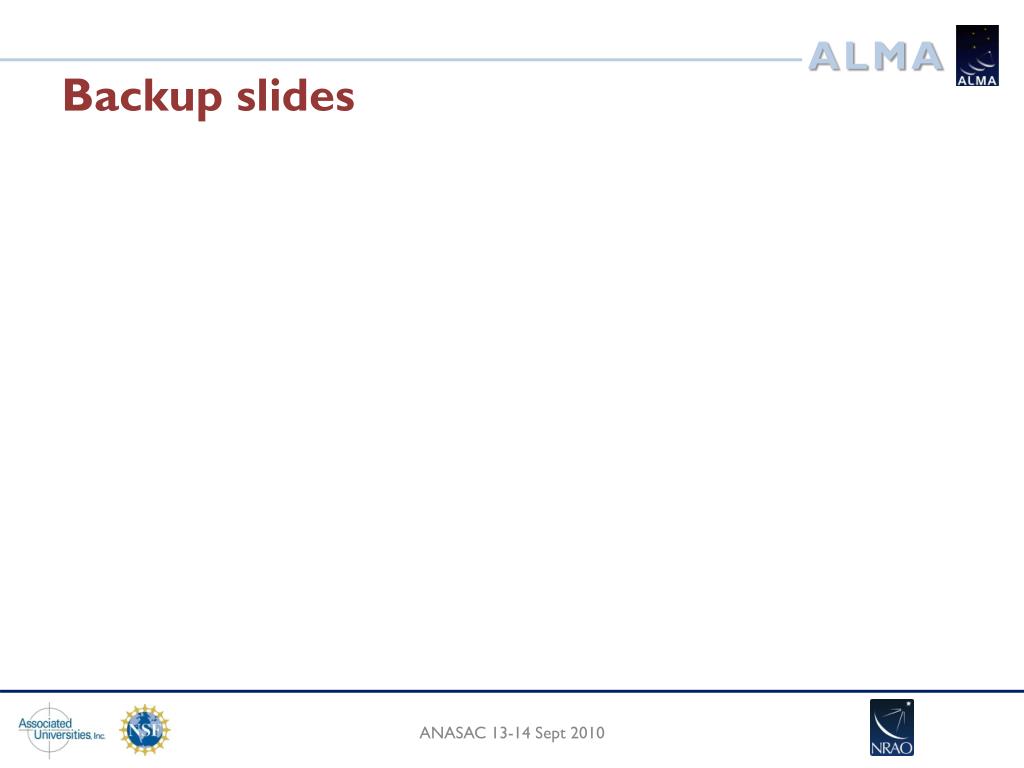

  15. Backup slides ANASAC 13-14 Sept 2010

  16. CASA tutorial examples M99 moment maps (CARMA) 3C391 polarization (EVLA) ANASAC 13-14 Sept 2010
