Presentation Transcript

  1. Security Analysis of Web-based Identity Federation Apurva Kumar IBM Research – India

  2. Context

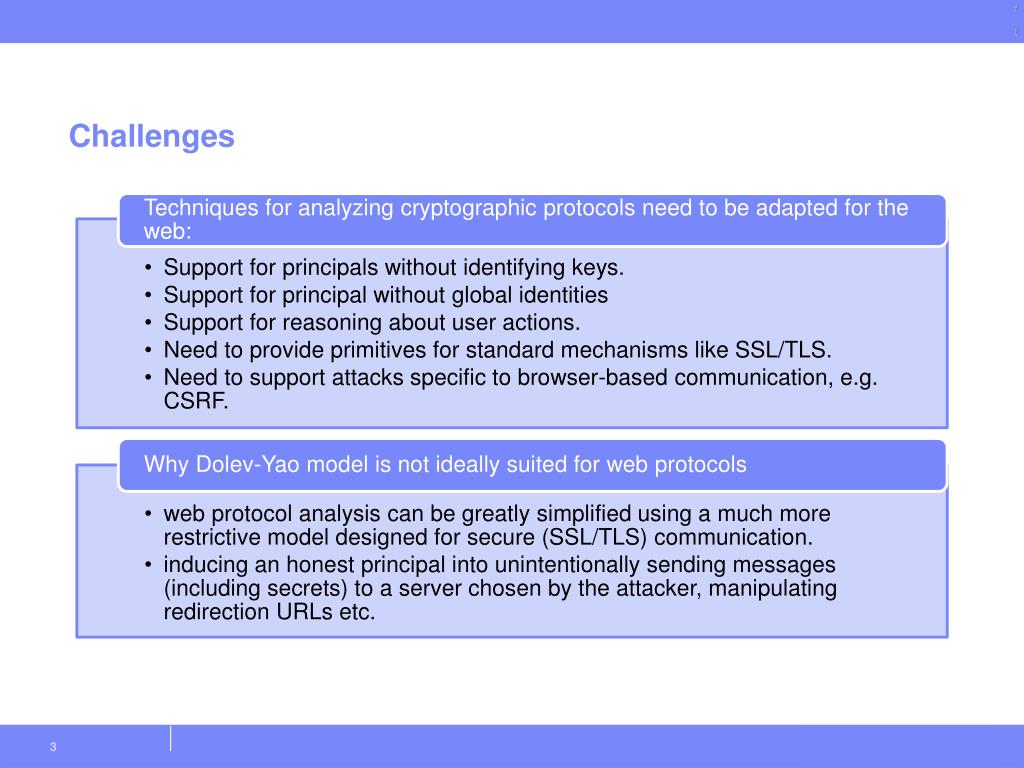

  3. Challenges

  4. Two contrasting styles

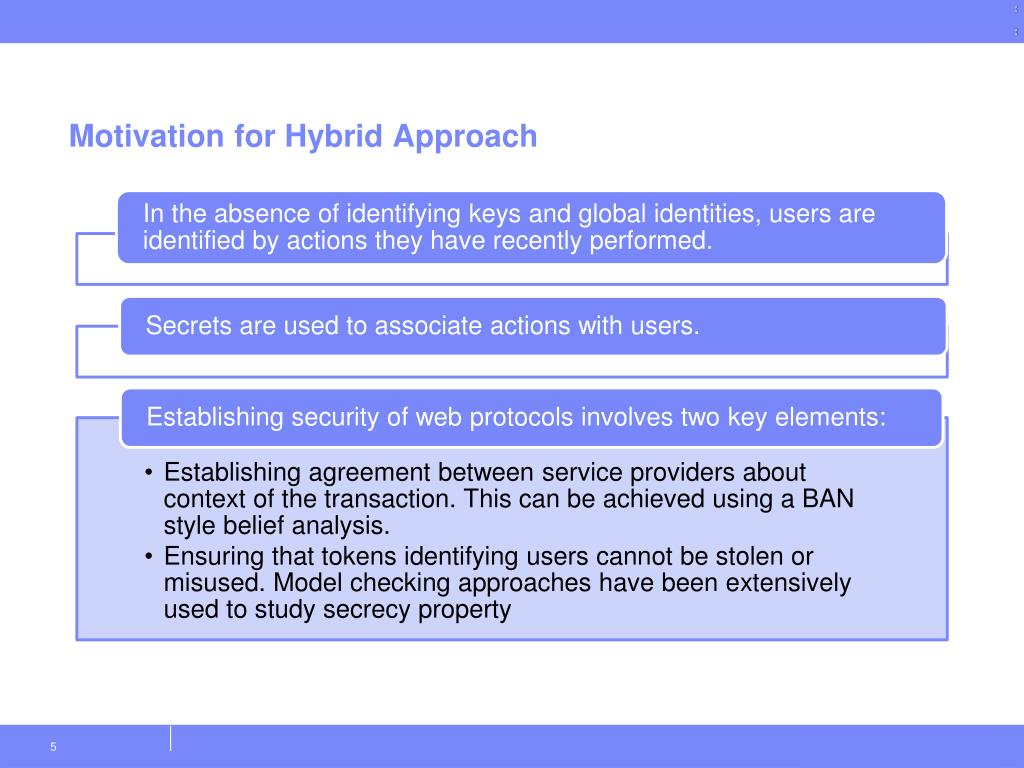

  5. Motivation for Hybrid Approach

  6. Overview of Hybrid Approach

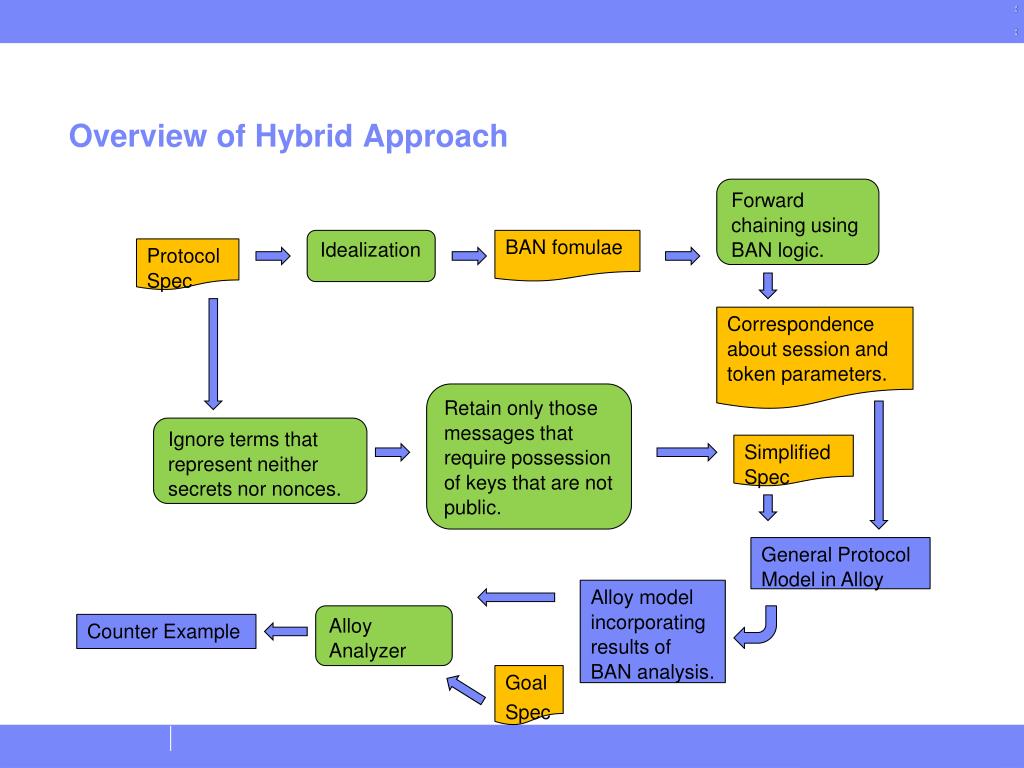

  7. Overview of Hybrid Approach Forward chaining using BAN logic. Idealization BAN fomulae Protocol Spec Correspondence about session and token parameters. Retain only those messages that require possession of keys that are not public. Ignore terms that represent neither secrets nor nonces. Simplified Spec General Protocol Model in Alloy Alloy model incorporating results of BAN analysis. Alloy Analyzer Counter Example Goal Spec

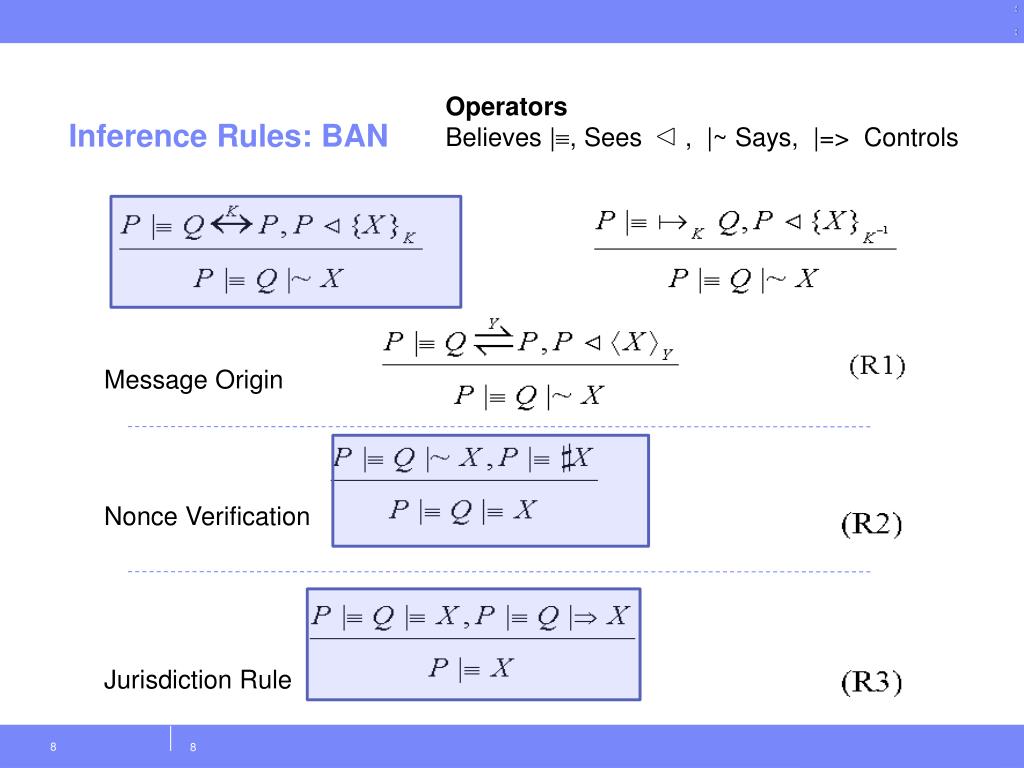

  8. Inference Rules: BAN Operators Believes |, Sees , |~ Says, |=> Controls Message Origin Nonce Verification Jurisdiction Rule 8

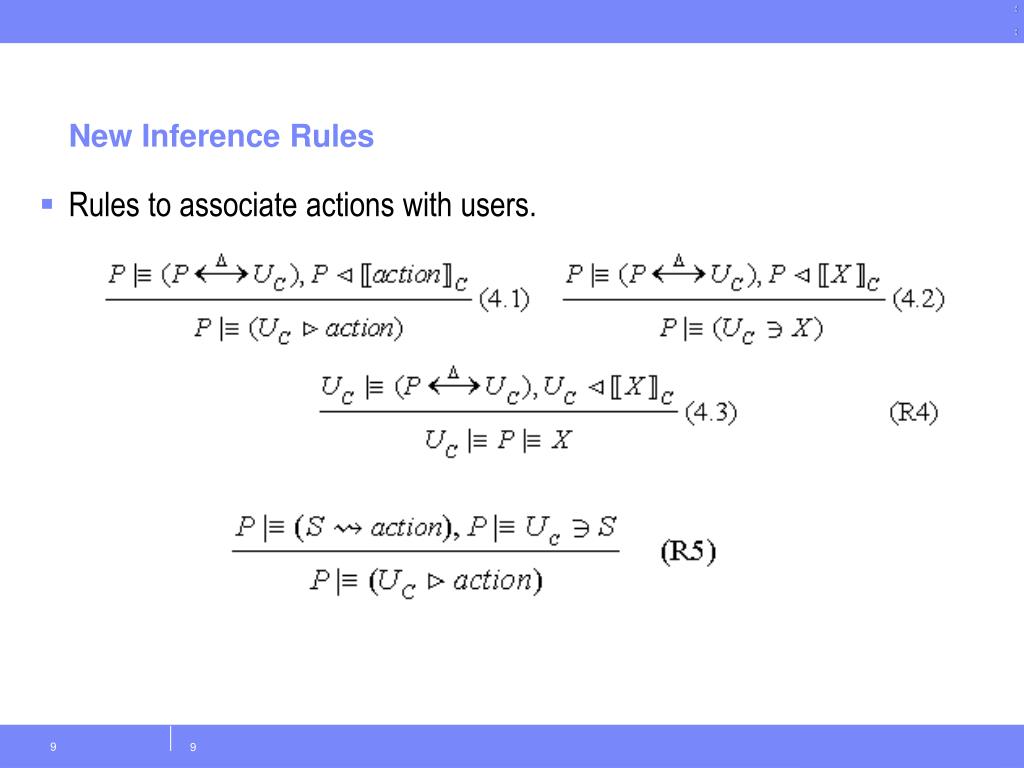

  9. New Inference Rules • Rules to associate actions with users. 9

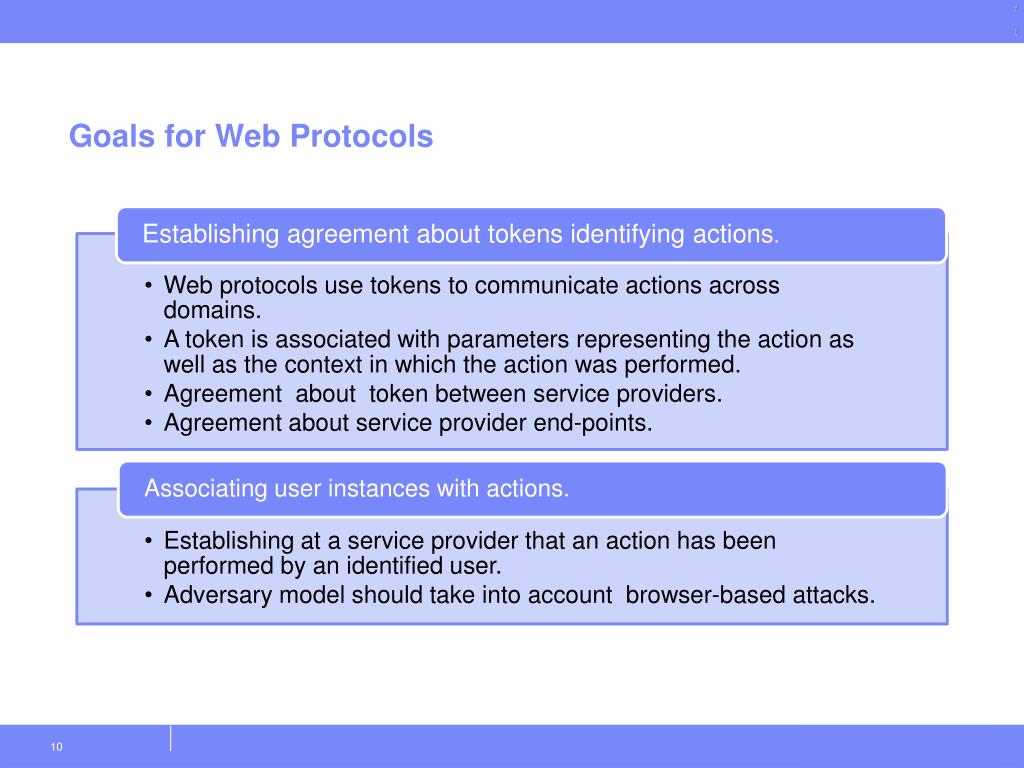

  10. Goals for Web Protocols

  11. Alloy Based Web Protocol Model A B

  12. The Single Sign-On Workflow

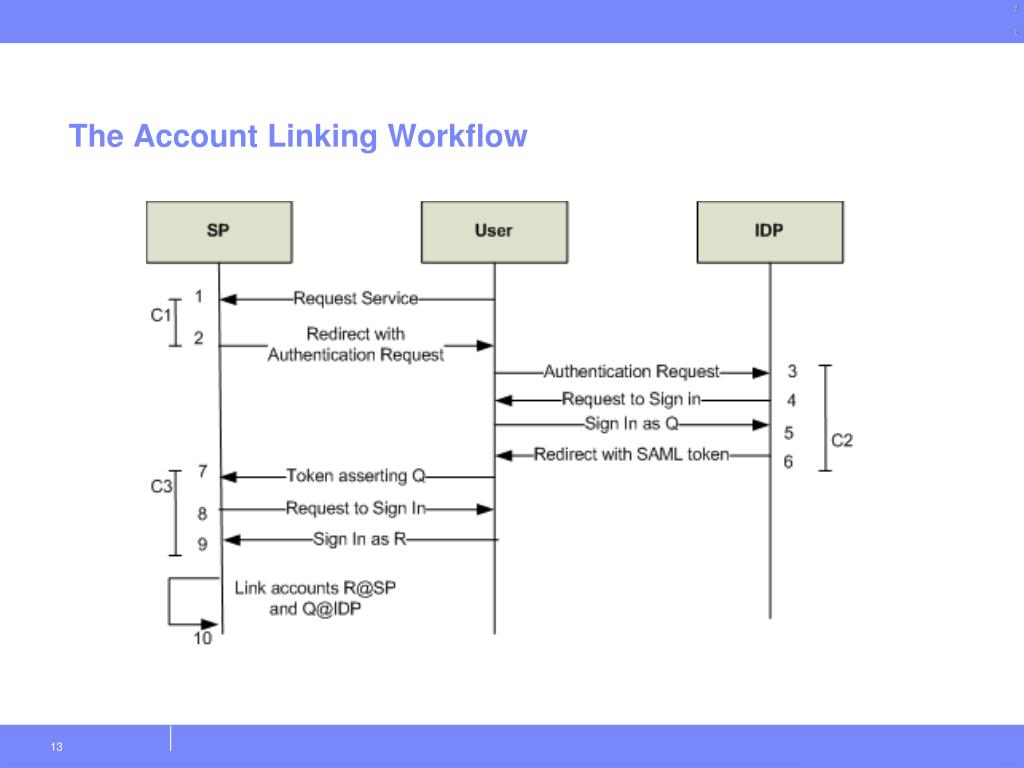

  13. The Account Linking Workflow

  14. Attack on Account Linking Workflow

  15. Conclusions
