Presentation Transcript

  1. VITP and CARS: A Distributed Service Model and Rate Adaptation for VANETs Liviu Iftode Department of Computer Science Rutgers University

  2. From Vehicular Applications to Services, Security and Networking • VANET Applications based on C2C • TrafficView (MDM’04, ACM MC2R’04) • EZCab (PerCom’06) • Adaptive Traffic Lights (VTC’07) • Highways with Reservation Lanes (ITCS’07) • Content Sharing for In-Car Entertainment • Vehicular Services • Vehicular Information Transfer Protocol (VITP) (Vanet’05, IEEE JSAC’07)) • Context-aware Migratory Services (IEEE TMC’07) • Security Issues in VANET • Probabilistic Validation of Data Aggregation (Vanet’06) • Trusted Application-Centric Ad-Hoc Networks (MASS’07) • Traffic-Driven Cross-Layer Optimization in VANET • Context-aware Transmission Rate Selection (CARS) • For more information: http://discolab.rutgers.edu Vehicular Applications Services Security Networking

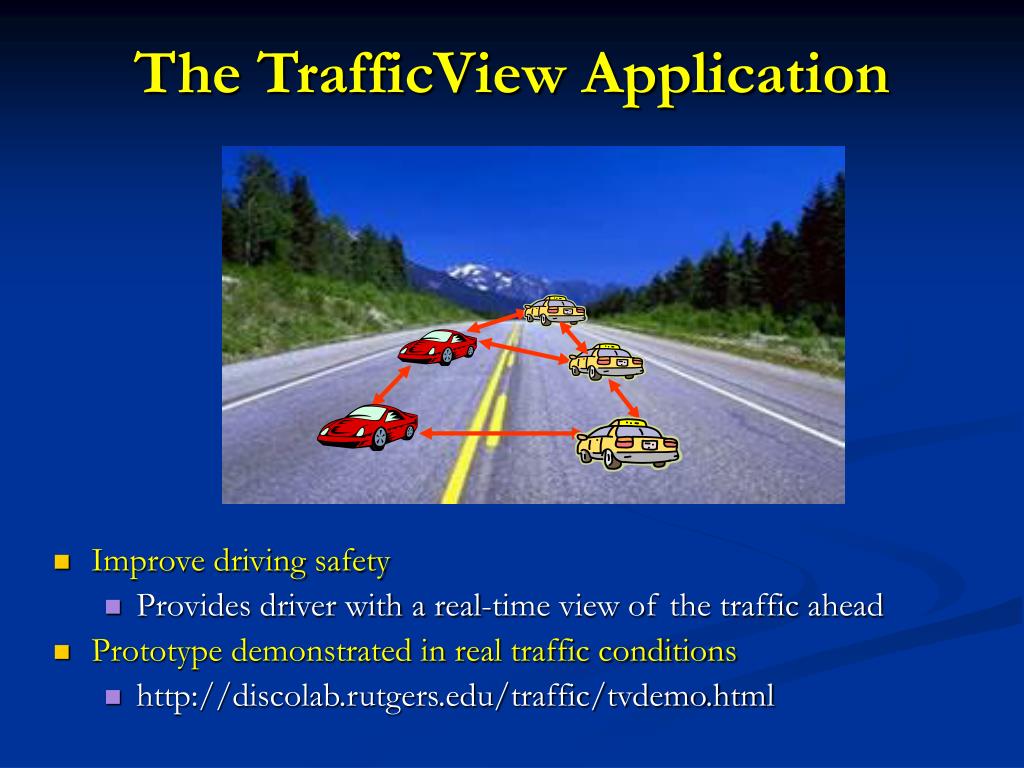

  3. The TrafficView Application • Improve driving safety • Provides driver with a real-time view of the traffic ahead • Prototype demonstrated in real traffic conditions • http://discolab.rutgers.edu/traffic/tvdemo.html

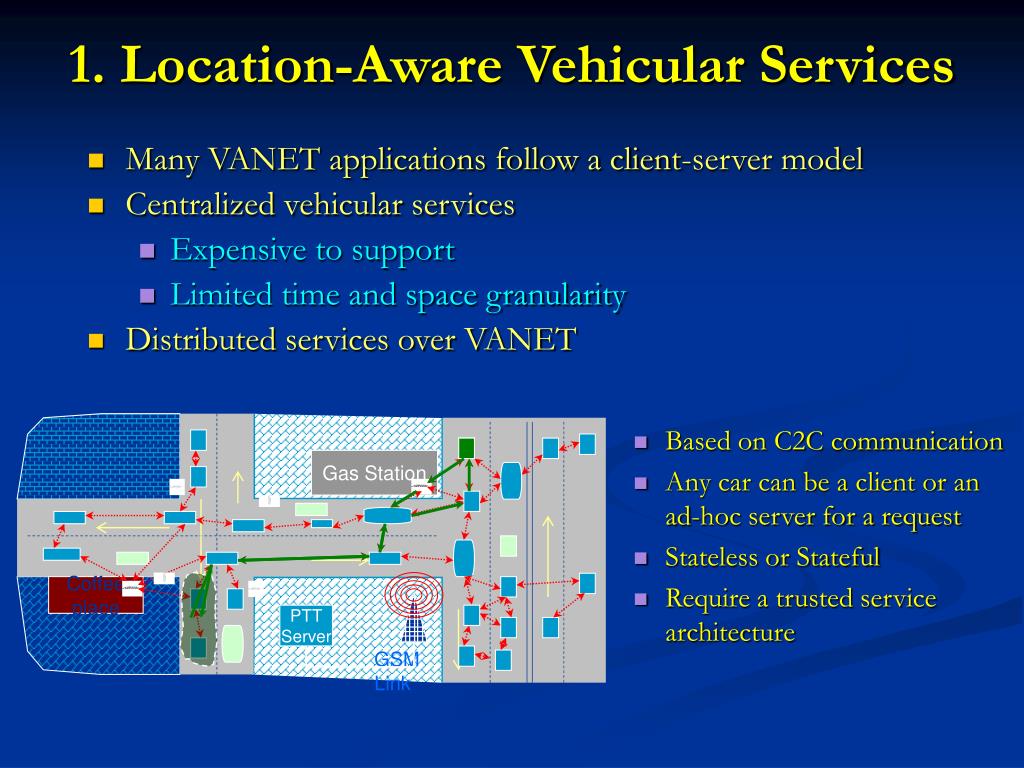

  4. Gas Station Coffee place PTT Server GSM Link 1. Location-Aware Vehicular Services • Many VANET applications follow a client-server model • Centralized vehicular services • Expensive to support • Limited time and space granularity • Distributed services over VANET • Based on C2C communication • Any car can be a client or an ad-hoc server for a request • Stateless or Stateful • Require a trusted service architecture

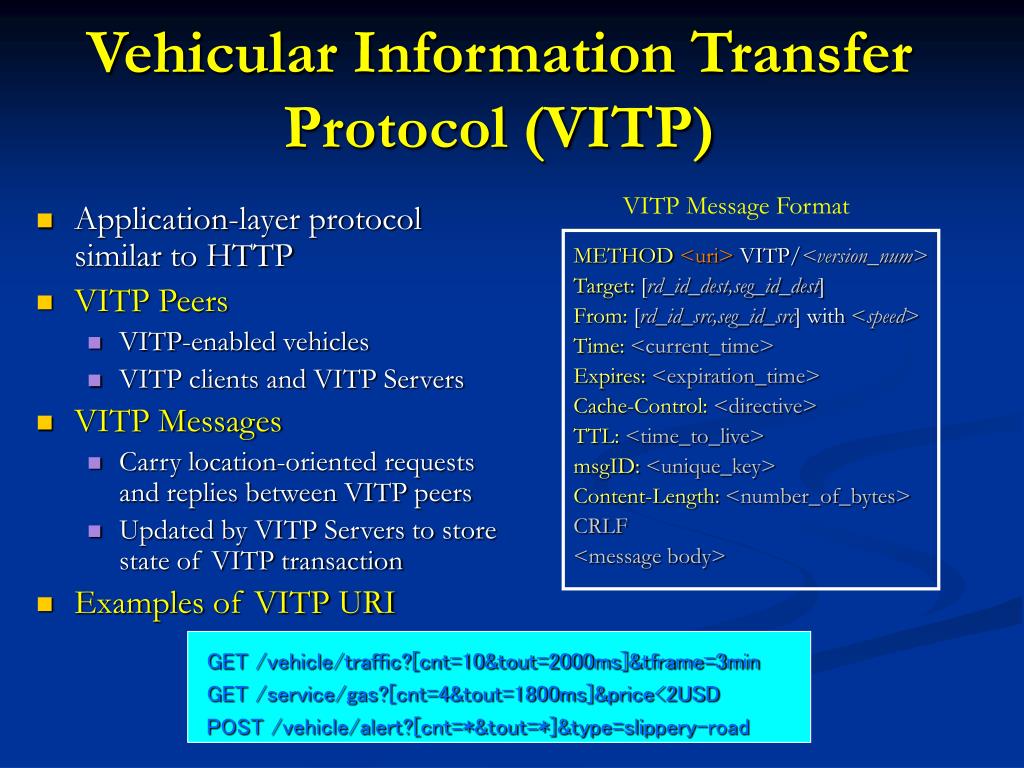

  5. Vehicular Information Transfer Protocol (VITP) • Application-layer protocol similar to HTTP • VITP Peers • VITP-enabled vehicles • VITP clients and VITP Servers • VITP Messages • Carry location-oriented requests and replies between VITP peers • Updated by VITP Servers to store state of VITP transaction • Examplesof VITP URI VITP Message Format METHOD<uri> VITP/<version_num> Target: [rd_id_dest,seg_id_dest] From: [rd_id_src,seg_id_src] with <speed> Time:<current_time> Expires:<expiration_time> Cache-Control:<directive> TTL:<time_to_live> msgID:<unique_key> Content-Length: <number_of_bytes> CRLF <message body> GET /vehicle/traffic?[cnt=10&tout=2000ms]&tframe=3min GET /service/gas?[cnt=4&tout=1800ms]&price<2USD POST /vehicle/alert?[cnt=*&tout=*]&type=slippery-road

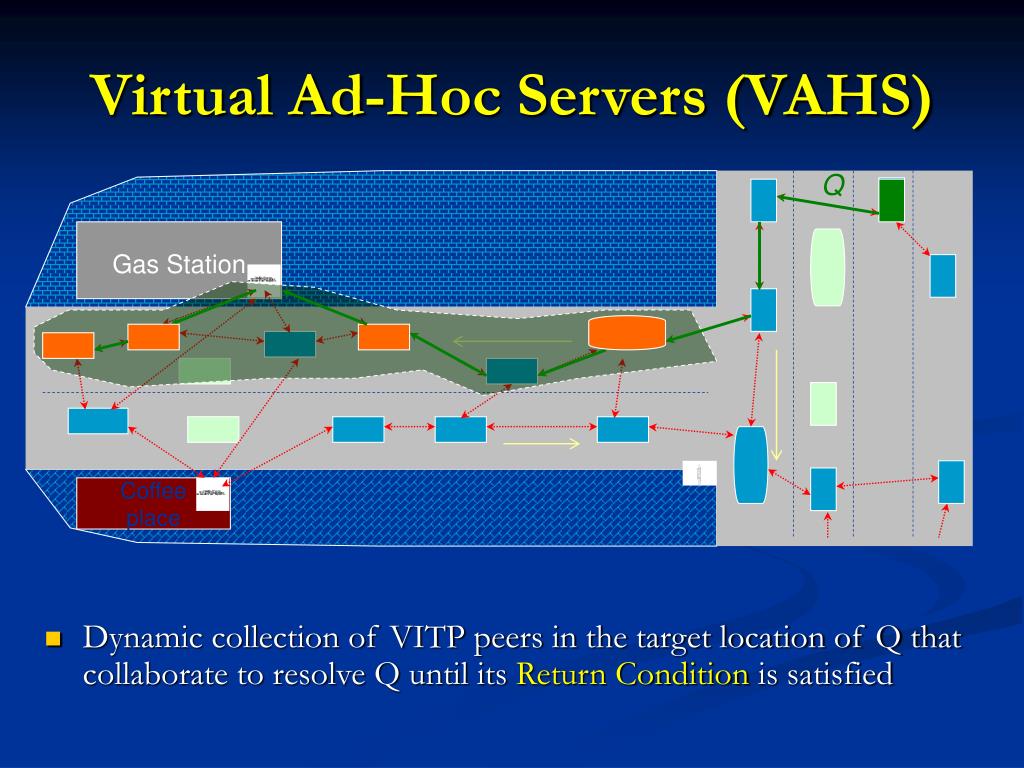

  6. Virtual Ad-Hoc Servers (VAHS) Q • Dynamic collection of VITP peers in the target location of Q that collaborate to resolve Q until its Return Condition is satisfied Gas Station Coffee place

  7. VITP Transactions Dispatch-query phase VAHS-computation phase Dispatch-Reply phase Reply-delivery phase Q VAHS Q Q2 R Q1 Q3 R Q4 R Intermediary nodes Q5 Q7 Q6 VITP Peer VANET node

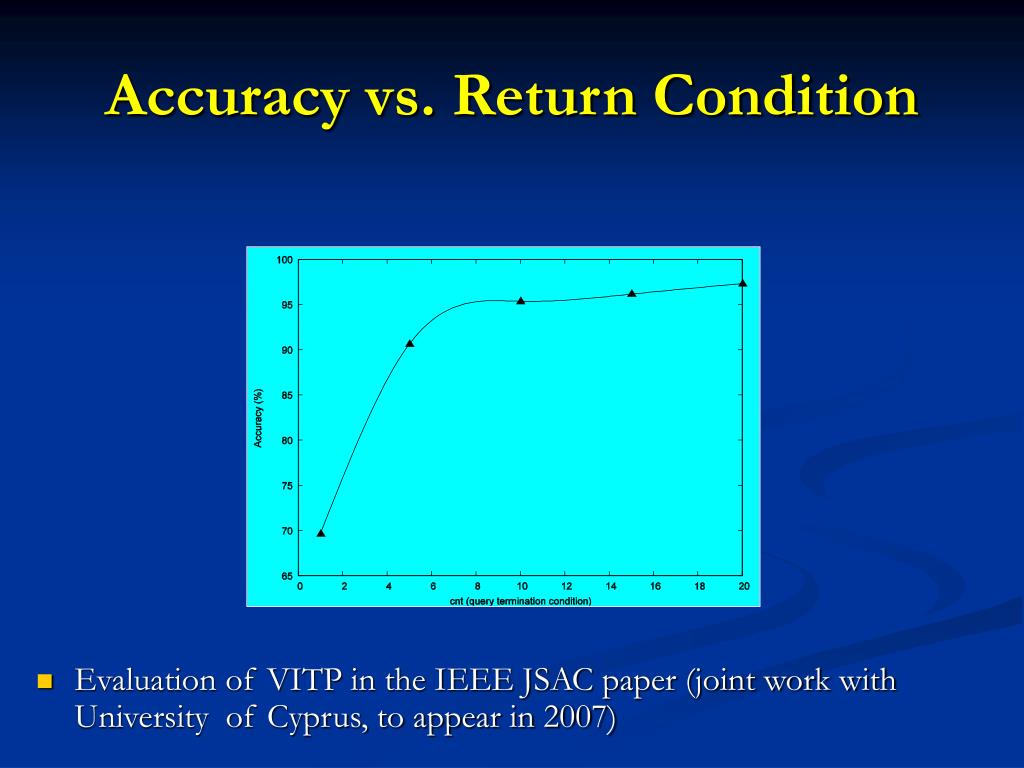

  8. Accuracy vs. Return Condition • Evaluation of VITP in the IEEE JSAC paper (joint work with University of Cyprus, to appear in 2007)

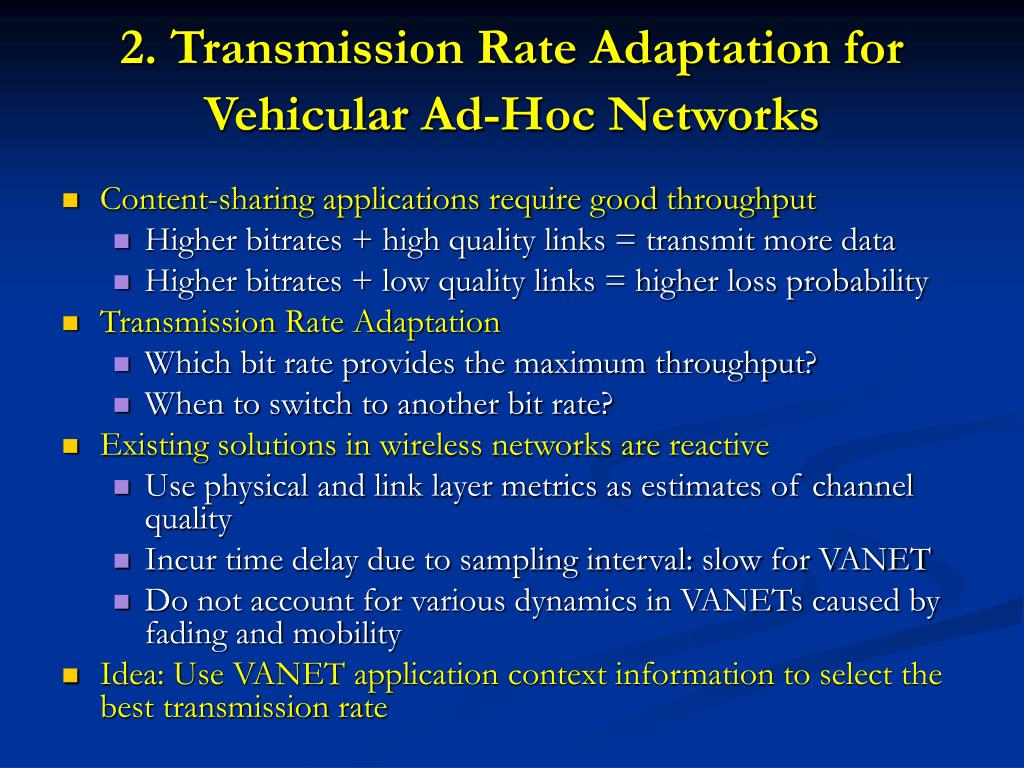

  9. 2. Transmission Rate Adaptation for Vehicular Ad-Hoc Networks • Content-sharing applications require good throughput • Higher bitrates + high quality links = transmit more data • Higher bitrates + low quality links = higher loss probability • Transmission Rate Adaptation • Which bit rate provides the maximum throughput? • When to switch to another bit rate? • Existing solutions in wireless networks are reactive • Use physical and link layer metrics as estimates of channel quality • Incur time delay due to sampling interval: slow for VANET • Do not account for various dynamics in VANETs caused by fading and mobility • Idea: Use VANET application context information to select the best transmission rate

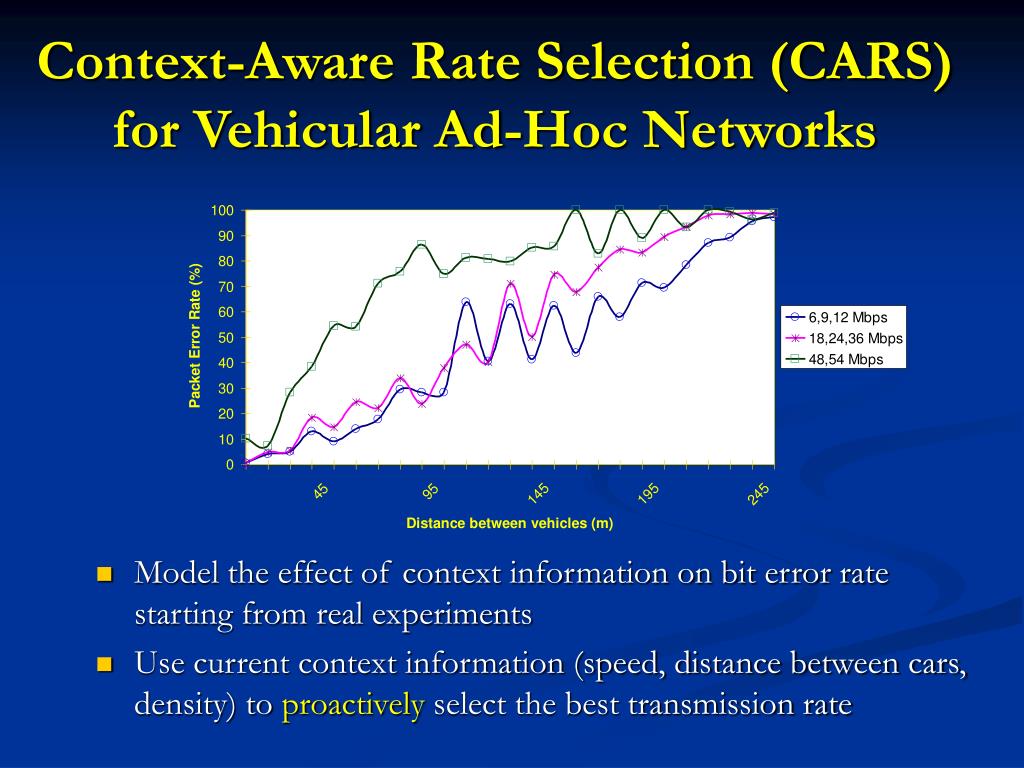

  10. Context-Aware Rate Selection (CARS) for Vehicular Ad-Hoc Networks • Model the effect of context information on bit error rate starting from real experiments • Use current context information (speed, distance between cars, density) to proactively select the best transmission rate

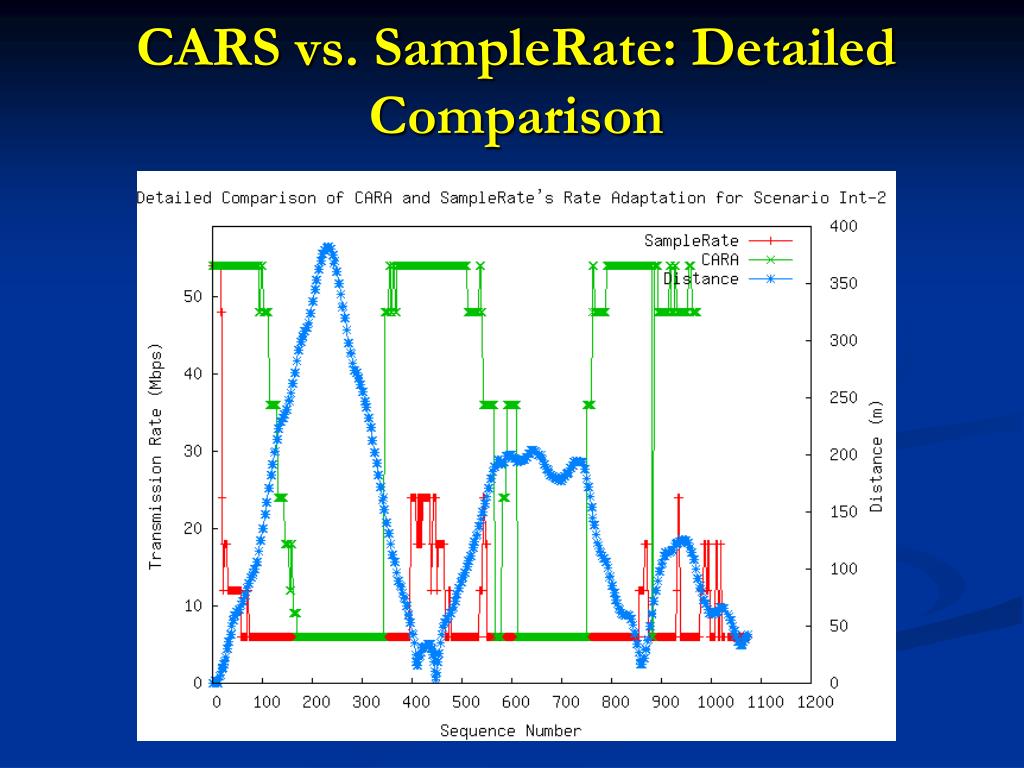

  11. CARS vs. SampleRate: Detailed Comparison

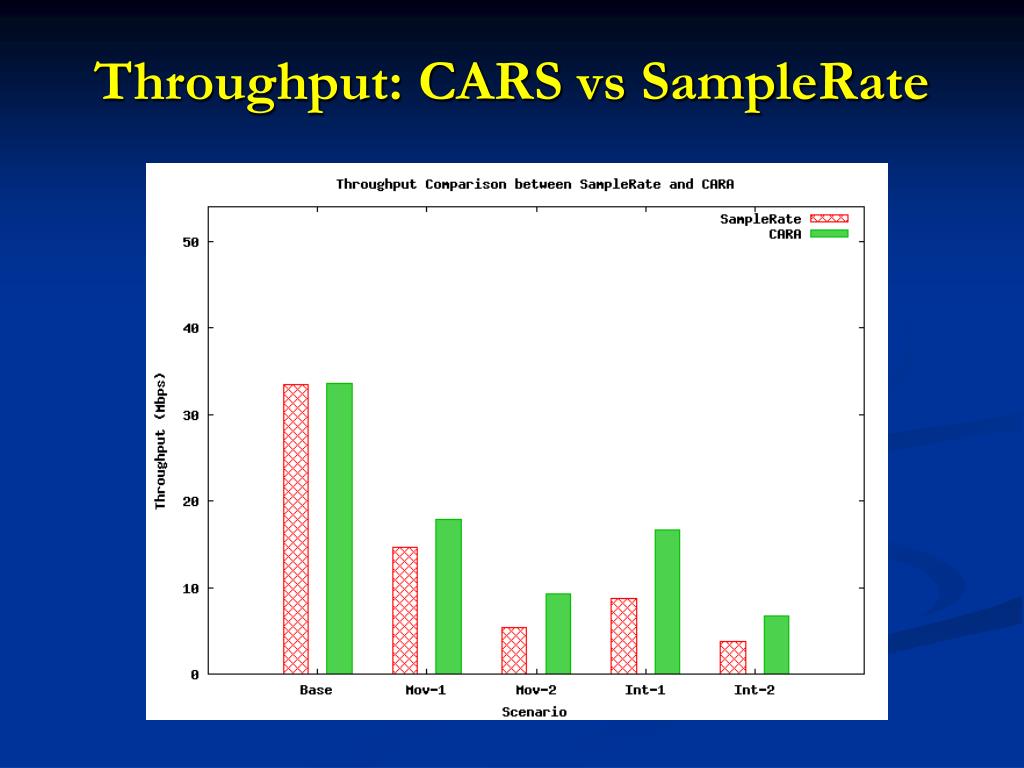

  12. Throughput: CARS vs SampleRate
