Chapter 5 Design Patterns

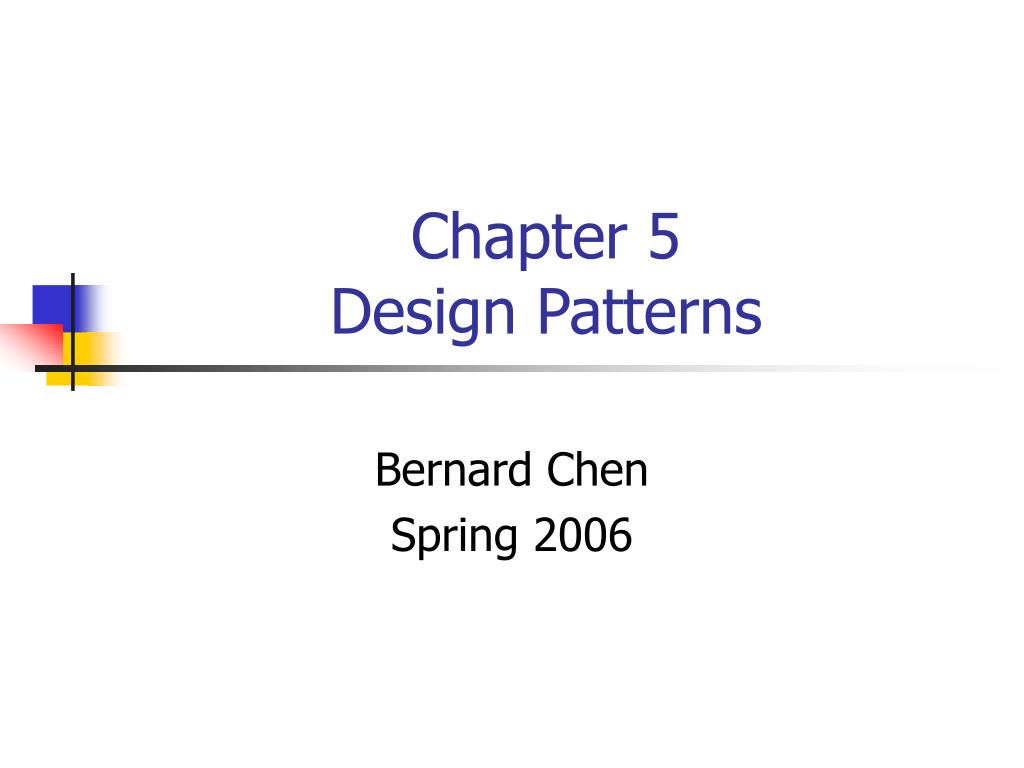

1. Chapter 5Design Patterns Bernard Chen Spring 2006

2. Objective • What is Design Pattern • Functor • Wrapper • Adapter • Iterator • Observer

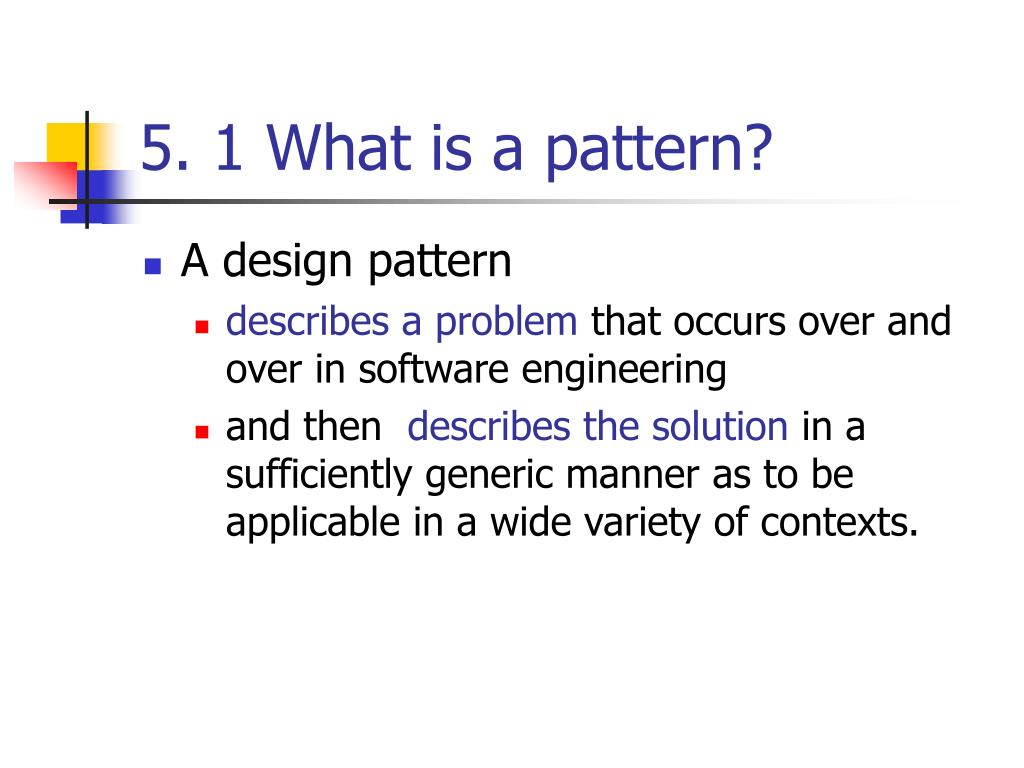

3. 5. 1 What is a pattern? • A design pattern • describes a problem that occurs over and over in software engineering • and then describes the solution in a sufficiently generic manner as to be applicable in a wide variety of contexts.

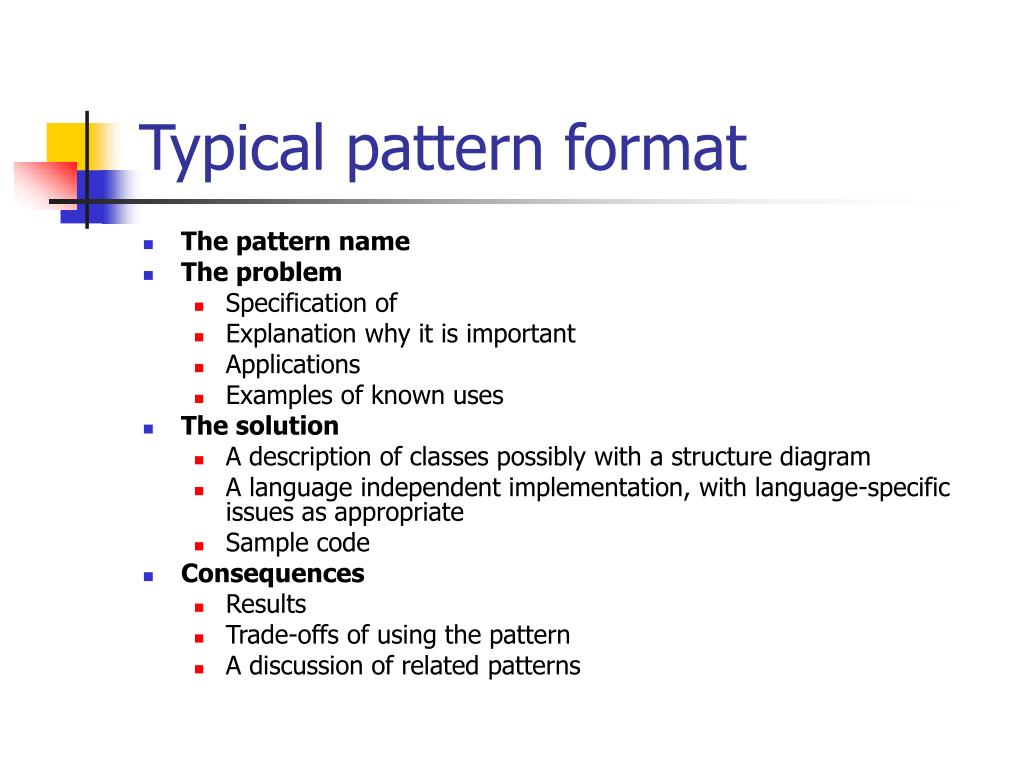

4. Typical pattern format • The pattern name • The problem • Specification of • Explanation why it is important • Applications • Examples of known uses • The solution • A description of classes possibly with a structure diagram • A language independent implementation, with language-specific issues as appropriate • Sample code • Consequences • Results • Trade-offs of using the pattern • A discussion of related patterns

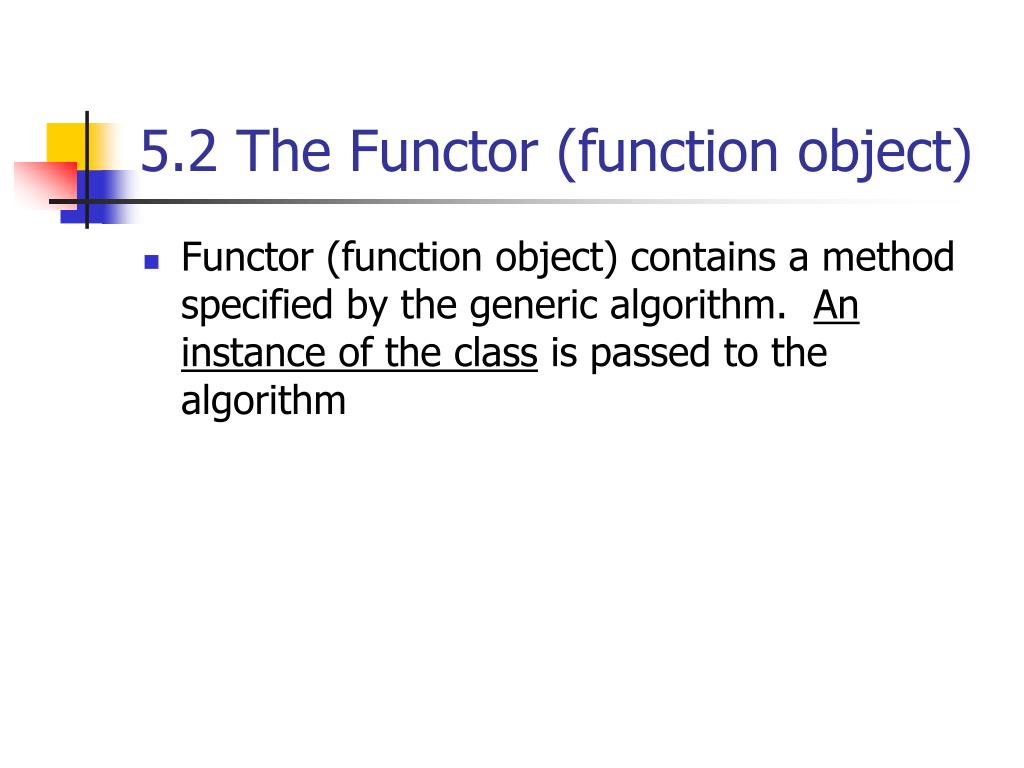

5. 5.2 The Functor (function object) • Functor (function object) contains a method specified by the generic algorithm. An instance of the class is passed to the algorithm

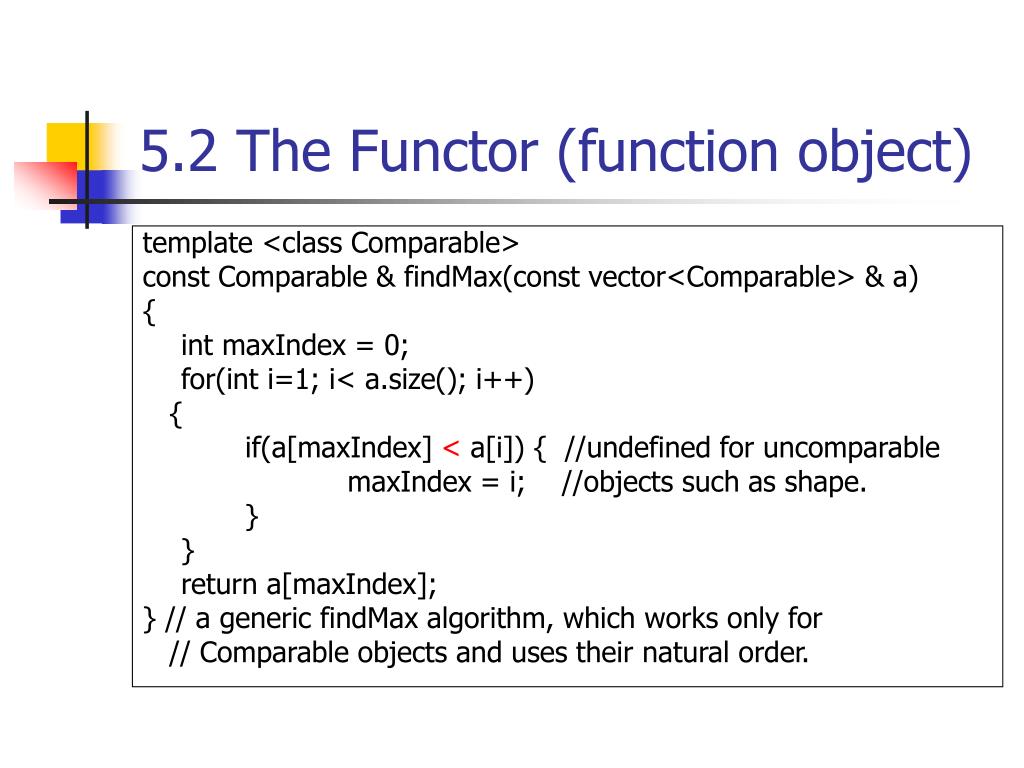

6. 5.2 The Functor (function object) template <class Comparable> const Comparable & findMax(const vector<Comparable> & a) { int maxIndex = 0; for(int i=1; i< a.size(); i++) { if(a[maxIndex] < a[i]) { //undefined for uncomparable maxIndex = i; //objects such as shape. } } return a[maxIndex]; } // a generic findMax algorithm, which works only for // Comparable objects and uses their natural order.

7. 5.2 The Functor (function object) • Even we define operator< for shapes based on area, or perimeter, we are stuck with it. What if we want to have findMax work with several different comparison alternatives. • The solution is to pass the comparison function as a parameter to findMax and have findMax use the comparison function instead of assuming the existence of an opearator<. • Now the main issue is how to pass the comparison function.– use a function object

8. 5.2 The Functor (function object) • It solves the problem of the comparison of the data type lacking of the definition of operator<, and provides multiple comparison alternatives. • It can be passed to a function as a parameter, which in turn calls the single method of the function object. • Function object is usually used as a replacement for a comparison operator (<, !=,etc.).

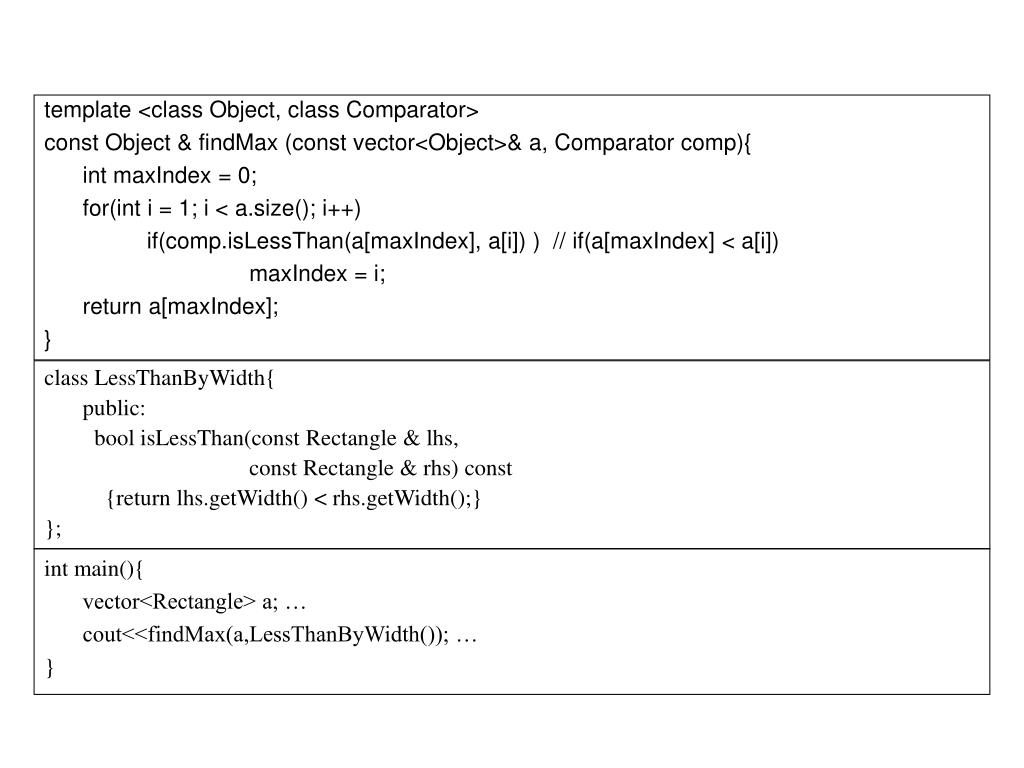

9. template <class Object, class Comparator> const Object & findMax (const vector<Object>& a, Comparator comp){ int maxIndex = 0; for(int i = 1; i < a.size(); i++) if(comp.isLessThan(a[maxIndex], a[i]) ) // if(a[maxIndex] < a[i]) maxIndex = i; return a[maxIndex]; } class LessThanByWidth{ public: bool isLessThan(const Rectangle & lhs, const Rectangle & rhs) const {return lhs.getWidth() < rhs.getWidth();} }; int main(){ vector<Rectangle> a; … cout<<findMax(a,LessThanByWidth()); … }

10. 5.3 Adapters and Wrappers • A wrapper class stores a primitive type and adds operations that the primitive type does not support or supports incorrectly. • An adapter class is used when the interface of a class is not exactly what is needed. Sometimes, it is used to provide a simpler interface. At other times it is used simply to change some method names. In either case, the implementation technique is similar.

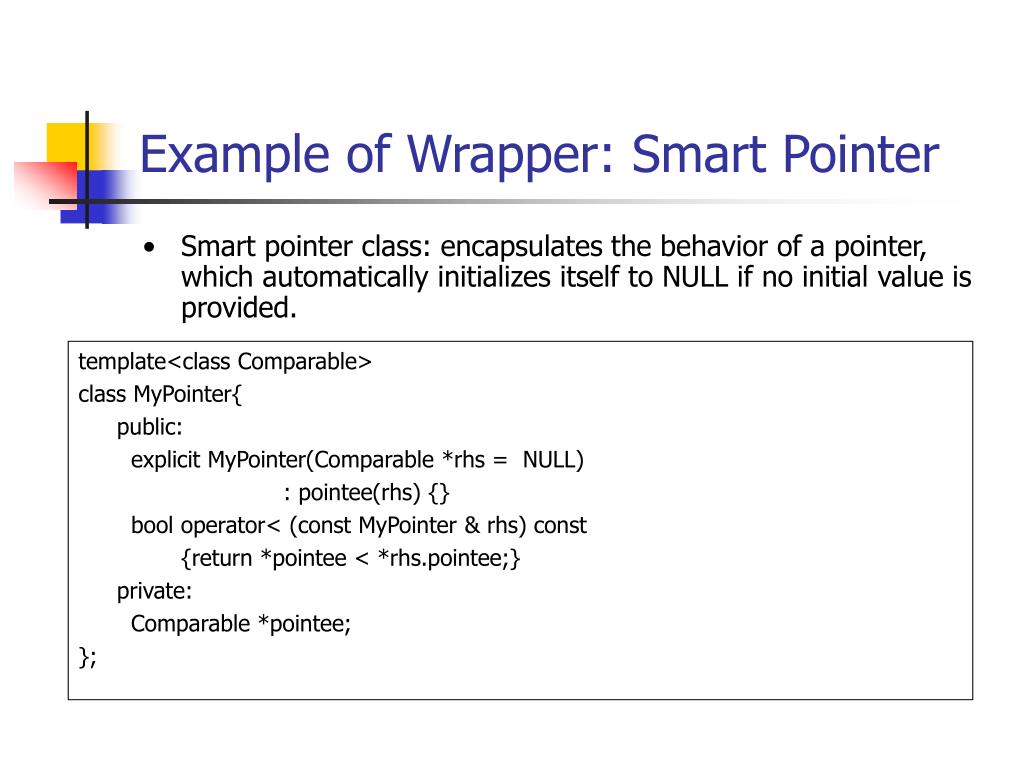

11. Example of Wrapper: Smart Pointer • Smart pointer class: encapsulates the behavior of a pointer, which automatically initializes itself to NULL if no initial value is provided. template<class Comparable> class MyPointer{ public: explicit MyPointer(Comparable *rhs = NULL) : pointee(rhs) {} bool operator< (const MyPointer & rhs) const {return *pointee < *rhs.pointee;} private: Comparable *pointee; };

12. Example of Wrapper: Auto-pointers • New standard C++ pointers call auto_ptr which wraps a pointer in an object, and its destructor calls delete. • It helps automatically delete dynamically allocated object. So auto_ptr frees programmers from writing code to keep track and delete memory returned from a new operator.

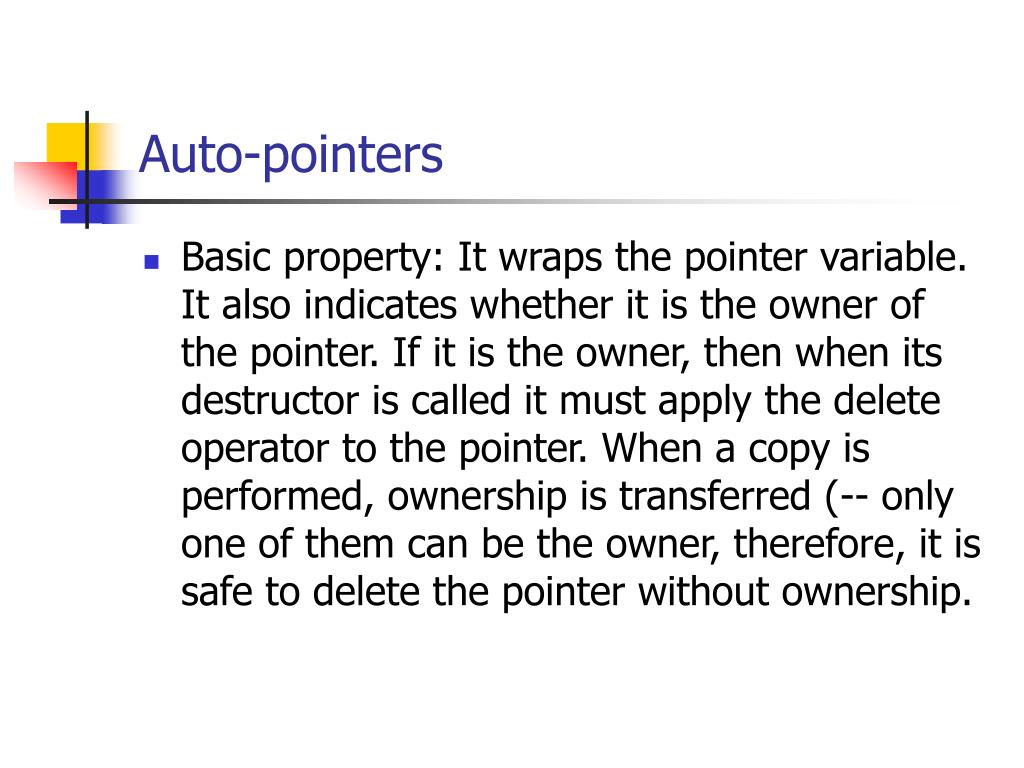

13. Auto-pointers • Basic property: It wraps the pointer variable. It also indicates whether it is the owner of the pointer. If it is the owner, then when its destructor is called it must apply the delete operator to the pointer. When a copy is performed, ownership is transferred (-- only one of them can be the owner, therefore, it is safe to delete the pointer without ownership.

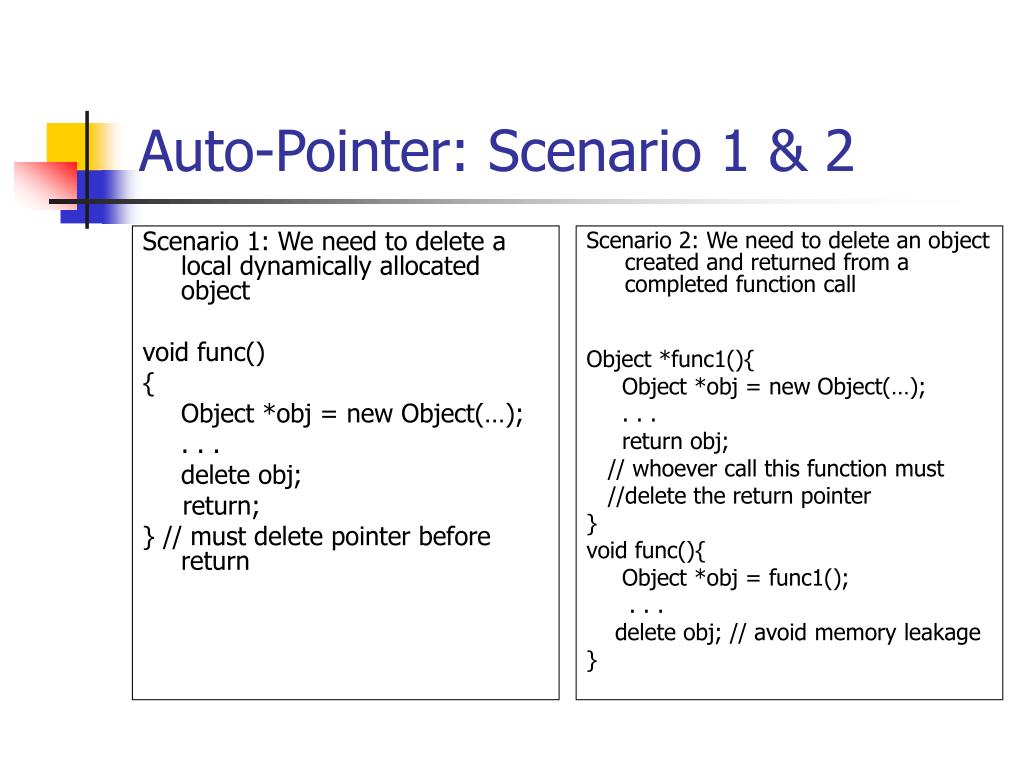

14. Scenario 1: We need to delete a local dynamically allocated object void func() { Object *obj = new Object(…); . . . delete obj; return; } // must delete pointer before return Scenario 2: We need to delete an object created and returned from a completed function call Object *func1(){ Object *obj = new Object(…); . . . return obj; // whoever call this function must //delete the return pointer } void func(){ Object *obj = func1(); . . . delete obj; // avoid memory leakage } Auto-Pointer: Scenario 1 & 2

15. Auto-Pointer: Scenario 3 • We need to delete a dynamically allocated object created by the calling function void func(Object *obj){ . . . delete obj; } void func1(){ Object *obj1 = new Object(…); . . . func(obj1); . . . }

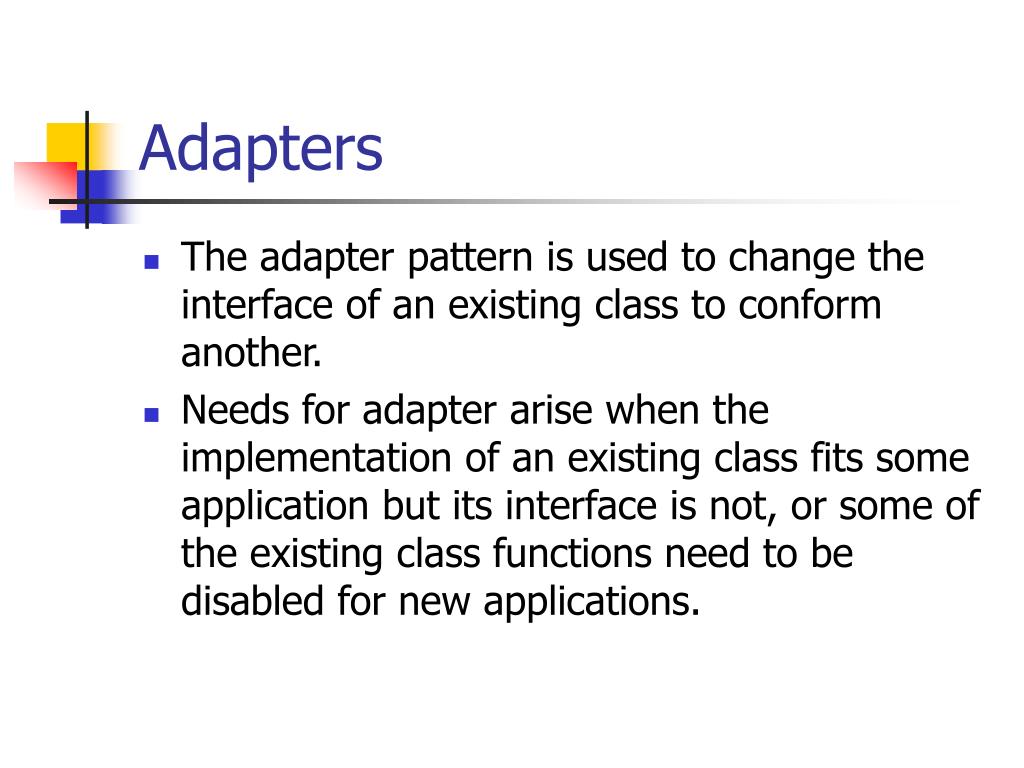

16. Adapters • The adapter pattern is used to change the interface of an existing class to conform another. • Needs for adapter arise when the implementation of an existing class fits some application but its interface is not, or some of the existing class functions need to be disabled for new applications.

17. template <class Object> class StorageCell : private MemoryCell<Object>{ public: explicit StorageCell(const Object & initialValue = Object()) : MemoryCell<Object>(inititalValue){} const Object & get() const { return read();} void put(const Object & x) { write(x);} };// An adapter class that changes the MemoryCell interface to use get and put template <class Object> class MemoryCell{ public: explicit MemoryCell(const Object & initVal = Object()) :storedValue(initVal){} const Object & read() const {return storedValue;} void write(const Object & x) {storedValue = x;} private: Object storedValue; }; // figure 3.8

18. 5.4 Iterators • An object that controls iteration of a collection. Example: for(int i=0; i<v.size(); i++) cout<< v[i] << endl; //i is an iterator

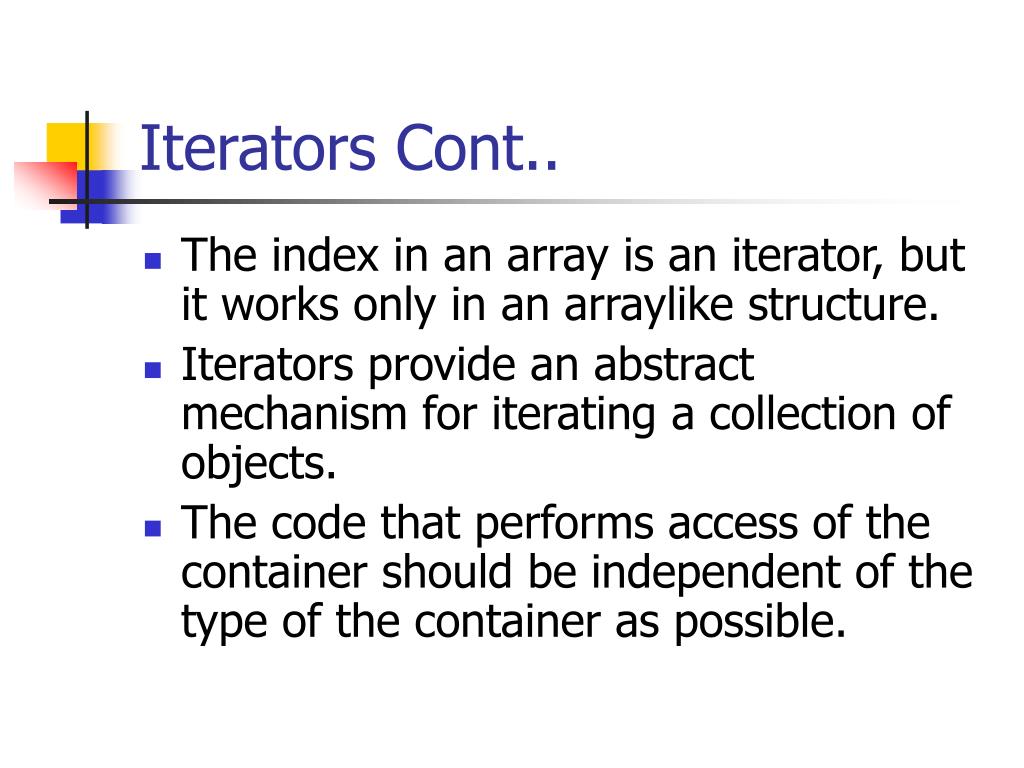

19. Iterators Cont.. • The index in an array is an iterator, but it works only in an arraylike structure. • Iterators provide an abstract mechanism for iterating a collection of objects. • The code that performs access of the container should be independent of the type of the container as possible.

20. Iterators Cont.. int main() { MyVector<int> v; v.push_back(3); v.push_back(2); cout<< “Vector Contents ”<<endl; VectorIterator<int> itr = v.getIterator(); while(itr.hasNext()) cout<<itr.next()<<endl; return 0; }// illustration of Design 1
