  1. Natural 6Tips ‘n’ Techniques Chad Scott C.Scott@FCL.ca Ralph Zbrog RGZbrog@ZZUtils.com • Natural Conference 2005

  2. Program Editor • Avoiding long source lines • Lines up to 250 characters • Set ruler position to 72 for mainframe compatibility • Tools  Options...  Program Editor  Ruler Position

  3. Program Editor • Font size • Coding vs presentation • Tools  Options...  Program Editor  Font...  Size • Coding: Courier New, 10 • Presentation: Lucida Console, 16 • Output window, editors (not Dialogs)

  4. Program Editor • Mainframe convention: uppercase source with (optional) mixed-case literals • Windows compatibility • Tools  Options...  Program Editor  Uppercase translation • Tools  Options...  Program Editor  Ignore text constants • External object names • CALLNAT ‘d2optsub’ • CALLNAT “d2optsub”

  5. Program Editor • List or edit external object via context menu • Left-click object name  ctrl-o • Right-click object name  Open • Right-click object name  List

  6. Accelerators • ctrl-m – convert block to comments • shift-ctrl-m – reverse ctrl-m • Help  Contents  Getting Started: Fundamentals  Natural Studio - Introduction  Accelerators

  7. Screen Images • Program editor • Select block of source code • Line numbers • Program Editor Options toolbar • Tools  Options...  Program Editor  Line numbers • ctrl-c to copy • ctrl-v to insert • Output window • %c  program editor

  8. Folders • Filters • Right-click folder  Display Filter...  specify wildcards • + indicates active filters

  9. Folders • Export source module • Drag-n-drop module from Library workspace to directory or desktop • Faster than copy/paste • edit  ctrl-a  ctrl-c  ctrl-v  save as • Import source module • Drag-n-drop module from directory or desktop to Library workspace

  10. Folders • Upload to mainframe • Change NSx extension to TXT for upload/FTP //LOAD EXEC NATBT,SYSOUT=*,TIME=50,PRM='AUTO=ON,SL=80,MAINPR=1,PS=65' //CMSYNIN DD *,BLKSIZE=27948 %L LOGON natlib EDT /* // DD DSN=ZBROG.PUNCH(########),DISP=SHR FB/102 // DD * .E SA ######## FIN /* //

  11. Folders • Download from mainframe • Extract from mainframe FUSER (ZZPUNCH) • Set file extension to TXT for download/FTP to directory • Set file extension to NSx, where x represents module type

  12. FTOUCH • Software AG warns strongly against any external manipulation of FUSER directories and contents • FTOUCH utility provided as last resort to correct data corruption in FILEDIR.SAG • Exceptions? • Automated backup & recovery • Deleting library contents (client vs server)

  13. Backup Directory • Directory name template • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  Workfiles  1  C:\Documents and Settings\...\NatBackup\nat05mmdd.sag • Simply overtype mmdd

  14. Backup Directory • Works for Object Handler and SYSTrans

  15. Program Load • Buffer Pool Search First Indicator • Set OFF in development environment • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  Program Loading/Deletion  BPSFI  OFF

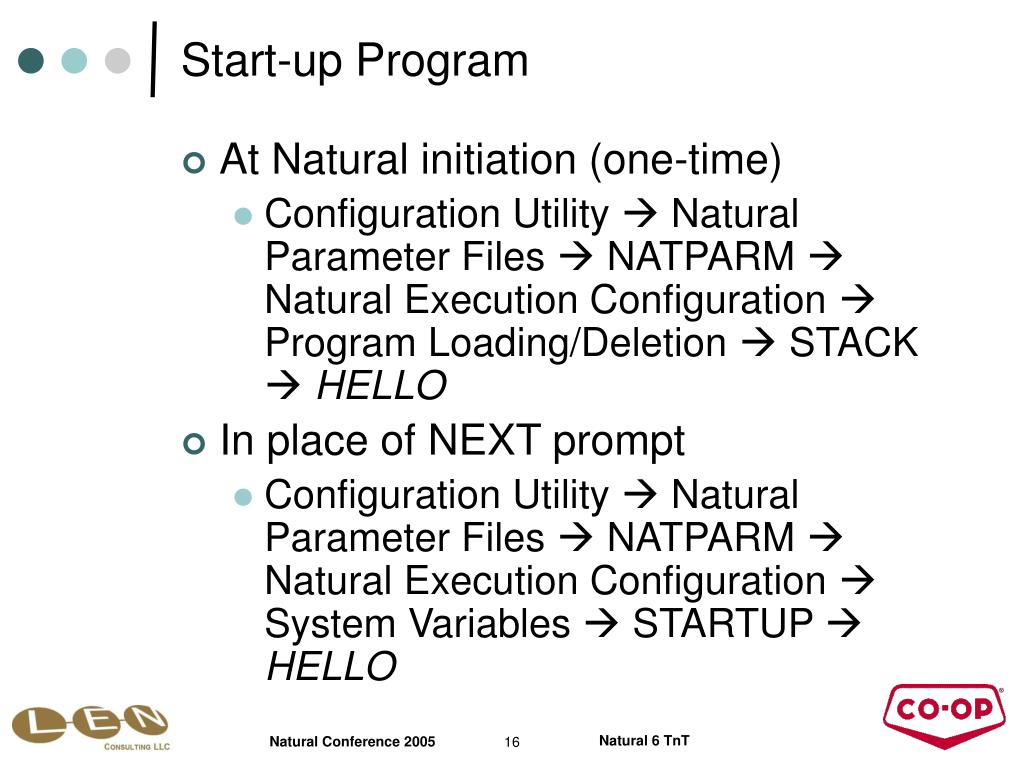

  16. Start-up Program • At Natural initiation (one-time) • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  Program Loading/Deletion  STACK  HELLO • In place of NEXT prompt • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  System Variables  STARTUP  HELLO

  17. Session Parameters • Persistence (Windows-only) • During familiarization with Studio, session parameter adjustments may be made • PERSIST configuration parameter causes session parameters to be saved for next session • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  Program Loading/Deletion  PERSIST

  18. Configuration Utility • START  All Programs  Software AG Natural 6.1.1  Configuration Utility • c:\Program Files\Software AG \Natural\6.1.1\Bin\natparm.exe

  19. Date Initialization • Data editor  Data Field Definition  Initialize...  Free form entry

  20. Questions • How to initialize with *DATX or *TIMX? • Workaround: import from a program • How to handle empty files? • How to shift a block of code within program editor?

  21. Fin

  22. Natural 6Tips ‘n’ Techniques Chad Scott C.Scott@FCL.ca Ralph Zbrog RGZbrog@ZZUtils.com • Natural Conference 2005
