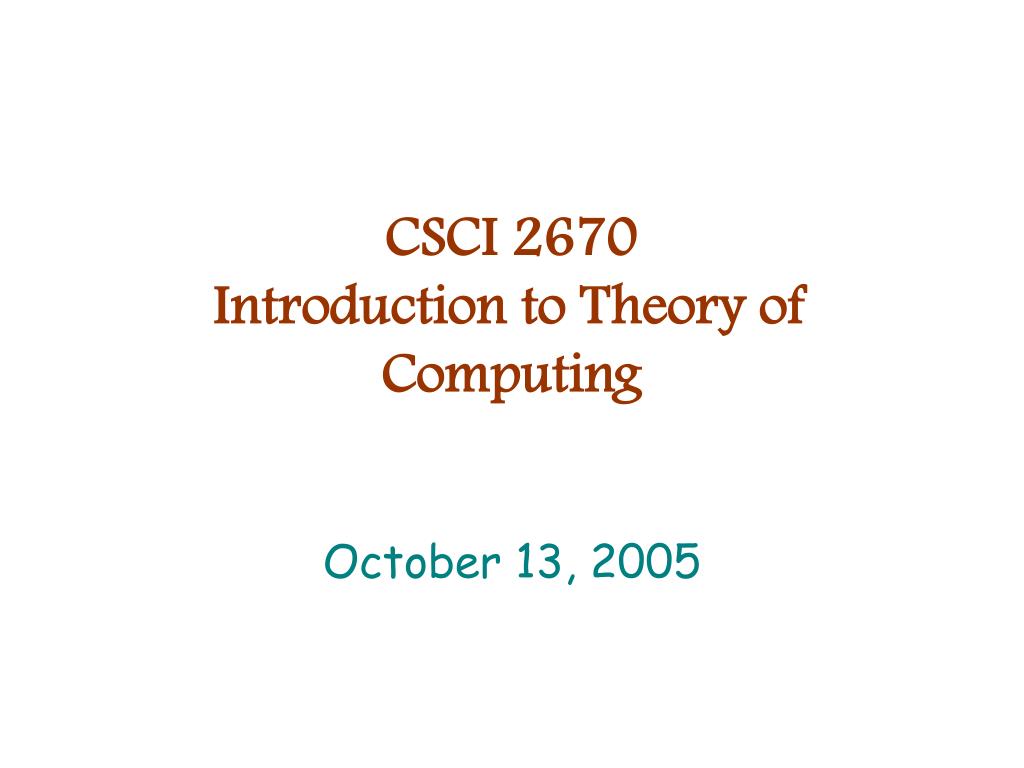

  1. CSCI 2670Introduction to Theory of Computing October 13, 2005

  2. Agenda • Yesterday • Decidability and regular languages • Today • Putting things in perspective • More on decidability and regular languages • Decidability and context free grammars October 13, 2005

  3. Course goals • Theoretically explore the capabilities and limitations of computers • Complexity theory • What makes some problems computationally hard and others easy? • Computability theory • What problems can be solved by a computer? • Automata theory • How can we mathematically model computation? October 13, 2005

  4. Some perspective • Automata theory • Introduced DFA’s, NFA’s, RE’s • Showed that they all accept the same class of languages • Introduced CFG’s, PDA’s • PDA is essentially an NFA with a stack • PDA’s and CFG’s accept the same class of languages October 13, 2005

  5. Perspective (cont.) • Computability Theory • Introduced TM’s • Like PDA’s with more general memory model • Importance of TM’s • Church-Turing Thesis • Any algorithm can be implemented on a TM • Use the TM model and Church-Turing Thesis to understand and classify languages • Decidable languages • Undecidable languages • Recognizable languages • Unrecognizable languages • Complements of languages in these classes October 13, 2005

  6. Perspective (cont.) • Complexity theory (later this semester) • Use TM model to determine how long an algorithm takes to run • Function of input length • Classify algorithms according to their complexity October 13, 2005

  7. Decidable languages • A language is decidable if some Turing machine decides it • Every string in * is either accepted or rejected October 13, 2005

  8. Some decidable languages • ADFA = {<B,w> | B is a DFA that accepts input string w} • ANFA = {<B,w> | B is an NFA that accepts input string w} • AREX = {<R,w> | R is a regular expression that generates string w} • EDFA = {<A> | A is a DFA and L(A) = } • EQDFA = {<A,B> | A and B are DFA’s and L(A) = L(B)} October 13, 2005

  9. Question • How would we show that the following language is decidable? ALLDFA = {<A> | A is a DFA that recognizes *} October 13, 2005

  10. Another question • Let L be any regular language • How would we show L is decidable? • Assume L is described using a DFA October 13, 2005

  11. Deciders and CFG’s • Consider the following language ACFG = {<G,w> | G is a CFG that generates string w} • Is ACFG decidable? • Problem: How can we get a TM to simulate a CFG? • Must be certain CFG tries a finite number of steps! • Solution: Use Chomsky normal form October 13, 2005

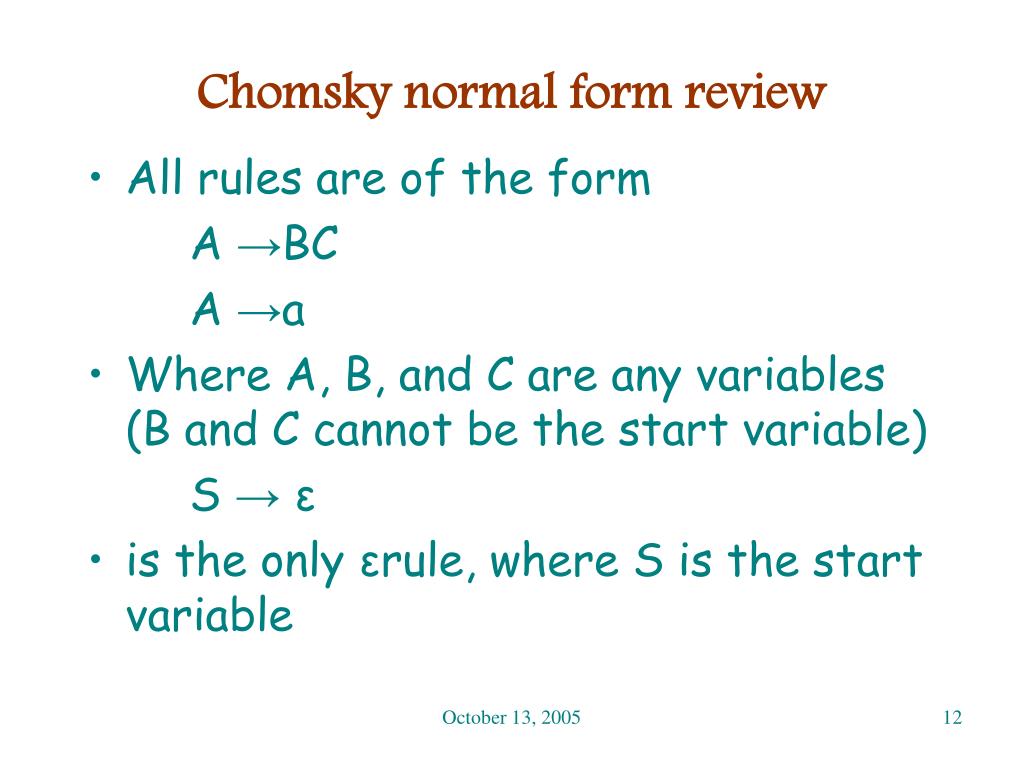

  12. Chomsky normal form review • All rules are of the form A →BC A →a • Where A, B, and C are any variables (B and C cannot be the start variable) S → ε • is the only εrule, where S is the start variable October 13, 2005

  13. How many steps to generate w? • If |w| = 0 • 1 step • If |w| = n > 0? • 2n – 1 steps October 13, 2005

  14. TM simulating ACFG M = “On input <G>, where G is a CFG • Convert G into Chomsky normal form • If |w| = 0 • If there is an S → εrule, accept • Otherwise, reject • List all derivations with 2|w|-1 steps • If any generate w, accept • Otherwise, reject” October 13, 2005

  15. Empty CFG’s • Consider the following language ECFG = {<G> | G is a CFG and L(G) = } • Theorem:ECFG is decidable • Can we use the TM in ACFG to prove this? • No. There are infinitely many possible strings in Σ* • Instead, we need to check if there is any way to get from the start variable to some string of terminals October 13, 2005

  16. Work backwards B = “On input <G>, where G is a CFG • Mark all terminals • Repeat until no new variables are marked • Mark any variable A if G has a rule A→U1U2…Uk where U1, U2, …, Uk are all marked • If S is marked, reject • Otherwise, accept” October 13, 2005

  17. What about EQCFG? • Recall for EQDFA, we considered (L(A)  L(B))  (L(A)  L(B)) • Will this work for CFG’s? • No. CFG’s are not closed under complementation or intersection • EQCFG is not a decidable language! • We will see this later October 13, 2005

  18. Decidability of CFL’s Theorem: Every context-free language L is decidable Proof: For each w, we need to decide whether or not w is in L. Let G be a CFG for L. This problem boils down to ACFG, which we showed is decidable. Question: Why don’t we just make a TM that simulates a PDA? October 13, 2005

  19. Context-free Turing-recognizable Decidable Regular Relationship of classes of languages October 13, 2005

  20. Have a great weekend
