  1. Real-time Action Tracking System (RATS) Brett Newlin and Ryan Frazier

  2. Design • RATS is to be used by extreme sports companies and organizations to monitor an athlete’s performance in competition. • Gather and transmit data in real-time using 3-axis accelerometers and a gyroscope. • With this data we can determine speed, height of jumps, degrees of rotation and possibly many other metrics. • This system will help judges make a more accurate analysis of an athlete’s performance. • Athletes will like this system because it will help standardize performances, instead of relying on the biases of the judges. • This system will also help the athletes improve their skills by giving them detailed feedback.

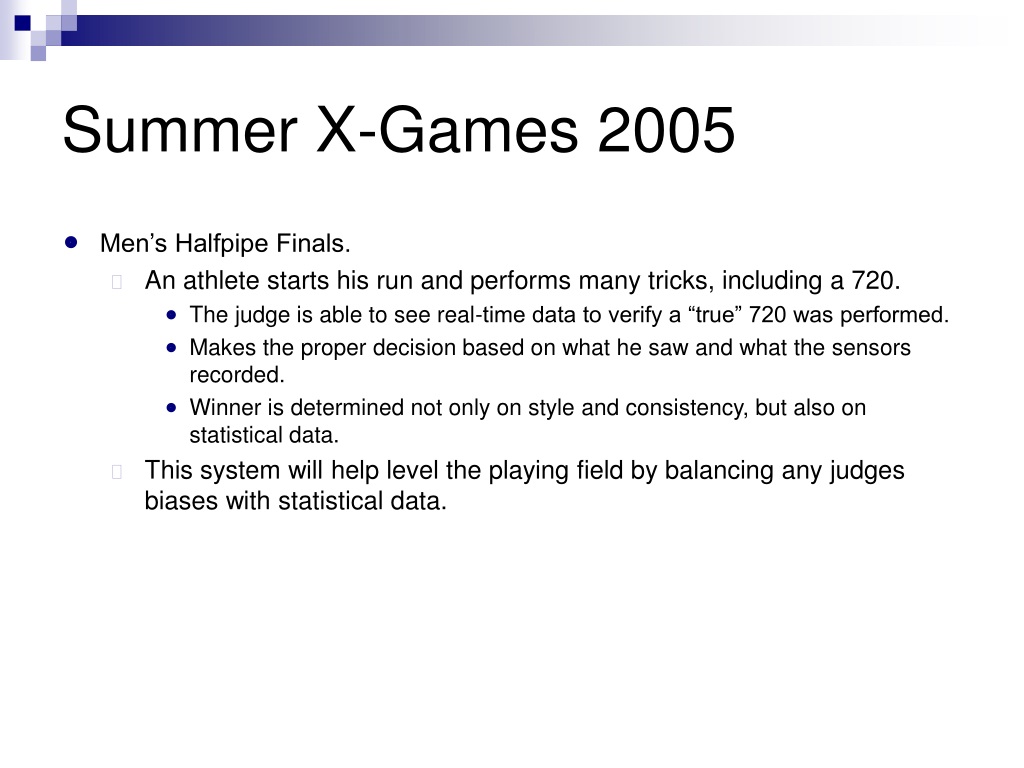

  3. Summer X-Games 2005 • Men’s Halfpipe Finals. • An athlete starts his run and performs many tricks, including a 720. • The judge is able to see real-time data to verify a “true” 720 was performed. • Makes the proper decision based on what he saw and what the sensors recorded. • Winner is determined not only on style and consistency, but also on statistical data. • This system will help level the playing field by balancing any judges biases with statistical data.

  4. Architecture • Four major components. • 3 Volt, 3-axis Accelerometer – measure ±2/6 g acceleration. • 5 Volt, Gyroscope – measure rotations in degrees/second (limit 300 degrees/second). • 3 Volt, Atmel16 – gather and store data from accelerometer. • 3 Volt, Mica2Dot Mote – transmit data and convert gyroscope analog signal to digital data.

  5. Architecture Cont. • Construction. • PCB 4 layer board design. • Data flow. • Digital acceleration data sent to Atmel16. • Digital acceleration data sent from Atmel16 to Mote. • Analog angular velocity sent to ADC on Mote. • All data values transmitted from Mote on board to Mote at judging table. • Radio Frequency transmission at 433 Hz at 19/38 kbits/second.

  6. Design Goals • Construction. • PCB design and layout must be completed for submission. • Assembly of PCBs will be done by us or by PCB manufacturer. • Data Acquisition Programs. • Desired Functionality. • Fastest data acquisition and still be real-time. • Low power consumption. • Compact Size. • Rugged. • Minimum Functionality. • Real-time data acquisition. • Use of PCB design. • If we can not meet real-time data constraint at full data resolution we will decrease the number of samples we take from the accelerometer and gyroscope to meet bandwidth needs. • A large piece of this project that is beyond the scope of our design is the front end.

  7. Burning questions • Current Unknowns. • Communication between Atmel16 and Mote. • Communication between 5V gyroscope and 3V Mote. • Power conversion from 5V source to 3V source to power everything. • Can the Mote perform ADC conversion of analog signal and transmit data? • Current Problems. • Voltage Regulators – 5V device can’t talk to a 3V device. • Communication between Atmel16 and Mote. • Needed Advice on…. • Voltage Regulators. • Communication Stack. • PCB design and layout.

  8. Evaluation • Evaluation should be based on the following metrics. • Real-time transmission of reliable data. • Compact design that can withstand extreme sports conditions. • Product lifetime. Can this be upgraded to version 2.0? • Important Tests. • Accuracy of data. • Strength of hardware. • Real-time transmission. • Useful information from user studies. • Does the sensor inhibit your performance? • Is the data useful? • Is the data accurate?

  9. Related Work • RATS – by Matt N. Nevitt, Kabir K. Shahani, Brandon S. Tengan, and Geoffrey R. Velasco from the Information School. • Real-time action tracking system for skateboard, snowboard, skiing, etc… events. • Used a 2-axis accelerometer and an Ipaq to gather data. • Everything was stored in a cage on the underside of the board. • Use of break-beam systems to determine airtime. • Our project is based on the same premise: Data acquisition of extreme sports. • Our project is focused on a cleaner hardware system. • Compact design as to not inhibit the rider. • Addition of rotation data via a gyroscope. • 3-axis accelerometer. • Data transmitted in real-time.
