DOSE-EFFECT RELATIONSHIP

DOSE-EFFECT RELATIONSHIP. The intensity and duration of a drug’s effects are a function of the drug dose and drug concentration at the effect site. Monitoring Dose-Effect. Level Molecular (e.g, enzyme inhibition) Cellular ( in vitro tissue culture, blood cells)

elkan
Télécharger la présentation

DOSE-EFFECT RELATIONSHIP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

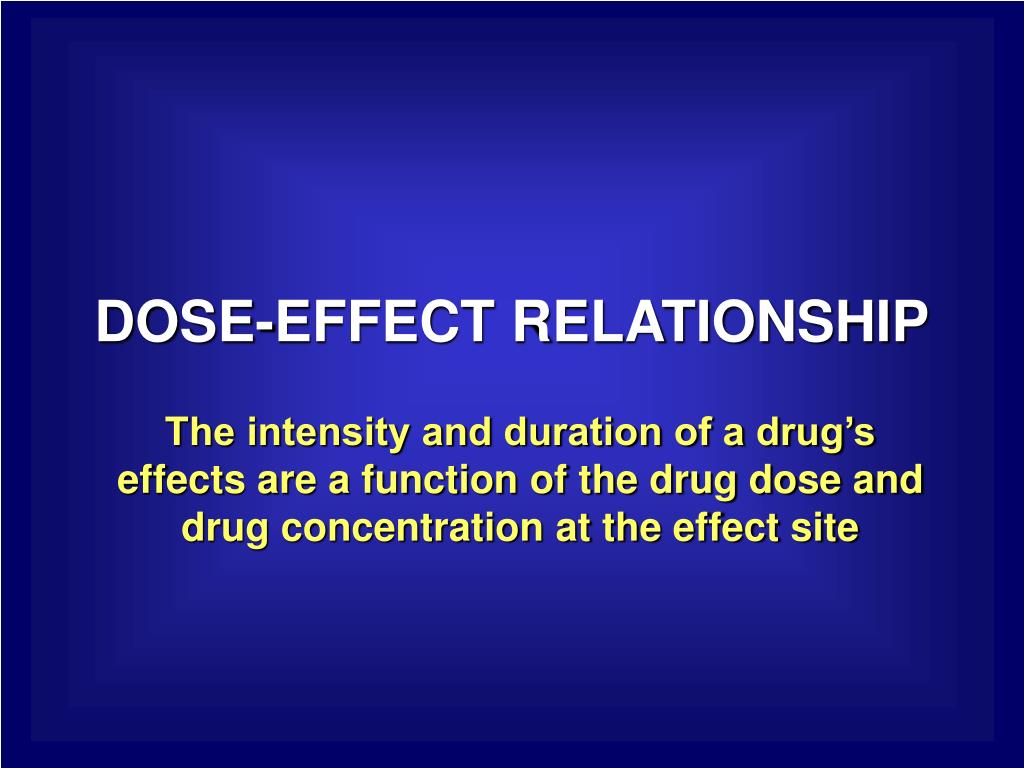

  1. DOSE-EFFECT RELATIONSHIP The intensity and duration of a drug’s effects are a function of the drug dose and drug concentration at the effect site

  2. Monitoring Dose-Effect • Level • Molecular (e.g, enzyme inhibition) • Cellular (in vitro tissue culture, blood cells) • Tissue or organ (in vitro or in vivo) • Organism • Endpoint used to measure effect may be different at each level • Overall effect = sum of multiple drug effects and physiological response to drug effects

  3. Endpoints to Monitor Drug Effect Farnesyltransferase Inhibitors for Cancer

  4. Dose-Effect Endpoints Graded • Continuous scale (­dose ®­effect) • Measured in a single biologic unit • Relates dose to intensity of effect Quantal • All-or-none pharmacologic effect • Population studies • Relates dose to frequency of effect

  5. Erythropoietin and Anemia Peak Hematocrit Increment [%] Erythropoietin Dose [units/kg] Eschbach et al. NEJM 316:73-8, 1987

  6. Maximal effect • [Drug] Effect = KD + [Drug] Drug-Receptor Interactions Drug Drug-Receptor Complex Ligand-binding domain k1 Effector domain k2 Receptor Effect (KD = k2/k1)

  7. [Drug] KD + [Drug] [Drug] Maximal effect Effect = KD + [Drug] Effect = Maximal effect if [Dose] >> KD Maximal effect • [Drug] Effect = KD + [Drug] Dose-Effect Relationship

  8. Graded Dose-Effect Curve Maximal effect % of Maximal Effect EC50 [Drug]

  9. Log Dose-Effect Curve % of Maximal Effect EC50 [Drug]

  10. Lidocaine Graded Dose-Effect Analog Pain Score Lidocaine Blood Level [µg/ml] Ferrante et al. Anesth Analg 82:91-7, 1996

  11. Theophylline Dose-Effect Relaxation % Control PDE Inhibition Theophylline [µM] Rabe et al. Eur Respir J 8:637-42, 1995

  12. Metformin Dose-Response Decrease in FPG from Placebo [mg/dl] Decrease in HbA1c from Placebo [%] Dose [mg/d] Garber et al. Am J Med 102:491-7, 1997

  13. Dose-Effect Parameters POTENCY: The sensitivity of an organ or tissue to the drug EFFICACY: The maximum effect

  14. Maximal effect • [Drug] Effect = KD + [Drug] Comparing Dose-Effect Curves Drug A Drug B % of Maximal Effect Drug C [Drug]

  15. Thiopurine Cytotoxicity Thioguanine Mercaptopurine Cytotoxic Effect Thiopurine [M] Adamson et al. Leukemia Res 18:805-10, 1994

  16. Thiopurine Metabolic Activation

  17. Receptor-Mediated Effects % Maximum Effect [Drug]

  18. Drug Interactions Agonist Agonist + competitive antagonist % of Maximal Effect Agonist + non-competitive antagonist [Drug]

  19. Graded Dose-Effect Analysis • Identify the therapeutic dose/concentration • Define site of drug action (receptor) • Classify effect produced by drug-receptor interaction (agonist, antagonist) • Compare the relative potency and efficacy of drugs that produce the same effect • Assess mechanism of drug interactions

  20. Quantal Dose-Effect Distribution ED50 # of Subjects Threshold Dose

  21. Cumulative Dose-Effect Curve Cumulative % of Subjects Dose

  22. Cumulative Dose-Effect Study

  23. Therapeutic and Toxic Effects Therapeutic Toxic % Responding ED99 TD50 TD1 ED50 Dose Indices

  24. TD50 TD1 ED50 ED99 = 1.3 Certain Safety Factor = TD1 - ED99 X 100 = 31% Standard Safety Margin = ED99 Therapeutic Indices Therapeutic Ratio = = 2.5

  25. Doxorubicin Cardiotoxicity 1.0 0.80 0.60 Probability of CHF 0.40 0.20 0 0 200 400 600 800 1000 Total Doxorubicin Dose [mg/m2] von Hoff et al. Ann Intern Med 91:710-7, 1979

  26. ED90 = 490 mg ED50 = 400 mg Lidocaine Quantal Dose-Effect % Achieving Complete Analgesia Total Lidocaine Dose (mg) Ferrante et al. Anesth Analg 82:91-7, 1996

  27. Antihypertensive Dose-Effect Johnston Pharmacol Ther 55:53-93, 1992

  28. Antihypertensive Drugs Desirable Dose Range Dose Range most often used % with Maximal Effect Adverse Effects Log Dose

  29. Dose Intensity in Breast Cancer Response Rate (%) Relative Dose Intensity RDI Hryniuk & Bush J Clin Oncol 2:1281, 1984

  30. Relative Dose Intensity

  31. Doxorubicin Dose in Osteosarcoma 100 80 60 % with >90% Necrosis 40 20 0 100 200 0 0 5 10 15 20 Dose Intensity (mg/m2/wk) Smith et al. JNCI 83:1460, 1993

  32. Effect site Concentration Pharmacokinetics Pharmacodynamics Relating Dose to Effect In Vivo Dose Effect Age Absorption Distribution Elimination Drug interactions Tissue/organ sensitivity (receptor status)

  33. Dose • F AUC = Clearance Oral Mercaptopurine MP AUC [µM•hr] MP Dose (mg/m2) Balis et al. Blood 92:3569-77, 1998

  34. Effect Compartment (PK/PD Model)

  35. Emax•[Drug]H Effect = EC50 + [Drug]H H Pharmacodynamic Models • Fixed effect model • Linear model • Log-linear model • Emax model • Sigmoid Emax model Effect = E0 + S•[Drug] Effect = I + S•Log([Drug])

  36. Sigmoid Emax PD Model Effect (%) Effect (%) H = 5 H = 2 H = 1 H = 0.5 H = 0.1 EC50 EC50 [Drug]

  37. Theophylline Pharmacodynamics FEV1 (% normal) Emax = 63% EC50 = 10 mg/L Theophylline [mg/L] Mitenko & Ogilvie NEJM 289:600-3, 1973

  38. Carboplatin PK/PD % Decrease Plt Carboplatin ClTB [ml/min] Creatinine Clearance [ml/min] Carboplatin AUC [µg•hr/ml] Van Echo et al. Semin Oncol 16:1-6, 1989

  39. Carboplatin Adaptive Dosing ADULTS CHILDREN

  40. Concentration and Effect vs. Time Non-Steady State Central Compartment Peripheral Compartment Conc./ Amount Effect [% of EMAX] Effect Effect Compartment Time

  41. Hysteresis and Proteresis Loops Intensity of Drug Effect Intensity of Drug Effect Hysteresis Loop (Counterclockwise) Proteresis Loop (Clockwise) • Equilibration delay in plasma and effect site conc. • Formation of active metabolite • Receptor up-regulation • Tolerance • Receptor tachyphylaxis Plasma Drug Concentration

  42. Role of Dose-Effect Studies • Drug development • Site of action • Selection of dose and schedule • Potency, efficacy and safety • Drug interactions • Patient management • Therapeutic drug monitoring • Risk-benefit (therapeutic indices)

  43. THE END
