Bender v15r0 as your analysis environment

Bender v15r0 as your analysis environment. Vanya BELYAEV. References. Bender Pages and Bender pages by Lena Mayatskaya Bender mailing list Bender Savannah portal ( news , bugs , tasks , …) Bender Tutorial TWiki Bender HyperNews , TWiki , FAQ, User Guide and Manual :

ella
Télécharger la présentation

Bender v15r0 as your analysis environment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Benderv15r0as your analysis environment Vanya BELYAEV

  2. References • Bender Pages and Benderpages by Lena Mayatskaya • Bender mailing list • Bender Savannah portal ( news, bugs, tasks, …) • Bender Tutorial TWiki • Bender HyperNews, TWiki, FAQ, User Guide and Manual: •  not yet. still in the bottle of inc • Phys/BenderExample & Tutorial/BenderTutorpackage • “Bender-helpdesk@lhcb.cern.ch” • 13-1-018at CERN • +41 (0) 22 767 40 24 Vanya BELYAEV

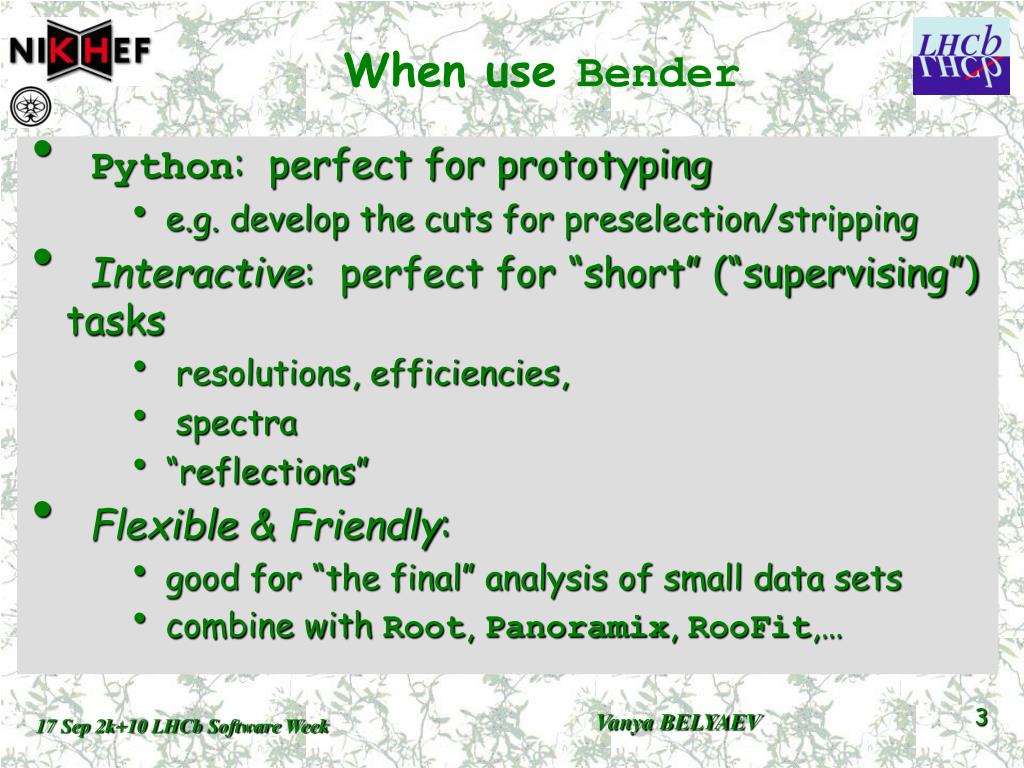

  3. When use Bender • Python: perfect for prototyping • e.g. develop the cuts for preselection/stripping • Interactive: perfect for “short” (“supervising”) tasks • resolutions, efficiencies, • spectra • “reflections” • Flexible & Friendly: • good for “the final” analysis of small data sets • combine with Root, Panoramix, RooFit,… Vanya BELYAEV

  4. When no Bender • Stripping does not support Bender. • Reasons? •  Some CPU penalty for Bender selections vsLoKi selections is unavoidable (PythonvsC++) • could be visible/sizeable for “minimal” job • mainly comes from the explicit loops, N-Tuples and explicit manipulations with dictionaries: sqrt(p.px()*p.px()+p.py()*p.py()) • usually negligible for realistic selection • And of course for well-coded lines Totally negligible with patterns (C++)  Beer offer: Everyone who demonstrates visible CPU penalty with the proper usage of Bender with respect to the similar code using e.g. DaVinci/LoKi/CombineParticles etc. Vanya BELYAEV

  5. The goal • To be able in one hour to make following steps • selection of particles • extraction of the basic information • fill the histograms • looping over the particles • fill N-Tuples • save interesting combinations • Match to Monte Carlo truth Covers >95% of functionality needed for event selection Vanya BELYAEV

  6. Bender > SetupProject Bender v15r0 Vanya BELYAEV

  7. Minimal Bender script from Bender.Mainimport * from Configurables import DaVinci DaVinci ( DataType = ‘2010’ , ) gaudi = appMgr() run(10) Well, It is not Bender, it is Configurables+ GaudiPython BUT:Takecare about input data!! $BENDERTUTORROOT/solution/Minimalistic_0.py Vanya BELYAEV

  8. Minimal Bendermodule from Bender.Mainimport * def configure( files ,catalogs = []) : from Configurable import DaVinci DaVinci ( … ) setData ( files , catalogs ) gaudi=appMgr() … return SUCCESS if __name__ == ‘__main__’ : inputfiles= … configure( inputfiles ) run(100) Application and Components Configuration Job steering $BENDERTUTORROOT/solution/Minimalistic.py Vanya BELYAEV

  9. Scripts vs modules • Dilemma in Python: scriptsvsmodules • Scripts are a bit more intuitive and a bit easier to write  • Problems with reusing  • Modules require some discipline & conventions  • Full power of OO, including classes & extensions • Easy to import and reuse  • The only way to assemble “large” application from pieces • Be friendly: code modules • loose nothing • gain a lot Ganga assumes that you code is module Vanya BELYAEV

  10. Scripts versus modules • Script above: import myscript Execute everything out of control. To change something – copy, cut-n-paste (and of course duplicate your colleague’s bugs + introduce some of your own) • Module above – easy reusable by your colleagues: import mymodule mymodule.config( inputdata ) gaudi.run(100) Vanya BELYAEV

  11. “Hello, World!” (I) • The simplest possible BENDER “algorithm” • Follow LoKi’s style: • inherit the algorithm from useful base class • (re)implement the “analyse” method class HelloWorld(Algo) : def analyse( self ) : print ‘Hello, World!’ return SUCCESS $BENDERTUTORROOT/solution/HelloWorld.py Vanya BELYAEV

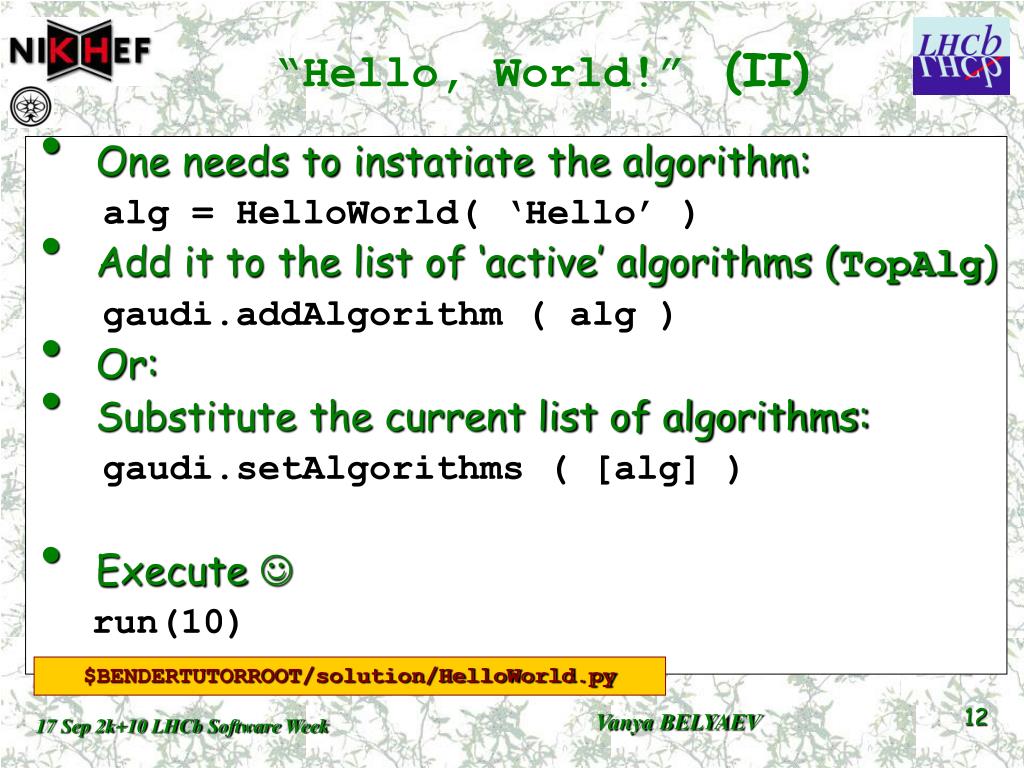

  12. “Hello, World!” (II) • One needs to instatiate the algorithm: alg = HelloWorld( ‘Hello’ ) • Add it to the list of ‘active’ algorithms (TopAlg) gaudi.addAlgorithm ( alg ) • Or: • Substitute the current list of algorithms: gaudi.setAlgorithms ( [alg] ) • Execute  run(10) $BENDERTUTORROOT/solution/HelloWorld.py Vanya BELYAEV

  13. Access to the data (LoKi-style) • C++: GaudiAlgorithm/LoKi const LHCb::MCParticle::Container* mcps =get<LHCb::MCParticle::Container>( “MC/Particles”) • Python: Bender / GaudiAlgs mcps = self.get( ‘MC/Particles’) • Mnemonic rule: this->→self. $BENDERTUTORROOT/solution/DataAccess.py Vanya BELYAEV

  14. Access to the data using service • Inside the algorithm dataSvc = self.evtSvc() hdr = dataSvc[‘Header’] print ‘Event #’, hdr.evtNum() • Outside algorithm-I (script) dataSvc = gaudi.evtSvc() hdr = dataSvc[’Header’] print ‘Run #’, hdr.runNum() • Outside algorithm-II (script), shortcut hdr = get(‘Header’) Vanya BELYAEV

  15. Attributes and (python) loops MCParticle for p in mcps : print ‘ID=‘ , name( p ) print ‘PX=‘ , p.momentum().px() print ‘PY=‘ , p.momentum().py() print ‘decay: ’ , p.decay( True ) • All containers from Transient Event store are iterable From Dictionaries $BENDERTUTORROOT/solution/DataAccess.py Vanya BELYAEV

  16. Help! And Attributes • To know the available attributes: help( obj ) help( type( obj ) ) dir (), dir ( cpp ), dir ( LoKi ), dir ( LHCb ) • ON-LINE help for ALL Python/Bender functions/classes, sometimes it is VERY useful • Doxygen pages: >>> import LoKiCore.doxygenurl as doxy >>> o = … >>> doxy.browse ( o ) >>> doxy.browse ( ‘LHCb::MCParticle’ ) Vanya BELYAEV

  17. Decorations • Objects in python are “more rich: >>> from Bender.MainMC import * >>> help(LHCb.MCParticle) >>> doxy.browser( LHCb.MCParticle ) • Many new methods (added “on-flight” by Bender): • child, children, parents, mother, ascendents, descendent, printDecay, … • Uniform with LHCb.Particle & HepMC.GenParticle p = … for c in p.children() : print c c1 = p.child(1) p = … for c in children( p ) : print c c1 = child( p , 1) Vanya BELYAEV

  18. Lets start with physics analysis • <Almost> all of LoKi’s idioms are in Bender • (No need to write the separate manual) • The semantics is very similar • Inspite of DIFFERENT languages • Few “obvious” exceptions • In the game • All functors (functions/predicates) “cuts” • All (v,mc,mcv,g)select methods • Loops,plots • For nTuples the functionality is a bit limited • A lack of templated methods Vanya BELYAEV

  19. The Simplest case: make KS • Select pions according to some criteria • Track quality • (Kinematical properties) • (Pointing criteria) • Combine p+p- pairs • Vertex quality • Pointing criteria • Flight distance $BENDERTUTORROOT/solution/MakeKs.py Vanya BELYAEV

  20. 1. Select pions pi_plus = self.select ( ‘MyGoodPi+’ , ( ‘pi+’ == ID ) & ( TRCHI2DOF < 10 ) ) pi_minus = self.select ( ‘MyGoodPi-’ , ( ‘pi-’ == ID ) & ( TRCHI2DOF < 10 ) ) print “# pi+ : ”, len(pi_plus) for pi in pi_plus : print pi.pname() , pi.pt() c2(track)/nDoF<10 Select p+ & p- pions = self.select ( ‘GoodPi’ , ( ‘pi+’ == ABSID ) & ( TRCHI2DOF < 10 ) ) pi_plus = self.select ( ‘MyGoodPi+’ , pions , Q > 0 ) pi_minus = self.select ( ‘MyGoodPi-’ , pions , Q < 0 ) Vanya BELYAEV

  21. 2. Combine p+p- pairs # define the looping rules: components & the result v0s = self.loop ( ‘MyGoodPi+ MyGoodPi-’, ‘KS0’ ) for k0 in v0s : # fast check of mass from the sum of 4-momenta: m12 = k0.mass(1,2) / MeV if not 300 < m12 < 800 : continue # check vertex-fit chi2 (fit if not done yet): chi2vx = VCHI2 ( k0 ) if not 0 <= chi2vx <= 100 : continue self.plot ( M ( k0 ) , ‘mass K0S’ , 400 , 600 ) c2(vertex)<10 0 Vanya BELYAEV

  22. (2a. Apply more cuts in loop) # get the best primary vertex from DaVinci bpv = self.bestVertex( k0.particle() ) if not bpv : continue # calculate the lifetime of Ks-candidate: ctau = LTIME( self.lifetimeFitter() , bpv ) * c_light if ctau ( k0 ) < 5 * mm : continue # calculate the chi2(IP) for Ks-candidate: chi2ip = IPCHI2 ( bpv , self.geo() ) if ch2ip ( k0 ) > 9 : continue self.plot ( M ( k0 ) , ‘mass K0S’ , 400 , 600 ) ct > 5mm c2(IP)<9 Vanya BELYAEV

  23. (2b. Apply cuts before loop) # get all primary vertices: primaries = self.vselect( ‘pv’ , PRIMARY ) if primaries.empty() : continue # create functor for evaluation of min(chi2ip) mips = MIPCHI2( primaries , self.geo() ) # BEFORE LOOP: … = self.select ( … , … & ( mips > 9 ) ) # INSIDE THE LOOP: pi1 = k0(1) pi2 = k0(2) if mips( pi1 ) < 9 or mips(pi2) < 9 : continue c2(IP)>9 Access to the individual loop components c2(IP)>9 Vanya BELYAEV

  24. Combine everything together from Bender.Main import * class MakeKs(Algo): def analyse ( self ) : … return SUCCESS def configure ( inputdata , catalogs = [] ) : … if ‘__main__’ == __name__ : configure ( … ) run ( 1000 ) $BENDERTUTORROOT/solution/MakeKs.py Vanya BELYAEV

  25. Simple case-II: strip DSTs • Use V0.DST, Reco05-Stripping09 • Stripping Line: “StrippingK0SLine” • Stripping Decision “StirppingL0SLineDecision” • OutputLocation: “/Event/V0/Phys/StrippingK0S” • Get candidates from DST • Specific configuration • Analyse them Vanya BELYAEV

  26. 3. Select Ks ks_1 = self.select ( ‘MyKs’ , ‘KS0’ == ID) ks_2 = self.select ( ‘MyGoodKs’ , ks_1 , PT > 1 * GeV ) print “# Ks : ”, len(ks_1) for Ks in ks1_2 : print Ks.decay() , Ks.pt() print PT ( Ks ) self.plot ( M( Ks ) , ‘Mass Ks’ , 400 , 600 ) $BENDERTUTORROOT/solution/SelectK0S(_1,_2).py Vanya BELYAEV

  27. Simple case-III: mDSTs • Use mDST produced to test “PromptCharm” lines from CHARM.DST, Reco04-Stripping07 • OutputLocation: • Root-On-TES “/Event/MicroDST/PromptCharm” • Locations “Sel(Dstar,D,Ds,LambdaC)ForPromtCharm” • Get candidates from DST • Specific configuration • Analyse them Vanya BELYAEV

  28. 4. Get D*+decays # select from TES the interesting decays dstars = self.select ( ‘MyD*’, ‘[ D*(2010)+ -> ( D0 -> K- pi+) pi+]CC’ ) Dm = M – M1 for D in dstars: m1 = M1 ( D ) # mass of the first particle dm = Dm ( D ) if abs ( dm – 145 * MeV ) < 2.5 * MeV : self.plot ( m1 , ‘mass D0’ , 1.8 , 1.9 ) Use decay descriptor Cut on |dDM|<1.5 MeV/c2 $BENDERTUTORROOT/solution/SelectDstar.py Vanya BELYAEV

  29. (4a. Loop D*+decays) ltFit = self.lifetimeFitter() # loop for D*+ decays: for D in dstars : # get daughter particle by index: D0 = D.child( 1 ) # get related primary vertex pv = self.bestVertex ( D0 ) # create the functor: ctauFun = LTIME ( ltFit , pv ) * c_light # evaluate c*tau ctau = ctauFun ( D0 ) # make histogram self.plot ( ctau , ‘c*#tau for D^{0} ’ , 0. , 1.0 ) Vanya BELYAEV

  30. Simple case-IV: mDSTs • CHARM.DST, Reco05-Stripping07 • Sum of D+/Ds+lines by Conor&Rio • Get candidates from DST • Specific configuration • Analyse them • The same mDST produced to test “PromptCharm” lines from CHARM.DST, Reco04-Stripping07 Vanya BELYAEV

  31. 5 Get D+/Ds+decays # select from input particles according to the decay pattern: d_1 = self.select(‘d1’ , “[ D+ -> K- pi+ pi+]CC" ) ds_1 = self.select(‘ds1’, “[ D_s+ -> K- K+ pi+]CC“ ) ds_2 = self.select(‘ds2’, ”[ D_s+ -> ( phi(1020) -> K- K+ ) pi+]CC” ) for d in d_1 : self.plot ( M(d) , 'D+ -> K pi pi' , 1800 , 1900 , 100 ) pv = self.bestVertex( d ) fun = LTIME ( self.lifetimeFitter() , pv ) * c_light ctau = fun ( d ) if 0.1 < ctau < 1.0 : self.plot ( ctau , 'c*tau for D+', 0 , 1 ) for d in ds_1 : self.plot ( M(d) , 'D+/Ds+ -> Kkpi ' , 1800 , 2050 , 250 ) for d in ds_2 : self.plot ( M(d) , 'Ds+ -> phi pi+' ,1770,2070,300 ) $BENDERTUTORROOT/solution/SelectDplus(_1).py Vanya BELYAEV

  32. (5a What about N-tuples?) # select from input particles according to the decay pattern: d_1 = self.select(‘d1’ , “[ D+ -> K- pi+ pi+]CC" ) # retrive (book-n-demand) N-tuple object tup = self.nTuple(‘MyN-tuple’) for d in d_1 : … # add the columns to n-tuple tup.column ( ‘m’ , M ( d ) ) tup.column ( ‘pt’ , PT ( d ) ) tup.column ( ‘ctau’ , ctau ) # commit the row: tup.write() $BENDERTUTORROOT/solution/SelectDplus(_1).py Vanya BELYAEV

  33. The last step: MC-truth match • The simplest case: check if RC particles originates form certain MC-(sub)tree: • The most frequent case • Check for efficiency • Resolution • The opposite case ( RC ↔ MC ) • similar MCTRUTH ↔ RCTRUTH NB: LoKi ( and therefore Bender) uses own concept of MC loose matching Vanya BELYAEV

  34. Select MC-particles # select Monte Carlo particles according to the decay pattern: mcD = self.mcselect ( ‘myD’ , “[ D+ => K- pi+ pi+]CC" ) # select Monte Carlo particles according to kinematics : mcD1 = self.mcselect (‘myGoodD’ , ( MCPT > 1 * GeV ) & in_range ( 1.0 , MCY , 5.0 ) ) # use marked decay descriptors: K = self.mcselect( ‘K’ , mcD1 , “[ D+ => ^K- pi+ pi+]CC” ) Pi = self.mcselect( ‘Pi’ , mcD1 , “[ D+ => K- ^pi+ ^pi+]CC” ) # loop over selected true D+ for D in mcD1 : print D.decay() , MCE( D ) $BENDERTUTORROOT/solution/SelectDplusMC(_1).py Vanya BELYAEV

  35. MC-Truth matching functions # retrieve Monte Carlo Truth matcher match = self.mcTruth (‘My MC-truth matcher’) # prepare MC-Truth matching functors trueK = MCTRUTH ( match , K ) truePi = MCTRUTH ( match , Pi ) trueD = MCTRUTH ( match , mcD1 ) # get the reconstructed particle particle = … # check MC-truth: Ok = trueK ( particle ) $BENDERTUTORROOT/solution/SelectDplusMC(_1).py Vanya BELYAEV

  36. Use MC-Truth functors (1) # select only MC-truth matched kaons kaons = self.select(‘k’ , (‘K+’ == ABSID ) & trueK ) kplus = self.select( ‘K+’ , kaons , Q > 0 ) kminus = self.select ( ‘K-’ , kaons , Q < 0 ) # select only MC-truth matched pions pions = self.select ( ‘pi’ , (‘pi+’ == ABSID ) & truePi) for k in kplus : print PT ( k ) for p in pions : print PT ( pi ) $BENDERTUTORROOT/solution/SelectDplusMC(_1).py Vanya BELYAEV

  37. Use MC-Truth functors (2) # in loop over particles: D = self.loop ( ‘ K- K+ pi‘ , ‘D+’ ) for d in D : # get the loop components kaon1 = d(1) kaon2 = d(2) pion = d(3) # check MC-Truth: ok1 = trueK ( kaon1 ) ok2 = trueK ( kaon2 ) ok3 = truePi ( pion ) ok4 = trueD ( d ) $BENDERTUTORROOT/solution/SelectDplusMC(_1).py Vanya BELYAEV

  38. Few ‘interactive’ hints I • Get application manager: gaudi = appMgr() • List the content of Event Transient Store ls () ls (‘/Event’) • Get an object from Transient Store obj = get(‘/Event/Hlt/DecReports’) • Run “n” events run ( n ) Vanya BELYAEV

  39. Few ‘interactive’ hints - II • List the histograms in HTS: hsvc = gaudi.histSvc() hsvc.dump() • Get the histogram by ID (==title): h = hsvc[‘Phi/K+K- mass ’] • Visualize the histogram as ROOThisto: h.plot() h.Draw() import ROOT Vanya BELYAEV

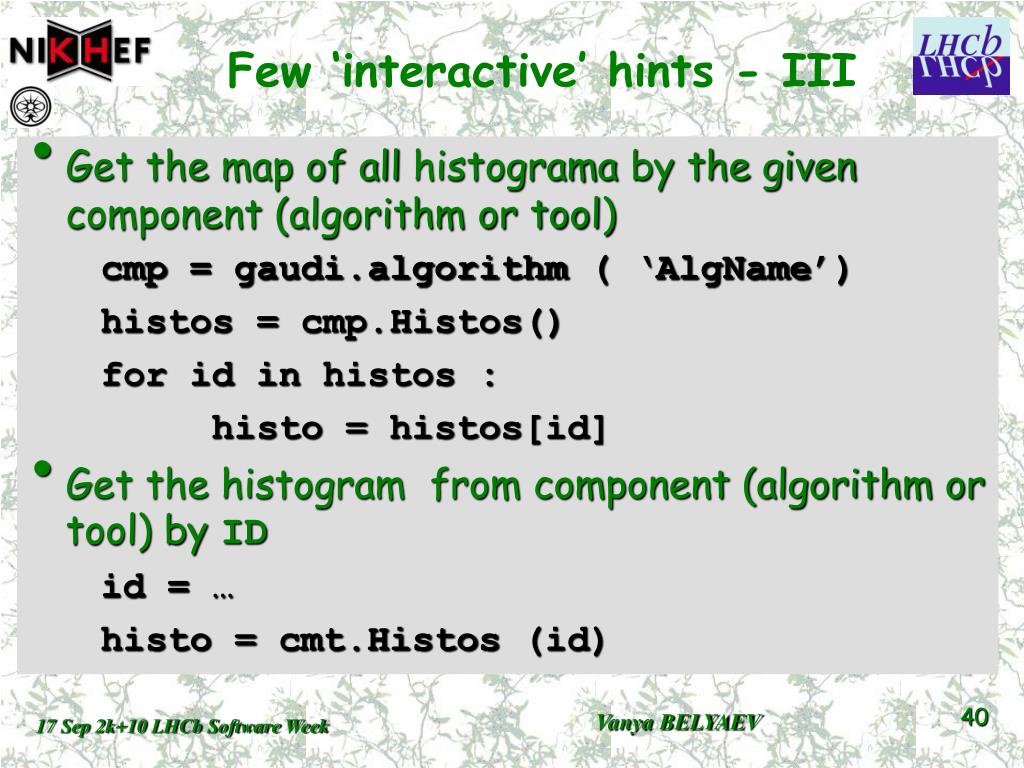

  40. Few ‘interactive’ hints - III • Get the map of all histogramaby the given component (algorithm or tool) cmp = gaudi.algorithm ( ‘AlgName’) histos = cmp.Histos() for id in histos : histo = histos[id] • Get the histogram from component (algorithm or tool) by ID id = … histo= cmt.Histos (id) Vanya BELYAEV

  41. Few ‘interactive’ hints - IV • ASCII dump of the histogram ## Width , Height, Plot errors print histo.dump( 70 , 20 , True ) • AACII dump for all histogram of the given component (algorithm or tool) cmp = … cmt.dumpHistos ( 50 , 15 , True ) • AACII dump for all histogram of the given component by name: dumpHistos ( ‘MyAlg’ , 70, 50 , True ) Vanya BELYAEV

  42. Few ‘interactive’ hints - V • Get all tools, acquired by given component tools = cmp.Tools() for t in tools : print t.OutputLevel • Dump all properties of given component cmp = … cmp.PropertiesPrint = True • Dump the summary of counters for the given component cmp = … cmp.StatPrint = True Vanya BELYAEV

  43. Few ‘interactive’ hints - VI • Dump the summary of histograms cmp = … cmt.HistoPrint = True • Dump the summary of N-tuples cmp = … cmp.NTuplePrint = True • Dump the summary of ETCs cmp = … cmp.EvtColsPrint = True Vanya BELYAEV

  44. Few ‘interactive’ hints - VII • ‘Easy’ browser for (s,r,m,x,..)DSTs content: dst_explorer[opts] file1 [ file2 [ … >>> ls() >>> ls (‘/Event’) >>> ls (‘/Event/Dimuon’) >>> ls (‘/Event/Dimuon/Phys’) Vanya BELYAEV

  45. Other features, out of scope • Nice printout of trees, particles, events • Various “extractors” and metafunctions • HepMC + HepMCParticleMaker • Jets • Tools for background origin studies • Patterns • and much much more… As concerns the functionality needed for analysis, Bender is full scale application, widely used for many physics studies. Vanya BELYAEV

  46. Next (obvious) steps • Integrate with DIRAC/Ganga • Integrate with Panoramix • More, more and more “on-flight” decorations: p.name() , name(p), … p.printDecay() , printDecay(p) , … Vanya BELYAEV

  47. References again… • Bender Pages and Benderpages by Lena Mayatskaya • Bender mailing list • Bender Savannah portal ( news, bugs, tasks, …) • Bender Tutorial TWiki • Regular informal “hands-on” tutorials • You know whom to ask… • Bender Examples • “Bender-helpdesk@lhcb.cern.ch” • 13-R-018at CERN • +41 (0) 22 767 40 24 Vanya BELYAEV
