Smart Pen

Department of Computer Engineering College of Engineering An-Najah National University. Smart Pen. Prepared by : Saif Marwan & Osama Nabulsi Supervisor Name: Dr. Luai Malhis Academic Year: 2011 – 2012. Contents . Introduction Why This Project ??? Abstract Features Problems

ellard
Télécharger la présentation

Smart Pen

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Department of Computer Engineering College of Engineering An-Najah National University Smart Pen Prepared by : Saif Marwan & Osama Nabulsi Supervisor Name: Dr. Luai Malhis Academic Year: 2011 – 2012

  2. Contents • Introduction • Why This Project ??? • Abstract • Features • Problems • Implementation • Recommendation • Demo

  3. Introduction Has there ever been a more amazing invention than the pen an incredibly convenient way of recording information that dates back thousands of years ??!!!

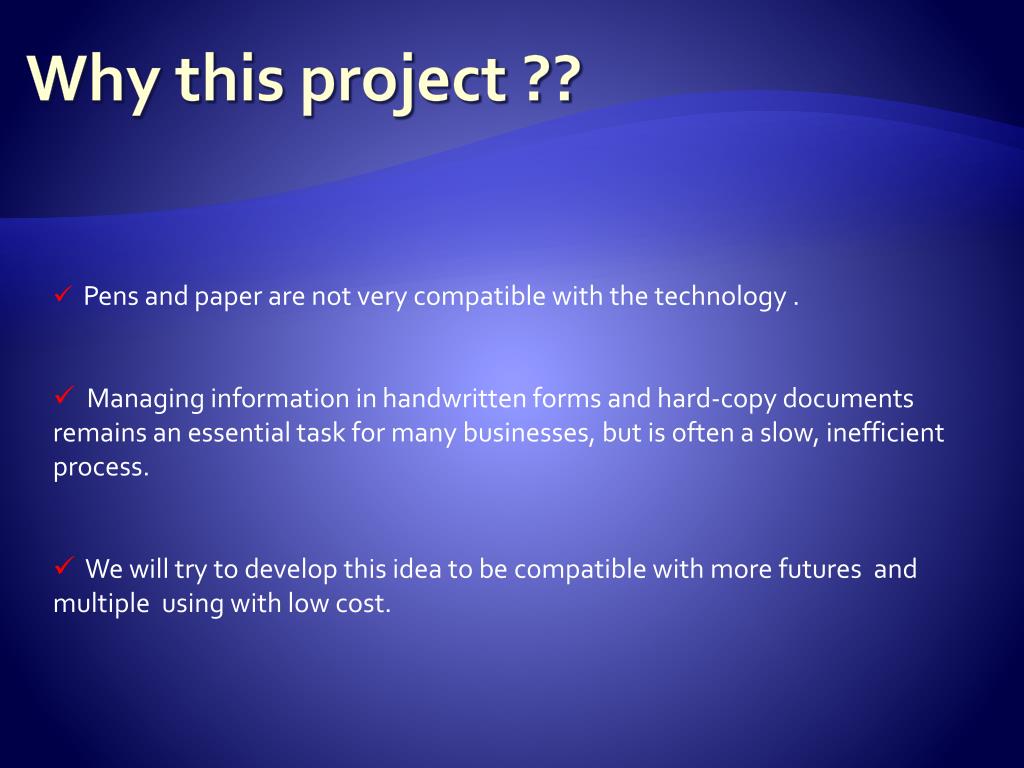

  4. Why this project ?? • Pens and paper are not very compatible with the technology . • Managing information in handwritten forms and hard-copy documents remains an essential task for many businesses, but is often a slow, inefficient process. • We will try to develop this idea to be compatible with more futures and multiple using with low cost.

  5. Abstract • A smart pen is an input device which captures the handwriting or brush strokes of a user. • Converts handwritten analog information created using “IR Pen" into digital data, enabling the data to be utilized in various applications. • The data can then be interpreted by handwriting software and used in different applications or just as graphics.

  6. Abstract Cont’d • Extended Easily to interactive smart board by converting any surface into touch screen.

  7. Features • Smart pens are portable and reliable . • Easy to use - low training and support costs. • Efficient handheld data capture that is secure and traceable. • Multiple use , that we can use smart pen as smart digital pen or smart board.

  8. Features Cont’d • Support high capacity storage data memory . • Reduced data entry - handwritten data is converted to text ready for processing in back office systems . As a result, our application with its features came to provide a core for other software applications depend on handwriting or controlling project using IR position .

  9. Problems • Detect the smart pen position . • IR sensor doesn’t exist as standalone device . • Mismatch voltage compatibility between microcontroller and IR Camera. • IR Camera give us messy data that wasn’t satisfying since the sampling rate was too slow to cope with the IR stimulus.

  10. Problems Cont’d • Stops sending data (freezes) after working for 2-3 minutes. • File system in SD Card problem . • Convert from IR Camera coordinates to screen coordinates and calibration issues.

  11. PIC Vs. Arduino

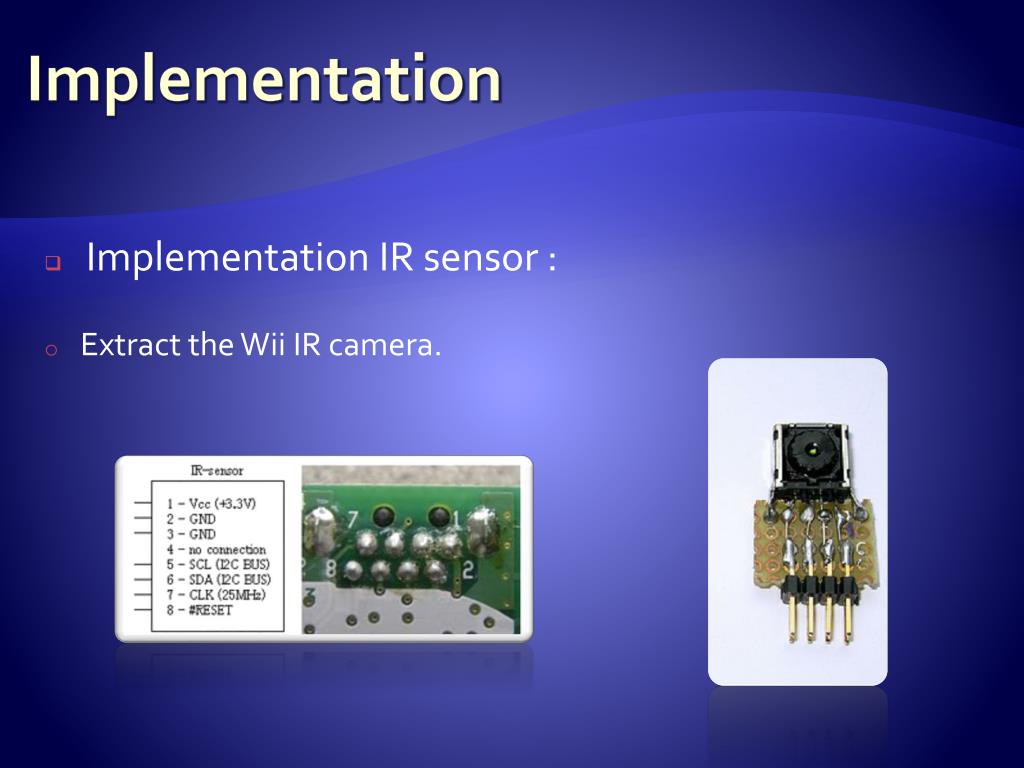

  12. Implementation • Implementation IR sensor : • Extract the Wii IR camera.

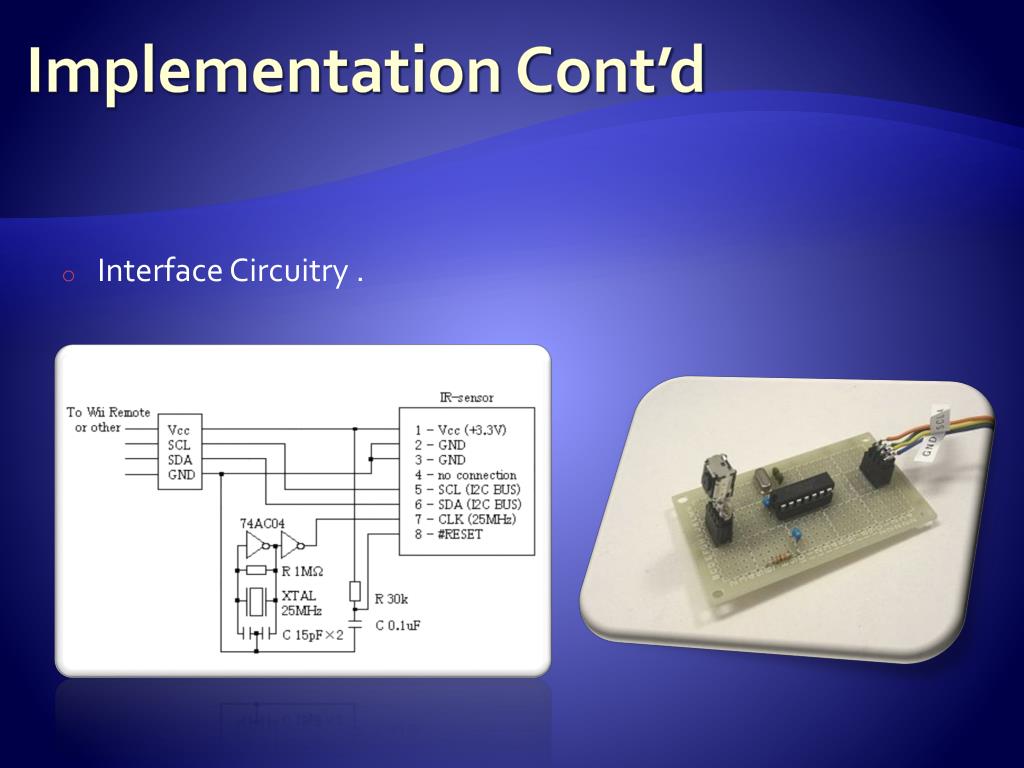

  13. Implementation Cont’d • Interface Circuitry .

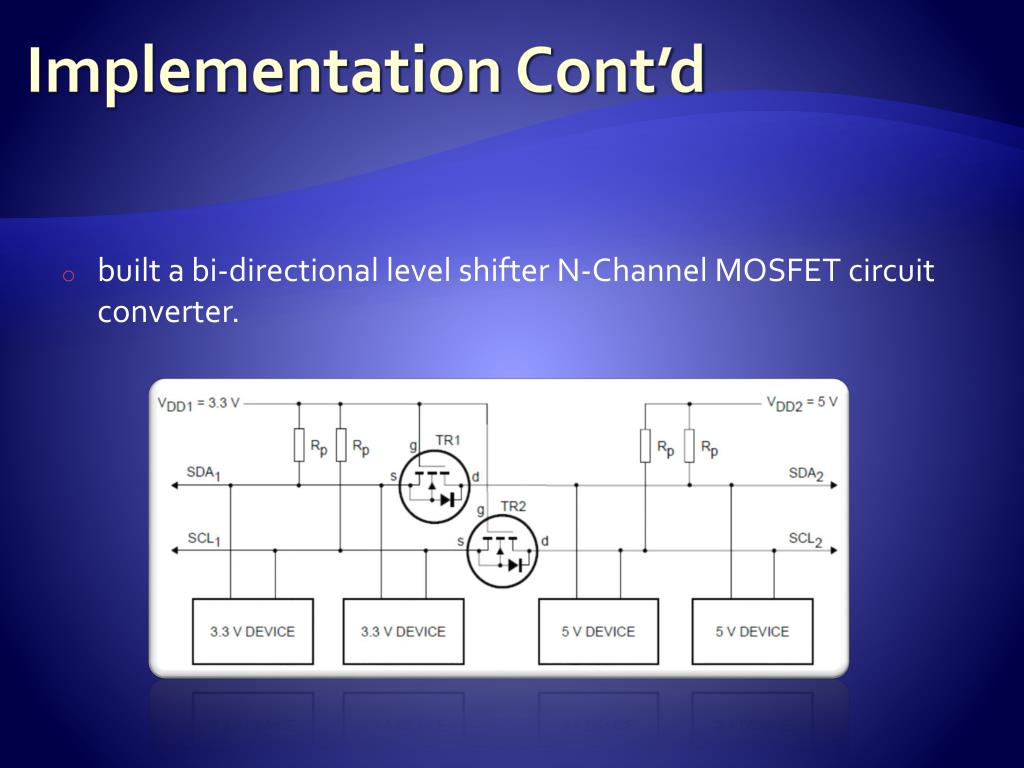

  14. Implementation Cont’d • built a bi-directional level shifter N-Channel MOSFET circuit converter.

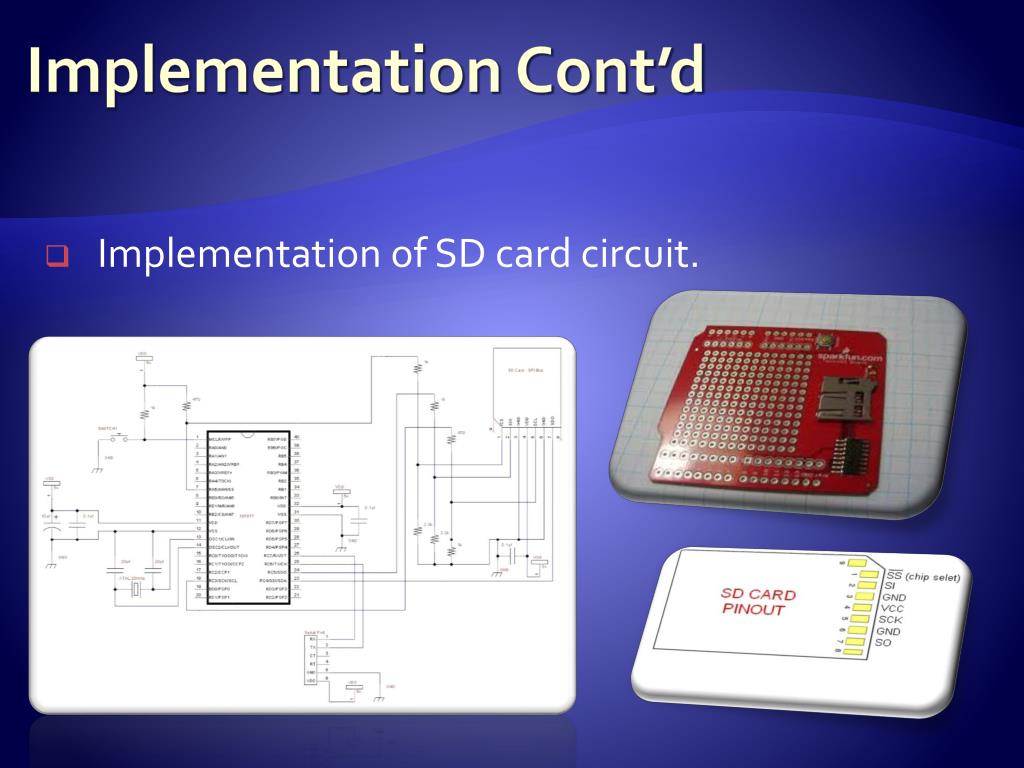

  15. Implementation Cont’d • Implementation of SD card circuit.

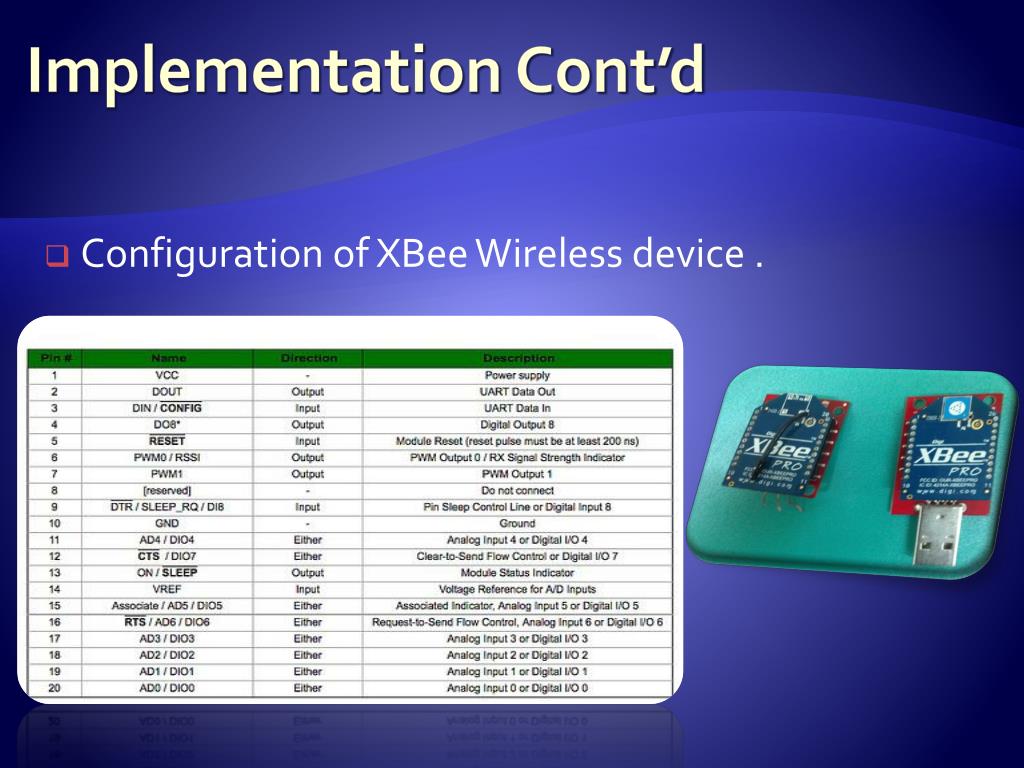

  16. Implementation Cont’d • Configuration of XBee Wireless device .

  17. Implementation Cont’d • Building IR Pen .

  18. Implementation Cont’d • Software coding … • Microcontroller code : • Initialize I²C Bus . • Initialize SPI Bus . • SD card initialization commands . • XBee initialization commands .

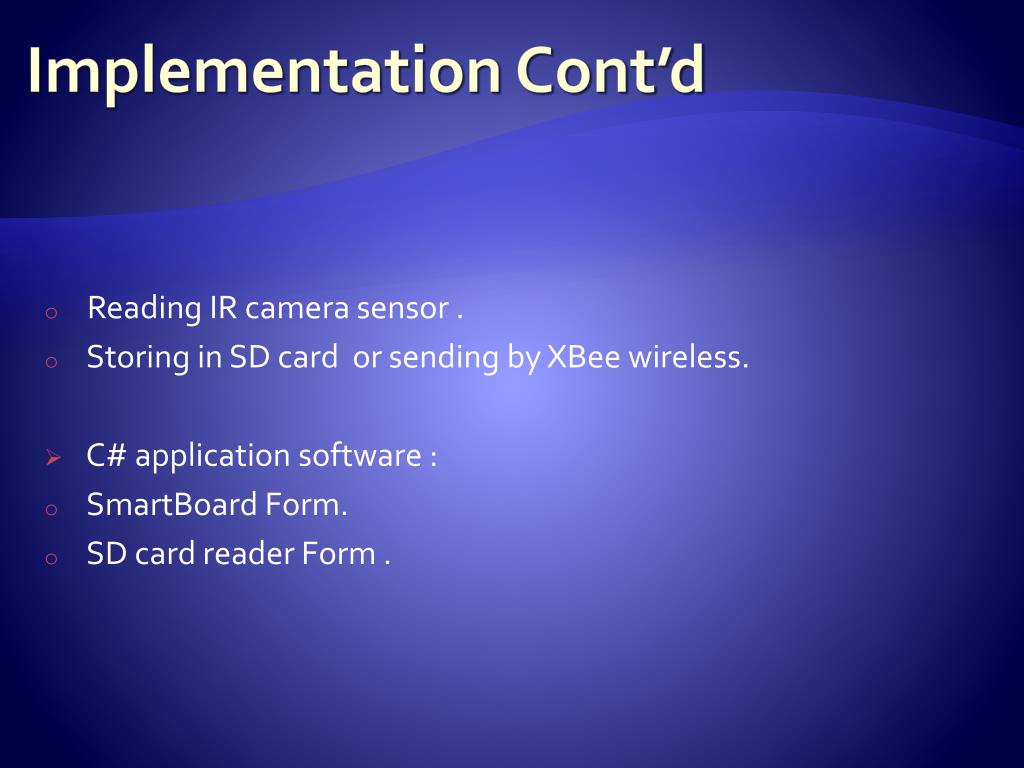

  19. Implementation Cont’d • Reading IR camera sensor . • Storing in SD card or sending by XBee wireless. • C# application software : • SmartBoard Form. • SD card reader Form .

  20. Recommendations • There are a huge number of applications can be implemented depending in our project such as : handwriting detecting , Signature capture supports proof of delivery or attendance, Customer, salesman, contractor … etc. • Improve detecting speed with more accuracy .

  21. Demo
