  1. Hardware Design Using EDK This material exempt per Department of Commerce license exception TSU

  2. Objectives After completing this module, you will be able to: • Describe how to add hardware to an existing XPS project • Discuss the function of PlatGen • Utilize the integration between ISE™ and Xilinx Platform Studio (XPS) to enhance the design flow • Utilize the Xflow in XPS • Describe the steps involved in creating a submodule with XPS and integrating the submodule into a bigger system with ISE

  3. Outline • Adding Hardware to an Embedded System • PlatGen • ISE: Project Navigator Integration • Top Level • Submodule • XPS: Xflow Integration

  4. Adding IP to Design 1 • To add hardware in a new, empty project or to an existing project, select IP Catalog tab in XPS • Expand group(s) of IP in the left window • Select an IP and drag it to the System Assembly View window or double-click on the selected IP to be included into the system MHS file 1 2 3 3 2

  5. Embedded Design Progress(previously empty design) OPB Bus PLB Bus UART INTC PLB2OPB PPC Timer PLB BRAM Cntlr PLB BRAM GPIO PLB BRAM Cntlr PLB BRAM GPIO MY IP GPIO Having placed the processor and peripherals, add the buses

  6. Adding Bus(ses) and Bus Connections Expand Bus and Bus bridge folders in IP Catalog Select bus core and drag it to the System Assembly window • Only bus is instantiated, connections to peripherals have not been made Expand IP instance, click under Bus Connection column, and select a bus instance to which it needs to connect • Similarly select memory controller and memory IPs and connect them 1 1 2 2 3 3

  7. Assigning Addresses 1 • Select Addresses filter • Click on plus button to see addresses • Click in the size column and select desired size • Enter base address • XPS will calculate the high address from base address and size entries • Alternately, lock addresses for which you don’t want XPS to change address and then click Generate Addresses button 2 Automatically generate addresses for unlocked components 5 Lock addresses 2 3 1 4 5 4 3

  8. Hardware Design Progress OPB Bus PLB Bus UART INTC PLB2OPB PPC Timer PLB BRAM Cntlr PLB BRAM GPIO PLB BRAM Cntlr PLB BRAM GPIO MY IP GPIO Having assigned the bus connections and addresses, Connect the internal and external ports

  9. 1 6 3 2 4 5 Connecting Ports Select Ports filter Click on plus sign to see available ports Click under the Net column and select appropriate signal If the port is external in the design then make it external For global ports, click on Add External Port and then assign a name Specify net sizes 1 2 3 4 5 6

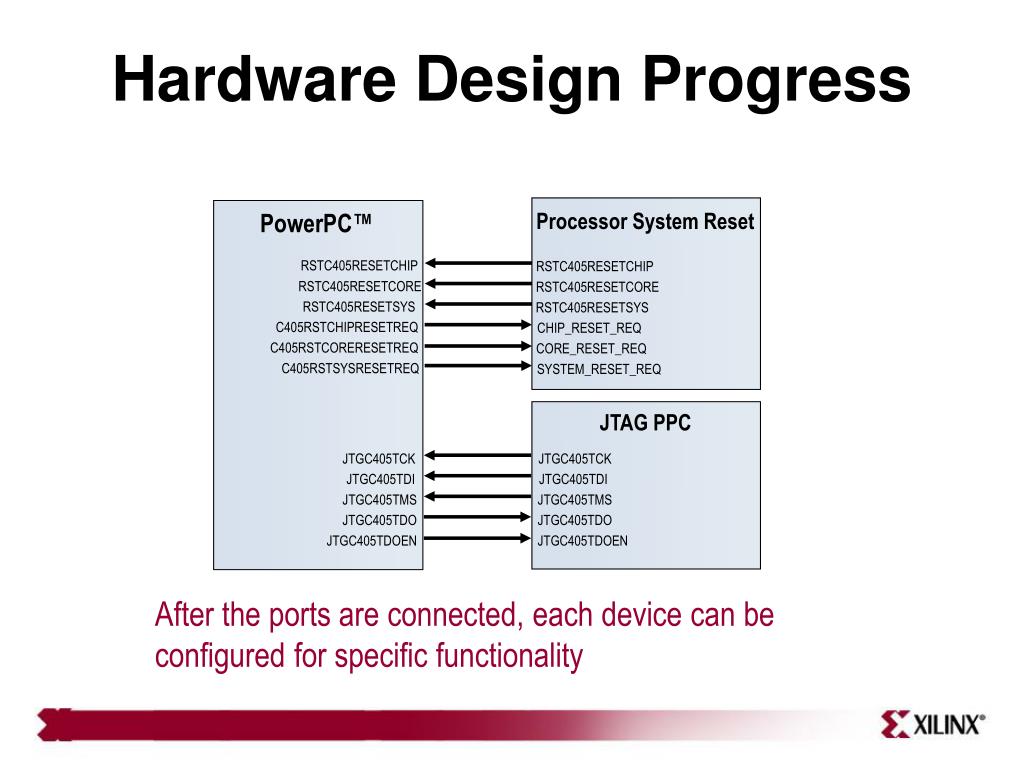

  10. Processor System Reset PowerPC™ RSTC405RESETCHIP RSTC405RESETCHIP RSTC405RESETCORE RSTC405RESETCORE RSTC405RESETSYS RSTC405RESETSYS C405RSTCHIPRESETREQ CHIP_RESET_REQ C405RSTCORERESETREQ CORE_RESET_REQ C405RSTSYSRESETREQ SYSTEM_RESET_REQ JTAG PPC JTGC405TCK JTGC405TCK JTGC405TDI JTGC405TDI JTGC405TMS JTGC405TMS JTGC405TDO JTGC405TDO JTGC405TDOEN JTGC405TDOEN Hardware Design Progress After the ports are connected, each device can be configured for specific functionality

  11. Parameterize IP Instances Double click the instance or right click on the instance and select Configure IP to list the configurable parameters Default values are shown Overriding values can be entered 1 1 2 Default values 2 Overriding values 3 3

  12. Outline • Adding Hardware to an Embedded System • PlatGen • ISE: Project Navigator Integration • Top Level • Submodule • XPS: Xflow Integration

  13. EDK Tool Flow Simulation Generator Library Generation Hardware Platform Generation CompEDKLib CompXLib MSS MHS TestbenchStimulus IP Models ISE Models IP Library or User Repository SimGen EDK SWLibraries Drivers,MDD LibGen MPD, PAO PlatGen .a PCoreHDL System andWrapper VHD BehavioralVHD Model system.BMM ISETools Synthesis (XST) Embedded Software Development NGC ApplicationSource.c, .h, .s SimGen UCF NGDBuild NGD Compiler (GCC) StructuralVHD Model MAP .o NCD, PCF Linker (GCC) PAR NCD system.BIT BitGen SimGen system_BD.BMM ELF BitInit TimingVHD Model download.BIT Simulation download.CMD iMPACT

  14. Hardware Design • After defining the system hardware and connectivity, the next step is to create hardware netlists with the Platform Generator (PlatGen) • PlatGen inputs the following files: • Microprocessor Hardware Specification (MHS) file • Microprocessor Peripheral Definitions (MPD) file • PlatGen constructs the embedded processor system in the form of hardware netlists (HDL and implementation netlist files) • MHS file parameters override MPD parameters • MPD parameters are the defaults

  15. Hardware Design Files Microprocessor Hardware Specification (MHS) File Microprocessor Peripheral Definitions (MPD) File MHS overrides MPD MPD contains all of the defaults

  16. project_directory hdl directory implementation directory synthesis directory PlatGen • HDL directory • system.[vhd|v] file (if top level) • system_stub.[vhd|v] file (if submodule) • peripheral_wrapper.[vhd|v] files • Implementation directory • peripheral_wrapper.ngc files • system.ngc file • system.bmm file • Synthesis directory • peripheral_wrapper.[prj|scr] files • system.[prj|scr] files PlatGen Generated Directories

  17. PlatGen Memory Generation • Memory generation • Platform Generator generates the necessary banks of memory and the initialization files for the block RAM block (bram_block). The block RAM block is coupled with a block RAM controller • Current block RAM controllers include the following: • DSOCM block RAM controller (dsbram_if_cntlr) • ISOCM block RAM controller (isbram_if_cntlr) • PLB block RAM controller (plb_bram_if_cntlr) • OPB block RAM controller (opb_bram_if_cntlr) • LMB block RAM controller (lmb_bram_if_cntlr)

  18. PlatGen Memory Sizes • Memory sizes • Memory must be built on 2n boundaries • Let I be the unsigned number formed by the starting address and S be the size of the memory. If I/S is the integer, then the memory is built on the 2n boundary • 1-KB memory at $4000 is at the 2n boundary; whereas, 1 KB at $4100 is not PLB Bus OPB, LMB, OCM Buses

  19. Block Memory Map • A Block RAM Memory Map (BMM) file contains a syntactic description of how individual block RAMs constitute a contiguous logical data space • PlatGen has the following policy for writing a BMM file: • If PORTA is connected and PORTB is not connected, the generated BMM will be from PORTA point of reference • If PORTA is not connected and PORTB is connected, the generated BMM will be from PORTB point of reference • If PORTA is connected and PORTB is connected, the generated BMM will be from PORTA point of reference

  20. Outline • Adding Hardware to an Embedded System • PlatGen • ISE: Project Navigator Integration • Top Level • Submodule • XPS: Xflow Integration

  21. EDK: ISE Simulation Generator Library Generation Hardware Platform Generation CompEDKLib CompXLib MSS MHS TestbenchStimulus IP Models ISE Models IP Library or User Repository SimGen EDK SWLibraries Drivers,MDD LibGen MPD, PAO PlatGen .a PCoreHDL System andWrapper VHD BehavioralVHD Model system.BMM ISETools Synthesis (XST) Embedded Software Development NGC ApplicationSource.c, .h, .s SimGen UCF NGDBuild NGD Compiler (GCC) StructuralVHD Model MAP .o NCD, PCF Linker (GCC) PAR NCD system.BIT BitGen SimGen system_BD.BMM ELF BitInit TimingVHD Model download.BIT Simulation download.CMD iMPACT

  22. ISEProject Navigator Integration • The ISE/XPS flow provides integration of a processor system at two levels as a component in a FPGA design : • The processor system is the top-level design • The processor system is a submodule • Once the processor system is added in the ISE project, XPS can be invoked from ISE by selecting xmp file in Sources window and double-clicking Manage Processor System in the Processes window • Add user constraint file in ISE • Implement design in ISE by selecting top-level module in Sources window and double-clicking Implement Design in Processes window • Executable software can be merged by selecting top-level module in Sources window and double-clicking Update Bitstream with Processor Data in Processes window • This will call XPS in background to update the bitstream and generate system.bit and download.bit files in implementation directory as well as copy the file as system_stub.bit and system_stub_download.bit files in the ISE project directory

  23. ISEProject Navigator Integration • Benefits • Add additional logic to the FPGA design • Synthesize the design by utilizing ISE™-supported synthesis tools • Control the FPGA implementation flow by using ISE • Timing and constraints entry • Implementation tool flow control • Point tool control • FPGA Editor tool • Constraints Editor tool • ChipScope Pro tool

  24. Project OptionsHierarchy and Flow Tab • Project → Project Options • Design Hierarchy • Top level - uncheck • Submodule - check • Top Instance • Must use ISE™ flow • Synthesis Tool • ISE XST • Do not synthesize if third-party tools are to be used • Implementation Tool Flow • XPS (Xflow) - uncheck • ISE (ProjNav) - check • Provide directory and file name in the NPL File field Note: These settings are automatically selected when xmp file is added to the ISE project

  25. Outline • Adding Hardware to an Embedded System • PlatGen • ISE: Project Navigator Integration • Top Level • Submodule • XPS: Xflow Integration

  26. Processor System Integration in ISE as Top Level Module • Open ISE, create a new project or open an existing project • In ISE, use Add Source and add an existing processor design xmp file or • In ISE, create a new processor design using New Source and selecting Embedded Processor as a source type • Generate instantiation template for the processor design • Copy component declarations and instantiations of system and i/o buffers from the template • Add user constraint file (ucf) from the XPS projects data directory • Implement the design

  27. Outline • Adding Hardware to an Embedded System • PlatGen • ISE: Project Navigator Integration • Top Level • Submodule • XPS: Xflow Integration

  28. Processor System as a Submodule • Two ways to use the XPS and ISE tools to process embedded sub-module design: • Top-Down • Invoke ISE and create a top-level project • Then create a new embedded processor source to include in the top-level design. This automatically invokes XPS, where you develop your embedded sub-module • Bottom-Up • Invoke XPS and develop your embedded processor design as a sub-module • Later, invoke ISE and add the embedded sub-module as a source to include in your top-level ISE project. • Note Only the XMP file must be added as the source file. The BMM file should not be added to the ISE project

  29. Submodule: Top-Down Approach • Open the ISE Project Navigator, and create or open an ISE project for your top-level FPGA design • Select Project → New Source • In the New Source window, select Embedded Processor as the source type • In the File Name field, enter a name of XPS project • A prompt appears in XPS, asking whether you wish to use the BSB • Proceed with embedded hardware platform design development • After returning to Project Navigator, instantiate and connect the embedded subsystem to the top-level FPGA design • If you need to modify anything in your embedded sub-module design, you can run the Manage Processor Design process in Project Navigator to reopen XPS with the embedded project loaded

  30. Submodule: Bottom-Up Approach • Develop processor-based design in XPS • Add interacting signals between a processor system and user logic as external ports in XPS • Open the ISE Project Navigator • Create or open an ISE project for the top-level FPGA design • Select the same Device Family for the ISE project as was specified for the embedded sub-module in XPS • Select Project → Add Source • This opens the Add Existing Sources window. You might or might not already have a top-level source added to your ISE project at this time • In the Add Existing Sources dialog box, browse to and select the XPS project file (XMP) for the embedded sub-module • Make connection between the user logic and processor sub-module

  31. Outline • Adding Hardware to an Embedded System • PlatGen • ISE: Project Navigator Integration • Top Level • Submodule • XPS: Xflow Integration

  32. Xflow • Benefits: • Independent design of the processor system • One GUI for performing all design work • Limitations: • No direct control of synthesis and implementation options • No point-tool support • The embedded system design must be the top level of the design

  33. project_directory Code/TestApp directory [optional] data directory etc directory pcores synthesis Xflow • Code/TestApp directory • <application>.c • data directory • <system>.ucf • etc directory • bitgen.opt • bitgen.ut • download.cmd • fast_runtime.opt • BSDL files • pcores directory • User IP • Customized block RAM controllers Required XPS Directory Structure

  34. Controlling Xflow • A file called fast_runtime is in the etc directory • This is what it looks like: # Options for Translator # Type "ngdbuild -h" for a detailed list of ngdbuild command line options Program ngdbuild -p <partname>; # Partname to use — picked from xflow commandline -nt timestamp; # NGO File generation. Regenerate only when # source netlist is newer than existing NGO file (default) -bm <design>.bmm; # block RAM memory map file <userdesign>; # User design — pick from xflow command line <design>.ngd; # Name of NGD file. Filebase same as design filebase End Program ngdbuild

  35. Knowledge Check • What are some of the advantages of using ISE™ and XPS integration? • What are some of the advantages of using Xflow and XPS integration?

  36. Answers • What are some of the advantages of using ISE™ and XPS integration? • Add additional logic to the FPGA design • Synthesize the design by utilizing ISE-supported synthesis tools • Control the FPGA implementation flow by using ISE • What are some of the advantages of using Xflow and XPS integration? • One GUI to perform all design work • Simple push-button flow

  37. Knowledge Check • What is the smallest memory size that PlatGen can generate for a Spartan™-IIE device? • Why is the address 0xFFFF_B100 NOT a valid BASEADDR for a Local Memory Bus (LMB) block RAM controller? • What will the BAUDRATE for the peripheral be: • If the MPD file has the following parameter: C_BAUDRATE = 9600 • If the MHS file has the following parameter: C_BAUDRATE = 115200

  38. Answers • What is the smallest memory size that PlatGen can generate for a Spartan™-IIE device? • 2 KB • Why is the address 0xFFFF_B100 NOT a valid BASEADDR for a Local Memory Bus (LMB) block RAM controller? • It is not on a 2n boundary • What will the BAUDRATE for the peripheral be: • If the MPD file has the following parameter: C_BAUDRATE = 9600 • If the MHS file has the following parameter: C_BAUDRATE = 115200 • The BAUDRATE will be 115200

  39. Knowledge Check: Memory Space • How do you build a 48-KB OPB BRAM memory space for a MicroBlaze processor in a Virtex™-II device? ? KB 0x0000_0000 0x ? KB 0x 0x

  40. Answers:Memory Space • How do you build a 48-KB OPB BRAM memory space for a MicroBlaze processor in a Virtex™-II device? 32 KB 0x0000_0000 0x0000_7FFF 0x0000_8000 16 KB 0x0000_BFFF

  41. Knowledge Check:Memory Requirement • How many block RAMs do you think will be used to build a 16-KB PLB memory space for a PowerPC processor in a Virtex-II Pro device? And why?

  42. Answers:Memory Requirement • How many block RAMs do you think will be used to build a 16-KB PLB memory space for a PowerPC processor in a Virtex-II Pro device? And why? • Eight block RAMs will be used • Because the PowerPC processor allows a byte write, the memory is organized in a byte-wide mode. The Virtex-II Pro device block RAM has 18 KB; each block will be configured in 2K x 8. This will require eight block RAMs

  43. Where Can I Learn More? • Tool documentation • Embedded System Tools GuideXilinx Platform Studio • Support Website • EDK Website: www.xilinx.com/edk
