Presentation Transcript

  1. The Lincoln Index CAPTURE – MARK – RECAPTURE METHOD

  2. The Lincoln Index • Used to estimate the size of an animal population. • Capture animals • Mark them with a tag • Release them and wait a period of time • Capture animals again

  3. Pitfall Trap

  4. Tiger census..

  5. Assumptions The population of organisms are closed, no immigration or emigration. The marked organisms mix completely with the rest of the population during the time between samples.

  6. Assumption: The proportion of animals caught to the whole population is the same as the marked animals in the second sample. First Capture = Marked animals, second capture Whole population second capture

  7. Equation n1 = m2 N n2 • n1 = number of animals first marked and released. • n2 = number of animals captured in the second sample • m2 = number of marked animals in the second sample Solve for N = n1. n2 to find the total population m2

  8. Limitations • Marking or capturing the animal might change its behavior to avoid recapture • The mark might be toxic or cause predators to see it • Marks might cause the animal to be rejected by its own population • Trapping might cause the animal to avoid the traps in the future or to choose to be trapped to get food!

  9. The marks must not harm the animal…

  10. Assumptions: • No animals are born or die during the period tested • No animals immigrate or emigrate in the period tested. • Animals do not die because of the markings. • The tags do not fall off.

  11. What is the estimated snail population in a woodland? • In a woodland, the undergrowth was sampled for snails and 430 were found and marked. They were then released and the population similarly sampled after a two-week period. This second sampling produced 410 snails, 100 of which were marked.

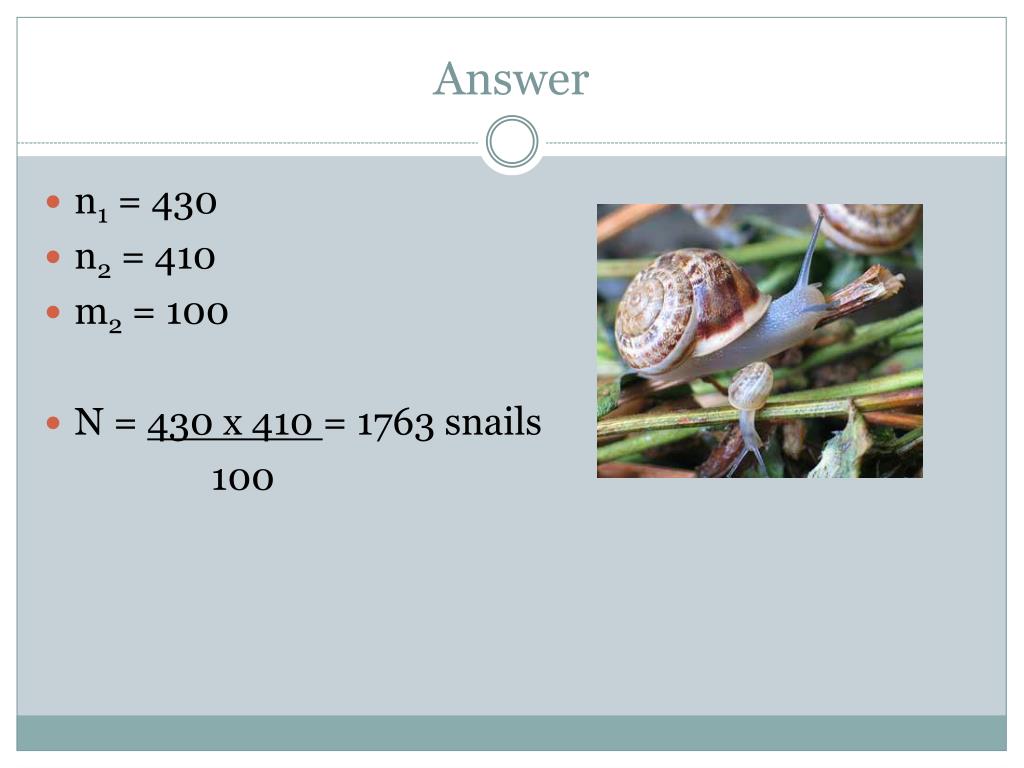

  12. Answer • n1 = 430 • n2 = 410 • m2 = 100 • N = 430 x 410 = 1763 snails 100

  13. Woodlice Woodlice are terrestrial crustaceans that live under logs and stones in damp soil. To assess the population of woodlice in an area, students collected as many of the animals as they could find, and marked each with a drop of fluorescent paint. A total of 303 were marked. 24 hours later, woodlice were collected again in the same place. This time 297 were found, of which 99 were marked from the first time. What is the estimated population of woodlice in this area?

  14. Population estimate • N = 303 x 297 = 909 99

  15. Voles… • While studying field voles, an ecologist caught 500 and ringed a foot of each before releasing them. Every day for the next two weeks he examined the waste material found in the nests of their predators. He collected a total of 300 field vole skulls and 15 rings. • How many field voles were probably in the area examined?

  16. Population estimate • N = 300 x 500 = 10 000 15

  17. A harder problem from the 2009 IB exam • A population of meadow voles in an area of woodland was sampled using small mammal traps • over a period of four days. On each occasion any unmarked individuals were marked and all • the voles from the capture were then released. The following table represents the data obtained • on each of the four days.

  18. Estimate the population size

  19. Vole population calculation n1 = number in the “first sample” and marked. 8+19+10-2 = 35 You need to know how many animals were marked! n2 = number in the “second sample” 23 m2 = number in the second sample with a mark 8 N = 35x23 = 100.6 The size of the population is 101 as 8 100.6 voles is impossible!

  20. Estimate the size of a turtle population: year Captured Marked pond turtles1992: 18 1993: 34 12 1994: 30 18

  21. Results1992: 18 1993: 34 (12) 1994: 30 (18) The total number marked is 18 + 34 – 12 = 40 The population estimate: 1992-94: N = 40(30) = 67 turtles 18 This assumes that none of the paint came off of the turtles over the course of two years.

  22. Mini experiment: Does the size of the first capture, n1, while the size of the second capture is held constant, affect the accuracy of the population estimate, N? Does the size of the second capture, n2, while the size of the first capture is held constant, affect the accuracy of the population estimate, N?

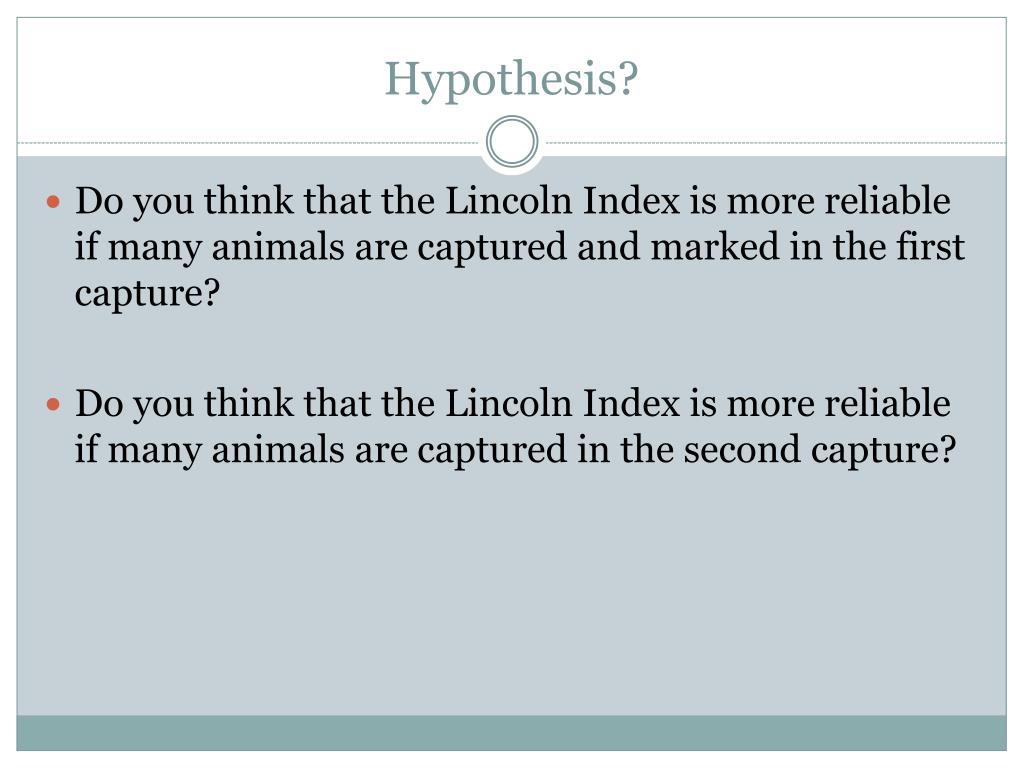

  23. Hypothesis? • Do you think that the Lincoln Index is more reliable if many animals are captured and marked in the first capture? • Do you think that the Lincoln Index is more reliable if many animals are captured in the second capture?

  24. Mini experiment with beans You will use beans instead of animals to study the accuracy of the Lincoln index. Independent variable: Vary either the size of the first capture OR the second capture while holding the other variable constant Dependent variable: The value for m2 will change, so the value for the population estimate, N, will change…. maybe

  25. Minilab: Investigation with beans: • Count 150 beans into a cup • Capture as many beans as you choose, n1 • Mark the captured beans. • Release the marked beans into the cup and mix. • Capture a second sample, n2 • Count the number of marked beans in the second sample, m2 • Repeat for four more trials, using the same size captures. ( Five trials of the same experiment should improve your accuracy and allows you to calculate the standard deviation.) • Change the size of the first OR second capture while keeping the same value for the other capture. Repeat • Change the number of beans captured again so that you the independent variable changes five times.

  26. Data processing – show a sample calculation Calculate the population estimates, N N = n1 x n2 m2 Calculate the mean values of N for each independent variable. Calculate the standard deviation. (excel use “=stdev”) Calculate the percent error between the population estimates and true value for each of the independent variables.

  27. Data table: Numbers of beans captured, marked, recaptured and that had marks + 1

  28. Data Processing: Calculate the population estimate, N, for each trial

  29. The mean value of N for each independent variable, the standard deviation and the percent error:

  30. Graph the results using an x, y scatterplot • Do the population estimates improve with increasing first or second captures? • The independent variable is on the x axis • The dependent variable is on the y axis

  31. Rubric for grading
