  1. PNPI INTAS ReportTask 2.2. Monitoring of the Grid infrastructure state.Ryabov Yu.F.2006

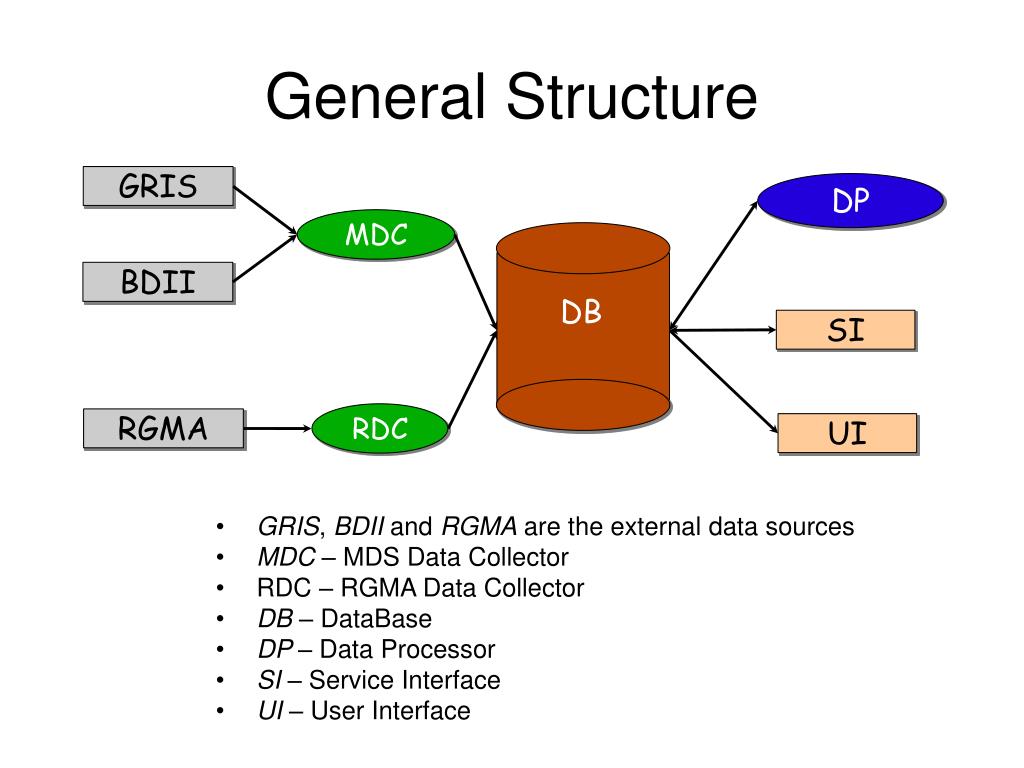

  2. DB GRIS DP MDC BDII SI RDC RGMA UI General Structure • GRIS, BDII and RGMA are the external data sources • MDC – MDS Data Collector • RDC – RGMA Data Collector • DB – DataBase • DP – Data Processor • SI – Service Interface • UI – User Interface

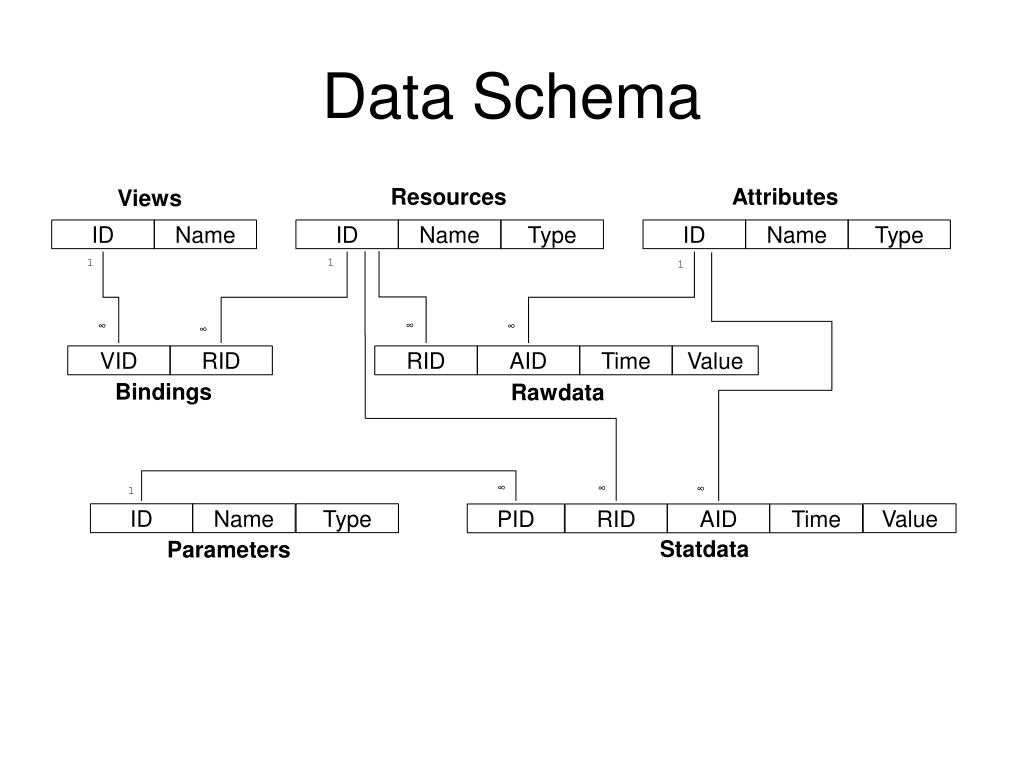

  3. Resources Attributes Views ID Name ID Name Type ID Name Type 1 1 1 ∞ ∞ ∞ ∞ VID RID RID AID Time Value Bindings Rawdata ∞ ∞ ∞ 1 ID Name Type Value PID RID AID Time Statdata Parameters Data Schema

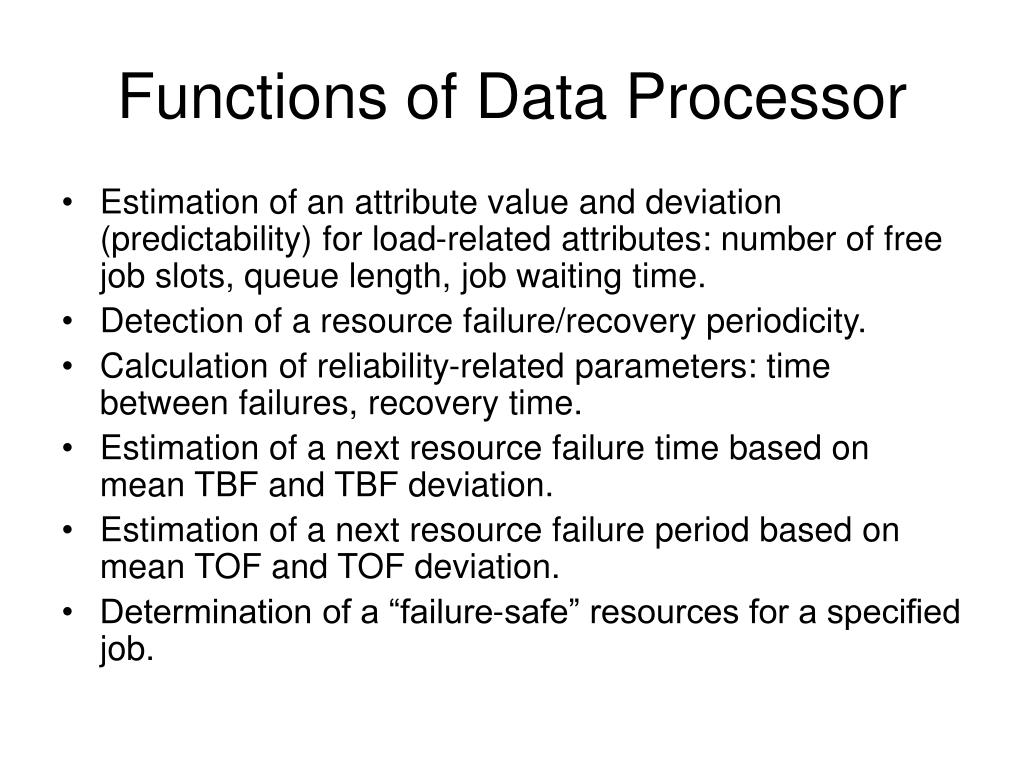

  4. Functions of Data Processor • Estimation of an attribute value and deviation (predictability) for load-related attributes: number of free job slots, queue length, job waiting time. • Detection of a resource failure/recovery periodicity. • Calculation of reliability-related parameters: time between failures, recovery time. • Estimation of a next resource failure time based on mean TBF and TBF deviation. • Estimation of a next resource failure period based on mean TOF and TOF deviation. • Determination of a “failure-safe” resources for a specified job.

  5. User Web Interface User Info Menu Resource parameters

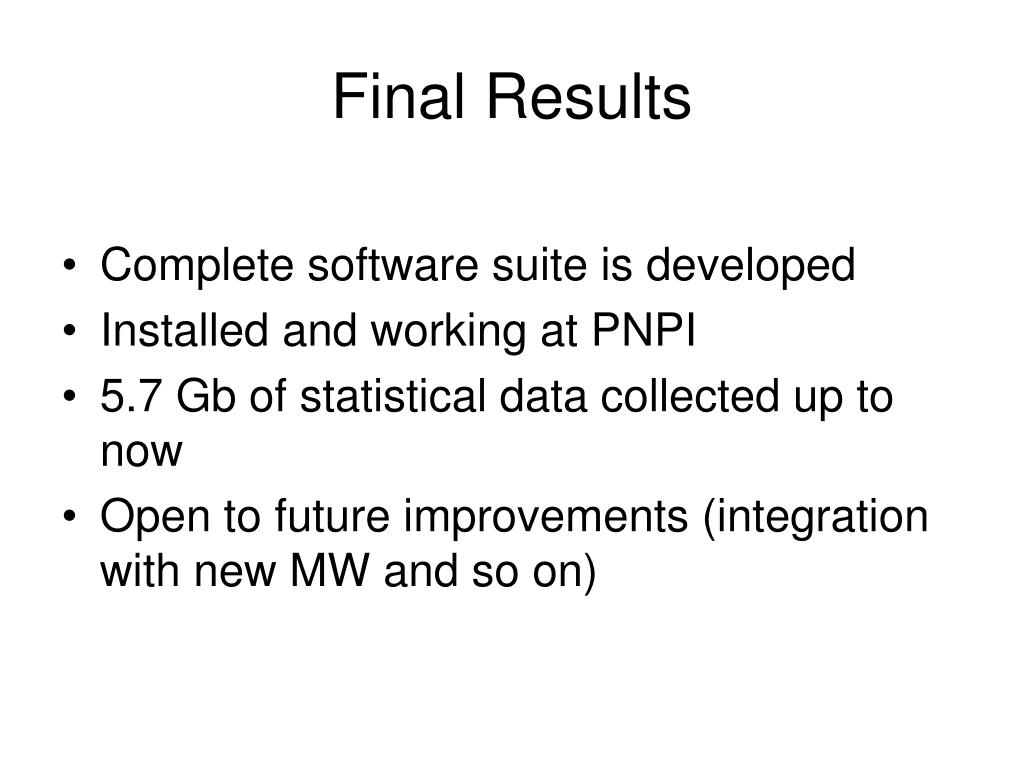

  6. Final Results • Complete software suite is developed • Installed and working at PNPI • 5.7 Gb of statistical data collected up to now • Open to future improvements (integration with new MW and so on)
