Hard Drive Controllers

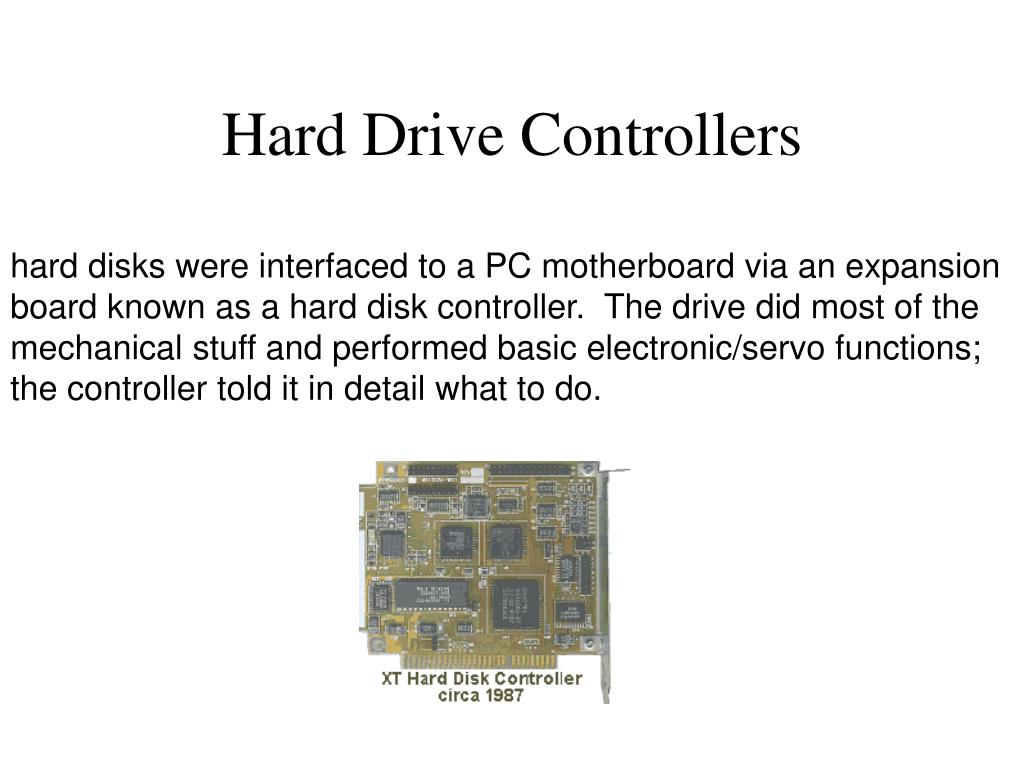

hard disks were interfaced to a PC motherboard via an expansion board known as a hard disk controller.  The drive did most of the mechanical stuff and performed basic electronic/servo functions; the controller told it in detail what to do. . Hard Drive Controllers.

emilia
Télécharger la présentation

Hard Drive Controllers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. hard disks were interfaced to a PC motherboard via an expansion board known as a hard disk controller.  The drive did most of the mechanical stuff and performed basic electronic/servo functions; the controller told it in detail what to do.  Hard Drive Controllers

  2. The development of the IDE hard moved most of the electronics and firmware (low-level software on a chip) from the controller to a printed circuit board on the drive itself.  In the process, a buffer/cache' memory was added to the electronics to speed-up the process of reading and writing hard disk drive data.  The drive got "smarter."  Overall costs went down and performance went up. IDE Hard Drives

  3. IDE Controller A much simpler board, commonly known as an IDE Controller, interfaced the IDE hard disk to the motherboard bus.

  4. IDE Controller? The term IDE Controller is a misnomer.  It is actually nothing more than a bus interface and an interface and connector for the IDE cable going to the drive.  The actual controller is on the drive.   In most cases when a computer says it has a problem with the hard disk controller, it has a problem with the electronics on the drive.

  5. Subsequently, the IDE Controller expansion board electronics and the connector for the drive cable were incorporated into most motherboards. Most of these motherboards have two IDE interfaces--a Primary and a Secondary--each of which can support two IDE devices.

  6. IDE versus ATA The term Integrated Drive Electronics (IDE) is owned by Western Digital.  Other companies, such as Maxtor, Quantum, and Seagate, use the term ATA (AT Attachment).  IDE and ATA are the same thing.
