  1. DVP-1412 MPEG 1/2/4 Video/Audio encoder module Jerry Yuan Rev. 0.1, 2004.11.15

  2. What’s DVP-1412 ? • A compact module which is a MPEG 1/2/4 A/V encoder board with 1-ch video/audio input; Max. D1 resolution & 30/25fps (NTSC/PAL) • High speed USB 2.0 I/F to most mainboards • Compact size, easy to use interface

  3. What DVP-1412 provides ? • DVP-1412 module • Cable (USB) • Driver / SDK / sample program on MS-Windows 2000/XP

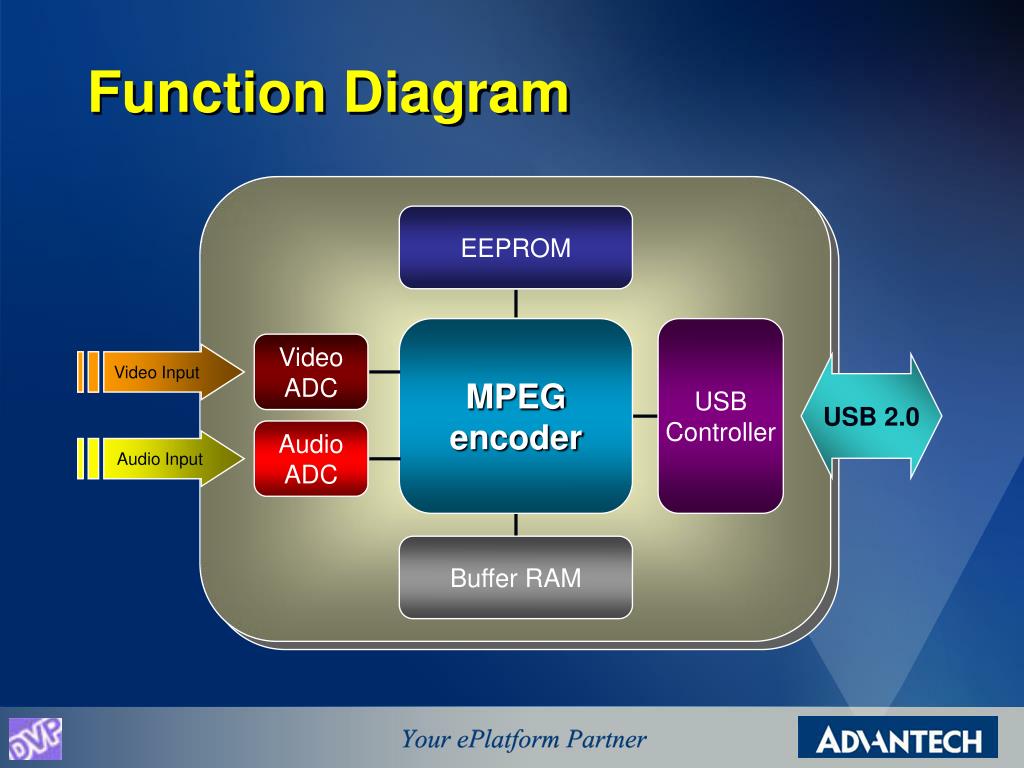

  4. Video ADC Video Input MPEG encoder USB Controller USB 2.0 Audio ADC Audio Input Buffer RAM EEPROM Function Diagram

  5. System Diagram USB 2.0 I/F Audio DVP-1412 Video SBC

  6. Applications • Embedded Digital Video surveillance system • Vehicle Digital Video surveillance system

  7. Comparison with DVP-1410 & DVP-1412

  8. DVP-1412 video/audio information Video Output format : MPEG-4 Simple Profile @ L3 plus B-frame support, Microsoft and Sigma Design compatible, progressive, and interlaced Hardware video control : Contrast, brightness, and hue control Audio Output format : PCM audio data stream output Video Resolution : Max. 720x480/30fps @ NTSC or 720x576/25fps @ PAL Bit-rate control : MPEG-4 bit-rate control (CBR/VBR) from 1Kbps to 40Mbps

  9. DVP-1412 The smartest way to build your own devices with Digital Video
