  1. Ventricular Diastolic Filling and Function • Stephen L. Rennyson M.D. • Echocardiography Conference • August 25, 2010

  2. Objectives • Background of Diastolic Dysfunction • Characteristics of Diastolic Dysfunction • Echocardiographic Analysis • Mitral inflow • Pulmonary Venous Flow • Tissue Doppler • Analysis using Mitral inflow and Tissue Doppler • Cases

  3. Diastole • Diastole • Isovolumic relaxation • Early filling (E) • Diastasis • Late filling - atrial contraction (A)

  4. Background • Congestive Heart Failure (CHF) manifests as either systolic and/or diastolic dysfunction • Where is the dysfunction? • Systolic dysfunction -- manifest as a loss of ventricular function (decreased EF) • Diastolic dysfunction -- abnormal relaxation pattern manifest as increased filling pressures (Atrial and Ventricular)

  5. Diastolic Dysfunction • Diastolic Dysfunction is an echocardiographic / Cardiac Catheterization diagnosis based on: • Ventricular filling patterns • Velocity of myocardial motion • Atrial filling patterns • Based on these data, diastolic dysfunction can be determined and graded

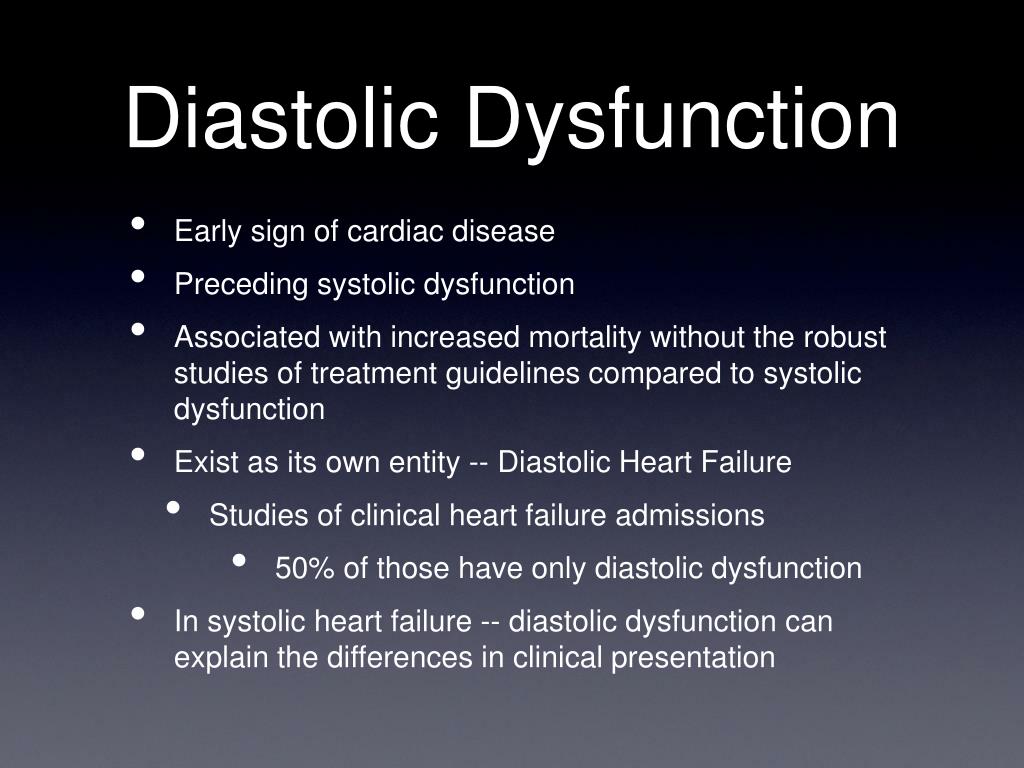

  6. Diastolic Dysfunction • Early sign of cardiac disease • Preceding systolic dysfunction • Associated with increased mortality without the robust studies of treatment guidelines compared to systolic dysfunction • Exist as its own entity -- Diastolic Heart Failure • Studies of clinical heart failure admissions • 50% of those have only diastolic dysfunction • In systolic heart failure -- diastolic dysfunction can explain the differences in clinical presentation

  7. Etiology • Myocardial Disease • Dilated Cardiomyopathy • Restrictive Cardiomyopathy • Hypertrophic Cardiomyopahty • Secondary Ventricular Hypertrophy • Hypertension • AS • CAD -- Ischemia and infarction • Pericardial disease

  8. Overview • Background of Diastolic Dysfunction • Characteristics of Diastolic Dysfunction • Echocardiographic Analysis • Mitral inflow • Pulmonary Venous Flow • Tissue Doppler • Analysis using Mitral inflow and Tissue Doppler • Cases

  9. Characteristics of Diastolic Dysfunction • LV hypertrophy • LA Volume • LA function • PA systolic and diastolic pressures

  10. LV hypertrophy • Majority of those with diastolic dysfunction: • Concentric hypertrophy (hypertensive heart disease) • Increased mass and wall thickness • Remodeling • Normal mass / increased wall thickness • Eccentric hypertrophy • Systolic dysfunction / depressed EF

  11. LA Volume • Easily measured and reliable in apical views • Significant relationship between LA remodeling and diastolic dysfunction • Consequence of longstanding elevated filling pressures • LA >34 mL/m2 predictor of death, heart failure, atrial fibrillation, ischemic stroke

  12. LA function • Reservoir / Conduit / Pump • Reservoir and conduit functions -- Early filling • Pump function -- Atrial contribution to LVEDV -- approximately 20%

  13. PA Systolic and Diastolic pressures • Symptomatic patients with diastolic dysfunction have increased pulmonary artery pressures • Correlate with elevated LV filling pressures • PA systolic -- Peak TR jet velocity + RA • PA diastolic -- End diastolic velocity + RA

  14. Overview • Background of Diastolic Dysfunction • Diastology • Characteristics of Diastolic Dysfunction • Echocardiographic Analysis • Mitral inflow • Pulmonary Venous Flow • Tissue Doppler • Analysis using Mitral inflow and Tissue Doppler • Cases

  15. Mitral Inflow • Measurement • Inflow patterns • Clinical application

  16. Measurement • Pulse-wave doppler through mitral inflow: • Peak E (early diastole) • Peak A (late diastole) • E/A ratio • Deceleration time (DT) of Early filling

  17. E wave (Early Diastole) • LA-LV pressure gradient • Affected by: • Preload • LV relaxation

  18. A-Wave (late diastole) • A Wave • LA-LV pressure gradient • Affected by: • LV compliance • LA contraction

  19. E wave Deceleration Time (DT) • Influenced by LV relaxation • Values greater than 140 ms considered normal

  20. Inflow patterns • Normal • Impaired LV relaxation • Normal Atrial pressure • Pseudonormal filling pattern • Symptoms • Restrictive filling • Symptoms

  21. Normal inflow pattern

  22. Impaired LV relaxation

  23. Pseudonormal LV filling E/e’ = 17

  24. Restrictive LV filling

  25. Inflow patterns • Increasing Age -- Age related loss of compliance • E wave velocity and E/A ratio decrease • A wave velocity and Deceleration Time (DT) increase • By age 50 essentially equal E and A waves

  26. Systolic Dysfunction • Doppler mitral inflow patterns correlate symptoms better than ejection fraction: • Cardiac filling pressures • Functional class • Prognosis -- especially if patterns persist after reduction of preload

  27. Overview • Background of Diastolic Dysfunction • Diastology • Characteristics of Diastolic Dysfunction • Echocardiographic Analysis • Mitral inflow • Pulmonary Venous Flow • Tissue Doppler • Analysis using Mitral inflow and Tissue Doppler • Cases

  28. Pulmonary Venous Flow • PW doppler of pulmonary venous flow • Not used as frequently • Can be difficult to obtain • Little additional information after use of Tissue Doppler

  29. Pulmonary Venous Flow • Measurements • Peak systolic • Peak anterograde diastolic • S/D ratio • Atrial reversal wave duration to A wave duration (mitral inflow)

  30. Overview • Background of Diastolic Dysfunction • Diastology • Characteristics of Diastolic Dysfunction • Echocardiographic Analysis • Mitral inflow • Pulmonary Venous Flow • Tissue Doppler • Analysis using Mitral inflow and Tissue Doppler • Cases

  31. Tissue Doppler • Doppler Pulse Wave imaging of mitral annular velocity • Measure • Lateral and Medial/Septal mitral annulus • Medial more accurate than lateral or combination score • Early filling -- e’ wave • Late filling -- a’ wave

  32. Tissue Doppler • Mitral inflow E to tissue doppler e’ (LV filling pressure) • Calculation: • 81.9 / 8.7 = 9.4 • < 10 normal

  33. Overview • Background of Diastolic Dysfunction • Diastology • Characteristics of Diastolic Dysfunction • Echocardiographic Analysis • Mitral inflow • Pulmonary Venous Flow • Tissue Doppler • Analysis using Mitral inflow and Tissue Doppler • Cases

  34. Diastolic Dysfunction Made Easy • Measurements • Mitral inflow patterns • E and A waves • E wave DT • Tissue Doppler of Mitral Annulus (medial) • E to e’

  35. Diastolic Dysfunction Analysis and Grading

  36. Symptoms from Diastolic Dysfunction • Symptoms driven by increased atrial pressures transmitted to pulmonary circulation • No symptoms likely from diastolic dysfunction: • Normal Diastolic Dysfunction • Impaired relaxation (normal atrial pressure) • Symptoms attributed to Diastolic Dysfunction: • Pseudonormal / Moderate diastolic dysfunction • Severe Diastolic Dysfunction

  37. InaccurateDiastolic Dysfunction • Mitral Valve Disease • MV replacement • Severe MR or MS • Atrial Fibrillation -- no A waves for analysis • Tachycardias as E and A waves fuse

  38. Objectives • Background of Diastolic Dysfunction • Characteristics of Diastolic Dysfunction • Echocardiographic Analysis • Mitral inflow • Pulmonary Venous Flow • Tissue Doppler • Analysis using Mitral inflow and Tissue Doppler • Cases

  39. Case # 1 • 57 year old male with presentation to the hospital for shortness of breath and exam consistent with CHF a exacerbation • Echo for shortness of breath ? heart failure

  40. TTE Apical

  41. Mitral inflow (E wave, A wave, Deceleration Time)

  42. Tissue Doppler

  43. Analysis • E wave greater than A wave • DT > 140 ms (190 ms) • e’ to a’ reversal • E/e’ = 31.9 • Pseudonormal Filling pattern / Moderate Diastolic Dysfunction

  44. Conclusion • Hypertensive patient with pseudonormal filling pattern consistent with moderate diastolic dysfunction. • Shortness of breath likely secondary to • Moderately reduced compliance • Impaired relaxation • Increased atrial pressure transmitted to pulmonary circulation • Episode driven by hypertensive urgency (medical noncompliance)

  45. Case # 2 • Patient with Cardiac Amyloidosis evaluation of cardiac structure and function

  46. PLAX

  47. Mitral inflow (E and,A waves, Deceleration Time)

  48. Tissue Doppler

  49. Mitral Inflow E wave greater than A wave • E wave > 2X A wave (3.1) • DT =140 ms (Criteria <140) • e’ to a’ reversal • E/e’ = 42.9 • Restrictive Filling Pattern

  50. Conclusion • Cardiac Amyloidosis • Severe Diastolic Dysfunction
