Symbol Table

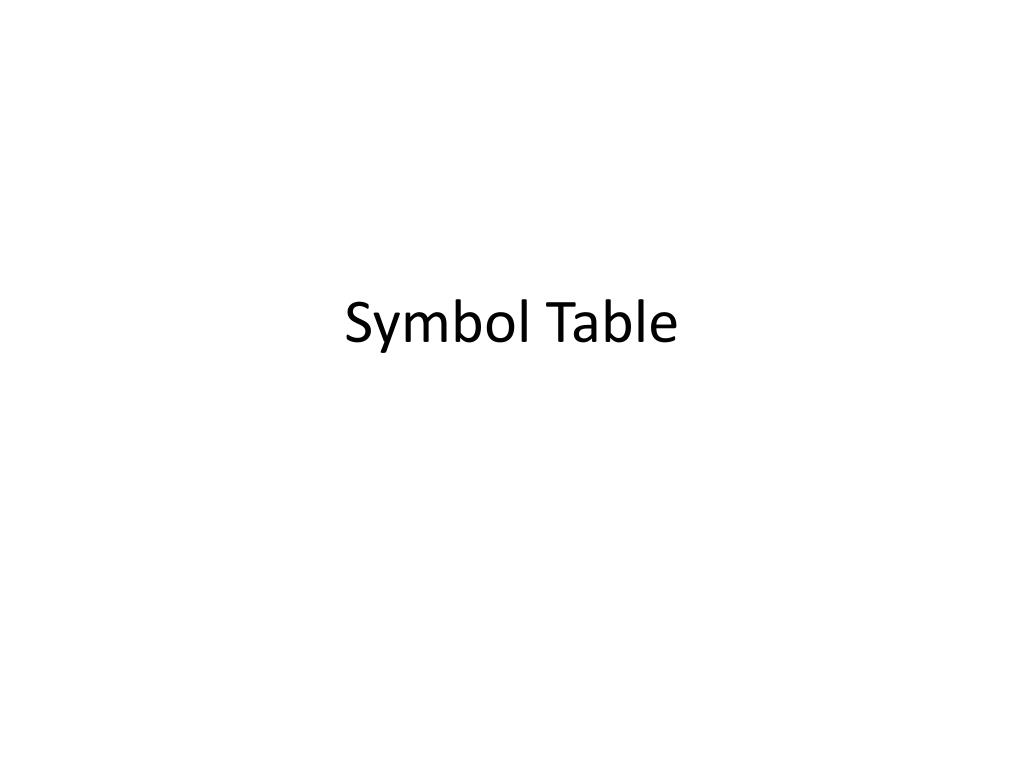

1. Symbol Table

2. Role of Symbol Table • Essential data structure for compiler • Used for storing information about identifiers appearing in a source program • Lexical Analyzer and Parser fill up symbol table • Code generator and optimizer make use of symbol table • Entities stored in a symbol table • Variables, procedures, functions, defined constants, labels, structures, file identifications, compiler generated temporaries

3. Information in symbol table • Name: May be stored directly in the table or the entry may point to another character string, possibly in an associated string table • Type: type of identifier • Whether variable / function / procedure name • For variables, identify whether integer / real / array … • Location: offset in the program where the identifier is defined • Scope: identifies the region of the program in which the current symbol definition is valid • Other attributes: Array limits, record fields / parameters / return values of functions

4. Usage of symbol table information • Semantic Analysis: check correct semantic usage of language constructs • May need checking types of identifiers • Code generation: All program variables and temporaries need to be allocated some memory locations • Symbol table provides information regarding memory size required for identifiers by their types • Error Detection: Leave variables undefined • Optimization: To reduce the total number of variables used in a program we need to reuse the temporaries generated by the compiler

5. Features of symbol tables • Insert • Delete • Lookup • Modify

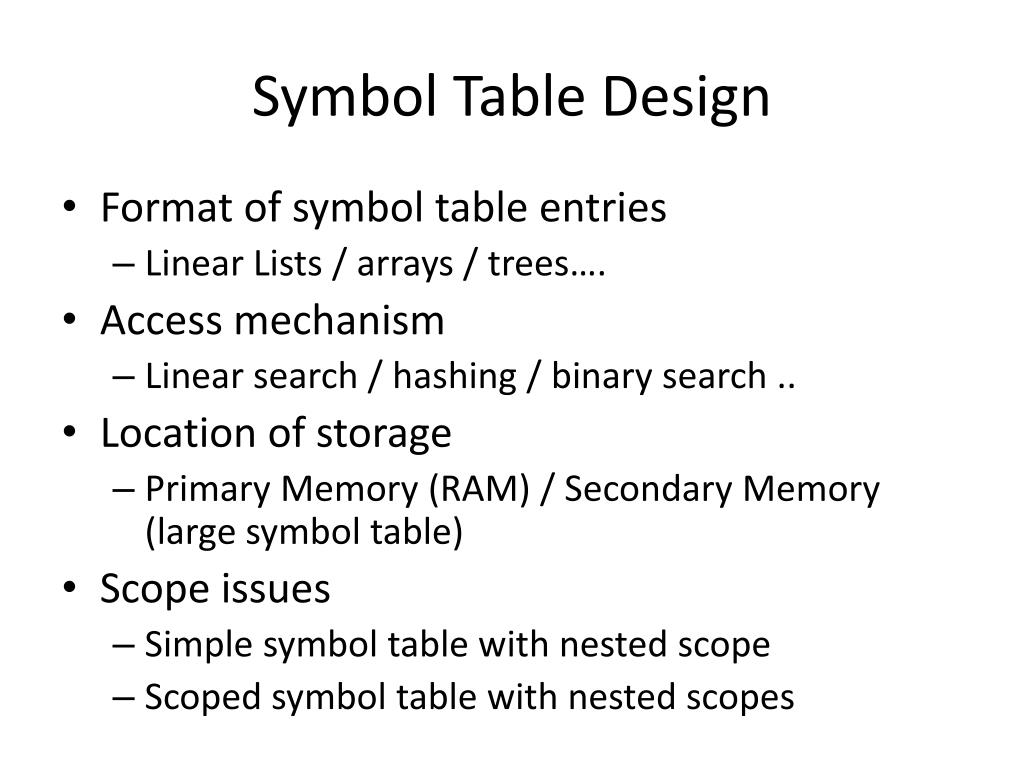

6. Symbol Table Design • Format of symbol table entries • Linear Lists / arrays / trees…. • Access mechanism • Linear search / hashing / binary search .. • Location of storage • Primary Memory (RAM) / Secondary Memory (large symbol table) • Scope issues • Simple symbol table with nested scope • Scoped symbol table with nested scopes

7. Simple symbol table: Operations • Enter a new symbol into the table • Lookup for a symbol • Modify information about a symbol stored earlier

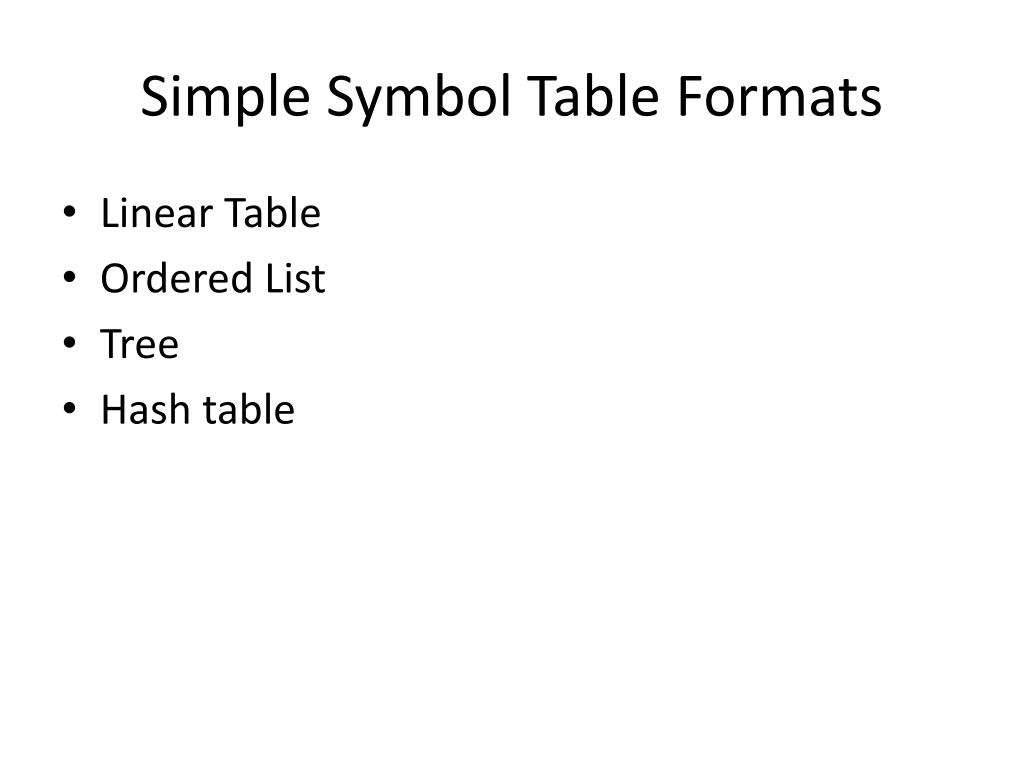

8. Simple Symbol Table Formats • Linear Table • Ordered List • Tree • Hash table

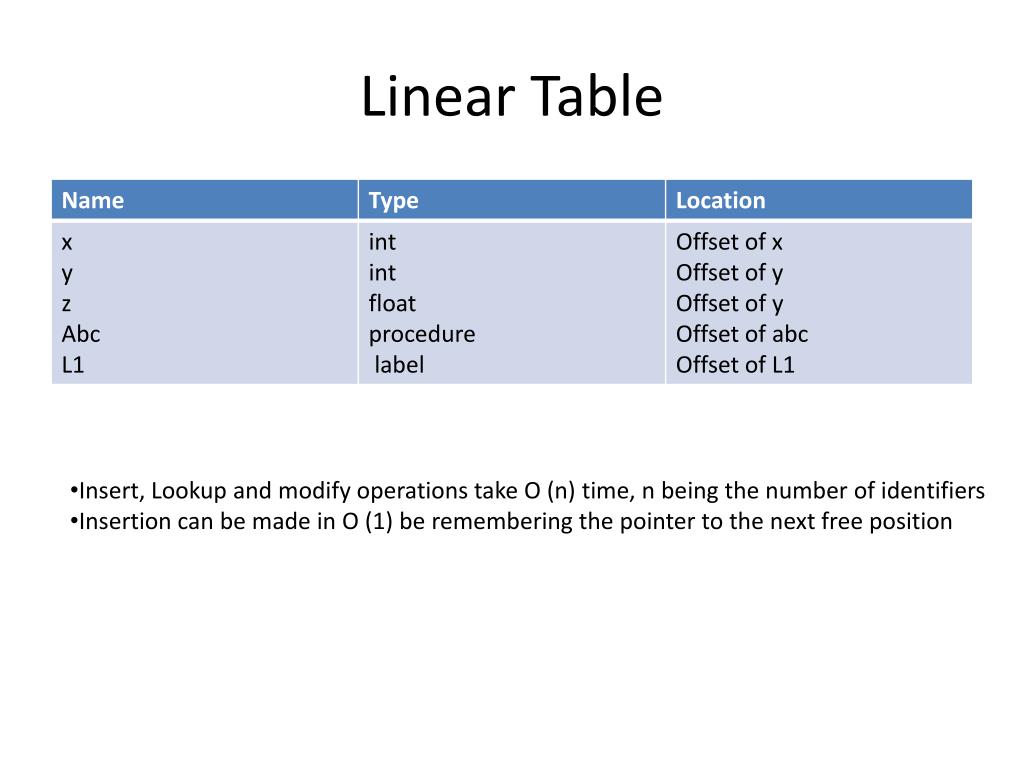

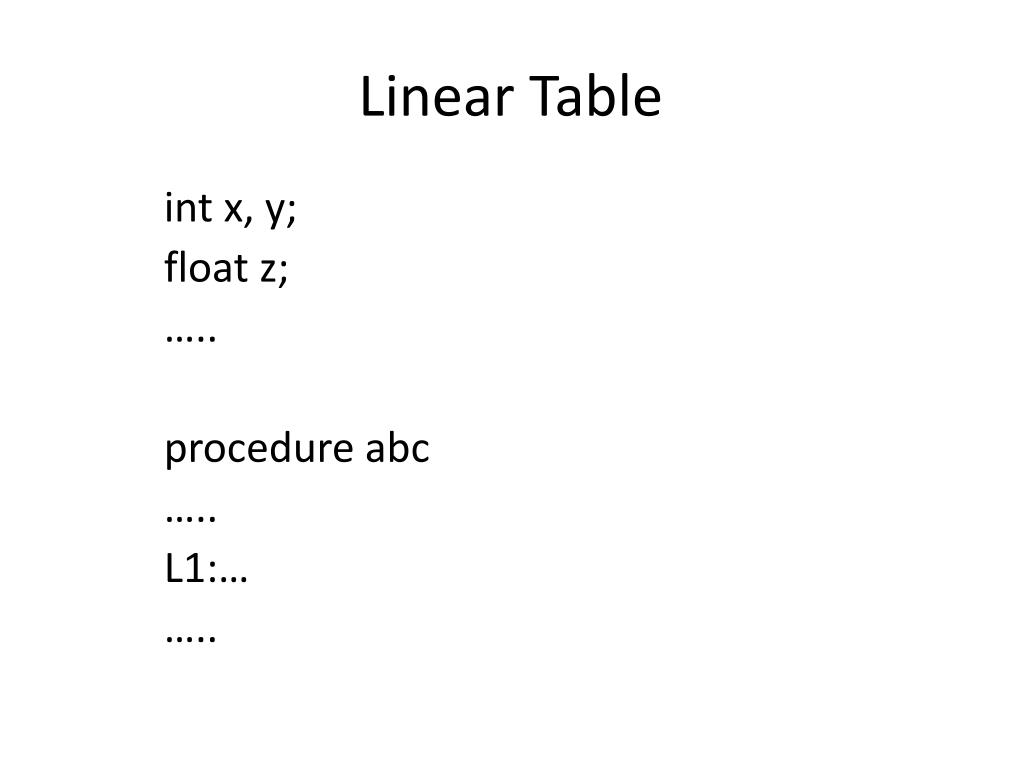

9. Linear Table int x, y; float z; ….. procedure abc ….. L1:… …..

10. Linear Table • Insert, Lookup and modify operations take O (n) time, n being the number of identifiers • Insertion can be made in O (1) be remembering the pointer to the next free position

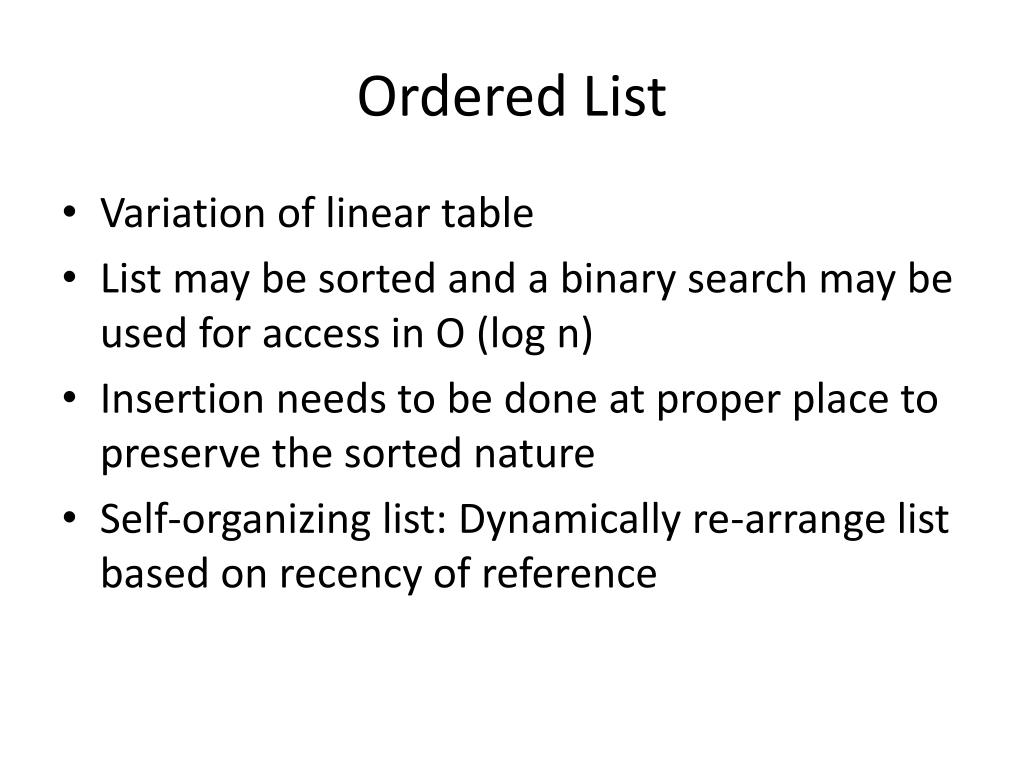

11. Ordered List • Variation of linear table • List may be sorted and a binary search may be used for access in O (log n) • Insertion needs to be done at proper place to preserve the sorted nature • Self-organizing list: Dynamically re-arrange list based on recency of reference

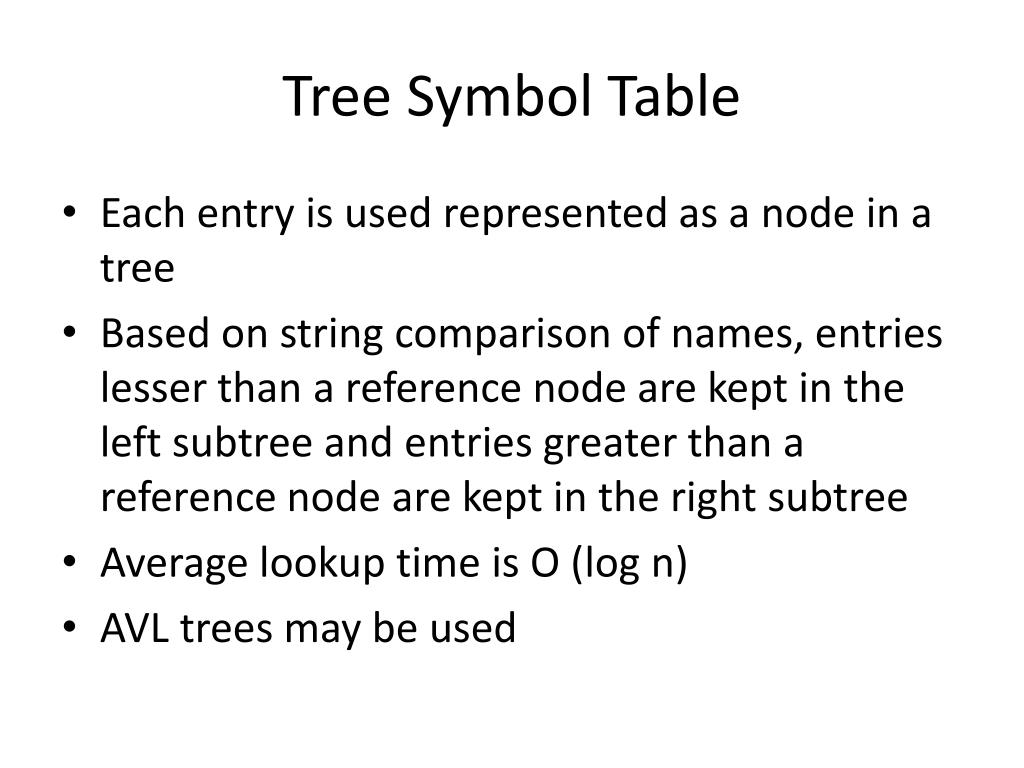

12. Tree Symbol Table • Each entry is used represented as a node in a tree • Based on string comparison of names, entries lesser than a reference node are kept in the left subtree and entries greater than a reference node are kept in the right subtree • Average lookup time is O (log n) • AVL trees may be used

13. Tree symbol table example x abc y L1 z

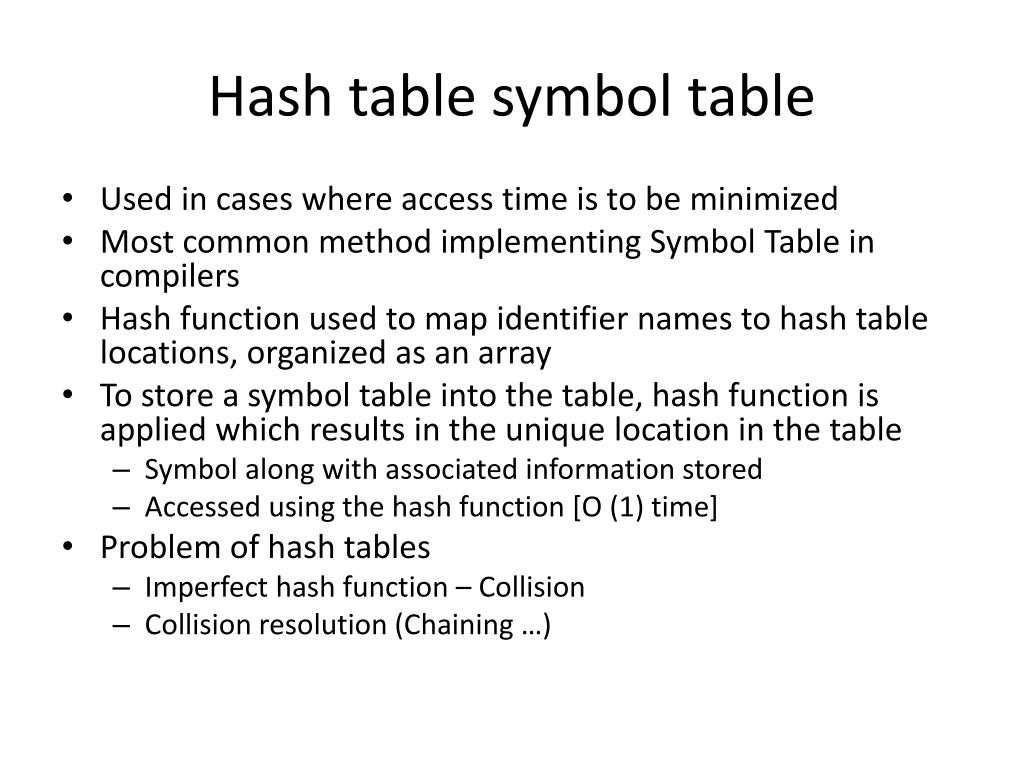

14. Hash table symbol table • Used in cases where access time is to be minimized • Most common method implementing Symbol Table in compilers • Hash function used to map identifier names to hash table locations, organized as an array • To store a symbol table into the table, hash function is applied which results in the unique location in the table • Symbol along with associated information stored • Accessed using the hash function [O (1) time] • Problem of hash tables • Imperfect hash function – Collision • Collision resolution (Chaining …)

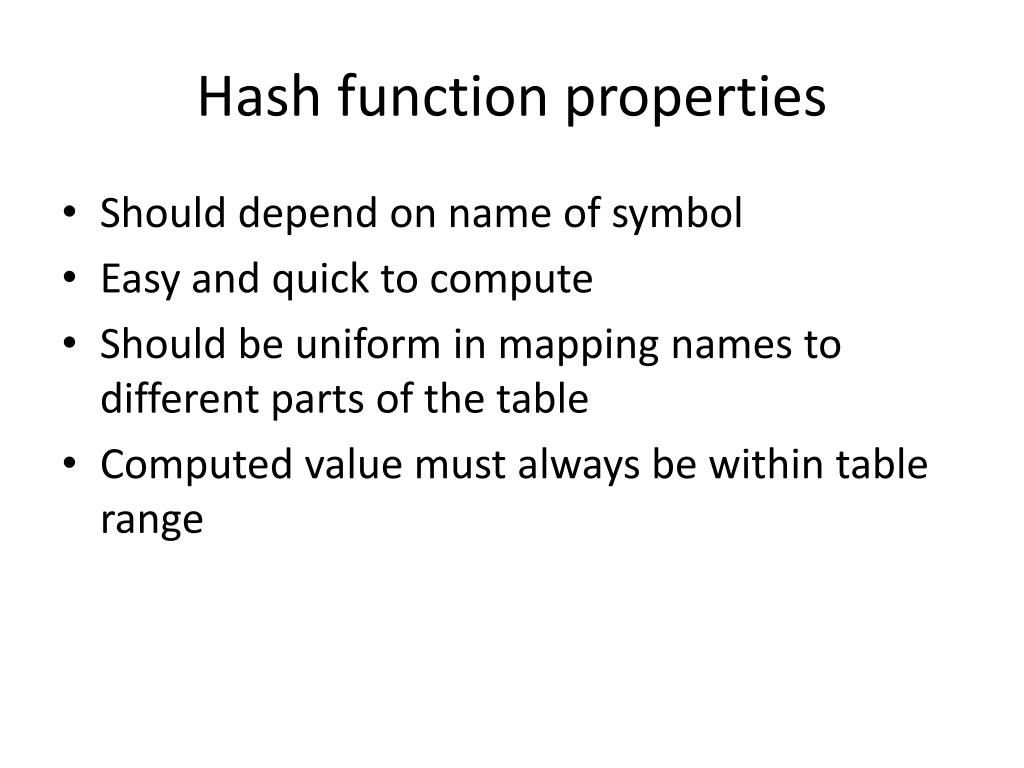

15. Hash function properties • Should depend on name of symbol • Easy and quick to compute • Should be uniform in mapping names to different parts of the table • Computed value must always be within table range

16. Scoped Symbol Table • Global Scope • Global Variables • File-wide scope • Modules in more than one file (static variables / functions) • Local scope within a procedure • Function local variables • Local scope within a block

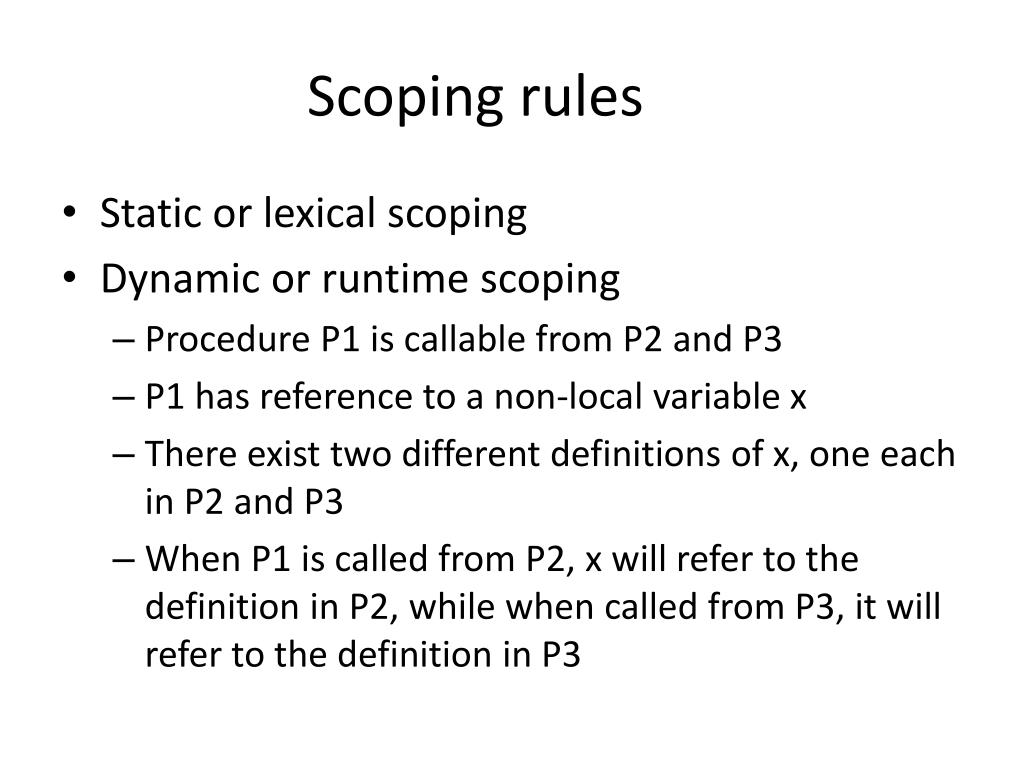

17. Scoping rules • Static or lexical scoping • Dynamic or runtime scoping • Procedure P1 is callable from P2 and P3 • P1 has reference to a non-local variable x • There exist two different definitions of x, one each in P2 and P3 • When P1 is called from P2, x will refer to the definition in P2, while when called from P3, it will refer to the definition in P3

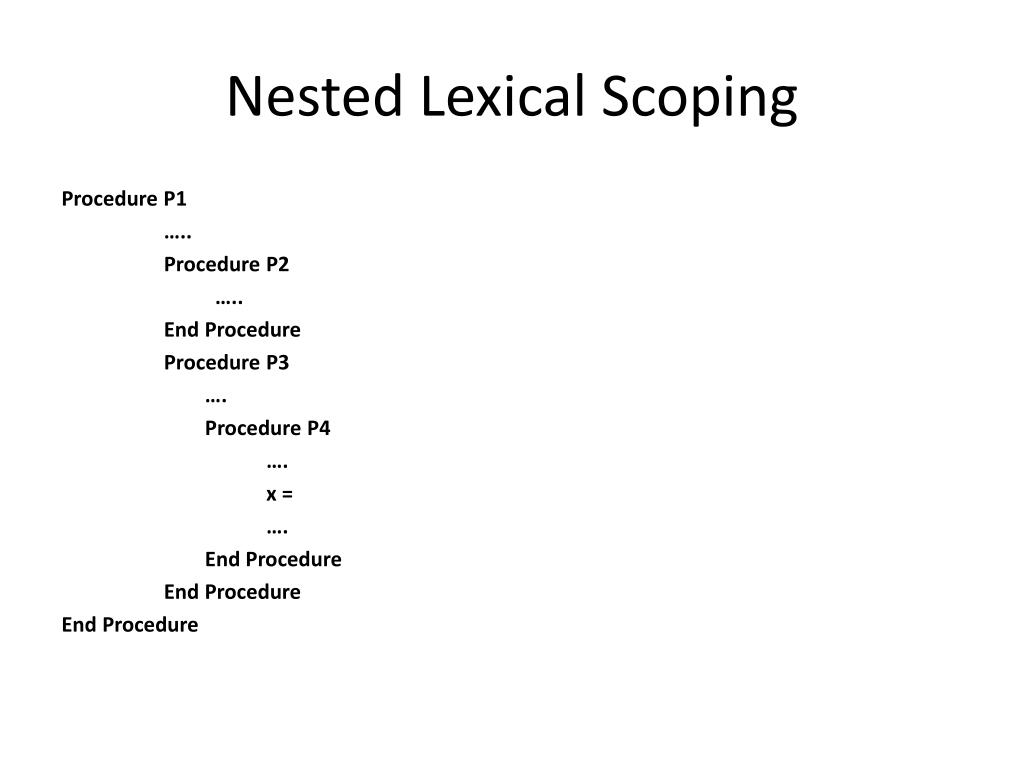

18. Nested Lexical Scoping Procedure P1 ….. Procedure P2 ….. End Procedure Procedure P3 …. Procedure P4 …. x = …. End Procedure End Procedure End Procedure

19. Scope resolution rule • If a name is defined in more than one scope, the innermost definition closest to the reference is to be used to interpret the reference to that name • When a scope is exited, all variables declared in that scope are deleted from the symbol table

20. Scope symbol table implementation • One table per scope • One table for all scopes • Operations on symbol tables • Insert: Insert a new symbol in current scope • Delete • Modify • Create: Create a new scope • Lookup

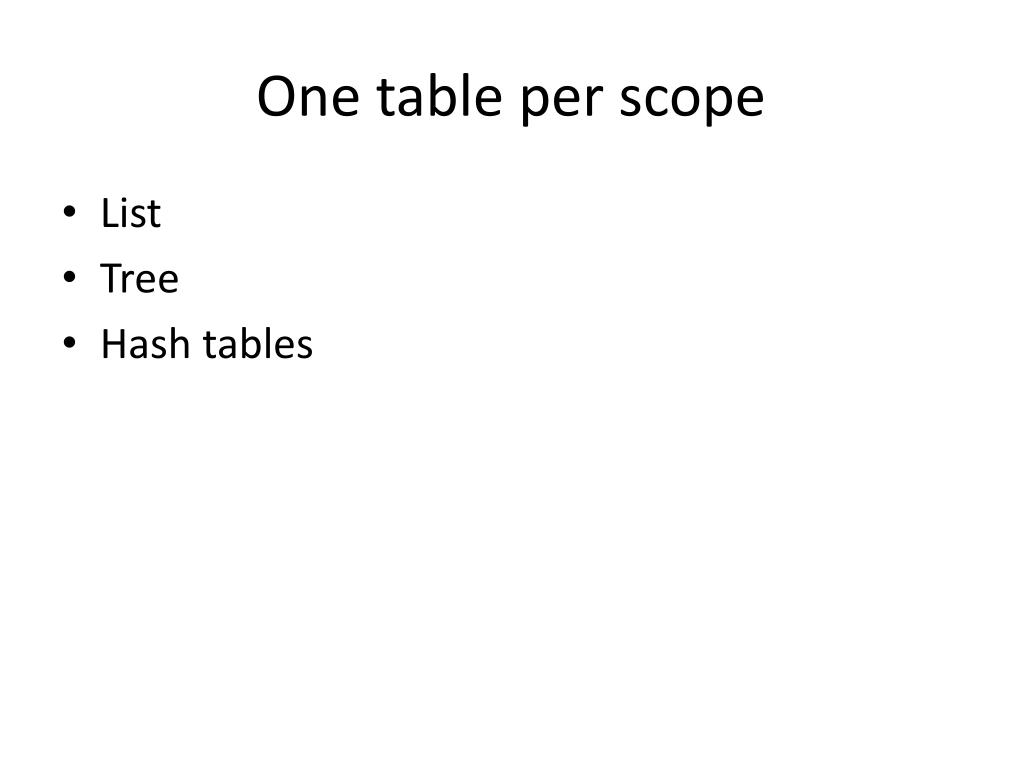

21. One table per scope • List • Tree • Hash tables

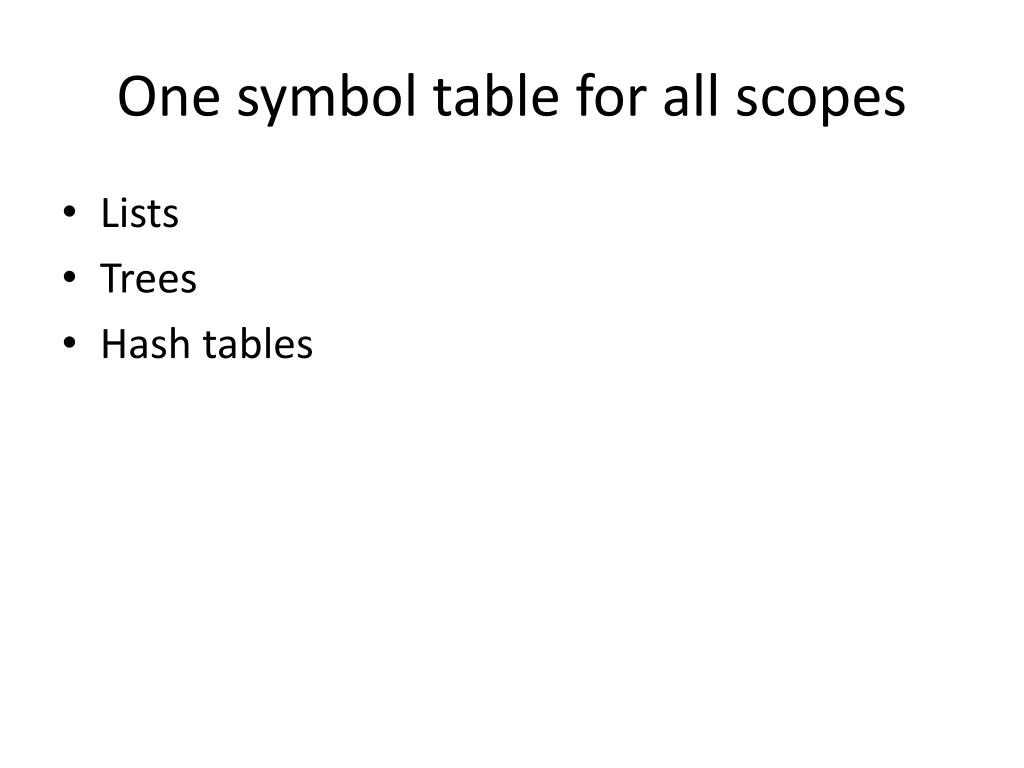

22. One symbol table for all scopes • Lists • Trees • Hash tables

23. Reference • Compiler Design: SantanuChattopadhay
