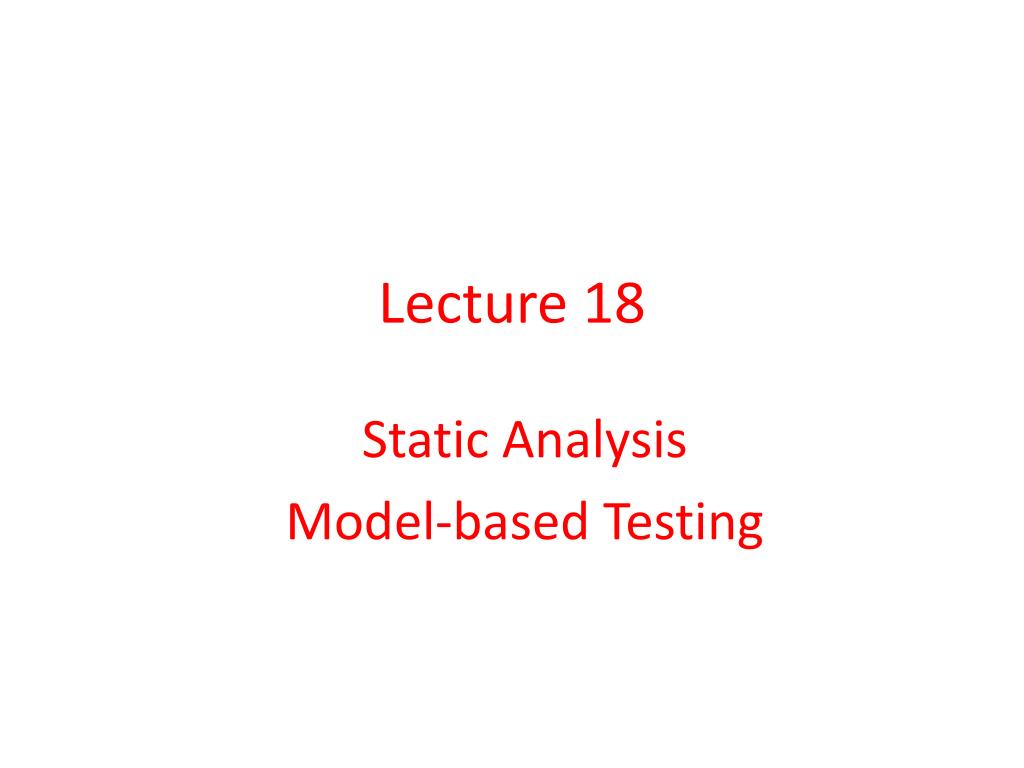

  1. Lecture 18 Static Analysis Model-based Testing

  2. Roadmap for Today • Static Analysis – intro, findbugs • Model-based Testing – intro, nmodel

  3. Static Analysis • Intuitively, “grep” source code for information, automatic code review • Discover facts/properties/models about programs • Histories: • 1954 Fortran compilers • First used to find information for optimization • Type check and type systems

  4. Static Analysis and Model Checking • Both are kinds of searchand both can be used to find bugs in the code • Both can find deeply embedded bugs that testing cannot find • Model checking: • Based on model of programs and properties • Find property violations • Path-Sensitive • … • Static analysis: • Can be applied directly on the source code • Can be path-sensitive or path-insensitive • Various purposes • …

  5. Static Analysis used by Software Engineers • Can be performed on the source code, binary code, models constructed from the code – CFGs, PDGs • Applications: • Bug checking – code pattern that indicates a potential bug at runtime • Reverse engineering – control flow analysis for generating sequential diagrams • Automatically generate test inputs • Debugging

  6. Static Analysis for Detecting Buffer Overflows- directly from source bar(); s = (char*)malloc(80); x[10] = ‘\0’; if(strlen(t)<8) strcpy(s,t); else strcat(x,t); • Path-Insensitive Analysis: simple pattern matching • Look for “strcpy”, “strcat” in the code

  7. Static Analysis for Detecting Buffer Overflows- from models of source bar() 1 Info1 bar(); s = (char*)malloc(80); x[10] = ‘\0’; if(strlen(t)<8) strcpy(s,t); else strcat(x,t); s = (char*)malloc(80) 2 Info2 x[10] = ‘0’ 3 Info3 strlen(t) < 8 Info4 4 yes no 5 strcpy(s,t) Info5 strcat(x,t) Info6

  8. Static Analysis for Detecting Buffer Overflows- from models of source Resolution bar(); s = (char*)malloc(80); x[10] = ‘\0’; if(strlen(t)<8) strcpy(s,t); else strcat(x,t); bar() 1 80/8>=len(t) len(t)<8 : safe s = (char*)malloc(80) 2 size(s)>= len(t) len(t) < 8 x[10] = ‘0’ 3 Safe size(s)>= len(t) len(t) < 8 strlen(t) < 8 4 yes no 5 strcpy(s,t) strcat(x,t) 6 Query size(s)>= len(t)

  9. Findbugs – from Bill Pugh’s talk public String foundType() { return this.foundType(); }

  10. Infinite RecursiveLoops: Sun JDK history

  11. More Bugs Control c = getControl(); if (c == null && c.isDisposed()) return; • // Eclipse 3.0.0M8 • String sig = type.getSignature(); • if (sig != null || sig.length() == 1) { • return sig; • } • // JDK 1.5 build 42 • if (name != null || name.length > 0) {

  12. Bug Categories • Correctness • Bad Practice - bad naming • Dodgy – dead store to local variable • Performance • Multithreaded correctness • Malicious code vulnerability

  13. Why False Positives • Report warnings but actually not a bug • Reason: code patterns do not necessarily sufficient to predict real execution problems, e.g., infeasible paths

  14. Challenges of software testing • Generate test input (unit, system) • Determine test inadequacies • Produce test oracle • Regression testing ……

  15. Model based Software Testing • Mode-based testing: automatic derivation of concrete • test cases from models of the system under testing • Derive all combination of tests associated with the requirements represented in the model to automate both the test design and test execution process • Some kind of black box testing • Requirement -> Model -> Test Cases

  16. Model based testing - fromMarkUtting + abstract tests + automatic execution + auto regression testing + auto design of tests + systematic coverage + measure coverage of model and requirements - modelling overhead

  17. Challenges of MBT • Testers need to be familiar with modeling techniques • Challenges of building good models • State space explosion problems

  18. Common Application Domains • Effective for testing small applications: • Communication protocols, • Web applications, • Embedded control systems, • Phone, and • Graphical user interfaces • Mostly Function test • Can be Unit test as well as System test • Sometimes Testing for Reliability and performance

  19. Model Types • State-based: Z, OCL (pre/post conditions) • Transition-based: UML state machines, FSM • Functional: Mathematical Algebra • Operational: Activities Diagrams

  20. Coverage Criteria • Cover paths (sequence) in the models • Random • Chinese postman: visit all transitions ASAP (the shortest tour of a graph which visits each edge at least once) • All Transition pairs • All variant of a given use cases (driven by use cases, cover important use case scenario)

  21. Step 1: Generate tests Input : • Model • Test algorithm – coverage • Number of tests Output: • Sequences of transitions • Coverage of transitions

  22. Step 2: Execute Test Cases • Offline: generate test cases, store in a file, then Write scripts to execute transitions • pro: repeatedly run • Online: choose which edge/state to cover when runs - pros: non-determinism can be considered

  23. A Case Study: NModel NModel: https://nmodel.codeplex.com/ University of Washington and Microsoft Research a model-based testing and analysis framework for model programs written in C#

  24. NModel: packages • A library of attributes and data types for writing model programs in C# • A visualization and analysis tool mpv (Model Program Viewer) • An alternative visualization tool mp2dot (Model Program to Dot) • A test generation tool otg (Offline Test Generator) • A test runner tool ct (Conformance Tester), for both offline and on-the-fly testing

  25. Steps to Use NModel • Construct models – model programs written in C# • Check the correctness of the model - visualize and analyze the model with mpv • Write a test harness in C# • Test input generation: • Online (ct): generate the test on-the-fly from your model program as the test run execute • Offline (otg): create tests from the model in advance

  26. Additional Features • Write a custom strategy in C# that ct uses to maximize coverage according to criteria you define. • Write simple finite state machines (FSMs), then use composition to achieve scenario control during testing or to check temporal properties during analysis • Combine model programs in a well-structured way

  27. FSM • FSM(Off, AcceptingStates(), Transitions(t(Off, PowerOn(), On), t(On, PowerOff(), Off))) Initial state, accept states, transitions (current, action, next)

  28. Model Program

  29. Visualize Models: mpv

  30. Another Model • FSM speed control: FSM(Low(), AcceptingStates(Low()), Transitions(t(Low(), IncrementSpeed(), Medium()), t(Medium(), IncrementSpeed(), High()), t(High(), IncrementSpeed(), Low())))

  31. Compositions of Models • mpv /r:PowerSwitch.dll /fsm:SpeedControl.txtPowerSwitch.Contract.Create

  32. Offline Test Generator • Generate Test Cases that Achieve the Coverage of FSM • otg /r:PowerSwitch.dll PowerSwitch.Contract.Create • TestSuite(TestCase(PowerOn(),PowerOff())) • It is typical to compose a scenario expressed as an FSM with a contract model program in C# in order to limit the size of the generated FSM.

  33. Run Testing: ct – conformance tester Input: • Implementation • Test case (programs) Output: • Fail/success - in the test harness we will set exception routines • Traces

  34. Coffee Make Demo

  35. Further Reading • Model-based Software Testing and Analysis with C# Jonathan Jacky, MargusVeanes, Colin Campbell, Wolfram SchulteCambridge University Press, 2008 (available December 2007)

  36. ModelJUnit • The ModelJUnit Model-Based Testing Tool http://www.cs.waikato.ac.nz/research/mbt/modeljunit/

  37. AsmL: Abstract State Machine Language • https://research.microsoft.com/en-us/projects/asml/

  38. Other MBT Tools • PyModel (model based testing for Python) : http://staff.washington.edu/jon/pymodel/www/ • A list of commercial tools: http://www.cs.waikato.ac.nz/research/mbt/Tools.pdf • Reactis® by Reactive System is targeted for model based testing of embedded systems, and it generates the tests from Simulink® and Stateflow® models. • Statemate™ Automatic Test Generator™ / Rhapsody® Automatic Test Generator™ (ATG) by I-Logix: generates test cases from state charts of the system and from UML state machine. The state charts have to be designed with the included designer tool. • ZigmaTEST Tools by ATS: uses a finite state machine based models, from which it can generate test sequences to cover the state machine transitions. The finite state machines must be created by hand.

  39. Todo • Homework5: Due Friday 11/11 7:00pm

  40. Last Wild & Crazy Ideas Class Picture
