Cost Based Satisficing Search Considered Harmful

1. Cost Based Satisficing Search Considered Harmful William Cushing J. Benton Subbarao Kambhampati

2. Performance Bug: ε-Cost `Trap’ • High cost variance: ε = $0.01 / $100.00 • Board/Fly • Load/Drive • Labor/Precious Material • Mode Switch/Machine Operation • Search depth: • 0-1(heuristic-error)=∞ • ε-1(heuristic-error)=huge • Optimal: cost=$1000.00, size=100,000 • Runner-up: cost=$1000.10, size=20 • Trillions of nodes expanded: • When does depth 20 get exhausted?

3. Outline • Inevitability of e-cost Traps • Cycle Trap • Branching Trap • Travel Domain • If Cost is Bad, then what? • Surrogate Search • Simple First: Size • Then: Cost-Sensitive Size-Based Search

4. Cycle Trap • Effective search graph • g’ = f = g + h • Edge weights = changes in f • 0 = ideal • - = over-estimated earlier • Or under-estimating now • + = under-estimated earlier • Or over-estimating now • Simple subgraph • Heuristic plateau • 1 choice: Which way? 1 1 1 1

5. Cycle Trap • Even providing a heuristic perfect for all but 1 edge… • Cost-based search fails • Reversible operators are one way in which heuristic penalty can end up being bounded from above • “Unbounded f along unbounded paths”, to have completeness, also forces a heuristic upper bound • Fantastically over-estimating (weighting) could help, but: • Suppose the right edge actually costs 1 – ε • Then both directions would have identical heuristic value • Weighting would be fruitless 2 0 2

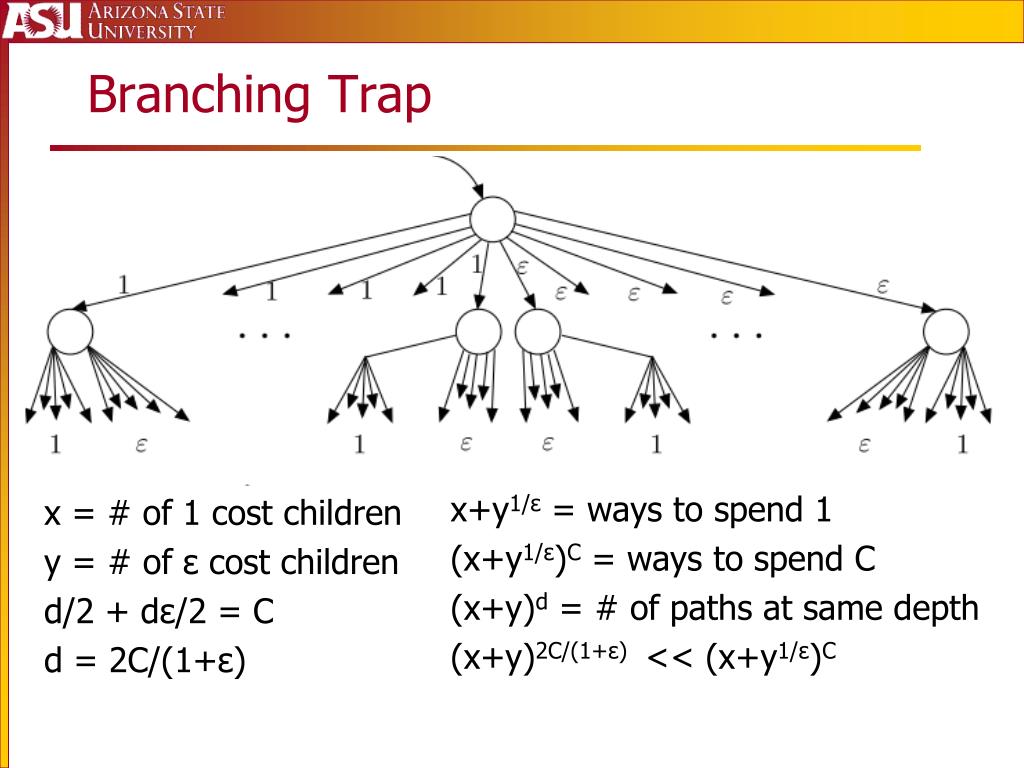

6. Branching Trap x = # of 1 cost children y = # of ε cost children d/2 + dε/2 = C d = 2C/(1+ε) x+y1/ε = ways to spend 1 (x+y1/ε)C = ways to spend C (x+y)d = # of paths at same depth (x+y)2C/(1+ε) << (x+y1/ε)C

7. Travel • Straight Fly = 10,000 cents • Diag. Fly = 7,000 cents • Board/Debark = 1 cent • Various Solutions: • Cheapest Plan • Fastest Plan • Smallest Plan 1 2 R B A

8. Travel – Cheapest Plan 1 2 R B A

9. Travel – Cheapest Plan 1 2 R B A

10. Travel – Decent Start 1 2 g = 1 fly + 4 board + 1 debark h = 2 fly + 4 debark + 1 board f ~ 3 fly R B A

11. Travel – Begin Backtracking 1 2 g = 2 fly + 4 board + 1 debark h = 2 fly + 4 debark + 1 board f ~ 4 fly R B A

12. Travel – Backtracking 1 2 g = 1 fly + 4 board + 2 debark h = 2 fly + 4 debark + 2 board R B A

13. Travel – Backtracking 1 2 g = 1 fly + 4 board + 2 debark h = 2 fly + 4 debark + 2 board R B A

14. Travel – Backtracking 1 2 g = 1 fly + 4 board + 3 debark h = 2 fly + 3 debark + 2 board R B A Fly 1-2-B Then teleport passengers

15. Travel – Backtracking • 8 people: = 1296 • 1, 256, 6561, 390625 • (1+0)8, (1+1)8, (1+2)38, (1+4)8 1 2 g = 1 fly + 6 board + 3 debark h = 2 fly + 4 debark + 1 board R B A

16. Travel Calculations • 4 planes located in 5 cities • 54 = 625 plane assignments • 4k passengers, located in 9 places • 94k passenger assignments globally • Cheap subspace • Product over each city • (1 + city-local planes) (city-local passengers) • e.g., (1+2)4(1+1)4 = 1296 • Stop exploring • Large evaluation • Exhaustion of possibilities • Cost-based search exhausts cheap subspaces • Eventually • Assuming an upper bound on the heuristic

17. Outline • Inevitability of e-cost Traps • Cycle Trap • Branching Trap • Travel Domain • If Cost is Bad, then what? • Surrogate Search • Simple First: Size • Then: Cost-Sensitive Size-Based Search

18. Surrogate Search • Replace ill-behaved Objective with a well-behaved Evaluation • Tradeoff: Trap Defense versus Quality Focus • Evaluation Function: “Go no further” • Force ε ~ 1 • Make g and f grow fast enough: in o(size) • Normalize costs for hybrid methods • Heuristic: “Go this way” • Calculate h in the same units as g • Retain true Objective • branch-and-bound • duplicates elimination + re-expansion • Re-expansion of duplicates should be done carefully • Can wait till future iterations, cache heuristics, use path-max, …

19. Size-based Search • Replace ill-behaved Objective with a well-behaved Evaluation • Pure Size • Evaluation Function: “Go no further” • Force ε = 1 • Heuristic: “Go this way” • Replace cost metric with size metric in relaxed problem • Retain true Objective, for pruning • Resolve heuristic with real objective • branch-and-bound: gcost+hcost >= best-known-cost • duplicates: new.gcost >= old.gcost • Re-expand better cost paths discovered

20. Cost-sensitive Size-Based Heuristic • Replace ill-behaved Objective with a well-behaved Evaluation • Evaluation Function: “Go no further” • Heuristic: “Go this way” • Estimate cheapest/best, but, calculate size • sum/max/… propagation of real objective for heuristic • make minimization choices with respect to real objective • Last minute change: • Recalculate value of minimization choices by surrogate • Retain true Objective, for pruning • Calculate relaxed solution’s cost, also • Faster than totally resolving heuristic • branch-and-bound: gcost+hcost >= best-known-cost • If heuristic is inadmissible, force it to be admissible eventually

21. Results – LAMA • LAMA • Greedy best-first: bad plans • (iterative) WA*: no plan, time out • LAMA-size • Greedy best-first: same bad plans • (iterative) WA*: direct plans, time out • Better cost! … but no rendezvous • Expected Result: • Only one kind of object • Costs not widely varying • Portfolio approach possible

22. Results – SapaReplan • WA*-cost • Weight 5: one bad plan, time out • Weight 2: no plan, memory out • WA*-size • Weight 1-2: better plans, memory out Quality-sensitive evaluation function: cost+size

23. Conclusion • ε-cost traps are inevitable • Typical: • Large variation in cost • Large cheap subspaces • Upper-bounded heuristics • Large plateaus in objective • Cost-based systematic approaches are susceptible • Even with all kinds of search enhancements: LAMA • Because search depth is “unbounded” by cost-based evaluation function • ε-1(h-error) ~ 0-1(h-error) • That is, search depth is bounded only by duplicate checking • Force good behavior: • Evaluation ≠ Objective • Force ε~1 • Quality Focus versus Trap Defense • Simplest surrogate: • Size-based Search • Force ε=1 • Performs surprisingly well • Despite total lack of Quality Focus • Easy variation: • Cost-sensitive Size-based Heuristic • Still force ε=1 • Recalculate heuristic by surrogate • Performs yet better

24. Conclusion (Polemic) • Lessons best learnt and then forgotten: • goto is how computers work efficiently • A* is how search works efficiently • Both are indispensible • Both are best-possible • In just the right context • Both are fragile • If the context changes Go enthusiasts: joseki

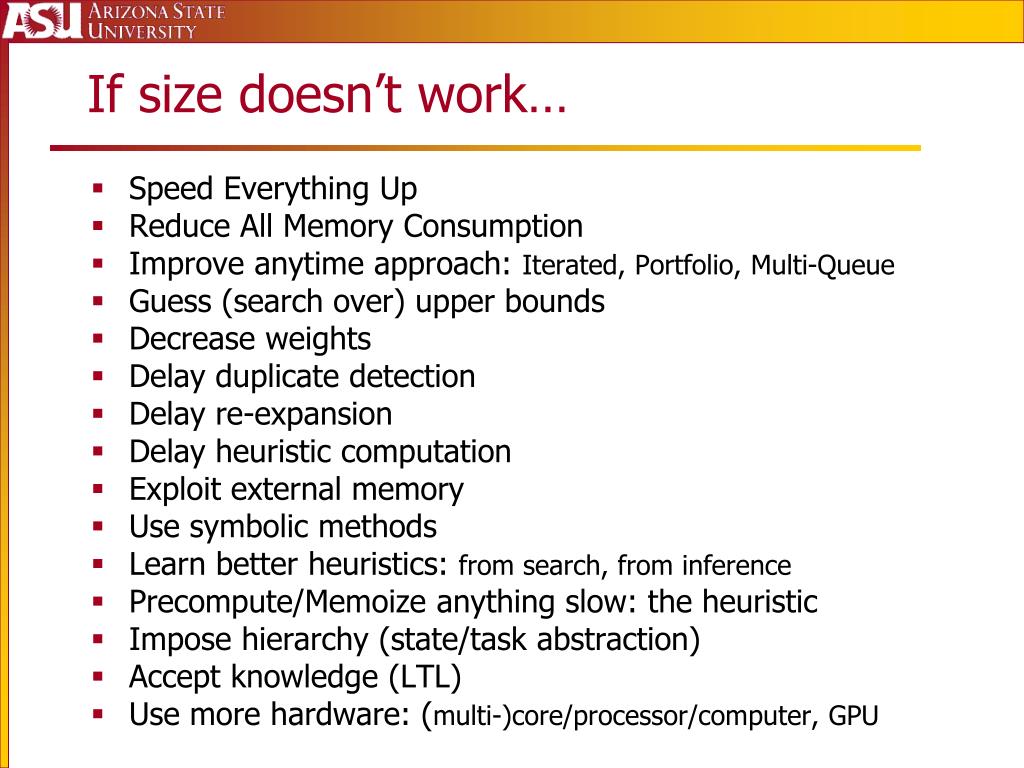

25. If size doesn’t work… • Speed Everything Up • Reduce All Memory Consumption • Improve anytime approach: Iterated, Portfolio, Multi-Queue • Guess (search over) upper bounds • Decrease weights • Delay duplicate detection • Delay re-expansion • Delay heuristic computation • Exploit external memory • Use symbolic methods • Learn better heuristics: from search, from inference • Precompute/Memoize anything slow: the heuristic • Impose hierarchy (state/task abstraction) • Accept knowledge (LTL) • Use more hardware: (multi-)core/processor/computer, GPU

26. Related Work: The Best Approach? • The Best Surrogate? The Best Approach Over All? • Improve Exploitation • (Dynamic) Heuristic Weighting (Pohl, Thayer+Ruml) • Real-time A* (Korf) • Beam search (Zhou) • Quality-sensitive probing/lookahead (Benton et al, PROBE) • Improve Exploration • Path-max, A** (Dechter+Pearl) • Multi-queue approaches (Thayer+Ruml, Richter+Westphal, Helmert) • Iterated search (Richter+Westphal) • Portfolio methods (Rintanen, Streeter) • Breadth-first search [as a serious contender] (Edelkamp) • Directly Address Heuristic Error • h_cea, h_ff, h_lama, h_vhpop, h_lpg, h_crikey, h_sapa, … • Pattern Databases (Culbertson+Schaeffer, Edelkamp) • Limited Discrepancy Search (Ginsberg) • Negative Result: “How Good is Almost Perfect?” (Helmert+Röger) • `See’ the Structure (remove the traps) • Factored Planning (Brafman+Domshalak) • Direct Symmetry Reductions (Korf, Long+Fox) • Symbolic Methods, Indirect Symmetry Reduction (Edelkamp)

27. Related Fields • Reinforcement Learning: Exploration/Exploitation • Markov Decision Processes: Off-policy/On-policy • Reward Shaping, Potential Field Methods (Path-search) • Prioritized Value Iteration • Decision Theory: Heuristic Errors • “Decision-Theoretic Search” (?) • k-armed Bandit Problems (UCB) • Game-tree Search: Traps, Huge Spaces • Without traps, game-tree pathology (Pearl) • Upper Confidence Bounds on Trees (UCT) • Quiescent Search • Proof-number search (Allis?) • Machine Learning: Really Huge Spaces • Surrogate Loss Functions • Continuous/Differentiable relaxations of 0/1 • Probabilistic Reasoning: Extreme Values are Dangerous • that 0/1 is bad is well known • but also ε is numerically unstable

28. What isn’t closely related? • Typical Puzzles: Rubik’s Cube, Sliding Tiles, … • Prove Optimality/Small Problems • Tightly Bounded Memory: IDDFS, IDA*, SMA* • Unbounded Memory, but: • Delayed/Relaxed Duplicate Detection (Zhou, Korf) • External Memory (Edelkamp, Korf) • More than one problem: • D*, D*-Lite, Lifelong Planning A* (Koenig) • Case-based planning • Learned heuristics • State-space isn’t a blackbox: • Bidirectional/Perimeter Search • Randomly expanding trees for continuous path planning in low dimensions • Waypoint/abstraction methods • Any-angle path planning (Koenig) • State-space is far from a blackbox: • Explanation Based Learning • Theorem Proving (Clause/Constraint Learning) • Forward Checking (Unit Propagation) • Planning isn’t (only) State-space search (Kambhampati) • Engineering: • Subroutine speedup via Precomputation/Memoization • Python vs C • Priority Queue implementation (bucket heaps!)

29. Quotes • “… if in some problem instance we were to allow B to skip even one node that is expanded by A, one could immediately present an infinite set of instances when B grossly outperforms A. (This is normally done by appending to the node skipped avariety of trees with negligible costs and very low h.)” • Rina Dechter, Judea Pearl • “I strongly advise that you do not make road movement free (zero-cost). This confuses pathfinding algorithms such as A*, …” • Amit Patel • “Then we could choose an somewhat larger than the one defined by (3). The algorithm would no longer be admissible, but it might be more desirable, from a heuristic point of view, than any admissible algorithm.” • Peter Hart, Nils Nilsson, Bertram Raphael • Roughly: `… inordinate amount of time selecting among equally meritorious options’ – Ira Pohl
