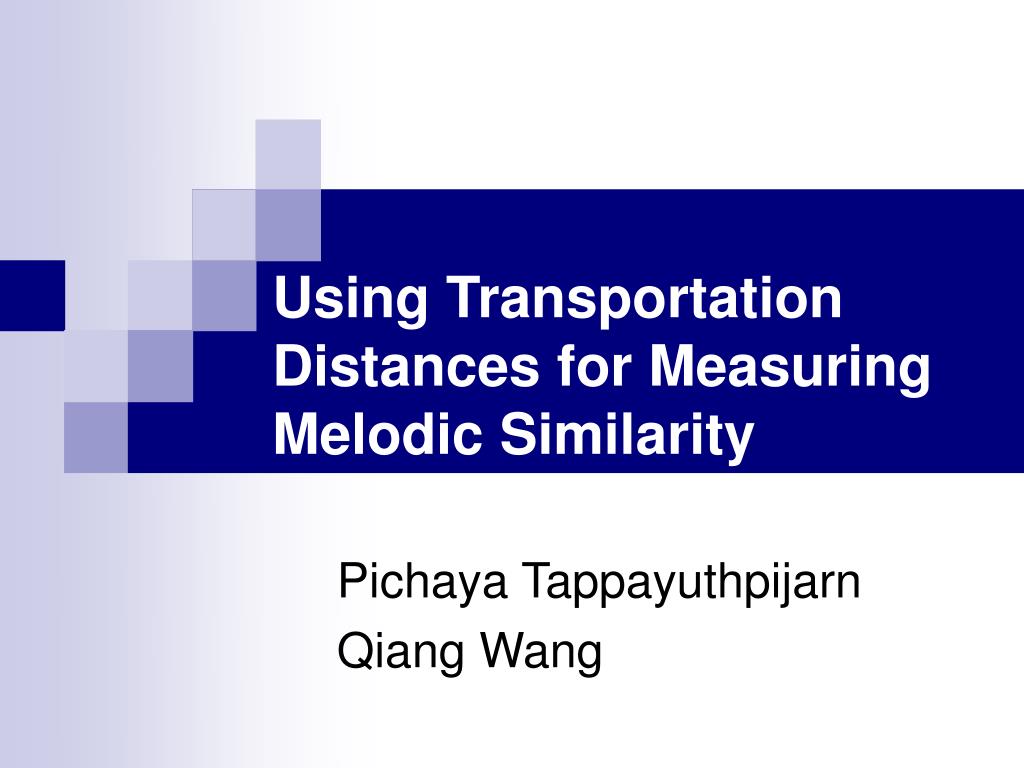

  1. Using Transportation Distances for Measuring Melodic Similarity Pichaya Tappayuthpijarn Qiang Wang

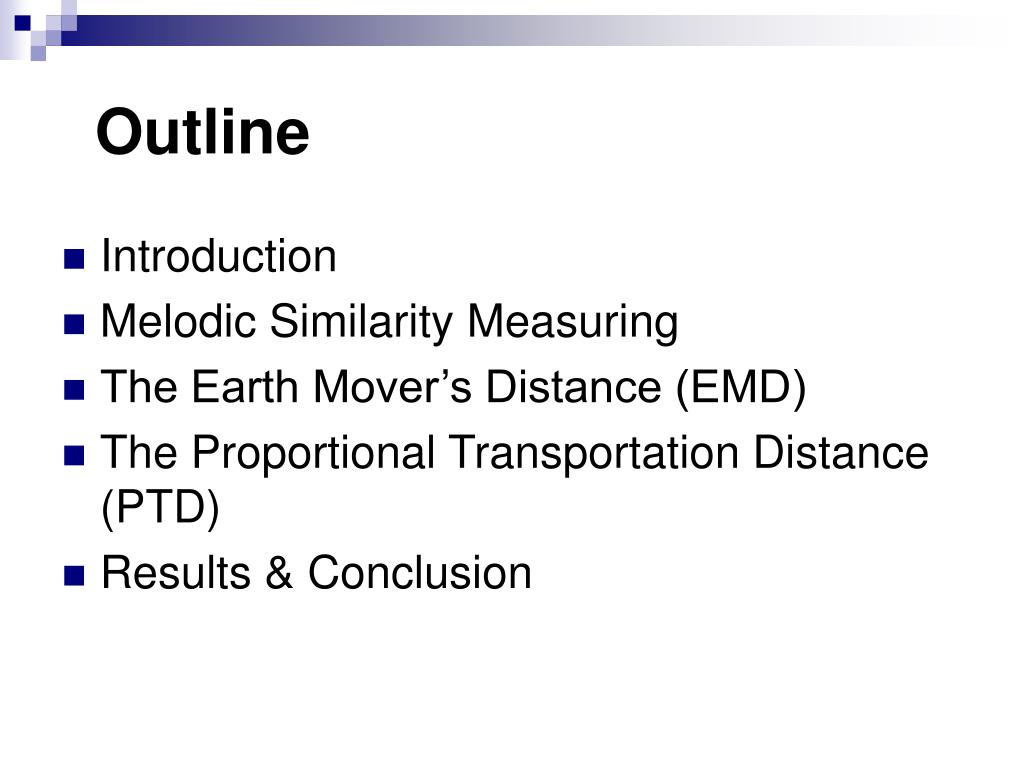

  2. Outline • Introduction • Melodic Similarity Measuring • The Earth Mover’s Distance (EMD) • The Proportional Transportation Distance (PTD) • Results & Conclusion

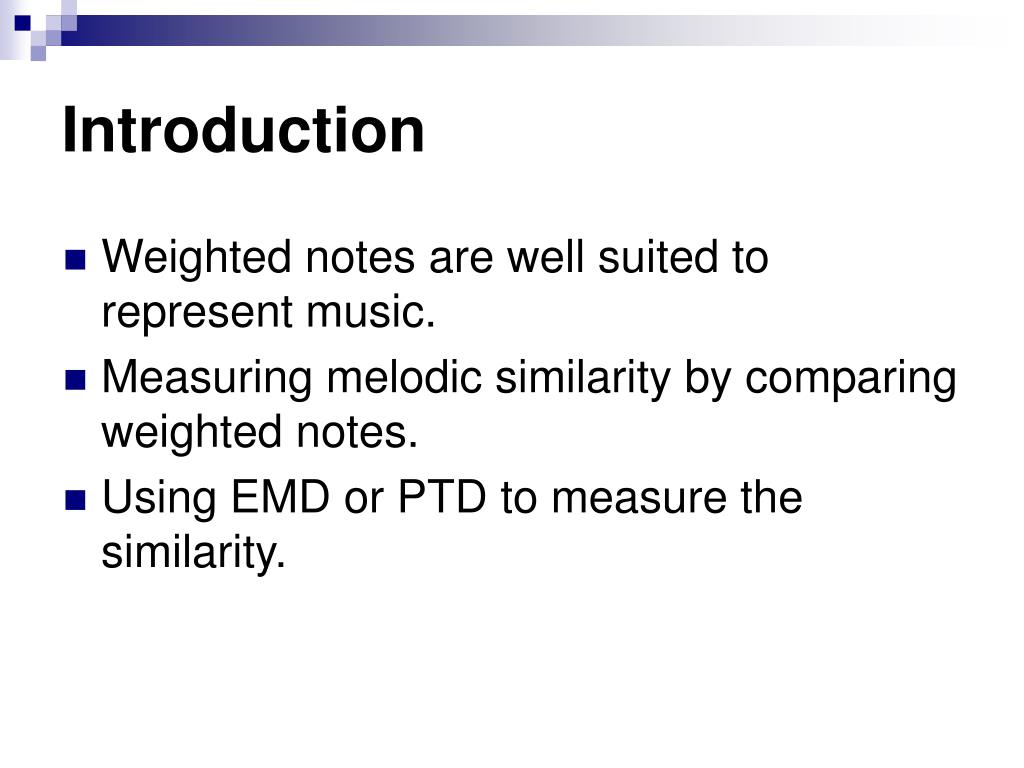

  3. Introduction • Weighted notes are well suited to represent music. • Measuring melodic similarity by comparing weighted notes. • Using EMD or PTD to measure the similarity.

  4. Melodic Similarity Measuring • Weighted Notes represented by (Time, Pitch, Weight). The weights only reflect the note durations.

  5. Properties of a Metric **For pseudo-metric, only properties i, iii and iv holds.

  6. The Earth Mover’s Distance (EMD) • measures the minimum amount of work needed to transform one into the other by moving weight.

  7. Minimize the overall cost with constraints

  8. W, U are the total weights of A, B respectively,

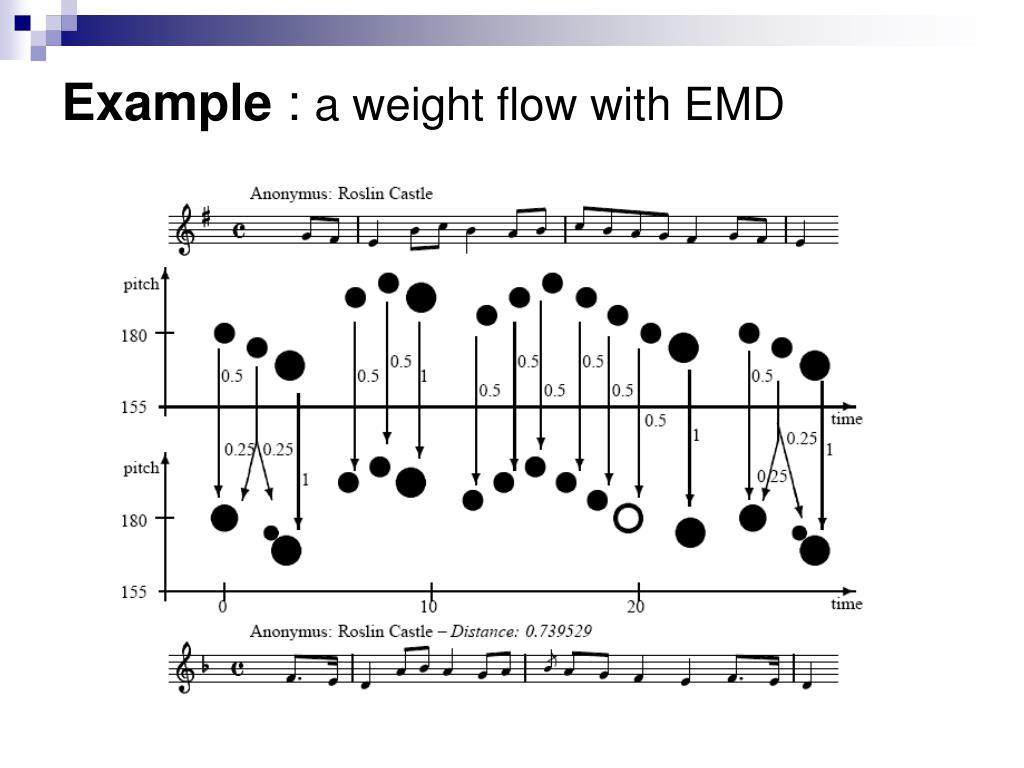

  9. Example : a weight flow with EMD

  10. The Proportional Transportation Distance (PTD) EMD v.s. PTD • PTD is a modified version of EMD. • In the case of unequal total weight, triangle inequality does not hold for the EMD. • By PTD, triangle inequality holds, making database search more efficient by using indices.

  11. The Proportional Transportation Distance • for both point set, divide every point’s weight by its point set’s total weight • then calculate the EMD for the resulting point sets.

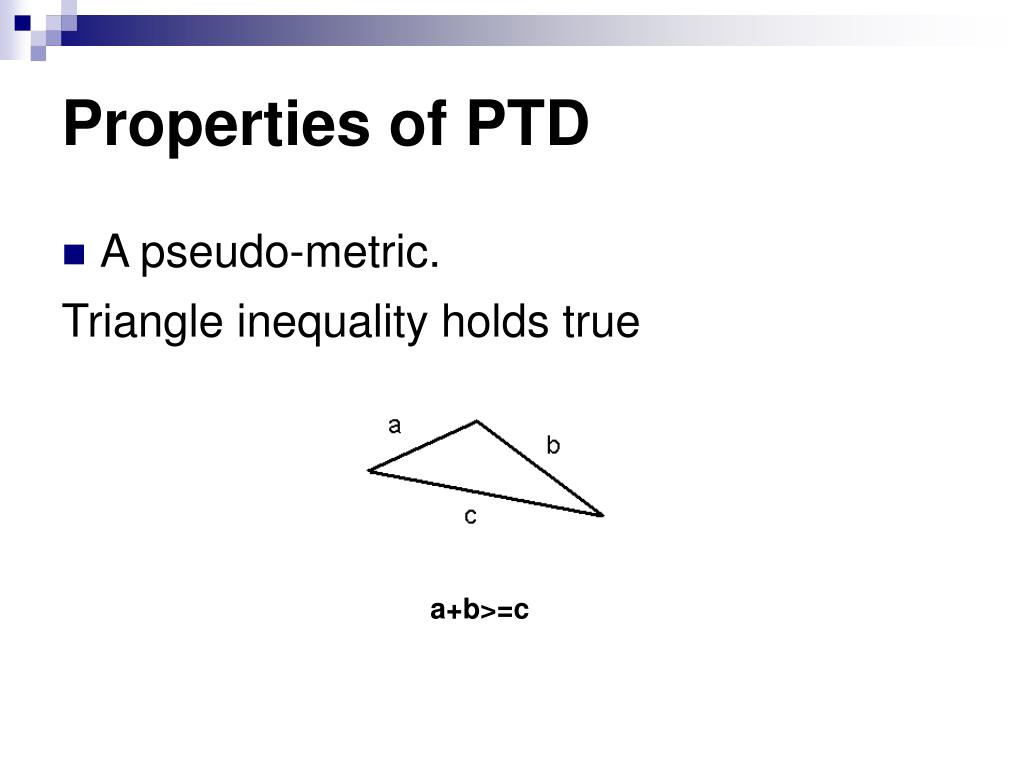

  12. Properties of PTD • A pseudo-metric. Triangle inequality holds true a+b>=c

  13. Gives clear distinction of groups. The fact that the EMD allows partial matching, while the PTD matches all notes, leads to a clear distinction of these groups by the PTD, but not the EMD.

  14. Can recognize augmented versions of the same melody as similar.

  15. Result & Conclusion • PTD leads to the identification of about 3.9% of 100 randomly chosen search ( for r = 1). • For r = 5, we need less than 1000 calculations instead of 476,000. • PTD Indexing reduces the query running time.

  16. Thank you!
