  1. Porting to Metro Sridhar Madhugiri Software Design Engineer Microsoft Corporation

  2. Agenda Metro SDK API Prepare for porting Win32 technologies Libraries Porting

  3. Metro SDK API

  4. Metro SDK API WinRT API New APIs Operation that can block implemented as asynchronous operation Win32 API Subset of Win32 API available in Metro Similar Win32 API may be part of Metro SDK InitializeCriticalSectionAndSpinCount -> InitializeCriticalSectionEx COM Components Some OS components available under Metro

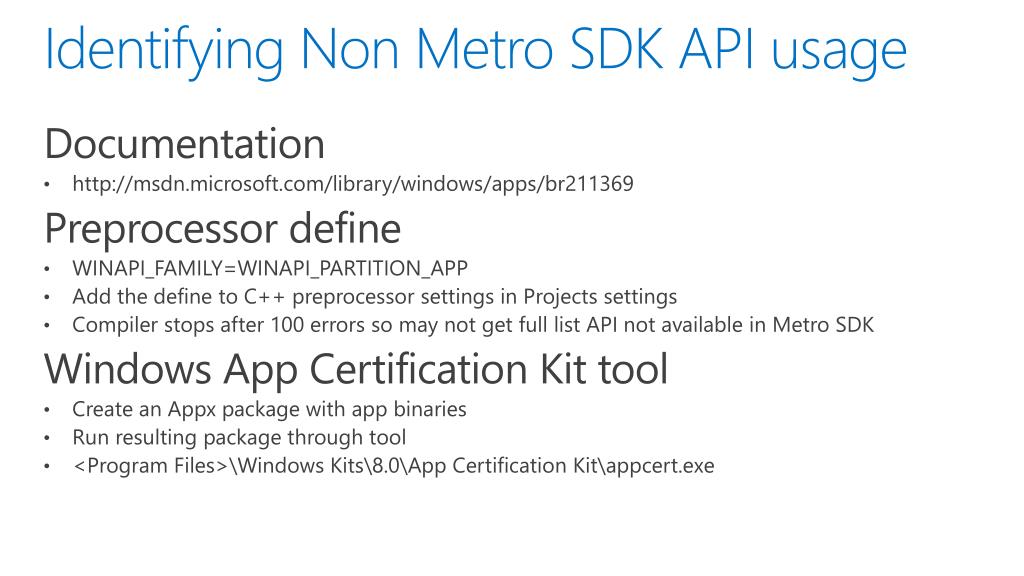

  5. Identifying Non Metro SDK API usage Documentation http://msdn.microsoft.com/library/windows/apps/br211369 Preprocessor define WINAPI_FAMILY=WINAPI_PARTITION_APP Add the define to C++ preprocessor settings in Projects settings Compiler stops after 100 errors so may not get full list API not available in Metro SDK Windows App Certification Kit tool Create an Appx package with app binaries Run resulting package through tool <Program Files>\Windows Kits\8.0\App Certification Kit\appcert.exe

  6. Prepare for Porting

  7. Get the desktop app ready for Porting Build with VS 11 Compile, test on Windows 8 desktop Desktop API usage Use alternate Win32 APIs available in Metro SDK Wrap API usage in abstractions

  8. Asynchronous operations WinRT APIs are asynchronous Refactor existing code to consume asynchronous operations DO refactor code to deal with partial data DO keep UI responsive while asynchronous operations are in progress Convert long running operations to asynchronous Schedule long running work on thread pool DO return partial results as and when available Options Rewrite existing code Write a wrapper that invokes existing code on a thread pool thread

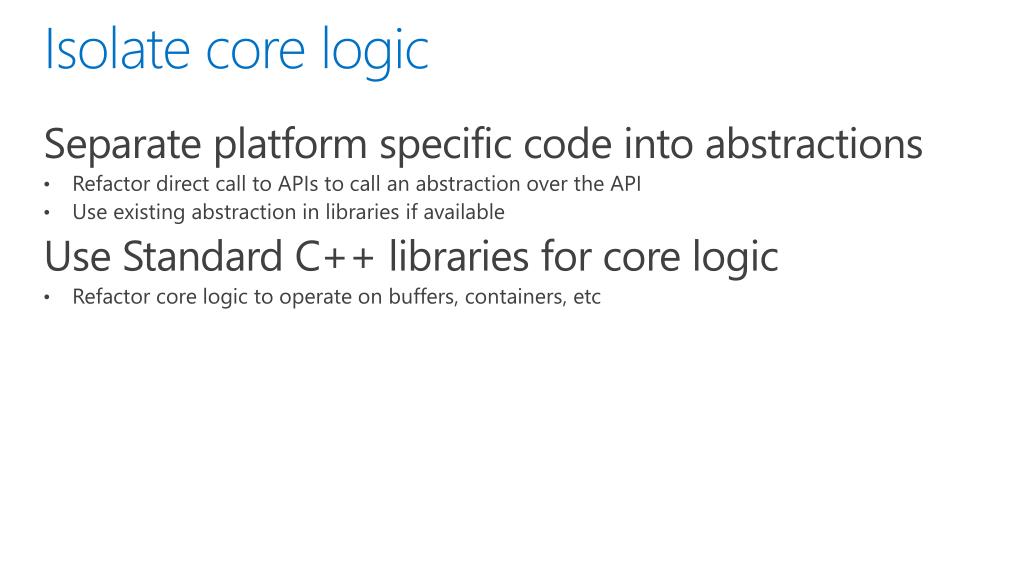

  9. Isolate core logic Separate platform specific code into abstractions Refactor direct call to APIs to call an abstraction over the API Use existing abstraction in libraries if available Use Standard C++ libraries for core logic Refactor core logic to operate on buffers, containers, etc

  10. Win32 technologies

  11. UI User and GDI based UI Rewrite DirectX UI Available in Metro Use DirectX template as starting point Template sets up the start up code required for Metro Options for UI in Metro XAML DirectX

  12. MFC MFC not available under Metro Rewrite Options in Metro UI XAML DirectX Form based App Consider XAML databinding Utility classes Consider STL, CRT

  13. Libraries

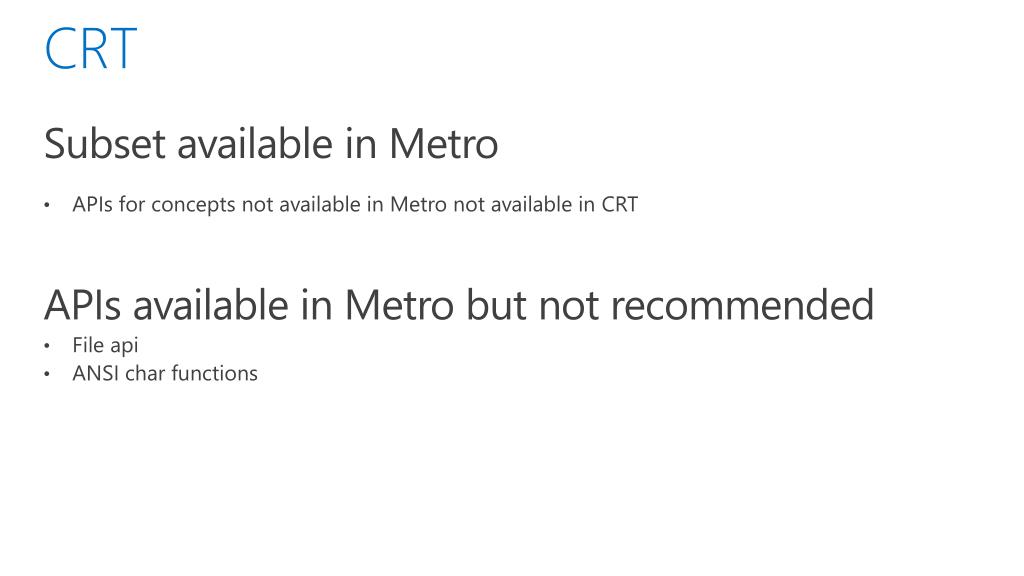

  14. CRT Subset available in Metro APIs for concepts not available in Metro not available in CRT APIs available in Metro but not recommended File api ANSI char functions

  15. CRT APIs not in Metro Multi-byte functions: mb* and _ismb* Process control: exec* and spawn functions Threading: beginthread* and endthread* Heap and stack functions: heapwalk, heapmin, resetstkoflw(), … Environment variable functions and globalsputenv, getenv, _enviorn, … Console function, cprintf, cscanf, … Port functions, outp, inp, … Pipe functions: pipe, popen, pclose, …

  16. ATL Subset available in Metro APIs available in metro DLL server COM objects (without IDispatch) CStringW ATL container classes CCriticalSection, CEvent, CMutex, CSemaphore, CMutexLock CComVariant CComSafeArray CComBSTR

  17. Porting

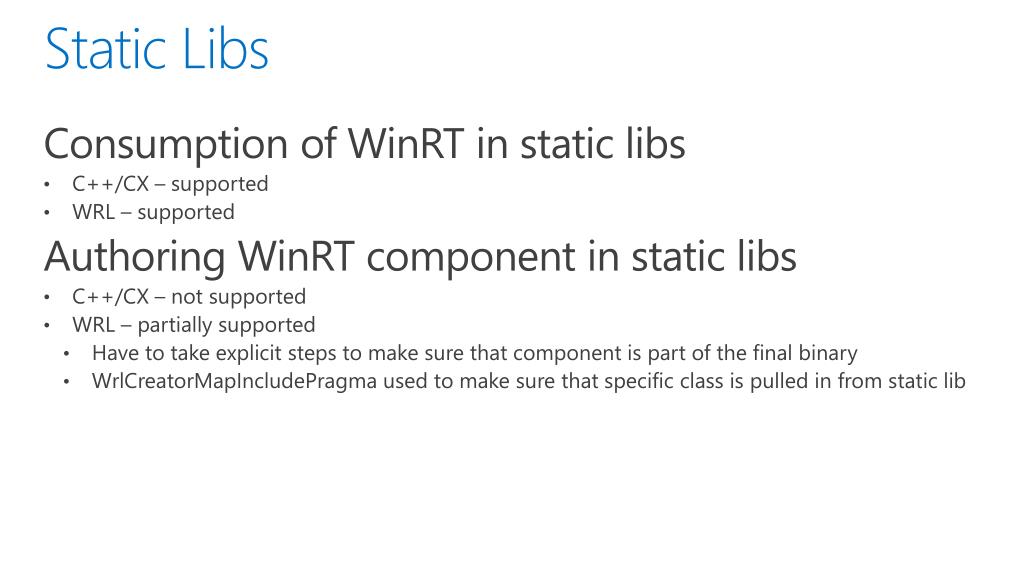

  18. Static Libs Consumption of WinRT in static libs C++/CX – supported WRL – supported Authoring WinRT component in static libs C++/CX – not supported WRL – partially supported Have to take explicit steps to make sure that component is part of the final binary WrlCreatorMapIncludePragma used to make sure that specific class is pulled in from static lib

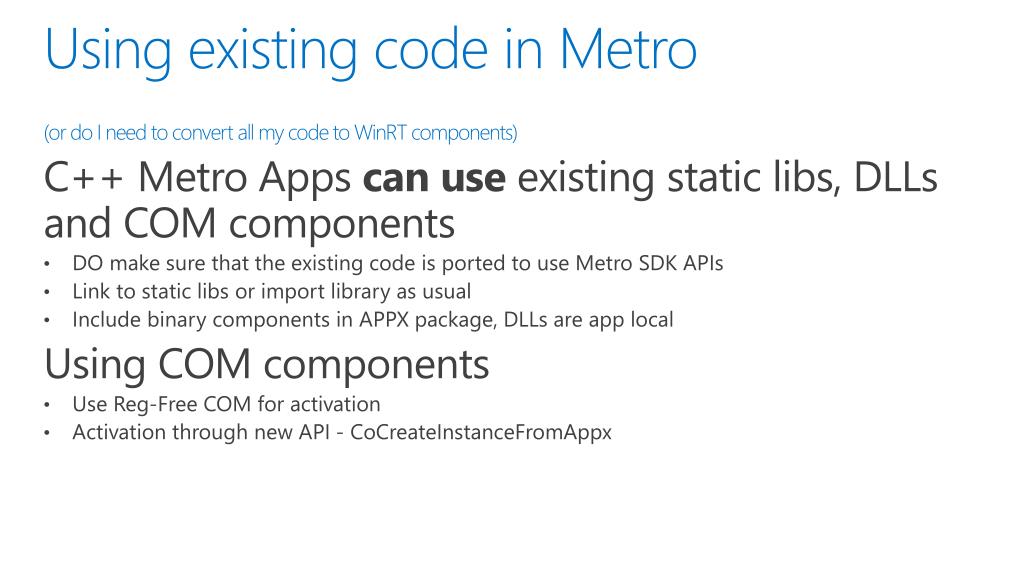

  19. Using existing code in Metro (or do I need to convert all my code to WinRT components) C++ Metro Apps can use existing static libs, DLLs and COM components DO make sure that the existing code is ported to use Metro SDK APIs Link to static libs or import library as usual Include binary components in APPX package, DLLs are app local Using COM components Use Reg-Free COM for activation Activation through new API - CoCreateInstanceFromAppx

  20. Convert types to WinRT types DO change variable to WinRT type if It frequently crosses boundary AND Costly to convert between the two types String and Array as input parameters to WinRT API can be efficiently converted without copying StringRef, ArrayRef add a WinRT veneer using “borrow” semantics Container and Collections Requires copy to go from std::* to Platform::* std::* efficient compared to Platform::* Use std::* or Platform::* based on how often collection contents change vs how often they cross WinRT boundary

  21. Strategies to create WinRT component Choose technology C++/CX, WRL, Your own implementation Wrapper Define interface and in the implementation delegate to existing C++ code after any type conversions Creates a WINRT veneer over your existing code Covert existing code Rewrite code to use WinRT types and concepts Have good reasons to go this route

  22. Converting COM components to WinRT Choose the technology C++/CX, WRL, Your own implementation Component already written using ATL, may be easier to move to WRL Steps Create WinRT interfaces corresponding to the previous interfaces Port to one of the above technologies Generate WinMD (if using IDL, modify MDIL flags) Ship DLL and WinMD for others to consume the component

  23. Technologies to use during porting Language and Libraries CRT and STL for utility functions and classes C++/CX and/or WRL to interact with WinRT See other talks for details about C++/CX and WRL UI XAML DirectX

  24. Conclusion

  25. Conclusion Metro SDK Work involved to move but not all throw away Lot of the business logic, core application logic is portable UI DirectX – easy Win32 – rewrite in C++ using Modern UI framework C++ Two way to interact with WinRT C++/CX, WRL Use familiar C++ concepts and types for parts that don’t directly interact with platfrom Build, test, validate often Use Release configuration
