  1. Competitive Maintenance of Minimum Spanning Trees in Dynamic Graphs Miroslaw Dynia Miroslaw Korzeniowski Jaroslaw Kutylowski

  2. The Problem Graph contains edges of same weight many different Minimum Spanning Trees possible 5 5 5 5 5 5 6 5

  3. The Question • Are we able to choose the Minimum Spanning Tree so that we are not forced to change it very often? • (assuming that the underlying graph changes)

  4. Model • Modelled as an online problem • Adversary – Dynamics in Graph • Changes weight of edges in rounds • In one round changes one edge by +1/-1 • Algorithm • Choose Minimum Spanning Tree after each round • Cost Measure • Number of changed edges between MSTs in consecutive rounds

  5. The Problem • Algorithm uses red MST – cost 1 • Algorithm uses green MST – cost 0 5 5 5 5 5 5 6 5

  6. Motivation • General idea: how MSTs behave on dynamic graphs • Data structures known • No competitive analysis • Important when computation is cheap, changes are costly • Concrete scenario • Robots on large area • Robots in teams • Teams need communication with each other • Cost of changing communication paths extremely large

  7. Motivation Communication paths with relay stations Networkcomponent

  8. Motivation • Adversary changes weights of edges • Network components move 5 5 8 5

  9. Motivation • Algorithm has to maintain a MST • Number of relay stations used is proportional tolength of edge • Use the least possible number of relay stations 5 5 7 5

  10. Motivation • Costs for changed edges in MST • Relay stations have to change their location – very costly! 5 5 5 5

  11. Results • Deterministic algorithms • Upper bound O(n2) • Matching lower boundΩ(n2) • Randomized algorithms (against oblivious adversaries) • Lower bound Ω(log n) • Upper bound O(n log n) • On planar graphs upper bound O(log n)

  12. Agenda • Problem definition • Motivation • Lower bound for deterministic algorithms • Sketch of deterministic algorithm MSTMark • Idea of lower bound for randomized algorithms • Sketch of randomized algorithm RandMST

  13. Deterministic lower bound • Deterministic lower bound • No deterministic algorithm can have competitive ratio better than Ω(n2)

  14. Deterministiclower bound n2/4 edges Weight 1 n/2 nodes n/2 nodes Weight n

  15. Deterministicupper bound • Deterministic upper bound • Algorithm MSTMark has O(n2) competitive ratio

  16. Deterministic upper bound MSTMark algorithm – edge weight increase 2 3 e 2 2 2 2 alternatives for e

  17. Deterministic upper bound MSTMark algorithm– edge weight decrease 3 2 1 e 3 2 Cycle of e in M

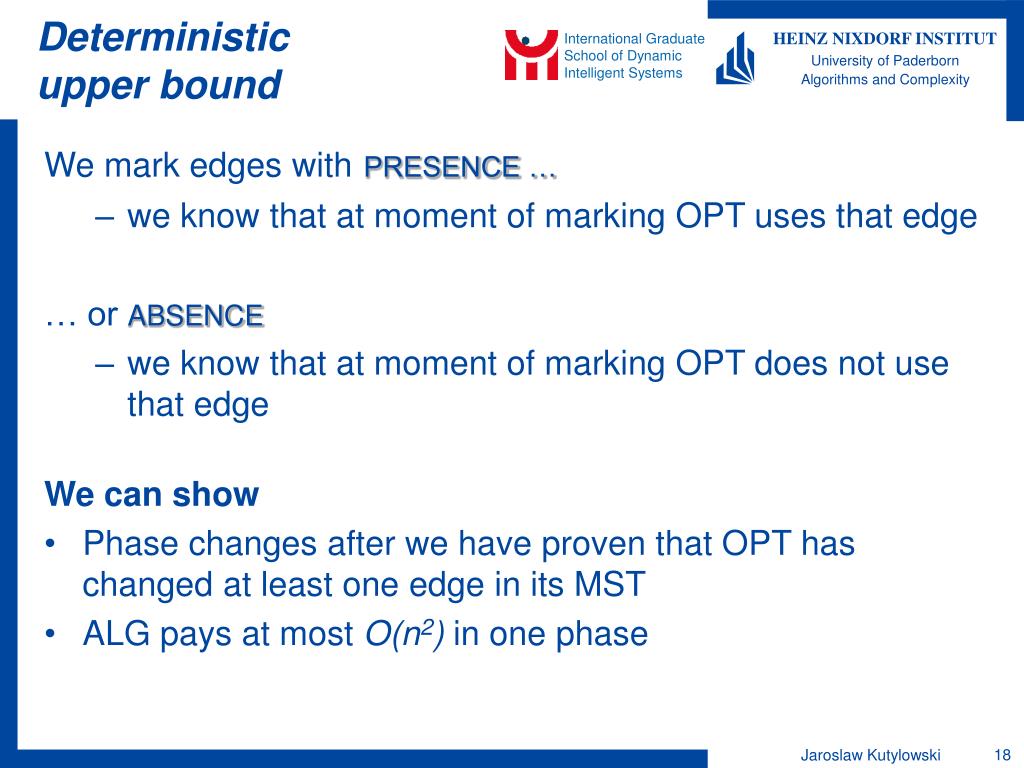

  18. Deterministic upper bound • We mark edges withPRESENCE … • we know that at moment of marking OPT uses that edge • … orABSENCE • we know that at moment of marking OPT does not use that edge • We can show • Phase changes after we have proven that OPT has changed at least one edge in its MST • ALG pays at most O(n2) in one phase

  19. Deterministic upper bound A A A A A A A A A A A A A

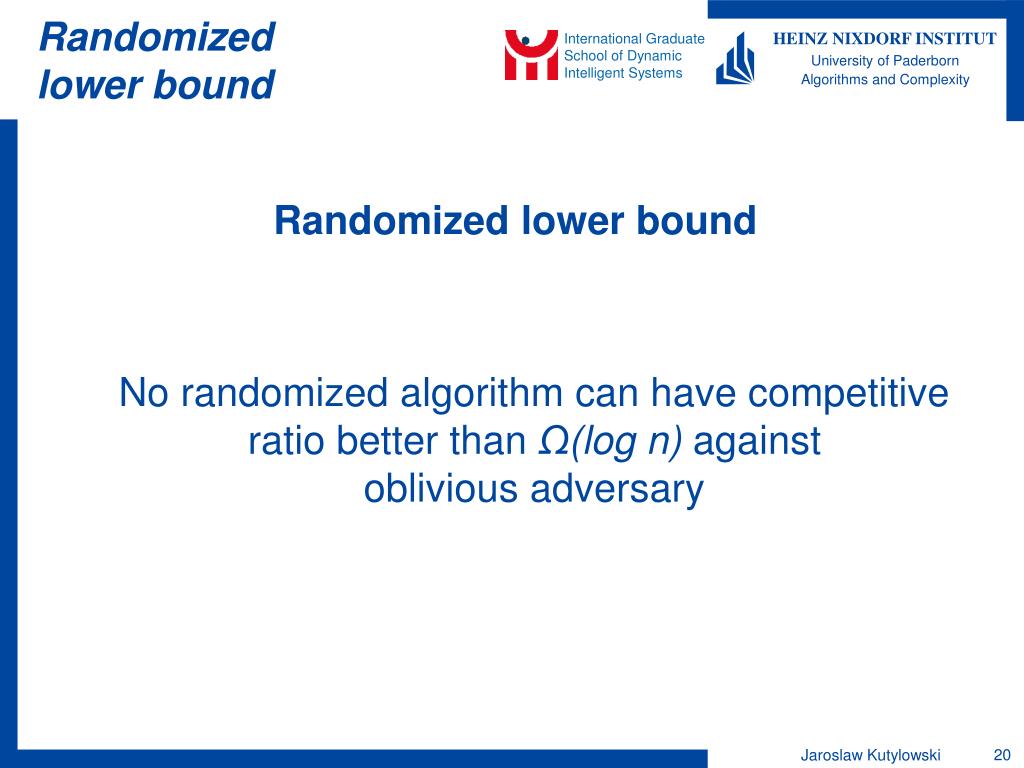

  20. Randomized lower bound • Randomized lower bound • No randomized algorithm can have competitive ratio better than Ω(log n) against oblivious adversary

  21. Randomized lower bound • Same graph as in deterministic lower bound n2/4 edges Weight 1 n/2 nodes n/2 nodes Weight n

  22. Randomizedlower bound • adversary does not know which edge ALG uses • adversary chooses edges to increase at random • in expectation adversary must increase half of edges to hit ALG n2/4 edges

  23. Randomized upper bound • Randomized upper bound • Randomized algorithm RandMST has competitive ratio • O(n log n) for general graphs • O(log n) for planar graphs(only increasing edge weights)

  24. Randomizedupper bound • Divide graph in infinite number of levels • Level corresponds to edge weight w • What we can do • Assign ALG‘s and OPT‘s cost to levels • Separate the levels from each other • Approximate ALG‘s and OPT‘s cost on each level

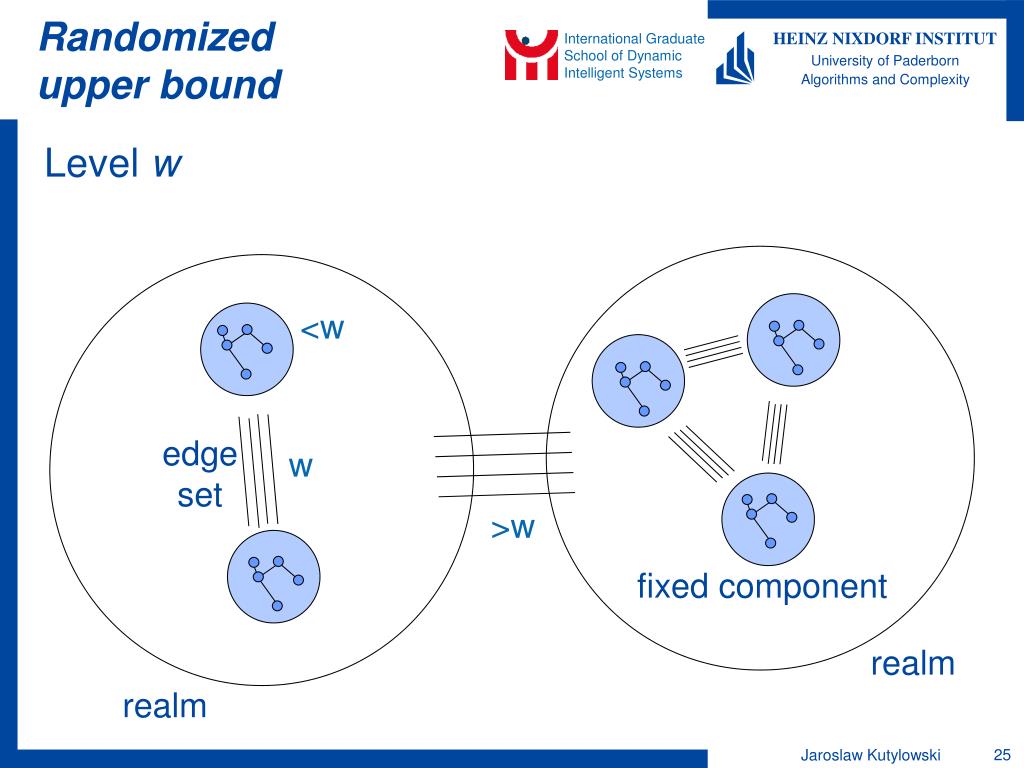

  25. Randomized upper bound • Level w <w edgeset w >w fixed component realm realm

  26. Randomized upper bound • Fixed components splits • Edge e with weight w increases inside of fixed component • Alternatives of e form a new edge set • Edge sets get splitted • Realm splits • Weight of all edges between two components >w • Realms do not increase number of fixed components and edge sets

  27. Randomizedupper bound • It holds • OPT‘s cost lower bounded by number of fixed component splits • ALG‘s cost upper bounded by number of edge sets • adversary can have some information which edge sets ALG uses • choice of a specific edge inside of an edge set is uniform • General graphs: O(n log n) cost per fixed component split • Planar graphs: O(log n) cost per fixed component split

  28. Conclusions & Future work • We know a little more about MSTs in dynamic graphs • Deterministic algorithms are hopeless • Randomized algorithms are fine on restricted graphs • Future work • Improve randomized upper bound for increase/decrease • Finer notions of adversary • Possibility for adversary to change many edges per round

  29. Thank you for your attention!
