  1. MULTI-OMNIDIRECTIONALCAMERAS FOR AMBIENTINTELLIGENCE Barış Evrim Demiröz, Albert Ali Salah, Lale Akarun 19.04.2012 Sinyal İşleme ve İletişim Uygulamaları Kurultayı

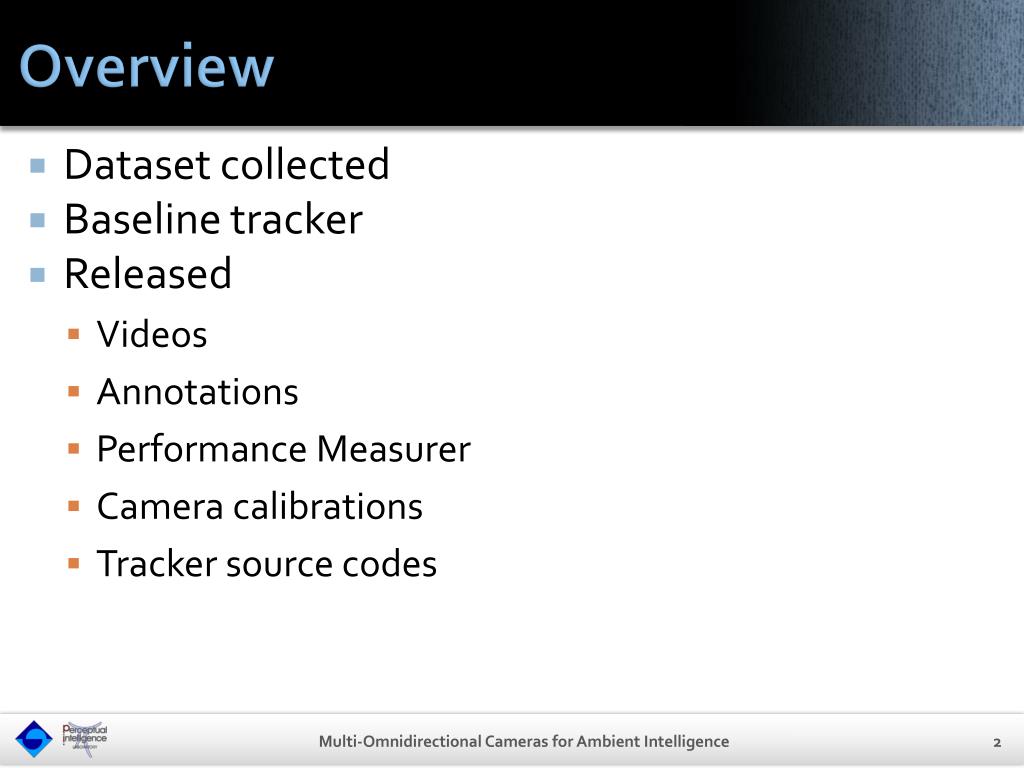

  2. Overview • Dataset collected • Baseline tracker • Released • Videos • Annotations • Performance Measurer • Camera calibrations • Tracker source codes Multi-Omnidirectional Cameras for Ambient Intelligence

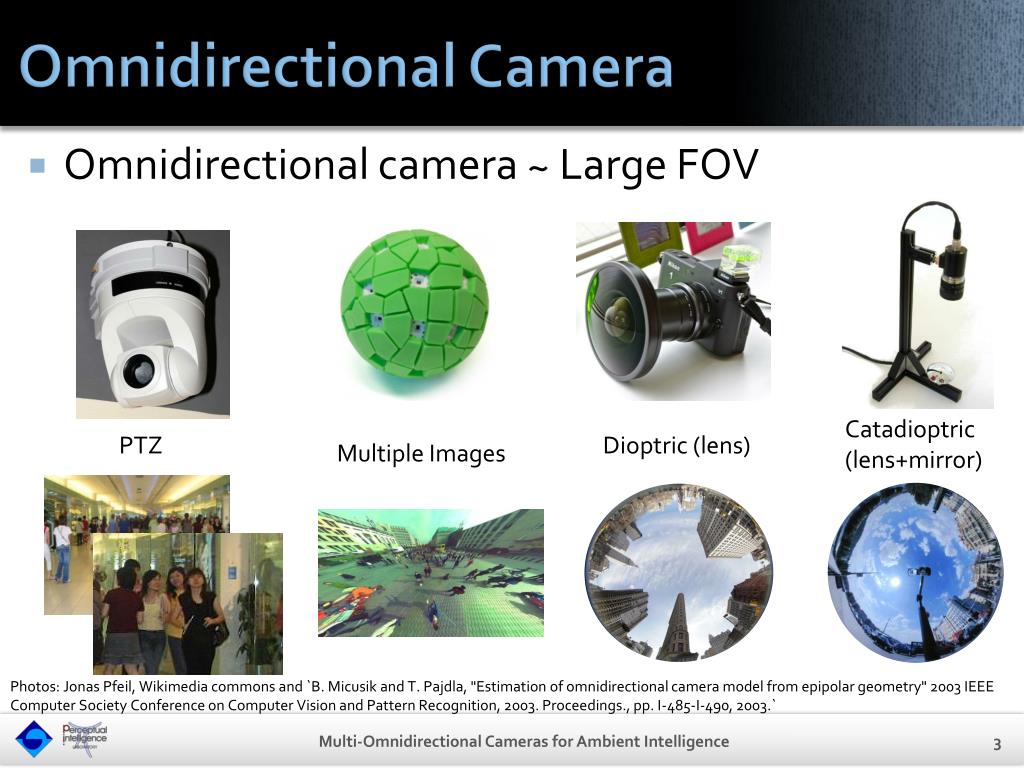

  3. Omnidirectional Camera • Omnidirectional camera ~ Large FOV Catadioptric(lens+mirror) PTZ Dioptric (lens) Multiple Images Photos: Jonas Pfeil, Wikimedia commons and `B. Micusik and T. Pajdla, "Estimation of omnidirectional camera model from epipolar geometry" 2003 IEEE Computer Society Conference on Computer Vision and Pattern Recognition, 2003. Proceedings., pp. I-485-I-490, 2003.` Multi-Omnidirectional Cameras for Ambient Intelligence

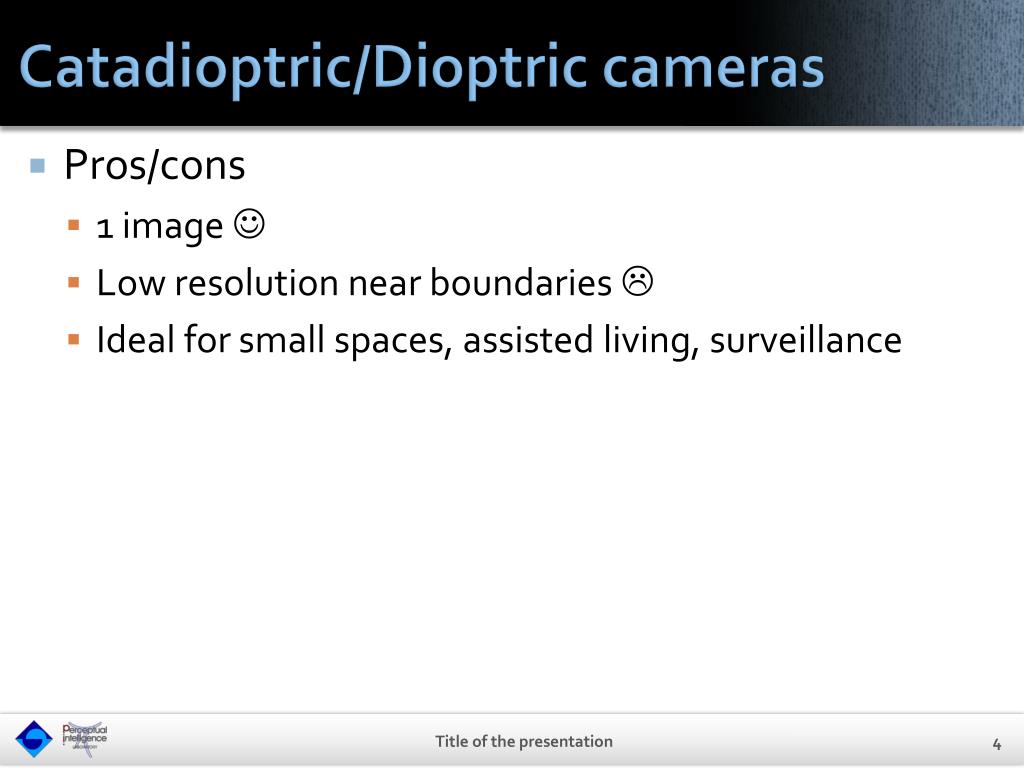

  4. Catadioptric/Dioptric cameras • Pros/cons • 1 image  • Low resolution near boundaries  • Ideal for small spaces, assisted living, surveillance Title of the presentation

  5. Dataset Multi-Omnidirectional Cameras for Ambient Intelligence

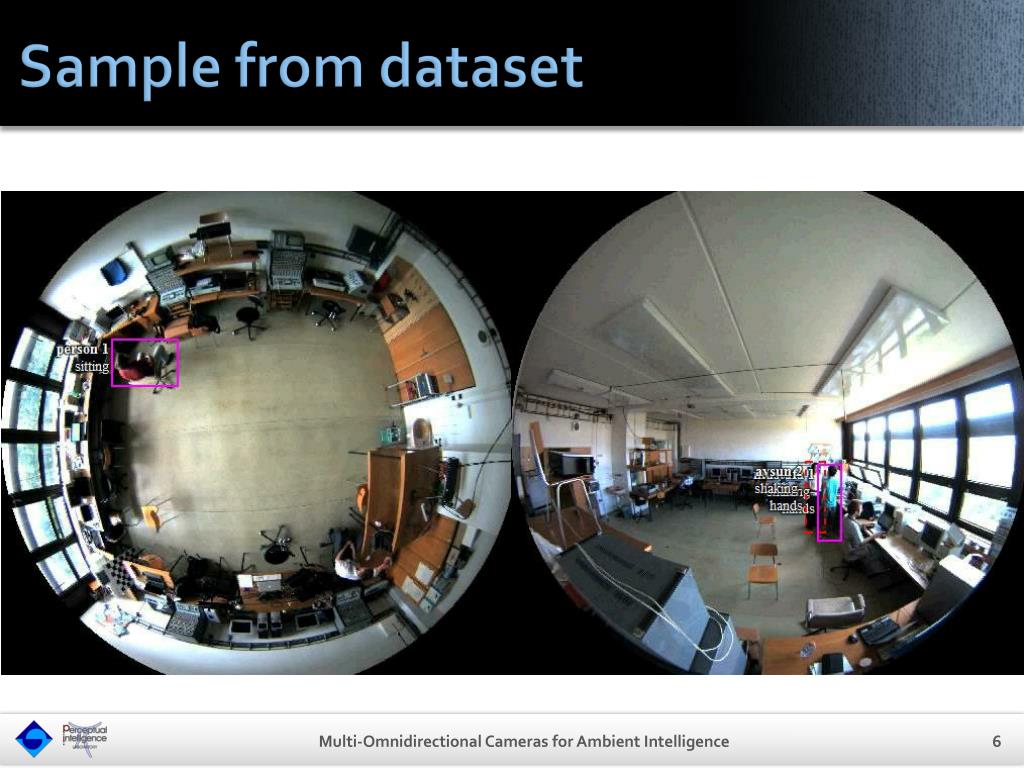

  6. Sample from dataset Multi-Omnidirectional Cameras for Ambient Intelligence

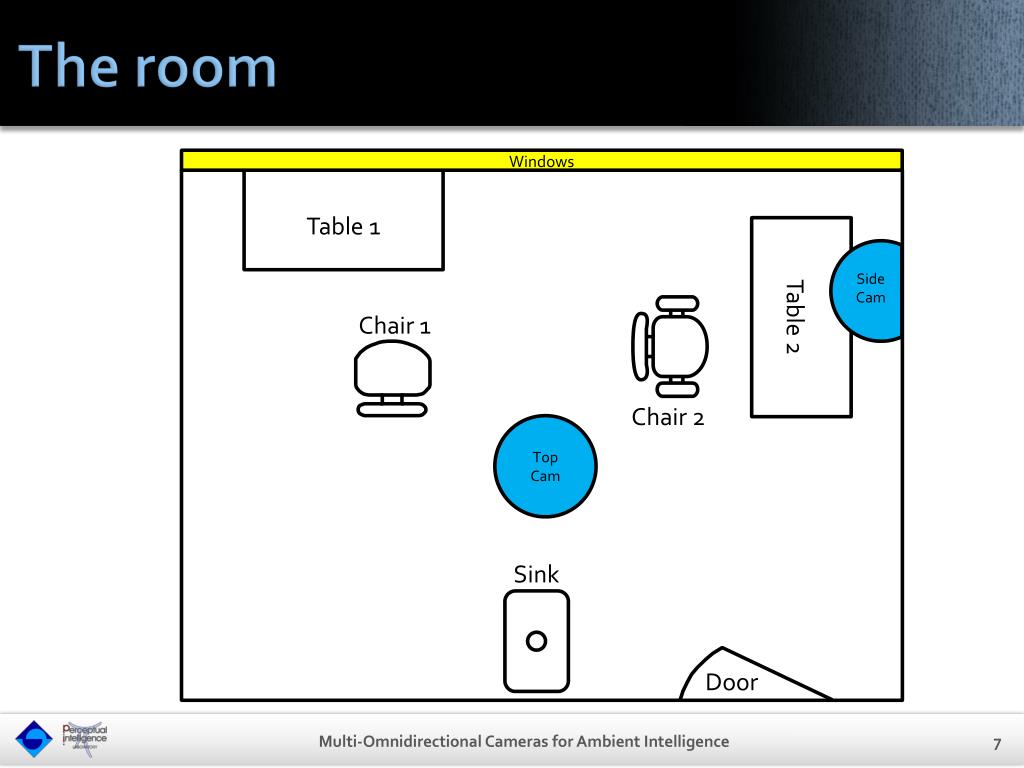

  7. The room Windows Table 1 SideCam Table 2 Chair 1 Chair 2 TopCam Sink Door Multi-Omnidirectional Cameras for Ambient Intelligence

  8. Cameras used • Oncam IPC, IPT • 5 Megapixel • No moving parts Multi-Omnidirectional Cameras for Ambient Intelligence

  9. Scenarios performed • Scenario #1 • Single person • 6 Actions • Sitting • Walking • Drinking • Washing hands • Fainting • Opening/Closing door • 5 performers (10 videos total) Multi-Omnidirectional Cameras for Ambient Intelligence

  10. Scenarios performed • Scenario #2 • 3 people • 5 Actions • Sitting • Walking • Standing • Handshaking • Interested in object • 5 performers (36 videos intotal by exchanging roles) Multi-Omnidirectional Cameras for Ambient Intelligence

  11. Video properties • 640x480 frame size • Bandwidth limitation • ~8 fps • MJPEG format Multi-Omnidirectional Cameras for Ambient Intelligence

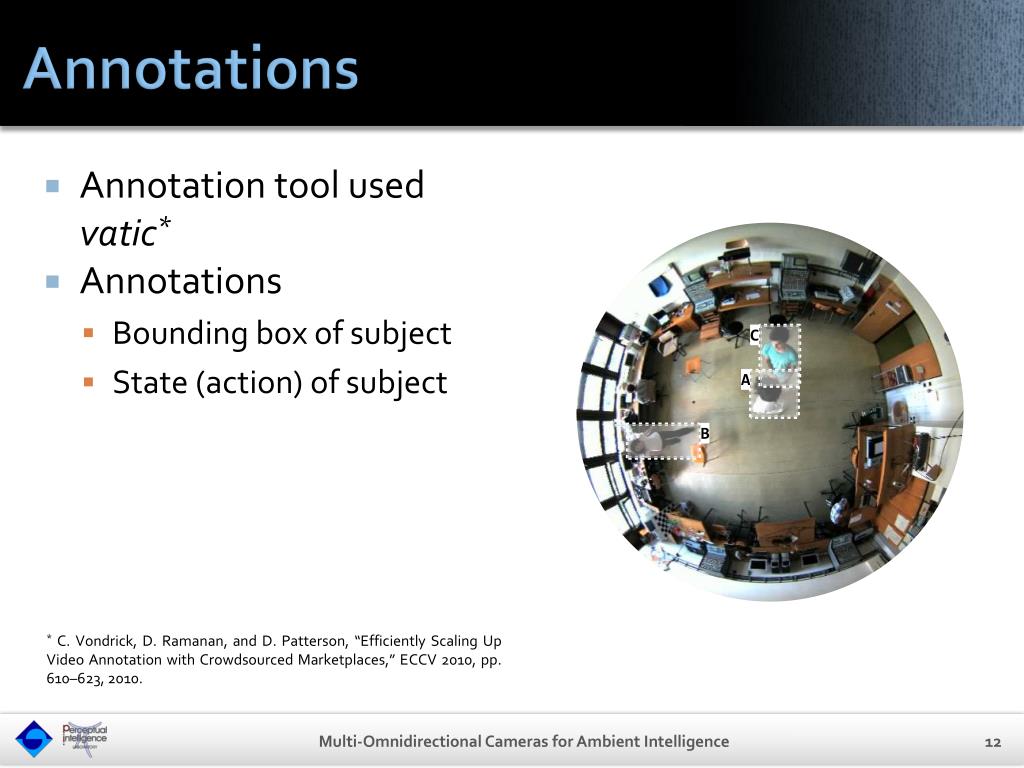

  12. Annotations C • Annotation tool usedvatic* • Annotations • Bounding box of subject • State (action) of subject A B * C. Vondrick, D. Ramanan, and D. Patterson, “Efficiently Scaling Up Video Annotation with Crowdsourced Marketplaces,” ECCV 2010, pp. 610–623, 2010. Multi-Omnidirectional Cameras for Ambient Intelligence

  13. Occlusion • Pseudo occlusion: Multi-Omnidirectional Cameras for Ambient Intelligence

  14. Occlusion Multi-Omnidirectional Cameras for Ambient Intelligence

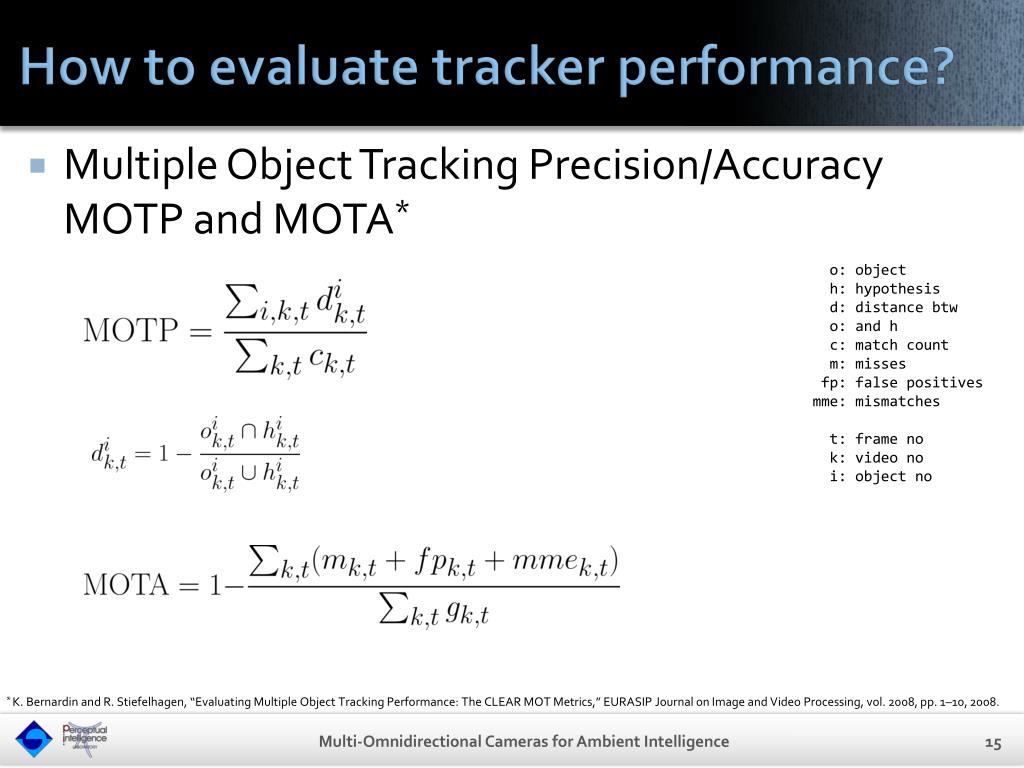

  15. How to evaluate tracker performance? • Multiple Object Tracking Precision/AccuracyMOTP and MOTA* o: object h: hypothesis d: distance btw o: and h c: match count m: misses fp: false positives mme: mismatches t: frame no k: video no i: object no * K. Bernardin and R. Stiefelhagen, “Evaluating Multiple Object Tracking Performance: The CLEAR MOT Metrics,” EURASIP Journal on Image and Video Processing, vol. 2008, pp. 1–10, 2008. Multi-Omnidirectional Cameras for Ambient Intelligence

  16. Baseline tracker Multi-Omnidirectional Cameras for Ambient Intelligence

  17. Outline System Components Multi-Omnidirectional Cameras for Ambient Intelligence

  18. Background/Foreground Segmentation • Mixture of Gaussians • Shadow removal Multi-Omnidirectional Cameras for Ambient Intelligence

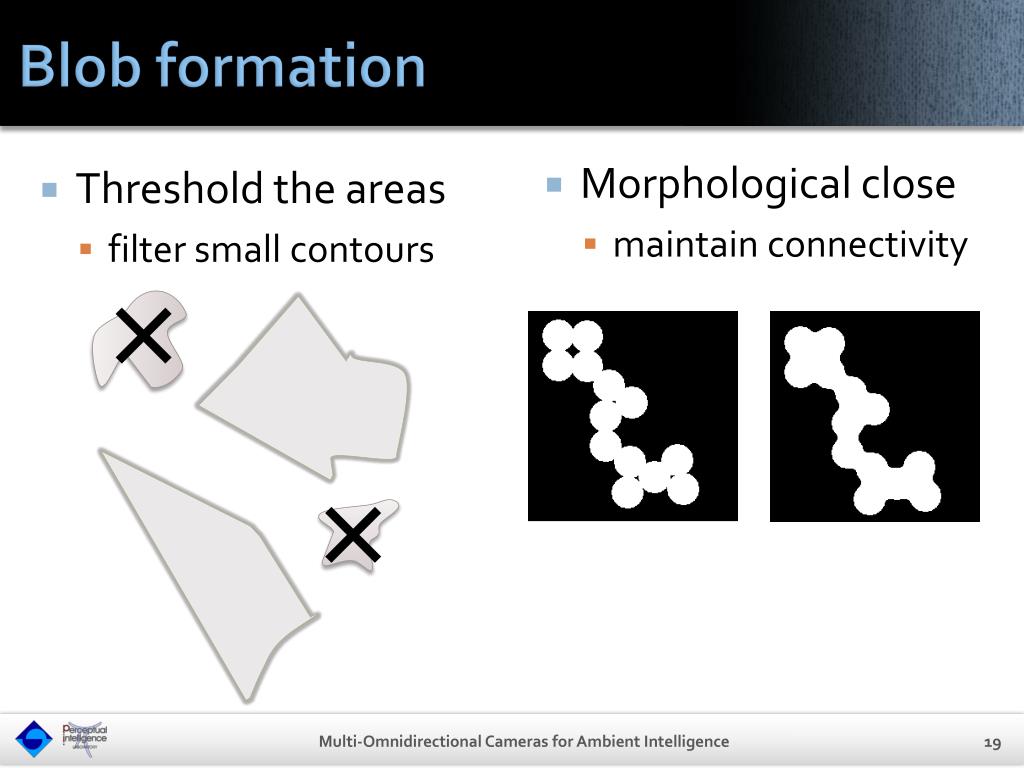

  19. Threshold the areas filter small contours Blob formation • Morphological close • maintain connectivity × × Multi-Omnidirectional Cameras for Ambient Intelligence

  20. FAST*corner detection Feature Point Detection andDescriptor Extraction • BRIEF features • extended for opponent color space • *Features from Accelerated Segment Test Multi-Omnidirectional Cameras for Ambient Intelligence

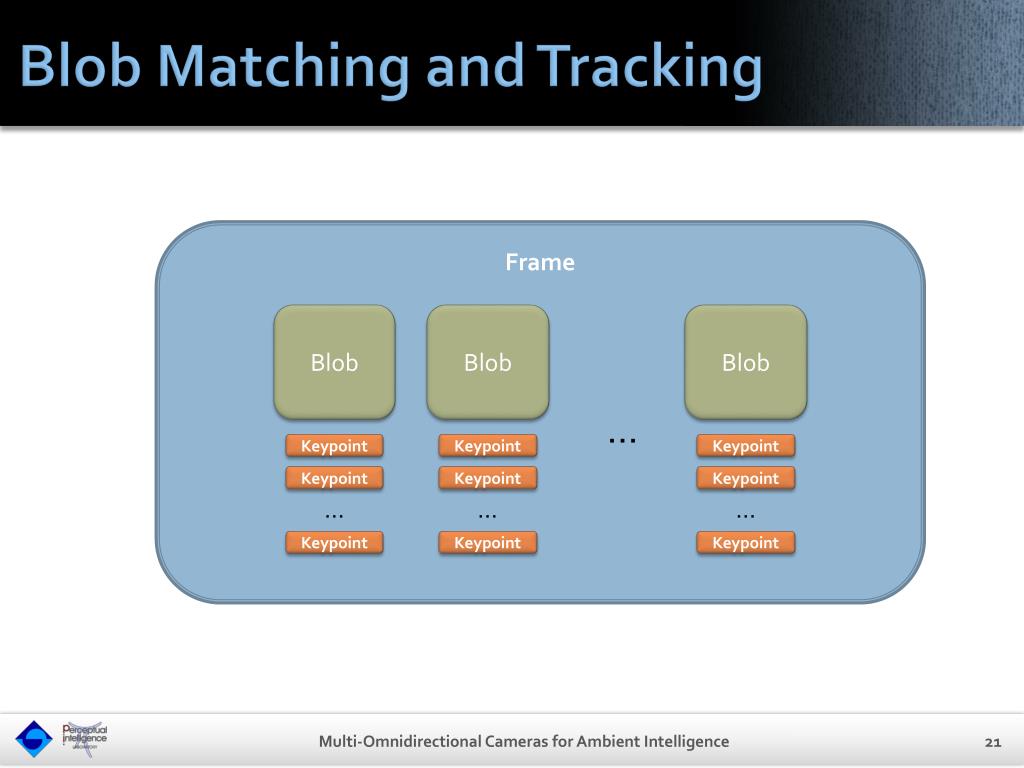

  21. Blob Matching and Tracking Frame Blob Blob Blob … Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint … … … Keypoint Keypoint Keypoint Multi-Omnidirectional Cameras for Ambient Intelligence

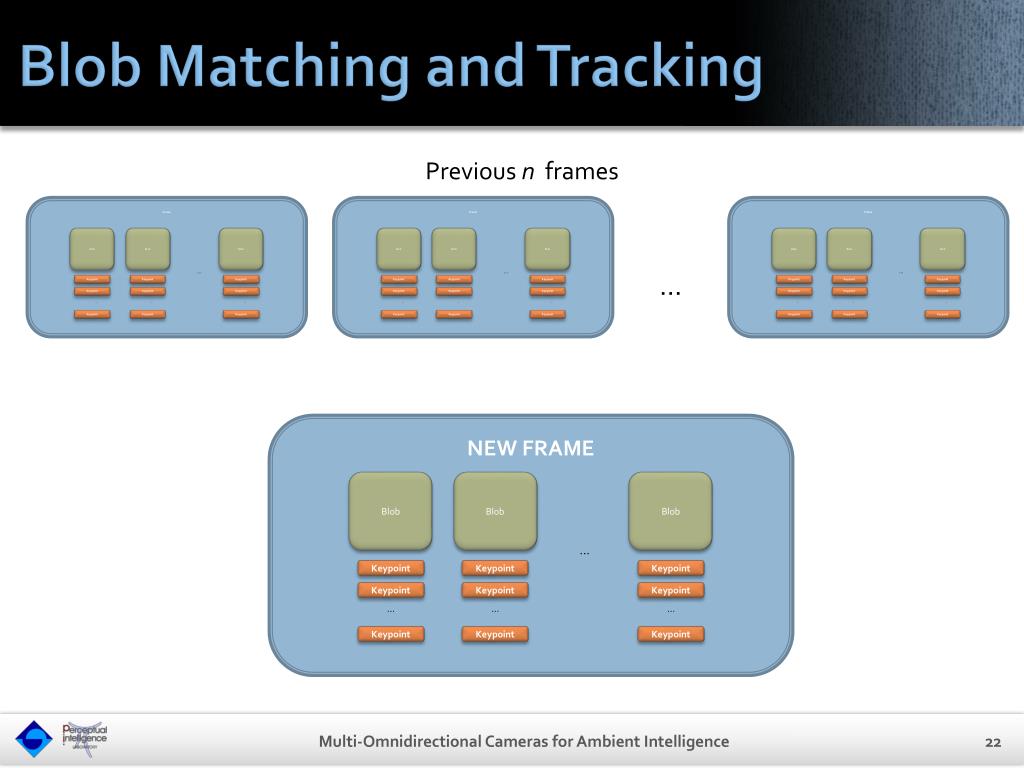

  22. Blob Matching and Tracking Previous n frames Frame NEW FRAME Frame Frame … Blob Blob Blob Blob Blob Blob Blob Blob Blob Blob Blob Blob … … … … Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint … … … … … … … … … … … … Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Keypoint Multi-Omnidirectional Cameras for Ambient Intelligence

  23. Blob Matching and Tracking • Optimal assignment problem • Hungarian algorithm Multi-Omnidirectional Cameras for Ambient Intelligence

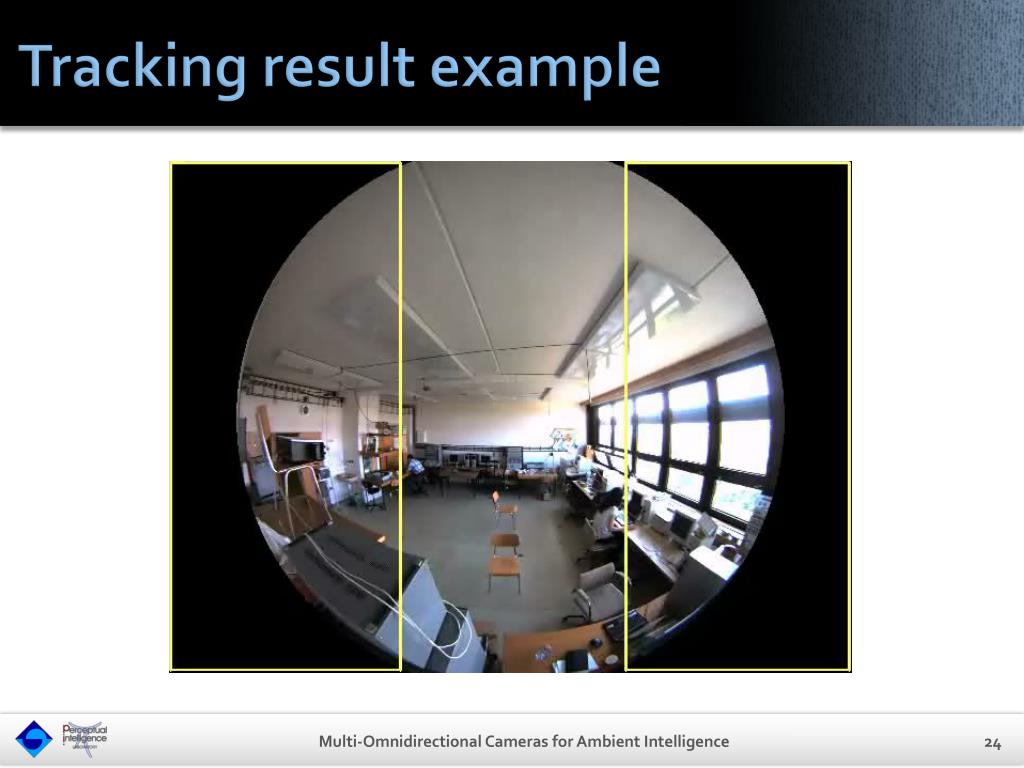

  24. Tracking result example Multi-Omnidirectional Cameras for Ambient Intelligence

  25. Results Multi-Omnidirectional Cameras for Ambient Intelligence

  26. Results Multi-Omnidirectional Cameras for Ambient Intelligence

  27. Results Multi-Omnidirectional Cameras for Ambient Intelligence

  28. Future directions • Utilizing information from multiple cameras • Handling occlusions • Undistorted keypoints • Evaluation protocol for action recognition Multi-Omnidirectional Cameras for Ambient Intelligence

  29. Questions?
