  1. Using Archived Data to Measure Operational Benefits of a System-wide Adaptive Ramp Metering (SWARM) System • April 18, 2006 • Dr. Robert Bertini • Dr. Sue Ahn • Dr. Chris Monsere

  2. Presentation Outline 1. Literature Review 2. Corridor Selection for Pilot Study 3. Data Collection Plan

  3. 1. Literature Review

  4. System-wide Adaptive Ramp Metering • Competitive, Traffic-Responsive Algorithm • SWARM 1: Global control • Forecasts density at a bottleneck and determines the required volume reduction for upstream ramps • Determines the individual metering rates based on the overall volume reduction required • SWARM 2: Local control • Determines the metering rate independently for each on-ramp based on the local condition •  Actual rates: more restrictive of the two rates

  5. System-wide Adaptive Ramp Metering • Capabilities • Potential to detect congestion in advance with high accuracy • Robustness: Built-in failure management (data clean-up) • Potential Problems • Potential ill-performance when forecasts are not accurate •  Good prediction models are key

  6. SWARM Field Testing • Orange County, CA (MacCarley et al., 2000) • The field-testing could not be conducted because • the SWARM algorithm did not operate correctly when tested for six weeks. • Caltrans did not receive proper training nor documentation to fully understand the SWARM system. •  Testing via Paramics (Zhang et al., 2001) •  SWARM was sensitive to the accuracy of the predictions

  7. SWARM Field Testing • LA and Ventura Counties, CA (Pham et al., 2002) • 1,200 ramp-meters in the region • Existing ramp-metering: pre-timed, local traffic-responsive • Tested on 20 controlled on-ramps on a freeway corridor (Route 210 W) during morning peaks (between September 2001 and January 2002) • A couple of days for each of the following strategies • SWARM 1 only: testing the global control only • SWARM 2b only: testing the local control only • SWARM 1/2b combined: testing the global and local controls

  8. SWARM Field Testing • LA and Ventura Counties, CA (Pham et al., 2002) • Results: SWARM 1/2b generated most benefits • Mainline Freeway: • Speed increased by 11% • Travel time decreased by 14% • Occupancy decreased by 13% • Delay decreased by 17% • Volume increased by 1%

  9. SWARM Field Testing • LA and Ventura Counties, CA (Pham et al., 2002) • On-ramps (at the nine busiest locations): • Volume decreased by 9% • Queue lengths increased by 41% • Limitations: • Small sample size (only a couple of days of testing) • No analysis on spatial equity • No analysis on traffic diversion to alternative routes • No analysis on change in the distribution of inflows

  10. SWARM Field Testing • Some Future Plans • LA and Ventura Counties • Ramp meter development plan in 2005 • More testing of SWARM • Fresno County (District 6) • Proposal for a pilot study • Orange County (District 12) • No updated status yet

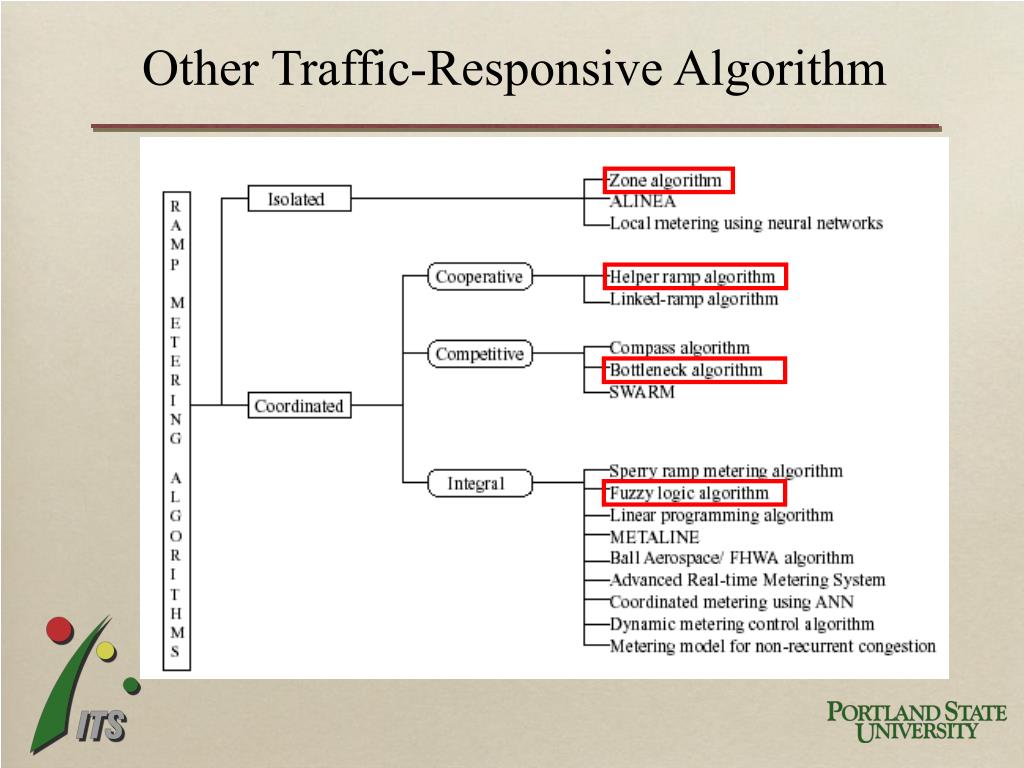

  11. Other Traffic-Responsive Algorithm

  12. Field Testing: ZONE Algorithm • Shut-off Experiment in Minneapolis, MN (Fall of 2000) •  The meters were shut off for eight weeks. • Conditions on mainline freeway • Traffic diversion to alternative routes • Change in travel behavior • On-ramp queue lengths • Cambridge Systematics, 2001 • Kwon et al., 2001 • Hourdakis and Michaelopoulos, 2002 • Levinson and Zhang, 2002

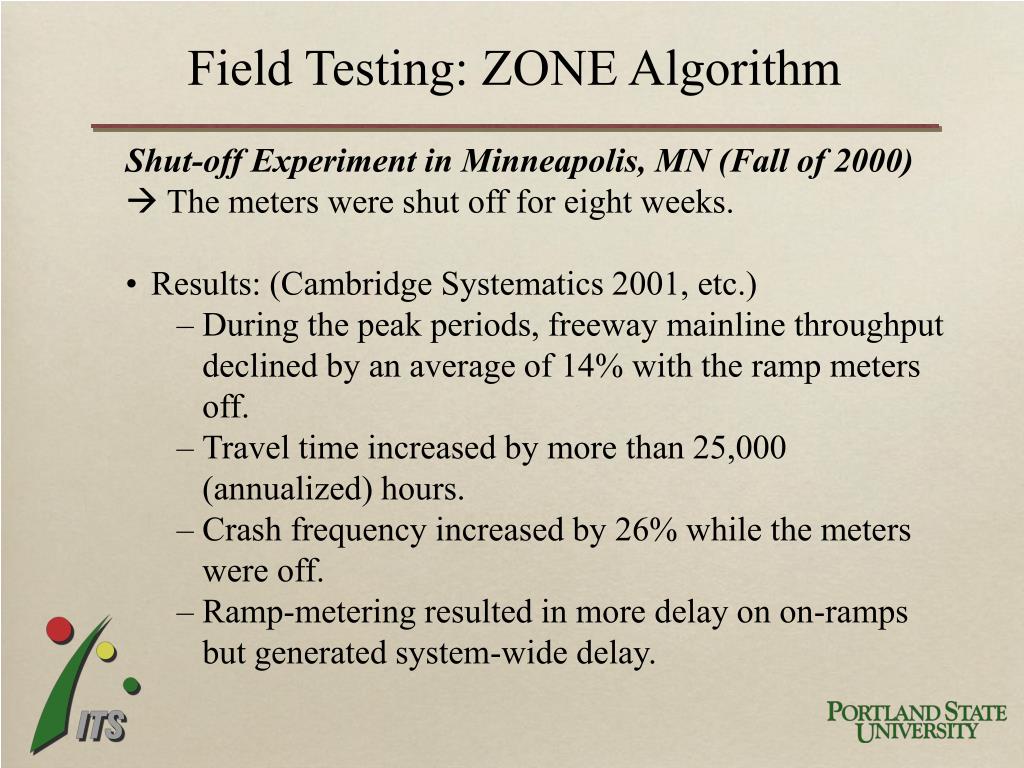

  13. Field Testing: ZONE Algorithm • Shut-off Experiment in Minneapolis, MN (Fall of 2000) •  The meters were shut off for eight weeks. • Results: (Cambridge Systematics 2001, etc.) • During the peak periods, freeway mainline throughput declined by an average of 14% with the ramp meters off. • Travel time increased by more than 25,000 (annualized) hours. • Crash frequency increased by 26% while the meters were off. • Ramp-metering resulted in more delay on on-ramps but generated system-wide delay.

  14. Field Testing: ZONE Algorithm • Shut-off Experiment in Minneapolis, MN (Fall of 2000) •  The meters were shut off for eight weeks. • Levinson and Zhang (2002) • Evaluated the system with seven measures: (mobility, accessibility, equity, consumers’ surplus, travel time variation, productivity, and travel demand responses) • Favorable results for ramp-metering • Equity analysis: worse off with ramp-metering •  travel time for short trips increased while the travel time for longer trips decreased.

  15. Other Field Testing • Helper Algorithm: Denver, CO • Bottleneck Algorithm: Seattle, WA • Fuzzy Logic Algorithm: Seattle, WA / Zoetermeer, Netherlands •  Similar Results (Favorable to ramp-metering)

  16. 2. Corridor Selection

  17. Freeway Network in Portland source: www.tripcheck.com

  18. SWARM Implementation Schedule

  19. Corridor Selection Criteria • 1)Level of congestion • Duration and spatial extent of congestion should be reasonably large (i.e., no localized queue). • Assessment of the SWARM performance while SWARM 1 mode (global control) interacts with SWARM 2 modes (local control) at multiple on-ramp locations. • 2) Spatial extent of queues: Isolated queues within a corridor • The head and tail of a queue should reside within a corridor. • This ensures a system-wide evaluation of the SWARM system within corridor without having to evaluate other intersecting freeways simultaneously.

  20. Corridor Selection Criteria • 3) Coverage of Loop detectors • Good coverage over the entire corridor • Reasonable spacing between loop detectors (≈1 mile) • 4) Data quality • Corridors for the pilot study will be selected based on their history of data quality • Rare communication failure • Large proportion of “good” readings • = (No activity + OK + Suspects) / all readings

  21. Corridor Selection Criteria • 5) Feasibility of analyzing traffic diversion • This requires identifying possible alternative routes and obtaining necessary data to measure traffic diversion. • Feasibility of collecting data on all alternative routes should be taken into consideration in selecting a study corridor. • 6) Stability of the SWARM system implemented • All ramp meters should be working properly • No bug in the implemented algorithm: actual metering rates = theoretical rates

  22. Corridor Selection Criteria • 7) Construction schedule • Exclude corridors that are scheduled for construction. • Excluded corridors will be re-considered for the regional-level evaluations. • 8) Presence of HOV lane or transit service • Changes in demand for a HOV lane or transit service on freeways or on alternative routes. •  It is highly unlikely that people change their travel behavior in the short run.

  23. Corridors NOT recommended • US-26 (East and Westbound) • Under major construction to expand a travel lane. • May be considered for the regional-level evaluation. • I-84 (East and Westbound) • EB: Only five loop detector stations, spanning less than 4 miles. • WB: Four loop detector stations, spanning 3 miles, and the 5th one is located 10 miles upstream. • Queues are not isolated within the section. • Only two or three on-ramps are metered on this corridor.

  24. Speed Contour: I-84 EB 60th St. Morrison Bridge

  25. Corridors NOT recommended • I-405 (Northbound) • Relatively short (≈ 3.5 miles). • Only two loop detector stations, covering less than 1 mile. • Queues are not isolated. • I-405 (Southbound) • Relatively short (≈ 3.5 miles). • Lightly congested during the peaks with a small queue (≈ 1.5 mile). • The head of a queue is located at the most downstream end.

  26. Speed Contour: I-405 SB Front Ave. Count Station

  27. Corridors NOT recommended • I-205 Southbound • This corridor is lightly congested during the peaks. (speed > 40 mph throughout the whole corridor) • OR 217 Northbound • Lightly congested during the peaks (speed > 45 mph). • Queue are not isolated:A queue forms near the junction with 99W and spills-over to I-5.

  28. Speed Contour: I-205 SB Airport Way Stafford

  29. Speed Contour: OR 217 NB 72nd 99W Walker

  30. Corridors NOT recommended • I-5 Upper Northbound • A major bottleneck at the South end of the Interstate Bridge?  This could not be verified since no loop detector data are received downstream of the bridge (Vancouver, WA). • History of communication failure • HOV lane

  31. Speed Contour: I-5 Upper NB Jantzen Beach upper Willsonville

  32. Corridors NOT recommended • I-5 Upper Southbound • Queues are not isolated: a queue forms near Columbia Blvd. and spills-over to Vancouver, WA. • I-5 Lower Southbound • AM and PM peaks: usually a small queue from near the Wheeler Ave. on-ramp (≈2 – 3 miles) • AM peak: often overrides the upstream bottleneck near Columbia Blvd. and the resulting queue propagates to WA • Large spacing between Wheeler and Hood Ave. (> 2 miles)

  33. Speed Contour: I-5 SB Jantzen Beach Columbia upper lower Wheeler Hood Nyberg

  34. SWARM Implementation Schedule

  35. Candidate Corridors: OR 217 SB source: www.tripcheck.com

  36. Candidate Corridors: OR 217 SB 72nd Greenburg Denney Barnes

  37. Candidate Corridors: OR 217 SB • OR 217 Southbound • Good amount of congestion in the morning and evening • Few alternative routes • Good history of loop detector data quality (> 95%) • Good detector spacing (good coverage) (< 1 mile) • No transit service or HOV lane on the freeway • Questions/Issues: • Operation hours: 6 AM – 10 AM? • Isolated queue  ? (spill-over from I-5S?) • Transit service on alternative routes?  www.trimet.org • Any construction scheduled?

  38. Candidate Corridors: I-5 Lower NB source: www.tripcheck.com

  39. Speed Contour: I-5 Lower NB Jantzen Beach Morrison lower Macadam Willsonville

  40. Candidate Corridors: I-5 Lower NB • I-5 Lower Northbound • Good amount of congestion in the evening • Isolated queues • No HOV lane on the freeway • Questions • Operating hours: 6 – 10 AM, 1 – 7 PM? • Any construction scheduled? • Transit service on freeway: ridership data? • How about on alternative routes?  www.trimet.org

  41. Candidate Corridors • I-5 Lower Northbound • Issues: • Several alternative routes • One segment with detector spacing > 2 miles (between Macadam Ave. and Bertha Ave.): any device? • Data quality (% good readings < 95%) • April 2006: Terwilliger Blvd NB (42%), Morrison BR (~90%), Broadway (74%), Alberta St. (68%) • March 2006: Pacific Hwy (23%), Broadway (82%), Alberta St. (53%) • February 2006: Pacific Hwy (0%), Broadway (88%), Alberta St. (75%)

  42. Candidate Corridors: I-205 NB source: www.tripcheck.com

  43. Speed Contour: I-5 NB Division Powell OR 43 Stafford

  44. Candidate Corridors • I-205 Northbound • Good amount of traffic in the morning and evening • Good data quality • Two recurrent bottlenecks (one near Division St. and the other near the junction with OR 43) • No HOV lane

  45. Candidate Corridors • I-205 Northbound • Questions/Issues: • Construction? • Transit service on freeway? • Isolated queue? (bottleneck at Powell or Division?) • An upstream queue is not usually isolated within this corridor (spill-over to I-5S)

  46. 3. Data Collection Plan

  47. Summary of Data Collection Plan

  48. Summary of Data Collection Plan

  49. 4. Experimental Design

  50. Candidate Corridors: OR 217 SB Alternative Routes
