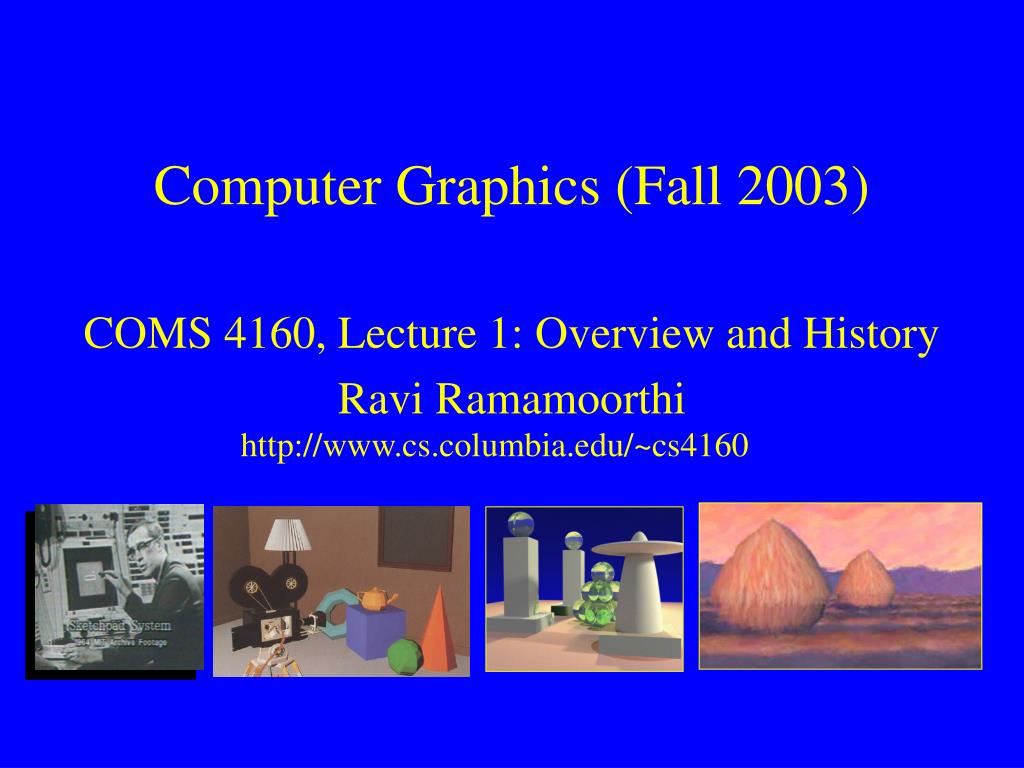

  1. Computer Graphics (Fall 2003) COMS 4160, Lecture 1: Overview and History Ravi Ramamoorthi http://www.cs.columbia.edu/~cs4160

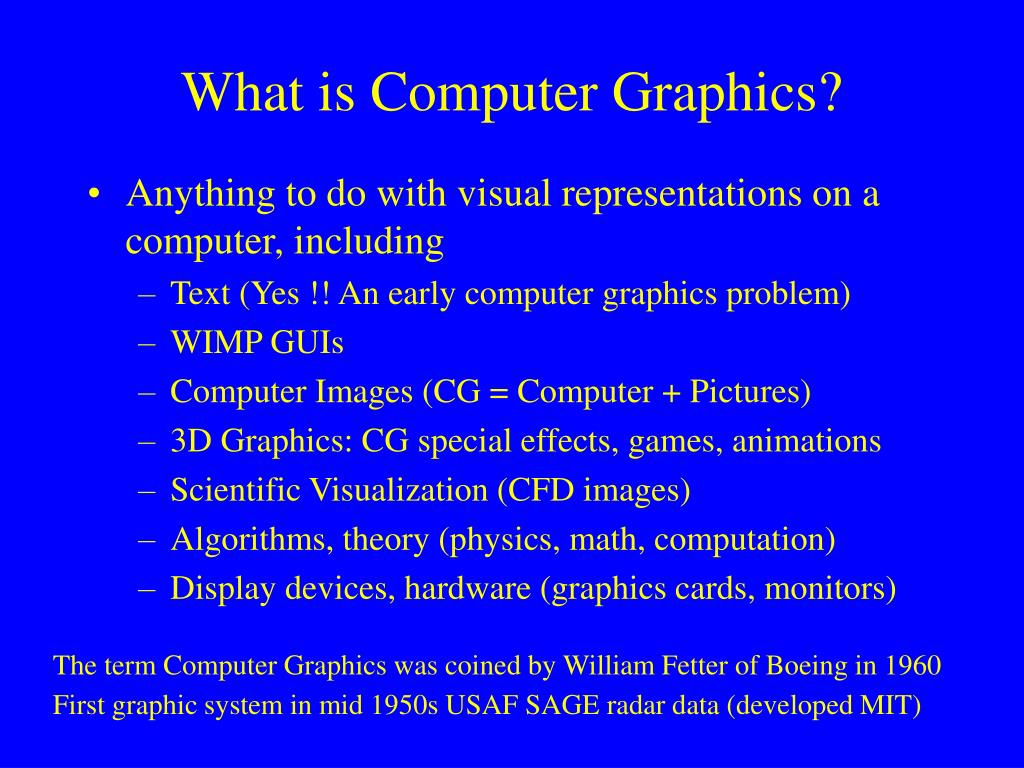

  2. What is Computer Graphics? • Anything to do with visual representations on a computer, including • Text (Yes !! An early computer graphics problem) • WIMP GUIs • Computer Images (CG = Computer + Pictures) • 3D Graphics: CG special effects, games, animations • Scientific Visualization (CFD images) • Algorithms, theory (physics, math, computation) • Display devices, hardware (graphics cards, monitors) The term Computer Graphics was coined by William Fetter of Boeing in 1960 First graphic system in mid 1950s USAF SAGE radar data (developed MIT)

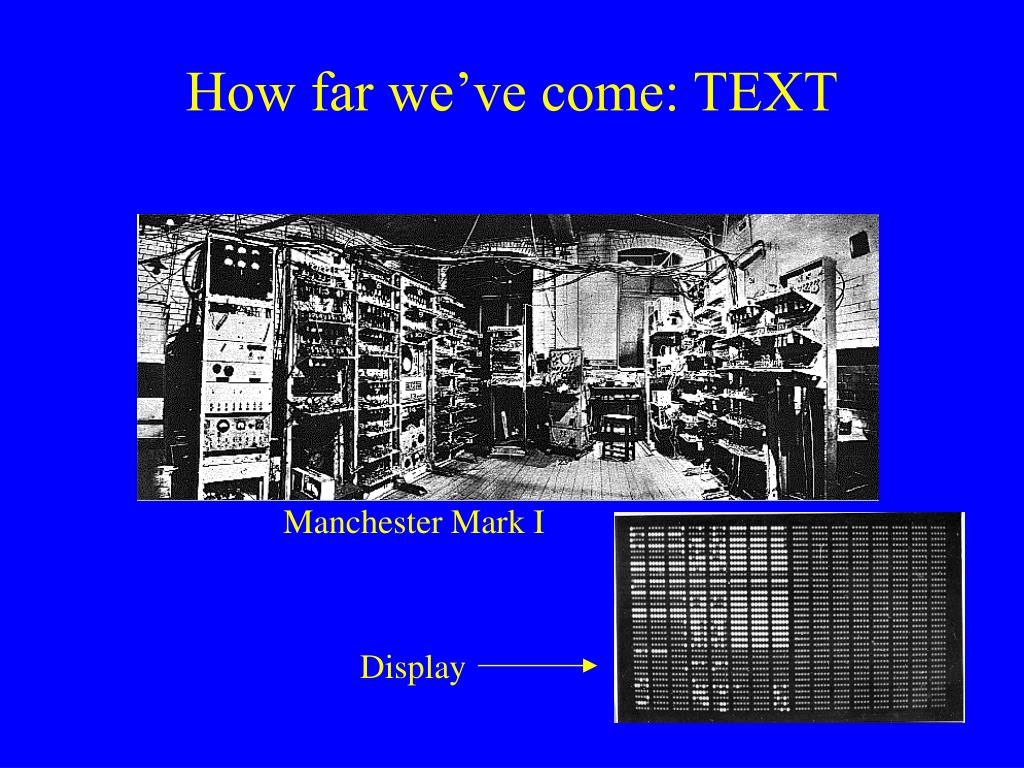

  3. How far we’ve come: TEXT Manchester Mark I Display

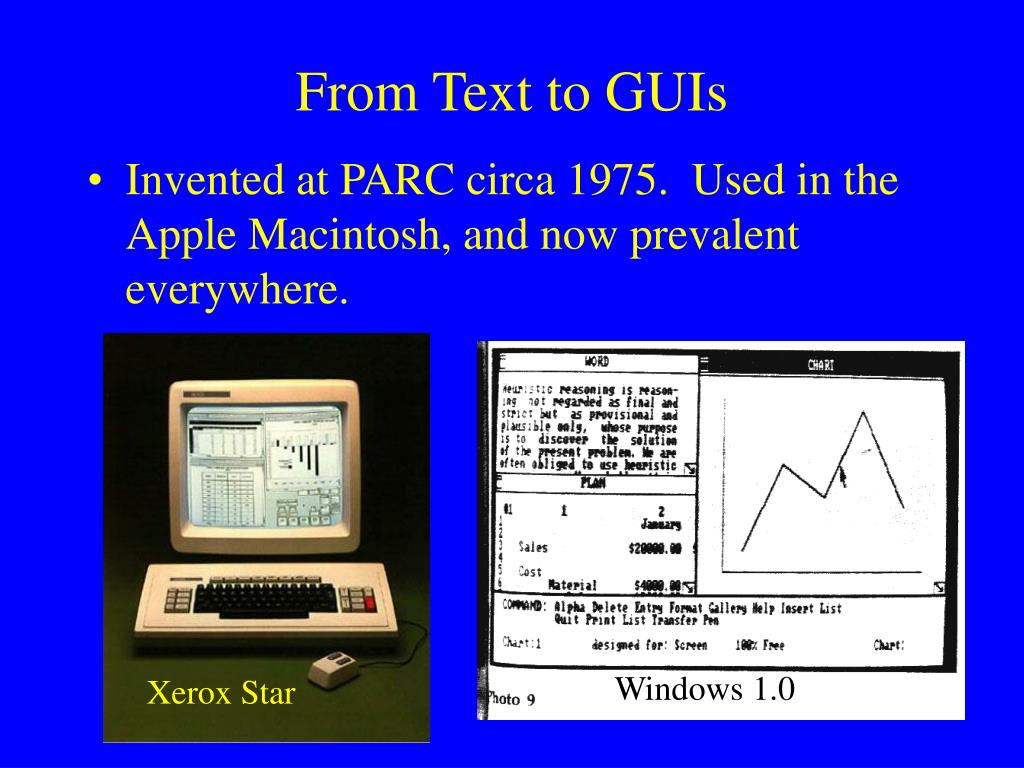

  4. From Text to GUIs • Invented at PARC circa 1975. Used in the Apple Macintosh, and now prevalent everywhere. Windows 1.0 Xerox Star

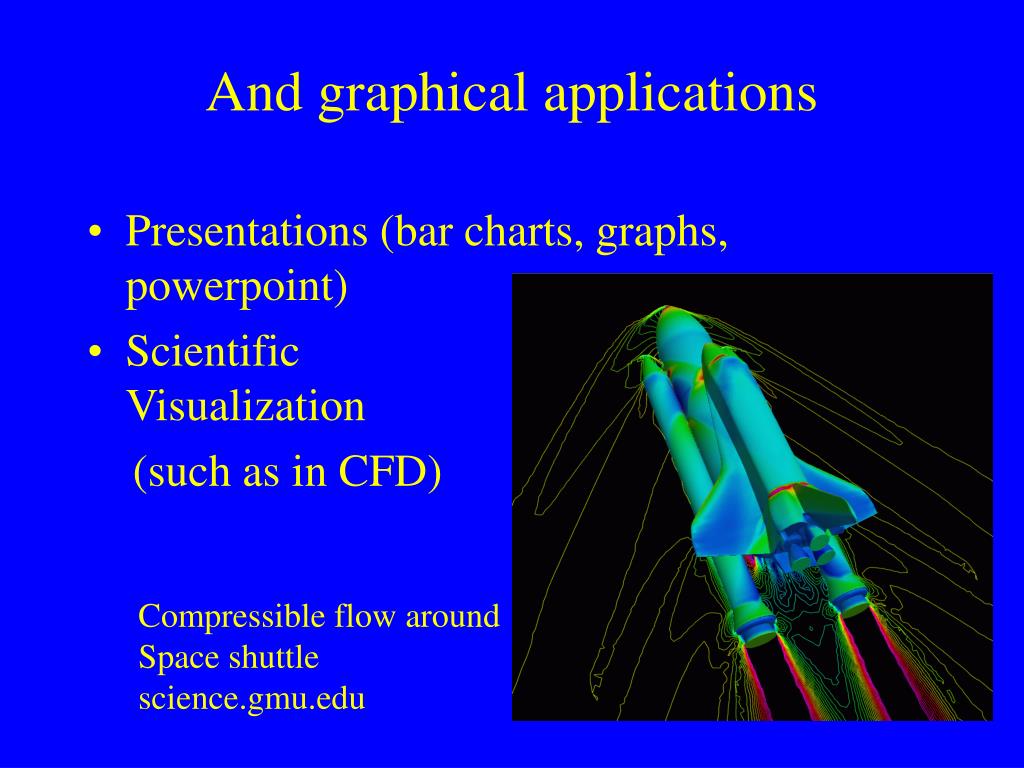

  5. And graphical applications • Presentations (bar charts, graphs, powerpoint) • Scientific Visualization (such as in CFD) Compressible flow around Space shuttle science.gmu.edu

  6. Display hardware • vector displays (1963: modified oscilloscope, 1974: Evans and Sutherland Picture System) • raster displays • 1975 – Evans and Sutherland frame buffer • 1980s – cheap frame buffers  bit-mapped personal computers • 1990s – liquid-crystal displays  laptops • 2000s – micro-mirror projectors  digital cinema • other (stereo, head-mounted displays, autostereoscopic displays, tactile, haptic, sound) Slide courtesy Marc Levoy

  7. Displaying Images in Color • 3 phosphors: Red, Green, Blue. 8 bits/channel, color will be 24 bits, approx 17 million colors • Secondary colors: R+B = Magenta • R+G = Yellow • B+G = Cyan • R+G+B = White (PP won’t let me draw 3C diag.) • Grayscale = .3R + .6G + .1B • Can also use 8 bits lookup table (256 colors) • Which 256 colors? Color Quantization (eg GIF)

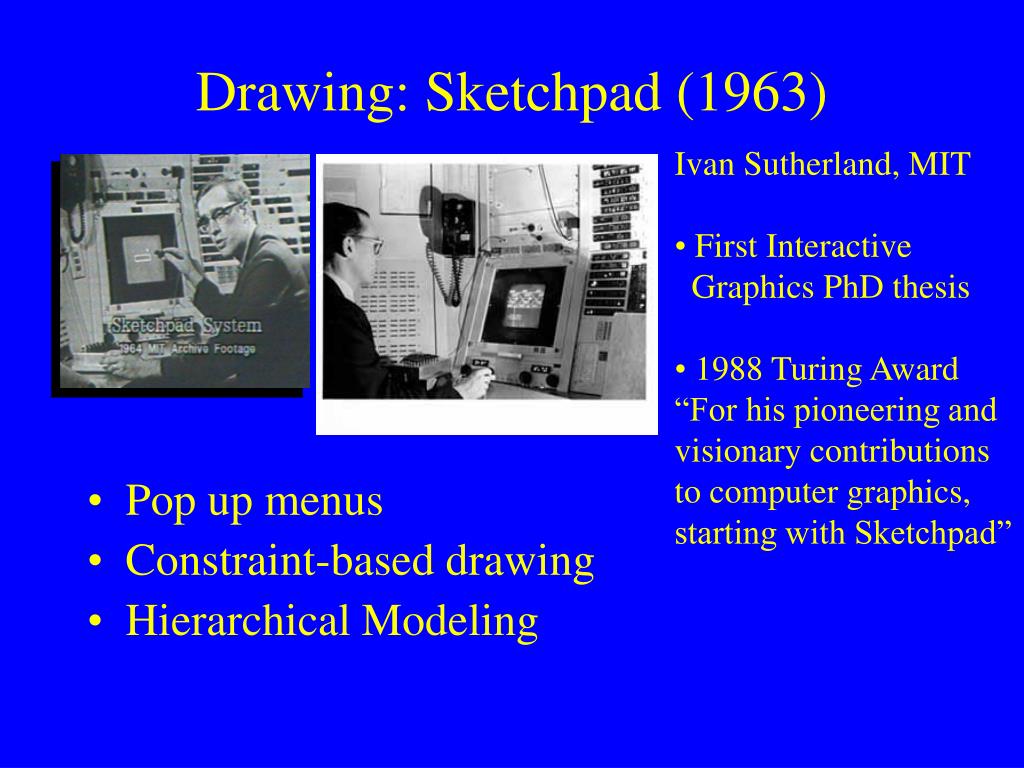

  8. Drawing: Sketchpad (1963) • Ivan Sutherland, MIT • First Interactive • Graphics PhD thesis • 1988 Turing Award • “For his pioneering and • visionary contributions • to computer graphics, • starting with Sketchpad” • Pop up menus • Constraint-based drawing • Hierarchical Modeling

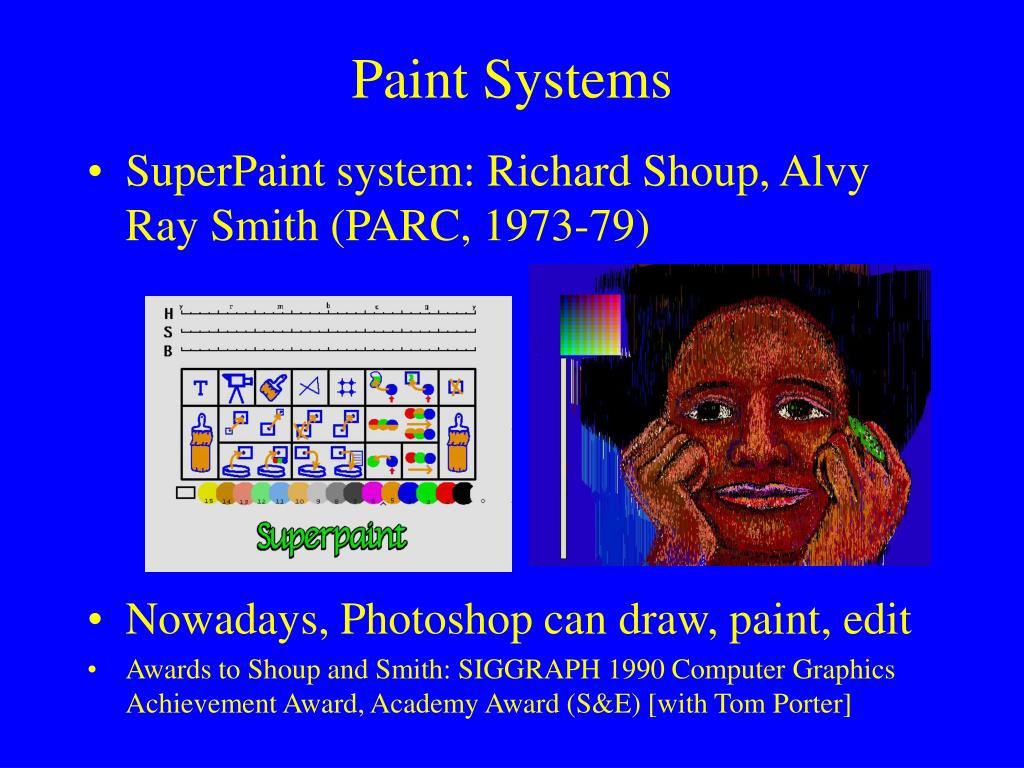

  9. Paint Systems • SuperPaint system: Richard Shoup, Alvy Ray Smith (PARC, 1973-79) • Nowadays, Photoshop can draw, paint, edit • Awards to Shoup and Smith: SIGGRAPH 1990 Computer Graphics Achievement Award, Academy Award (S&E) [with Tom Porter]

  10. Image Processing • Digitally alter images • Crop,scale,composite • Add or remove objects • Tools are still primitive • Relight, change materials • Combine synthetic objects • Topic of Research

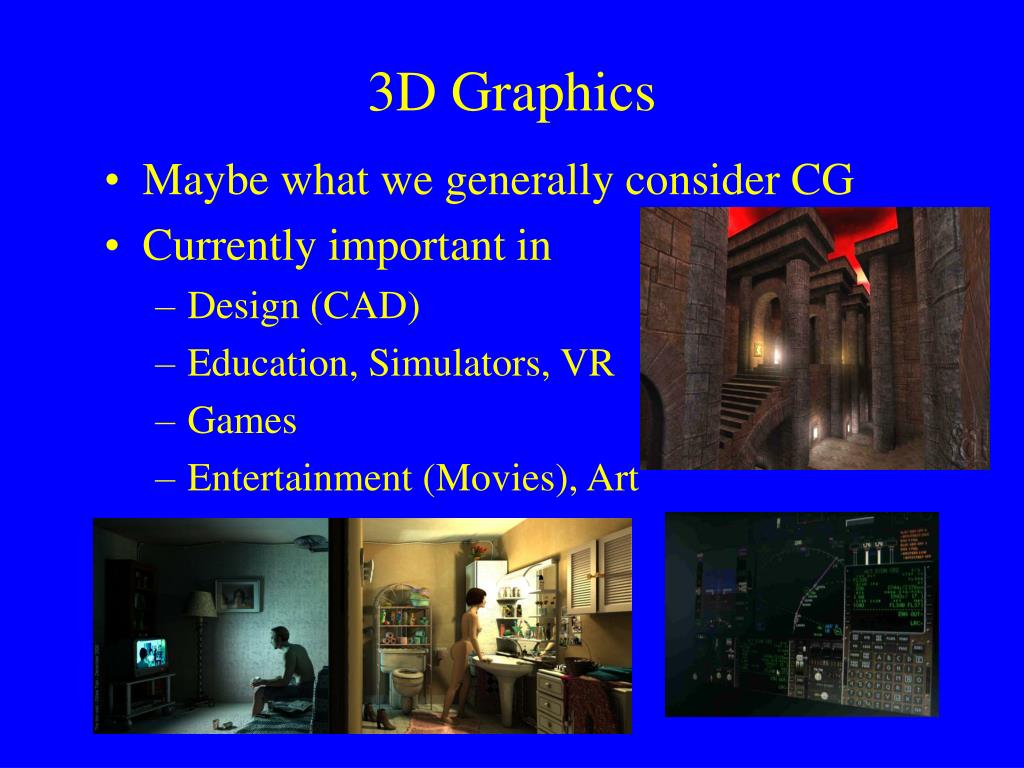

  11. 3D Graphics • Maybe what we generally consider CG • Currently important in • Design (CAD) • Education, Simulators, VR • Games • Entertainment (Movies), Art

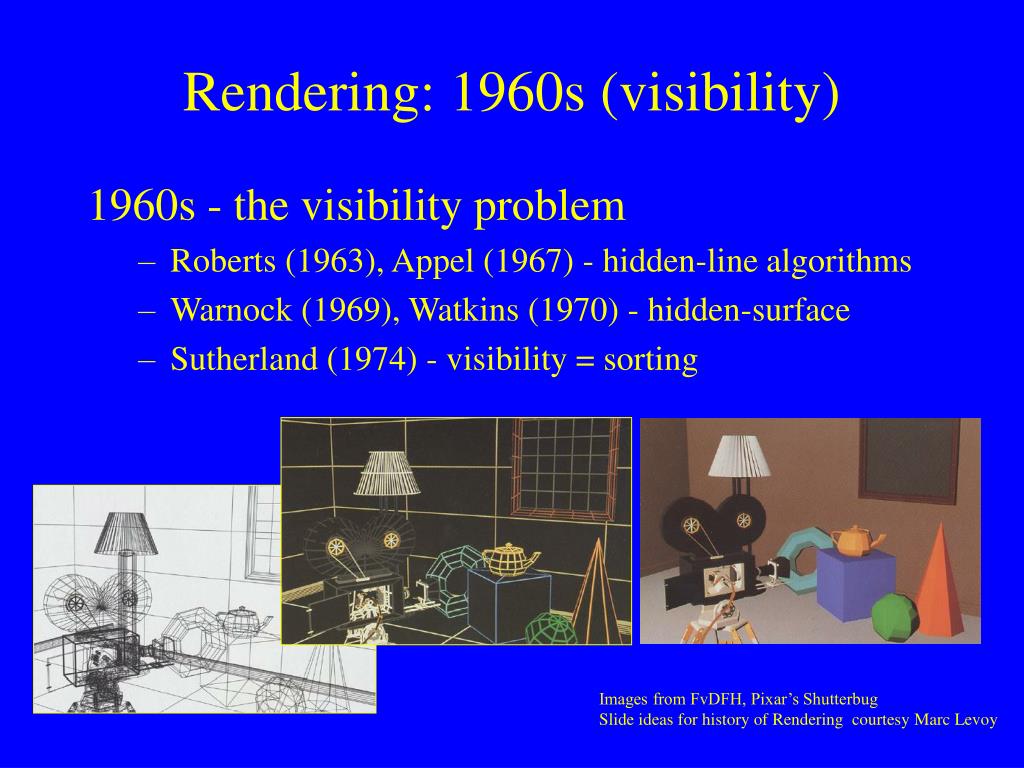

  12. Rendering: 1960s (visibility) 1960s - the visibility problem • Roberts (1963), Appel (1967) - hidden-line algorithms • Warnock (1969), Watkins (1970) - hidden-surface • Sutherland (1974) - visibility = sorting Images from FvDFH, Pixar’s Shutterbug Slide ideas for history of Rendering courtesy Marc Levoy

  13. Rendering: 1970s (raster graphics) 1970s - raster graphics • Gouraud (1971) - diffuse lighting • Phong (1974) - specular lighting • Blinn (1974) - curved surfaces, texture • Catmull (1974) - Z-buffer hidden-surface algorithm • Crow (1977) - anti-aliasing

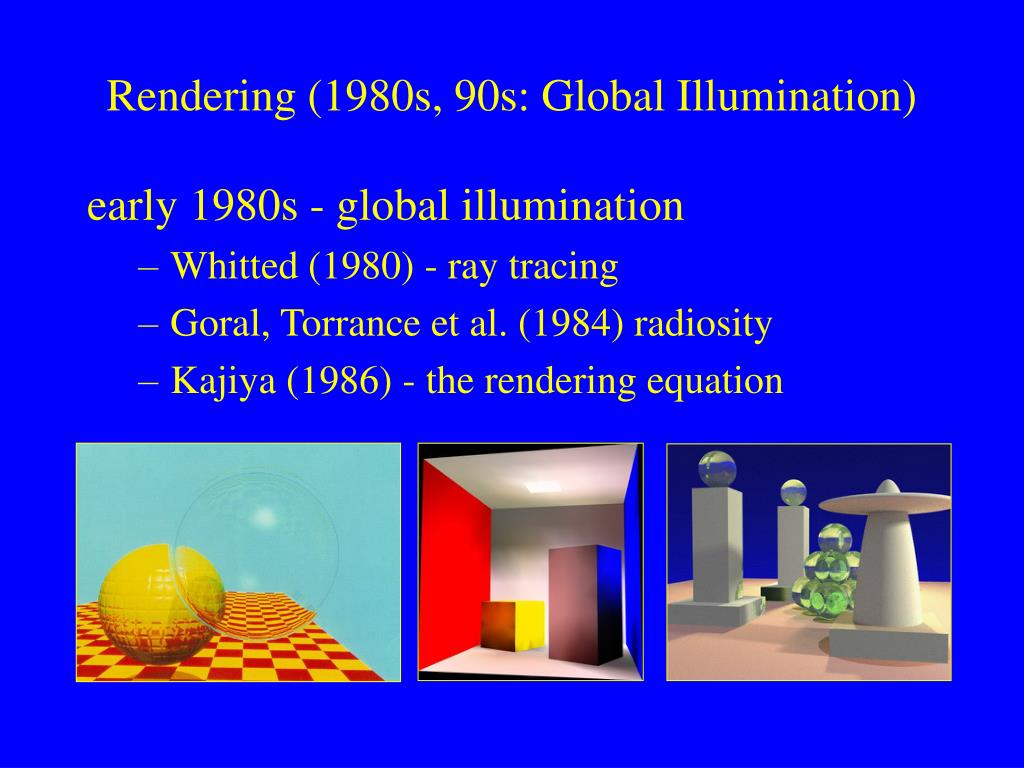

  14. Rendering (1980s, 90s: Global Illumination) early 1980s - global illumination • Whitted (1980) - ray tracing • Goral, Torrance et al. (1984) radiosity • Kajiya (1986) - the rendering equation

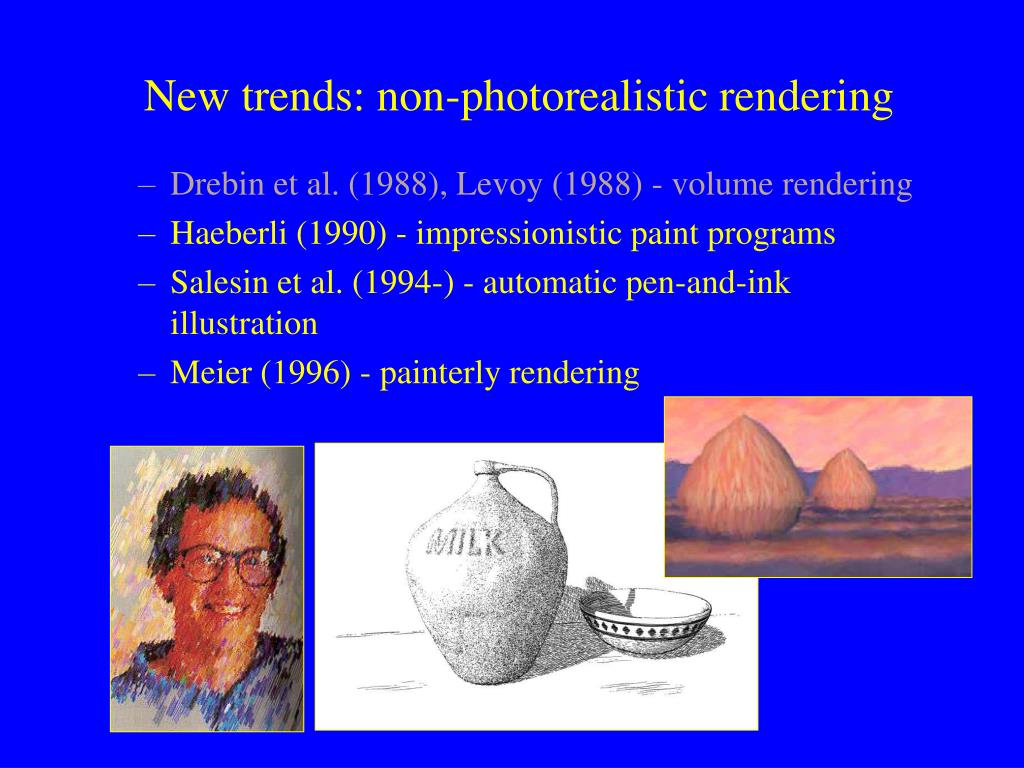

  15. New trends: non-photorealistic rendering • Drebin et al. (1988), Levoy (1988) - volume rendering • Haeberli (1990) - impressionistic paint programs • Salesin et al. (1994-) - automatic pen-and-ink illustration • Meier (1996) - painterly rendering

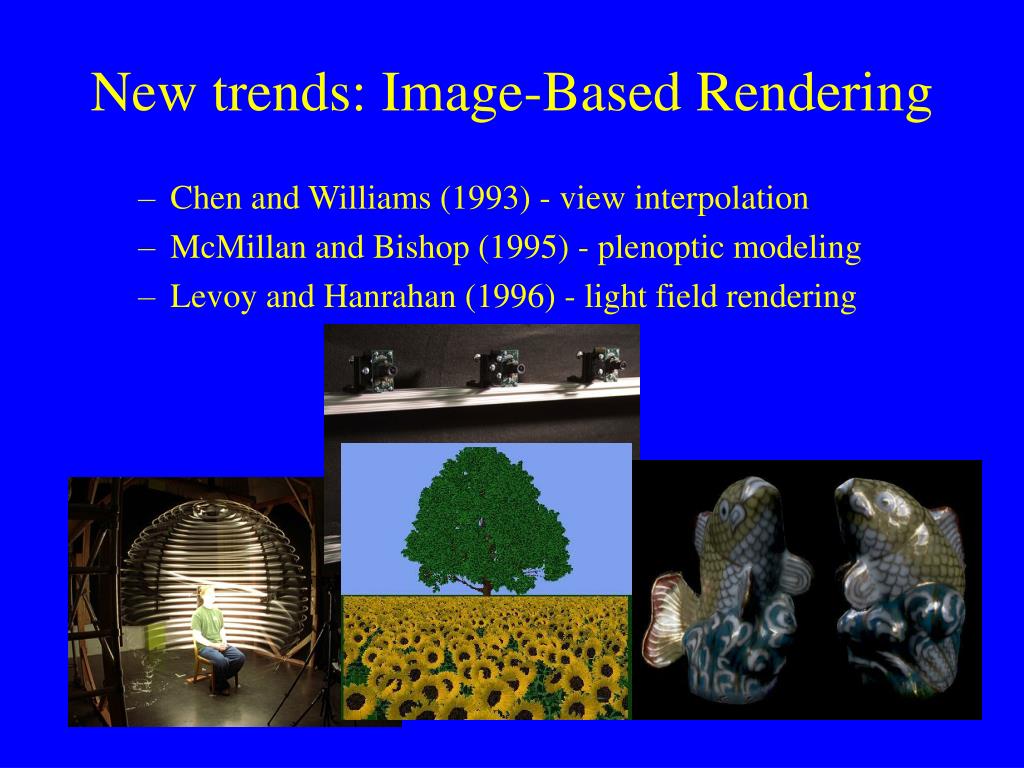

  16. New trends: Image-Based Rendering • Chen and Williams (1993) - view interpolation • McMillan and Bishop (1995) - plenoptic modeling • Levoy and Hanrahan (1996) - light field rendering

  17. 3D Graphics Pipeline • Nowadays, increasing reliance on real data (range, photographs, motion capture). Many research questions. • Also, Image-based rendering: interpolation of photographs Modeling Geometry, Lighting, Materials) Animation Kinematics, Dynamics Rendering Shading, Simulation of Light Images /Movies

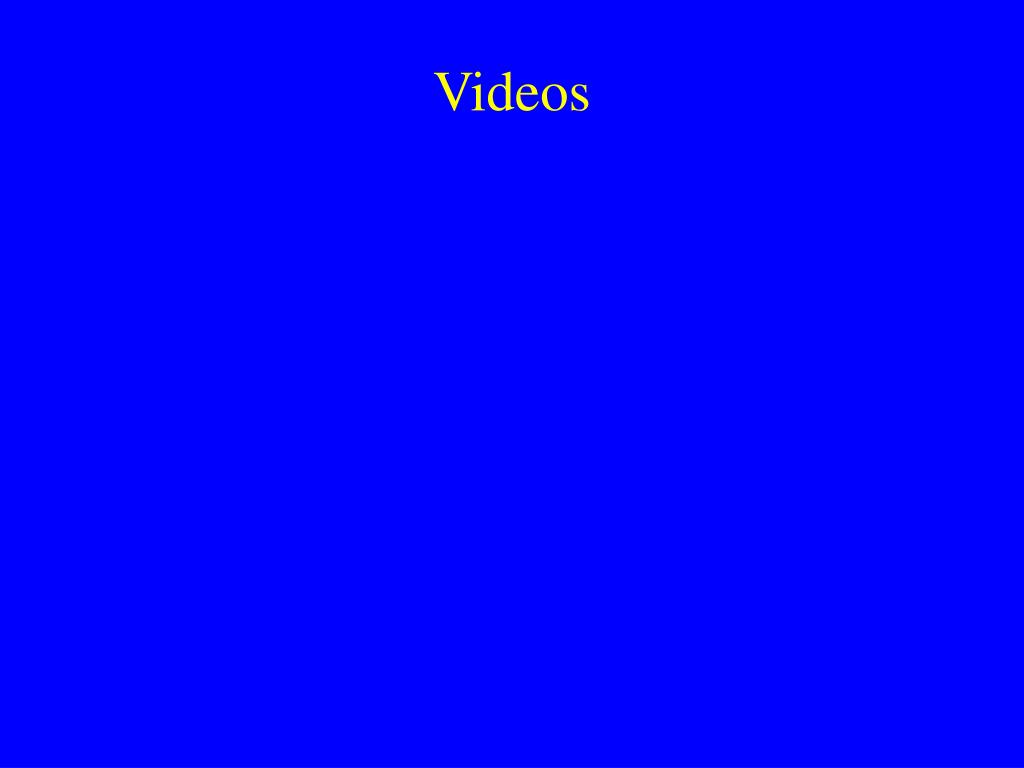

  18. Videos

  19. Relationship to other courses • Addition of several graphics courses (next year) • Other related (but not prerequisite) topics of interest: Computer vision, user interfaces, pixel processing.

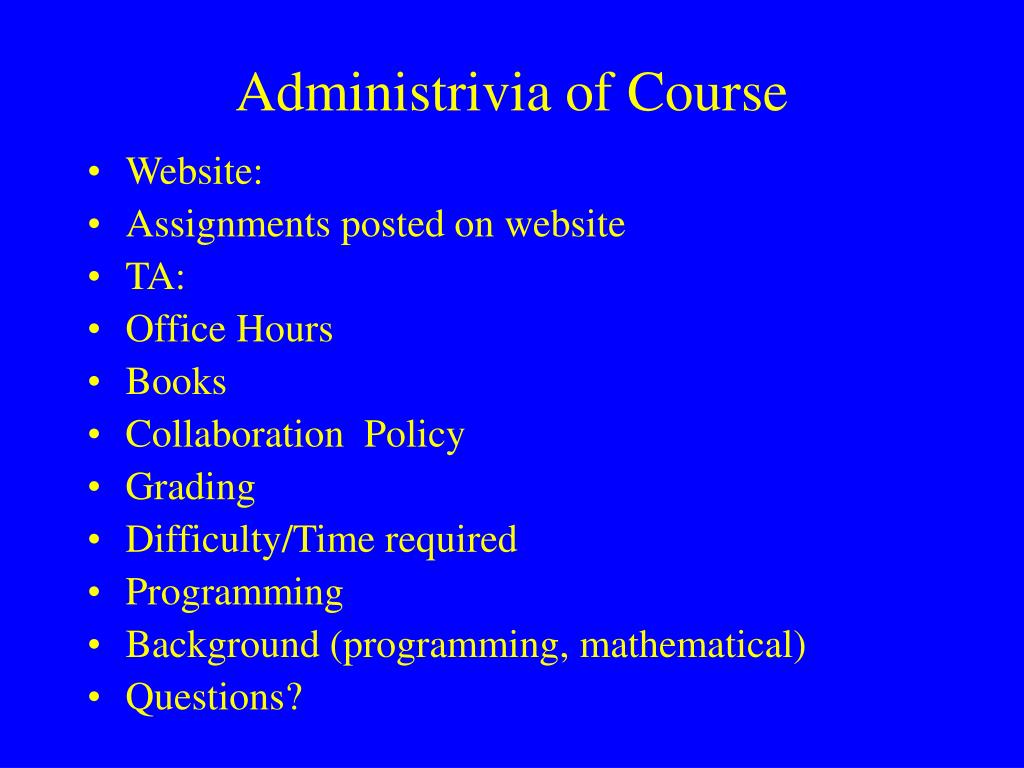

  20. Administrivia of Course • Website: • Assignments posted on website • TA: • Office Hours • Books • Collaboration Policy • Grading • Difficulty/Time required • Programming • Background (programming, mathematical) • Questions?

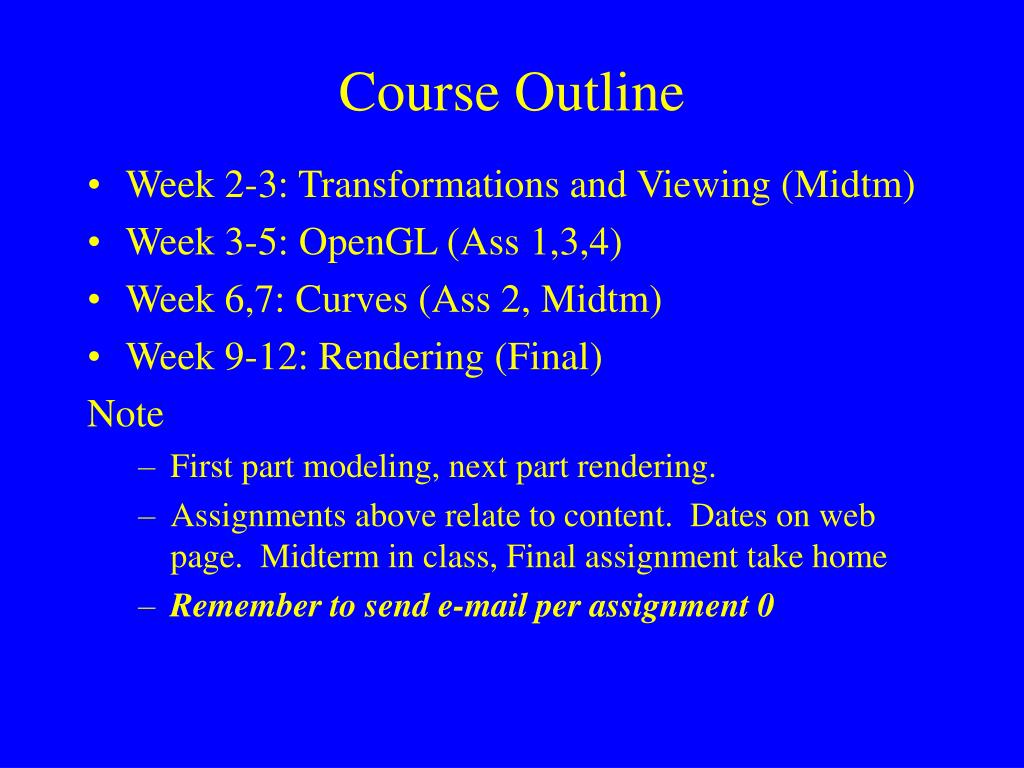

  21. Course Outline • Week 2-3: Transformations and Viewing (Midtm) • Week 3-5: OpenGL (Ass 1,3,4) • Week 6,7: Curves (Ass 2, Midtm) • Week 9-12: Rendering (Final) Note • First part modeling, next part rendering. • Assignments above relate to content. Dates on web page. Midterm in class, Final assignment take home • Remember to send e-mail per assignment 0
